Makita JV001G User manual

INSTRUCTION MANUAL
Cordless Jig Saw
JV001G
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: JV001G
Length of stroke 26 mm
Strokes per minute 800 - 3,500 min-1
Blade type B type
Max. cutting capacities Wood 135 mm
Mild steel 10 mm
Aluminum 20 mm
Overall length (with BL4025) 283 mm
Rated voltage D.C. 36 V - 40 V max
Net weight 2.6 - 2.9 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsmaydi󰀨erfromcountrytocountry.
• Theweightmaydi󰀨erdependingontheattachment(s),includingthebatterycartridge.Thelightestandheavi-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL4020 / BL4025 / BL4040
Charger DC40RA / DC40RB / DC40RC
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
andchargersmaycauseinjuryand/orre.
Symbols
The followings show the symbols which may be used
for the equipment. Be sure that you understand their
meaning before use.
Read instruction manual.
Wear safety glasses.
Ni-MH
Li-ion
Only for EU countries
Due to the presence of hazardous com-
ponents in the equipment, waste electrical
and electronic equipment, accumulators
and batteries may have a negative impact
on the environment and human health.
Do not dispose of electrical and electronic
appliances or batteries with household waste!
In accordance with the European Directive
on waste electrical and electronic equip-
ment and on accumulators and batteries
and waste accumulators and batteries,
as well as their adaptation to national law,
waste electrical equipment, batteries and
accumulators should be stored separately
and delivered to a separate collection point
for municipal waste, operating in accor-
dance with the regulations on environmen-
tal protection.
This is indicated by the symbol of the
crossed-out wheeled bin placed on the
equipment.
Intended use
The tool is intended for the sawing of wood, plastic and
metal materials.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-2-11:
Sound pressure level (LpA) : 87 dB (A)
Sound power level (LWA) : 98 dB (A)
Uncertainty (K) : 3 dB (A)
NOTE:
The declared noise emission value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared noise emission value(s) may
also be used in a preliminary assessment of exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can di󰀨er from the declared
value(s) depending on the ways in which the tool is
used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).

3ENGLISH
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-2-11:
Work mode: cutting boards
Vibration emission (ah,B) : 4.6 m/s2
Uncertainty (K) : 2.5 m/s2
Work mode: cutting sheet metal
Vibration emission (ah,M) : 4.8 m/s2
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
actual use of the power tool can di󰀨er from the
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
o󰀨 and when it is running idle in addition to the
trigger time).
Declarations of Conformity
For European countries only
The Declarations of conformity are included in Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING Read all safety warnings, instruc-
tions, illustrations and specications provided with
this power tool. Failure to follow all instructions listed
belowmayresultinelectricshock,reand/orserious
injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply. Use of an RCD reduces
the risk of electric shock.
7. Power tools can produce electromagnetic
elds (EMF) that are not harmful to the user.
However, users of pacemakers and other similar
medical devices should contact the maker of their
device and/or doctor for advice before operating
this power tool.
Personal safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
powertoolsmayresultinseriouspersonalinjury.

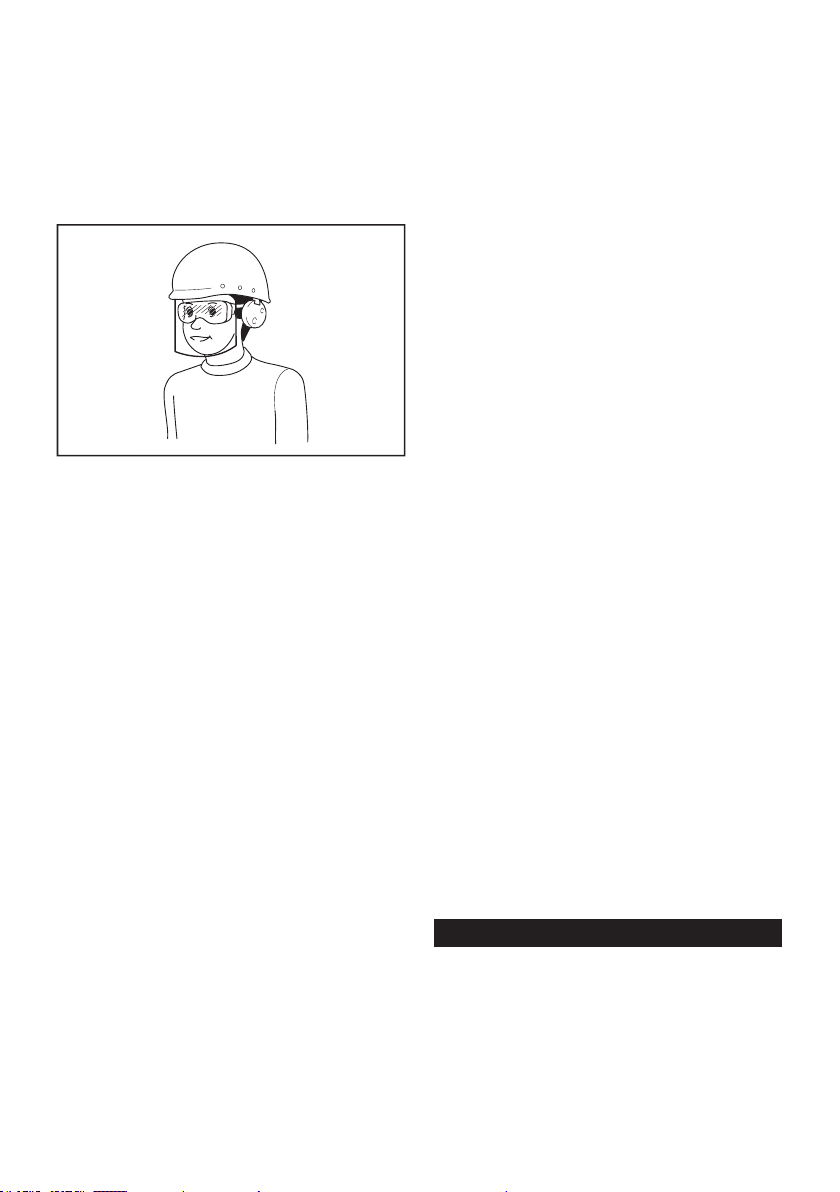

2. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as a dust mask, non-skid safety shoes, hard hat or
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the o󰀨-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts.Looseclothes,jewelleryor
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.

4ENGLISH
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
causesevereinjurywithinafractionofasecond.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and o󰀨. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may a󰀨ect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
foroperationsdi󰀨erentfromthoseintendedcould
result in a hazardous situation.
8.
Keep handles and grasping surfaces dry, clean
and free from oil and grease. Slippery handles and
grasping surfaces do not allow for safe handling and
control of the tool in unexpected situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
resultinpersonalinjury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
onetypeofbatterypackmaycreateariskofre
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied.Damagedormodiedbatteries
may exhibit unpredictable behaviour resulting in
re,explosionorriskofinjury.
6. Do not expose a battery pack or tool to re or
excessive temperature.Exposuretoreortem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outsidethespeciedrangemaydamagethe
batteryandincreasetheriskofre.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Cordless jig saw safety warnings
1. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting accessory may contact hidden wir-
ing. Cutting accessory contacting a “live” wire may
make exposed metal parts of the power tool “live”
and could give the operator an electric shock.
2. Use clamps or another practical way to secure
and support the workpiece to a stable plat-
form. Holding the workpiece by hand or against
your body leaves it unstable and may lead to loss
of control.

5ENGLISH
3.
Always use safety glasses or goggles. Ordinary
eye or sun glasses are NOT safety glasses.
4. Avoid cutting nails. Inspect workpiece for any
nails and remove them before operation.
5. Do not cut oversize workpiece.
6. Check for the proper clearance around the
workpiece before cutting so that the jig saw
blade will not strike the oor, workbench, etc.
7. Hold the tool rmly.
8. Make sure the jig saw blade is not contacting
the workpiece before the switch is turned on.
9. Keep hands away from moving parts.
10. Do not leave the tool running. Operate the tool
only when hand-held.
11. Always switch o󰀨 and wait for the jig saw blade
to come to a complete stop before removing
the jig saw blade from the workpiece.
12. Do not touch the jig saw blade or the work-
piece immediately after operation; they may be
extremely hot and could burn your skin.
13. Do not operate the tool at no-load
unnecessarily.
14. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
15. Always use the correct dust mask/respirator
for the material and application you are work-
ing with.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using battery.
2. Do not disassemble or tamper with the battery
cartridge.Itmayresultinare,excessiveheat,
or explosion.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store and use the tool and battery car-
tridge in locations where the temperature may
reach or exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Do not nail, cut, crush, throw, drop the battery
cartridge, or hit against a hard object to the
battery cartridge. Such conduct may result in a
re,excessiveheat,orexplosion.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tapeormasko󰀨opencontactsandpackupthe
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliantproductsmayresultinare,exces-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
14. During and after use, the battery cartridge may
take on heat which can cause burns or low
temperature burns. Pay attention to the han-
dling of hot battery cartridges.
15. Do not touch the terminal of the tool imme-
diately after use as it may get hot enough to
cause burns.
16. Do not allow chips, dust, or soil stuck into the
terminals, holes, and grooves of the battery
cartridge.Itmaycauseheating,catchingre,
burst and malfunction of the tool or battery car-
tridge,resultinginburnsorpersonalinjury.
17. Unless the tool supports the use near
high-voltage electrical power lines, do not use
the battery cartridge near a high-voltage elec-
trical power lines. It may result in a malfunction
or breakdown of the tool or battery cartridge.
18. Keep the battery away from children.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.

6ENGLISH
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2.
Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. When not using the battery cartridge, remove
it from the tool or the charger.
5. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch o󰀨 the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridgermlymaycausethemtoslipo󰀨yourhands
and result in damage to the tool and battery cartridge
andapersonalinjury.
1
2
3
Fig.1
►1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator as
showninthegure,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
Indicating the remaining battery
capacity
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
1
2
Fig.2
►1. Indicator lamps 2. Check button
Indicator lamps Remaining
capacity
Lighted O󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydi󰀨erslightly
from the actual capacity.
NOTE:Therst(farleft)indicatorlampwillblinkwhen
the battery protection system works.

7ENGLISH
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem.Thissystemautomaticallycutso󰀨powertothe
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the battery is operated in a manner that causes
it to draw an abnormally high current, the tool automat-
ically stops without any indication. In this situation, turn
thetoolo󰀨andstoptheapplicationthatcausedthetool
to become overloaded. Then turn the tool on to restart.
Overheat protection
When the tool or battery is overheated, the tool stops
automatically and the lamp blinks. In this case, let the
tool and battery cool before turning the tool on again.
Overdischarge protection
When the battery capacity is not enough, the tool stops
automatically. In this case, remove the battery from the
tool and charge the battery.
Protections against other causes
Protection system is also designed for other causes
that could damage the tool and allows the tool to stop
automatically. Take all the following steps to clear the
causes, when the tool has been brought to a temporary
halt or stop in operation.
1. Turnthetoolo󰀨,andthenturnitonagainto
restart.
2. Charge the battery(ies) or replace it/them with
recharged battery(ies).
3. Let the tool and battery(ies) cool down.
If no improvement can be found by restoring protection
system, then contact your local Makita Service Center.
Selecting the cutting action
This tool can be operated with an orbital or a straight
line (up and down) cutting action. The orbital cutting
actionthruststhejigsawbladeforwardandincreases
cutting speed.
1
Fig.3
►1. Cutting action changing lever
To change the cutting action, turn the cutting action
changing lever to the desired cutting action position.
Refer to the table to select the appropriate cutting
action.
Position Cutting action Applications
0Straight line cutting
action
For cutting mild
steel, stainless
steel and plastics.
For clean cuts in
wood and plywood.
ISmall orbital
cutting action
For cutting mild
steel, aluminum
and hard wood.
II Medium orbital
cutting action
For cutting wood
and plywood.
For fast cutting in
aluminum and mild
steel.
III Large orbital
cutting action
For fast cutting in
wood and plywood.
Lighting up the front lamp
CAUTION: Do not look in the light or see the
source of light directly.
Press the lock switch to turn on the lamp. Press the lock
switchagaintoturno󰀨thelamp.
21
Fig.4
►1. Lock switch 2. Lamp
NOTICE: When the tool is overheated, the lamp
blinks. Cool down the tool fully before operating
the tool again.
NOTE:Useadryclothtowipethedirto󰀨thelensof
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.

8ENGLISH

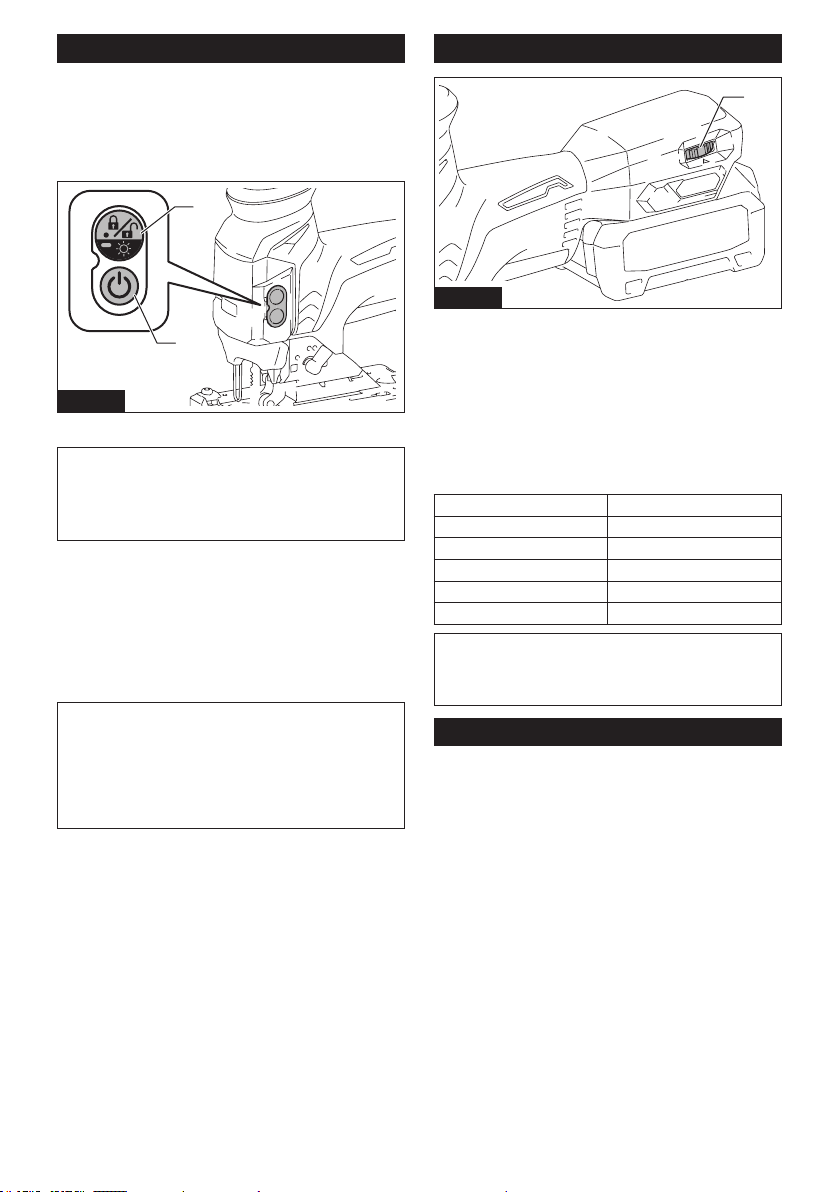

Switch action
To turn on the tool, press the lock switch. The tool turns
into the standby mode. To start the tool, press the ON/
standby switch in the standby mode. To stop the tool,
press the ON/standby switch again. The tool turns into
thestandbymode.Toturno󰀨thetool,pressthelock
switch in the standby mode.
1
2
Fig.5
►1. Lock switch 2. ON/standby switch
NOTE: If the tool is left for 10 seconds without any
operation in the standby mode, the tool automatically
turnso󰀨andthelampgoeso󰀨.
NOTE:Youcanalsostopandturno󰀨thetoolby
pressing the lock switch while the tool is operating.
To decreases the brightness of the lamp, press and
hold the lock switch when turning into the standby
mode. About 1 second after you start pressing the lock
switch, the brightness of the lamp will start to decrease,
so release the lock switch when you reach the desired
brightness. It turns the tool into standby mode, too.
About 3 seconds after you start pressing the lock
switch, the brightness of the lamp will be minimized and
the brightness will not change after that.
NOTE:Thebrightnessofthelampcannotbeadjusted
whilethetoolisinstandbymode.Turno󰀨thetoolto
decrease the brightness of the lamp.
NOTE: There is no memory function for the bright-
nessofthelamp.Ifyouturnthelampo󰀨andthenturn
it on, the brightness of the lamp will be maximized
each time.
Speed adjusting dial
1
Fig.6
►1.Speedadjustingdial
Thetoolspeedcanbeadjustedbyturningthespeed
adjustingdial.Youcangetthehighestspeedat6and
the lowest speed at 1.
Refer to the table to select the proper speed for the
workpiece to be cut. However, the appropriate speed
maydi󰀨erwiththetypeorthicknessoftheworkpiece.In
general, higher speeds will allow you to cut workpieces
fasterbuttheservicelifeofthejigsawbladewillbe
reduced.
Workpiece Number
Wood 4 - 6
Mild steel 3 - 6
Stainless steel 3 - 4
Aluminum 3 - 6
Plastics 1 - 4
NOTICE: The speed adjusting dial can be turned
only as far as 6 and back to 1. Do not force it past
6 or 1, or the speed adjusting function may no
longer work.
Electronic function
The tool is equipped with the electronic functions for
easy operation.
Soft start
The soft-start function minimizes start-up shock, and
makes the tool start smoothly.
Constant speed control
Electronic speed control for obtaining constant speed.
Possibletogetnenish,becausetherotatingspeedis
kept constant even under load condition.
Soft no-load rotation
Whenthespeedadjustingdialissetto"3"orhigher,
the tool automatically reduces the speed at no-load to
reducethevibrationandalignthejigsawbladewith
the cutting line easily. Once the tool starts cutting the
workpiece, the tool speed increase and reach the pre-
set speed.

9ENGLISH
NOTE: When the temperature is low, this function
may not be available. This function also may not be
available depending on the type of the material.
NOTE: If the speed does not decrease after cutting
theworkpiece,turno󰀨thetoolandthenturnonit
again.
Disabling or enabling the soft no-load
rotation function
To disable or enable the soft no-load rotation function,
follow the steps below.
1. Makesurethatthetoolisturnedo󰀨.
2. Setthespeedadjustingdialto"1".
3. Press the lock switch to turn on the tool.
4. Turnthespeedadjustingdialto"6",andthensetit
back to "1".
The lamp blinks twice when the soft no-load rotation
function is disabled or enabled. To enable or disable this
function again, perform the same procedure again.
NOTE: If the soft no-load rotation function is disabled,
the lamp blinks twice when the tool is turned on.
NOTE: You can also disable or enable the soft
no-load rotation function by changing the speed
adjustingdialto"6"-"1"-"6".
Electric brake
This tool is equipped with an electric brake. If the tool
consistently fails to quickly stop after the switch trigger
is released, have the tool serviced at a Makita service
center.
ASSEMBLY
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before carrying out any work on the tool.

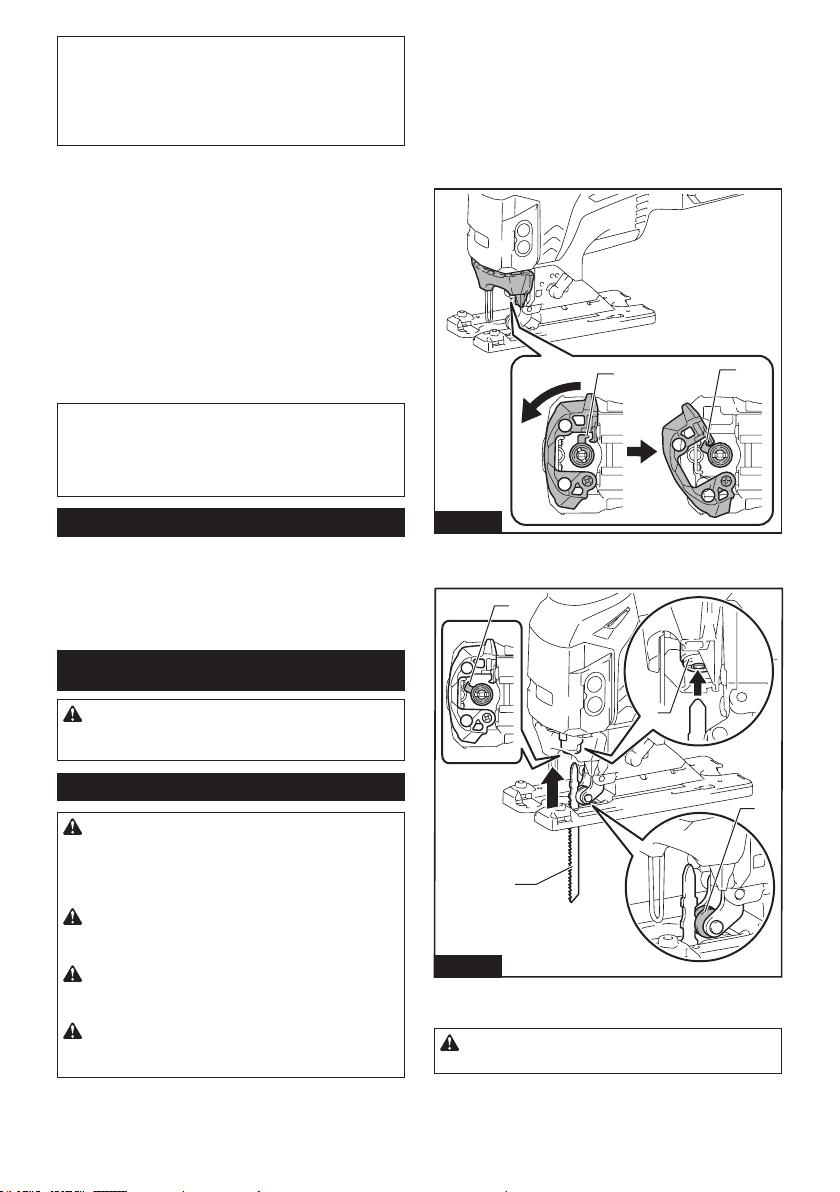

Installing or removing jig saw blade
CAUTION: Always clean out all chips or for-
eign matter adhering to the jig saw blade and/or
blade holder.Failuretodosomaycauseinsu󰀩cient
tighteningofthejigsawblade,resultinginaserious
personalinjury.
CAUTION: Do not touch the jig saw blade or
the workpiece immediately after operation. They
may be extremely hot and could burn your skin.
CAUTION: Always secure the jig saw blade
rmly.Insu󰀩cienttighteningofthejigsawblademay
causethebladebreakageorseriouspersonalinjury.
CAUTION: When you remove the jig saw
blade, be careful not to hurt your ngers with the
top of the jig saw blade or the tips of workpiece.
Beforeinstallingthejigsawblade,makesurethatthe
jigsawbladeclampleverisinthereleasedposition.
Toinstallthejigsawblade,insertthejigsawblade
(teethfacingforward)intothejigsawbladeholderuntil
itlatches.Thejigsawbladeclamplevermovestothe
xedpositionbyitselfandthejigsawbladeislocked.
Makesurethatthebackedgeofthejigsawbladets
intotheroller.Pullthejigsawbladelightlytomakesure
thatthejigsawbladedoesnotfallo󰀨duringoperation.
2
1
Fig.7
►1.Jigsawbladeclamplever(xedposition)2. Jig
saw blade clamp lever (released position)
1
3
4
2
Fig.8
►1. Jig saw blade holder 2. Jig saw blade clamp lever
(released position) 3. Jig saw blade 4. Roller
CAUTION: Do not open the tool opener exces-
sively, or it may cause tool damage.

10 ENGLISH
Toremovethejigsawblade,openthetoolopener
forwardasfarasitwillgo.Thisallowsthejigsawblade
to be released.
1
2
3
Fig.9
►1. Jig saw blade holder 2. Tool opener 3. Jig saw
blade
NOTE:Incasethatitisdi󰀩culttoremovethejigsaw
blade:
Turn the cutting action changing lever to the position
"III" and slightly switch on the tool several times so
thatthejigsawbladeholdermovestothebottom.
Makesurethejigsawbladeclampleverisinthexed
position when switch on the tool.
Remove the battery cartridge from the tool before
installingorremovingthejigsawblade.
NOTE: Occasionally lubricate the roller.
Hex wrench storage
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
1
2
Fig.10
►1. Base 2. Hex wrench
Cover plate
Use the cover plate when cutting decorative veneers,
plastics, etc. It protects sensitive or delicate surfaces
from damage. Fit it on the bottom of the tool base.
1
2
Fig.11
►1. Cover plate 2. Base
Anti-splintering device
CAUTION: The anti-splintering device cannot
be used when making bevel cuts.
For splinter-free cuts, the anti-splintering device can
be used. To install the anti-splintering device, move the
toolbaseallthewayforwardandtitfromthebottom
of tool base.
When you use the cover plate, install the anti-splintering
device onto the cover plate.
2
1
Fig.12
►1. Base 2. Anti-splintering device

11 ENGLISH

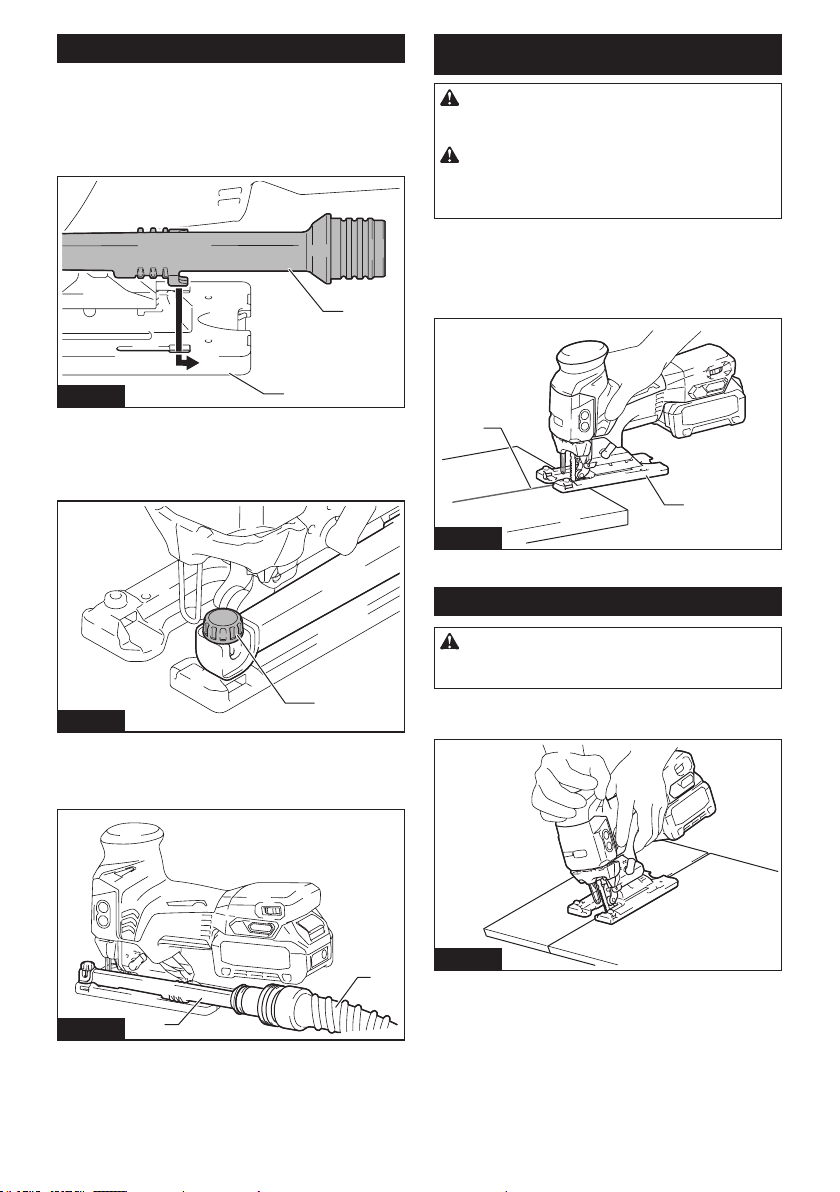

Dust extraction
Optional accessory
The dust nozzle is recommended to perform clean
cutting operations.
To attach the dust nozzle on the tool, insert the hook of
dust nozzle into the hole in the base.
1
2
Fig.13
►1. Dust nozzle 2. Base
To secure the dust nozzle, tighten the clamp screw at
the front of the dust nozzle. The dust nozzle can be
installed on either left or right side of the base.
1
Fig.14
►1. Clamp screw
Then connect a Makita vacuum cleaner to the dust
nozzle.
1
2
Fig.15
►1. Dust nozzle 2. Hose for vacuum cleaner
OPERATION
CAUTION: Always hold the base ush with
the workpiece.Failuretodosomaycausejigsaw
bladebreakage,resultinginaseriousinjury.
CAUTION: Advance the tool very slowly when
cutting curves or scrolling. Forcing the tool may
causeaslantedcuttingsurfaceandjigsawblade
breakage.
Turnthetoolonwithoutthejigsawblademakingany
contactandwaituntilthejigsawbladeattainsfull
speed.Thenrestthebaseatontheworkpieceand
gently move the tool forward along the previously
marked cutting line.
1
2
Fig.16
►1. Cutting line 2. Base
Bevel cutting
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before tilting the base.
With the base tilted, you can make bevel cuts at any
angle between 0° and 45° (left or right).
Fig.17

12 ENGLISH

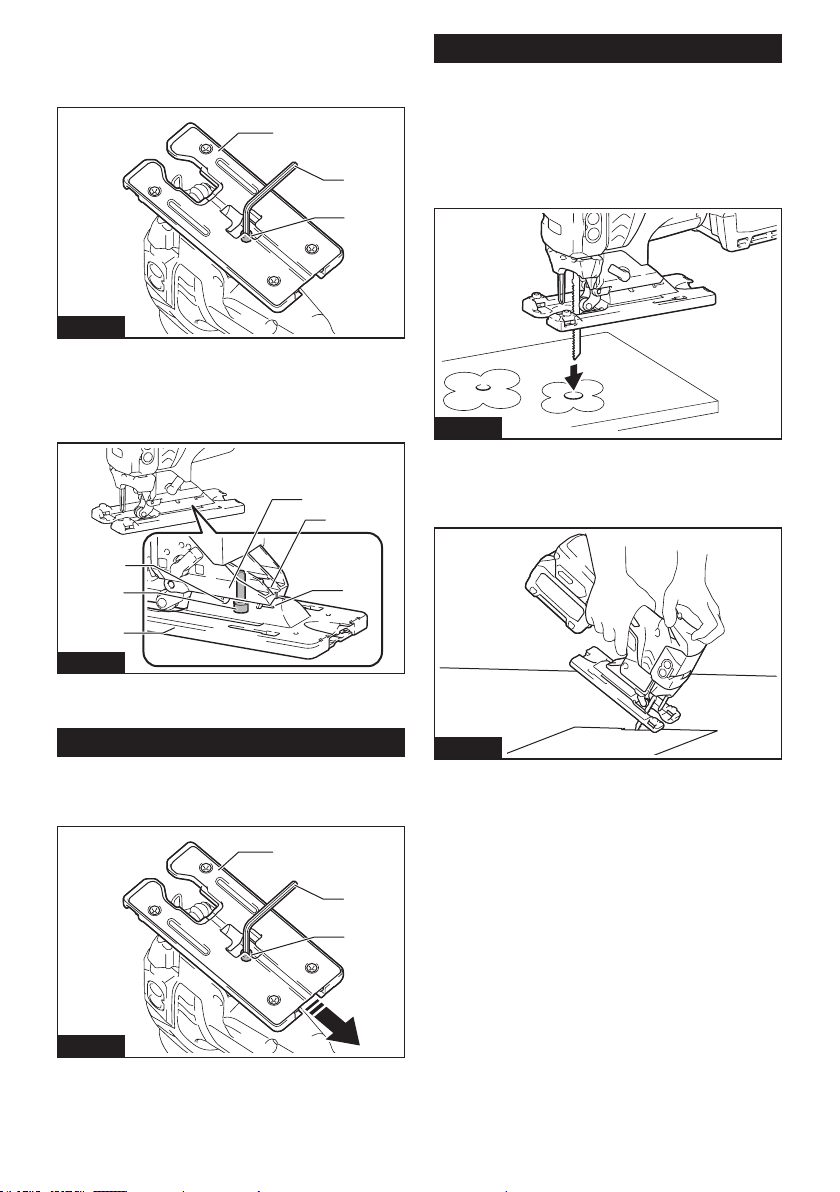

To tilt the base, loosen the bolt on the bottom of the
base with the hex wrench. Move the base so that the
bolt is positioned in the center of the bevel slot in the
base.
3
1
2
Fig.18
►1. Hex wrench 2. Bolt 3. Base
Tilt the base until the desired bevel angle is obtained.
The V-notch of the gear housing indicates the bevel
anglebygraduations.Thentightentheboltrmlyto
secure the base.
1
2
3
6
5
4
Fig.19
►1. Bevel slot 2. Base 3. Bolt 4. Graduations
5. V-notch 6. Gear housing
Front ush cuts
Loosen the bolt on the bottom of the base with the
hex wrench and slide the base all the way back. Then
tighten the bolt to secure the base.
3
1
2
Fig.20
►1. Hex wrench 2. Bolt 3. Base
Cutouts
Cutouts can be made with either of two methods:
“Boring a starting hole” or “Plunge cutting”.
Boring a starting hole
For internal cutouts without a lead-in cut from an edge,
pre-drill a starting hole 12 mm or more in diameter.
Insertthejigsawbladeintothisholetostartyourcut.
Fig.21
Plunge cutting
You need not bore a starting hole or make a lead-in cut
if you carefully do as follows.
Fig.22
1. Tilt the tool up on the front edge of the base with
thejigsawbladepointpositionedjustabovethework-
piece surface.
2. Apply pressure to the tool so that the front edge of
the base will not move when you switch on the tool and
gently lower the back end of the tool slowly.
3. Asthejigsawbladepiercestheworkpiece,slowly
lower the base of the tool down onto the workpiece
surface.
4. Complete the cut in the normal manner.

13 ENGLISH

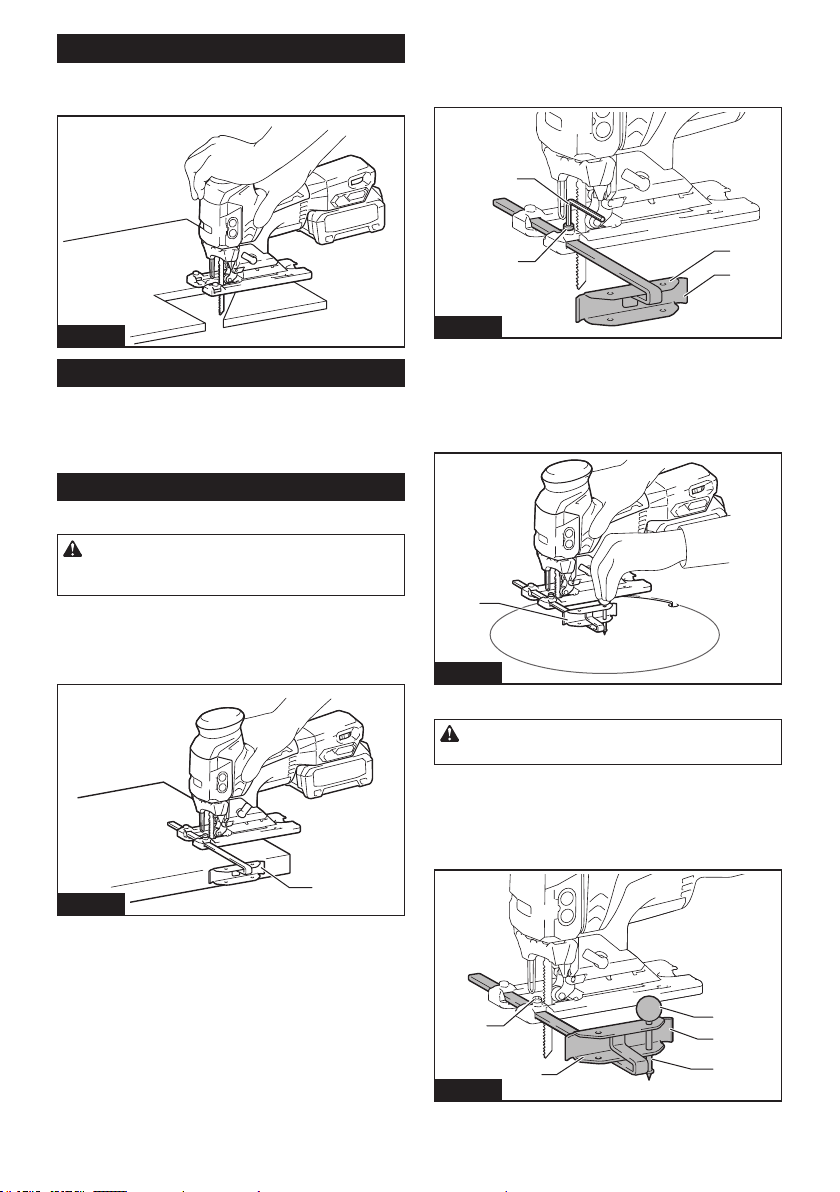

Finishing edges
Totrimedgesormakedimensionaladjustments,runthe
jigsawbladelightlyalongthecutedges.
Fig.23
Metal cutting
Always use a suitable coolant (cutting oil) when cutting
metal.Failuretodosowillcausesignicantjigsaw
blade wear. The underside of the workpiece can be
greased instead of using a coolant.
Rip fence
Optional accessory
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before installing or removing accessories.
Straight cuts
When repeatedly cutting widths of 160 mm or less, use
of the rip fence will assure fast, clean, straight cuts.
1
Fig.24
►1. Rip fence (Guide rule)
To install, insert the rip fence into the rectangular hole
on the side of the base with the fence guide facing
down. Slide the rip fence to the desired cutting width
position, then tighten the bolt to secure it.
4
2
1
3
Fig.25
►
1. Hex wrench 2. Bolt 3. Fence guide 4. Rip fence (Guide rule)
Circular cuts
When cutting circles or arcs of 170 mm or less in radius,
install the rip fence as follows.
1
Fig.26
►1. Rip fence (Guide rule)
CAUTION: Do not touch the tip of the circular guide
pin.Thesharptipofthecircularguidepincancauseinjury.
1. Insert the rip fence into the rectangular hole on the
side of the base with the fence guide facing up.
2.
Insert the circular guide pin through either of the two
holes on the fence guide. Screw the threaded knob onto
the circular guide pin to secure the circular guide pin.
1
2
3
4
5
Fig.27
►1. Threaded knob 2. Fence guide 3. Rip fence
(Guide rule) 4. Circular guide pin 5. Bolt

14 ENGLISH
3. Slide the rip fence to the desired cutting radius,
and tighten the bolt to secure it in place.
NOTE:AlwaysusejigsawbladesNo.B-17,B-18,
B-26 or B-27 when cutting circles or arcs.
Guide rail adapter set
Optional accessory
When cutting parallel and uniform width or cutting
straight, the use of the guide rail and the guide rail
adapter will assure the production of fast and clean
cuts. To install the guide rail adapter, insert the rule
bar into the square hole of the base as far as it goes.
Secure the bolt with the hex wrench securely.
1
2
3
Fig.28
►1. Hex wrench 2. Rule bar 3. Bolt
Insert the rule bar into the square hole of the guide rail
adapter,andsecurethescrewrmly.Placetheguide
rail adapter on the guide rail.
1
2
3
Fig.29
►1. Guide rail adapter 2. Guide rail 3. Screw
NOTICE:AlwaysusejigsawbladesNo.B-8,B-13,
B-16, B-17 or 58 when using the guide rail and the
guide rail adapter.
MAINTENANCE
CAUTION: Always be sure that the tool is
switched o󰀨 and the battery cartridge is removed
before attempting to perform inspection or
maintenance.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
To maintain product SAFETY and RELIABILITY,
repairs,anyothermaintenanceoradjustmentshould
be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
specied in this manual. The use of any other
accessories or attachments might present a risk of
injurytopersons.Onlyuseaccessoryorattachment
for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Jig saw blades
• Hex wrench 4
• Rip fence (guide rule) set
• Guide rail adapter set
• Guide rail set
• Anti-splintering device
• Cover plate
• Dust nozzle assy
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
di󰀨erfromcountrytocountry.

15

www.makita.com
Makita Europe N.V.
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi 446-8502 Japa
n
Jan-Baptist Vinkstraat 2,
3070 Kortenberg, Belgium
885982B221
EN
20221031
