Makita 6312DW User manual

Cordless Driver Drill
Dimensions
(L x W x H)
Capacities No load speed IRPM)
Steel Wood Wood screw Machine screw High Low
Equipped with Electric Brake
MODEL 6312D
MODEL 6312DW
With Fast Charger
MODEL 6312DWG
With Fast Charger
Net
weight
INSTRUCTION MANUAL
* Battery Cartridge 1201 I 1201A
* Model DC1201 Fast Charger
13 mm I 24 mm I 6.4 mm x 55" I I
I 247mmx 79mmx233" I 1.95kg
1112") (15116") (114"
x 2-3/16") I ~ 1'150 - 370 19-314'x 3-118" x 9-1/4'1 14.3 Ibsl
mm ,114,,,
12 v
~~ ~
A.C. only 50 Hz ~ 60 Hz
D.C. 7.2 V - 12 V 1 Hr.
Voltage
I Input I output I Charging time

IMPORTANT
SAFETY INSTRUCTIONS
(For All Tools)
WARNING: WHEN USINGELECTRICTOOLS, BASICSAFETY
PRECAUTIONSSHOULDALWAYS BE FOLLOWED
TO REDUCE
THE RISK OF FIRE, ELECTRIC SHOCK, AND PERSONAL
INJURY, INCLUDINGTHE FOLLOWING:
READ ALL INSTRUCTIONS.
1. KEEP WORK AREA CLEAN. Cluttered areas and benches invite injuries.
2. CONSIDER WORK AREA ENVIRONMENT. Don't use power tools in damp
or wet locations. Keep work area well
lit. Don't expose power tools to rain.
Don't use tool
in presence of flammable liquids or gases.
3. KEEP CHILDREN AWAY. All visitors should be kept away from work area.
Don't let visitors contact tool or extension cord.
4. STORE IDLETOOLS. Whennot in use, tools shouldbestoredindry, andhigh
or locked-up place
- out of reach of children.
5. DON'T FORCETOOL. It will dothejob better andsafer at the ratefor which
it was intended.
6. USE RIGHT TOOL. Don't force small tool or attachment to do thejob of a
heavy-dutytool. Don't use toolfor purposenot intended; for example, don't
use circular saw for cutting tree limbs or logs.
7. DRESSPROPERLY. Don't wear looseclothingorjewelry. They canbecaught
in moving parts. Rubber gloves and non-skid footwear are recommended
when working outdoors. Wear protective hair covering tocontain long hair.
8. USE SAFETY GLASSES. Also use face or dust mask if cutting operation is
dusty.
9. DON'T ABUSE CORD. Never carry tool by cordor yank it todisconnect from
receptacle. Keep cord from heat, oil, and sharp edges.
IO. SECURE WORK. Use clamps or a vise to hold work. It's safer than using
your hand and
it frees both hands to operate tool.
11. DON'T OVERREACH. Keep proper footing and balance at all times.
12. MAINTAIN TOOLS WITH CARE. Keep tools sharp and clean for better and
safer performance.
Follow instructionsfor lubricating and changing acces-
sories. Inspecttoolcordsperiodicallyandifdamaged, haverepairedbyautho-
rized service facility. Inspect extension cords periodically and replace
if
damaged. Keep handles dry, clean, and free from oil and grease.
13. DISCONNECTTOOLS. When not in use, beforeservicing, and when chang-
ing accessories, such as blades, bits, cutters.
2

14. REMOVE ADJUSTING KEYS AND WRENCHES. Form habit of checking to
seethat keysand adjusting wrenches are removed
from tool before turning
it on.
15. AVOID UNINTENTIONALSTARTING. Don't carry toolwithfinger onswitch.
Be sure switch is
OFF when plugging in.
16. EXTENSIONCORDS. Make sure your extension cord is in good condition.
When using an extension cord, be sure to use one heavy enough to carry
the current your product
will draw. An undersized cord will cause a drop
inline voltage resulting
in loss of power and overheating. Table 1 shows the
correct size touse depending oncord length and nameplate ampere rating.
If
in doubt, use the next heavier gage. The smaller the gage number, the
heavier the cord.
TABLE 1 MINIMUM GAGE FOR CORD SETS
0- 6
6
- 10
10
- 12
12
- 16
I
Total Length of Cord in Feet
18 16 14
16 16 14 12
14 12
Not Recommended
18 16 ;: 1 12
I 0 - 25 I 26 - 50 I 51 - 100 1 101 - 150
I I I I
7
~~ ~
Ampere Rating
More Not More
Than Than AWG
17. OUTDOORUSE EXTENSIONCORDS. When toolisusedoutdoors, use only
extension cords intended for use outdoors and
so marked.
18. STAY ALERT. Watch what you are doing, usecommon sense. Don't operate
tool when you are tired.
19. CHECK DAMAGED PARTS. Before further use of the tool, a guard or other
part that is damaged should be carefully checked to determine that
it will
operate properly and perform itsintended function. Check for alignment of
moving parts, bindingof moving parts, breakageof parts, mounting, andany
other conditions that may affect its operation. A guard or other part that
is damaged should be properly repaired or replaced by an authorized serv-
ice center unless otherwise indicated elsewhere inthis instructionmanual.
Have defective switches replaced by authorized service center. Don't use
tool
if switch does not turn it on and off.
20. GUARDAGAINST ELECTRIC SHOCK. Prevent body contact with grounded
surfaces. For example; pipes, radiators, ranges, refrigerator enclosures.
21. REPLACEMENTPARTS.When servicing, useonly identical replacementparts.
22. POLARIZEDPLUGS. To reduce the risk of electric shock, this equipment has
a polarized plug (one blade is wider than the other). This plug
will fit in a
polarized outlet only one way. If the plug does not fit fully
in the outlet,
reversethe plug.
If it stilldoes not fit. contact aqualifiedelectriciantoinstall
the proper outlet.
Do not change the plug in any way.
3

VOLTAGE WARNING: Before connecting the tooltoa power source (receptacle,
outlet, etc.) be sure the voltage supplied is the same as that specified on the
nameplate
of the tool. A power source with voltage greater than that specified
for the tool can result
in SERIOUS INJURY tothe user - as well as damage to
the
tool. If in doubt, DO NOT PLUG IN THE TOOL. Using a power source with
voltage less than the nameplate rating is harmful to the motor.
4

IMPORTANT SAFETY INSTRUCTIONS
FOR CHARGER &
BATTERY CARTRIDGE
1. SAVE THESE INSTRUCTIONS - This manual
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery Cartridge
1200 & 1201. Other types of batteries may burst causing personal injury
and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result
in arisk of fire, electric shock, or injury topersons.
6. To reduce risk of damage toelectric plug and cord, pullby plug rather than
cord when disconnecting charger.
7. Make sure cord is located so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result
in a risk of fire and electric shock. If
extension cord must be used, make sure:
a. That pinsonplugof extension cordarethe same number, size, andshape
b. That extensioncord isproperly wiredandingoodelectricalcondition; and
c. That wire size isat least as large as the one specified inthe table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS
FOR BATTERY CHARGERS
as those of plug on charger;
I Length of Cord (Feet) I 25 I 50 I 100 I 150 I
AWG Size of Cord
I 18 I 18 I 18 I 16 1
9. Do not operate charger with damaged cord or plug - replace them im-
mediately.
IO. Donotoperatecharger if it hasreceivedasharpblow, beendropped, or other-
wise damaged in any way; take
it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result
in a risk of electric shock or fire.
12. To reduce risk of electric shock, unplugcharger from outlet before attempt-
ingany maintenanceor cleaning. Turningoff controls
will notreducethis risk.
5

ADDITIONAL SAFETY RULES
FOR CHARGER
& BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (SOOF)
2. Donotattempt touseastep-uptransformer, anenginegenerator or DCpower
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the batteryterminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
or ABOVE 4OoC (104OF).
receptacle.
cartridge is not used.
and even a breakdown.
(1 1 Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge inacontainer with other metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed 5OoC (122OF).
completely worn out. The battery cartridge can explode
in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
ADDITIONAL SAFETY RULES
FOR CORDLESS DRIVER DRILL
1. Be aware that this tool isalways in an operating condition, because it does
2. Always be sure you have a firm footing.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. When drilling into walls, floors or wherever "live" electrical wires may be
encountered, DO NOT TOUCH ANY METAL PARTS
OF THE TOOL!
Holdthetoolonly by the insulatedgrasping surfaces toprevent electric shock
if you drill into a "live" wire.
not have to be plugged into an electrical outlet.
Be sure no one is below when using the tool
in high locations.
6. Do not leave the tool running. Operate the tool only when hand-held.
7. Donottouchthe drill bit or the workpiece immediately after operation; they
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
6

Installing or removing battery cartridge
*Always switch off
the tool before insertion or removal or the battery cartridge.
Battery cartridge
*To remove the battery cartridge, pull out
the
set plate on the tool and grasp both
sides of the cartridge while withdrawing
it
fromthe tool.
*To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housing and slip
it into
place. Snap the
set plate back into place.
Be sure to close the
set plate fully before
using the tool.
Do not use force when inserting the battery cartridge.
If the cartridge does not slide in easily,
it is not being insertedcorrectly.
Charging
Your new battery cartridge is not charged.
You will need
to charge it before use. Use
the fast charger Model DC1201to charge
the battery cartridge.
*Plug the fast charger into the proper A/C
voltage source. The charging light will
flash in green color.
*Insert the battery cartridge
so that the
plus and minus terminals on the battery
cartridge are on the same sides
as their
respective markings on the fast charger.
Insert the cartridge fully into the port
so that it rests on the charger port floor.
*When the battery cartridge
is inserted,the charging light color will change from green to
red and chargingwill begin. The charging light will remain lit steadily during charging.
*When charging
is completed, the charging light color will change from redtogreen and
a tone will sound steadily for about 5 seconds. The chargingtime is approximately one
hour.
*After charging, unplug the charger from the power source.
CAUTION
:
*The fast charger Model DC1201 is for charging Makita battery cartridge. Never use it for
other purposes or for other manufacturer’s batteries.
*When
you charge a new battery cartridge or a battery cartridge which has notbeen used
for
a long period of time, it may not accept a full charge. This is a normal condition and
does not indicate
a problem. You can recharge the battery cartridge fully after discharg-
ing
it completely and recharging a couple of times.
7

0 If you charge a battery cartridge from a just-operated toolor a battery cartridgewhich
has been left in
a location exposed to direct sunlight or heat for a longtime, the charg-
ing light may flash in red color. Ifthis occurs, wait for
a while. Chargingwill begin after
the battery cartridge cools. The battery cartridge will cool faster if you remove the
battery cartridge fromthe fast charger.
0 If the charginglight flashes alternately in green and red color and a tone sounds "beep,
beep, beep,
. . ." for about 20 seconds, a problem exists and charging is not possible.
The terminals on the charger or battery cartridge are clogged with dust or the battery
cartridge
is worn out or damaged.
0 If youwish to charge two battery cartridges, allow 15 minutes between chargings on the
fast charger.
Installingor removing driver
bit or drill bit
CAUTION
:
Always be sure that the tool is switched off and the battery cartridge is removedbefore
installing or removing the bit.
To install the bit, push the sleeve up to-
ward the
"FREE" side and turn the sleeve
counterclockwise while holding the ring
with your other hand
as illustrated at right.
Place the bit in the chuck
as far as it will
go. Hold the ring firmly and turn the
sleeve
clockwise to tighten the chuck. Then push
the
sleeve down toward the "LOCK" side.
See illustration.
A FREE side
Sleeve
I
LOCK side
To remove the bit, push the sleeve up toward the "FREE" side and turn the sleeve
counterclockwise while holding the ring with your other hand.
CAUTION
:
.Do not attempt to turn the sleeve forcibly when the sleeve is in the"L0CK" position.
The
sleeve may be damaged.
.Always push the
sleeve down toward the "LOCK" side before operation. Ifyouoperate
the tool with the
sleeve in the "FREE" position, the chuck may loosen and the bit may
come out unexpectedly.
8

Switch action
Tool speed is increased by increasingpres-
sure
on the trigger. To start the tool, simply
pull the trigger.
Release the trigger to stop.
Switch trigger qy 'vi 1
CAUTION :
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns to the
"OFF" position when released.
Reversing switch action
This tool has
a reversingswitch to change
the direction of rotation. Slide the revers-
ing switch to the left for clockwise rota-
tion or to the right for counterclockwise.
Reversing switch
11 \\
CAUTION :
.Always check the direction of rotationbefore operation.
*Move the reversing switch only after the tool comes to
a complete stop. Changing the
direction
of rotationbefore the tool stops may damage the tool.
Speedchange
To change the speed, slide the speed change
lever
to the "H" side for high speed or
"L" side for low speed. To slide the
speed change lever easily, pull the trigger
slightly while pushing the speed change
lever. Be sure that the speed change lever
is set to the correct position before opera-
tion. Use the right speed for your job.
CAUTION
:
Always set the speed change lever fully intothe correct position. If youoperate the tool
with the speed change lever positioned halfways betweenthe
"H" side and "L" side, the
tool may be damaged.
9

Adjusting fasteningtorque
The fastening torque can be adjusted in six
stages by turning the adjusting ring so that
the pointer on the adjusting ring points to
a number on the tool body. The fastening
torque
is minimumwhen the pointer points
to the number
1 and maximum when it
points to the a\- marking. The clutch
will slip
at varying torque levels when the
pointer
is set at the numbers 1 to 5. The
clutch
is designed not to slip at the -8-
marking.
When driving wood screws, predrill pilot
Nominal diameter of
wood screw Imm)
3.1 11/8”l
3.5 19/64”)
chart. 3.8 (5132”)
holes to make driving easier and to pre-
vent splitting of the workpiece. See the
4.5 I11/64”)
4.8 13/16”l
5.1 113/64”)
5.5 17/32”)
5.8 17/32”)
6.1 115164“)
6.4 11/4”l
Before actual operation, drive a trial screw into your material or a piece of duplicate
material todetermine which torque
level is required for a particular application.
NOTE :
The adjusting ring cannot be locked with the pointer positioned half-way between the
numbers.
Recommended size
of pilot hole lmml
2.0 ~ 2.2 15/64” - 3/32’,)
2.2
- 2.5 13/32” - 3/32,’)
2.5
- 2.8 f3/32” - 7/64”)
2.9 - 3.2 17/64” - 1/8”l
3.1 ~ 3.4 11/8”
- 9/64”1
3.3
- 3.6 1118” ~ 9164”l
3.7 ~ 3.9 19/64”
- 5/32”)
4.0
- 4.2 f5/32” - 11/64”)
4.2 ~ 4.4 111164’ ~ 11/64“)
4.4 ~ 4.8 111/64”
- 6/32’,)
Screwdriving operation
Place the point
of the driver bit in the
screw head and apply pressure to the tool.
Start the tool slowly and then increase the
speed gradually.
Release the trigger as soon
as the clutch cuts in.
10

Drilling operation
First, turn the adjusting ring so that the pointer on the adjusting ring points to the st-
marking. Then proceed as follows.
*Drilling in wood
When drilling in wood, best results are obtained withwood drills equipped with
a guide
screw. The guide screw makes drilling easier by pullingthe bit intothe workpiece.
Drilling in metal
To prevent the bitfrom slipping when starting a hole, makean indentation with a center-
punch and hammer
at the point to be drilled place the point of the bit in the indenta-
tion and start drilling.
Use
a cutting lubricant when drilling metals. The exceptions are iron and brass which
should be drilled dry.
CAUTION
:
*Pressing excessively on the tool will not speed up the drilling. In fact, this excessive
pressure will only serve to damage the tip of your bit, decrease the tool performance
and shorten the service life of the tool.
*There
is a tremendous force exerted on the tool/bit at the time of hole breakthrough.
Hold the tool firmly and exert care when the bit begins to break through the workpiece.
*A stuck bit can be removed simply by setting the reversingswitch to reverse rotation in
order to back out. However, the
tool may back out abruptly if you do not hold it firmly.
*Always secure small workpieces in
a vise or similar hold-downdevice.
Overload protector
The overload protector automatically cuts out to break the circuit whenever heavy work
is prolonged. Wait 20-30 seconds before resumingoperation.
CAUTION
:
Always withdraw the tool from the workpiece before resuming operation. If the tool
cannot be withdrawn, hold the tool firmly when turning on the tool, to overcome
a
strong reaction.
Hook
A hook is provided as a standard equip-
ment. This hook
is convenient for tem-
porarily hanging the tool.
To install the
hook, first insert one end of the hook into
one slot in the tool body and then insert
the other end into the other slot. Secure
the hook with the screw. The hook can be
installed on either left or right
side of the
tool.
Hook
11

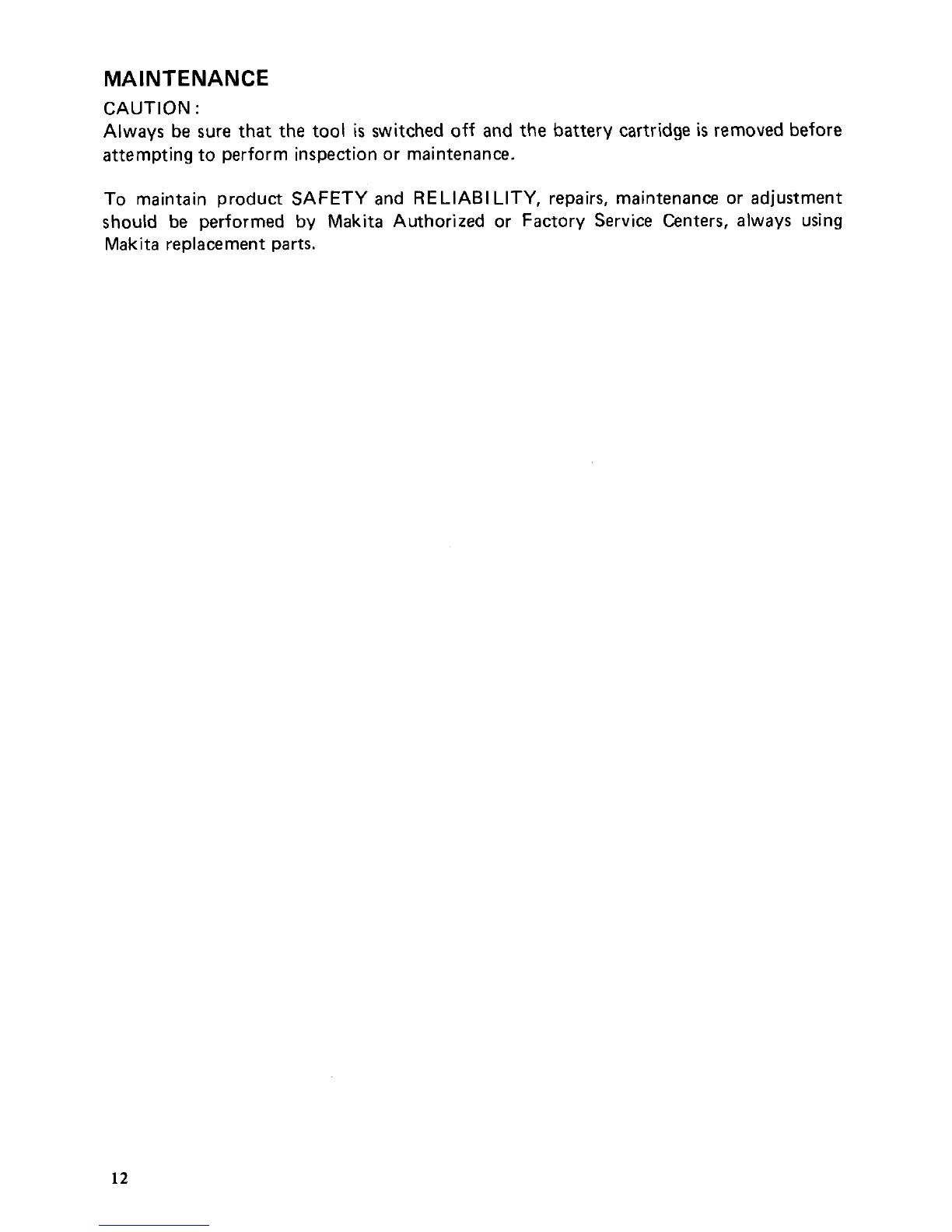

MAINTENANCE
CAUTION :
Always be sure that the tool is switched off and the battery cartridge is removedbefore
attempting to perform inspection or maintenance.
To maintain product SAFETY and RELlABlLITY, repairs, maintenance or adjustment
should be performed
by Makita Authorized or Factory Service Centers, always using
Makita replacementparts.
12

ACCESSORIES
CAUTION:
These accessoriesor attachments are recommended for use with your Makita tool specified inthis
manual. The use
of any other accessories or attachments might present a risk of injury to persons.
The accessories or attachments should
be used only in the proper and intended manner.
Size
Part No.
Slotted
1 a
# 5F 784010-OA
#7F 784011-0A
I
Square drill bit
Rubber pad assembly
Part No. 123001-2
784606-0A
Foam polishing pad
Part No. 743023-2
Wool bonnet
Part No. 743401-6
Plastic carrying case
Fast charger
Model DC1201
Part No. 113126-0
Battery cartridge 1200
Part No. 192271-4
High capacity battery 1201
Part No. 192296-8
Power display battery (High cap.) 1201A
Part No. 192407-5
Battery cover
Part No. 414938-7
Belt clip
Part No. 343951-7
13

Sep.-08-'94 US

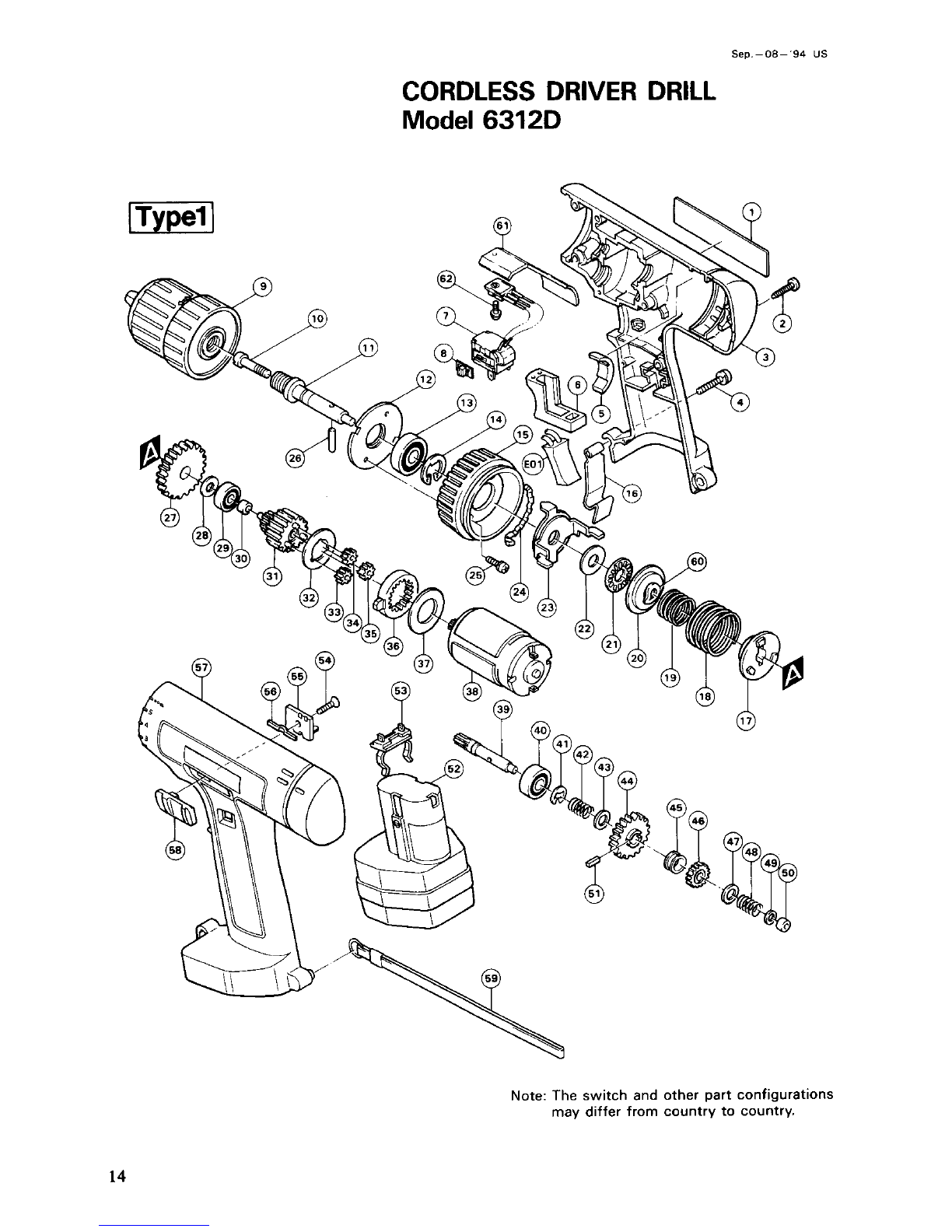

CORDLESS DRIVER DRILL
Model 63120
Note: The switch and other part configurations
may differ from country to country.
14

Sep.-08-'94 US
MODEL 63120
~ MACHINE
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
16
19
20
21
22
23
24
25
26
27
28
29
30
31
32
'i:M $2D DESCRIPTION
MACHINE
1 Name Plate
33 1
7 Tapping Screw BT4x20 34 1
1
Housing Set IWith Item 571 35 1
1
Pan Head Screw M4x22 IWith Washerl 36 1
2 Sponge 14-72 37 1
1 Switch Lever 38 1
1 Switch
39 1
1 Lever 40 1
1 Keyless Drill Chuck 13 41 1
1 Flat Head Screw M6x22 42 1
1 Spindle 43 1
1
Bearing Retainer 17 44 t
1
Ball Bearing 6000LLB 45 1
1 Stop
Ring E-9 46 1
1 Change Ring 47 1
1 SetPlate 48
1
1 Clutch Cam 49 1
1 Compression Spring 27 50 1
1 Compression Spring
22 51 1
1 Washer 10 52 1
1 Thrust Needle Gauge 1023 53 1
1 Flat Washer 10 54 1
1 Slider 55 1
2 Cam Plate 56 1
2 Pan Head Screw M4x12 [With Washer) 57 1
1 Pin 4 58 1
1 SpurGear 49 59 1
1 Flat Washer
6 60 1
1
Ball Bearing 626LLB 61 1
1
Plane Bearing 4 62 1
1
Gear E01 1
1 Flat Washer 16
~
Spur Gear 15
Spur
Gear 15
Spur
Gear 15
Internal
Gear 48
Flat Washer 18
OC Motor
Spur
Gear 8
Ball Bearing 608LLB
Stop Ring
E - 7
Compression Spring
6
Thin Washer 8
Spur Gear 40
Ring 12
Spur
Gear 25
Thin Washer 8
Compression Spring 8
Flat Washer 4
Plane
Bearing 4
Key
3
Battery 1200
Battery Holder
Countersunk Head
Screw M4x12
Stopper
Leaf spmg
Housing Set [With Item 31
Lever
Hand Strap
Wave Washer 10
Radiating Plate
Pan
Head Screw M3x10 [With Washel
Over Current Relay
15

Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal.
@ Ni-Cd
To recycle the battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery to your nearest Makita Authorized Service Center or
Distributor that has been designated as a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
"Tools-Electric'
:
T
MAKITALIMITEDONE YEARWARRANTY
Warranty Policy
Every Makita tool 1s thorougjdy inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period,
return the COMPLETE
tool, freight prepaid, to one of Makita's Factory or Authorized Service Centers. If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repan (or at our optmn,
replace) without charge
This Warranty does
not apply where:
repairs have been made or attempted by others:
repairs are required because of normal wear and tear
. The tool has been abused, misused or improperly maintained,
alterations have been made to the tool.
IN NO EVENT SHALL MAKlTA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE
OR USE OF THE PRODUCT THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THIS WARRANTY.
I
1
\(AKITA DISCLAIMS LIABILITY I OR AhY IMPLItU WAKKANTIIS. N'l L1)ING 1llPLlI.D
WARRANTItS
OF "MI RCHANTABILITY" AND "I ITNtSS kOK A SPI('II I(' PI'RPOSI."
At'lI.R'rllt OYt-YtAR 1 I.KM OFTIlISW4RRANTY
Tlus
Warranty gives you specific legal nghts. and you may also have other rights whxhvary from
state to state. Some states do not
allow the exclusion or limitation of incidental or consequential
damages,
so the above lunitation or exclusion may not apply to you. Some states do not allow
limitation on how long an implied warranty lasts, so the above limitation may not apply to you.
Makita Corporation
3-11 -8, Sumiyoshi-cho,
Anjo, Aichi
446 Japan
883905 - 069
PRINTED IN JAPAN
1994 -9 - N
