Makita SK103PZ User manual

2
Operation Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Operation
Keypad and control elements
1On/Set key
2Pulse key
3Lock switch
Display
4Locked
5Laser active
6Pulse/Power save mode ON
Switching on/off
• ON: Briefly press the On/Set key 1.
• OFF: Press and hold down the On/Set key 1.
Laser functions
Pressing the On/Set key 1activates the following laser
functions:
3
Action SK103P
not in Lock mode in Lock mode
1x only
horizontal line
only
horizontal line
2x only vertical line only vertical line
3x horizontal and
vertical line again as 1x
4x all points –
5x all lines and points –
6x again as 1x –
1
5
4 6
2
4x
5x
2x
1x
3x

3Operation
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Self-levelling and Lock functions
The instrument automatically levels itself within the
specified grade range (Refer to "Technical data") .
Turn the Lock switch 3in order to transport or tilt the
instrument beyond the self-levelling range. When
locked, the pendulum is fixed and the self-levelling
function is deactivated.
Transportation and lock
Self levelling
Pulse
To be able to detect the laser lines over long distances
(> 15 m) or in unfavourable lighting conditions, a laser
detector can be used. The detector is able to locate the
laser beam in Pulse mode, even over long distances.
(Laser detector refer to accessories)

4
Operation Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Applications SK103P
Receiver
available
as
accessory.

5Operation
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
How to use the wall mount bracket:

6
Operation Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Checking the accuracy
Check the accuracy of your SK103P regularly
and particularly before important measuring tasks.
Checking the accuracy of the levelling
Set the instrument on a tripod half-way between two
walls (A+B) that are approx. 5 m apart.
Place the Lock switch 3in the "Unlocked" ( )
position.
Direct the instrument at wall A and switch on the instru-
ment. Activate the horizontal laser line or laser dot and
mark the position of the line or the dot on wall A (-> A1).
Rotate the instrument by 180° and mark the horizontal
laser line or the laser dot in exactly the same way on wall
B (-> B1).
Then place the instrument at the same elevation as
close as possible to wall A and again mark the horizontal
laser line or the laser dot on wall A (-> A2) . Rotate the
instrument by 180° again and mark the laser on wall B (-
> B2). Measure the distances of the marked points A1-
A2 and B1-B2. Calculate the difference of the two
measurements. If the difference does not exceed 2 mm,
then the SK103P is within tolerance.
| (A1 - A2) - (B1 - B2) | 2 mm
A1 B1
2.5 m 2.5 m
A1
A2
B1
B2
5 m

7Operation
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Checking the accuracy of the horizontal line:
Place the Lock switch 3in the "Unlocked" ( )
position.
Position the instrument approx. 5 m away from the wall.
Direct the instrument at the wall and switch on with the
On/Set key 1. Activate the laser line with the On/Set key
1and mark the intersection point of laser crosshairs on
the wall.
Swivel the instrument to the right and then to the left.
Observe the vertical deviation of the horizontal line from
the marking. If the difference does not exceed 3 mm,
then the SK103P is within tolerance.
Checking the accuracy of the vertical line:
Place the Lock switch 3in the "Unlocked" ( )
position.
As reference, use a plumb-bob and attach it as close as
possible to an approx. 3 m high wall.
Position the instrument at a distance of approx. 1.5 m from
the wall at an elevation of approx. 1.5 m. Direct the instru-
ment at the wall and switch on with the On/Set key 1. Acti-
vate the laser line with the On/Set key 1. Rotate the instru-
ment and align it with the bottom of the plumb line. Now read
off the maximum deviation of the laser line from the top of the
plumb line. If the difference does not exceed 2 mm, then the
SK103P is within tolerance.
max.
3 mm
5 m 1.5 m
max.
2 mm

8
Care and advice on operation Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Checking the accuracy of the vertical
plumbing of the SK103P:
Place the Lock switch 3in the "Unlocked" ( )
position.
Checking the upper plumbing point:
Checking the lower plumbing point:
Set up the laser on its tripod or wall mount bracket near point
A1 at a minimum distance of 1.5 m from point B1. The hori-
zontal laser is aligned in direction 1. Mark the laser dots A1
and B1 with a pin.
Rotate the instrument by 180° so that it points in the opposite
direction 2 to direction 1. Adjust the instrument so that the
laser beam hits point A1 exactly. If point B2 is no further than
2 mm away from point B1, then the SK103P is within toler-
ance.
Should your SK103P be outside of the specified
tolerance, please contact an authorised dealership of
Makita.
Display notices
Falling below or exceeding the permissible temperature
range:
The laser switches off and all symbols flash.
Outside of the self-levelling range:
The laser beam is flashing.
Pendulum locked:
The laser beam is not levelled and the Lock symbol 4lights
up.
Care and advice on operation
Do not immerse the instrument in water. Wipe off dirt with a
damp soft cloth. Do not use aggressive cleaning agents or
solvents. Treat the instrument with the same care that you
would apply to binoculars or a camera.
Dropping or violent shaking of the instrument may damage
it. Check the instrument for any damage before using it.
Check the levelling accuracy of the instrument regularly.
Transport
To safely transport the instrument, set the Lock switch 3to
"Locked" ( ).
1
B1
A1
B2
1.5 m
max. 2 mm
2
1
B1
A1
B2
1.5 m
max. 2 mm
2

9Technical data SK103P
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Technical data SK103P
* depending on lighting conditions *depending on lighting conditions
Metric unit system
Range up to 15 m*
Range with detector up to 60 m
Levelling accuracy @ 10 m ± 3,0 mm
Self-levelling range 4° ± 1°
Accuracy of plumbing point @ 10 m ± 3,0 mm
Accuracy of horizontal line @ 10 m ± 3,0 mm
Vertical accuracy @ 3 m
line length ± 0,75 mm
Number of laser dots 4
Number of laser lines 2
Beam direction
vertical,
horizontal, up, down,
right, left
Laser type 635 nm, laser class II
Batteries Type Typ AA
3 x 1,5 V
Protection class spray water / dust IP 54
Operating temperature -10°C to 40°C
Storage temperature -25°C to 70°C
Dimensions (H x D x W) 111 x 117 x 72 mm
Weight without batteries 470 g
Tripod thread 1/4"
Non-metric unit system
Range up to 50 ft*
Range with detector up to 197 ft
Levelling accuracy @ 32 ft ± 1/8 “
Self-levelling range 4° ± 1°
Accuracy of plumbing point @ 32 ft ± 1/8 “
Accuracy of horizontal line @ 32 ft ± 1/8 “
Vertical accuracy @ 10 ft
line length ± 0.03 “
Number of laser dots 4
Number of laser lines 2
Beam direction
vertical,
horizontal, up, down,
right, left
Laser type 635 nm, laser class II
Batteries Type Typ AA
3 x 1,5 V
Protection class spray water / dust IP 54
Operating temperature 14°F to +104°F
Storage temperature -13°F to +158°F
Dimensions (H x D x W) 4.25 x 4.6 x 2.83 in
Weight without batteries 16.6 oz
Tripod thread 1/4"

10
Safety instructions Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Safety instructions
The person responsible for the instrument must ensure
that all users understand these directions and adhere to
them.
Symbols used
The symbols used have the following meanings
WARNING:
Indicates a potentially hazardous situation or an
unintended use which, if not avoided, will result in death
or serious injury.
CAUTION:
Indicates a potentially hazardous situation or an
unintended use which,if not avoided, may result in minor
injury and/or appreciable material, financial and environ-
mental damage.
Important paragraphs which must be adhered
to in practice as they enable the product to be used
in a technically correct and efficient manner.
Permitted use
• Projection of horizontal and vertical laser lines and
laser dots
Prohibited use
• Using the product without instruction
• Using outside the stated limits
• Deactivation of safety systems and removal of
explanatory and hazard labels
• Opening of the equipment by using tools (screw-
drivers, etc.), as far as not specifically permitted for
certain cases
• Carrying out modification or conversion of the
product
• Deliberate dazzling of third parties; also in the dark
• Inadequate safeguards at the surveying site.
Limits of use
Refer to section "Technical data".
The SK103P is designed for use in areas permanently
habitable by humans. Do not use the product in explo-
sion hazardous areas or in aggressive environments.
Areas of responsibility
Responsibilities of the manufacturer of the original
equipment:
Makita Corporation Anjo, 3-11-8, Sumiyoshi-cho, Aichi
446-8502, Japan /
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
Internet: www.makita.com (for short Makita):
• Makita is responsible for supplying the device, including
the User Manual, in a completely safe condition.
• Makita is not responsible for third party accessories.

11 Safety instructions
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Responsibilities of the person in charge of the
instrument:
The person in charge of the instrument has the following
duties:
• To understand the safety instructions on the product
and the instructions in the User Manual.
• To be familiar with local safety regulations relating to
accident prevention.
Hazards in use
CAUTION:
Watch out for erroneous measurements if the
instrument is defective or if it has been dropped or has
been misused or modified.
Carry out periodic test measurements.
Particularly after the instrument has been subject to
abnormal use, and before, during and after important
measurements.
Refer to section "Checking the accuracy".
WARNING:
Flat batteries must not be disposed of with house-
hold waste. Care for the environment and take
them to the collection points provided in accordance
with national or local regulations.
The product must not be disposed of with the
household waste.
Dispose of the product appropriately
in accordance with the national regulations in
force in your country.
Always prevent access to the product by unau-
thorised personnel.
WARNING
Using a battery charger not recommended by Makita
can destroy the batteries. This can cause fire or explosions.
Precautions:
Only use chargers recommended by Makita to charge
the batteries.
Electromagnetic Compatibility (EMC)
WARNING:
The SK103P conforms to the most stringent
requirements of the relevant standards and regulations.
Yet, the possibility of it causing interference in other
devices cannot be totally excluded.
FCC statement (applic. in U.S.)
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interfer-
ence in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accor-

12
Safety instructions Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
dance with the instructions, may cause harmful interfer-
ence to radio communications.
However, there is no guarantee that interference will not
occur in a particular installation.
If this equipment does cause harmful interference to
radio or television reception, which can be determined
by turning the equipment off and on, the user is encour-
aged to try to correct the interference by one or more of
the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
• Consult the dealer or an experienced radio/TV tech-
nician for help
WARNING:
Changes or modifications not expressly approved
by Makita for compliance could void the user’s authority
to operate the equipment.

13 Safety instructions
Makita SK103P
en
GB
F
I
E
P
NL
DK
S
N
FIN
J
CN
ROK
PL
HR
H
RUS
CZ
GR
LT
LV
EST
SLO
SK
M
TR
Laser classification
The SK103P produces visible laser beams, which are
emitted from the instrument:
It is a Class 2 laser product in accordance with:
• IEC60825-1: 2014 "Radiation safety of laser prod-
ucts"
Laser Class 2 products:
Do not stare into the laser beam or direct it towards other
people unnecessarily. Eye protection is normally
afforded by aversion responses including the blink
reflex.
WARNING:
Looking directly into the beam with optical aids
(e.g. binoculars, telescopes) can be hazardous.
CAUTION:
Looking into the laser beam may be hazardous to
the eyes.

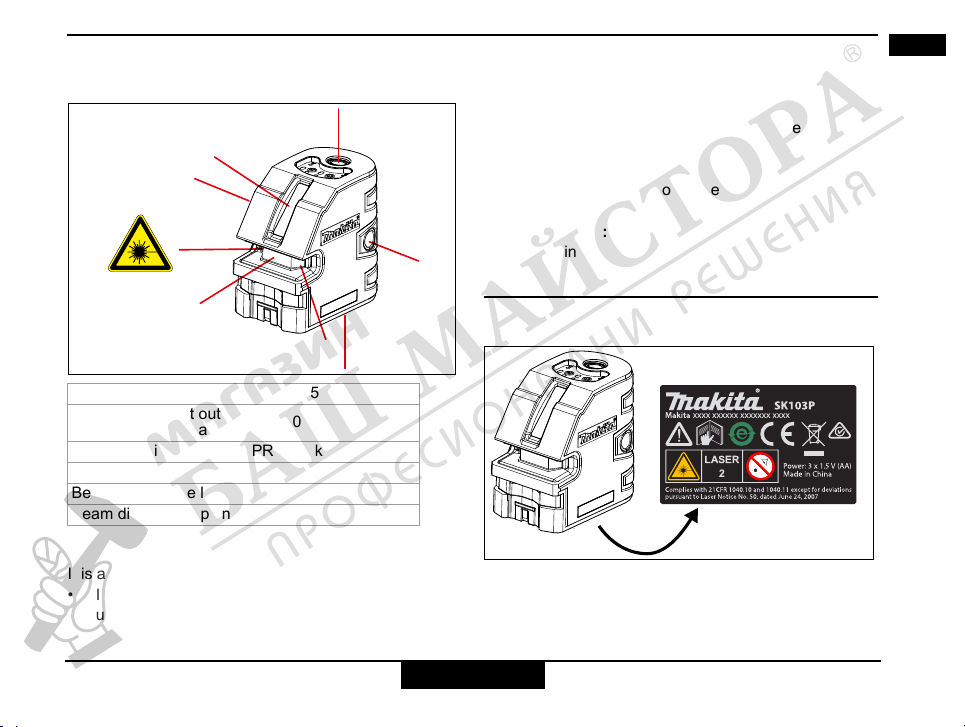

Labelling
Wavelength 635 nm
Maximum radiant output
power for classification 0.95 mW
Pulse repetition frequency, PRF 10 kHz, cw
Pulse duration 50 µs
Beam divergence line 180° × 0.1°
Beam divergence point < 1.5 mrad
