Makita DPT353 User manual

DPT353
EN Cordless Pin Nailer INSTRUCTION MANUAL 5
ID Mesin Penembak Paku Pin
Berdaya Baterai PETUNJUK PENGGUNAAN 12
VI Máy Bắn Đinh chạy pin TÀI LIỆU HƯỚNG DẪN 20
TH   27

1
2
3
Fig.1
1
2
Fig.2
1
Fig.3
1
2
Fig.4
A
B
Fig.5
AB
1
Fig.6
2
13
Fig.7
1
Fig.8
2

3
2
4
1
Fig.9
4
3
1
2
Fig.10
Fig.11
1
2
3
Fig.12
1
Fig.13
4
1
3
2
Fig.14
1
2
Fig.15
3

Fig.16
Fig.17
1
2
Fig.18
1
2
3
Fig.19
4

5ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DPT353
Pin nail size ø0.6 mm x 15, 18, 25, 30, 35 mm
Pin nail magazine capacity 100 pcs.
Dimensions without hook
(L x W x H)
257 mm x 79 mm x 226 mm
Rated voltage D.C. 18 V
Battery cartridge BL1815, BL1815N, BL1820, BL1820B BL1830, BL1830B, BL1840, BL1840B, BL1850,
BL1850B, BL1860B
Net weight 2.0 kg 2.2 kg
• Duetoourcontinuingprogramofresearchanddevelopment,thespecicationshereinaresubjecttochange
without notice.
• Specicationsandbatterycartridgemaydifferfromcountrytocountry.
• Weight,withbatterycartridge,accordingtoEPTA-Procedure01/2003
Symbols
Thefollowingshowthesymbolsusedfortheequip-
ment.Besurethatyouunderstandtheirmeaningbefore
use.
Read instruction manual.
Cd
Ni-MH
Li-ion
OnlyforEUcountries
Donotdisposeofelectricequipmentor
batterypacktogetherwithhouseholdwaste
material!
InobservanceoftheEuropeanDirectives,
onWasteElectricandElectronic
EquipmentandBatteriesandAccumulators
andWasteBatteriesandAccumulators
and their implementation in accordance
withnationallaws,electricequipmentand
batteriesandbatterypack(s)thathave
reachedtheendoftheirlifemustbecol-
lected separately and returned to an envi-
ronmentallycompatiblerecyclingfacility.
Intended use
Thetoolisintendedforpressingpinnailsintoconstruc-
tionmaterialssuchastimbers.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings and
all instructions. Failure to follow the warnings and
instructionsmayresultinelectricshock,reand/or
seriousinjury.
Save all warnings and instruc-
tions for future reference.
Theterm“powertool”inthewarningsreferstoyour
mains-operated(corded)powertoolorbattery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical Safety
1. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodiedplugsandmatchingoutletswill
reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators.Thereisanincreasedriskofelec-
tricshockifyourbodyisearthedorgrounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5. When operating a power tool outdoors, use an
extension cord suitable for outdoor use.Useof
acordsuitableforoutdoorusereducestheriskof
electric shock.
6. If operating a power tool in a damp location
is unavoidable, use a residual current device
(RCD) protected supply.UseofanRCDreduces
the risk of electric shock.

6ENGLISH
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication.Amomentofinattentionwhileoperating
powertoolsmayresultinseriouspersonalinjury.
2. Use personal protective equipment. Always
wear eye protection.Protectiveequipmentsuch
asadustmask,non-skidsafetyshoes,hardhator
hearing protection used for appropriate conditions
willreducepersonalinjuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
yourngerontheswitchorenergisingpowertools
that have the switch on invites accidents.
4. Remove any adjusting key or wrench before
turning the power tool on.Awrenchorakeyleft
attached to a rotating part of the power tool may
resultinpersonalinjury.
5. Do not overreach. Keep proper footing and
balance at all times.Thisenablesbettercontrol
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts.Looseclothes,jewel-
leryorlonghaircanbecaughtinmovingparts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used.Useof
dustcollectioncanreducedust-relatedhazards.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application.Thecorrect
powertoolwilldothejobbetterandsaferatthe
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off.Anypowertoolthatcannot
becontrolledwiththeswitchisdangerousand
mustberepaired.
3. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such pre-
ventive safety measures reduce the risk of starting
the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
arecausedbypoorlymaintainedpowertools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
arelesslikelytobindandareeasiertocontrol.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed.Useofthepower
tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer.Achargerthatissuitablefor
onetypeofbatterypackmaycreateariskofre
whenusedwithanotherbatterypack.
2. Use power tools only with specically desig-
nated battery packs.Useofanyotherbattery
packsmaycreateariskofinjuryandre.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.Shortingthebatterytermi-
nalstogethermaycauseburnsorare.
4. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If con-
tact accidentally occurs, ush with water. If
liquid contacts eyes, additionally seek medical
help.Liquidejectedfromthebatterymaycause
irritationorburns.
Service
1. Have your power tool serviced by a qualied
repair person using only identical replacement
parts.Thiswillensurethatthesafetyofthepower
tool is maintained.
2. Follow instruction for lubricating and chang-
ing accessories.
3. Keep handles dry, clean and free from oil and
grease.
Cordless nailer safety warnings
1. Always assume that the tool contains fasten-
ers. Careless handling of the nailer can result in
unexpectedringoffastenersandpersonalinjury.
2. Do not point the tool towards yourself or any-
one nearby.Unexpectedtriggeringwilldischarge
thefastenercausinganinjury.
3. Do not actuate the tool unless the tool is
placed rmly against the workpiece. If the tool
is not in contact with the workpiece, the fastener
maybedeectedawayfromyourtarget.
4. Disconnect the tool from the power source
when the fastener jams in the tool. While
removingajammedfastener,thenailermaybe
accidentally activated if it is plugged in.
5. Use caution while removing a jammed fas-
tener.Themechanismmaybeundercompression
andthefastenermaybeforcefullydischarged
whileattemptingtofreeajammedcondition.
6. Do not use this nailer for fastening electrical
cables. Itisnotdesignedforelectriccableinstal-
lation and may damage the insulation of electric
cablestherebycausingelectricshockorre
hazards.

7ENGLISH
7. Always wear safety glasses to protect your
eyes from dust or fastener injury.
WARNING: It is an employer's responsibility
to enforce the use of safety eye protection
equipment by the tool operators and by other
persons in the immediate working area.
8. Keep hands and feet away from the ejection
port area.
9. Follow instruction for lubricating and chang-
ing accessories.
10. Always remove the battery cartridge before
loading the fasteners, adjustment, inspection,
maintenance or after operation is over.
11. Make sure no one is nearby before operation.
Never attempt to drive fasteners from both the
inside and outside of wall at the same time.
Fasteners may rip through and/or y off, pre-
senting a grave danger.
12. Watch your footing and maintain your balance
with the tool. Make sure there is no one below
when working in high locations.
13. Never use fastener driving tools marked with
the symbol “Do not use on scaffoldings, lad-
ders” for specic application for example:
• when changing one driving location to
another involves the use of scaffoldings,
stairs, ladders, or ladder alike constructions,
e.g. roof laths;
• closingboxesorcrates;
• ttingtransportationsafetysystemse.g.on
vehicles and wagons.
14. Check walls, ceilings, oors, roong and
the like carefully to avoid possible electrical
shock, gas leakage, explosions, etc. caused by
stapling into live wires, conduits or gas pipes.
15. Use only fasteners specied in this manual.
The use of any other fasteners may cause
malfunction of the tool.
16. Do not tamper with the tool or attempt to use it
for other than driving fasteners.
17. Do not operate the tool without fasteners. It
shortens the service life of the tool.
18. Stop driving operations immediately if you
notice something wrong or out of the ordinary
with the tool.
19. Never fasten into any materials which may
allow the fastener to puncture and y through
as a projectile.
20. Never actuate the switch trigger and contact
element at the same time until you are pre-
pared to fasten workpieces. Allow the work-
piece to depress the contact element. Never
defeat its purpose by securing the contact
element back or by depressing it by hand.
21. Never tamper with the contact element. Check
the contact element frequently for proper
operations.
22. Always remove fasteners from the tool when
not in use.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
Forcommercialtransportse.g.bythirdparties,
forwardingagents,specialrequirementonpack-
agingandlabelingmustbeobserved.
Forpreparationoftheitembeingshipped,consult-
inganexpertforhazardousmaterialisrequired.
Pleasealsoobservepossiblymoredetailed
national regulations.
Tapeormaskoffopencontactsandpackupthe
batteryinsuchamannerthatitcannotmove
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
SAVE THESE INSTRUCTIONS.

8ENGLISH
CAUTION: Only use genuine Makita batteries.
Useofnon-genuineMakitabatteries,orbatteriesthat
havebeenaltered,mayresultinthebatterybursting
causingres,personalinjuryanddamage.Itwill
also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
FUNCTIONAL
DESCRIPTION
CAUTION: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking function on the tool.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge.Failuretoholdthetoolandthebattery
cartridgermlymaycausethemtoslipoffyourhands
andresultindamagetothetoolandbatterycartridge
andapersonalinjury.
►Fig.1: 1. Red indicator 2. Button 3. Battery cartridge
Toremovethebatterycartridge,slideitfromthetool
whileslidingthebuttononthefrontofthecartridge.
Toinstallthebatterycartridge,alignthetongueonthe
batterycartridgewiththegrooveinthehousingandslip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
uppersideofthebutton,itisnotlockedcompletely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
itmayaccidentallyfalloutofthetool,causinginjuryto
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
notbeinginsertedcorrectly.
Tool / battery protection system
Thetoolisequippedwithatool/batteryprotectionsys-
tem.Thissystemautomaticallycutsoffpowertothe
motortoextendtoolandbatterylife.Thetoolwillauto-
maticallystopduringoperationifthetoolorbatteryis
placed under one of the following conditions:
Overload protection
Whenthetool/batteryisoperatedinamannerthat
causesittodrawanabnormallyhighcurrent,thetool
automatically stops without any indication. In this sit-
uation, turn the tool off and stop the application that
causedthetooltobecomeoverloaded.Thenturnthe
tool on to restart.
Overheat protection
Whenthetool/batteryisoverheated,thetoolstops
automatically.Inthissituation,letthetool/batterycool
beforeturningthetoolonagain.
Overdischarge protection
Whenthebatterycapacityisnotenough,thetoolstops
automaticallyandthebatteryindicatorshowsfollowing
state.Inthiscase,removethebatteryfromthetooland
chargethebattery.
On Off Blinking
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator

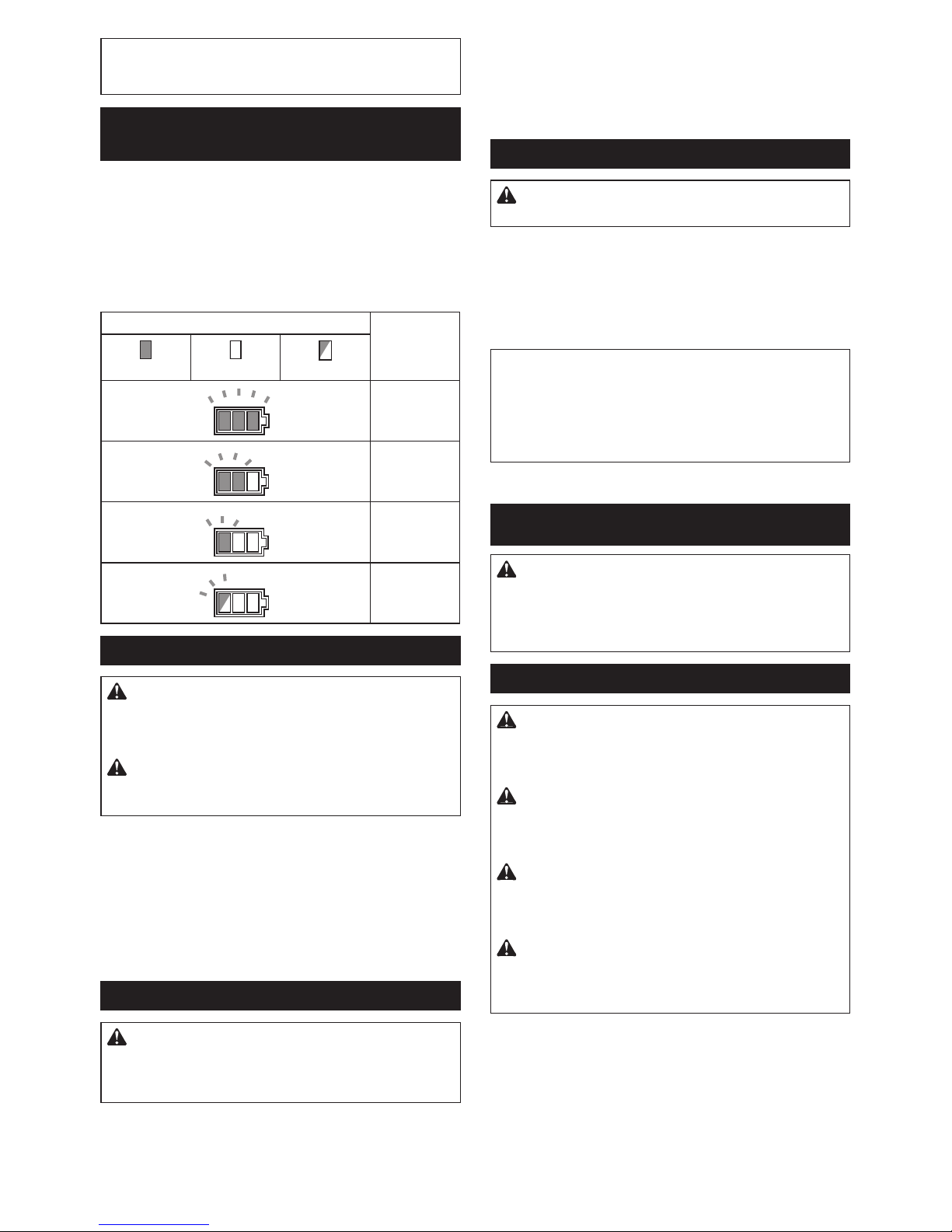

►Fig.2: 1. Indicator lamps 2.Checkbutton
Pressthecheckbuttononthebatterycartridgetoindi-
catetheremainingbatterycapacity.Theindicatorlamps
light up for few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
Thebattery
may have
malfunctioned.

9ENGLISH
NOTE: Depending on the conditions of use and the
ambienttemperature,theindicationmaydifferslightly
from the actual capacity.
Indicating the remaining battery
capacity
Country specic
When you either pull the switch trigger or push the con-
tactelement,thebatteryindicatorshowstheremaining
batterycapacity.
►Fig.3: 1. Battery indicator
Theremainingbatterycapacityisshownasthefollow-
ingtable.
Battery indicator status Remaining
battery
capacity
On Off Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Trigger-lock button
CAUTION: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the “OFF” position when released.
CAUTION: When not operating the tool,
depress the trigger-lock button from B side to
lock the switch trigger in the OFF position.
►Fig.4: 1.Trigger-lockbutton2. Switch trigger
►Fig.5
Topreventtheswitchtriggerfromaccidentallypulled,
thetrigger-lockbuttonisprovided.
Topulltheswitchtrigger,depressthetrigger-lockbutton
fromAside.
Afteruse,alwayspressinthetrigger-lockbuttonfrom
B side.
Adjusting the depth of pin-nailing
WARNING: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before adjusting the depth of nailing.
Depthofpin-nailingcanbeadjustedonthispinnailer.
Toadjustthedepthofnailing,turntheadjuster.The
depthofnailingisthedeepestwhentheadjusteris
turnedfullyintheAdirectionshowninthegure.It
willbecomeshallowerastheadjusteristurnedin
theBdirection.Depthcanbeadjusted1.5mmtothe
maximum.
►Fig.6: 1.Adjuster
►Fig.7: 1.Toodeep2. Flush 3.Tooshallow
Lighting up the lamp
CAUTION: Do not look in the light or see the
source of light directly.
Pull the switch trigger or actuate the contact element to
lightupthelamp.Thelampkeepsonlightingwhilepull-
ing the switch trigger or actuating the contact element.
Thelampgoesoutapproximately10secondsafter
releasing the switch trigger and the contact element.
►Fig.8: 1. Lamp
NOTE:Useadryclothtowipethedirtoffthelensof
the lamp. Be careful not to scratch the lens of lamp, or
it may lower the illumination.
NOTE:Eveninthelamplightsupwhenthebattery
powerresidualgetssmall,pinnailermaynotrepin
nails.Inthiscase,chargethebatterycartridge.
ASSEMBLY
CAUTION: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before carrying out any work on the pin
nailer.
Loading the pin nailer
CAUTION: Always make sure that the battery
cartridge is removed before loading the pin nailer.
Unintentionalringmaycausepersonalinjuriesand
property damage.
CAUTION: Do not abruptly slide the magazine
of the pin nailer loaded with pin nails.Accidentally
dropping pin nails especially when working in high
placesmaycausepersonalinjuries.
CAUTION: Load pin nails in the correct direc-
tion. Loading in wrong direction may cause prema-
ture wear and tear of the driver and damage of the
other parts.
CAUTION: Do not use deformed connected
pin nails.Usepinnailsspeciedinthismanual.
Usingpinnailsotherthanthosespeciedmaycause
pinnailjammingandbreakageofthepinnailer.
1. Removethebatterycartridge.
2. Press the locking lever and slide the magazine
backward.
3. Alignthetipofpinnailswiththegroovesatthe
bottomofthemagazineandpushthewholepartofpin
nails toward the driver guide. (Be careful to place pin
nails in the right direction.)

10 ENGLISH
►Fig.9: 1. Pin nails 2. Magazine 3. Locking lever
4. Driver guide
4. Afterloadingpinnails,pushbackthemagazinein
place until it clicks.
Toremovepinnails,followtheinstallationprocedures
in reverse.
Nose adapter
CAUTION: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before installing the nose adapter.
Whenringpinnailsonthematerialwitheasily-marred
surfaces,usethenoseadapter.Toinstallthenose
adapter, place it over the driver guide cover so that the
protrusioninsidethenoseadaptertstothedentinthe
driver guide cover.
You can store the nose adapter on the holder on the
backendofthemagazinetokeepitfrombeinglost.
►Fig.10: 1. Dent 2. Protrusion 3. Nose adapter
4. Holder
Hook
CAUTION: Do not hang the hook from the
waist belt. Dropping the pin nailer, which is caused
bythehookaccidentallycomingoutofplace,may
causeunintentionalringandresultinpersonal
injuries.
►Fig.11
Thehookisconvenientfortemporarilyhangingthetool.
Thiscanbeinstalledoneithersideofthetool.
Toinstallthehook,insertitintoagrooveinthetool
housing on either side and then secure it with a screw.
Toremove,loosenthescrewandthentakeitout.
►Fig.12: 1. Groove 2. Hook 3. Screw
Hex wrench storage
When not in use, store the hex wrench as shown in the
guretokeepitfrombeinglost.
►Fig.13: 1. Hex wrench
OPERATION
Testing the safety system
WARNING: Make sure all safety systems are
in working order before operation. Failure to do
so may cause personal injuries.
►Fig.14: 1.Trigger-lockbutton2. Switch trigger
3. Contact element 4. Magazine
Testsafetysystemsforpossiblefaultbeforeoperation
as follows.
1. Unloadpinnailsfromthetoolandkeepthemaga-
zine opened.
2. Installthebatterycartridgeandreleasethetrigger
lock.
3. Only pull the switch trigger without touching the
contact element against the material.
4. Only touch the contact element against the mate-
rial without pulling the switch trigger.
Ifthetooloperatesinthecaseof3and4above,the
safety systems are faulty. Stop using the tool immedi-
ately and ask your local service center.
Driving pin nails
WARNING: Continue to place the contact
element rmly on the material until the pin nail is
driven completely.Unintentionalringmaycause
personalinjuries.
1. Release the trigger lock.
2. Placeatthecontactelementonthematerial.
3. Pull the switch trigger fully to drive a pin nail.
4. Todrivethenextpinnail,releaseyourngerfrom
the switch trigger once, and then repeat the step 2 and
3above.
►Fig.15: 1. Switch trigger 2. Contact element
You can also drive the pin nails when dragging the
tool to the next area with the contact element pressed
against the material and pulling the switch trigger.

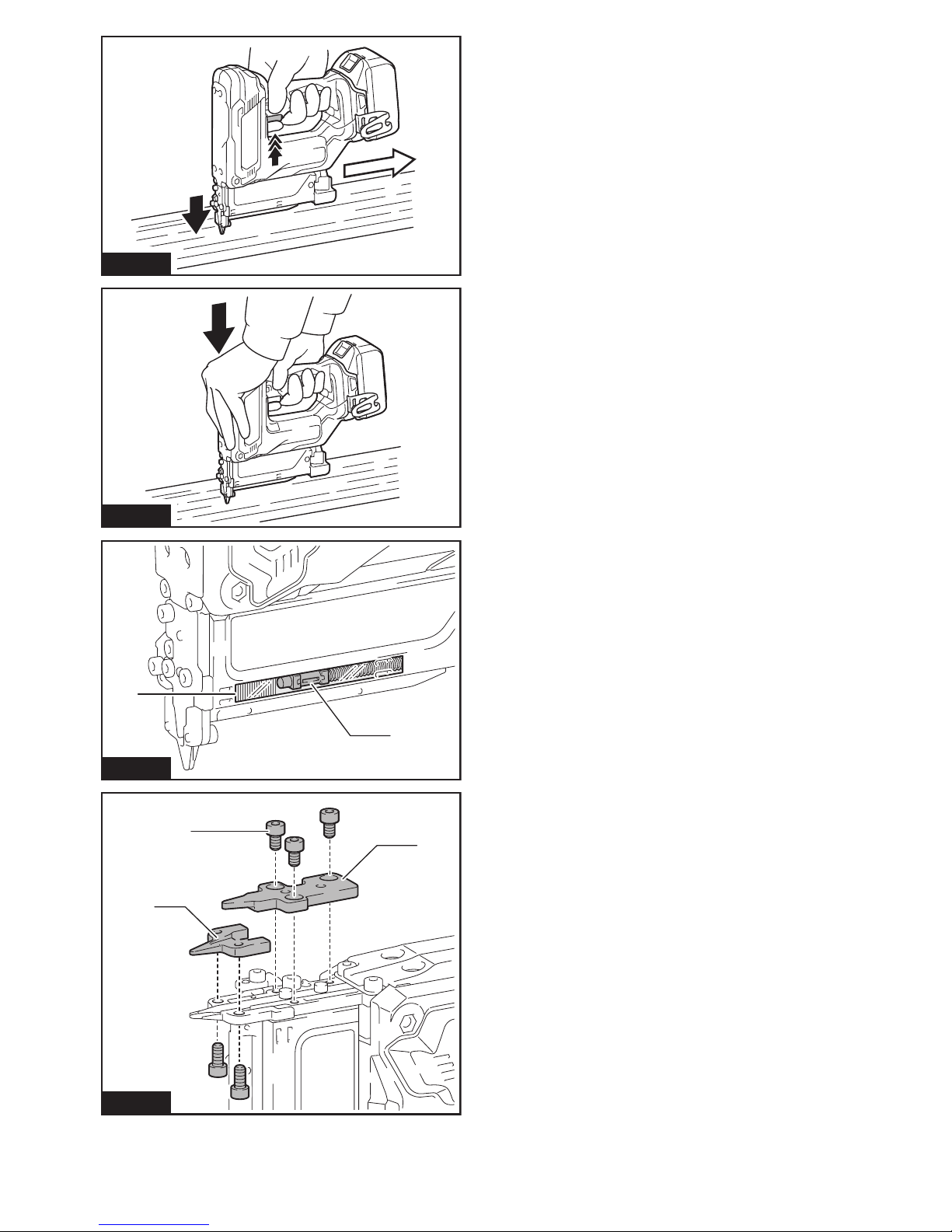

►Fig.16
Iftheheadofthepinnailremainsabovetheworkpiece
surface, drive the pin nail while holding the pin nailer
headrmlyagainsttheworkpiece.
►Fig.17
NOTE:Iftheheadofthepinnailstillremainsabove
the workpiece even you hold the pin nail head,
thematerialmaynotbesuitableforthepinnailer.
Continuing to use the pin nailer on such material may
resultinadamagetothedriverofthepinnailerand/
orpinnailerjamming.
Anti dry re mechanism
WARNING: Always make sure that your
ngers are not placed on the switch trigger or
the contact element and the battery cartridge is
removed before loading the pin nailer.
Whenthenumberofremainingpinnailsinthemaga-
zineare0-3pieces,theswitchtriggercannolongerbe
pulled.Atthistime,insertanewstripofpinnailsinthe
magazineandtheswitchtriggercanbepulledagain.
NOTE:Whenringadifferentlengthofpinnails
shortlyaftertheanti-dryringdevicehasactuated,
insert a new strip of pin nails into the magazine and
reawayallthepriorpinnailsthathaveremainedon
junkmaterial.
