Makita LXTP01 1 Series Manual

Models No.
Description
CONCEPT AND MAIN APPLICATIONS
Specification
Standard equipment
Optional accessories
P 1/ 15
Note: The standard equipment for the tool shown above may vary by country.
BPT351 (LXTP01*1)
Cordless Pin Nailer
Model BPT351 has been developed as a 18V Cordless Pin Nailer
with more working capacity than that of 14.4V Model BPT350.
Its features and benefits are the same as BPT350
except for 18V Li-ion battery.
This model is available in the following variations.
Safety goggles ......................... 1
Nose adapter ............................ 1
Hex wrench 3 .......................... 1
Belt clip ................................... 1
Pin nails; 18mm (11/16"), 25mm (1"), 30mm (1-3/16"), 35mm (1-3/8")
Fast Charger DC18RA
Li-ion Battery BL1815
Li-ion Battery BL1830
Dimensions: mm (")
Width (W)
Height (H)
Length (L) 249 (9-3/4)
79 (3-1/8)
227 (8-15/16)
Model No.
Specifications
Weight according to
EPTA-Procedure 01/2003: kg (lbs)
Magazine capacity: pcs.
Pin nails
(23Ga)
Battery
BPT351 (LXTP01)
18, 25, 30, 35
(11/16, 1, 1-3/16, 1-3/8)
Voltage: V 18
130
1.9*2/ 2.1*3(4.2*2/ 4.6*3)
Diameter: mm (") 0.6 (1/32)
Length: mm (")
1.3/ 3.0Capacity: Ah
24/ 54Energy capacity: Wh
Li-ionCell
22 with DC18RACharging time: min.
*2 with battery BL1815
*3 with battery BL1830
Model No.
*1 Model number for North and Central American countries
BPT351RFE
(LXTP01)
BPT351Z
(LXTP01Z)
Charger
DC18RA
Battery
Type Quantity
BL1830 2 Yes
Plastic
carrying case
Systainer
case
No No No No
BPT351ZX
BPT351RFX No
No
Yes
No
Yes
All models also include the accessories listed below in "Standard equipment".
H
L
W
PRODUCT
TECHNICAL INFORMATION

[1] NECESSARY REPAIRING TOOLS
783201-2
1R228
1R268
Hex. wrench 3 (standard equipment)
1/4" Hex. shank bit for M4
Spring pin extractor M3
screwing / unscrewing Hex socket head bolt and M3x4 Pan head screw
1R266 Spring pin extractor M2
1R254 Torque wrench shaft 2-6N.m
134873-0 Bit adapter
1R220 Ratchet head 9.5
1R222 Socket adapter
disassembling magazine section
DescriptionCode No. Use for
Fig. 1
Molybdenum disulfide
lubricant
Compression spring 17
Rail Grooves of both sides where Hammer slides
Spur gear 27
(3pcs.)
89
89 Cam block Portion that contacts 66 Spur gear 55 complete
67 Plane bearing 10 Inside surface that contacts 64 Spur gear 7 complete
64
61
59
13
11
Guide bolt Shaft surface except thread portion13
Spring holder
Hammer
Holder
34 13
Screw to with Loctite 272 put on the thread.
59 DC motor Pinion gear
61 Internal gear 69 Teeth that engages with Spur gear 27
64 Spur gear 7 complete Teeth that engages with the lower gear
of 66 Spur gear 55 complete
66 Spur gear 55 complete Teeth
Pin and cam portions
Item No. Description Portion to lubricate Lubricant
67
66
11
: Makita grease N No.2
: Molybdenum disulfide lubricant
Makita grease N No.2
a little
a littleLoctite 272
CAUTION: Repair the machine in accordance with “Instruction manual” or “Safety instructions”.
Amount
Adhesive Amount
: Loctite 272
LUBRICANT
Item No. Description
M6 Hex nut
34
34
Portion to apply adhesive
Thread
ADHESIVE
Apply the following lubricants to protect parts and product from unusual abrasion.
Apply the following adhesive.

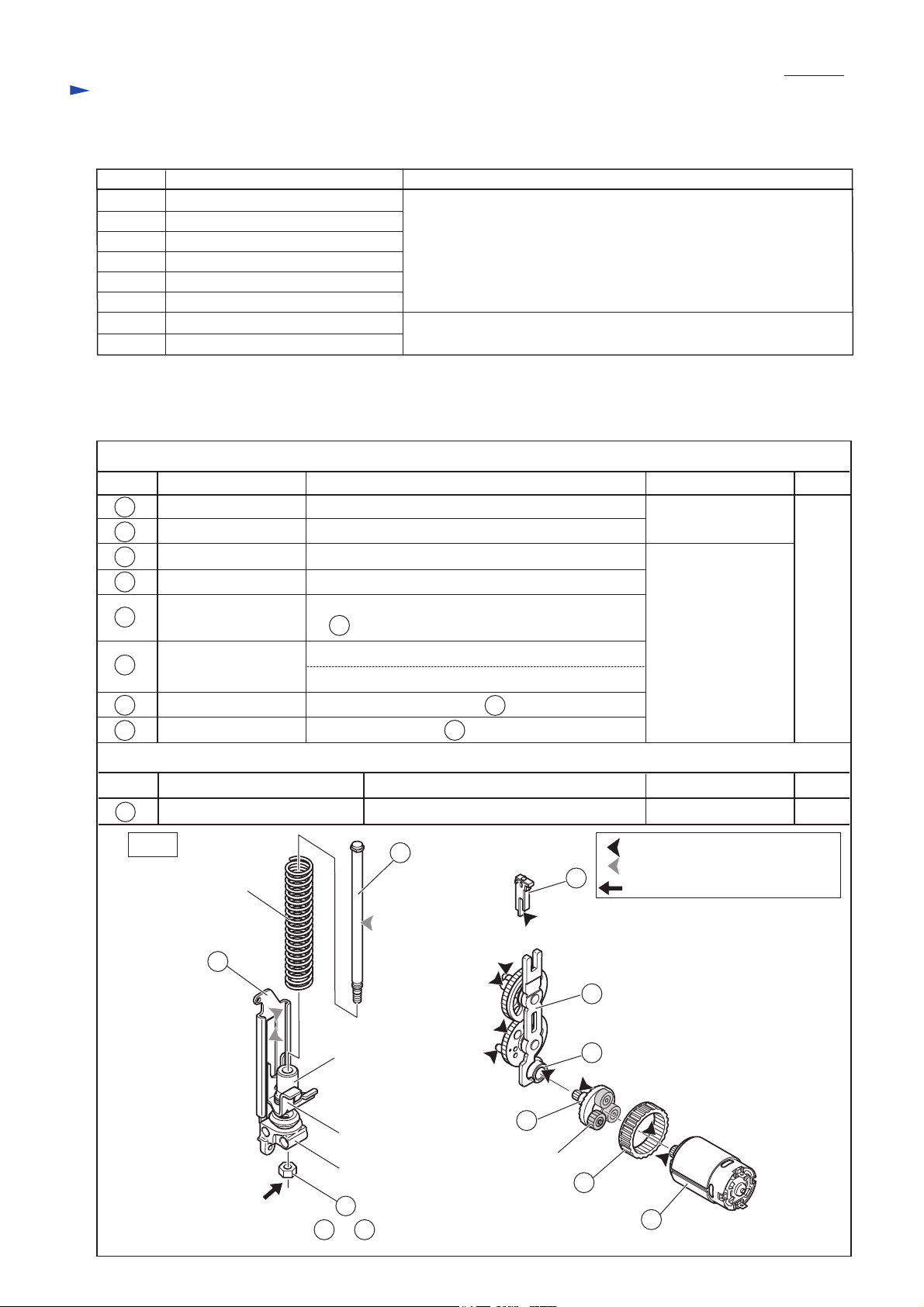

[2] LUBRICANT AND ADHESIVE APPLICATION
Repair
P 2/ 15

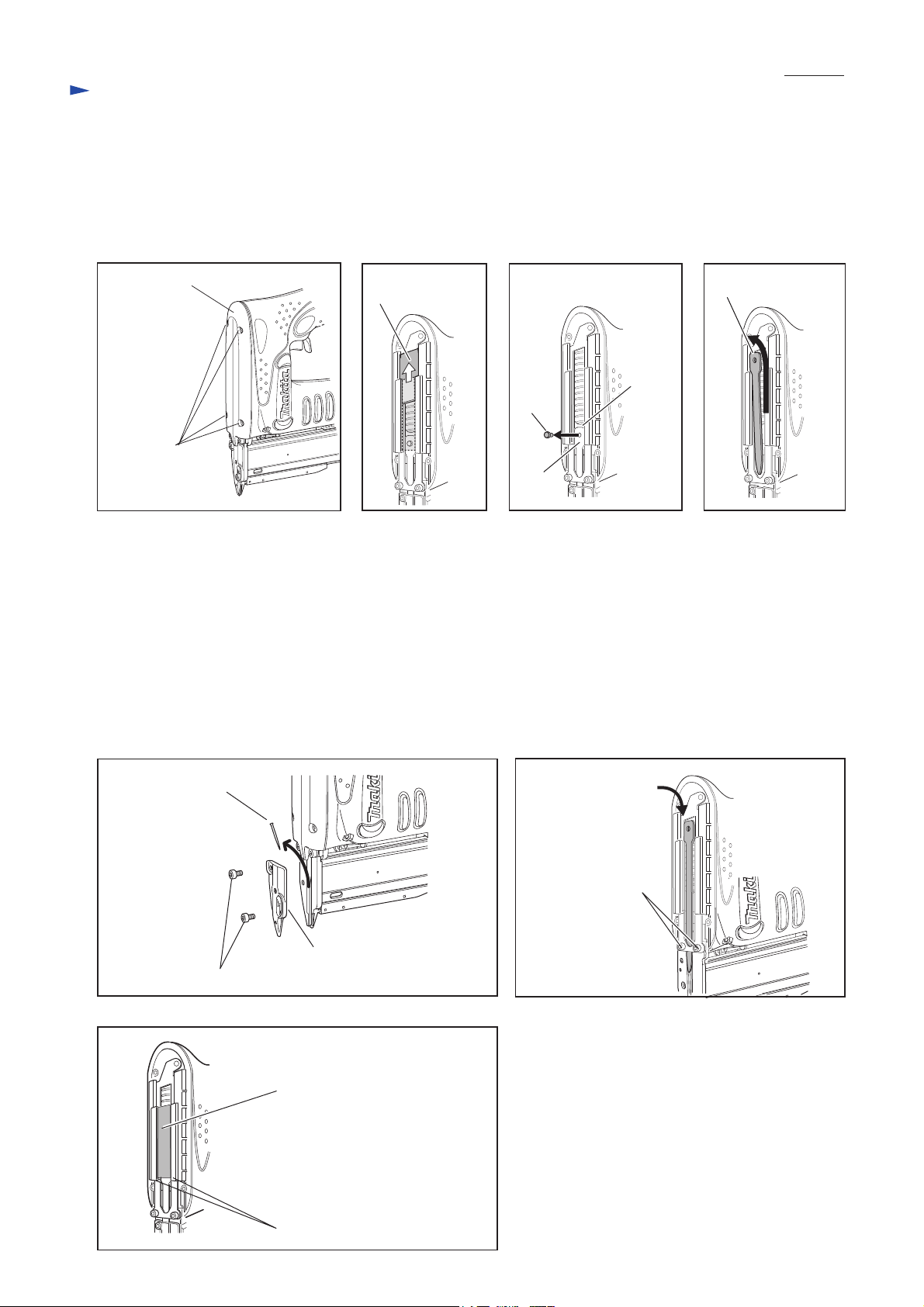

[3] DISASSEMBLY/ASSEMBLY
[3] -1. Replacing Driver
Front cover
(1) Remove four Bind PT3x16 Tapping screws and Front cover. (Fig. 2)
(2) Remove Upper plate as drawn in Fig. 3.
(3) Remove Pin 4 for connecting Driver and Hammer. (Fig. 4)
(4) Remove Driver as drawn in Fig. 5.
Note: A few of pin nails often remain in the tool, and if so, it is impossible to insert Driver into Driver guide.
(5) Remove two M4x6 Hex socket head bolts and Driver guide cover. Remove the jammed pin nails. (Fig. 6)
(6) Slide the new Driver into the groove of Driver guide. (Fig. 7)
Note: If M4x10 Hex socket head bolt(s) are loosened, the stroke of Driver guide may tilt.
In that case, slide Driver into the groove of Driver guide before securing M4x10 Hex socket head bolt(s),
and then secure M4x10 Hex socket head bolt(s).
(7) Insert Pin 4 for connecting Driver and Hammer.
(8) Set Driver guide cover in place with two M4x6 Hex socket head bolts.
(9) Slide the side ends of Upper plate into the guides of Housing set. (Fig. 8)
(10) Assemble Front cover to Housing set with four Bind PT3x16 Tapping screws.
Bind PT3x16
Tapping screw
(4pcs.)
Fig. 2 Fig. 3 Fig. 4 Fig. 5
Fig. 6 Fig. 7
Slide Upper plate
upward. Slide Driver upward.
Driver
Hammer
Pin 4
Driver
Driver guide cover
M4x6 Hex socket head bolt
M4x10 Hex
socket head bolt
Jammed pin nail
Upper plate
The guides on Housing set
Fig. 8
Repair
P 3/ 15

[3] DISASSEMBLY/ASSEMBLY
[3] -2. Replacing Switch, LED circuit and Terminal
(1) Do the steps (1), (2), (3) and (4) of the previous page.
(2) Insert Battery and pull the trigger to locate Hammer at
lowest position to release tension of Compression spring 17.
Remove Battery after this procedure is finished.
Go to the next step without changing spring position
in case Switch or DC motor is disorder.
(3) Separate housing R by removing Tapping screws and Pan head
screws drawn in Fig. 9 while holding trigger section
to prevent spring from jumping out.
(4) Switch, LED circuit and Terminal now can be removed.

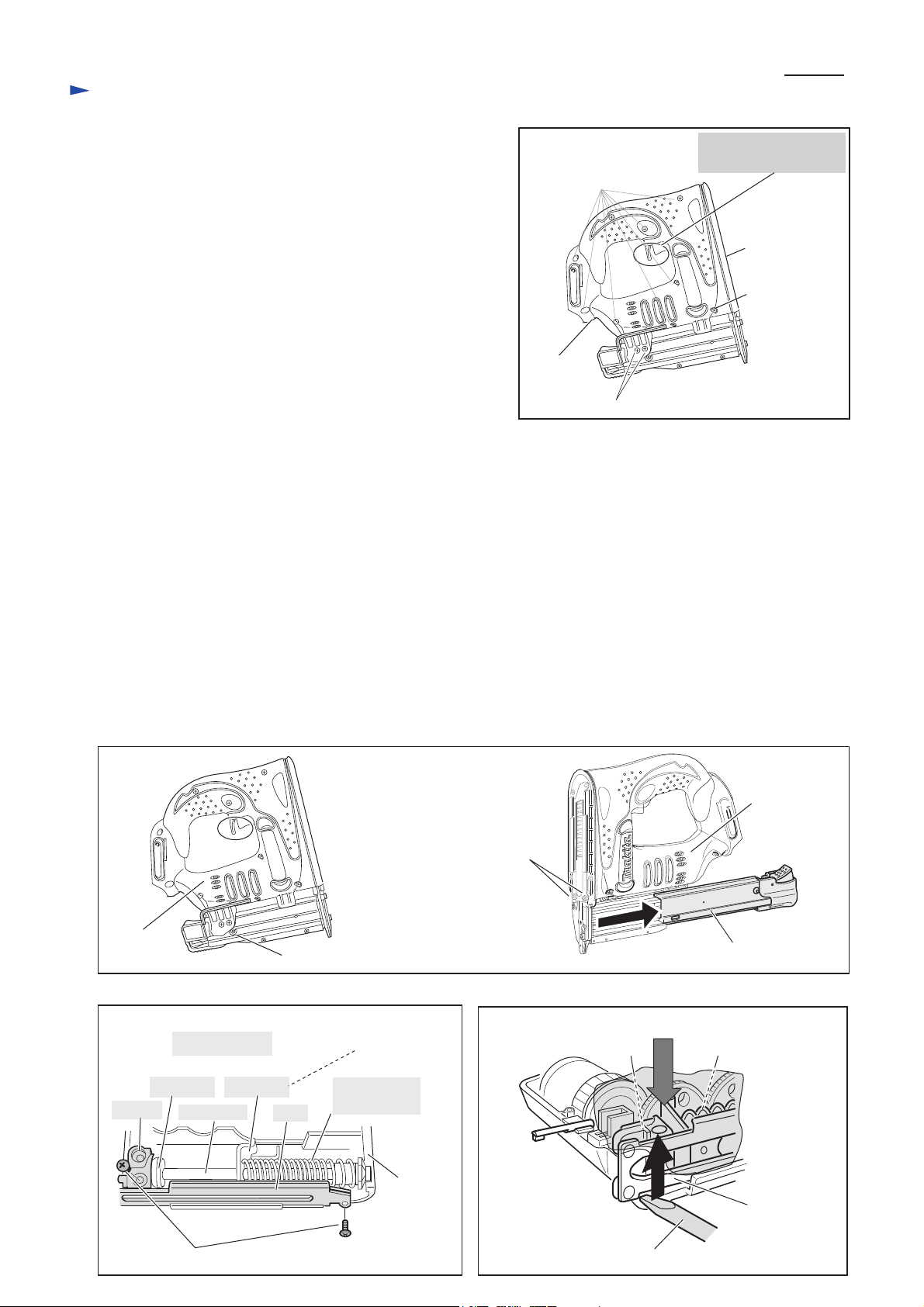

[3] -3. Replacing Motor
(1) Remove Front cover and Housing R as drawn in Fig. 2 and Fig. 9.
(2) Remove M4x6 Hex socket head bolt. Pull out Upper rail complete, and then separate Magazine ass'y from Housing L
by removing two M4x10 Hex socket head bolts. (Fig. 10)
(3) Dismantle Housing R by removing 8 pcs. of Bind PT3x16 Tapping screws, 2 psc of M4x14 Pan head screw and
a M4x35 PAn head screw. Now DC motor can be removed provided Compression spring 17 has no tension.
(4) When Motor or Switch is out of order, Hammer of Spring section often stops in the halfway position and
Compression spring 17 remains compressed. It is impossible to remove DC motor from Housing L.
In this condition, remove 2pcs. of Bin PT3x16 Tapping screw (Fig.11), and insert slotted screwdriver into the gap
between Housing L and Rail of Spring section, and then lever up Spring section with the slotted screwdriver
as drawn in Fig. 12.
Note • Cover Spring section with cloth in order not to pinch your finger.
• Hold Spring section by hand to prevent Compression spring 17 from jumping out.
(5) Remove Motor from Housing L.
M4x35 Pan
head screw
Upper rail complete
M4x14 Pan head screw (2pcs.)
Housing R
Bind PT3x16 Tapping
screw for Housing L and R
(8pcs.)
Fig. 9
Fig. 10
Hold trigger section so
as not to spring out.
Housing L
(The reverse
of Housing R)
M4x6 Hex socket head bolt
Housing R
M4x10 Hex socket
head bolt (2pcs.)
Housing L
Bind PT3x16 Tapping screw (2pcs.)
Holder
Cushion Hammer
Rail
Housing L
Compression
spring 17
Guide bolt
Spring section Holder
Cover Spring section with cloth and hold them by hand.
Compression spring 17
Rail
Slotted screwdriver
Fig. 11 Fig. 12
Hammer stops in
the halfway position
Repair
P 4/ 15

[3] DISASSEMBLY/ASSEMBLY
[3] -4. Trigger Section
DISASSEMBLING
DISASSEMBLING
(1) Remove Front cover and Housing R. (Fig. 2 and Fig. 9)
(2) Remove the parts around trigger section in the following order. (Fig. 13)
1. Safety trigger 2. Light switch arm 3. Link plate 4. Torsion spring 4 5. Pin 2.5 (3pcs.) 6. Pin 3
(3) Disassemble guide plate in order of Figs. 14, 15 and 16.
2. Light switch arm
1. Safety trigger
3. Link plate
6. Pin 3
4. Torsion spring 4
5. Pin 2.5
Fig. 13 Fig. 14
Fig. 15 Fig. 16
Fig. 17 Fig. 18
Trigger
Disconnect the hooks.
Turn swing arm.
Guide plate can be pulled out
from Trigger.
Swing arm
Guide plate
Two Torsion springs 3
(One is hooked with the other.
Refer to Figs. 33 and 34.)
(Projection to hook
the short end of Tortion
spring 3: Refer to Fig. 33.)
Trigger
[3] -5. Spring Section
Bind PT3x16
Tapping screw
Housing R Housing L Housing L
Cushion
Hammer
Compression
spring 17
Holder
Spring holder
Cushion
Hammer
Compression
spring 17
Guide bolt
Rail
Spring section
(1) Install Battery BL1430. Slide Sliding door section of Magazine to make anti-fire mechanism invalid.
Pull Trigger in a blink and release it until Hammer reaches the lowest position. (Fig. 17)
Note: Be sure to remove Battery BL1430 after the above step.
(2) After removing Housing R and Front cover, separate Spring section from Housing L by removing Two Bind
PT3x16 Tapping screws . (Fig. 18)
Repair
P 5/ 15

[3] DISASSEMBLY/ASSEMBLY
[3] -5. Spring Section (cont.)
Guide bolt
Wrench 8
M6 Hex nut
Holder Flat washer 6
Rail
Guide bolt
Cushion
Cushion
Cushion is fit into the groove of
Guide bolt firmly. Therefore, twist
Cushion to pull it off from the groove.
Turn compression spring 17 counterclockwise
while holding Spring holder with gloved
hands.
Spring holders is removed from Compression
spring 17.
After removing Guide bolt and Flat washer 8, remove Spring
holder of the opposite side in the same way drawn in Fig. 21.
Note: When inserting Spring holder into Compression spring 17,
turn Compression spring 17 clockwise and twist Spring
holder to set in place.
Turn guide bolt counterclockwise
while gripping holder by a gloved
hand and remove M6 hex nut,
Holder with Rail and
Flat washer 6 from Guide bolt. Hammer
Fig. 19 Fig. 20
Fig. 21 Fig. 22
Fig. 23
Spring holder
Spring holder
Compression
spring 17
Flat washer 8
Guide bolt
(3) Disassemble the Spring section in order of Fig. 19, 22. Spring section is removed as drawn in Fig. 23.
M6 Hex. nut Holder
Spring holder
Rail Cushion
Hammer
Flat washer 6
Flat washer 8
Spring holder Guide bolt
Compression spring 17
DISASSEMBLING
Repair
P 6/ 15

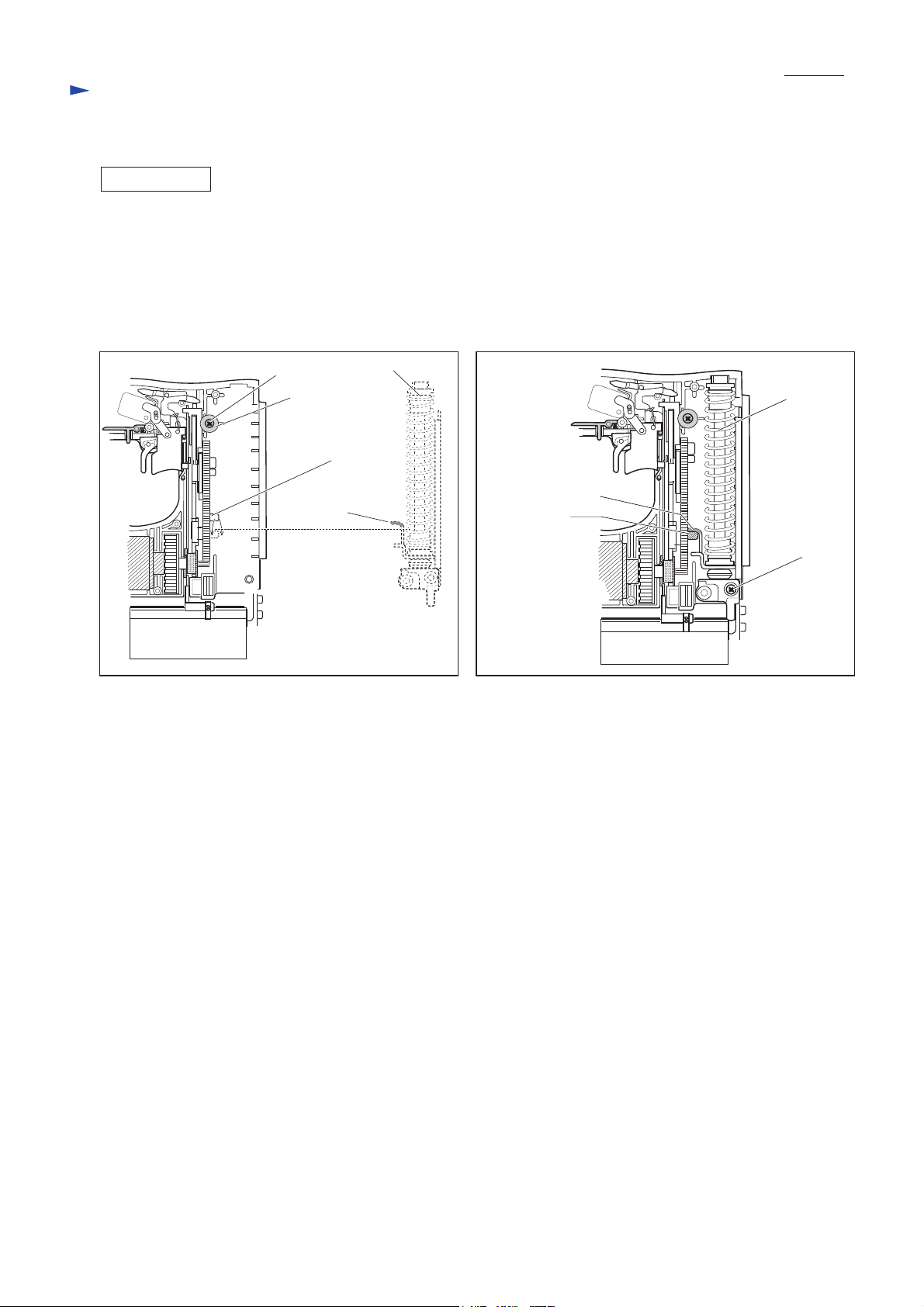

[3] DISASSEMBLY/ASSEMBLY
[3] -6. Spring section (cont.)
ASSEMBLING
Hook portion of
Hammer
Hook portion
of Hammer
Flat washer 4
Bind PT3x16 Tapping screw
Bind PT3x16
Tapping screw
Spring section
Spring section
Roller portion of
Spur gear 55
(1) Take the reverse steps of the disassembling procedure for Spring section.
(2) Fix Spur gear 55 complete with Flat washer 4 and Bind PT3x16 Tapping screw.
Install Spring section in Housing L while adjusting Roller position of Spur gear 55 complete
to under the hook portion of hammer (Fig. 24).
(3) Fix Spring section with Bind PT3x16 Tapping screw and mount driver guide, driver, and driver guide cover
to Housing R. (Fig. 25)
Fig. 24
Roller
(The position
is lower than
that of the hook
portion of hammer)
Fig. 25
Repair
P 7/ 15

ASSEMBLING
[3] DISASSEMBLY/ASSEMBLY
[3] -5. Motor and Gear Section
Repair
P 8/ 15
(1) Assemble Cam block section to Spur gear 55 complete. (Fig. 26) Usually, there is no need to disassemble Cam block
section for repair.
Note: Put Makita grease N No.2 to the inner and the outer surface of Internal gear 69,
the pins of Spur gear 7 complete and the teeth of Spur gear 55 complete.
(2) Mount the following parts on Housing L (Fig. 27);
Spur gear 55 complete, Cam block section, Lock arm section and two Leaf springs
Note: When disassembling Lock arm section, do not remove M3x4 Pan head screw. It becomes easy to set gear
section in place.
Regarding two Leaf springs, install them in the space for Internal gear 69 as drawn in Fig. 28.
(3) Face the rim portion of Internal gear 69 oposit side of DC motor and assemble Internal gear section (Fig. 29).
(4) Install Anti back plate to Spur gear 7 complete with the direction described in Fig. 30
and mount them in Housing L. (Fig. 31) Be sure to put Roller portion of Spur gear 55 complete under
the hook of Hammer.
Fig. 26
Fig. 28
Spur gear 55
complete
Housing L
Spur gear 7
complete
Tails of Anti back plate
Cam block section (with Push pin,
Spring pin 2-8 and Compression spring 2.4
Lock arm section
(with Pin 5 and
M3x4 Pan head
screw )
Lock arm
Fig. 27
Spur gear
55 complete
Cam block
Pin 5
Fig. 29
Distance A
Distance B
Distance A= Distance B
Center line
Leaf spring
Leaf spring
Leaf spring
for Internal
gear 69
Rim portion
Flat washer 12
DC motor
Spur gear 7
complete
Spur gear 27 (3pcs.)
Space of Housing L for
Internal gear 69
Internal gear 69
Caution: If using the tool on condition that Roller portion of Spur gear 55 complete is put on the hook of Hammer
by mistake, DC motor runs without transmitting the torque to gear section.
DC Motor
Plane
bearing 10
Put Plane bearing 10 on
Spur gear 55 complete.
Install Plane bearing 10
into the hook of
Spur gear 55 complete.
Fig. 30 Fig. 31
Internal gear 69
Roller portion of
Spur gear 55 complete
Hook of Hammer
Spur gear 55 complete
Hook of Spur gear 55 complete
Anti back plate
Rim portion of
Internal gear 69

P 9/ 15
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -6. Switch Mechanism
ASSEMBLING
Fig. 33
Fig. 34 Fig. 35
Fig. 36 Fig. 37
Trigger
Trigger
(1) Insert Guide plate and Compression spring 4 into Trigger. (Fig. 32)
(2) Hook the short end of Torsion spring 3 with Swing arm, and then insert the
Torsion spring 3 into Swing arm. (Fig. 33)
(3) Insert Swing arm into Guide plate so that Pin 2.5 can be passed through
the grooves of Guide plate in the next step. (Figs. 32 and 33)
(4) Pass Pin 2.5 through the holes of Trigger and the grooves of Guide plate
while setting two Torsion springs 3 as drawn in Figs. 14 and 33 and secure
Pin 2.5 with two Stop rings E-2.0.
(5) Hook one Torsion spring 3 with the other (Ref. Fig. 33) as drawn in Fig. 34.
Note: Torsion spring 3 for Swing arm is different from Torsion spring 3 for Guide plate and Switch arm.
(6) Hook the projection of Trigger with the notch of Lock arm. (Figs. 34 and 35)
(7) Install Trigger section in Housing L while compressing Compression spring 4 to put it on the rib of Housing L as
drawn in Fig. 35.
(8) After putting Switch arm in Guide plate, insert Pin 2.5 through the holes of Guide plate and Switch arm.
Pay attention to the direction of Switch arm. Refer to Fig. 36.
(9) Install Torsion spring 4 for Guide plate and Switch arm (Ref. Fig. 33) as drawn in Fig 37.
Compression
spring 4
Pin 2.5
: The components of Trigger set
Pin 2.5
Swing arm
long end of Torsion
spring 3 for hooking
the other Torsion
spring 3 Guide plate
Guide plate
Viewed from the upper side of
the assembled Trigger Section
Torsion spring 3 between
Trigger and Stop ring E-20
(Hook the shot end to
the projection of Trigger.
Refer to Fig. 14.)
Torsion spring 3
Stop ring E-2.0
Stop ring E-2.0
Stop ring E-2.0
Long end of Torsion spring 3
(come from inside of Swing arm)
Projection of Trigger hooked with notch of Lock arm
Compression
spring 4
Rib of Housing L
for compression
spring 4
long end of Torsion
spring 3
(located out of
Trigger)
Torsion spring 3
Swing arm
Housing R side
Housing L side
Housing L side
Housing R side
Fig. 32
Trigger
The groove
of Guide plate
to pass Pin 2.5
Inserting position of Guide plate and
Compression spring 4 to Trigger
Compression
spring 4
short end of
Torsion spring 3
for Swing arm
Projection of Trigger
(for Lock arm)
Note: Switch arm has to be assembled
so as to contact Push pin.
Otherwise, the machine does not
run even if Switch trigger is pulled.
(1) Put short end of Torsion spring 4
on Guide plate.
(2) Put short end of
Torsion spring 4
on Guide plate.
Pin 2.5
Guide plate
Switch arm
Stop ring E-2.0
Guide plate

P 10/ 15
Repair
[3] DISASSEMBLY/ASSEMBLY
[3] -6. Switch Mechanism (cont.)
ASSEMBLING
Fig. 38
Fig. 39
Fig. 43
Fig. 41 Fig. 42
Fig. 40
(7) Insert the remaining two Pins 2.5 firmly into Housing set L until they stop
as drawn in Fig. 38.
(8) Install Link plate to Housing L with Pin 3 through Link plate. (Fig. 39)
(9) Insert the projection of Light switch arm into Compression spring 2
firmly. And then insert the axis of Light switch arm into hole of Housing
L and push Compression spring 2 to the emboss of Housing L. (Fig. 40)
(10) Set Torsion spring 4 in place. Install Safety trigger and Torsion spring 4
to Housing L with Pin 3 as drawn in Fig. 41.
All the components are assembled as drawn in Fig. 42.
(11) Fasten the two positions with two Bind PT3x16 tapping screws as drawn
in Fig. 43 before assembling Housing R to Housing L.
Note: Avoid loosening M3x4 Pan head screw that fastens Lock arm and Pin 5
as much as possible.
If loosening is inavoidable, pretighten M3x4 Pan head screw with Loctite 242 put on the thread and finish the all
reassembling work. After that, check the trigger’s smooth action and finally tighten the screw when the smooth
action can be obtained.
Pin 2.5 (2pcs.)
Pin 2.5
(Ref. Figs. 34 and 35)
Pin 3
Link plate
Compression spring 2
Emboss of Housing L
Torsion spring 4
M3x4 Pan
head screw
Bind PT3x16
tapping screw
(2pcs.)
Safety trigger
Pin 3
Axis of
Light switch arm
Hole of Housing L
for Light switch arm

[3] DISASSEMBLY/ASSEMBLY
[3] -7. Magazine
P 11/ 15
Repair

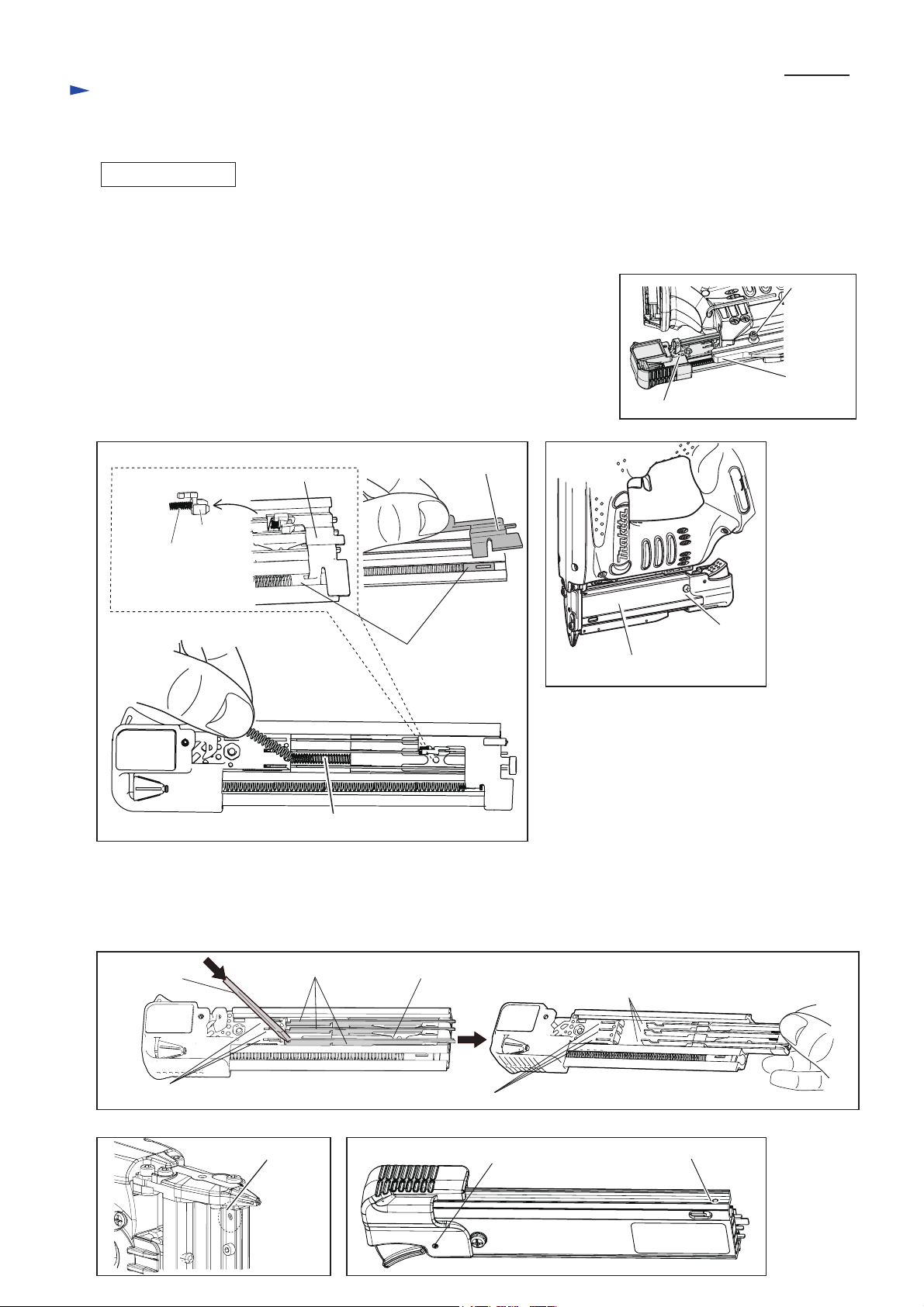

DISASSEMBLING
M4x6
Hex
socket
head bolt
Fig. 44
Fig. 46Fig. 45
Fig. 47
Fig. 48 Fig. 49
(1) Loosen M4x6 Hex socket head bolt three turns, then pull out Upper rail section
from Magazine . (Fig. 44)
(2) Remove large Compression spring 3 that is put on Nail guide holder. (Fig. 45)
(3) Remove Stopper with small Compression spring 3 from Pusher. (Fig. 45)
(4) Pusher is just inserted into the slit of Shoulder pin 5-7. Therefore, Pull Pusher
out straight from the slit side of Shoulder pin 5-7. (Fig. 45)
(5) Loosen M4x10 Pan head screw three turns so that Upper rail section has a
clearance to push down three Nail stoppers and remove their hooks from Nail
guide holder in the next step.
Note: Do not remove the screw. This is because the complete removing will
cause the removal of Slide door cap and all the small Springs in
the magazine section. Upper rail section
Magazine
Compression spring 3 put on the rod of Nail guide holder
Action (2)
Action (3) Action (4)
Stopper
Compression
spring 3
Shoulder pin 5-7
Pusher Pusher
M4x10 Pan
head screw
Upper rail complete
(6) Remove three Nail stoppers in order. Push each Nail stopper with Slotted screwdriver to remove the hook from
the slot of each Nail stopper. (Fig. 47)
Nail guide holder is removed.
(7) Use 1R266 to remove Spring pin 2-8. (Fig. 48) Use 1R267 to remove Spring pins 3-10 and 3-18. (Fig. 49)
Nail stopper (3pcs.)
three hooks of Nail stoppers
three slots of Nail guide holder to hook the Nail stopper
Slotted
screwdriver Leaf spring
Spring pin 2-8 Spring pin 3-18 Spring pin 3-10

[3] DISASSEMBLY/ASSEMBLY
[3] -7. Magazine (cont.)
P 12/ 15
Repair

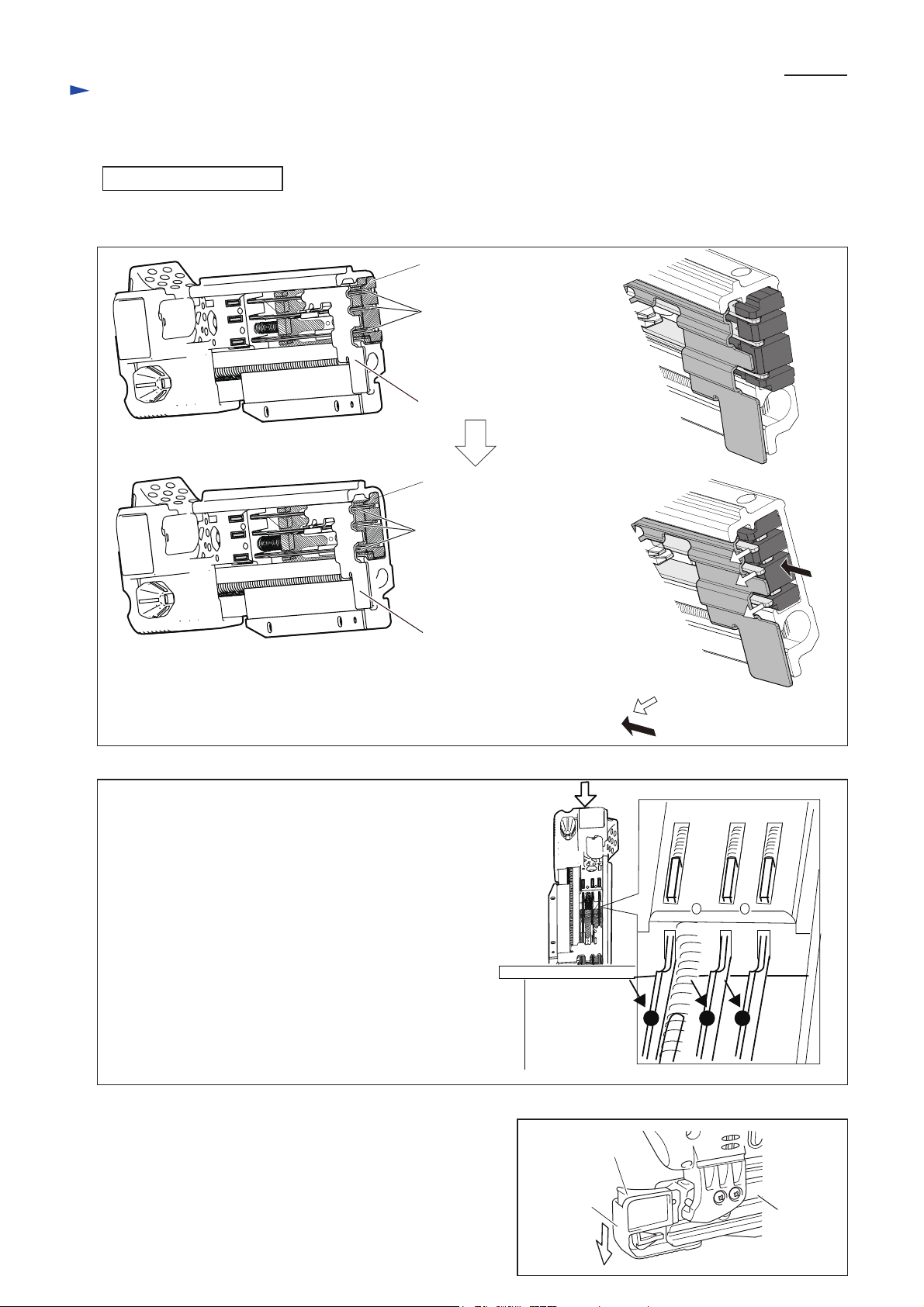

Points of ASSEMBLING
Fig. 52
Fig. 50
Fig. 51
Lever
Upper rail
complete
Slide door
cap
• Be sure to check that Nail stoppers work properly as drawn in Figs. 50 and 51.
• When installing Slide door cap into Upper rail complete,
press Slide door cap fully in the direction of an arrow drawn in
Fig. 52 and tighten M4x10 Pan head screw at the same time.
• While facing the slot of Shoulder pin 5-7 to the magazine side
as drawn in Fig. 45, install Pusher to Upper rail complete.
Nail guide holder
Pusher
Nail guide holder
Any Nail stoppers must not be stuck in the groove of Nail guide holder.
Check if all Nail stoppers come back to original position with spring tension
when you release Nail guide holder.
When pushing down Nail guide holder against workbench and
pressing the designated points of Nail stoppers, Nail stoppers
have to be returned back without any interferes.
If Leaf spring under Nail stoppers is not completely seated on
the bottom, some Nail stoppers are caught in the bottom side.
When the above trouble happens, pull and return the nail stoppers
several times, and then find out the nail stoppers’ smoothest
position.
When Nail guide holder
is pushed into Magazine,
Nail stoppers rise to
Pusher side.
Action of Nail guide holder
Pressure to Nail guide holder
Nail stoppers are
in Nail guide holder.
Pusher
Workbench

[3] DISASSEMBLY/ASSEMBLY
[3] -8. Fastening Torque
Driver guide cover
27 Driver guide
29
12
51
Magazine
Lower rail
Spacer
57
Lock arm
Pin 5
Item No. Description Fastening Torque
29 2.5 N.m
27 4.0 N.m
51 Hex socket head bolt M3x10 for assembling Magazine and Lower rail 1.0 N.m
57 Pan head screw M3x4 for assembling Pin 5 and Lock arm 1.0 N.m
Fig. 53
Circuit diagram
Color index of lead wires' sheath
Black
White
Red
Orange
Fig. D-1
LED
circuit
P 13/ 15
Repair
M4x14 Hex socket head bolt for assembling Driver guide and Magazine
M4x6 Hex socket head bolt for assembling Driver guide and Driver guide cover
12 4.0 N.mM4x10 Hex socket head bolt for assembling Driver guide and Holder
Switch
(for LED circuit)
Terminal
DC motor
Red marking
for distinction
of + Terminal
Switch put under ON-OFF Switch
(for Upper dead point detection)
Switch
(for ON-OFF)
NO
COM
COM
NO
COM
NO

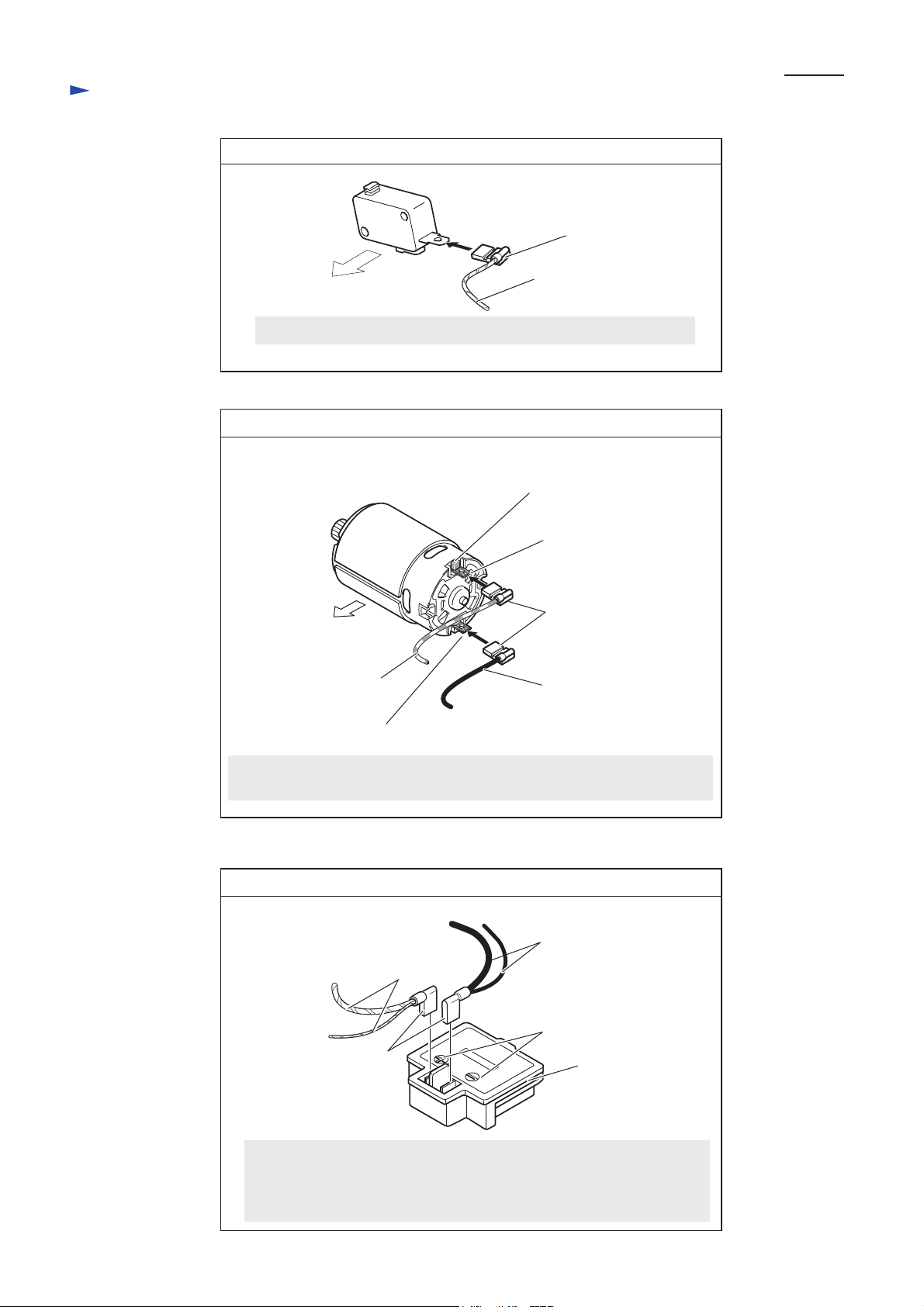

Wiring diagram
Housing L side
Flag connector
Flag connector with lead wires (black) has to be connected to - Terminal
so that the lead wires pass over the mark of - poles.
Flag connector with lead wires (orange) has to connected to + Terminal
so that the lead wires face the opposite side against the mark of + poles.
Flag connector
Lead wires (orange)
Lead wires (black)
Terminal
Wiring to Terminal
Wiring to DC motor
Wiring to Switch
Mark of Poles
Housing set (L) side
Red marking for distinction of + Terminal
Connect Flag connectors with Lead wires at direction described above.
Connect Flag connector with lead wire (red) to Terminal with red marking.
Flag connector
Terminal with
Red marking
Lead wire (black)
Lead wire (red)
Terminal without red marking
Connect Flag connector to Switch at direction described above.
Lead wire (orange)
Fig. D-2
Fig. D-3
Fig. D-4
P 14/ 15

Switch put under ON-OFF Switch
(for Upper dead point detection)
Boss A
Lead wire (black) for connecting ON-OFF switch
and Upper dead point detection switch
Lead wire
holder A
Lead wire
holder A
Guide Lead wire (red) of Upper dead point
detection switch to DC motor while passing
the wire between boss A and lead wire
holder A.
Fix lead wire (black) of ON-OFF switch
with lead wire holder A.
Switch (for ON-OFF) put on
Upper dead point detection switch
LED circuit
Rib B
Rib A
to Switch for
LED circuit
to Terminal
Lead wires (red and black) of LED circuit pass
between Rib A and Rib B so as not to put them
on the LED circuit.
Switch for LED circuit
Light switch arm
Terminal Lead wire holder B
Lead wire holder B
DC motor
LED lead wire (red)
[It is thinner than
Lead wire (red) of
Upper dead point
detection switch.]
Lead wire (red) of
Upper dead point
detection switch
Wall of Housing L
Pile lead wire (red) of Upper dead point detection switch
on LED lead wire (red), and then pass these lead wires
between lead wire holder B and the wall of Housing L.
Rib
Pass the following lead wires between rib
and inner wall of Housing L.
*Lead wire (orange) for connecting
ON-OFF switch with terminal
*Lead wire (orange) for connecting
Switch for LED circuit with Terminal
*Lead wire (red) for connecting
LED circuit with Switch for LED circuit
*Lead wire (red) for connecting
Start point regulator and DC motor
LED circuit
Switch (for ON-OFF)
See Fig. D-5.
See Fig. D-6.
See Fig. D-7.
Fig. D-5
Fig. D-6 Fig. D-7
P 15/ 15
Lead wire (red)
to + Terminal of
DC motor
Wiring diagram
