Makita GN900 User manual

GB Cordless Clipped Head
Framing Nailer
Instruction manual
F Cloueur à Gaz Manuel d’instructions
D Gas-Streifen-Nagler Betriebsanleitung
I Chiodatrice a batteria per
chiodi con testa a semiluna
Istruzioni per l’uso
NL Accunagelpistool voor
skeletbouw
Gebruiksaanwijzing
E Clavadora a Gas Manual de instrucciones
P Pistola de pregos de cabeça
cortada sem fio
Manual de instruções
DK Ledningsfri sømpistol til søm
m. reduceret hoved
Brugsanvisning
GR Καρφωτικό εργαλείο μπαταρίας
με πρόκα συντετμημένης κεφαλήςΟδηγίες χρήσης
GN900
009440

2
1000114 2009459
3009441 4009444
5009445 6009446
1
2
3
4
6
5
8
7
9
10
11
12

3
7009447 8009448
9009449 10 009450
11 009451 12 009456
13 009457 14 009442
13
14
15

4
15 009452 16 011695
17 009453 18 009454
19 009455 20 009460
21 009443 22 009458
5
3
14
16
17

5
ENGLISH (Original instructions)
Explanation of general view
SPECIFICATIONS
• Due to our continuing program of research and development, the specifications herein are subject to change without
notice.
• Specifications and battery cartridge may differ from country to country.

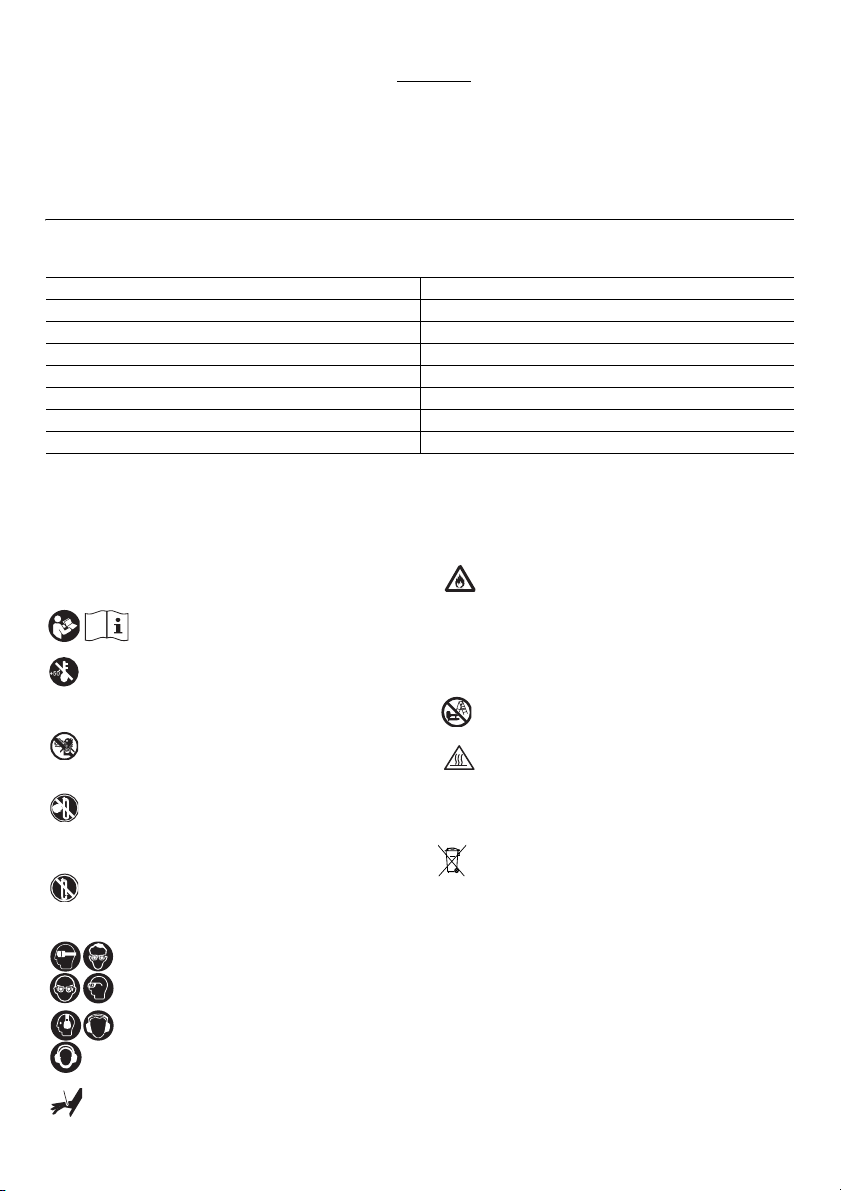

Symbols END107-7
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
... Read instruction manual.
............. Container under pressure, keep away
from temperatures over 50°C (for ex. sun
radiation) Keep container in a well
ventilated place.
............. Use only outside or well ventilated
rooms. Do not breathe gas.
............. Do not use near flames or sprays on
heated surfaces. In use, may form
flammable/explosive vapour-air mixture.
............. Do not damage, puncture or burn even
after use.
...... Wear safety glasses.
...... Wear ear protection.
............. Keep fingers away from trigger when not
driving fasteners to avoid accidental
firing.
............. Use only in ventilated area to avoid
nausea and unconsciousness. Never use
tool in combustible atmospheres.
The tool exhaust may ignite flammable
materials.
............. Do not use on scaffoldings, ladders.
............. Warning: hot surface!
Do not touch around this symbol.
Touching the surface may cause burns or
injuries.
.......... Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material!
In observance of the European
Directives, on Waste Electric and
Electronic Equipment and Batteries and
Accumulators and Waste Batteries and
Accumulators and their implementation in
accordance with national laws, electric
equipment and batteries and battery
pack(s) that have reached the end of
their life must be collected separately and
returned to an environmentally
compatible recycling facility.
Intended use ENE059-2
The tool is intended for the preliminary interior work such
as fixing floor joists or common rafters and framing work in
2” x 4” housing.
The tool is for high-volume professional application only.
Do not use it for any other purpose. It is not designed to
drive fasteners directly on a hard surface like steel and
concrete.
1. Battery cartridge
2. Fuel cover
3. Trigger
4. Indication lamp
5. Pusher button
6. Pusher lever
7. Magazine
8. Contact element
9. Hex wrench
10. Button
11. Metering valve
12. Cap
13. Jet nozzle
14. Screws
15. Hook
16. Filter cover
17. Filter
Model GN900
Nail length X Shank diameter Nail L: 50 mm - 90 mm d: 2.9 mm - 3.3 mm
Nail capacity 40 nails (1strip)
Nail collation angle (degree) 34
Figure of nail head Clipped
Dimensions (L X W X H) 321 mm X 108 mm X 368 mm
Net weight 3.3 kg
Rated voltage D.C. 7.2 V
Cd
Ni-MH
Li-ion
