Makita BFL301R User manual

1
ENGLISH (Original instructions)
INSTRUCTION MANUAL
IMPORTANT: Read Before Using.
Cordless Angle Screwdriver
BFL201R
BFL301R
BFL402R
007907

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model BFL201R BFL301R BFL402R
Hard joint 10 - 20 N • m 16 - 30 N • m 25 - 40 N • m
Fastening torque Soft joint 10 - 20 N • m 16 - 30 N • m 25 - 40 N • m
Square drive 9.5 mm 9.5 mm 9.5 mm
No load speed (min-1) 360 260 200
Dimensions 429 mm x 72 mm x 98 mm 477 mm x 72 mm x 98 mm 477 mm x 72 mm x 98 mm
Net weight 1.7 kg 2.0 kg 2.0 kg
Rated voltage D.C. 14.4 V
• Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
• Specifications and battery cartridge may differ from country to country.
• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
END004-4
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment, 2006/66/EC on
batteries and accumulators and waste
batteries and accumulators and their
implementation in accordance with
national laws, electric equipment and
battery pack that have reached the end
of their life must be collected separately
and returned to an environmentally
compatible recycling facility.
ENE033-1
Intended use
The tool is intended for screw driving in wood, metal and
plastic.
ENG905-1
Noise
The typical A-weighted noise level determined according
to EN60745:
Model BFL201R, BFL402R
Sound pressure level (LpA) : 72 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
Model BFL301R
Sound pressure level (LpA) : 74 dB(A)
Uncertainty (K) : 3 dB(A)
The noise level under working may exceed 80 dB (A).
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum) determined
according to EN60745:
Work mode: screwdriving without impact
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH003-12
For European countries only
EC Declaration of Conformity
We Makita Corporation as the responsible
manufacturer declare that the following Makita
machine(s):
Designation of Machine:
Cordless Angle Screwdrive
r
Cd
Ni-MH
Li-ion

3
Model No./ Type: BFL201R, BFL301R, BFL402R
are of series production and
Conforms to the following European Directives:
2006/42/EC
And are manufactured in accordance with the following
standards or standardised documents:
EN60745
The technical documentation is kept by our authorised
representative in Europe who is:
Makita International Europe Ltd,
Michigan, Drive, Tongwell,
Milton Keynes, MK15 8JD, England
30.1.2009
000230
Tomoyasu Kato
Director
Makita Corporation
3-11-8, Sumiyoshi-cho,
Anjo, Aichi, JAPAN
GEA006-2
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust. Power tools
create sparks which may ignite the dust or fumes.
3. Keep children and bystanders away while
operating a power tool. Distractions can cause
you to lose control.
Electrical safety
4. Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools. Unmodified plugs and matching outlets will
reduce risk of electric shock.
5. Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators. There is an increased risk of
electric shock if your body is earthed or grounded.
6. Do not expose power tools to rain or wet
conditions. Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts. Damaged or entangled cords
increase the risk of electric shock.
8. When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of
a cord suitable for outdoor use reduces the risk of
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of an
GFCI reduces the risk of electric shock.
Personal safety
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
11. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
12. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
13. Remove any adjusting key or wrench before
turning the power tool on. A wrench or a key left
attached to a rotating part of the power tool may
result in personal injury.
14. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
15. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
16. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related

4
hazards.
Power tool use and care
17. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
18. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
19. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the power tool accidentally.
20. Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool. Power tools are
dangerous in the hands of untrained users.
21. Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tool’s operation. If damaged, have the
power tool repaired before use. Many accidents
are caused by poorly maintained power tools.
22. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
23. Use the power tool, accessories and tool bits
etc. in accordance with these instructions,
taking into account the working conditions
and the work to be performed. Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
24. Recharge only with the charger specified by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
25. Use power tools only with specifically
designated battery packs. Use of any other
battery packs may create a risk of injury and fire.
26. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery
terminals together may cause burns or a fire.
27. Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water. If
liquid contacts eyes, additionally seek medical
help. Liquid ejected from the battery may cause
irritation or burns.
Service
28. Have your power tool serviced by a qualified
repair person using only identical replacement
parts. This will ensure that the safety of the power
tool is maintained.
29. Follow instruction for lubricating and
changing accessories.
30. Keep handles dry, clean and free from oil and
grease.
GEB050-2
CORDLESS SCREWDRIVER
SAFETY WARNINGS
1. Hold power tool by insulated gripping
surfaces, when performing an operation where
the fastener may contact hidden wiring.
Fasteners contacting a "live" wire may make
exposed metal parts of the power tool "live" and
could give the operator an electric shock.
2. Always be sure you have a firm footing.
Be sure no one is below when using the tool in
high locations.
3. Hold the tool firmly.
4. Keep hands away from rotating parts.
5. Do not touch the bit or the workpiece
immediately after operation; they may be
extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safety rules stated in this
instruction manual may cause serious personal
injury.
ENC007-5
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1. Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.

5
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any
conductive material.
(2) Avoid storing battery cartridge in a
container with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current
flow, overheating, possible burns and
even a breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 ﾟC (122 ﾟF).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
SAVE THESE INSTRUCTIONS.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before completely
discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
2. Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room
temperature at 10 ﾟC - 40 ﾟC (50 ﾟF - 104 ﾟF).
Let a hot battery cartridge cool down before
charging it.
FUNCTIONAL DESCRIPTION
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.
Installing or removing battery cartridge
3
2
1
007918
• Always switch off the tool before insertion or
removal of the battery cartridge.
• To remove the battery cartridge, withdraw it from
the tool while sliding the button on the front of the
cartridge.
• To insert the battery cartridge, align the tongue on
the battery cartridge with the groove in the housing
and slip it into place. Always insert it all the way
until it locks in place with a little click. If you can see
the red part on the upper side of the button, it is not
locked completely. Insert it fully until the red part
cannot be seen. If not, it may accidentally fall out of
the tool, causing injury to you or someone around
you.
• Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not being inserted correctly.
Switch action
1
007914
CAUTION:
• Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the "OFF" position when
released.
To start the tool, simply pull the switch trigger. Release
the switch trigger to stop.
1. Switch trigger
1. Red part
2. Button
3. Battery cartridge

6
Reversing switch action
A
B
1
007915
CAUTION:
• Always check the direction of rotation before
operation.
• Use the reversing switch only after the tool comes
to a complete stop. Changing the direction of
rotation before the tool stops may damage the tool.
• When not operating the tool, always set the
reversing switch lever to the neutral position.
This tool has a reversing switch to change the direction of
rotation. Depress the reversing switch lever from the A
side for clockwise rotation or from the B side for
counterclockwise rotation.
When the reversing switch lever is in the neutral position,
the switch trigger cannot be pulled.
Lighting up the lamps
2
1
007908
CAUTION:
• Do not look in the light or see the source of light
directly.
Pull the switch trigger to light up the lamp. The lamp
keeps on lighting while the switch trigger is being pulled.
The light automatically goes out 10 seconds after the
switch trigger is released.
NOTE:
• Use a dry cloth to wipe the dirt off the lens of lamp.
Be careful not to scratch the lens of lamp, or it may
lower the illumination.
LED indicator / Beeper
For LED#A
2
1
007908
Led indicator / Beeper on the tool shows the following
functions.
1. Lamp
2. LED#A
1. Lamp
2. LED#A
1. Reversing
switch lever

7
Statusof theLED indicator/beeper
Function StatusAction tobetaken
LED indicator Beeper
Aseries of very
short beeps
Check LED#A, light
and beeper
(when pulling switch
trigger for thefirst
timeafter installing
a battery cartridge
intothetool)
Makesure that green,
red, blue, whiteLED
lightsup and beeper
beepsproperly
Blinksinpurple
slowly.
Aseries of long
beeps
Warning for battery
cartridge capacity
Thisindicates the
appropriatetimeto
replace thebattery
cartridge when the
battery power
becomes low.
Replace the
battery with
fully charged one.
Lightsup inpurpleAlong beep
Checking the
remaining battery
capacity, Autostop
Thisfunction works
when thebattery
power isalmost used
up. At thistime, tool
stopsimmediately.
Replace thebattery
with fully charged
one.
Lightsup inred
and green
alternatively
Aseries of short
beeps
Anti-reset of
controller
Thisfunction works
when anabnormal
drop of thebattery
voltage occurs for
somereason, and
thetool stops.
Replace thebattery
with fully charged
one.
Failure of motor Thisfunction works
when motor fails.
Takeit toa Makita
Authorized Service
centers.
Blinksinred
quickly.
Aseries of short
beepsOverheat
Thisfunction works
when thetemperature
of thecontroller or
motor goes up very
highly, and thetool
stops.
Remove thebattery
cartridge
immediately
and cool thetool
down.
Green (bluewhen
batch iscompleted
intool stand-
alone mode)
Auto-stop fastening
Thisfunction works
when thetool has
reached withinthe
fastening torque
range preset on PC
and normal tightening
hasbeen completed.
(Note)
Lightsup inred.Along beep
Result of torque
judgment: NOK
(High)
Thisfunction works
when thetool has
reached above the
fastening torque
range preset on
PC. (Note)
Lightsup in
Green
Red
Blue
Whiteinorder
007930

8
Status ofthe LEDindicator/beeper
Function StatusAction to be taken
LEDindicator Beeper
Lights up in
yellow. A long beep
Resultoftorque
judgment: NOK
(Low)
This function works
when the tool has
reached below the
fastening torquer
ange preseton PC.
(Note)
Blinks in red
and yellow
alternatively.
A long beep
Warning against
insufficient
fastening
Fastening is
imcomplete when
switchtrigger oftool
is released before
clutchactivation.
Double-hitting
detection
This function works
when ascrew is
refastened after
fastening.
Angle judge NOK
This function works
when ascrew is not
fastened within the
angle range preset
on PC (Note).
Rundown NOK
This function works
when afastening is
finished before it
reaches the preset
angle range. (Note)
Torque impossible
monitoring
This function works
when torque monitoring
is cannotbe carried out.
Blinks in red
and blue
alternatively.
A series ofshort
beeps
Disconnection
(when using
receiver RCV02)
Radio communication
notyetestablished
Finishnecessary
connection or
remove abattery
cartridge to escape.
Radio
communication
failure
This function works
when there is radio
communication failure.
Take itto aMakita
Authorized Service
centers.
011058
Note: These values can be changed on PC. Refer to
SRCV02 USER MANUAL for details.

9
For LED#B
1
2
007909
Led indicator / Beeper on the tool shows the following
functions.
Green
Red
lightsup when thetool isconnected toa receiver.
blinkswhen thetool ison thestep of being connected toa
receiver. (Note1)
isturned off
one of thestatusbelow
when thebattery cartridge isremoved from thetool.
when thetool isleft idlefor more than15 minutes
with a installed battery cartridge.
when thetool isnot withinthetransmission
distance. (Note2)
lightsup when thetool'sstored number of data reaches its
storablenumber of data.
when thetool'sstored number of data isequal toor
smaller thanitsstorablenumber of data.
when thetool hasno stored data totransmit toa
receiver.
Description Viewed color View and status
1
2
3
blinks
isturned off
1
2
3
3-1
3-2
3-3
LED#B
LED#B
007929
Note 1: Refer to a instruction manual of receiver
(accessory) RCV02 when connecting it.
Note 2: Communication distance: 10 m or less (variable
up to 10 m depending on the operation environment)
CAUTION:
• Make sure that LED#B②does not light up before
removing a battery cartridge from the tool. If a
battery cartridge is removed while LED#B②lights
up or blinks, tools stored data will be deleted.
Adjusting the fastening torque
When you wish to drive machine screws, wood screws,
hex bolts, etc. with the predetermined torque, adjusting
the fastening torque as follows.
1. First remove the battery cartridge from the tool.
2. Loosen and remove the screw that secures ring.
(Loosen the two screws that secure ring only for
BFL201R)
1
005750
3. Rotate the ring in the front of the tool by hand so
that a hole can be seen below the ring.
4. Place the battery cartridge in place and pull the
switch trigger. Release it so that the adjusting ring
rotates and becomes visible in the hole. And then
remove the battery cartridge.

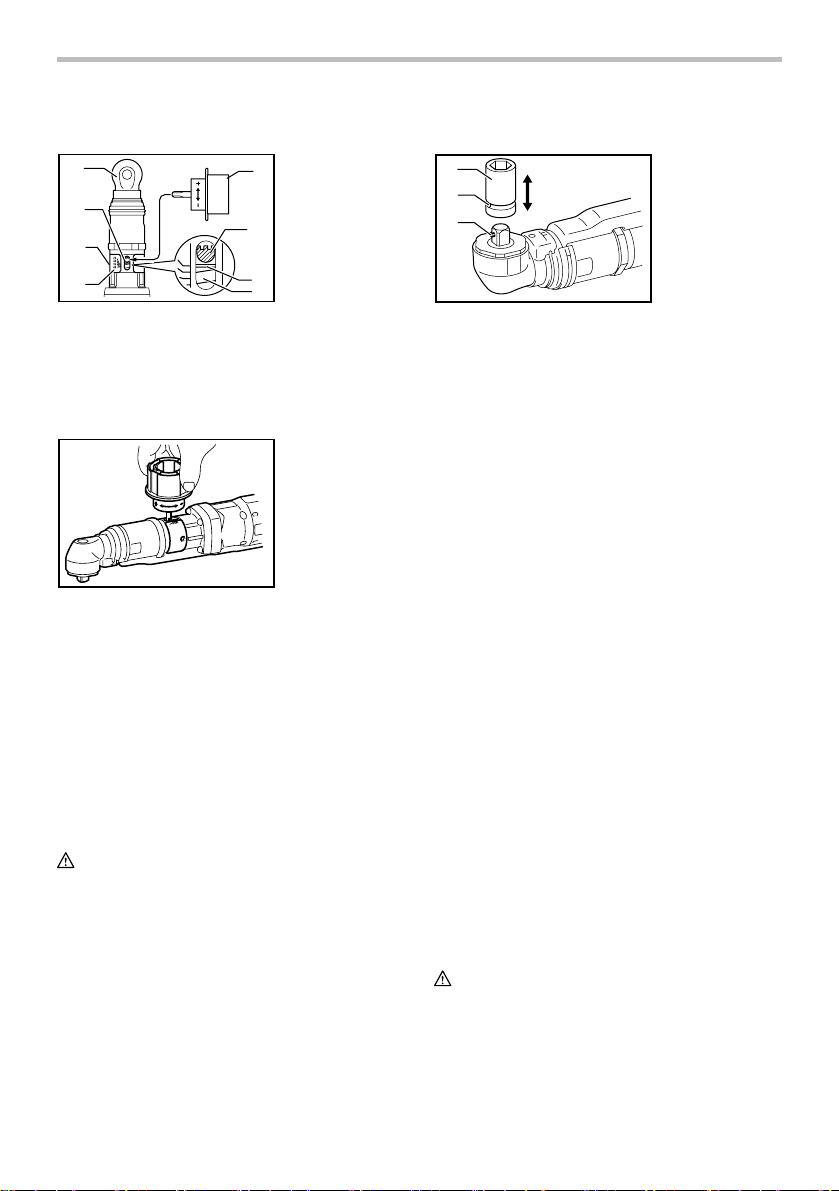

1. Screw
1. LED#B1
2. LED#B2

10
1
2
3
4
5
6
7
8
007912
5. Use an optional adjusting grip to adjust the
fastening torque. Insert the pin of the adjusting grip
into the hole in the front of the tool. And then, turn
the adjusting grip clockwise to set a greater
fastening torque, and counterclockwise to set a
smaller fastening torque.
007913
6. Align the edge of the adjusting ring with your
desired number on the fastening torque scale.
7. Insert the battery cartridge and be sure that a
fastening torque has been set up by using a
fastening torque tester.
8. Rotate the ring so that the hole for adjusting grip is
covered, hold and then secure the ring with screw.
NOTE:
• Numbers on the fastening torque scale is a
guideline to set up your desired fastening torque.
ASSEMBLY
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on the tool.
Selecting correct socket
There are different types of sockets for some models
depending on applications. Choose and install a correct
socket for your application.
Installing or removing socket
1
2
3
007911
To install the socket, push it onto the square drive of the
tool with one hand by depressing a pin on the square
drive with another hand until it locks into place. To
remove the socket, simply pull it off depressing the pin on
the square drive.
OPERATION
Hold the tool firmly and place the socket over the bolt or
nut. Then switch the tool on. When the clutch cuts in, the
motor will stop automatically. Then release the switch
trigger.
NOTE:
• Hold the tool with its square drive pointed straight at
the bolt or nut, or the bolt or nut will be damaged.
Limits of fastening capacity
Use the tool within the range of the revolution angle up to
360 ﾟ. If you use the tool beyond the upper limit of this
range, the clutch does not work. And the tool cannot
deliver enough fastening torque (LEDA #A blinks in
purple slowly or lights up in purple).
NOTE:
• The revolution angle means the angle which a
screw/bolt revolves when the tool attains to 100%
from 50% of desired torque.
• Use of a low temperature conditioned battery
cartridge may sometimes give warning for battery
cartridge capacity by warning lamp and beeper
which makes the tool stop immediately. In this case,
the fastening capacity may be inferior to the
specification on this manual even if a charged
battery cartridge is used.
MAINTENANCE
CAUTION:
• Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
• Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
1. Socket
2. Hole
3. Pin
1. Angle head
2. Hole for
adjusting grip
3. Ring
4. Scale
5. Adjusting grip
6. Hole for
adjusting grip
7. Yellow line
8. Compression
s
p
rin
g

11
To maintain product SAFETY and RELIABILITY, repairs,
any other maintenance or adjustment should be
performed by Makita Authorized Service Centers, always
using Makita replacement parts.
ACCESSORIES
CAUTION:
• These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
• Protector (Yellow,Blue,Red,Clear)
• Makita genuine battery and charger
• Adjust grip
• Spindle complete 12.7
• Receiver RCV02
• Software Installing disc (CD-ROM) except for
Model BFT041R
• USB-serial adapter
• RS-232C cable

12
Makita Corporation
Anjo, Aichi, Japan
www.makita.com
884707B220
