Makita 6994D User manual

6994D
Cordless Impact Wrench
6994D (cover) (’100. 10. 13)

SPECIFICATIONS
Model 6994D
Capacities
Standard bolt ................................................................................................................................. M5 — M12
High tensile bolt ............................................................................................................................ M5 — M10
Square drive .......................................................................................................................................... 9.5 mm
No load speed (min
–1
) ...................................................................................................................... 0 — 2,000
Impacts per minute ........................................................................................................................... 0 — 2,600
Max. fastening torque ......................................................................................................................... 68.6 N.m
Overall length ....................................................................................................................................... 185 mm
Net weight (with battery cartridge) .......................................................................................................... 1.3 kg
Rated voltage .................................................................................................................................... D.C. 9.6 V
•Due to our continuing program of research and development, the specifications herein are subject to change
without notice.
•Note: Specifications may differ from country to country.
Safety hints
For your own safety, please refer to the enclosed safety instructions.
For European countries only
Noise and Vibration
The typical A-weighted noise levels are
sound pressure level: 90 dB (A)
sound power level: 103 dB (A)
– Wear ear protection. –
The typical weighted root mean square acceleration
value is 6 m/s
2
.
EC-DECLARATION OF CONFORMITY
The undersigned, Yasuhiko Kanzaki, authorized by
Makita Corporation, 3-11-8 Sumiyoshi-Cho, Anjo,
Aichi, 446 Japan declares that this product
(Serial No. : series production)
manufactured by Makita Corporation in Japan is in
compliance with the following standards or standard-
ized documents,EN50260, EN55014
in accordance with Council Directives, 89/336/EEC
and 98/37/EC.
Yasuhiko Kanzaki CE 2000
Director
EC-DECLARATION OF CONFORMITY
The undersigned, Yasuhiko Kanzaki, authorized by
Kao Lung Tamura Electronics Co., Ltd. No. 4 Industry
1st Street, Ping Tung Industry District Chiao Nan Li,
Ping Tung City, Taiwan declares that this battery
charger (Serial No. : series production)
manufactured by Kao Lung Tamura Electronics Co.,
Ltd. in Taiwan is in compliance with the following
standards or standardized documents,
EN60335, EN55014, EN61000*
in accordance with Council Directives, 73/23/EEC
and 89/336/EEC. *from 1st Jan. 2001
Yasuhiko Kanzaki CE 94
Director
MAKITA INTERNATIONAL EUROPE LTD.
Michigan Drive, Tongwell, Milton Keynes,
Bucks MK15 8JD, ENGLAND
2
6994D (cover) (’100. 10. 27)

1 2
3 4
5
2
3
4
7
8
910
2
1
5
6
6994D (’100. 10. 13)
3

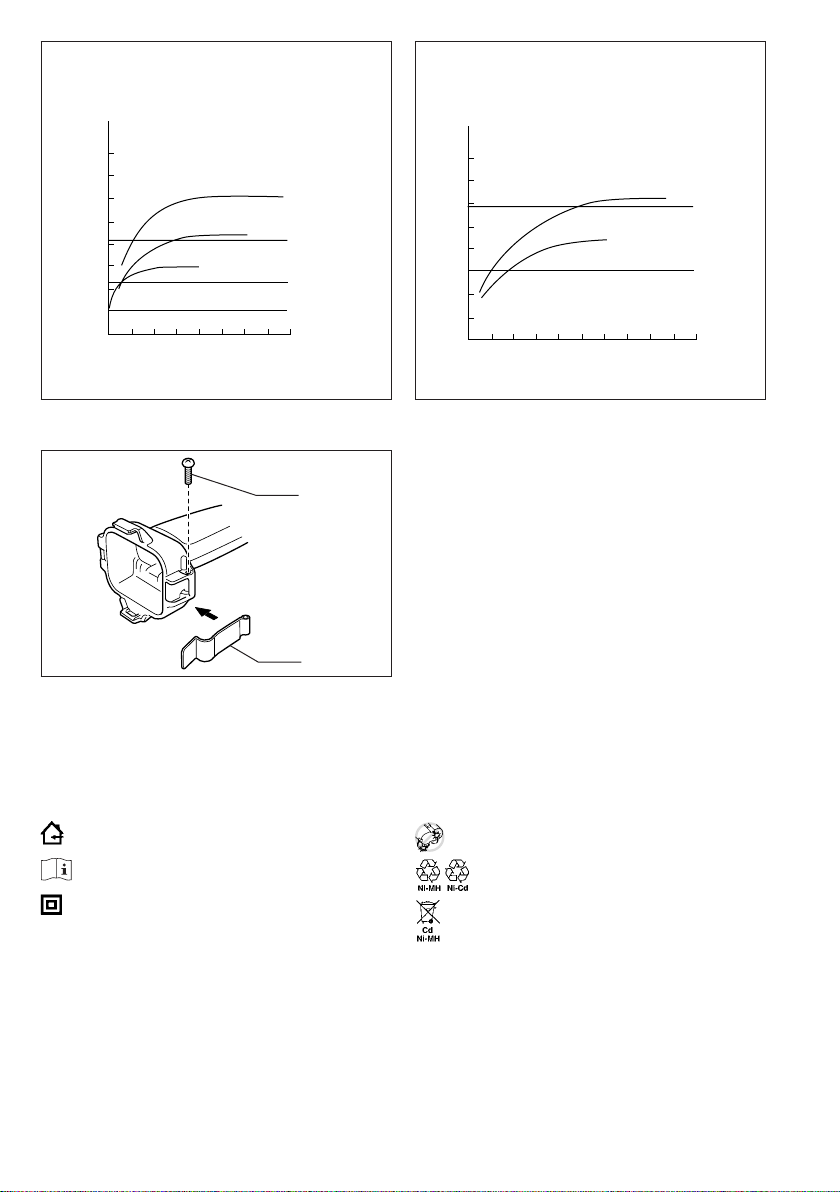

Symbols
The following show the symbols used for the tool. Be sure that you understand their meaning before use.
8
6 7
80
60
40
20
0
(M12)
M12 x 45
M10 x 45
M8 x 45
1.0 2.0 3.0 4.0
(M10)
(M8)
(204)
(408)
(816)
N • m
(kgf • cm)
(612)
14
11 12
13
13
13
80
60
40
20
0
(M10)
M10 x 45
M8 x 45
1.0 2.0 3.0 4.0
(M8)
(204)
(408)
(816)
N • m
(kgf • cm)
(612)
5.0
14
11 12
13
13
Standard bolt High tensile bolt
15
16
[Indoor use only
[Read instruction manual.
[DOUBLE INSULATION
[Do not short batteries.
[Always recycle batteries.
[Do not discard batteries into garbage can
or the like.
4
6994D (’100. 10. 13)

ENGLISH Explanation of general view
1 Push button
2 Battery cartridge
3 Charging light
4 Battery charger
5 Socket
6 Anvil
7 Switch trigger
8 Reversing switch lever
9 A side
10 B side
11 Fastening time
12 Seconds
13 Proper fastening torque for
14 Fastening torque
15 Screw
16 Set plate
SAFETY INSTRUCTIONS
WARNING! When using battery operated tools
basic safety precautions, including the following,
should be followed to reduce the risk of fire,
leaking batteries and personal injury: Read these
instructions before operating this product and
save these instructions.
For safe operation:
1. Keep work area clean
– Cluttered areas and benches invite injuries.
2. Consider the work environment
– Do not expose the tool to rain. Keep work area
well lit. Do not use tools in the presence of
flammable liquids or gases.
3. Keep children away
– Do not let visitors touch the tool. Keep visitors away
from work area.
4. Store batteries or idle tools
– When not in use, tools and batteries should be
stored separately in a dry, high or locked up place,
out of reach of children.
– Ensure that battery terminals cannot be shorted by
other metal parts such as screws, nails, etc.
5. Do not force the tool
– It will do the job better and safer at the rate for which
it was intended.
6. Use the right tool
– Do not force small tools or attachments to do the job
of a heavy duty tools. Do not use tools for purposes
not intended.
7. Dress properly
– Do not wear loose clothing or jewellery, they can be
caught in moving parts. Non-skid footwear is rec-
ommended when working outdoors. Wear protect-
ing hair covering to contain long hair.
8. Use protective equipment
– Use safety glasses and if the cutting operation is
dusty, a face or dust mask.
9. Connect dust extraction equipment
– If devices are provided for the connection of dust
extraction and collection ensure these are con-
nected and properly used.
10. Do not abuse the supply cord (if fitted)
– Never carry the tool by the cord or yank it to
disconnect from the socket. Keep the cord away
from heat, oil and sharp edges.
11. Secure the work
– Use clamps or a vice to hold the work. It is safer
than using your hand and it frees both hands to
operate the tool.
12. Do not over-reach
– Keep proper footing and balance at all times.
13. Maintain tools with care
– Keep cutting tools sharp and clean for better and
safer performance. Follow instructions for lubrica-
tion and changing accessories. Inspect tool cords
periodically and if damaged have repaired by an
authorized service facility.
14. Disconnect tools
– Where the design permits, disconnect the tool from
its battery pack when not in use, before servicing
and when changing accessories such as blades,
bits and cutters.
15. Remove adjusting keys and wrenches
– Form the habit of checking to see that keys and
adjusting wrenches are removed from the tool
before turning it on.
16. Avoid unintentional starting
– Do not carry the tool with a finger on the switch.
17. Stay alert
– Watch what you are doing. Use common sense. Do
not operate the tool when you are tired.
18. Check damaged parts
– Before further use of the tool, a guard or other part
that is damaged should be carefully checked to
determine that it will operate properly and perform
its intended function. Check for alignment of moving
parts, free running of moving parts, breakage of
parts, mounting and any other condition that may
affect its operation. A guard or other part that is
damaged should be properly repaired or replaced
by an authorized service facility unless otherwise
indicated in this instruction manual. Have defective
switches replaced by an authorized service facility.
Do not use the tool if the switch does not turn it on
and off.
19. Warning
– The use of any accessory or attachment, other than
recommended in this instruction manual, may
present a risk of personal injury.
– Ensure that the battery pack is correct for the tool.
– Ensure that the outside surface of battery pack or
tool is clean and dry before plugging into charger.
– Ensure that batteries are charged using the correct
charger recommended by the manufacturer. Incor-
rect use may result in a risk of electric shock,
overheating or leakage of corrosive liquid from the
battery.
20. Have your tool repaired by a qualified person
– This tool is constructed in accordance with the
relevant safety requirements. Repairs should only
be carried out by qualified persons using original
spare parts, otherwise this may result in consider-
able danger to the user.
21. Disposal of battery
– Ensure battery is disposed of safety as instructed
by the manufacturer.
6994D (E) (’100. 10. 13)
5

IMPORTANT SAFETY INSTRUCTIONS
FOR CHARGER & BATTERY CARTRIDGE
ENC001-3
1. SAVE THESE INSTRUCTIONS — This manual
contains important safety and operating
instructions for battery charger.
2. Before using battery charger, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
3. CAUTION — To reduce risk of injury, charge
only MAKITA type rechargeable batteries.
Other types of batteries may burst causing
personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or
sold by the battery charger manufacturer may
result in a risk of fire, electric shock, or injury
to persons.
6. To reduce risk of damage to electric plug and
cord, pull by plug rather than cord when dis-
connecting charger.
7. Make sure cord is located so that it will not be
stepped on, tripped over, or otherwise sub-
jected to damage or stress.
8. Do not operate charger with damaged cord or
plug — replace them immediately.
9. Do not operate charger if it has received a
sharp blow, been dropped, or otherwise dam-
aged in any way; take it to a qualified service-
man.
10. Do not disassemble charger or battery car-
tridge; take it to a qualified serviceman when
service or repair is required. Incorrect reas-
sembly may result in a risk of electric shock or
fire.
11. To reduce risk of electric shock, unplug
charger from outlet before attempting any
maintenance or cleaning. Turning off controls
will not reduce this risk.
12. The battery charger is not intended for use by
young children or infirm persons without
supervision.
13. Young children should be supervised to
ensure that they do not play with the battery
charger.
14. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
15. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
ADDITIONAL SAFETY RULES FOR
CHARGER & BATTERY CARTRIDGE
1. Do not charge battery cartridge when tempera-
ture is BELOW 10°C (50°F) or ABOVE 40°C
(104°F).
2. Do not attempt to use a step-up transformer,
an engine generator or DC power receptacle.
3. Do not allow anything to cover or clog the
charger vents.
4. Always cover the battery terminals with the
battery cover when the battery cartridge is not
used.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water or
rain.
A battery short can cause a large current flow,
overheating, possible burns and even a break-
down.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50°C (122°F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
8. Be careful not to drop, shake or strike battery.
9. Do not charge inside a box or container of any
kind. The battery must be placed in a well
ventilated area during charging.
ADDITIONAL SAFETY RULES FOR
TOOL ENB025-1
1. Be aware that this tool is always in an operat-
ing condition, because it does not have to be
plugged into an electrical outlet.
2. Hold tool by insulated gripping surfaces when
performing an operation where the cutting tool
may contact hidden wiring. Contact with a
‘‘live’’ wire will also make exposed metal parts
of the tool ‘‘live’’ and shock the operator.
3. Wear ear protectors.
4. Check the socket carefully for wear, cracks or
damage before installation.
5. Hold the tool firmly.
6. Always be sure you have a firm footing.
7. Be sure no one is below when using the tool in
high locations.
8. The proper fastening torque may differ
depending upon the kind or size of the bolt.
Check the torque with a torque wrench.
SAVE THESE INSTRUCTIONS.
6
6994D (E) (’100. 10. 13)

OPERATING INSTRUCTIONS
Installing or removing battery cartridge
(Fig. 1)
•Always switch off the tool before insertion or
removal of the battery cartridge.
•To remove the battery cartridge, withdraw it from the
tool while pressing the push buttons on both sides
of the cartridge.
•To insert the battery cartridge, align the tongue on
the battery cartridge with the groove in the housing
and slip it into place.Always insert it all the way until
it locks in place with a little click. If not, it may
accidentally fall out of the tool, causing injury to you
or someone around you.
•Do not use force when inserting the battery car-
tridge. If the cartridge does not slide in easily, it is
not being inserted correctly.
Charging (Fig. 2)
1. Plug the battery charger into your power source.
2. Insert the battery cartridge so that the plus and minus terminals on the battery cartridge are on the same
sides as their respective markings on the battery charger. Insert the cartridge fully into the port so that it
rests on the charger port floor.
3. When the battery cartridge is inserted, the charging light color will flash in red color and charging will begin.
4. When charging is completed, the charging light goes out.
5. If you leave the battery cartridge in the charger after the charging cycle is complete, the charger will switch
into its ‘‘trickle charge (maintenance charge)’’ mode.
6. After charging, remove the battery cartridge from the charger and unplug the charger from the power
source.
Battery type Capacity (mAh) Number of cells Charging time
9120 1,300 8 Approx. 60 min.
CAUTION:
•The battery charger is for charging Makita battery cartridge. Never use it for other purposes or for other
manufacturer’s batteries.
•When you charge a new battery cartridge or a battery cartridge which has not been used for a long period of
time, it may not accept a full charge. This is a normal condition and does not indicate a problem. You can
recharge the battery cartridge fully after discharging it completely and recharging a couple of times.
•When you charge a battery cartridge from a just-operated machine or a battery cartridge which has been left
in a location exposed to direct sunlight or heat for a long time, let it cool off. Then re-insert it and try to charge
it once more.
•When you charge a new battery cartridge or a battery cartridge which has not been used for a long period,
sometimes the charging light will go out soon. If this occurs, remove the battery cartridge and re-insert it. If
the charging light goes out within one minute even after repeating this procedure a couple of times, the battery
cartridge is dead. Replace it with a new one.
Trickle charge (Maintenance charge)
If you leave the battery cartridge in the charger to prevent spontaneous discharging after full charge, the
charger will switch into its ‘‘trickle charge (maintenance charge)’’mode and keep the battery cartridge fresh and
fully charged.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before completely discharged.
Always stop tool operation and charge the battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room temperature at 10°C – 40°C (50°F – 104°F).
Let a hot battery cartridge cool down before charging it.
4. Charge the Nickel Metal Hydride battery cartridge when you do not use it for more than six months.
6994D (E) (’100. 10. 13)
7

Selecting correct socket
Always use the correct size socket for bolts and nuts.
An incorrect size socket will result in inaccurate and
inconsistent fastening torque and/or damage to the
bolt or nut.
Installing or removing socket (Fig. 3)
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing the socket.
To install the socket, push it onto the anvil of the tool
until it locks into place.
To remove the socket, simply pull it off.
Switch action (Fig. 4)
CAUTION:
Before inserting the battery cartridge into the tool,
always check to see that the switch trigger actuates
properly and returns to the ‘‘OFF’’ position when
released.
To start the tool, simply pull the trigger. Tool speed is
increased by increasing pressure on the trigger.
Release the trigger to stop.
Reversing switch action (Fig. 5)
CAUTION:
•Always check the direction of rotation before opera-
tion.
•Use the reversing switch only after the tool comes to
a complete stop. Changing the direction of rotation
before the tool stops may damage the tool.
This tool has a reversing switch to change the direc-
tion of rotation. Slide the reversing switch to theAside
for clockwise rotation or to the B side for counterclock-
wise rotation.
Operation (Fig.6&7)
The proper fastening torque may differ depending
upon the kind or size of the bolt. The relation between
fastening torque and fastening time is shown in the
figures.
Hold the tool firmly and place the socket over the bolt
or nut. Turn the tool on and fasten for the proper
fastening time.
NOTE:
•Hold the tool pointed straight at the bolt or nut
without applying excessive pressure on the tool.
•Excessive fastening torque may damage the bolt or
nut. Before starting your job, always perform a test
operation to verify the adequate fastening speed
and time for your bolt or nut.
The fastening torque is affected by a wide variety of
factors including the following.After fastening, always
check the torque with a torque wrench.
1. When the battery cartridge is discharged almost
completely, voltage will drop and the fastening
torque will be reduced.
2. Socket
•Failure to use the correct size socket will cause
a reduction in the fastening torque.
•A worn socket (wear on the hex end or square
end) will cause a reduction in the fastening
torque.
3. Bolt
•Even though the torque coefficient and the class
of bolt are the same, the proper fastening torque
will differ according to the diameter of the bolt.
•Even though the diameters of bolts are the
same, the proper fastening torque will differ
according to the torque coefficient, the class of
bolt and the bolt length.
4. Type of materials to be fastened, the manner of
holding the tool and the tool speed will affect the
torque.
CAUTION:
If the tool is operated continuously until the battery
cartridge has discharged, allow the tool to rest for 15
minutes before proceeding with a fresh battery.
Installing set plate (Optional accessory)
(Fig. 8)
Always install the set plate when using battery car-
tridges 9100, 9102 or 9102A. Install the set plate on
the tool with the screw provided.
MAINTENANCE
CAUTION:
Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out any
work on the tool.
To maintain product safety and reliability, repairs,
maintenance or adjustment should be carried out by a
Makita Authorized Service Center.
8
6994D (E) (’100. 10. 17)

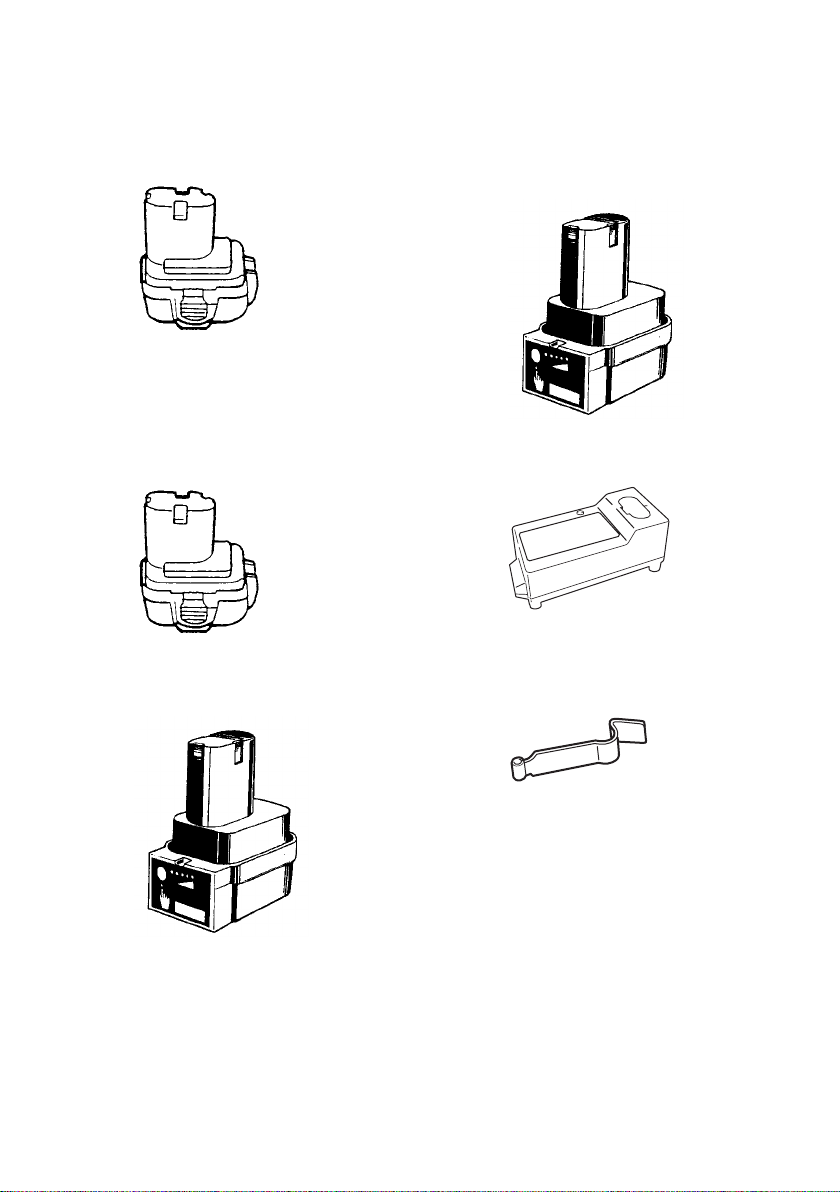

ACCESSORIES
CAUTION:
These accessories or attachments are recommended for use with your Makita tool specified in this manual. The
use of any other accessories or attachments might present a risk of injury to persons. The accessories or
attachments should be used only in the proper and intended manner.
•Battery cartridge 9120/9122
•Ni-MH (Nickel Metal Hydride) battery 9134/9135
•Power checking battery 9102A
•Ni-MH (Nickel Metal Hydride) power checking
battery 9135A
•Battery charger DC1411
•Set plate
6994D (E) (’100. 10. 17)
9

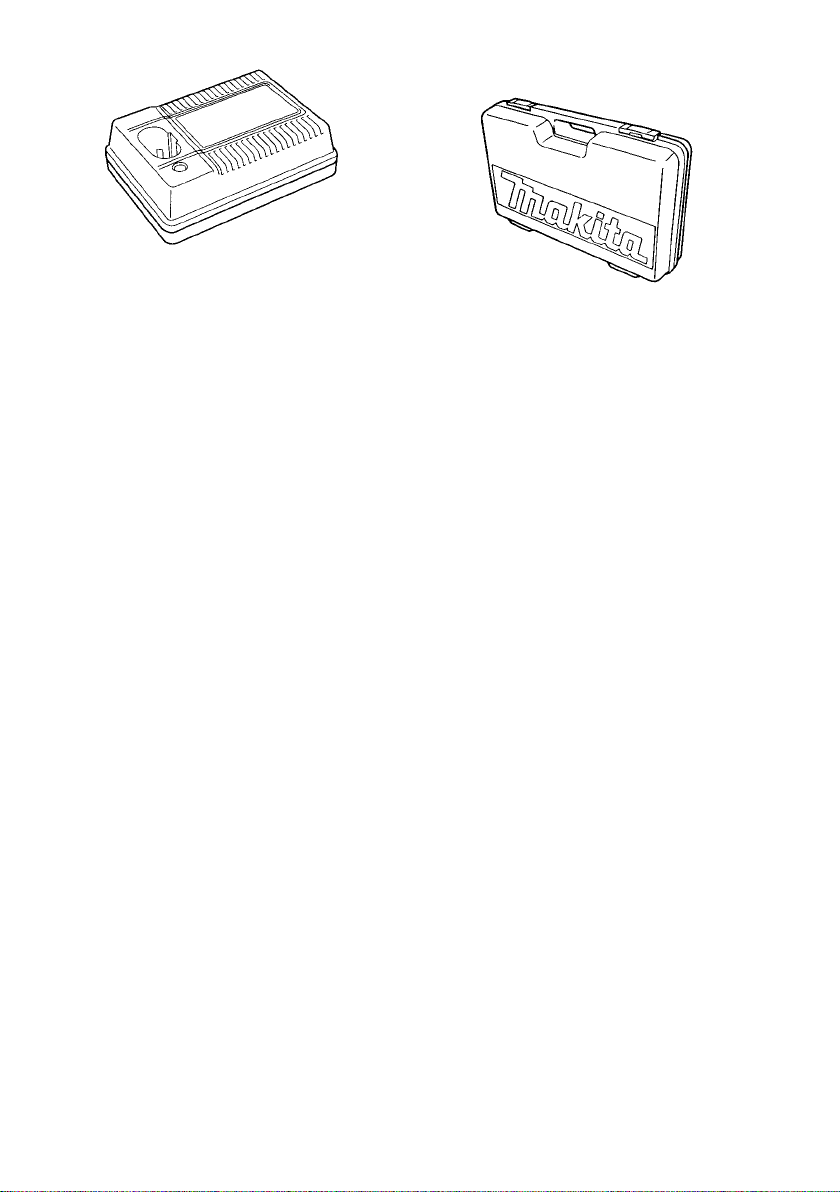

•Fast charger DC1439 •Plastic carrying case
10
6994D (E) (’100. 10. 17)

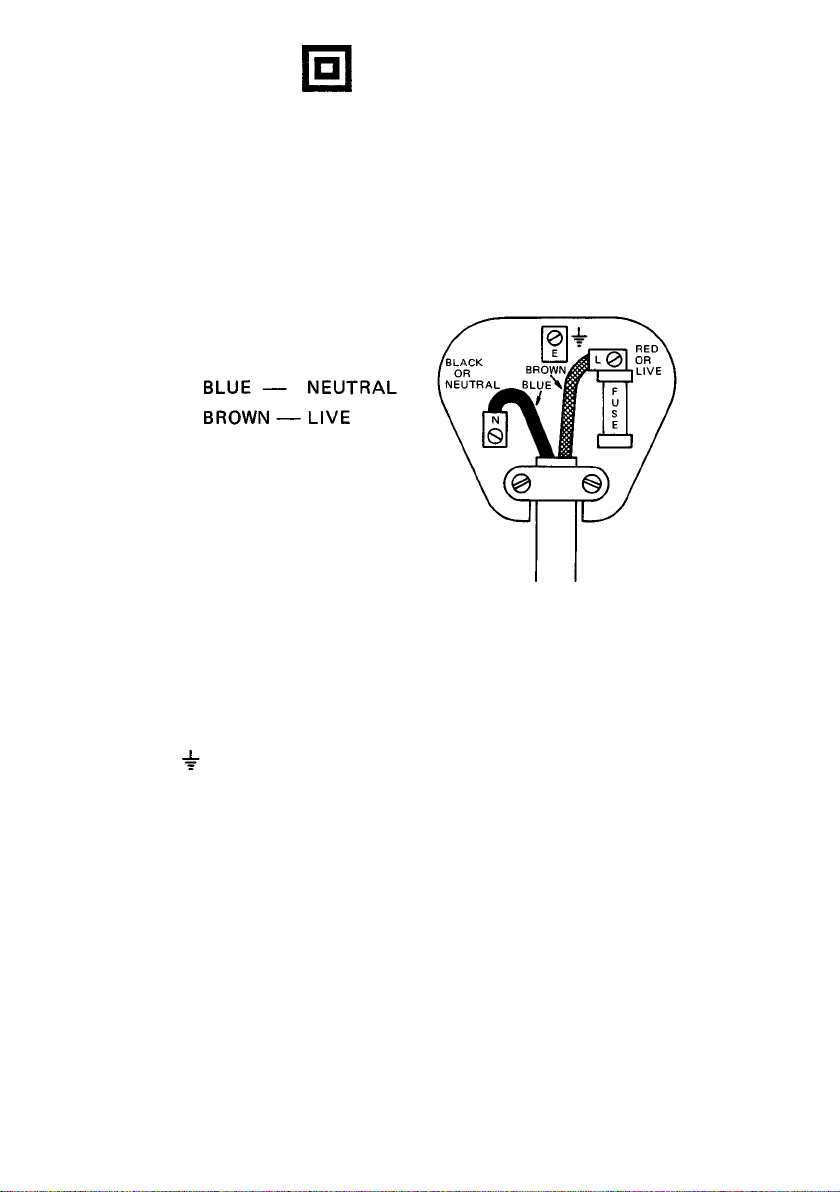

UK only DOUBLE INSULATION
THE ADDITIONAL COMMENT OF ELECTRICAL CONNECTION
The tool is double insulated for safety, no earth connection is required.
CAUTION: The tool must be connected to a plug having a rated current greater than that of tool.
The rated voltage and current appear on the name plate.
IMPORTANT: The wires in the mains lead are coloured in accordance with the following code.
NOTE: As the colours of the mains lead of the tool may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
THE WIRE WHICH IS COLOURED BLUE MUST BE CONNECTED TO THE TERMINAL
WHICH IS MARKED WITH THE LETTER ‘‘N’’ OR COLOURED BLACK. THE WIRE WHICH IS
COLOURED BROWN MUST BE CONNECTEDTOTHETERMINALWHICH IS MARKED WITH
THE LETTER ‘‘L’’ OR COLOURED RED.
CAUTION: Neither wire is to be connected to earth terminal which is marked with the letter ‘‘E’’ or symbol
‘‘ ’’.
FOR 110 VOLT TOOL, USE PLUGS TO BS4343.
6994D (E) (’100. 10. 17)
11

Made in Japan
6994D (E) ('100. 10. 17)
884363-985
