Makita DLS714 User manual

INSTRUCTION MANUAL
Cordless Slide Compound
Miter Saw
DLS714
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model: DLS714
Blade diameter 190 mm
Hole (arbor) diameter (country specic) 20 mm or 15.88 mm
Max. kerf thickness of the saw blade 2.2 mm
Max. miter angle Left 47°, Right 57°
Max. bevel angle Left 45°, Right 5°
No load speed 5,700 min-1
Dimensions (L x W x H) 655 mm x 430 mm x 445 mm
Rated voltage D.C. 36 V
Net weight 12.8 - 15.2 kg
• Due to our continuing program of research and development, the specications herein are subject to change
without notice.
• Specications may differ from country to country.
• The weight may differ depending on the attachment(s), including the battery cartridge. The lightest and heavi-
est combination, according to EPTA-Procedure 01/2014, are shown in the table.
Applicable battery cartridge and charger
Battery cartridge BL1815N / BL1820 / BL1820B / BL1830 / BL1830B / BL1840 /
BL1840B / BL1850 / BL1850B / BL1860B
Charger DC18RC / DC18RD / DC18RE / DC18SD / DC18SE / DC18SF
• Some of the battery cartridges and chargers listed above may not be available depending on your region of
residence.
WARNING: Only use the battery cartridges and chargers listed above. Use of any other battery cartridges
and chargers may cause injury and/or re.
Cutting capacities (H x W) with blade 190 mm in diameter
Miter angle Bevel angle
45° (left) 0° 5° (right)
0° 40 mm x 300 mm 52 mm x 300 mm 40 mm x 300 mm
45 mm x 265 mm
(NOTE 1)
60 mm x 265 mm
(NOTE 1)
–
45° (left and right) 40 mm x 212 mm 52 mm x 212 mm –
45 mm x 185 mm
(NOTE 2)
60 mm x 185 mm
(NOTE 2)
–
57° (right) –52 mm x 163 mm –
–60 mm x 145 mm
(NOTE 3)
–
1. Max. Cutting capacity when using a wood facing 20 mm thickness
2. Max. Cutting capacity when using a wood facing 15 mm thickness
3. Max. Cutting capacity when using a wood facing 10 mm thickness
Symbols
The followings show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Read instruction manual.
To avoid injury from ying debris, keep
holding the saw head down, after making
cuts, until the blade has come to a com-
plete stop.
When performing slide cut, rst pull car-
riage fully and press down handle, then
push carriage toward the guide fence.
Do not place hand or ngers close to the
blade.
Always set SUB-FENCE to left position
when performing left bevel cuts. Failure to
do so may cause serious injury to operator.

3ENGLISH
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
Intended use
The tool is intended for accurate straight and miter
cutting in wood. With appropriate saw blades, aluminum
can also be sawed.
Do not use the saw to cut other than wood, aluminum or
similar materials.
Noise
The typical A-weighted noise level determined accord-
ing to EN62841-3-9:
Sound pressure level (LpA) : 88 dB(A)
Sound power level (LWA) : 97 dB (A)
Uncertainty (K) : 3 dB(A)
NOTE: The declared noise emission value(s) has
been measured in accordance with a standard test
method and may be used for comparing one tool with
another.
NOTE: The declared noise emission value(s)
may also be used in a preliminary assessment of
exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
use of the power tool can differ from the declared
value(s) depending on the ways in which the
tool is used especially what kind of workpiece is
processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
off and when it is running idle in addition to the
trigger time).
Vibration
The vibration total value (tri-axial vector sum) deter-
mined according to EN62841-3-9:
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
NOTE: The declared vibration total value(s) has been
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: The declared vibration total value(s) may also
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared val-
ue(s) depending on the ways in which the tool is used
especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
as the times when the tool is switched off and when
it is running idle in addition to the trigger time).
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-
tions, illustrations and specications provided with this
power tool. Failure to follow all instructions listed below
may result in electric shock, re and/or serious injury.
Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your mains-oper-
ated (corded) power tool or battery-operated (cordless) power tool.
Work area safety
1. Keep work area clean and well lit. Cluttered or
dark areas invite accidents.
2. Do not operate power tools in explosive atmo-
spheres, such as in the presence of ammable
liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
3.
Keep children and bystanders away while operating
a power tool. Distractions can cause you to lose control.
Electrical Safety
1.
Power tool plugs must match the outlet. Never modify
the plug in any way. Do not use any adapter plugs
with earthed (grounded) power tools. Unmodied plugs
and matching outlets will reduce risk of electric shock.
2. Avoid body contact with earthed or grounded
surfaces, such as pipes, radiators, ranges and
refrigerators. There is an increased risk of elec-
tric shock if your body is earthed or grounded.
3. Do not expose power tools to rain or wet con-
ditions. Water entering a power tool will increase
the risk of electric shock.
4. Do not abuse the cord. Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled cords
increase the risk of electric shock.
5.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use. Use of a cord
suitable for outdoor use reduces the risk of electric shock.

4ENGLISH
6.
If operating a power tool in a damp location is unavoid-
able, use a residual current device (RCD) protected
supply. Use of an RCD reduces the risk of electric shock.
7. Power tools can produce electromagnetic elds
(EMF) that are not harmful to the user. However,
users of pacemakers and other similar medical
devices should contact the maker of their device and/
or doctor for advice before operating this power tool.
Personal Safety
1. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the inuence of drugs, alcohol or med-
ication. A moment of inattention while operating
power tools may result in serious personal injury.
2.
Use personal protective equipment. Always wear eye
protection. Protective equipment such as a dust mask,
non-skid safety shoes, hard hat or hearing protection used
for appropriate conditions will reduce personal injuries.
3. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your nger on the switch or energising power tools
that have the switch on invites accidents.
4.
Remove any adjusting key or wrench before turning
the power tool on. A wrench or a key left attached to a
rotating part of the power tool may result in personal injury.
5. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool in unexpected situations.
6. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair and clothing away
from moving parts. Loose clothes, jewellery or
long hair can be caught in moving parts.
7. If devices are provided for the connection of
dust extraction and collection facilities, ensure
these are connected and properly used. Use of
dust collection can reduce dust-related hazards.
8.
Do not let familiarity gained from frequent use
of tools allow you to become complacent and
ignore tool safety principles. A careless action can
cause severe injury within a fraction of a second.
9. Always wear protective goggles to protect
your eyes from injury when using power tools.
The goggles must comply with ANSI Z87.1 in
the USA, EN 166 in Europe, or AS/NZS 1336
in Australia/New Zealand. In Australia/New
Zealand, it is legally required to wear a face
shield to protect your face, too.
It is an employer's responsibility to enforce
the use of appropriate safety protective equip-
ments by the tool operators and by other per-
sons in the immediate working area.
Power tool use and care
1. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
2. Do not use the power tool if the switch does
not turn it on and off. Any power tool that cannot
be controlled with the switch is dangerous and
must be repaired.
3. Disconnect the plug from the power source
and/or remove the battery pack, if detachable,
from the power tool before making any adjust-
ments, changing accessories, or storing power
tools. Such preventive safety measures reduce
the risk of starting the power tool accidentally.
4. Store idle power tools out of the reach of chil-
dren and do not allow persons unfamiliar with
the power tool or these instructions to operate
the power tool. Power tools are dangerous in the
hands of untrained users.
5. Maintain power tools and accessories. Check
for misalignment or binding of moving parts,
breakage of parts and any other condition that
may affect the power tool’s operation. If dam-
aged, have the power tool repaired before use.
Many accidents are caused by poorly maintained
power tools.
6. Keep cutting tools sharp and clean. Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
7. Use the power tool, accessories and tool bits
etc. in accordance with these instructions, tak-
ing into account the working conditions and
the work to be performed. Use of the power tool
for operations different from those intended could
result in a hazardous situation.
8. Keep handles and grasping surfaces dry,
clean and free from oil and grease. Slippery
handles and grasping surfaces do not allow for
safe handling and control of the tool in unexpected
situations.
9. When using the tool, do not wear cloth work
gloves which may be entangled. The entangle-
ment of cloth work gloves in the moving parts may
result in personal injury.
Battery tool use and care
1. Recharge only with the charger specied by
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of re
when used with another battery pack.
2. Use power tools only with specically desig-
nated battery packs. Use of any other battery
packs may create a risk of injury and re.
3. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-
nals together may cause burns or a re.

5ENGLISH
4.
Under abusive conditions, liquid may be ejected
from the battery; avoid contact. If contact acci-
dentally occurs, ush with water. If liquid contacts
eyes, additionally seek medical help. Liquid ejected
from the battery may cause irritation or burns.
5. Do not use a battery pack or tool that is dam-
aged or modied. Damaged or modied batteries
may exhibit unpredictable behaviour resulting in
re, explosion or risk of injury.
6. Do not expose a battery pack or tool to re or
excessive temperature. Exposure to re or tem-
perature above 130 °C may cause explosion.
7. Follow all charging instructions and do not
charge the battery pack or tool outside the
temperature range specied in the instruc-
tions. Charging improperly or at temperatures
outside the specied range may damage the
battery and increase the risk of re.
Service
1.
Have your power tool serviced by a qualied repair
person using only identical replacement parts. This
will ensure that the safety of the power tool is maintained.
2. Never service damaged battery packs. Service
of battery packs should only be performed by the
manufacturer or authorized service providers.
3. Follow instruction for lubricating and chang-
ing accessories.
Safety instructions for mitre saws
1. Mitre saws are intended to cut wood or wood-
like products, they cannot be used with abra-
sive cut-off wheels for cutting ferrous material
such as bars, rods, studs, etc. Abrasive dust
causes moving parts such as the lower guard to
jam. Sparks from abrasive cutting will burn the
lower guard, the kerf insert and other plastic parts.
2.
Use clamps to support the workpiece whenever
possible. If supporting the workpiece by hand,
you must always keep your hand at least 100
mm from either side of the saw blade. Do not
use this saw to cut pieces that are too small to
be securely clamped or held by hand. If your
hand is placed too close to the saw blade, there is
an increased risk of injury from blade contact.
3. The workpiece must be stationary and clamped or
held against both the fence and the table. Do not
feed the workpiece into the blade or cut "freehand"
in any way. Unrestrained or moving workpieces could
be thrown at high speeds, causing injury.
4. Push the saw through the workpiece. Do not
pull the saw through the workpiece. To make
a cut, raise the saw head and pull it out over
the workpiece without cutting, start the motor,
press the saw head down and push the saw
through the workpiece. Cutting on the pull stroke
is likely to cause the saw blade to climb on top
of the workpiece and violently throw the blade
assembly towards the operator.
5. Never cross your hand over the intended line
of cutting either in front or behind the saw
blade. Supporting the workpiece "cross handed"
i.e. holding the workpiece to the right of the saw
blade with your left hand or vice versa is very
dangerous.
6. Do not reach behind the fence with either hand closer
than 100 mm from either side of the saw blade, to remove
wood scraps, or for any other reason while the blade is
spinning. The proximity of the spinning saw blade to your
hand may not be obvious and you may be seriously injured.
7. Inspect your workpiece before cutting. If the work-
piece is bowed or warped, clamp it with the outside
bowed face toward the fence. Always make certain
that there is no gap between the workpiece, fence
and table along the line of the cut. Bent or warped
workpieces can twist or shift and may cause binding
on the spinning saw blade while cutting. There should
be no nails or foreign objects in the workpiece.
8. Do not use the saw until the table is clear of all tools,
wood scraps, etc., except for the workpiece. Small
debris or loose pieces of wood or other objects that con-
tact the revolving blade can be thrown with high speed.
9. Cut only one workpiece at a time. Stacked multiple
workpieces cannot be adequately clamped or braced
and may bind on the blade or shift during cutting.
10. Ensure the mitre saw is mounted or placed on a level,
rm work surface before use. A level and rm work sur-
face reduces the risk of the mitre saw becoming unstable.
11. Plan your work. Every time you change the bevel or
mitre angle setting, make sure the adjustable fence is set
correctly to support the workpiece and will not interfere
with the blade or the guarding system. Without turning the
tool "ON" and with no workpiece on the table, move the saw
blade through a complete simulated cut to assure there will
be no interference or danger of cutting the fence.
12. Provide adequate support such as table exten-
sions, saw horses, etc. for a workpiece that is wider
or longer than the table top. Workpieces longer or
wider than the mitre saw table can tip if not securely
supported. If the cut-off piece or workpiece tips, it can
lift the lower guard or be thrown by the spinning blade.
13. Do not use another person as a substitute for a
table extension or as additional support. Unstable
support for the workpiece can cause the blade to bind
or the workpiece to shift during the cutting operation
pulling you and the helper into the spinning blade.
14. The cut-off piece must not be jammed or pressed
by any means against the spinning saw blade. If
conned, i.e. using length stops, the cut-off piece could
get wedged against the blade and thrown violently.
15. Always use a clamp or a xture designed to properly
support round material such as rods or tubing. Rods
have a tendency to roll while being cut, causing the blade
to "bite" and pull the work with your hand into the blade.
16. Let the blade reach full speed before contact-
ing the workpiece. This will reduce the risk of the
workpiece being thrown.

6ENGLISH
17. If the workpiece or blade becomes jammed,
turn the mitre saw off. Wait for all moving
parts to stop and disconnect the plug from
the power source and/or remove the battery
pack. Then work to free the jammed material.
Continued sawing with a jammed workpiece could
cause loss of control or damage to the mitre saw.
18.
After nishing the cut, release the switch, hold
the saw head down and wait for the blade to stop
before removing the cut-off piece. Reaching with
your hand near the coasting blade is dangerous.
19. Hold the handle rmly when making an incomplete
cut or when releasing the switch before the saw
head is completely in the down position. The brak-
ing action of the saw may cause the saw head to be
suddenly pulled downward, causing a risk of injury.
20. Only use the saw blade with the diameter that
is marked on the tool or specied in the man-
ual. Use of an incorrectly sized blade may affect
the proper guarding of the blade or guard opera-
tion which could result in serious personal injury.
21.
Only use the saw blades that are marked with a speed
equal or higher than the speed marked on the tool.
22. Do not use the saw to cut other than wood,
aluminum or similar materials.
23. (For European countries only)
Always use the blade which conforms to EN847-1.
Additional instructions
1. Make workshop kid proof with padlocks.
2. Never stand on the tool. Serious injury could
occur if the tool is tipped or if the cutting tool is
unintentionally contacted.
3.
Never leave the tool running unattended. Turn the power
off. Do not leave tool until it comes to a complete stop.
4. Do not operate saw without guards in place.
Check blade guard for proper closing before each
use. Do not operate saw if blade guard does not
move freely and close instantly. Never clamp or
tie the blade guard into the open position.
5. Keep hands out of path of saw blade. Avoid
contact with any coasting blade. It can still
cause severe injury.
6.
To reduce the risk of injury, return carriage to the
full rear position after each crosscut operation.
7. Always secure all moving portions before
carrying the tool.
8. Stopper pin which locks the cutter head down
is for carrying and storage purposes only and
not for any cutting operations.
9. Check the blade carefully for cracks or dam-
age before operation. Replace cracked or dam-
aged blade immediately. Gum and wood pitch
hardened on blades slows saw and increases
potential for kickback. Keep blade clean by
rst removing it from tool, then cleaning it with
gum and pitch remover, hot water or kerosene.
Never use gasoline to clean blade.
10.
While making a slide cut, KICKBACK can occur.
KICKBACK occurs when the blade binds in the
workpiece during a cutting operation and the saw
blade is driven rapidly towards the operator. Loss
of control and serious personal injury can result. If
blade begins to bind during a cutting operation, do
not continue to cut and release switch immediately.
11. Use only anges specied for this tool.
12.
Be careful not to damage the arbor, anges
(especially the installing surface) or bolt. Damage
to these parts could result in blade breakage.
13. Make sure that the turn base is properly
secured so it will not move during operation.
Use the holes in the base to fasten the saw to a
stable work platform or bench. NEVER use tool
where operator positioning would be awkward.
14. Make sure the shaft lock is released before the
switch is turned on.
15. Be sure that the blade does not contact the
turn base in the lowest position.
16.
Hold the handle rmly. Be aware that the saw moves
up or down slightly during start-up and stopping.
17. Make sure the blade is not contacting the
workpiece before the switch is turned on.
18.
Before using the tool on an actual workpiece, let it run
for a while. Watch for vibration or wobbling that could
indicate poor installation or a poorly balanced blade.
19. Stop operation immediately if you notice any-
thing abnormal.
20.
Do not attempt to lock the trigger in the "ON" position.
21. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
22.
Some material contains chemicals which may be
toxic. Take caution to prevent dust inhalation and
skin contact. Follow material supplier safety data.
Additional safety rules for the laser
1. LASER RADIATION, DO NOT STARE INTO THE
BEAM OR VIEW DIRECTLY WITH OPTICAL
INSTRUMENTS, CLASS 2M LASER PRODUCT.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery char-
ger, (2) battery, and (3) product using battery.
2. Do not disassemble battery cartridge.
3.
If operating time has become excessively shorter,
stop operating immediately. It may result in a risk of
overheating, possible burns and even an explosion.
4. If electrolyte gets into your eyes, rinse them out
with clear water and seek medical attention right
away. It may result in loss of your eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2)
Avoid storing battery cartridge in a container
with other metal objects such as nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.

7ENGLISH
A battery short can cause a large current
ow, overheating, possible burns and even a
breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a re.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
specied by Makita. Installing the batteries to
non-compliant products may result in a re, exces-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting
causing res, personal injury and damage. It will also
void the Makita warranty for the Makita tool and charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely dis-
charged. Always stop tool operation and charge the
battery cartridge when you notice less tool power.
2. Never recharge a fully charged battery cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room tempera-
ture at 10 °C - 40 °C (50 °F - 104 °F). Let a hot
battery cartridge cool down before charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).

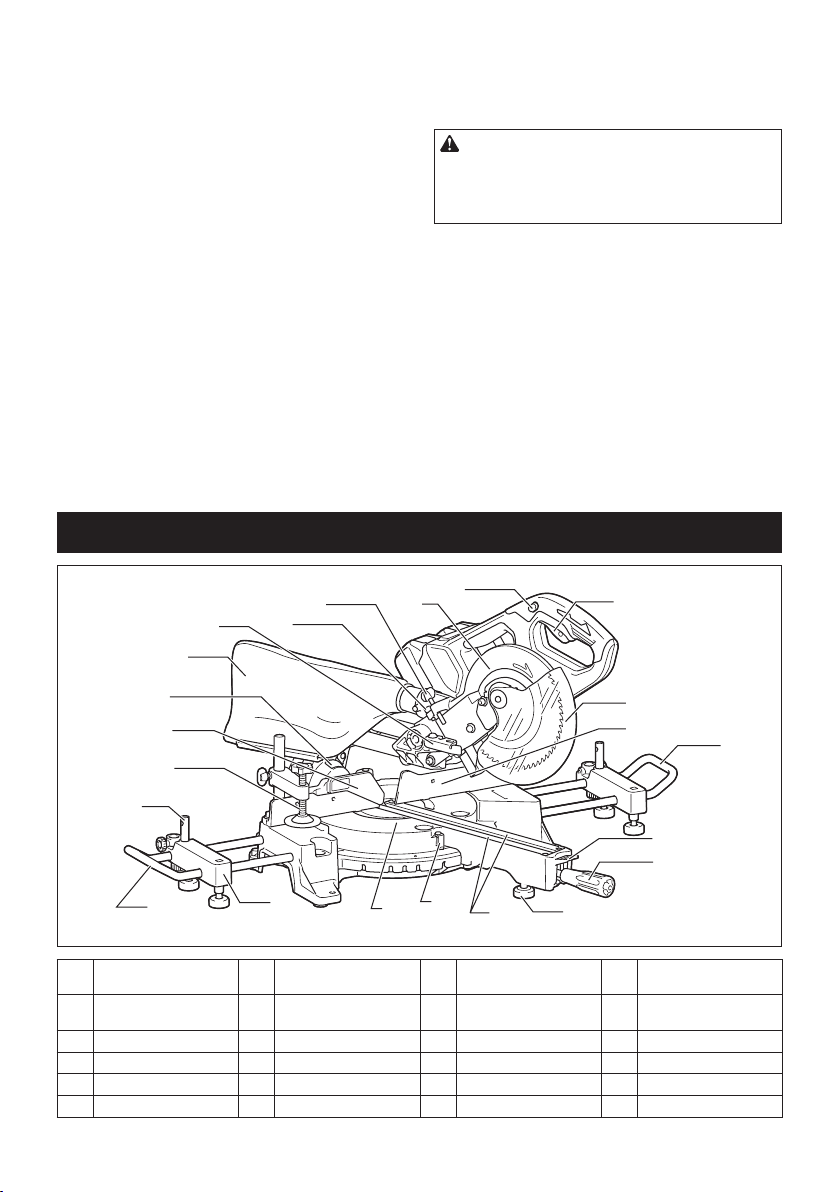

PARTS DESCRIPTION
1
32
4
5
6
7
89
10
11
12
12
13
14
15
16
18 17
19
20
21
1Lock-off button 2Switch trigger 3Blade case 4Adjusting screw (for
lower limit position)
5Adjusting bolt (for maxi-
mum cutting capacity)
6Stopper arm 7Dust bag 8Bevel scale
9Blade guard 10 Vertical vice 11 Guide fence 12 Holder
13 Lock lever (for turn base) 14 Grip (for turn base) 15
Adjusting bolt (for turn base) 16 Kerf board
17 Pointer (for miter angle) 18 Turn base 19 Holder assembly 20 Fence shaft
21 Sub-fence ------

8ENGLISH
22
23
24
25
26
27
28
25
22 Slide pole (upper) 23 Thumb screw (for lock-
ing upper slide pole)
24 Hex wrench 25 Clamp screw (for locking
holder)
26 Lever (for bevel angle
adjustment)
27 Slide pole (lower) 28 Thumb screw (for lock-
ing lower slide pole)
- -
INSTALLATION
Bench mounting
WARNING: Ensure that the tool does not
move on the supporting surface. Movement of the
miter saw on the supporting surface while cutting may
result in loss of control and serious personal injury.
1. Fix the base to a level and stable surface, screw-
ing with two bolts. This helps to prevent from tipping and
possible injury.
1
181 mm 181 mm
ɸ8.5x 2
► 1. Bolt
2. Turn the adjusting bolt clockwise or counterclock-
wise so that it comes into a contact with the oor sur-
face to keep the tool stable.
1
► 1. Adjusting bolt

9ENGLISH
Installing the holders and holder
assemblies
NOTE: In some countries, the holders and holder
assemblies may not be included in the tool package
as standard accessory.
The holders and the holder assemblies support work-
pieces horizontally.
Tighten the fence shafts to the holder assemblies using
the hex wrench.
4
3
1
2
► 1. Holder 2. Holder assembly 3. Fence shaft 4. Hex
wrench
Install the holders and the holder assemblies on both
side as shown in the gure. When installing, make sure
that the fence shaft is in the same line of the guide
fence when installed to the tool.
1
2
3
► 1. Holder 2. Holder assembly 3. Screw
Then tighten the screws rmly to secure the holders and
the holder assemblies.
FUNCTIONAL
DESCRIPTION
WARNING: Always be sure that the tool is
switched off and the battery cartridge is removed
before adjusting or checking the functions on
the tool. Failure to switch off and remove the battery
cartridge may result in serious personal injury from
accidental start-up.
Installing or removing battery
cartridge
CAUTION: Always switch off the tool before
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-
tridge rmly when installing or removing battery
cartridge. Failure to hold the tool and the battery
cartridge rmly may cause them to slip off your hands
and result in damage to the tool and battery cartridge
and a personal injury.
2
21
3
► 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,
it may accidentally fall out of the tool, causing injury to
you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
NOTE: The tool does not work with only one battery
cartridge.

10 ENGLISH
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions:
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
stops without any indication. In this situation, turn the
tool off and stop the application that caused the tool to
become overloaded. Then turn the tool on to restart.
Overheat protection
On Blinking
When the tool is overheated, the tool stops automati-
cally, and the battery indicator blinks about 60 seconds.
In this situation, let the tool cool down before turning the
tool on again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Indicating the remaining battery
capacity
121
► 1. Battery indicator 2. Check button
Press the check button to indicate the remaining battery
capacities. The battery indicators correspond to each
battery.
Battery indicator status Remaining
battery
capacity
On Off Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
1
2
► 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indicate the remain-
ing battery capacity. The indicator lamps light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.

11 ENGLISH
Automatic speed change function
1
► 1. Mode indicator
Mode indicator status Operation mode
High speed mode
High torque mode
This tool has "high speed mode" and "high torque
mode". It automatically changes operation mode
depending on the work load. When mode indicator
lights up during operation, the tool is in high torque
mode.
Stopper pin
CAUTION: Always hold the handle when
releasing the stopper pin. Otherwise the handle
springs up and it may result in personal injury.
To release the stopper pin, keep applying a slight
downward pressure on the handle and then pulling the
stopper pin.
1
► 1. Stopper pin

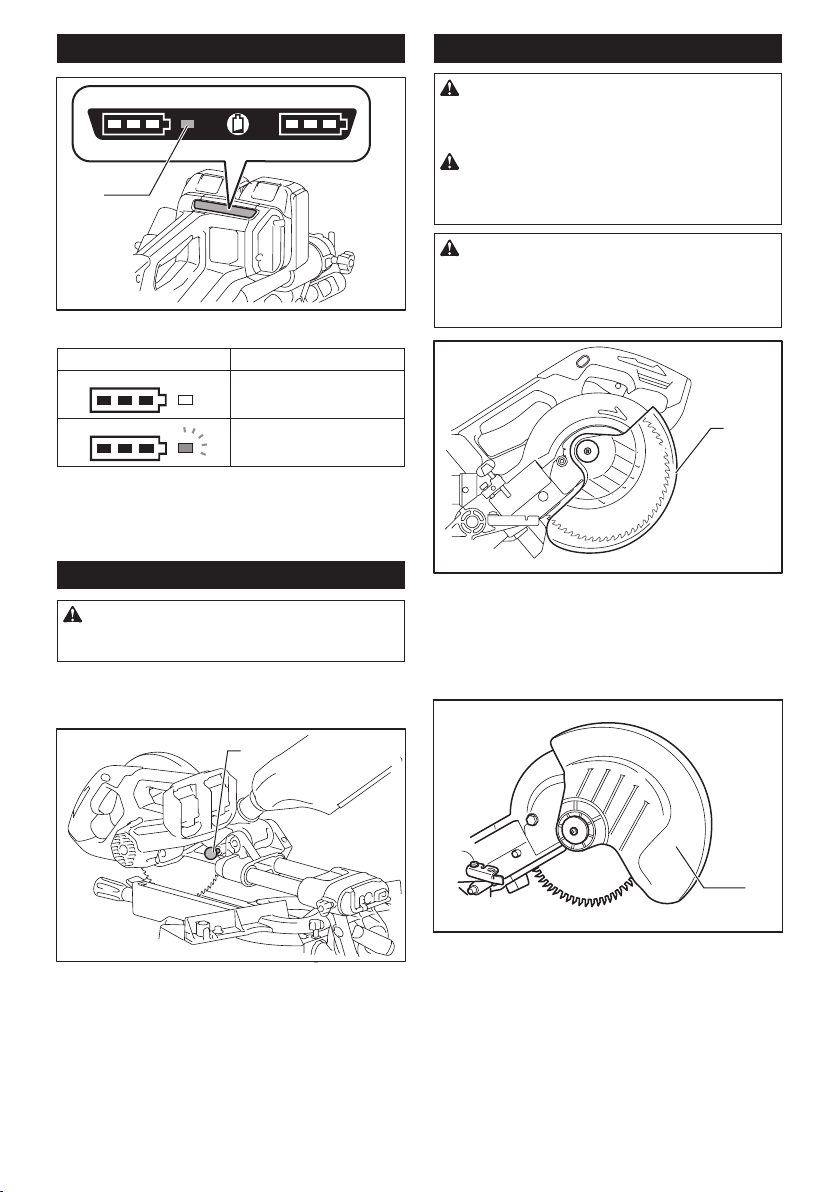

Blade guard
WARNING: Never defeat or remove the blade
guard or the spring which attaches to the guard.
An exposed blade as a result of defeated guarding
may result in serious personal injury during operation.
WARNING: Never use the tool if the blade
guard or spring are damaged, faulty or removed.
Operation of the tool with a damaged, faulty or
removed guard may result in serious personal injury.
CAUTION: Always maintain the blade guard
in good condition for safe operation. Stop the
operation immediately if there are any irregularity
of the blade guard. Check to assure spring loaded
return action of guard.
1
► 1. Blade guard
When lowering the handle, the blade guard raises
automatically. The guard is spring loaded so it returns to
its original position when the cut is completed and the
handle is raised.
Cleaning
1
► 1. Blade guard
If the transparent blade guard becomes dirty, or saw-
dust adheres to it in such a way that the blade and/or
workpiece is no longer easily visible, remove the battery
cartridge and clean the guard carefully with a damp
cloth. Do not use solvents or any petroleum-based
cleaners on the plastic guard because this may cause
damage to the guard.
For cleaning, raise the blade guard by referring to
"Installing or removing saw blade".
After cleaning, make sure to return the blade and center
cover and tighten the hex socket bolt.

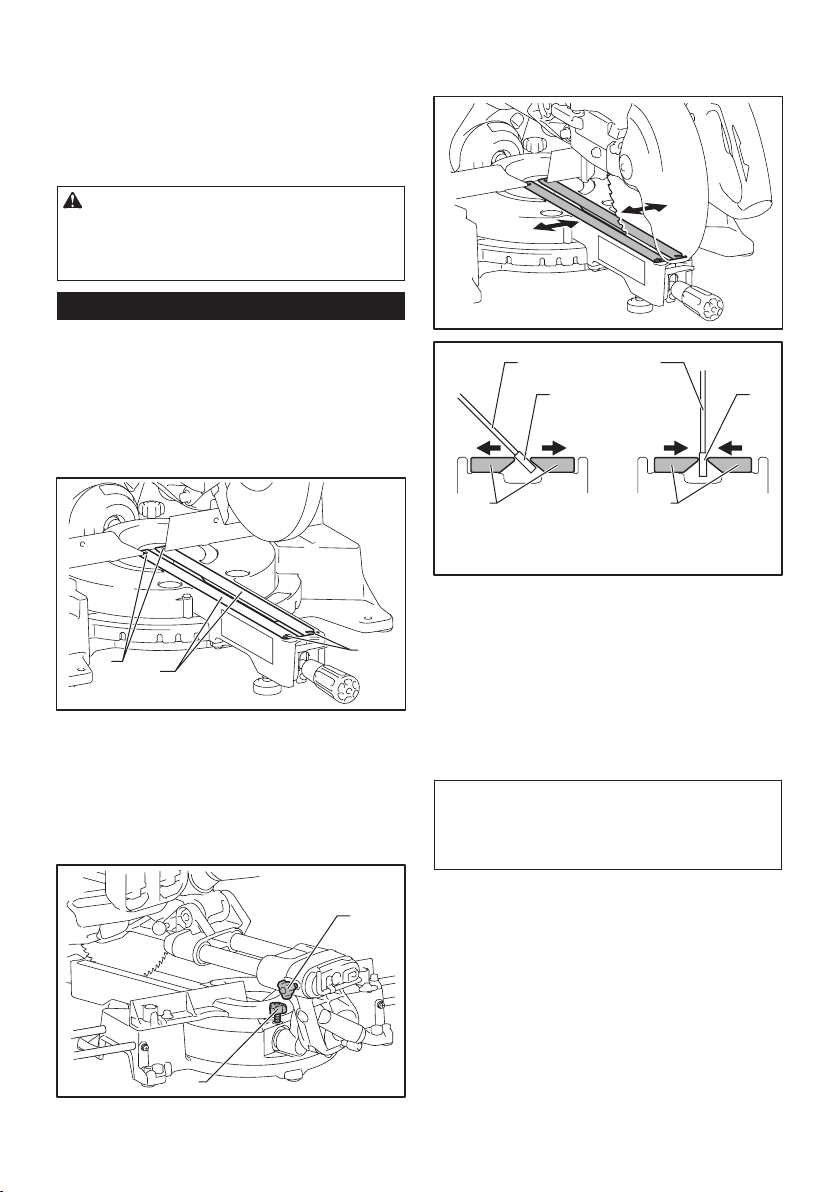

12 ENGLISH
1. Make sure that the tool is switched off and the
battery cartridges are removed.
2. Turn the hex socket bolt counterclockwise using
the supplied hex wrench with holding the center cover.
3. Raise the blade guard and center cover.
4. When cleaning is complete, return the center
cover and tighten the hex socket bolt by performing the
steps above in reverse.
WARNING: Do not remove spring holding
blade guard. If guard becomes damaged in course
of time or UV light exposure, contact a Makita ser-
vice center for replacement. DO NOT DEFEAT OR
REMOVE GUARD.

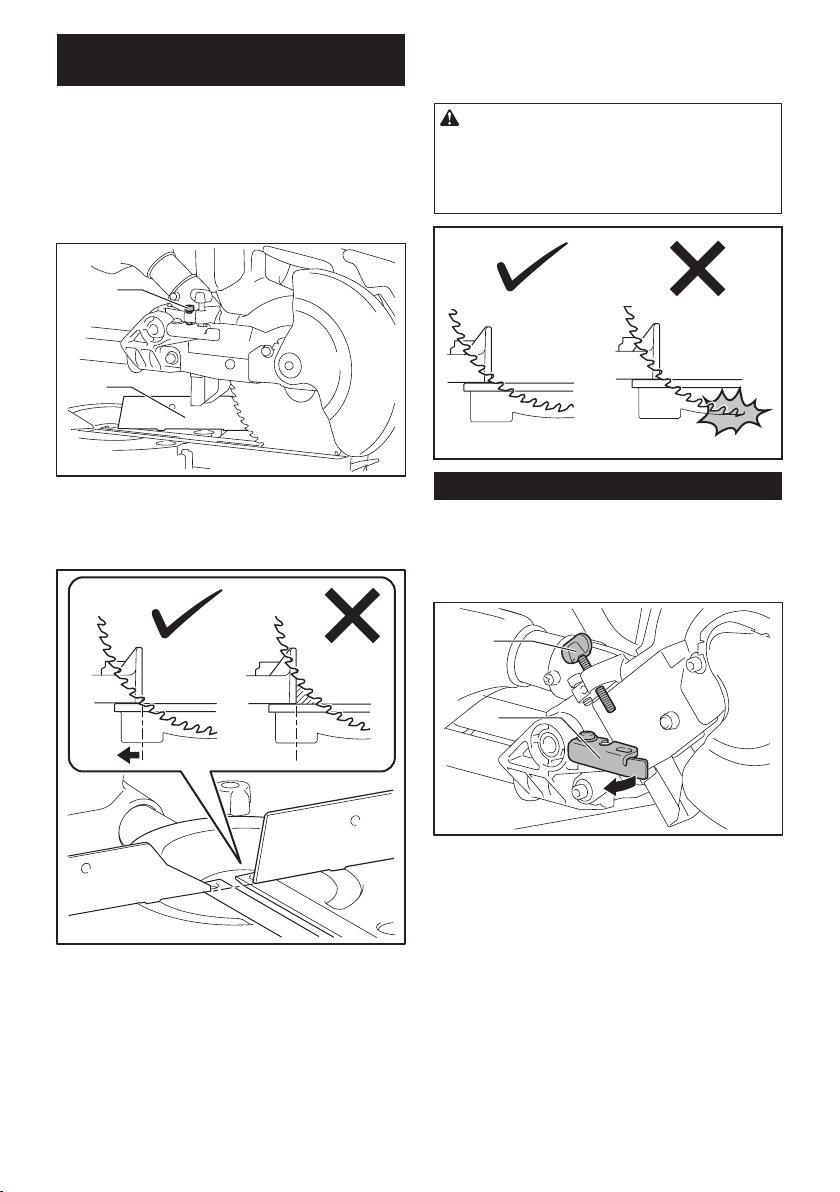

Positioning kerf board
This tool is provided with the kerf boards in the turn
base to minimize tearing on the exit side of a cut. The
kerf boards are factory adjusted so that the saw blade
does not contact the kerf boards. Before use, adjust the
kerf boards as follows:
1. Make sure to remove the battery cartridge. Then,
loosen all the screws (2 each on left and right) securing
the kerf boards.
1
2
2
► 1. Kerf board 2. Screw
2. Re-tighten them only to the extent that the kerf
boards can still be easily moved by hand.
3. Lower the handle fully and push in the stopper pin
to lock the handle in the lowered position.
4. Loosen two clamp screws which secure the slide
poles.
1
1
► 1. Thumb screw
5. Pull the carriage toward you fully.
6. Adjust the kerf boards so that the kerf boards just
contact the sides of the blade teeth.
1 1
3
45
3
2 2
► 1. Saw blade 2. Blade teeth 3. Kerf board 4. Left
bevel cut 5. Straight cut
7. Tighten the front screws (do not tighten rmly).
8. Push the carriage toward the guide fence fully and
adjust the kerf boards so that the kerf boards just con-
tact the sides of blade teeth.
9. Tighten the rear screws (do not tighten rmly).
10. After adjusting the kerf boards, release the stop-
per pin and raise the handle. Then tighten all the screws
securely.
NOTICE: After setting the bevel angle ensure
that the kerf boards are adjusted properly. Correct
adjustment of the kerf boards helps to provide proper
support of the workpiece and minimizing workpiece
tear out.

13 ENGLISH
Maintaining maximum cutting
capacity
This tool is factory adjusted to provide the maximum
cutting capacity for a 190 mm saw blade.
When installing a new blade, always check the lower
limit position of the blade, and if necessary, adjust it as
follows:
1. Remove the battery cartridge. Then, push the car-
riage toward the guide fence fully and lower the handle
completely.
1
2
► 1. Adjusting bolt 2. Guide fence
2. Use the hex wrench to turn the adjusting bolt until
the saw blade comes slightly below the cross section of
the guide fence and the top surface of the turn base.
3. Rotate the blade by hand while holding the handle
all the way down to be sure that the blade does not
contact any part of the lower base. Re-adjust slightly, if
necessary.
WARNING: After installing a new blade and
with the battery cartridge removed, always be
sure that the blade does not contact any part of
the lower base when the handle is lowered com-
pletely. If a blade makes contact with the base it may
cause kickback and result in serious personal injury.
Stopper arm
The lower limit position of the blade can be easily
adjusted with the stopper arm. To adjust it, move the
stopper arm in the direction of the arrow as shown in
the gure. Turn the adjusting screw and press down the
handle fully to check the result.
1
2
► 1. Adjusting screw 2. Stopper arm

14 ENGLISH
Sub-fence
Country specic
CAUTION: When performing left bevel cuts,
ip the sub-fence outward. Otherwise, it may con-
tact the blade or a part of the tool, and may result in
serious injury to the operator.
1
► 1. Sub-fence
This tool is equipped with the sub-fence. Usually posi-
tion the sub-fence inside. However, when performing
left bevel cuts, ip it outward.
Adjusting the miter angle
1
2
34
5
► 1. Turn base 2. Lock lever 3. Miter scale 4. Pointer
5. Grip
1. Loosen the grip counterclockwise.
2. Press down and hold the lock lever, and adjust the
angle of the turn base. Use the pointer and the miter
scale as a guide.
3. Tighten the grip clockwise rmly.
CAUTION: After changing the miter angle,
always secure the turn base by tightening the grip
rmly.
NOTICE: When turning the turn base, be sure to
raise the handle fully.
Adjusting the bevel angle
To adjust the bevel angle, loosen the lever at the rear of
the tool counterclockwise.
1
2
► 1. Lever 2. Release button
To tilt the blade to the left, hold the handle and tilt the
carriage. Use the bevel scale and the pointer as a
guide. Then tighten the lever clockwise rmly to secure
the arm.
1
2
3
► 1. Pointer 2. Bevel scale 3. Arm
To tilt the blade to the right, hold the handle and tilt the
carriage to the left slightly, and push the release button.
With the release button pressed, tilt the saw blade to
the right. Then tighten the lever.
CAUTION: After changing the bevel angle,
always secure the arm by tightening the lever
clockwise.
NOTICE: When tilting the saw blade be sure the
handle is fully raised.
NOTICE: When changing bevel angles, be
sure to position the kerf boards appropriately
as explained in the "Positioning kerf boards"
section.

15 ENGLISH
Adjusting the lever position
If the lever does not provide full tightening in course of
time, change the position of the lever. The lever can be
repositioned at every 30° angle.
Loosen and remove the screw that secures the lever.
Remove the lever and install it again so that it points
slightly above the horizontal. Then, tighten the lever
with the screw rmly.
2
1
► 1. Lever 2. Screw
Switch action
WARNING: Before installing the battery car-
tridge on the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released. Operating a tool
with a switch that does not actuate properly can lead
to loss of control and serious personal injury.
WARNING: Do not use a lock with a shank or
cable any smaller than 6.35 mm (1/4") in diameter.
A smaller shank or cable may not properly lock the
tool in the off position and unintentional operation
may occur resulting in serious personal injury.
WARNING: NEVER use tool without a fully
operative switch trigger. Any tool with an inoper-
ative switch is HIGHLY DANGEROUS and must be
repaired before further usage or serious personal
injury may occur.
WARNING: For your safety, this tool is equipped
with a lock-off button which prevents the tool from
unintended starting. NEVER use the tool if it runs
when you simply pull the switch trigger without
pressing the lock-off button. A switch in need of
repair may result in unintentional operation and seri-
ous personal injury. Return tool to a Makita service
center for proper repairs BEFORE further usage.
WARNING: NEVER defeat the lock-off button
by taping down or some other means. A switch with
a negated lock-off button may result in unintentional
operation and serious personal injury.
NOTICE: Do not pull the switch trigger hard
without pressing in the lock-off button. This can
cause switch breakage.
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided. To start the tool,
press in the lock-off button and pull the switch trigger.
Release the switch trigger to stop.
The lock-off button can be pressed from either right or
left.
A hole is provided in the switch trigger for insertion of a
padlock to lock the tool off.
2
1
3
► 1. Lock-off button 2. Switch trigger 3. Hole for
padlock
ASSEMBLY
WARNING: Always be sure that the tool is
switched off and the battery cartridge is removed
before working on the tool. Failure to switch off and
remove the battery cartridge may result in serious
personal injury.
Hex wrench storage
The hex wrench is stored as shown in the gure. When
the hex wrench is needed it can be pulled out of the
wrench holder.
After using the hex wrench it can be stored by returning
it to the wrench holder.
12
► 1. Wrench holder 2. Hex wrench

16 ENGLISH

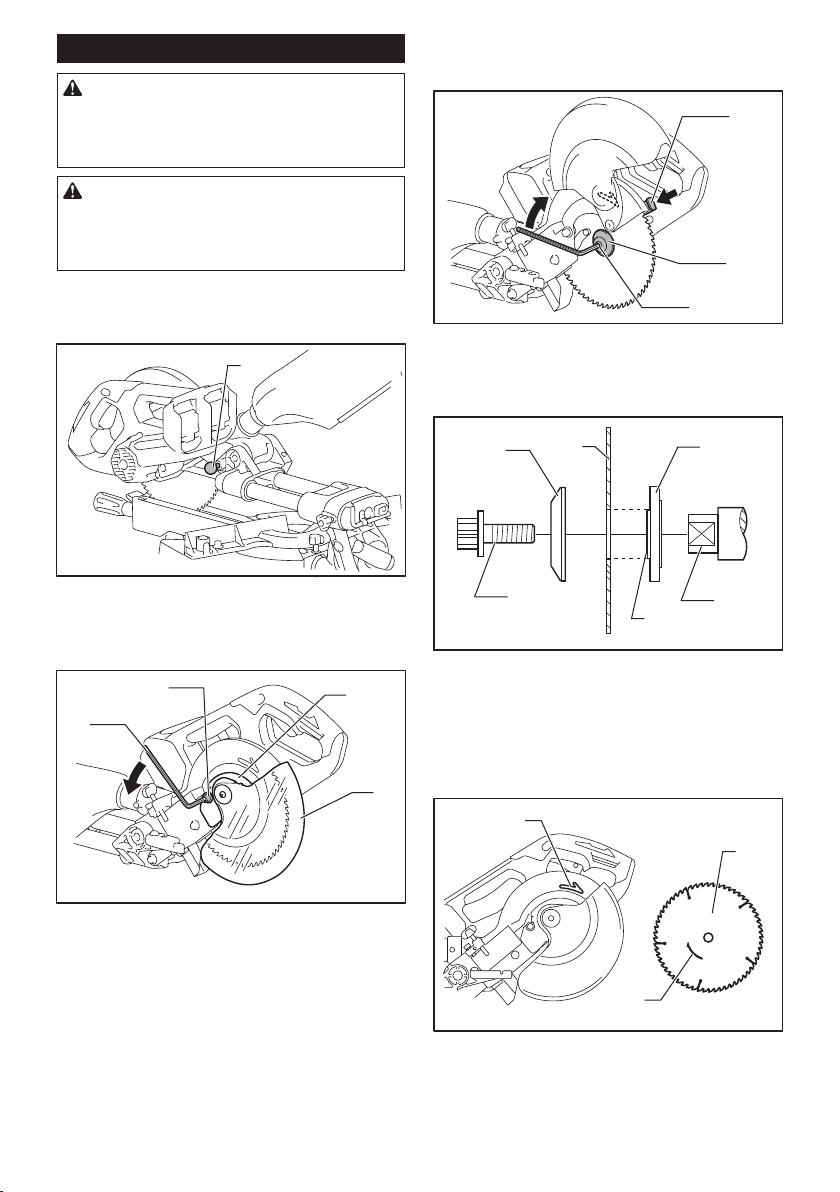

Installing or removing saw blade
WARNING: Always be sure that the tool is
switched off and the battery cartridge is removed
before installing or removing the blade. Accidental
start up of the tool may result in serious personal
injury.
CAUTION: Use only the Makita hex wrench
provided to install or remove the blade. Failure
to do so may result in overtightening or insufcient
tightening of the hex socket bolt. This could cause
an injury.
To remove the blade, perform the following steps:
1. Lock the handle in the raised position by pushing
in the stopper pin.
1
► 1. Stopper pin
2. Use the hex wrench to loosen the hex socket bolt
holding the center cover by turning it counterclockwise.
Then, raise the blade guard and center cover.
4
2
3
1
► 1. Center cover 2. Hex socket bolt 3. Hex wrench
4. Blade guard
3.
Press the shaft lock to lock the spindle and use the hex
wrench to loosen the hex socket bolt clockwise. Then remove
the hex socket bolt of the spindle, outer ange and blade.
1
2
3
► 1. Shaft lock 2. Hex socket bolt 3. Outer ange
4.
If the inner ange is removed, install it on the spindle
with its blade mounting part facing the blade. If the ange is
installed incorrectly the ange will rub against the machine.
123
45
6
► 1. Outer ange 2. Saw blade 3. Inner ange 4. Hex
socket bolt (left-handed) 5. Spindle 6. Blade mount-
ing part
To install the blade, perform the following steps:
1. Mount the blade carefully onto the inner ange.
Make sure that the direction of the arrow on the blade
matches the direction of the arrow on the blade case.
1
2
2
► 1. Saw blade 2. Arrow
2. Install the outer ange and hex socket bolt, and
then use the hex wrench to tighten the hex socket bolt
(left-handed) of the spindle securely counterclockwise
while pressing the shaft lock.

17 ENGLISH
3. Return the blade guard and center cover to its
original position. Then tighten the hex socket bolt of the
center cover clockwise to secure the center cover.
4. Release the handle from the raised position by
pulling the stopper pin. Lower the handle to make sure
that the blade guard moves properly.
5. Make sure the shaft lock has released spindle
before making cut.

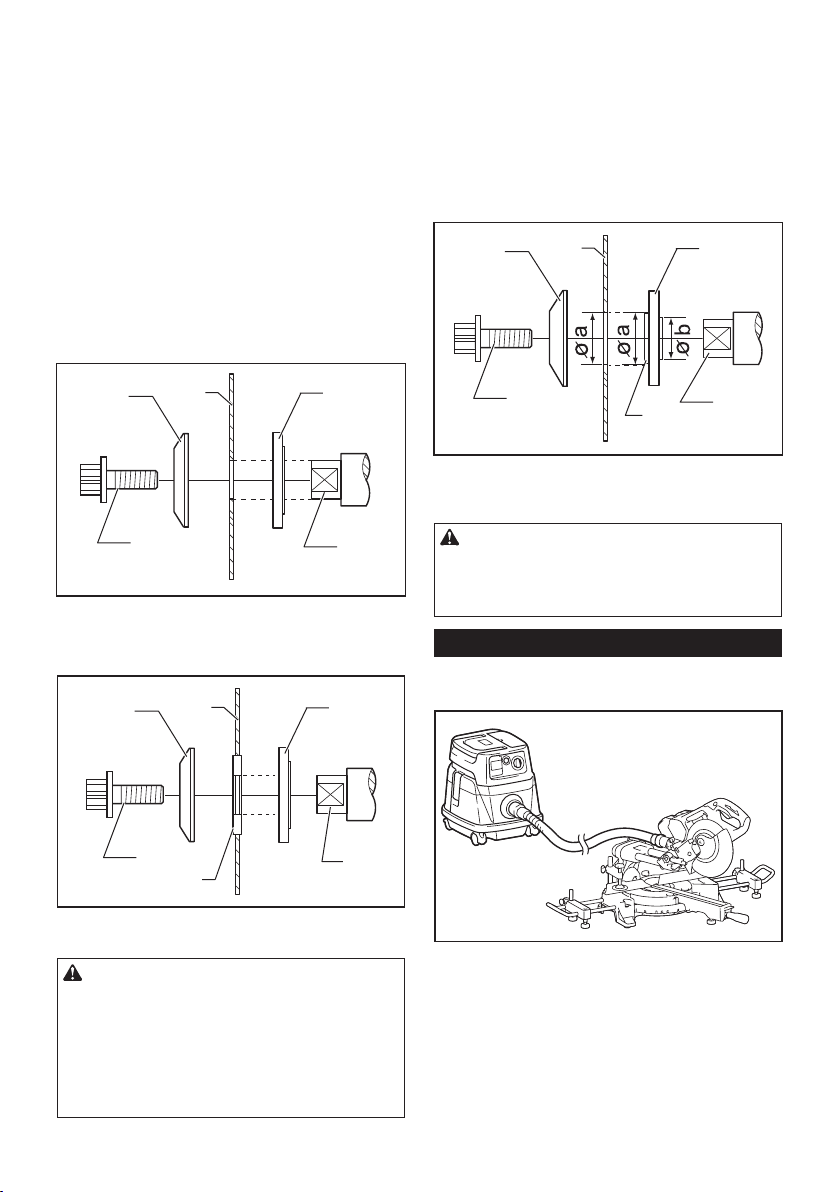

For tool with the inner ange for
15.88 mm hole-diameter saw blade
Country specic
Mount the inner ange with its recessed side facing
outward onto the mounting shaft and then place circu-
lar saw blade (with the ring attached if needed), outer
ange and hex bolt.
For tool without the ring
123
45
► 1. Outer ange 2. Saw blade 3. Inner ange 4. Hex
socket bolt (left-handed) 5. Spindle
For tool with the ring
123
46
5
► 1. Outer ange 2. Saw blade 3. Inner ange 4. Hex
socket bolt (left-handed) 5. Ring 6. Spindle
WARNING: If the ring is needed to mount the
blade onto the spindle, always be sure that the
correct ring for the blade's arbor hole you intend
to use is installed between the inner and the outer
anges. Use of the incorrect arbor hole ring may
result in the improper mounting of the blade causing
blade movement and severe vibration resulting in
possible loss of control during operation and in seri-
ous personal injury.
For tool with the inner ange for
other than 20 mm or 15.88 mm hole-
diameter saw blade
Country specic
The inner ange has a certain diameter of a blade
mounting part on one side of it and a different diameter
of blade mounting part on the other side. Choose a
correct side on which blade mounting part ts into the
saw blade hole perfectly.
123
45
6
► 1. Outer ange 2. Saw blade 3. Inner ange 4. Hex
socket bolt (left-handed) 5. Spindle 6. Blade mount-
ing part
CAUTION: Make sure that the blade mounting
part "a" on the inner ange that is positioned
outside ts into the saw blade hole "a" perfectly.
Mounting the blade on the wrong side can result in
the dangerous vibration.
Connecting a vacuum cleaner
When you wish to perform clean cutting operation,
connect a Makita vacuum cleaner.

18 ENGLISH
Dust bag
Optional accessory
The use of the dust bag makes cutting operations
cleaner and dust collection easier.
To attach the dust bag, t it onto the dust nozzle.
To attach the fastener, align the top end of the fastener
with the triangular mark on the dust bag.
When the dust bag is about half full, remove the dust
bag from the tool and pull the fastener out. Empty
the dust bag of its contents, tapping it lightly so as to
remove particles adhering to the insides which might
hamper further collection.
1
2
3
► 1. Dust bag 2. Dust nozzle 3. Fastener
Securing workpiece
WARNING: It is extremely important to always
secure the workpiece correctly with the proper
type of vise. Failure to do so may result in serious
personal injury and cause damage to the tool and/or
the workpiece.
WARNING: When cutting a workpiece that
is longer than the support base of the saw, sup-
port the entire length of the material beyond the
support base and at the same height to keep the
material level. Proper workpiece support helps to
avoid blade pinch and possible kickback which may
result in serious personal injury. Do not rely solely on
the vertical vise and/or horizontal vise to secure the
workpiece. Thin material tends to sag. Support work-
piece over its entire length to avoid blade pinch and
possible KICKBACK.
12
► 1. Support 2. Turn base
Vertical vise
WARNING: Secure the workpiece rmly against
the turn base and guide fence with the vise during all
operations. Otherwise the material may move during the
cutting operation, cause damage to the blade, and be thrown
which may result in loss of control and serious personal injury.
Install the vertical vise on either the left or right side of
the guide fence or the holder assembly. Insert the vise
rod into the hole in the guide fence or the holder assem-
bly and tighten the lower screw to secure the vise rod.
6
1
3
5
4
2
8
7
► 1. Vise arm 2. Vise rod 3. Guide fence 4. Holder
5. Holder assembly 6. Vise knob 7. Lower screw
8. Upper screw
Position the vise arm according to the thickness and shape
of the workpiece and secure the vise arm by tightening the
upper screw. If the upper screw contacts the guide fence,
install the upper screw on the opposite side of vise arm. Make
sure that no part of the tool contacts the vise when lowering
the handle fully and pulling or pushing the carriage all the
way. If some part contacts the vise, re-position the vise.
Press the workpiece at against the guide fence and the
turn base. Position the workpiece at the desired cutting
position and secure it rmly by tightening the vise knob.
Horizontal vise
Optional accessory
WARNING: Grip the workpiece only when the indi-
cator is at the topmost position. Failure to do so may result
in insufcient securing of the workpiece. This may cause the
workpiece to be thrown, cause damage to the blade or cause
the loss of control, which may result in personal injury.
1
2
3
4
► 1. Vise knob 2. Indicator 3. Vise shaft 4. Base

19 ENGLISH
The horizontal vise can be installed on the left side of the base.
By turning the vise knob counterclockwise, the screw is
released and the vise shaft can be moved rapidly in and out. By
turning the vise knob clockwise, the screw remains secured.
To grip the workpiece, turn the vise knob gently clockwise
until the indicator reaches its topmost position, then fasten
securely. If the vise knob is forced in or pulled out while being
turned clockwise, the indicator may stop at an angle. In this
case, turn the vise knob back counterclockwise until the
screw is released, and then turn it again gently clockwise.
The maximum capacity of the horizontal vise is 120 mm width.
Holders and holder assembly
Optional accessory
CAUTION: For the tool equipped with the hold-
ers and the holder assemblies as standard acces-
sories, this type of use is not permitted due to the
country regulations.
WARNING: Always support a long workpiece so it
is level with the top surface of the turn base for an accu-
rate cut and to prevent dangerous loss of tool control.
Proper workpiece support helps to avoid blade pinch and
possible kickback which may result in serious personal injury.
The holders and the holder assembly (optional acces-
sory) can be installed on either side as a convenient
means of supporting workpieces horizontally.
Install them on the side of the tool, then tighten the
screws rmly to secure them.
1
2
► 1. Holder 2. Holder assembly
When cutting long workpieces, use the holder-rod
assembly (optional accessory). It consists of two holder
assemblies and two rods 12.
2
1
► 1. Holder assembly 2. Rod 12
OPERATION
WARNING: Make sure the blade is not con-
tacting the workpiece, etc. before the switch
is turned on. Turning the tool on with the blade in
contact with the workpiece may result in kickback and
serious personal injury.
WARNING: After a cutting operation, do not
raise the blade until it has come to a complete
stop. The raising of a coasting blade may result in
serious personal injury and damage to the workpiece.
WARNING: Do not touch the clamp screws
which secure the slide poles while the saw blade
is rotating. Otherwise the tool may lose control and
result in personal injury.
NOTICE: Before use, be sure to release the handle
from the lowered position by pulling the stopper pin.
NOTICE: Do not apply excessive pressure on the
handle when cutting. Too much force may result in overload
of the motor and/or decreased cutting efciency. Press down
handle with only as much force as necessary for smooth
cutting and without signicant decrease in blade speed.
NOTICE: Gently press down the handle to per-
form the cut. If the handle is pressed down with force
or if lateral force is applied, the blade may vibrate and
leave a mark (saw mark) in the workpiece and the
precision of the cut may be impaired.
NOTICE: During a slide cut, gently push the carriage
toward the guide fence without stopping. If the carriage
movement stops during the cut, a mark may be left in the
workpiece and the precision of the cut may be impaired.
Press cutting (cutting small workpieces)
WARNING: Firmly tighten two clamp screws
which secure the slide poles clockwise so that the
carriage will not move during operation. Insufcient
tightening of the locking screw may cause possible
kickback which may result in serious personal injury.
2
1
► 1. Thumb screw 2. Holder assembly
Workpieces up to 52 mm high and 97 mm wide can be
cut in the following manner.
1. Push the carriage toward the guide fence fully and
tighten two clamp screws which secure the slide poles
clockwise to secure the carriage.

20 ENGLISH
2. Secure the workpiece with the proper type of vise.
3. Switch on the tool without the blade making any
contact and wait until the blade attains full speed before
lowering.
4. Gently lower the handle to the fully lowered posi-
tion to cut the workpiece.
5. When the cut is completed, switch off the tool and
wait until the blade has come to a complete stop
before returning the blade to its fully elevated position.
Slide (push) cutting (cutting wide
workpieces)
WARNING: Whenever performing a slide cut,
rst pull the carriage full towards you and press
the handle all the way down, then push the car-
riage toward the guide fence. Never start the cut
with the carriage not pulled fully toward you. If
you perform the slide cut without the carriage pulled
fully toward you unexpected kickback may occur and
serious personal injury may result.
WARNING: Never attempt to perform a slide
cut by pulling the carriage towards you. Pulling
the carriage towards you while cutting may cause
unexpected kickback resulting in possible serious
personal injury.
WARNING: Never perform the slide cut with
the handle locked in the lowered position.
WARNING: Never loosen the knob which
secures the carriage while the blade is rotating. A
loose carriage while cutting may cause unexpected
kickback resulting in possible in serious personal
injury.
2
1
► 1. Thumb screw 2. Holder assembly
1. Loosen two clamp screws which secure the slide
poles counterclockwise so that the carriage can slide
freely.
2. Secure the workpiece with the proper type of vise.
3. Pull the carriage toward you fully.
4. Switch on the tool without the blade making any
contact and wait until the blade attains full speed.
5. Press the handle down and push the carriage
toward the guide fence and through the workpiece.
6. When the cut is completed, switch off the tool and
wait until the blade has come to a complete stop
before returning the blade to its fully elevated position.
Miter cutting
Refer to the previously covered "Adjusting the miter
angle".
Bevel cut
WARNING: After setting the blade for a bevel
cut, before operating the tool ensure that the car-
riage and blade will have free travel throughout
the entire range of the intended cut. Interruption of
the carriage or blade travel during the cutting oper-
ation may result in kickback and serious personal
injury.
WARNING: While making a bevel cut keep
hands out of the path of the blade. The angle of the
blade may confuse the operator as to the actual blade
path while cutting and contact with the blade will
result in serious personal injury
WARNING: The blade should not be raised
until it has come to a complete stop. During a
bevel cut the piece cut off may come to rest against
the blade. If the blade is raised while it is rotating the
cut-off piece maybe ejected by the blade causing
the material to fragment which may result in serious
personal injury.
CAUTION: (Only for tools with sub-fence)
Always set the sub-fence outside when perform-
ing left bevel cuts.
1
► 1. Holder assembly
1. Loosen the lever and tilt the saw blade to set the
bevel angle (Refer to the previously covered "Adjusting
the bevel angle"). Be sure to retighten the lever rmly to
secure the selected bevel angle safely.
2. Secure the workpiece with a vise.
3. Pull the carriage toward you fully.
4. Switch on the tool without the blade making any
contact and wait until the blade attains full speed.
5. Gently lower the handle to the fully lowered posi-
tion while applying pressure in parallel with the blade
and push the carriage toward the guide fence to cut
the workpiece.
6. When the cut is completed, switch off the tool and
wait until the blade has come to a complete stop
before returning the blade to its fully elevated position.
