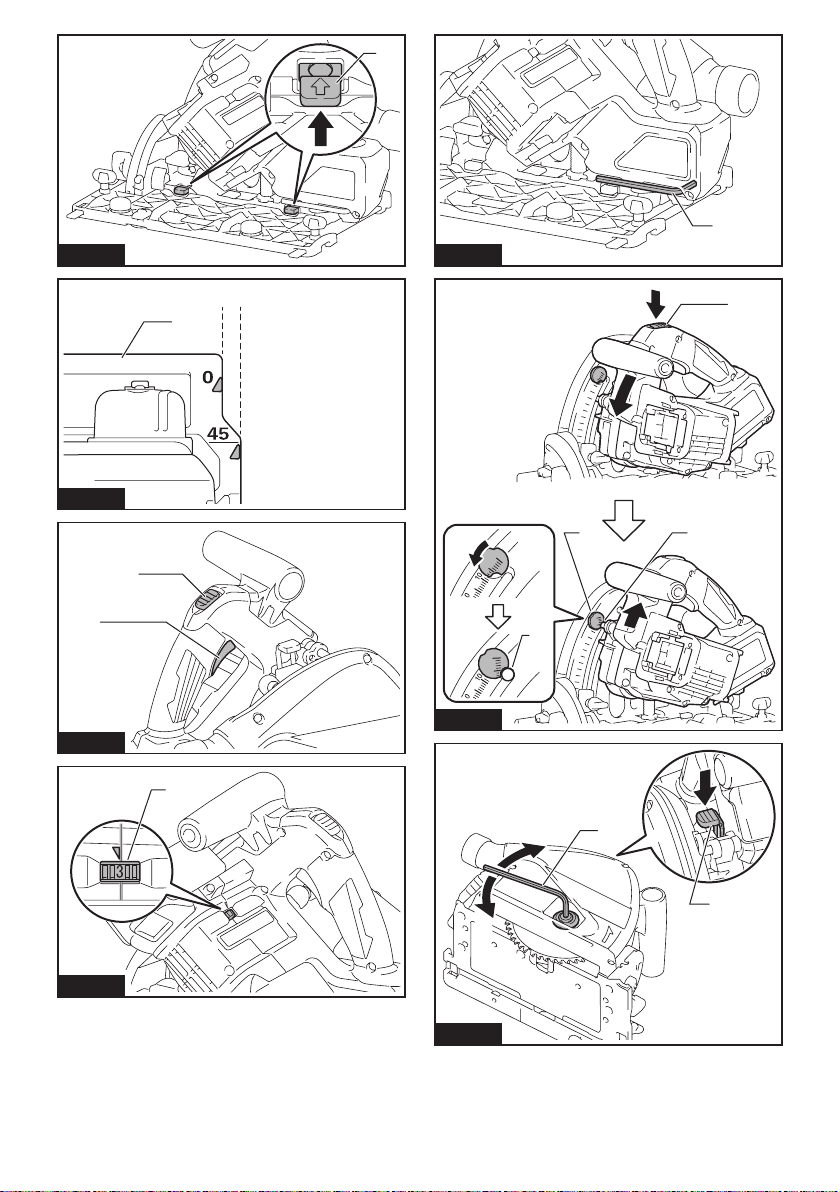

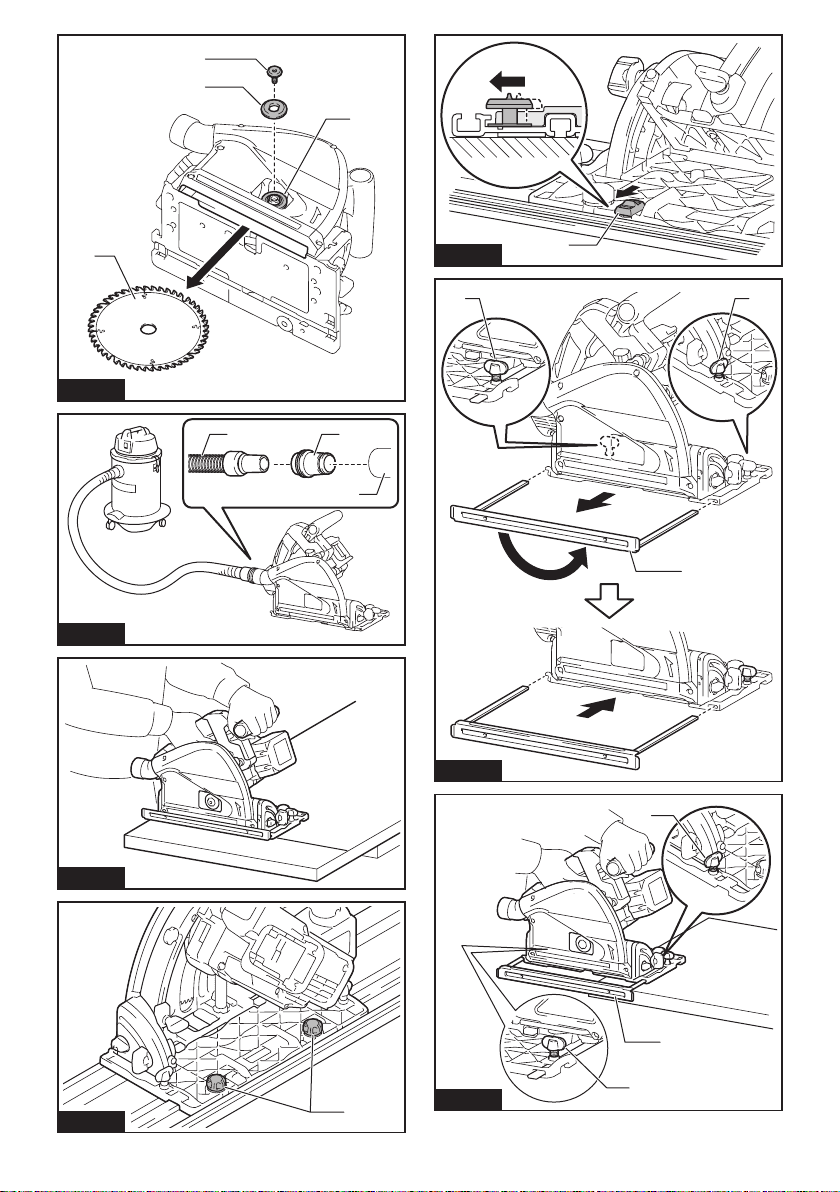

Fig.1
Fig.2
Fig.3
Fig.4
Fig.5
Fig.6
1
2
3
Fig.7
1 2 3
Fig.8
2

1
2
Fig.9
1
Fig.10
2
1
Fig.11
1
Fig.12
1
1
2
Fig.13
2
1
2
Fig.14
1
2
Fig.15
1
Fig.16
3

1
Fig.17
1
AB
Fig.18
2
1
Fig.19
1
Fig.20
1
Fig.21
1
2
4
3
Fig.22
2
1
3
4
Fig.23
4

4
3
2
1
Fig.24
1 2
3
Fig.25
Fig.26
1
Fig.27
1
Fig.28
1 1
2
Fig.29
1
1
2
Fig.30
5

1
2
Fig.31
21
Fig.32
Fig.33
1
Fig.34
1
2
3
4
Fig.35
1
2
3
Fig.36
1
Fig.37
6

1 2
1 2
Fig.38
Fig.39
1
Fig.40
1 2
Fig.41
1
Fig.42
1
Fig.43
7

1 2
1 2
Fig.44
1
1
0°
45°
Fig.45
1
Fig.46
1
Fig.47
8

9ENGLISH
ENGLISH (Original instructions)
SPECIFICATIONS
Model: DSP600 DSP601
Blade diameter 165 mm
Max. Cutting depth at 0° 56 mm
at 45° bevel 40 mm
at 48° bevel 38 mm
No load speed 2,500 - 6,300 min-1
Overall length 346 mm
Rated voltage D.C. 36 V
Battery cartridge BL1815N, BL1820, BL1820B, BL1830, BL1830B, BL1840,
BL1840B, BL1850, BL1850B, BL1860B
Charger DC18RC, DC18RD, DC18SD, DC18SE, DC18SF
Net weight 4.4 - 5.1 kg
• 
 󰀨
 󰀨-
est combinations, according to EPTA-Procedure 01/2014, are shown in the table.
Intended use
The tool is specially intended for performing plunge cuts. The tool is
also intended for rip and cross cuts in wood. If the tool is equipped
with proper circular saw blade, the tool can be used for sawing
aluminum, plastic, mineral contained plastic, and similar materials.
Noise
The typical A-weighted noise level determined according to
EN62841-2-5:
Model DSP600
pA
WA

Model DSP601
pA
WA

NOTE: 
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE: 
also be used in a preliminary assessment of exposure.
WARNING: Wear ear protection.
WARNING: The noise emission during actual
󰀨
value(s) depending on the ways in which the tool is
used especially what kind of workpiece is processed.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (tak-
ing account of all parts of the operating cycle such
󰀨
it is running idle in addition to the trigger time).
Vibration
-
mined according to EN62841-2-5:
Model DSP600
Work mode: cutting wood
h,W2or less
2
Work mode: cutting metal
h,M2or less
2
Model DSP601
Work mode: cutting wood
h,W2or less
2
Work mode: cutting metal
h,M2or less
2
NOTE:
measured in accordance with a standard test method
and may be used for comparing one tool with another.
NOTE:
be used in a preliminary assessment of exposure.
WARNING: The vibration emission during
󰀨
declared value(s) depending on the ways in which
the tool is used especially what kind of workpiece
is processed.
WARNING: Be sure to identify safety mea-
sures to protect the operator that are based on an
estimation of exposure in the actual conditions of
use (taking account of all parts of the operating
cycle such as the times when the tool is switched
󰀨
trigger time).

10 ENGLISH
Declarations of Conformity
For European countries only
The Declarations of conformity are included in Annex A
to this instruction manual.
SAFETY WARNINGS
General power tool safety warnings
WARNING: Read all safety warnings, instruc-

with this power tool. Failure to follow all instructions


Save all warnings and instruc-
tions for future reference.
The term "power tool" in the warnings refers to your


Cordless circular saw safety
warnings
Cutting procedures
1. DANGER: Keep hands away from cutting
area and the blade. Keep your second hand
on auxiliary handle, or motor housing. If both
hands are holding the saw, they cannot be cut by
the blade.
2. Do not reach underneath the workpiece. The
guard cannot protect you from the blade below the
workpiece.
3. Adjust the cutting depth to the thickness of
the workpiece. Less than a full tooth of the blade
teeth should be visible below the workpiece.
4. Never hold the workpiece in your hands or
across your leg while cutting. Secure the
workpiece to a stable platform. It is important to
support the work properly to minimise body expo-
sure, blade binding, or loss of control.
Fig.1
5. Hold the power tool by insulated gripping
surfaces, when performing an operation where
the cutting tool may contact hidden wiring.
Contact with a “live” wire will also make exposed
metal parts of the power tool “live” and could give
the operator an electric shock.
6. When ripping, always use a rip fence or
straight edge guide. This improves the accuracy
of cut and reduces the chance of blade binding.
7.
Always use blades with correct size and shape
(diamond versus round) of arbour holes. Blades
that do not match the mounting hardware of the
󰀨
8. Never use damaged or incorrect blade wash-
ers or bolt. The blade washers and bolt were
specially designed for your saw, for optimum
performance and safety of operation.
Kickback causes and related warnings
— kickback is a sudden reaction to a pinched,

uncontrolled saw to lift up and out of the workpiece
toward the operator;
—

kerf closing down, the blade stalls and the motor reac-
tion drives the unit rapidly back toward the operator;
— if the blade becomes twisted or misaligned in the cut,
the teeth at the back edge of the blade can dig into the
top surface of the wood causing the blade to climb out


operating procedures or conditions and can be avoided
by taking proper precautions as given below.
1. 
saw and position your arms to resist kickback
forces. Position your body to either side of the
blade, but not in line with the blade.

kickback forces can be controlled by the operator,
if proper precautions are taken.
2.
When blade is binding, or when interrupting a
cut for any reason, release the trigger and hold
the saw motionless in the material until the
blade comes to a complete stop. Never attempt
to remove the saw from the work or pull the saw
backward while the blade is in motion or kick-
back may occur. Investigate and take corrective
actions to eliminate the cause of blade binding.
3. When restarting a saw in the workpiece, centre
the saw blade in the kerf so that the saw teeth
are not engaged into the material. If a saw blade
binds, it may walk up or kickback from the work-
piece as the saw is restarted.
4. Support large panels to minimise the risk of
blade pinching and kickback. Large panels tend
to sag under their own weight. Supports must be
placed under the panel on both sides, near the line
of cut and near the edge of the panel.
Fig.2
Fig.3
5. Do not use dull or damaged blades.
Unsharpened or improperly set blades produce
narrow kerf causing excessive friction, blade
binding and kickback.
6. Blade depth and bevel adjusting locking levers
must be tight and secure before making the
cut.
cause binding and kickback.
7. Use extra caution when sawing into existing
walls or other blind areas. The protruding blade

8. 
NEVER place your hand, leg or any part of your
body under the tool base or behind the saw,
especially when making cross-cuts. If kickback


Fig.4
 Never force the saw. Push the saw forward at a
speed so that the blade cuts without slowing.
Forcing the saw can cause uneven cuts, loss of
accuracy, and possible kickback.

11 ENGLISH
Guard function
1. Check the guard for proper closing before
each use. Do not operate the saw if the guard
does not move freely and enclose the blade
instantly. Never clamp or tie the guard so that
the blade is exposed. If the saw is accidentally
dropped, the guard may be bent. Check to make
sure that the guard moves freely and does not
touch the blade or any other part, in all angles and
depths of cut.
2. Check the operation and condition of the
guard return spring. If the guard and the spring
are not operating properly, they must be ser-
viced before use. The guard may operate slug-
gishly due to damaged parts, gummy deposits, or
a build-up of debris.
3. Assure that the base plate of the saw will not
shift while performing a “plunge cut”. Blade
shifting sideways will cause binding and likely kick
back.
4. Always observe that the guard is covering the
blade before placing the saw down on bench
 An unprotected, coasting blade will cause
the saw to walk backwards, cutting whatever is in
its path. Be aware of the time it takes for the blade
to stop after the switch is released.
Additional safety warnings
1. Use extra caution when cutting damp wood,
pressure treated lumber, or wood containing
knots. Maintain smooth advancement of tool with-
out decrease in blade speed to avoid overheating
the blade tips and if cutting plastics, to avoid melt-
ing the plastic.
2. Do not attempt to remove cut material when
blade is moving. Wait until blade stops before
grasping cut material.󰀨
3. Avoid cutting nails. Inspect for and remove all
nails from lumber before cutting.
4. Place the wider portion of the saw base on
that part of the workpiece which is solidly
󰀨
when the cut is made. If the workpiece is short
or small, clamp it down. DO NOT TRY TO HOLD
SHORT PIECES BY HAND!
Fig.5
5. Before setting the tool down after completing a
cut, be sure that the guard has closed and the
blade has come to a complete stop.
6. Never attempt to saw with the circular saw
held upside down in a vise. This is extremely
dangerous and can lead to serious accidents.
Fig.6
7. Some material contains chemicals which may
be toxic. Take caution to prevent dust inhala-
tion and skin contact. Follow material supplier
safety data.
8. Do not stop the blades by lateral pressure on
the saw blade.
 Do not use any abrasive wheels.
10. Only use the saw blade with the diameter that
-
ual.󰀨
the proper guarding of the blade or guard opera-

11. Keep blade sharp and clean. Gum and wood
pitch hardened on blades slows saw and


gum and pitch remover, hot water or kerosene.
Never use gasoline.
12. Wear a dust mask and hearing protection when
use the tool.
13. Always use the saw blade intended for cutting
the material that you are going to cut.
14. Only use the saw blades that are marked with
a speed equal or higher than the speed marked
on the tool.
15. (For European countries only)
Always use the blade which conforms to
EN847-1.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or familiarity
with product (gained from repeated use) replace
strict adherence to safety rules for the subject
product. MISUSE or failure to follow the safety
rules stated in this instruction manual may cause
serious personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
 Do not touch the terminals with any con-
ductive material.
 Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
 Do not expose battery cartridge to water
or rain.
A battery short can cause a large current

breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn

8. Be careful not to drop or strike battery.
 Do not use a damaged battery.

12 ENGLISH
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
󰀨
battery in such a manner that it cannot move
around in the packaging.
11. When disposing the battery cartridge, remove
it from the tool and dispose of it in a safe
place. Follow your local regulations relating to
disposal of battery.
12. Use the batteries only with the products
 Installing the batteries to
-
sive heat, explosion, or leak of electrolyte.
13. If the tool is not used for a long period of time,
the battery must be removed from the tool.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting

also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).
Important safety instructions for
wireless unit
1. Do not disassemble or tamper with the wire-
less unit.
2. Keep the wireless unit away from young chil-
dren. If accidentally swallowed, seek medical
attention immediately.
3. Use the wireless unit only with Makita tools.
4. Do not expose the wireless unit to rain or wet
conditions.
5. Do not use the wireless unit in places where
the temperature exceeds 50°C (122°F).
6. Do not operate the wireless unit in places
where medical instruments, such as heart
pace makers are nearby.
7. Do not operate the wireless unit in places
where automated devices are nearby. If oper-
ated, automated devices may develop malfunction
or error.
8. Do not operate the wireless unit in places
under high temperature or places where
static electricity or electrical noise could be
generated.
 The wireless unit can produce electromagnetic

user.
10. The wireless unit is an accurate instrument. Be
careful not to drop or strike the wireless unit.
11. Avoid touching the terminal of the wireless
unit with bare hands or metallic materials.
12. Always remove the battery on the product
when installing the wireless unit into it.
13. When opening the lid of the slot, avoid the
place where dust and water may come into the
slot. Always keep the inlet of the slot clean.
14. Always insert the wireless unit in the correct
direction.
15. Do not press the wireless activation button
on the wireless unit too hard and/or press the
button with an object with a sharp edge.
16. Always close the lid of the slot when
operating.
17. Do not remove the wireless unit from the slot
while the power is being supplied to the tool.
Doing so may cause a malfunction of the wireless
unit.
18. Do not remove the sticker on the wireless unit.
 Do not put any sticker on the wireless unit.
20. Do not leave the wireless unit in a place where
static electricity or electrical noise could be
generated.
21. Do not leave the wireless unit in a place sub-
ject to high heat, such as a car sitting in the
sun.
22. Do not leave the wireless unit in a dusty or
powdery place or in a place corrosive gas
could be generated.
23. Sudden change of the temperature may bedew
the wireless unit. Do not use the wireless unit
until the dew is completely dried.
24. When cleaning the wireless unit, gently wipe
with a dry soft cloth. Do not use benzine, thin-
ner, conductive grease or the like.
25. When storing the wireless unit, keep it in the
supplied case or a static-free container.
26. Do not insert any devices other than Makita
wireless unit into the slot on the tool.
27. Do not use the tool with the lid of the slot dam-
aged. Water, dust, and dirt come into the slot may
cause malfunction.
28. Do not pull and/or twist the lid of the slot more
than necessary.󰀨
from the tool.
 Replace the lid of the slot if it is lost or
damaged.
SAVE THESE INSTRUCTIONS.

13 ENGLISH
FUNCTIONAL DESCRIPTION
CAUTION: Always be sure that the tool is
󰀨
before adjusting or checking function on the tool.
Installing or removing battery cartridge
CAUTION: 󰀨
installing or removing of the battery cartridge.
CAUTION: Hold the tool and the battery car-

cartridge. Failure to hold the tool and the battery
󰀨
and result in damage to the tool and battery cartridge

Fig.7: 1. Red indicator 2. Button 3. Battery cartridge
To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION: Always install the battery cartridge
fully until the red indicator cannot be seen. If not,

you or someone around you.
CAUTION: Do not install the battery cartridge
forcibly. If the cartridge does not slide in easily, it is
not being inserted correctly.
NOTE: The tool does not work with only one battery
cartridge.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
󰀨
motor to extend tool and battery life. The tool will auto-
matically stop during operation if the tool or battery is
placed under one of the following conditions.
Overload protection
When the tool is operated in a manner that causes it to
draw an abnormally high current, the tool automatically
󰀨
application that caused the tool to become overloaded.
Then turn the tool on to restart.
Overheat protection
When the tool is overheated, the tool stops automatically,
and the battery indicator blink about 60 seconds. In this situ-
ation, let the tool cool down before turning the tool on again.
On Blinking
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.

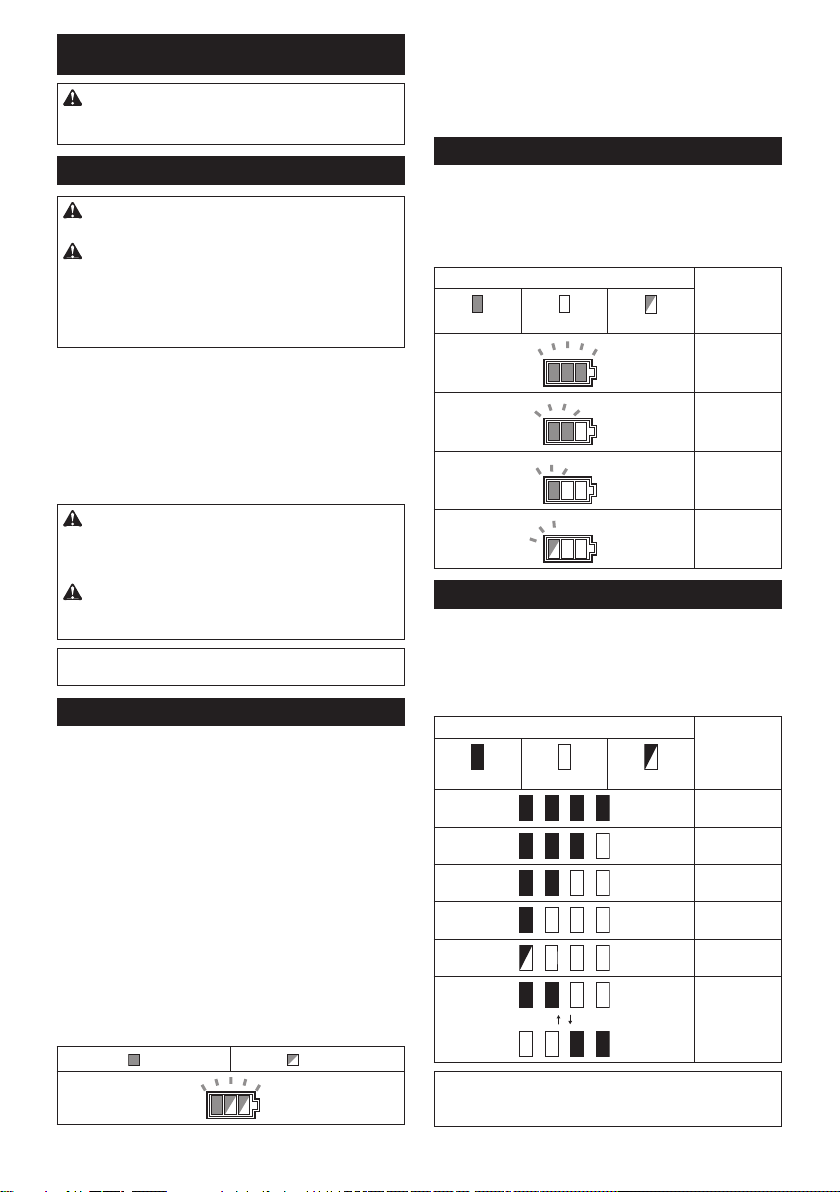

Indicating the remaining battery capacity
Fig.8: 1.
2. Check button 3.

Press the check button to indicate the remaining battery
capacities. The battery indicators correspond to each battery.
Battery indicator status Remaining
battery
capacity
On 󰀨 Blinking
50% to 100%
20% to 50%
0% to 20%
Charge the
battery
Indicating the remaining battery capacity
Only for battery cartridges with the indicator
Fig.9: 1. Indicator lamps 2. Check button
Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted 󰀨 Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
󰀨
from the actual capacity.

14 ENGLISH
Automatic speed change function
NOTE: Automatic speed change function is only

This tool has "high speed mode" and "high torque mode".
The tool automatically changes the operation mode
depending on the work load. When the work load is low,
the tool will run in the "high speed mode" for quicker cut-
ting operation. When the work load is high, the tool will run
in the "high torque mode" for powerful cutting operation.
Fig.10: 1. Mode indicator
The mode indicator lights up in green when the tool is
running in "high torque mode".
If the tool is operated with excessive load, the mode
indicator will blink in green. The mode indicator stops
󰀨
load on the tool.
Mode indicator status Operation
mode
On 󰀨 Blinking
High speed
mode
High torque
mode
Overload
alert
Adjusting depth of cut
CAUTION: After adjusting the depth of cut,
always tighten the clamping screw securely.
Loosen the clamping screw on the depth guide and
move the blade lower limit stopper to the desired depth
on the scale plate. At the desired depth of cut, tighten

For cleaner, safer cuts, set cut depth so that no more

proper cut depth helps to reduce potential for danger-

Fig.11: 1. Blade lower limit stopper 2. Clamping
screw
Quick stop button for 2 to 3 mm
depth of cut when using guide rail
(optional accessory)
This tool has the quick stop button for 2 to 3 mm depth
of cut on the gear housing aside the rear handle when
using guide rail. This is used when avoiding splinter on
the workpiece in the cut. Make a pass of the 2 to 3 mm

Fig.12: 1. Quick stop button
To obtain the 2 to 3 mm depth of cut, push in the quick
stop button toward the saw blade. This is convenient for
avoiding splinter on the workpiece.
To release the depth of cut from this position for free

Bevel cutting
Loosen the clamping screws. Set for the desired angle by
tilting accordingly, then tighten the clamping screws securely.
Fig.13: 1. Clamping screw 2. Bevel scale plate
Fig.14: 1.
2. Clamping screw
Positive stopper
The positive stopper is useful for setting the designated
angle quickly. Turn the positive stopper so that the
arrow on it points 22.5°. Loosen the clamping screws
in front and back. Then tilt the blade until it stops and
secure the base with the clamping screws.
Fig.15: 1. Positive stopper 2. Clamping screw
48°-bevel cutting
To perform 48°-bevel cutting, loosen the clamping
screws and fully tilt the lever toward the direction of the

tighten the clamping screws.
Fig.16: 1. Lever
-1°-bevel cutting
To perform -1°-bevel cutting, loosen the clamping
screws and press the levers toward the direction of the

tighten the clamping screws.
Fig.17: 1. Lever
Sighting
Fig.18: 1. Base
The cutting line varies depending on the cutting angle

When using the tool without guide rail
For straight cuts, align the A position on the front of the
base with your cutting line. For 45° bevel cuts, align the
B position with it.
When using the tool with guide rail
For both straight cuts and 45° bevel cuts, always align
the A position on the front of the base with your cutting
line.
Switch action
WARNING: Before installing the battery car-
tridge into the tool, always check to see that the
switch trigger actuates properly and returns to
the "OFF" position when released.
WARNING: 󰀨
by taping down or some other means. A switch with
󰀨

WARNING: NEVER use the tool if it runs when
you simply pull the switch trigger without press-
󰀨 A switch in need of repair
may result in unintentional operation and serious

for proper repairs BEFORE further usage.

15 ENGLISH
To prevent the switch trigger from being accidentally
󰀨
󰀨
Release the switch trigger to stop.
Fig.19: 1. Switch trigger 2.󰀨
NOTICE: Do not pull the switch trigger hard
󰀨 This can
cause switch breakage.
Speed adjusting dial

dial. The speed of the blade rotation increases as you

Fig.20: 1.
Refer to the table to select the proper speed for the
workpiece to be cut. However, the appropriate speed
󰀨
general, higher speeds will allow you to cut workpieces
faster but the service life of the blade will be reduced.
Number Blade rotating speed per
minute (min-1)
12,500 min-1
2-1
3-1
4-1
56,300 min-1
CAUTION: The speed adjusting dial is not
for using low speed rated saw blades but for
obtaining a speed which is suitable to material of
workpiece. Use only saw blades which are rated
for at least the maximum no load speed stated in
the SPECIFICATIONS.
NOTICE: The speed adjusting dial can be turned
only as far as 5 and back to 1. Do not force it past
5 or 1, or the speed adjusting function may no
longer work.
Electronic function
The tools equipped with electronic function are easy to
operate because of the following features.
Overload protector

a certain level, the tool automatically stops to protect
motor.
Constant speed control
Electronic speed control for obtaining constant speed.

kept constant even under load condition.
Soft start feature
Soft start because of suppressed starting shock.
ASSEMBLY
CAUTION: Always be sure that the tool is
󰀨
before carrying out any work on the tool.
Hex wrench storage
When not in use, store the hex wrench as shown in the

Fig.21: 1. Hex wrench
Removing or installing circular saw
blade
CAUTION: Be sure the circular saw blade is
installed with teeth pointing up at the front of the
tool.
CAUTION: Use only the Makita wrench to
install or remove the circular saw blade.
To remove the circular saw blade:
1. 󰀨
a little. Turn the locking lever and lower the handle until

Fig.22: 1.󰀨2. Locking lever 3. Lock
pin 4. Hole for lock pin
2. Press the shaft lock fully so that the blade cannot
revolve and use the hex wrench to loosen the hex bolt.
Fig.23: 1. Shaft lock 2. Hex wrench 3. Tighten
4. Loosen
3. 
saw blade.
Fig.24: 1. Hex bolt 2.3.
4. Circular saw blade
WARNING: 
sure to install it on the spindle. When installing,

into the saw blade hole perfectly. Mounting the
blade on the wrong side can result in the dangerous
vibration.
To install the circular saw blade, follow the removal
󰀨
release the lock pin from the hole.
WARNING: BE SURE TO TIGHTEN THE HEX
BOLT SECURELY. Also be careful not to tighten
the bolt forcibly. Slipping your hand from the hex
wrench can cause a personal injury.
Blade guard cleaning
When changing the circular saw blade, make sure to
also clean the blade guard of accumulated sawdust as
󰀨
not replace the need to check guard operation before
each use.

16 ENGLISH
Connecting a vacuum cleaner
Optional accessory
When you wish to perform clean cutting operation,
connect a Makita vacuum cleaner to your tool. Connect
a hose of the vacuum cleaner to the dust nozzle using
󰀨
Fig.25: 1. Hose of the vacuum cleaner 2.󰀨
24 3. Dust nozzle
OPERATION
CAUTION: Be sure to move the tool forward
in a straight line gently. Forcing or twisting the tool
will result in overheating the motor and dangerous

CAUTION: Never approach any part of your
body under the tool base when section cutting,
especially at starting. Doing so may cause seri-
ous personal injuries. The blade is exposed under
the tool base.
NOTE: When the battery cartridge temperature is
low, the tool may not work to its full capacity. At this
time, for example, use the tool for a light-duty cut for
a while until the battery cartridge warms up as high
as room temperature. Then, the tool can work to its
full capacity.
Section cutting (ordinary sawing)
Fig.26

grip and rear handle. Use both to best grasp the tool.
If both hands are holding saw, they cannot be cut by
the circular saw blade. Set the base on the workpiece
to be cut without the circular saw blade making any
󰀨
switch trigger. Wait until the circular saw blade attains
full speed. Now press down the saw head slowly to the
preset depth of cut and simply move the tool forward
-
ing smoothly until the sawing is completed.
To get clean cuts, keep your sawing line straight and
your speed of advance uniform. If the cut fails to prop-
erly follow your intended cut line, do not attempt to turn
or force the tool back to the cut line. Doing so may bind
the circular saw blade and lead to dangerous kickback

for the circular saw blade to stop and then withdraw
the tool. Realign the tool on new cut line, and start
cut again. Attempt to avoid positioning which exposes


Guide rail
Optional accessory
Place the tool on the rear end of guide rail. Turn two

smoothly without a clatter. Hold both the front grip and

the tool to the preset cutting depth and cut the splinter-
guard along the full length with a stroke. Now the edge of
the splinterguard corresponds to the cutting edge.
Fig.27: 1.
When bevel cutting with the guide rail, use the slide
lever to prevent the tool from falling over.
Move the slide lever on the tool base in the direction of arrow
so that it engages the undercut groove in the guide rail.
Fig.28: 1. Slide lever
Sub base (Guide rule)
Optional accessory
By using the sub base as a guide rule, you can perform
extra-accurate straight cuts. Loosen the clamping screws and
slide the sub base out from the tool then insert it upside down.
Fig.29: 1. Clamping screw 2. Sub base
Simply slide the fence of the sub base snugly against
the side of the workpiece and secure it in position with
the clamping screws. It also makes repeated cuts of
uniform width possible.
Fig.30: 1. Clamping screw 2. Sub base
Plunge cutting (Cutting-out)
WARNING: To avoid a kickback, be sure to
observe the following instructions.
Fig.31: 1. Rear edge of tool base 2. Fixed stop
When using the tool without guide rail, place the tool on
the workpiece with the rear edge of tool base against a

When using the tool with guide rail, place the tool on the

stop or equivalent which is clamped on the guide rail.

󰀨
button and turn the tool on and wait until the blade
attains full speed. Now press down the saw head slowly
to the preset depth of cut and simply move the tool
forward to the desired plunge position.
NOTE: The markings on the side of the blade guard
show the front and rear cutting points of the saw
blade at the maximum cutting depth when using the
guide rail.
Fig.32: 1. Front cutting point 2. Rear cutting point
Guide device
Optional accessory
Use of the bevel guide allows exact miter cuts with


table.

17 ENGLISH
WIRELESS ACTIVATION
FUNCTION
For DSP601 only
What you can do with the wireless
activation function
The wireless activation function enables clean and com-
fortable operation. By connecting a supported vacuum
cleaner to the tool, you can run the vacuum cleaner
automatically along with the switch operation of the tool.
Fig.33
To use the wireless activation function, prepare following items:
 
• A vacuum cleaner which supports the wireless
activation function
The overview of the wireless activation function setting is
as follows. Refer to each section for detail procedures.
1. Installing the wireless unit
2. Tool registration for the vacuum cleaner
3. Starting the wireless activation function
Installing the wireless unit
Optional accessory
CAUTION: 
surface when installing the wireless unit.
NOTICE: Clean the dust and dirt on the tool before
installing the wireless unit. Dust or dirt may cause
malfunction if it comes into the slot of the wireless unit.
NOTICE: To prevent the malfunction caused by static,
touch a static discharging material, such as a metal part
of the tool, before picking up the wireless unit.
NOTICE: When installing the wireless unit, always
be sure that the wireless unit is inserted in the cor-
rect direction and the lid is completely closed.
1. 
Fig.34: 1. Lid
2. Insert the wireless unit to the slot and then close
the lid.

with the recessed portions on the slot.
Fig.35: 1. Wireless unit 2.3. Lid
4. Recessed portion
When removing the wireless unit, open the lid slowly.
The hooks on the back of the lid will lift the wireless unit
as you pull up the lid.
Fig.36: 1. Wireless unit 2. Hook 3. Lid
After removing the wireless unit, keep it in the supplied
case or a static-free container.
NOTICE: Always use the hooks on the back of
the lid when removing the wireless unit. If the
hooks do not catch the wireless unit, close the lid
completely and open it slowly again.
Tool registration for the vacuum
cleaner
NOTE: A Makita vacuum cleaner supporting the
wireless activation function is required for the tool
registration.
NOTE: Finish installing the wireless unit to the tool
before starting the tool registration.
NOTE: During the tool registration, do not pull the
switch trigger or turn on the power switch on the
vacuum cleaner.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
If you wish to activate the vacuum cleaner along with
-
tion beforehand.
1. Install the batteries to the vacuum cleaner and the
tool.
2. Set the stand-by switch on the vacuum cleaner to
"AUTO".
Fig.37: 1. Stand-by switch
3. Press the wireless activation button on the vac-
uum cleaner for 3 seconds until the wireless activation
lamp blinks in green. And then press the wireless acti-
vation button on the tool in the same way.
Fig.38: 1. Wireless activation button 2. Wireless
activation lamp
If the vacuum cleaner and the tool are linked success-
fully, the wireless activation lamps will light up in green
for 2 seconds and start blinking in blue.
NOTE:
in green after 20 seconds elapsed. Press the wireless
activation button on the tool while the wireless acti-
vation lamp on the cleaner is blinking. If the wireless
activation lamp does not blink in green, push the wire-

NOTE: When performing two or more tool registra-
-
tion one by one.
Starting the wireless activation
function
NOTE: Finish the tool registration for the vacuum
cleaner prior to the wireless activation.
NOTE: Refer to the instruction manual of the vacuum
cleaner, too.
After registering a tool to the vacuum cleaner, the
vacuum cleaner will automatically runs along with the
switch operation of the tool.
1. Install the wireless unit to the tool.
2. Connect the hose of the vacuum cleaner with the
tool.
Fig.39
3. Set the stand-by switch on the vacuum cleaner to
"AUTO".
Fig.40: 1. Stand-by switch

18 ENGLISH
4. Push the wireless activation button on the tool

Fig.41: 1. Wireless activation button 2. Wireless
activation lamp
5. Pull the switch trigger of the tool. Check if the
vacuum cleaner runs while the switch trigger is being
pulled.
To stop the wireless activation of the vacuum cleaner,
push the wireless activation button on the tool.
NOTE: The wireless activation lamp on the tool will
stop blinking in blue when there is no operation for
2 hours. In this case, set the stand-by switch on the
vacuum cleaner to "AUTO" and push the wireless
activation button on the tool again.
NOTE: The vacuum cleaner starts/stops with a delay.
There is a time lag when the vacuum cleaner detects
a switch operation of the tool.
NOTE: The transmission distance of the wireless unit
may vary depending on the location and surrounding
circumstances.
NOTE: When two or more tools are registered to one
vacuum cleaner, the vacuum cleaner may start run-
ning even if you don't pull the switch trigger because
another user is using the wireless activation function.
Description of the wireless activation lamp status
Fig.42: 1. Wireless activation lamp
The wireless activation lamp shows the status of the wireless activation function. Refer to the table below for the
meaning of the lamp status.
Status Wireless activation lamp Description
Color
On Blinking
Duration
Standby Blue 2 hours The wireless activation of the vacuum cleaner is available. The
󰀨
for 2 hours.
When
the tool is
running.
The wireless activation of the vacuum cleaner is available and the
tool is running.
Tool
registration
Green 20 seconds Ready for the tool registration. Waiting for the registration by the
vacuum cleaner.
2 seconds 
lamp will start blinking in blue.
Cancelling
tool
registration
Red 20 seconds Ready for the cancellation of the tool registration. Waiting for the
cancellation by the vacuum cleaner.
2 seconds 
wireless activation lamp will start blinking in blue.
Others Red 3 seconds The power is supplied to the wireless unit and the wireless activa-
tion function is starting up.
󰀨 - - The wireless activation of the vacuum cleaner is stopped.
Cancelling tool registration for the
vacuum cleaner
Perform the following procedure when cancelling the
tool registration for the vacuum cleaner.
1. Install the batteries to the vacuum cleaner and the
tool.
2. Set the stand-by switch on the vacuum cleaner to
"AUTO".
Fig.43: 1. Stand-by switch
3. Press the wireless activation button on the vac-
uum cleaner for 6 seconds. The wireless activation
lamp blinks in green and then become red. After that,
press the wireless activation button on the tool in the
same way.
Fig.44: 1. Wireless activation button 2. Wireless
activation lamp
If the cancellation is performed successfully, the wire-
less activation lamps will light up in red for 2 seconds
and start blinking in blue.
NOTE:
red after 20 seconds elapsed. Press the wireless acti-
vation button on the tool while the wireless activation
lamp on the cleaner is blinking. If the wireless acti-
vation lamp does not blink in red, push the wireless


19 ENGLISH
Troubleshooting for wireless activation function

do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace-
ment parts for repairs.
State of abnormality Probable cause (malfunction) Remedy
The wireless activation lamp does
not light/blink.
The wireless unit is not installed into the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly.
The terminal of the wireless unit and/or
the slot is dirty.
󰀨
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.
Push the wireless activation button on the tool

The stand-by switch on the vacuum
cleaner is not set to "AUTO".
Set the stand-by switch on the vacuum cleaner to
"AUTO".
No power supply
Supply the power to the tool and the vacuum cleaner.
-
celling tool registration successfully.
The wireless unit is not installed into the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly.
The terminal of the wireless unit and/or
the slot is dirty.
󰀨
wireless unit and clean the slot.
The stand-by switch on the vacuum
cleaner is not set to "AUTO".
Set the stand-by switch on the vacuum cleaner to
"AUTO".
No power supply
Supply the power to the tool and the vacuum cleaner.
Incorrect operation 
the tool registration/cancellation procedures again.
The tool and vacuum cleaner are away


Get the tool and vacuum cleaner closer to each
other. The maximum transmission distance is
approximately 10 m however it may vary according
to the circumstances.

cancellation;
- the switch trigger on the tool is pulled or;
- the power button on the vacuum
cleaner is turned on.

perform the tool registration/cancellation procedures
again.
The tool registration procedures for the

Perform the tool registration procedures for both the
tool and the vacuum cleaner at the same timing.
Radio disturbance by other appliances
which generate high-intensity radio waves.
-
ances such as Wi-Fi devices and microwave ovens.
The vacuum cleaner does not run
along with the switch operation of
the tool.
The wireless unit is not installed into the tool.
The wireless unit is improperly installed
into the tool.
Install the wireless unit correctly.
The terminal of the wireless unit and/or
the slot is dirty.
󰀨
wireless unit and clean the slot.
The wireless activation button on the
tool has not been pushed.

sure that the wireless activation lamp is blinking in blue.
The stand-by switch on the vacuum
cleaner is not set to "AUTO".
Set the stand-by switch on the vacuum cleaner to
"AUTO".
More than 10 tools are registered to the
vacuum cleaner.
Perform the tool registration again.
If more than 10 tools are registered to the vacuum
cleaner, the tool registered earliest will be cancelled
automatically.
The vacuum cleaner erased all tool
registrations.
Perform the tool registration again.
No power supply
Supply the power to the tool and the vacuum cleaner.
The tool and vacuum cleaner are away


Get the tool and vacuum cleaner closer each other. The
maximum transmission distance is approximately 10 m
however it may vary according to the circumstances.
Radio disturbance by other appliances
which generate high-intensity radio waves.
-
ances such as Wi-Fi devices and microwave ovens.
The vacuum cleaner runs while the
tool's switch trigger is not pulled.
Other users are using the wireless
activation of the vacuum cleaner with
their tools.
󰀨
tools or cancel the tool registration of the other
tools.

20 ENGLISH
MAINTENANCE
CAUTION: Always be sure that the tool is
󰀨
before attempting to perform inspection or
maintenance.
CAUTION: Clean out the guard to ensure
there is no accumulated sawdust which may
impede the operation of the guarding system. A
dirty guarding system may limit the proper operation

󰀨
compressed air. If the dust is being blown out of
the guard, be sure the proper eye and breathing
protection is used.
NOTICE: Never use gasoline, benzine, thinner,
alcohol or the like. Discoloration, deformation or
cracks may result.
Adjusting 0°-cut and 45°-cut
accuracy
NOTICE: Do not engage the levers for -1° bevel
angle when adjusting 0°-cut accuracy.
NOTICE: Do not engage the lever for 48° bevel
angle when adjusting 45°-cut accuracy.

󰀨
procedures.
1. Slightly loosen the clamping screws on the front
and rear of the tool.
2. 
Fig.45: 1. Triangular rule
-
dicular to the blade using a triangular rule, square rule,

Fig.46: 1.


bolt.
Fig.47: 1.
3. Tighten the clamping screws and make a test cut.
To maintain product SAFETY and RELIABILITY,

be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.
OPTIONAL
ACCESSORIES
CAUTION: These accessories or attachments
are recommended for use with your Makita tool
 The use of any other
accessories or attachments might present a risk of

for its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Circular saw blade
• Sub base
• Hex wrench
• Guide rail
• Bevel guide
• Clamp
• Sheet
• Rubber sheet
• Position sheet
 
• Makita genuine battery and charger
NOTE: Some items in the list may be included in the
tool package as standard accessories. They may
󰀨
