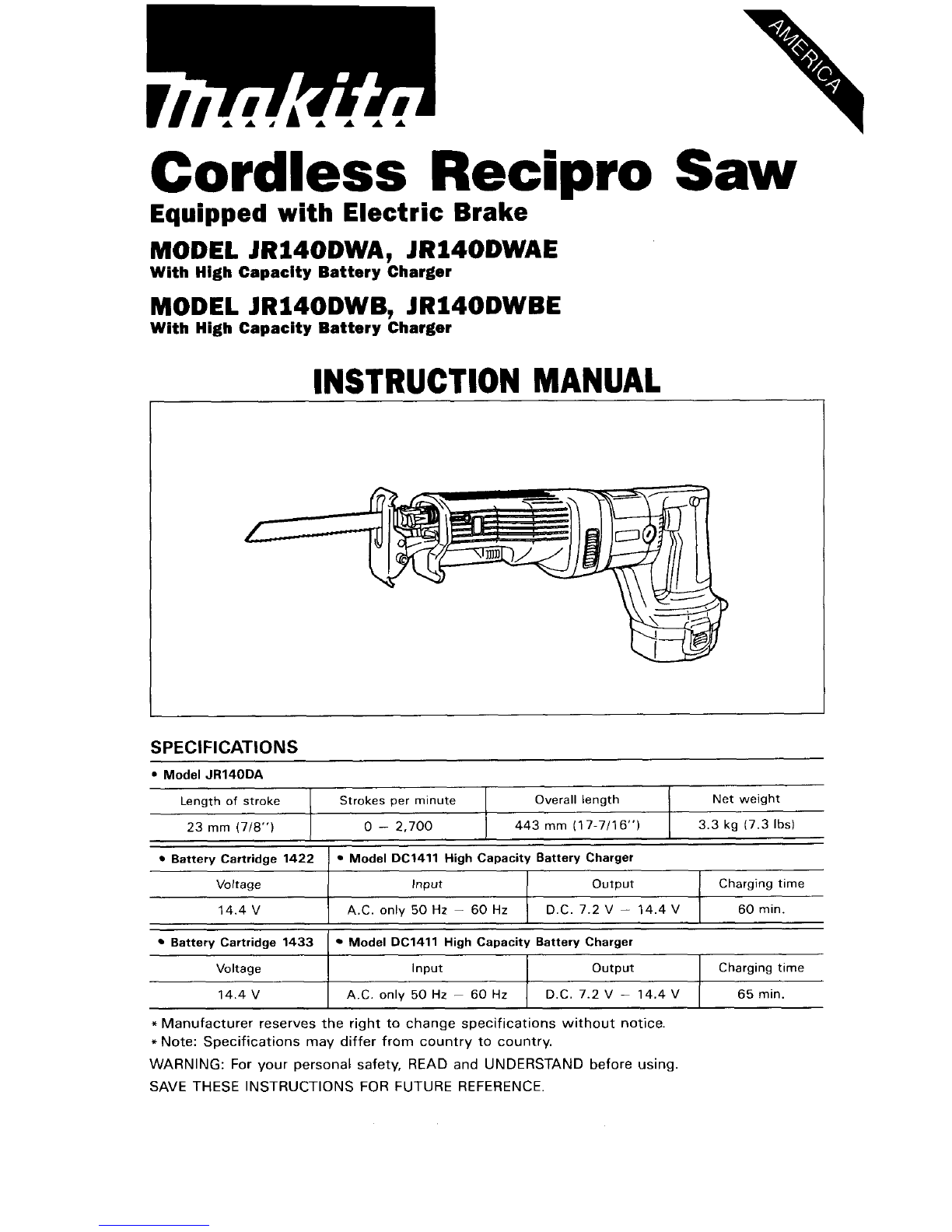

Makita JRl40DWA User manual

Cordless Recipro Saw
Overall lengthLength of stroke Strokes per minute
23 mm (718") 0 - 2.700 443 mm (17-7/16")
-
Equipped with Electric Brake
MODEL JRl40DWA, JRl40DWAE
MODEL JRl40DW6, JRl40DWBE
With High Capacity Battery Charger
With High Capacity Battery Charger
Net weight
3.3 kg (7.3ibs)
INSTRUCTION MANUAL
Battery Cartridge 1422
Voltage
14.4 V
Batterv Cartridae 1433
Model DC1411 High Capacity Battery Charger
Input output Charging time
A.C. only
50 Hz - 60 Hz
D.C. 7.2 V - 14.4 V 60 min.
Model DC1411 Hiah CaDacitv Batterv Charaer
Voltage I input I output I Charging time
14.4 V A.C. only 50 Hz - 60 Hz
D.C. 7.2 V - 14.4 V
65 min.

GENERAL SAFETY RULES
(For All Battery Operated Tools)
WARNING! Read and understand all instructions. Failure
tofollow all instructions listed below,
may result inelectric
shock, fire and/or serious personal injury.
SAVE THESE INSTRUCTIONS
Work Area
Keep your work area clean and well lit. Cluttered benches and dark areas invite
accidents.
Do notoperate powertools in explosive atmospheres, suchas inthe presence
of flammable liquids, gases, or dust. Powertools create sparks which may ignite
the dust or fumes.
Keep bystanders, children, and visitors away while operating a power tool.
Distractions can cause you to lose control.
Electrical Safety
A batteryoperated toolwith integralbatteriesor a separate batterypack must
be recharged only with the specified charger for the battery.
A charger that
may be suitable for one type of battery may create a risk of fire when used with
another battery.
Use battery operated toolonly with specifically designated battery pack. Use
of any other batteries may create
a risk of fire.
Personal Safety
Stay alert, watch what you aredoing, and use common sense whenoperating
a power tool. Do notusetoolwhile tired or underthe influence of drugs, alcohol,
or medication.
A moment of inattention while operating power tools may result
in serious personal injury.
Dress properly. Do not wear loose clothing or jewelry. Contain long hair. Keep
your hair, clothing, andgloves away from movingparts. Looseclothes, jewelry,
or long hair can be caught in moving parts.
.Avoid accidental starting. Be sure switchis
in the locked or off position before
inserting battery pack. Carrying tools
with your finger onthe switch or inserting
the battery pack into
a tool with the switch on invites accidents.
Remove adjusting keys or wrenches before turning the tool on. A wrench or
a keythat is leftattached to a rotating part of the tool may result in personalinjury.
Do notoverreach. Keep proper footing and balance at all times. Proper footing
and balance enable better control of the tool
in unexpected situations.
Usesafety equipment. Always wear eye protection. Dust mask, non-skid safety
shoes, hard hat, or hearing protection must be used for appropriate conditions.
2

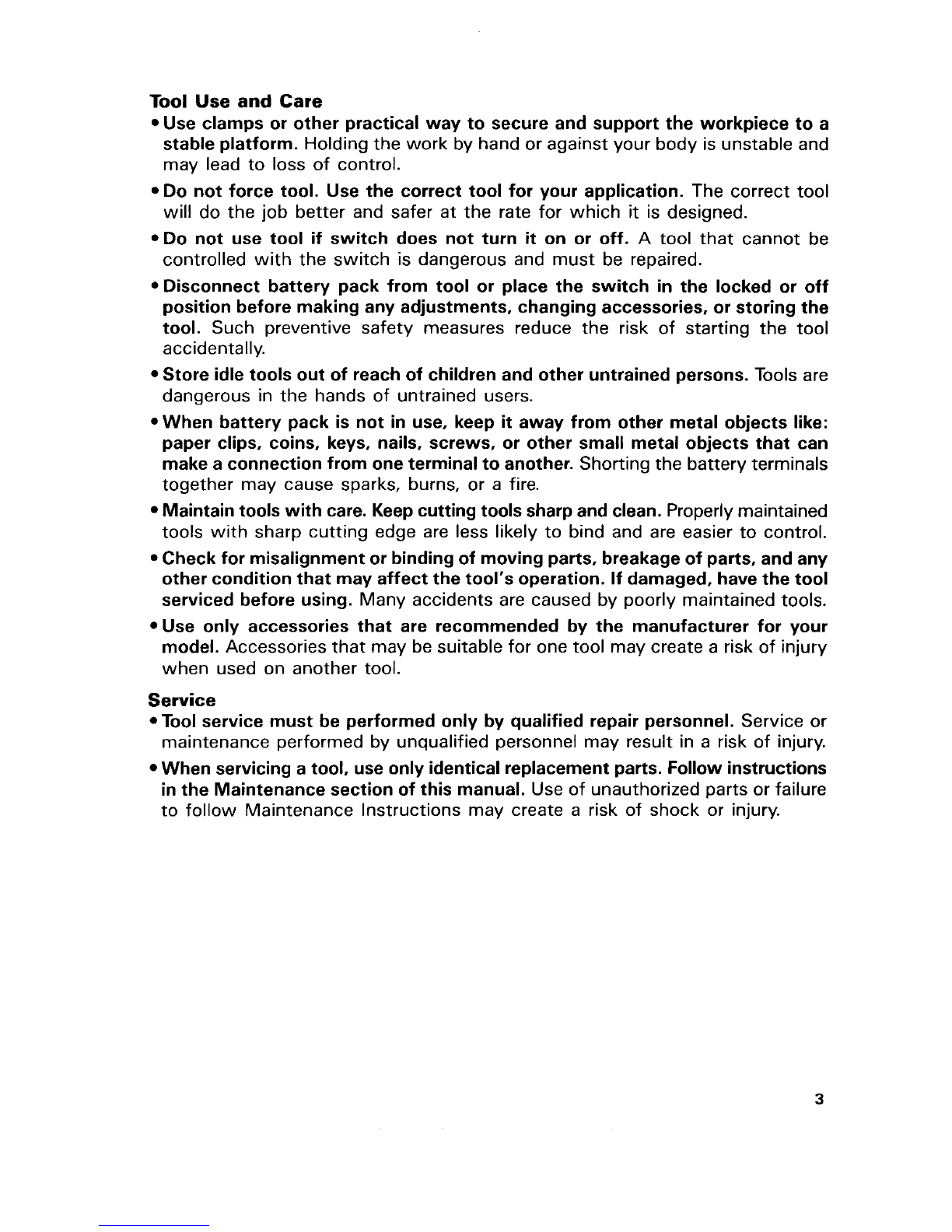

Tool Use and Care
Use clamps or other practical way to secure and support the workpiece to a
stable platform. Holding the work by hand or against your body is unstable and
may lead to
loss of control.
Do not force tool. Use the correct tool for your application. The correct tool
will do the job better and safer
at the rate for which it is designed.
*Do not use tool if switch does not turn it on or off. A tool that cannot be
controlled with the switch
is dangerous and must be repaired.
*Disconnect battery pack from tool or place the switch
in the locked or off
position before makingany adjustments, changing accessories, or storing the
tool. Such preventive safety measures reduce the risk of starting the tool
accidentally.
Store idle tools out of reach of children and other untrained persons. Tools are
dangerous in the hands
of untrained users.
*When battery pack is not in use, keep
it away from other metal objects like:
paper clips, coins, keys, nails, screws, or other small metal objects that can
make aconnection from one terminal toanother. Shorting the battery terminals
together may cause sparks, burns, or
a fire.
Maintaintools with care. Keep cutting tools sharpandclean. Properly maintained
tools with sharp cutting edge
are less likely to bind and are easier to control.
*Check for misalignment or bindingof movingparts, breakage of parts, andany
other condition that may affect thetool's operation. If damaged, havethe tool
serviced before using. Many accidents are caused by poorly maintained tools.
Use only accessories that are recommended by the manufacturer for your
model. Accessories that may be suitable for one tool may create
a risk of injury
when used on another tool.
Service
*Tool service must be performed only by qualified repair personnel. Service or
maintenance performed by unqualified personnel may result in
a risk of injury.
When servicing a tool, use only identicalreplacement parts. Follow instructions
inthe Maintenance section of this manual. Use of unauthorized parts or failure
to follow Maintenance Instructions may create
a risk of shock or injury.
3

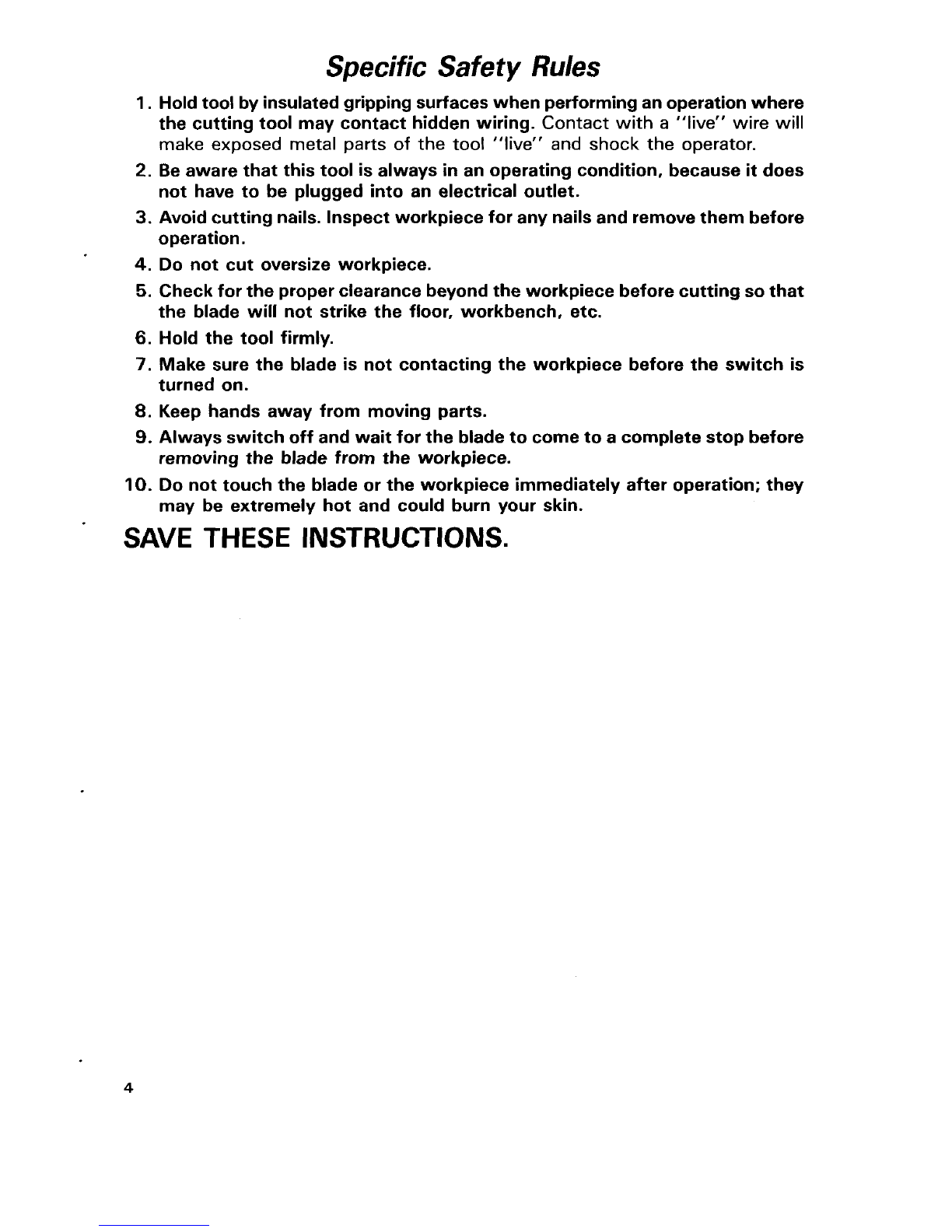

Specific Safety Rules
1. Holdtool by insulated gripping surfaces whenperforminganoperation where
the cutting tool may contact hidden wiring. Contact
with a "live" wire will
make exposed metal parts of the tool "live" and shock the operator.
2. Be aware that this tool isalways in an operating condition, because it does
not have to be plugged into an electrical outlet.
3. Avoid cutting nails. Inspect workpiece for any nails and removethem before
operation.
4. Do not cut oversize workpiece.
5. Check for the proper clearance beyondthe workpiece beforecutting so that
6. Hold the tool firmly.
7. Make sure the blade is not contacting the workpiece before the switch is
8. Keep hands away from moving parts.
9. Always switch off and wait for the blade tocome toa complete stop before
IO. Do not touch the blade or the workpiece immediately after operation; they
the blade will not strike the floor, workbench, etc.
turned on.
removing the blade from the workpiece.
may be extremely hot and could burn your skin.
SAVE THESE INSTRUCTIONS.
4

SYMBOLS
The followings show the symbols used for tool.
v ................................. volts
- ................................. direct current
n, ................................. no load speed
... /min
................................ revolutions or reciprocation per minute
5

IMPORTANT SAFETY INSTRUCTIONS
FOR CHARGER
&
BATTERY CARTRIDGE
1. SAVE THESE INSTRUCTIONS - This manual
Length of Cord (Feet)
AWG Size of Cord
contains important safety and operating instructions for battery charger.
2. Before using battery charger, read all instructions and cautionary markings
on
(1) battery charger, (2) battery, and (3) product using battery.
3. CAUTION - To reduce risk of injury, charge only MAKITA Battery Cartridge
7000, 7001, 7002, 7033, 7100, 7120,
9000, 9001, 9002, 9033, 9100,
9101,9102,9120,9122,9133,1200,1201,1202,1210,1211,1220,1222,
1233,1422,1433,9101A. 9102A. 1201A or 1202A.Other types of batteries
may burst causing personal injury and damage.
4. Do not expose charger to rain or snow.
5. Use of an attachment not recommended or sold by the battery charger
manufacturer may result ina risk of fire, electric shock, or injury topersons.
6. To reduce risk of damage to electric plugand cord, pull by plug rather than
cord when disconnecting charger.
7. Make sure cord is located
so that it will not be stepped on, tripped over, or
otherwise subjected to damage or stress.
8. An extension cord should not be used unless absolutely necessary. Use of
improper extension cord could result in a risk of fire and electric shock.
If
extension cord must be used, make sure:
a. That pinsonplugof extensioncordarethesame number, size, andshape
b. That extension cord is properly wiredand
in good electrical condition; and
c. That wire size is at least as large as the one specified
in the table below.
TABLE
1
RECOMMENDED MINIMUM AWG SIZE FOR
EXTENSION CORDS FOR BATTERY CHARGERS
as those of plug on charger;
25
50
100 150
18 18 18 16
9. Do not operate charger with damaged cord or
plug - replace them im-
mediately.
IO. Donotoperate chargerif it hasreceivedasharp blow, beendropped, or other-
wise damaged
in any way; take it to a qualified serviceman.
11. Do not disassemble charger or battery cartridge; take it to a qualified
serviceman when service or repair is required. Incorrect reassembly may
result in a risk of electric shock or fire.
12. To reduce risk of electric shock, unplug charger from outlet beforeattempt-
ingany maintenance or cleaning. Turningoff controls
will notreducethis risk.
6

ADDITIONAL SAFETY RULES
FOR CHARGER
8t BATTERY CARTRIDGE
1. Do not charge Battery Cartridge when temperature is BELOW 10°C (50OF)
2. Donotattempt tousea step-uptransformer, an engine generator or DC power
3. Do not allow anything to cover or clog the charger vents.
4. Always cover the batteryterminals with the battery cover when the battery
5. A battery short can cause a large current flow, overheating, possible burns
or ABOVE 4OoC
(104OF).
receptacle.
cartridge is not used.
and even a breakdown.
(1) Do not touch the terminals with any conductive material.
(2) Avoid storing battery cartridge in acontainer withother metalobjects such
(3) Do not expose battery cartridge to water or rain.
ture may reach or exceed
5OoC 1122OF).
completely worn out. The battery cartridge can explode in a fire.
as nails, coins, etc.
6. Do not store the tool and Battery Cartridge in locations where the tempera-
7. Do not incinerate the Battery Cartridge even if it is severely damaged or is
SAVE THESE INSTRUCTIONS.
7

FUNCTIONALDESCRIPTION
Installingor removingthe batterycartridge 1422 and 1433
*Always switch off the tool before inser- r
tionor removal of the batterycartridge.
*To remove the battery cartridge, with-
draw it from the tool while pressing the
buttons on both sides
of the cartridge.
To insert the battery cartridge, align the
tongue on the battery cartridge with the
groove in the housingand slip it until it is
lockedwith
a little click.
Do not use force when inserting the bat-
tery cartridge. If the cartridge does not
slide in easily, it is not being inserted cor-
rectly.
I
Button
Charging
Your new batterycartridge is not charged.
You will needto charge
it before use. Use
the high capacity battery charger Model
DC1411 to chargethe battery cartridge.
Plug the high capacity battery charger
into the proper
A.C. voltage source. The
charging lightwill flash in green color.
*Insert the battery cartridge
so that the
plus and minus terminals on the battery
cartridge are on the same sides as their
respective markings on the high capacity
battery charger. Insert the cartridge fully
intothe port
so that it rests on the charger port floor.
When the battery cartridge is inserted,the charging lightcolor will change from greento
redand chargingwill begin.The charging lightwill remain lit steadily during charging.
When the charginglight color changesfrom redto green, the chargingcycle is complete.
The chargingtime is approximately one hour.
If you leave the battery cartridge inthe charger after the chargingcycle iscomplete, the
charger will switch into its "trickle charge (maintenancecharge)" mode which will last
approximately
24 hours.
*After charging, unplugthe charger from the power source.
CAUTION:
*The highcapacity battery charger Model DC1411 is for charging Makita batten/ cartridge.
Never use itfor other purposes or for other manufacturer's batteries.
When you charge a new battery cartridge or a battery cartridge which has not been used
for
a long period of time, it may not accept a full charge. This is a normal condition and
does not indicate
a problem. You can recharge the battery cartridge fully after discharg-
ing
it completely and recharging a coupleof times.
8

If you charge a battery cartridge from a just-operated tool or a battery cartridge which
has been left in
a location exposedto direct sunlight or heat for a long time, the charging
light may flash in red color. If this occurs, wait for
a while. Chargingwill begin after the
battery cartridge cools. The battery cartridge
will cool faster if you remove the battery
cartridge from the highcapacity battery charger.
If the charging light flashes alternately in green and red color, a problem exists and
charging is not possible. The terminals on the charger or battery cartridge are clogged
withdust or the battery cartridge isworn out or damaged.
Tricklecharge (Maintenance charge)
If you leavethe battery cartridge in the charger to prevent spontaneous discharging after
full charge, the charger
will switch into its ”trickle charge (maintenance charge)” mode
and keepthe batterycartridge fresh and fully charged.
Tips for maintaining maximum battery life
1. Charge the batterycartridge before completely discharged.
Always stop tool operation and charge the battery cartridge when you notice less tool
power.
2. Never recharge a fully chargedbattery cartridge.
Overchargingshortens the battery service life.
3. Charge the battery cartridge with roomtemperature at 10°C - 40°C (50°F - 104°F)
Leta hot battery cartridge cool down before charging it.
Adjusting shoe
When the blade loses its cutting efficiency
in one place along its cutting edge, reposi-
tion the shoeto unitize asharp, unusedpor-
tion of its cutting edge. This will help to
lengthen the life of the blade. To reposition
the shoe, loosen the lever and slide the
shoe forward or back to the desired posi-
tion. Then tighten the lever to firmly secure
the shoe.
Lever
shoe
Switch action
CAUTION:
Before inserting the battery cartridge into the tool, always check to see that the switch
trigger actuates properly and returns to the
”OFF” positionwhen released.
To prevent the switch trigger from being accidentally pulled,
a lock-off buttonis provided.
To start the tool, depress the lock-off button (from right side or left side) and pull the
switch trigger.
9

Tool speed is increased by increasing pres-
sure on the switch trigger. Release the
switch trigger to stop.
Lock-off button 1-1
ASSEMBLY
Installing or removing the saw blade
CAUTIO N :
*Always be sure that the tool is switched off andthe battery cartridge is removed before
installingor removingthe blade.
*Always clean out all chips or foreign matter adhering to the blade, blade clamp and/or
slider. Failureto
do so may causeinsufficient tightening of the blade, resulting in a seri-
ous injury.
To installthe blade, push the push button inthedirection of the arrow and insert the blade
between the blade clamp and the slider as far as it will go. Then release the push button
and make sure that the bladecannot be extracted even though you try to pull itout.
CAUTION:
If you releasethe push button without inserting the bladedeep enough, the blademay be
ejected unexpectedly during operation. This can be extremely dangerous.
To remove the blade, push the push button inthe direction of the arrow and pull out the
blade.
Blade Push button
10

OPERATION
Press the shoe firmly against the work-
piece.
Do not allow the tool to bounce.
Bring the blade into light contact with the
workpiece. First, make
a pilot groove, using
a slower speed. Then use a faster speed to
continue cutting.
ff the tool is operated continuously until the battery cartridge has discharged, allow the
tool to restfor
15 minutes before proceedingwith a fresh battery.
MAINTENANCE
CAUTION:
Always be sure that the tool
IS switched off and the battery cartridge is removed before
attempting to perform inspection or maintenance.
Replacingcarbon brushes
Remove and check the carbon brushes
regularly. Replace when they wear down to
the limit mark. Keep the carbon brushes
clean and free to slip in the holders. Both
carbon brushes should be replaced
at the
same time. Use only identical carbon
brushes.
Use
a screwdriver to remove the brush
holder caps. Take out the worn carbon
brushes, insert the new ones and secure
the brush holder caps.
/
Limit mark
Brush holder cap Screwdriver
To maintain product SAFETY and RELIABILITY, repairs, any other maintenance or adjust-
ment should be performed by Makita Authorized or Factory ServiceCenters,always using
Makita replacement parts.
11

Recycling the Battery
The only way to dispose of a Makita battery is
to recycle it. The law prohibits any other
method
of disposal. I Ni-Cd
To recyclethe battery:
1. Remove the battery from the tool.
2. a). Take the battery to your nearest Makita Factory Service Center
or
b). Take the battery to your nearest MakitaAuthorized Service Center or
Distributor that has been designatedas
a Makita battery recycling location.
Call your nearest Makita Service Center or Distributor to determine the location
that provides Makita battery recycling. See your local Yellow Pages under
"Tools-Electric':
ACCESSORIES
CAUTION
These accessories or attachments are recommended for use with your Makita tool specified in this
manual The use of any other accessories or attachments might present a risk of injury to persons
These accessories or attachments should be used only inthe proper and intended manner
Highcapacitybattery charger
Model
DC1411
Part No. 192700-7
Battery cartridge 1422
Part No. 192600-1
Battery cartridge 1433
Part No. 192699-6
Battery cover
Part No. 41 4938-7
12

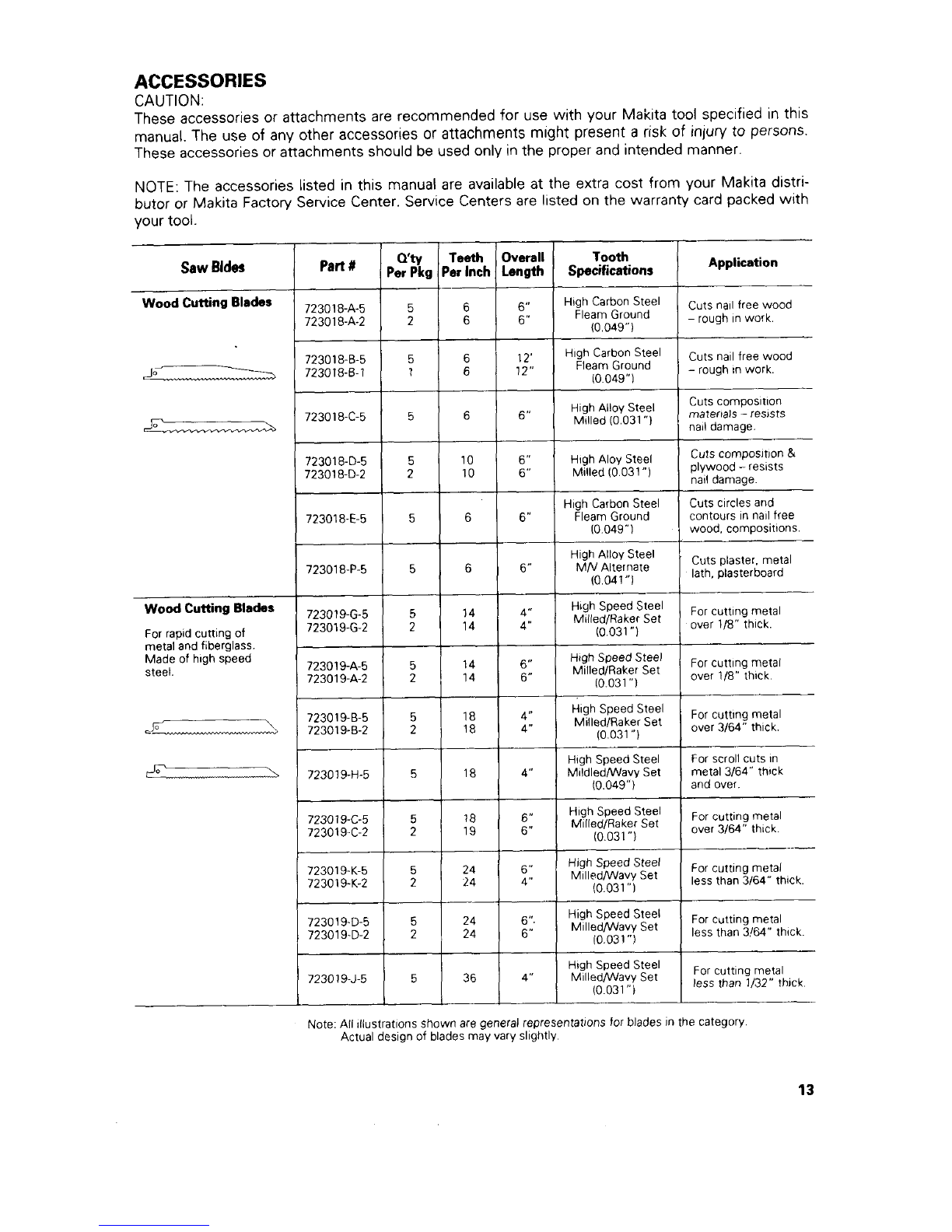

ACCESSORIES
CAUTION
These accessoriesor attachments are recommended for use with your Makita tool specified in this
manual The use of any other accessories or attachments mlght present a risk of injury to persons
These accessories or attachments should be usedonly in the proper and intended manner
NOTE The accessories listed in this manual are available at the extra cost from your Makita distri-
butor or Makita Factory Service Center Service Centers are listedon the warranty card packedwith
723019-D-5
723019-D-2
723019-J-5
your tool.
Saw Bldes
Wood CuttingBlader
5 24 6". High Speed For cutting metal
2 24
6" Milled/Wavy Set less than 364" thick
10 03 1 ")
High Speed Steel
(0 031")
For cutting metal
5 36 "' M'iled/Wavy Set less than 1/32" thlck
~
wood CuttingBlader
For rapid cutting of
metal and fiberglass
Made of high speed
steel
13

ACCESSORIES continued -
6"
6"
4"
4"
6"
6"
Saw Bldes Part #
Bimetal Cuts metal 1/8" thick
Milled (0 031 ''I and over
Bi-metal Cuts metal 3/64"
Milled
(0 031 ") over 1/8" thick
Bi-metal Cuts metal 3/64"
Milled
(0 031 'I) thick and over
723017-E-5
723017-E-2
proof, flexible backed
Si-metalBlades
Combination of high
speed steel teeth
welded to a shatter-
blade Ultra-longlife
blade. 723017-A-5
723017-A-2
J
I---- 723017-G-5
?
72301 7-6-5
723017-6-2
723017-H-5
723017-H-2
723017-C-5
72301
7-C-2
723017-K-5
723017-J-5
723017-J-2
723017-D-5
723017-D-2
3 PieceVariety Pack
Wood and Metal Cutting
includes 1each: 723018-A
723018-D
723019-C
This pack is available under
Part No. 723016-3-A
Per ag Pkg IT-h Per Inch
I l4
I
---+--
Application
Cuts nail embedded
Overall
Cuts nail embedded
Bi-metal
(o 031 .,) 1 wood qonferropus
metals.
6":: I
Bi-metal Cuts metal 118" thick
4" 1 Milled (0031") I and over
Scroll cuts inmetals
glass, compositions
Bimetal
3-1/2"
(o 031 ,,) over 3/64" thick. fiber
Bi-metal Cuts metal
less than
j: 1 Milled (0 031") I 3/64" thick
Cuts metal
less than
3/64" thick
Bi-metal
Milled (0 031 "1
3 PieceVariety Pack
Ultra Long Life Bi-metal
includes 1each: 723017-E
723017-8
723017-C
This pack is available under
Part No. 723016-3-8
PlasticTool Case
Part No. 824565-6
Accommodated tool with 6" blade.
14

MAKmA LIMITEDONE YEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested before leaving the factory. It is warranted to
be free of defects from workmanship and materials for the period of ONE YEAR from the date of
original purchase. Should any trouble develop during this one-year period, return the COMPLETE
tool, freight prepaid, to one of Makita’s Factory or Authorized Service Centers.
If inspection shows
the trouble is caused by defective workmanship
or material, Makita will repair (or at our option,
replace) without charge.
ThisWarranty does not apply where:
a repairs have been made or attempted by others:
repairs are required because of normal wear and tear:
a The tool has been abused, misused or improperly maintained;
a alterations have been made to the tool.
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY INDIRECT, INCIDENTAL OR CON-
SEQUENTIAL DAMAGES FROM THE SALE OR USE
OF THE PRODUCT. THIS DISCLAIMER
APPLIES BOTH DURING AND AFTER THE TERM
OF THISWARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED WARRANTIES, INCLUDING IMPLIED
WARRANTIES OF “MERCHANTABILITY” AND “FITNESS FOR A SPECIFIC PURPOSE,”
AFTER THEONE-YEAR TERM OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you may also have other rights which vary from
state to state. Some states do not allow the exclusion or limitation of incidental or consequential
damages,
so the above limitation or exclusion may not apply to you. Some States do not allow
limitation on how long an implied warranty lasts,
so the above Limitation may not apply to you.
__t
Makita Corporation of America
2650 Buford Hwy., Buford, GA 30518
884246-066
PRINTED IN USA
1999-7-N
