GB Slide Compound Miter Saw INSTRUCTION MANUAL
UA Пересувна комбінована пила для
різання під кутом ІНСТРУКЦІЯ ЗЕКСПЛУАТАЦІЇ
PL Ukośnica INSTRUKCJA OBSŁUGI
RO
Ferăstrău glisant pentru tăieri oblice combinate MANUAL DE INSTRUCŢIUNI
DE Kapp- und Gehrungssäge BEDIENUNGSANLEITUNG
HU Kombinált csúszógérvágó HASZNÁLATI KÉZIKÖNYV
SK
Posuvná pokosová píla na kombinované rezanie NÁVOD NA OBSLUHU
CZ Radiální pokosová pila NÁVOD K OBSLUZE
LS0815F
LS0815FL
LS0815F
LS0815FL

2
1
1 010228
11
2 011382
1
3 014305
1
4 010386
1
5 010387
1
2
6 014287
12
3
45
7 001800
1
2
8 014306
2
1
3
9 001540
12
10 010233
12
3
4
11 010234
1
12 014281
3
1
4
2
13 014307
1
2
3
14 014308
1
15 011352

3
1
23
4
16 010429
12
3
17 010388
1
18 014271
1
19 014270
1
20 014274
1
2
21 014282
1
22 014303
12
3
4
5
23 010390
1
2
3
45
24 010391
123
4
25 010392
1
2
3
45
6
26 014309
12
3
4
5
27 010560
1
2
3
28 014283
12
29 001549
1
2
30 014595

4
1
31 014647
1 2
3
4
5
32 014289
12
33 014284
34 014276
123
35 001555
2
(1)
(2)
(1)
(2) (2)
(1)
(2)
(1)
(1)
(2)
(3)(4)
1
36 001557
1
2
3
4
5
37 010404
1
38 001563 39 014292
1
2
3
40 014273
12
41 014298
1
2
3
42 014277
1
2
43 014299
1
2
44 014295
1
2
3
45 001819

5
1
2
3
46 014286
12
47 014296 48 007834
1
2
49 010256

6
ENGLISH
Contents
SPECIFICATIONS........................................................8
General Power Tool Safety Warnings ...........................9
ADDITIONAL SAFETY RULES FOR TOOL..................9
INSTALLATION...........................................................10
FUNCTIONAL DESCRIPTION....................................11
ASSEMBLY ................................................................13
OPERATION...............................................................15
MAINTENANCE .........................................................18
OPTIONAL ACCESSORIES .......................................19
УКРАЇНСЬКА
Зміст
ТЕХНІЧНІ ХАРАКТЕРИСТИКИ .................................21
Застереження стосовно техніки безпеки при роботі з
електроприладами....................................................22
ДОДАТКОВІ ПРАВИЛА БЕЗПЕКИ ПРИ
КОРИСТУВАННІ ІНСТРУМЕНТОМ...........................22
ВСТАНОВЛЕННЯ ......................................................24
ІНСТРУКЦІЯ ЗВИКОРИСТАННЯ .............................24
КОМПЛЕКТУВАННЯ..................................................27
ЗАСТОСУВАННЯ.......................................................29
ТЕХНІЧНЕ ОБСЛУГОВУВАННЯ ...............................33
ДОДАТКОВЕ ПРИЛАДДЯ .........................................34
POLSKI
Spis treści
SPECYFIAKCJE.........................................................36
Ogólne zasady bezpieczeństwa obsługi elektronarzędzi
...................................................................................37
DODATKOWE ZASADY BEZPIECZEŃSTWA
DOTYCZĄCE NARZĘDZIA ........................................37
MONTAŻ.....................................................................39
OPIS DZIAŁANIA .......................................................39
MONTAŻ.....................................................................42
DZIAŁANIE.................................................................44
KONSERWACJA ........................................................48
AKCESORIA OPCJONALNE......................................49
ROMÂNĂ
Cuprins
SPECIFICAŢII ............................................................51
Avertismente generale de siguranţă pentru unelte
electrice......................................................................52
NORME SUPLIMENTARE DE SECURITATE PENTRU
MAŞINĂ......................................................................52
INSTALARE................................................................54
DESCRIERE FUNCŢIONALĂ.....................................54
MONTARE..................................................................57
FUNCŢIONARE..........................................................59
ÎNTREŢINERE............................................................62
ACCESORII OPŢIONALE...........................................63
DEUTSCH
Inhalt
TECHNISCHE DATEN ...............................................66
Allgemeine Sicherheitshinweise für Elektrowerkzeuge .67
ZUSÄTZLICHE SICHERHEITSREGELN FÜR DAS
WERKZEUG...............................................................67
INSTALLATION ..........................................................69
FUNKTIONSBESCHREIBUNG ..................................69
MONTAGE .................................................................72
ARBEIT ......................................................................74
WARTUNG.................................................................78
SONDERZUBEHÖR...................................................79
MAGYAR
Tartalom
RÉSZLETES LEÍRÁS.................................................82
A szerszámgépekre vonatkozó általános biztonsági
figyelmeztetések.........................................................83
KIEGÉSZÍTŐBIZTONSÁGI ELŐÍRÁSOK A
SZERSZÁMRA VONATKOZÓAN ...............................83
ÜZEMBEHELYEZÉS ..................................................84
MŰKÖDÉSI LEÍRÁS...................................................85
ÖSSZESZERELÉS.....................................................88
ÜZEMELTETÉS..........................................................89
KARBANTARTÁS.......................................................93
OPCIONÁLIS KIEGÉSZÍTŐK.....................................94
SLOVENSKÝ
Obsah
TECHNICKÉ ÚDAJE ..................................................96
Všeobecné bezpečnostné predpisy pre elektronáradie
...................................................................................97
ĎALŠIE BEZPEČNOSNÉ ZÁSADY PRE NÁSTROJ..97
INŠTALÁCIA...............................................................98
POPIS FUNKCIE........................................................99
MONTÁŽ ..................................................................102
PRÁCA.....................................................................104
ÚDRŽBA ..................................................................107
VOLITEĽNÉ PRÍSLUŠENSTVO...............................108
ČESKÝ
Obsah
TECHNICKÉ ÚDAJE ................................................ 110
Obecná bezpečnostní upozornění k elektrickému nářadí
................................................................................. 111
DOPLŇKOVÁ BEZPEČNOSTNÍ PRAVIDLA PRO
NÁSTROJ................................................................. 111
INSTALACE.............................................................. 112
POPIS FUNKCE....................................................... 113
MONTÁŽ .................................................................. 116
PRÁCE..................................................................... 117
ÚDRŽBA ..................................................................121
VOLITELNÉ PŘÍSLUŠENSTVÍ.................................122

7
ENGLISH (Original instructions)

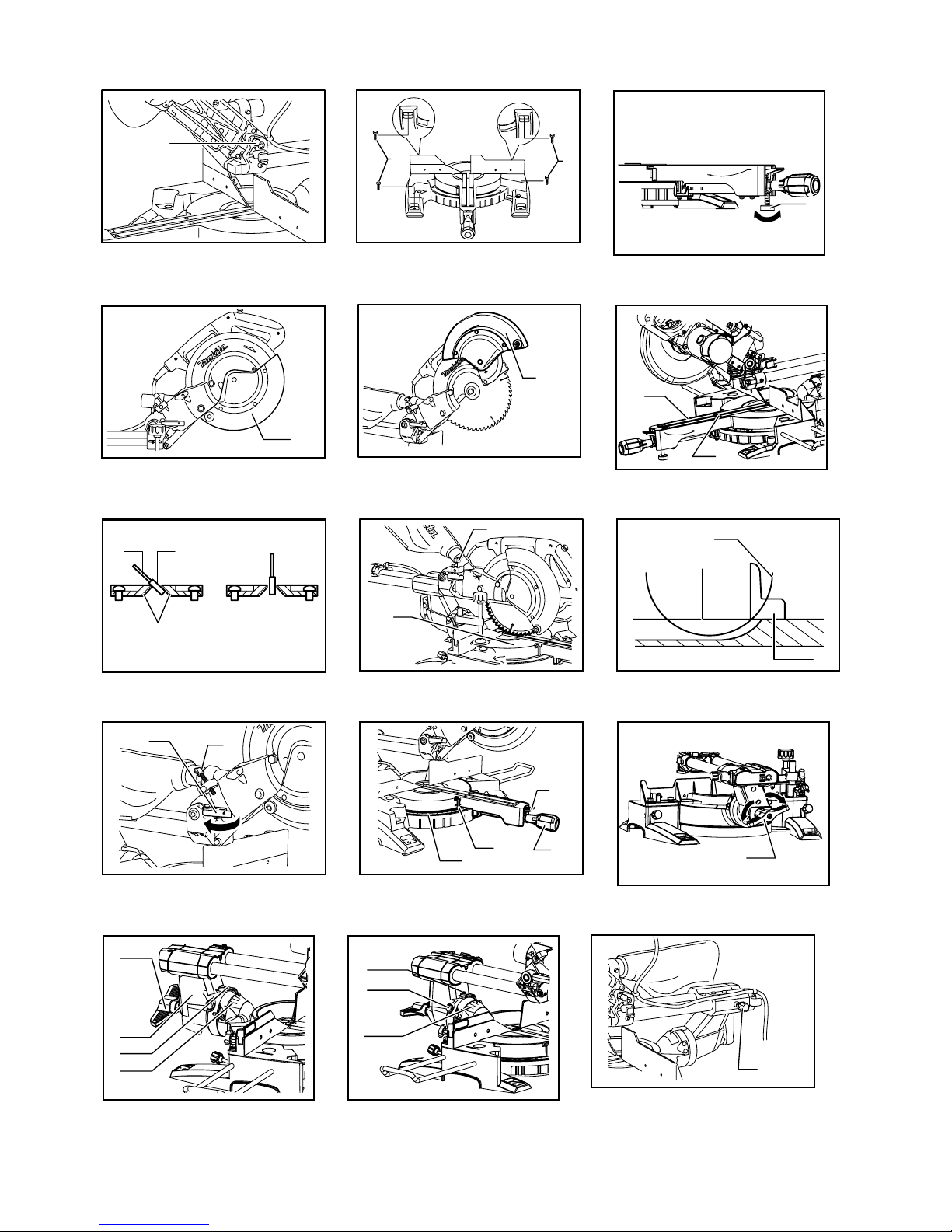

Explanation of general view
1-1. Stopper pin
2-1. Bolts
3-1. Adjusting bolt
4-1. Blade guard
5-1. Blade guard
6-1. Kerf board
6-2. Screw
7-1. Saw blade
7-2. Blade teeth
7-3. Kerf board
7-4. Left bevel cut
7-5. Straight cut
8-1. Adjusting bolt
8-2. Turn base
9-1. Top surface of turn base
9-2. Periphery of blade
9-3. Guide fence
10-1. Stopper arm
10-2. Adjusting screw
11-1. Miter scale
11-2. Pointer
11-3. Lock lever
11-4. Grip
12-1. Lever
13-1. Lever
13-2. Arm
13-3. Pointer
13-4. Bevel scale
14-1. Pointer
14-2. Release button
14-3. Bevel scale
15-1. Locking screw
16-1. Lock-off button
16-2. Lever
16-3. Switch trigger
16-4. Hole for padlock
17-1. Lock-off button
17-2. Switch trigger
17-3. Hole for padlock
18-1. Switch for laser
19-1. Light
20-1. Switch for light
21-1. Socket wrench with hex wrench
on its other end
21-2. Wrench holder
22-1. Stopper pin
23-1. Socket wrench
23-2. Blade case
23-3. Center cover
23-4. Hex bolt
23-5. Blade guard
24-1. Blade case
24-2. Socket wrench
24-3. Hex bolt
24-4. Arrow
24-5. Shaft lock
25-1. Blade case
25-2. Arrow
25-3. Arrow
25-4. Saw blade
26-1. Hex bolt (left-handed)
26-2. Outer flange
26-3. Saw blade
26-4. Ring
26-5. Inner flange
26-6. Spindle
27-1. Socket wrench
27-2. Blade case
27-3. Center cover
27-4. Hex bolt
27-5. Blade guard
28-1. Dust nozzle
28-2. Dust bag
28-3. Fastener
29-1. Support
29-2. Turn base
30-1. Sliding fence
30-2. Clamping screw
31-1. Sliding fence
32-1. Vise arm
32-2. Vise knob
32-3. Vise rod
32-4. Screw
32-5. Guide fence
33-1. Holder
33-2. Screw
35-1. 52/38 ﾟtype crown molding
35-2. 45 ﾟtype crown molding
35-3. 45 ﾟtype cove molding
36-1. Inside corner
36-2. Outside corner
37-1. Guide fence
37-2. Vise
37-3. Spacer block
37-4. Aluminum extrusion
37-5. Spacer block
38-1. Cut grooves with blade
40-1. Guide fence
40-2. Hex bolts
40-3. Grip
41-1. Guide fence
41-2. Triangular rule
42-1. Screw
42-2. Pointer
42-3. Miter scale
43-1. Lever
43-2. Arm
44-1. 0 ﾟadjusting bolt
44-2. Left 45 ﾟbevel angle adjusting
bolt
45-1. Triangular rule
45-2. Saw blade
45-3. Top surface of turn table
46-1. Screw
46-2. Pointer
46-3. Bevel scale
47-1. Right 5 ﾟbevel angle adjusting
bolt
47-2. Left 45 ﾟbevel angle adjusting
bolt
49-1. Screwdriver
49-2. Brush holder cap

8
SPECIFICATIONS
Model LS0815F / LS0815FL
Blade diameter 216 mm
Blade thickness 1.5 - 2.5 mm
Hole diameter
- For all countries other than European countries 25.4 mm
- For European countries 30 mm
Max. Miter angle Left 50° Right 60°
Max. Bevel angle Left 48° Right 5°
Max. Cutting capacities (H x W) with 216 mm in diameter
Bevel angle
Miter angle 45° (left) 5° (right) 0°
0° 50 mm x 305 mm 60 mm x 305 mm 65 mm x 305 mm
45° 50 mm x 215 mm - 65 mm x 215 mm
60° (right) - - 65 mm x 150 mm
Rated voltage 220 - 240 V, 50-60 Hz
Rated input 1,400 w, S6 40% 5 min
No load speed (min-1) 5,000
Laser Type (LS0815FL only) Red Laser 650 nm, 1 mW (Laser Class 2)
Dimensions (L x W x H) 755 mm x 450 mm x 488 mm
Net weight For all countries other than European countries•••14.1 kg
For European countries•••LS0815F 14.1 kg
••• LS0815FL 14.2 kg
Safety class /II
• Due to our continuing program of research and development, the specifications herein are subject to change without notice.
• Specifications may differ from country to country.
• Weight according to EPTA-Procedure 01/2003
END223-4
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
･Read instruction manual.
･DOUBLE INSULATION
･To avoid injury from flying debris, keep
holding the saw head down, after
making cuts, until the blade has come
to a complete stop.
･When performing slide cut, first pull
carriage fully and press down handle,
then push carriage toward the guide
fence.
･Do not place hand or fingers close to
the blade.
･Adjust sliding fences clear of blade and
blade guard properly.
･LASER RADIATION: Do not stare into
beam. Direct laser beam may injure
your eyes.
･Only for EU countries
Do not dispose of electric equipment
together with household waste
material!
In observance of the European
Directive, on Waste Electric and
Electronic Equipment and its
implementation in accordance with
national law, electric equipment that
have reached the end of their life must
be collected separately and returned to
an environmentally compatible
recycling facility.
ENE006-1
Intended use
The tool is intended for accurate straight and miter
cutting in wood. With appropriate saw blades, aluminum
can also be sawed.
ENF002-2
Power supply
The tool should be connected only to a power supply of
the same voltage as indicated on the nameplate, and
can only be operated on single-phase AC supply. They
are double-insulated and can, therefore, also be used
from sockets without earth wire.

9
ENG905-1
Noise
The typical A-weighted noise level determined
according to EN61029:
Sound pressure level (LpA) : 87 dB (A)
Sound power level (LWA) : 110 dB (A)
Uncertainty (K) : 3 dB (A)
Wear ear protection
ENG900-1
Vibration
The vibration total value (tri-axial vector sum)
determined according to EN61029:
Vibration emission (ah) : 2.5 m/s2or less
Uncertainty (K) : 1.5 m/s2
ENG901-1
• The declared vibration emission value has been
measured in accordance with the standard test
method and may be used for comparing one tool
with another.
• The declared vibration emission value may also be
used in a preliminary assessment of exposure.
WARNING:
• The vibration emission during actual use of the
power tool can differ from the declared emission
value depending on the ways in which the tool is
used.
• Be sure to identify safety measures to protect the
operator that are based on an estimation of
exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it
is running idle in addition to the trigger time).
ENH103-1
For European countries only
EC Declaration of Conformity
Makita declares that the following Machine(s):
Designation of Machine:
Slide Compound Miter Saw
Model No./ Type:
LS0815F, LS0815FL
Conforms to the following European Directives:
2006/42/EC, 2006/95/EC, 2011/108/EC,
2011/65/EU
They are manufactured in accordance with the following
standard or standardized documents:
EN61029, EN 55014-1, EN 55014-2,
EN 61000-3-2, EN 61000-3-3
The technical file in accordance with 2006/42/EC is
available from:
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
20.12.2013
000331
Yasushi Fukaya
Director
Makita, Jan-Baptist Vinkstraat 2, 3070, Belgium
GEA010-1
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in electric shock, fire and/or
serious injury.
Save all warnings and instructions for
future reference.
ENB034-7
ADDITIONAL SAFETY RULES
FOR TOOL
1. Wear eye protection.
2. Keep hands out of path of saw blade. Avoid
contact with any coasting blade. It can still
cause severe injury.
3. Do not operate saw without guards in place.
Check blade guard for proper closing before
each use. Do not operate saw if blade guard
does not move freely and close instantly.
Never clamp or tie the blade guard into the
open position.
4.
Do not perform any operation freehand. The
workpiece must be secured firmly against the turn base
and guide fence with the vise during all operations.
Never use your hand to secure the workpiece.
5. Never reach around saw blade.
6. Turn off tool and wait for saw blade to stop
before moving workpiece or changing
settings.
7. Unplug tool before changing blade or
servicing.
8. Always secure all moving portions before
carrying the tool.
9. Stopper pin which locks the cutter head down
is for carrying and storage purposes only and
not for any cutting operations.
10.
Do not use the tool in the presence of flammable
liquids or gases.
The electrical operation of the tool
could create an explosion and fire when exposed to
flammable liquids or gases.
11. Check the blade carefully for cracks or
damage before operation.
Replace cracked or damaged blade
immediately.

10
12. Use only flanges specified for this tool.
13.
Be careful not to damage the arbor, flanges
(especially the installing surface) or bolt. Damage
to these parts could result in blade breakage.
14. Make sure that the turn base is properly
secured so it will not move during operation.
15.
For your safety, remove the chips, small
pieces, etc. from the table top before operation.
16. Avoid cutting nails. Inspect for and remove all
nails from the workpiece before operation.
17. Make sure the shaft lock is released before
the switch is turned on.
18. Be sure that the blade does not contact the
turn base in the lowest position.
19. Hold the handle firmly. Be aware that the saw
moves up or down slightly during start-up and
stopping.
20. Make sure the blade is not contacting the
workpiece before the switch is turned on.
21. Before using the tool on an actual workpiece,
let it run for a while. Watch for vibration or
wobbling that could indicate poor installation
or a poorly balanced blade.
22.
Wait until the blade attains full speed before cutting.
23. Stop operation immediately if you notice
anything abnormal.
24.
Do not attempt to lock the trigger in the on position.
25. Be alert at all times, especially during
repetitive, monotonous operations. Do not be
lulled into a false sense of security. Blades
are extremely unforgiving.
26. Always use accessories recommended in this
manual. Use of improper accessories such as
abrasive wheels may cause an injury.
27. Do not use the saw to cut other than wood,
aluminum or similar materials.
28. Connect miter saws to a dust collecting
device when sawing.
29. Select saw blades in relation to the material to
be cut.
30. Take care when slotting.
31. Replace the kerf board when worn.
32. Do not use saw blades manufactured from
high speed steel.
33. Some dust created from operation contains
chemicals known to cause cancer, birth
defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based-painted material and,
• arsenic and chromium from chemically-
treated lumber.
Your risk from these exposures varies,
depending on how often you do this type of
work. To reduce your exposure to these
chemicals: work in a well ventilated area
and work with approved safety equipment,
such as those dust masks that are specially
designed to filter out microscopic particles.
34. To reduce the emitted noise, always be sure
that the blade is sharp and clean.
35. The operator is adequately trained in the use,
adjustment and operation of the machine.
36. Use correctly sharpened saw blades. Observe
the maximum speed marked on the saw blade.
37. Refrain from removing any cut-offs or other
parts of the workpiece from the cutting area
whilst the tool is running and the saw head is
not in the rest position.
38. Use only saw blades recommended by the
manufacturer which conform to EN847-1.
39. Wear gloves for handling saw blade (saw
blades shall be carried in a holder wherever
practicable) and rough material.
40. Keep the floor area free of loose material e.g.
chips and cut-offs.
41. When fitted with laser, no exchange with
different type of laser is permitted. Repairs
shall only be carried out correctly.
SAVE THESE INSTRUCTIONS.
INSTALLATION
Bench mounting
Fig.1
When the tool is shipped, the handle is locked in the
lowered position by the stopper pin. Release the stopper
pin by simultaneously applying a slight downward
pressure on the handle and pulling the stopper pin.
WARNING:
• Ensure that the tool will not move on the
supporting surface. Movement of the miter saw
on the supporting surface while cutting may result
in loss of control and serious personal injury.
Fig.2
This tool should be bolted with four bolts to a level and
stable surface using the bolt holes provided in the tool's
base. This will help prevent tipping and possible injury.
Fig.3
Turn the adjusting bolt clockwise or counterclockwise so
that it comes into a contact with the tool surface to keep
the tool stable.
