Makita DUR364L User manual

INSTRUCTION MANUAL
Cordless Grass Trimmer
DUR364L
ENGLISH: Original instructions
Read before use.

2ENGLISH
SPECIFICATIONS
Model DUR364L
Type of handle Loop handle
No load speed 5,000 / 6,500 min-1
Overall length 1,754 mm
Nylon cord diameter 2.0 – 2.4 mm
Applicable cutting tool Nylon cutting head
(P/N 197297-
1/ 198971-4/
198972-2)
Plastic blade (P/N
198383-1)
Nylon cutting head
(P/N 197297-
1/ 198971-4/
198972-2)
Plastic blade (P/N
198383-1)
Cutting blade diameter 350 mm 255 mm 350 mm 255 mm
Rated voltage D.C. 36 V
Net weight 4.0 kg 4.0 kg 4.5 kg 4.5 kg
Standard battery cartridge BL1815N / BL1820 / BL1820B BL1830 / BL1830B / BL1840 / BL1840B
/ BL1850 / BL1850B / BL1860B
-
out notice.

• Weight, with battery cartridge, according to EPTA-Procedure 01/2003
Noise Sound pressure
level average
Sound power level average Applicable
standard
LPA (dB (A)) LWA (dB (A)) Uncertainty K
(dB (A))
Nylon cutting head 81 89 0.3 2000/14/EC
Plastic blade 75 84.6 0.8
Vibration Left hand Right hand Applicable
standard
ah,W (m/s2)Uncertainty K
(m/s2)
ah,W (m/s2)Uncertainty K
(m/s2)
Nylon cutting head  1.5  1.5 EN50636-2-91
Plastic blade  1.5  1.5
NOTE: The declared vibration emission value has
been measured in accordance with the standard test
method and may be used for comparing one tool with
another.
NOTE: The declared vibration emission value
may also be used in a preliminary assessment of
exposure.
WARNING: The vibration emission during actual
use of the power tool can differ from the declared
emission value depending on the ways in which the
tool is used.
WARNING: Be sure to identify safety measures
to protect the operator that are based on an estima-
tion of exposure in the actual conditions of use (taking
account of all parts of the operating cycle such as
the times when the tool is switched off and when it is
running idle in addition to the trigger time).
Symbols
The following show the symbols used for the equip-
ment. Be sure that you understand their meaning before
use.
Take particular care and attention.
Read instruction manual.

The distance between the tool and
bystanders must be at least 15 m.
Keep bystanders away.
15m(50FT)Keep distance at least 15 m.
Wear a helmet, goggles and ear protection.
Wear protective gloves.

3ENGLISH
Wear sturdy boots with nonslip soles.
Steeltoed safety boots are recommended.
Do not expose to moisture.
Top permissible tool speed.
Never use metal blade.
Ni-MH
Li-ion
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household waste
material!
In observance of the European Directives,
on Waste Electric and Electronic
Equipment and Batteries and Accumulators
and Waste Batteries and Accumulators
and their implementation in accordance
with national laws, electric equipment and
batteries and battery pack(s) that have
reached the end of their life must be col-
lected separately and returned to an envi-
ronmentally compatible recycling facility.
EC Declaration of Conformity
For European countries only
The EC declaration of conformity is included as Annex A
to this instruction manual.
IMPORTANT SAFETY
INSTRUCTIONS
WARNING! Read all safety warnings and all
instructions. Failure to follow the warnings and instruc-


Save all warnings and instruc-
tions for future reference.
1. Be familiar with the controls and proper use of
the equipment.
2. Cutting elements continue to rotate after the
motor is switched off.
3. Never allow children or people unfamiliar with
the instructions to use the machine.
4. Stop using the machine while people, espe-
cially children, or pets are nearby.
5. -
cial light.
6. Before using the machine and after any
impact, check for signs of wear or damage and
repair as necessary.
7. Take care against injury from any device

After extending new cutter line always return
the machine to its normal operating position
before switching on.
8. 
9. This appliance is not intended for use by
persons (including children) with reduced
physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they
have been given supervision or instruction
concerning use of the appliance by a person
responsible for their safety. Children should be
supervised to ensure that they do not play with
the appliance.
10. Use the tool with the utmost care and
attention.
11. Operate the tool only if you are in good phys-
ical condition. Perform all work calmly and
carefully. Use common sense and keep in mind
that the operator or user is responsible for
accidents or hazards occurring to other people
or their property.
12. Never operate the tool when tired, feeling ill or

13. The tool should be switched off immediately if
it shows any signs of unusual operation.
Intended use of the tool
1. Use right tool. The cordless grass trimmer is
only intended for cutting grass, light weeds. It
should not be used for any other purpose such
as hedge cutting as this may cause injury.
Personal protective equipment
1. Dress Properly. The clothing worn should be
functional and appropriate, i.e. it should be

wear either jewelry or clothing which could
become entangled with high grass. Wear pro-
tective hair covering to contain long hair.
2. When using the tool, always wear sturdy shoes
with a non-slip sole. This protects against
injuries and ensures a good footing.
3. Wear protective glasses or goggles.

4ENGLISH
Electrical and battery safety
1. Avoid dangerous environment. Don't use the
tool in damp or wet locations or expose it to
rain. Water entering the tool will increase the
risk of electric shock.
2. 
the manufacturer. A charger that is suitable for
one type of battery pack may create a risk of

3. -
nated battery packs. Use of any other battery

4. When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another. Shorting the battery termi-

 
from the battery; avoid contact. If contact acci-


battery may cause irritation or burns.
6. 
cell may explode. Check with local codes for
possible special disposal instructions.
7.
Do not open or mutilate the battery(ies). Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
Starting up the tool
1. Make sure that there are no children or other
people within a working range of 15 meters
(50 ft), also pay attention to any animals in the
working vicinity. Otherwise stop using the tool.
2.
Before use always check that the tool is safe for
operation. Check the security of the cutting tool
and the guard and the switch trigger/lever for
easy and proper action. Check for clean and dry
handles and test the on/off function of the switch.
3. Check damaged parts before further use of the tool.
A guard or other part that is damaged should be
carefully checked to determine that it will operate
properly and perform its intended function. Check
for alignment of moving parts, binding of moving
parts, breakage of parts, mounting, and any other
condition that may affect its operation. A guard
or other part that is damaged should be properly
repaired or replaced by our authorized service
center unless indicated elsewhere in this manual.
4. Switch on the motor only when hands and feet
are away from the cutting tool.
5. Before starting make sure that the cutting
tool has no contact with hard objects such as
branches, stones etc. as the cutting tool will
revolve when starting.
Method of operation
1. Never operate the machine with damaged
guards or without the guards in place.
2. Only use the tool in good light and visibility.
During the winter season beware of slippery
or wet areas, ice and snow (risk of slipping).
Always ensure a safe footing.
3. Take care against injury to feet and hands from
the cutting tool.
4. Keep hands and feet away from the cutting
means at all times and especially when switch-
ing on the motor.
5. Never cut above waist height.
6. Never stand on a ladder and run the tool.
7. Never work on unstable surfaces.
8. Don't overreach. Keep proper footing and
balance at all times.
9. Always be sure of your footing on slopes.
10. Walk, never run.
11. Remove sand, stones, nails etc. found within
the working range. Foreign particles may
damage the cutting tool and can cause to be
thrown away, resulting in a serious injury.
12. Never touch moving hazardous parts before
the machine is disconnected from the mains
and the moving hazardous parts have come to
a complete stop.
13. Should the cutting tool hit stones or other hard
objects, immediately switch off the motor and
inspect the cutting tool.
14. Before commencing cutting, the cutting tool
must have reached full working speed.
15. During operation always hold the tool with
both hands. Never hold the tool with one hand
during use. Always ensure a safe footing.
16.
All protective equipment such as guards supplied
with the tool must be used during operation.
17. Except in case of emergency, never drop
or cast the tool to the ground or this may
severely damage the tool.
18. Never drag the tool on the ground when mov-
ing from place to place, the tool may become
damaged if moved in this manner.
19. Always remove the battery cartridge from the
tool:
— whenever leaving the tool unattended;
— before clearing a blockage;
— before checking, cleaning or working on
the tool;
— before making any adjustments, chang-
ing accessories or storing;
— whenever the tool starts vibrating
unusually;
— whenever transporting the tool.

5ENGLISH
20. Don't force the tool. It will do the job better and
with less likelihood of a risk of injury at the
rate for which it was designed.
21. Do not operate power tools in explosive atmo-

liquids, gases or dust. Power tools create sparks
which may ignite the dust or fumes.
22. Take a rest to prevent loss of control caused
by fatigue. We recommend to take a 10 to
20-minute rest every hour.
Maintenance instructions
1. The condition of the cutting tool, protective
devices and shoulder strap must be checked
before commencing work.
2. Turn off the motor and remove the battery
cartridge before carrying out maintenance,
replacing the cutting tool and cleaning the
tool.
3. After use, disconnect the battery cartridge
from the tool and check for damage.
4. Check for loose fasteners and damaged parts
such as nearly halfway cut-off state in the
cutting tool.
5. When not in use store the equipment in a dry
location that is locked up or out of children's
reach.
6. Use only the manufacturer's recommended
replacement parts and accessories.
7. Always ensure that ventilation openings are
kept clear of debris.
8. Inspect and maintain the tool regularly, espe-
cially before/after use. Have the tool repaired
only by our authorized service center.
9. Keep handles dry, clean and free from oil and
grease.
SAVE THESE INSTRUCTIONS.
WARNING: DO NOT let comfort or famil-
iarity with product (gained from repeated
use) replace strict adherence to safety
rules for the subject product. MISUSE or
failure to follow the safety rules stated in
this instruction manual may cause serious
personal injury.
Important safety instructions for
battery cartridge
1. Before using battery cartridge, read all instruc-
tions and cautionary markings on (1) battery
charger, (2) battery, and (3) product using
battery.
2. Do not disassemble battery cartridge.
3. If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4. If electrolyte gets into your eyes, rinse them
out with clear water and seek medical atten-
tion right away. It may result in loss of your
eyesight.
5. Do not short the battery cartridge:
(1) Do not touch the terminals with any con-
ductive material.
(2) Avoid storing battery cartridge in a con-
tainer with other metal objects such as
nails, coins, etc.
(3) Do not expose battery cartridge to water
or rain.
A battery short can cause a large current

breakdown.
6. Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 °C (122 °F).
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn

8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
10. The contained lithium-ion batteries are subject
to the Dangerous Goods Legislation require-
ments.
For commercial transports e.g. by third parties,
forwarding agents, special requirement on pack-
aging and labeling must be observed.
For preparation of the item being shipped, consult-
ing an expert for hazardous material is required.
Please also observe possibly more detailed
national regulations.
Tape or mask off open contacts and pack up the
battery in such a manner that it cannot move
around in the packaging.
11. Follow your local regulations relating to dis-
posal of battery.
12. Use the batteries only with the products
 Installing the batteries to
-
sive heat, explosion, or leak of electrolyte.
SAVE THESE INSTRUCTIONS.
CAUTION: Only use genuine Makita batteries.
Use of non-genuine Makita batteries, or batteries that
have been altered, may result in the battery bursting

also void the Makita warranty for the Makita tool and
charger.
Tips for maintaining maximum
battery life
1. Charge the battery cartridge before completely
discharged. Always stop tool operation and
charge the battery cartridge when you notice
less tool power.
2. Never recharge a fully charged battery car-
tridge. Overcharging shortens the battery
service life.
3. Charge the battery cartridge with room tem-
perature at 10 °C - 40 °C (50 °F - 104 °F). Let
a hot battery cartridge cool down before
charging it.
4. Charge the battery cartridge if you do not use
it for a long period (more than six months).

6ENGLISH

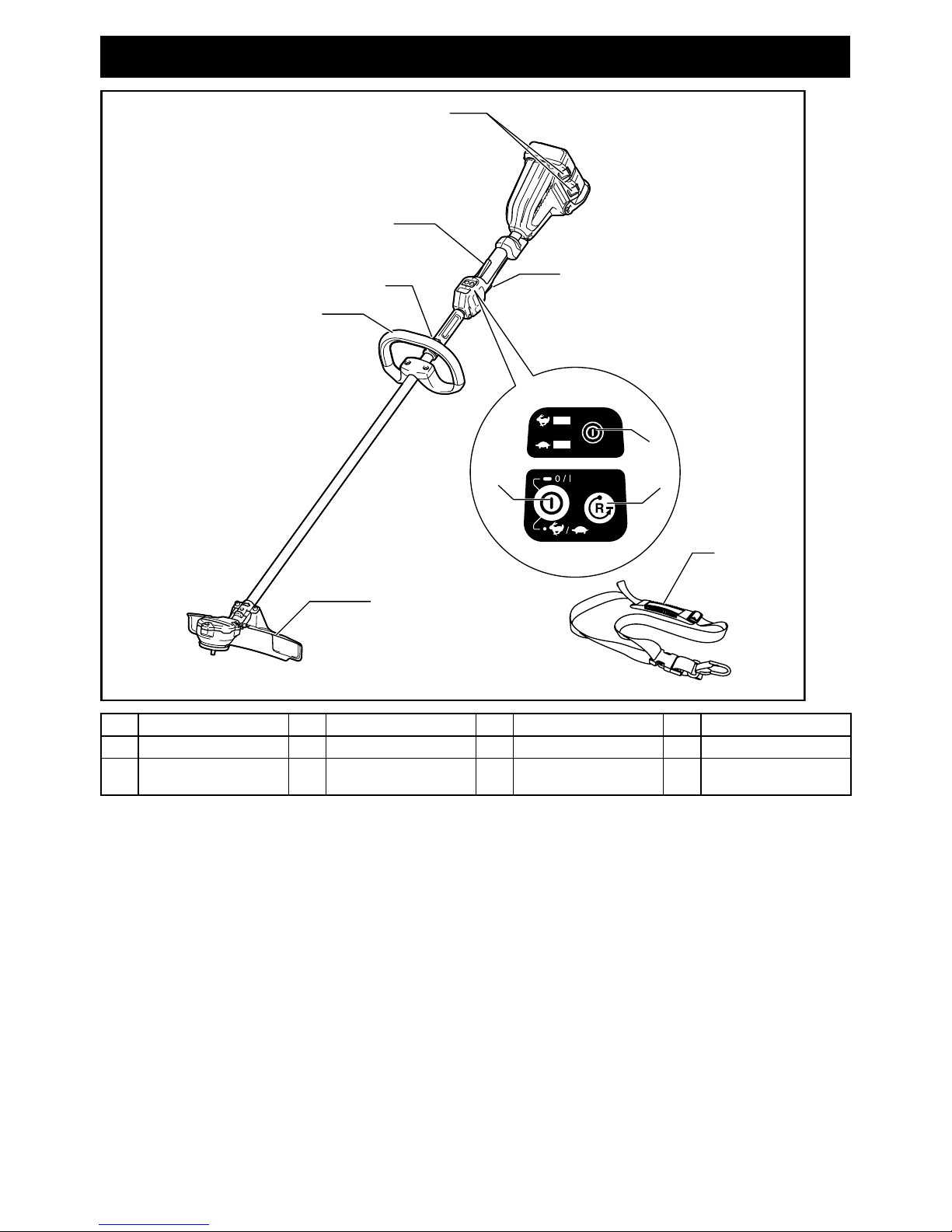

PARTS DESCRIPTION

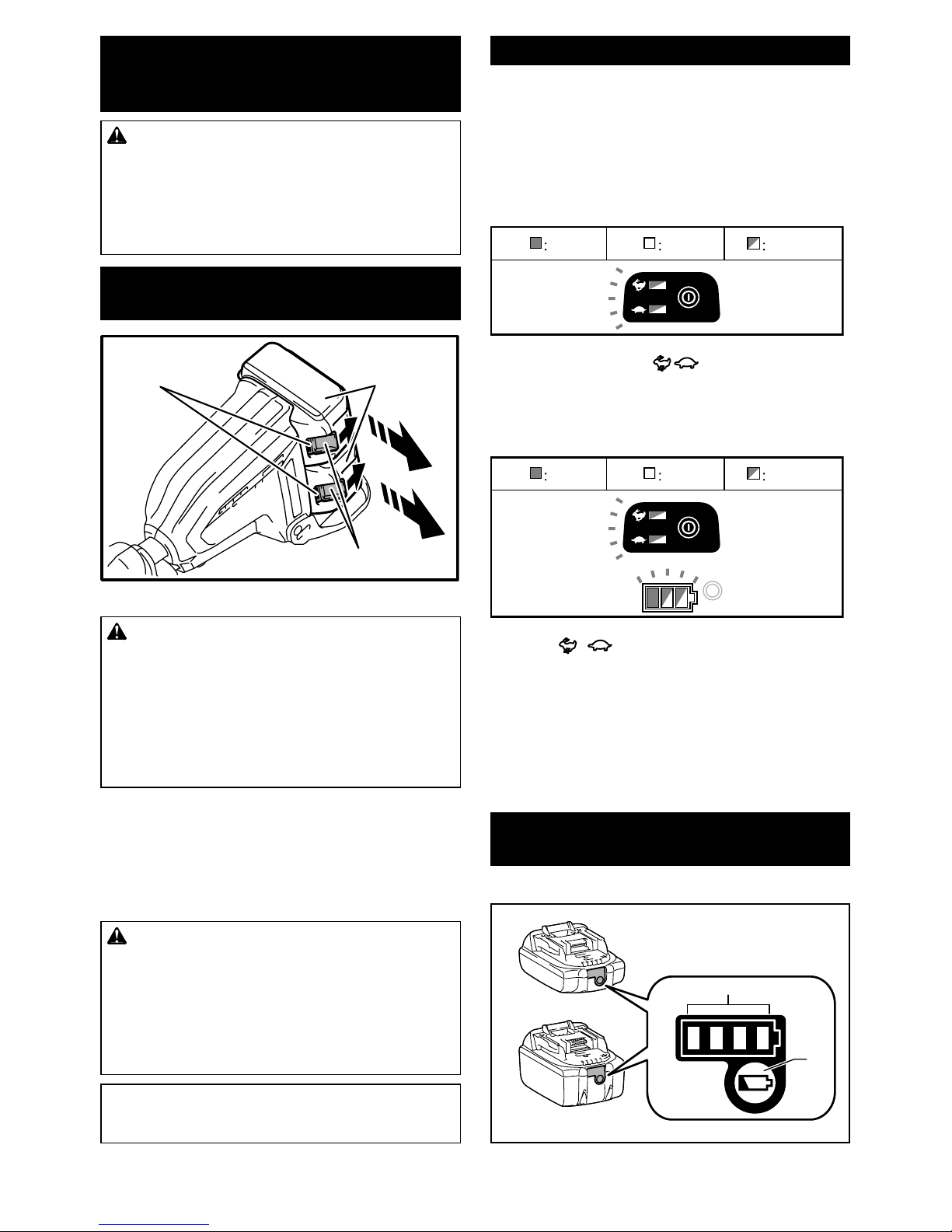

1
2
3
4
56
8
7
9
10
1Battery cartridge 2Lock-off lever 3Switch trigger 4Power lamp
5Main power button 6Reverse button 7Hanger 8Grip
9Protector (cutting tool
guard)
10 Shoulder harness - - - -
* The shape of the protector varies depending on the country.

7ENGLISH
FUNCTIONAL
DESCRIPTION
WARNING:
• Always be sure that the tool is switched off
and the battery cartridge is removed before
adjusting or checking function on the tool.
Failure to switch off and remove the battery

from accidental start-up.
Installing or removing battery
cartridge
1
2
3
1. Red indicator 2. Button 3. Battery cartridge
CAUTION:
• Always switch off the tool before installing or
removing of the battery cartridge.
• 
when installing or removing battery car-
tridge. Failure to hold the tool and the battery

hands and result in damage to the tool and

To remove the battery cartridge, slide it from the tool
while sliding the button on the front of the cartridge.
To install the battery cartridge, align the tongue on the
battery cartridge with the groove in the housing and slip
it into place. Insert it all the way until it locks in place
with a little click. If you can see the red indicator on the
upper side of the button, it is not locked completely.
CAUTION:
• Always install the battery cartridge fully until the
red indicator cannot be seen. If not, it may acci-

or someone around you.
• Do not install the battery cartridge forcibly. If the
cartridge does not slide in easily, it is not being
inserted correctly.
NOTE:
• The tool does not work with only one battery
cartridge.
Tool / battery protection system
The tool is equipped with a tool/battery protection sys-
tem. This system automatically cuts off power to the
motor to extend tool and battery life.
The tool will automatically stop during operation if the
tool or battery is placed under one of the following con-
ditions. In some conditions, the indicators light up.
Overload protection
On Off Blinking
If the tool is overloaded by entangled weeds or other debris, the
tool stops automatically, and indicators blink. In this situ-
ation, turn the tool off and stop the application that caused the tool
to become overloaded. Then turn the tool on to restart.
Overheat protection for tool
On Off Blinking
When the tool is overheated, the tool stops automati-
cally, and , , and the battery indicator blink about
60 seconds. In this situation, let the tool cool down
before turning the tool on again.
Overdischarge protection
When the battery capacity becomes low, the tool stops
automatically. If the product does not operate even
when the switches are operated, remove the batteries
from the tool and charge the batteries.
Indicating the remaining battery
capacity
Only for battery cartridges with the indicator
1
2
1. Indicator lamps 2. Check button

8ENGLISH

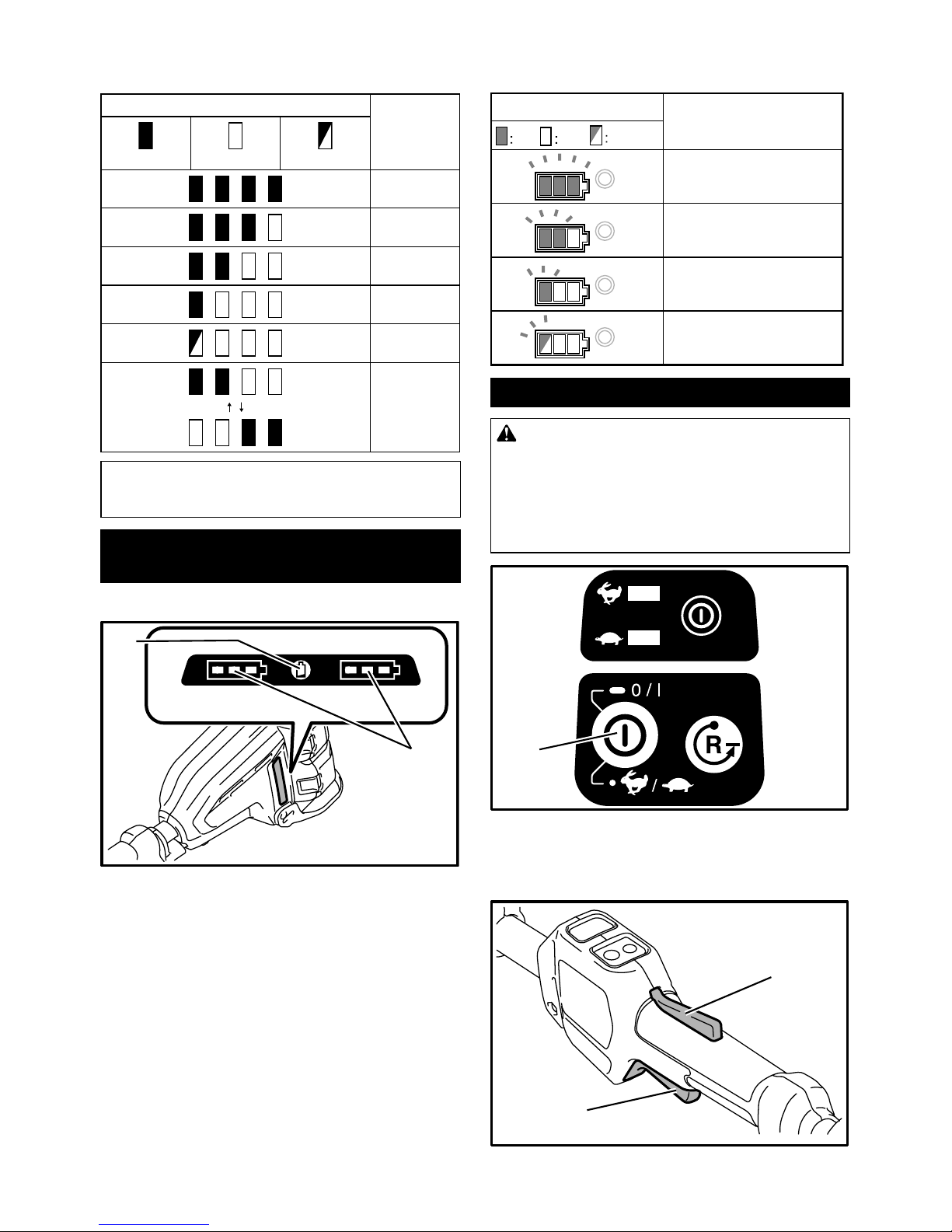

Press the check button on the battery cartridge to indi-
cate the remaining battery capacity. The indicator lamps
light up for a few seconds.
Indicator lamps Remaining
capacity
Lighted Off Blinking
75% to 100%
50% to 75%
25% to 50%
0% to 25%
Charge the
battery.
The battery
may have
malfunctioned.
NOTE: Depending on the conditions of use and the
ambient temperature, the indication may differ slightly
from the actual capacity.
Remaining battery capacity
indication

2
1
1. Battery indicator 2. CHECK button
Press the check button to make the battery indicators
show the remaining battery capacities. The battery
indicators correspond to each battery.
Remaining battery capacity
indication
Battery indicator status
Remaining battery capacity
50 % - 100 %
20 % - 50 %
0 % - 20 %
Charge the battery
On Off Blinking
Power switch action
WARNING:
•
Before inserting the battery cartridge into the
tool, always check to see that the switch trigger
actuates properly and returns to the "OFF" posi-
tion when released. Operating a tool with a switch
that does not actuate properly can lead to loss of

1
1. Main power button
Press and hold the main power button for some sec-
onds to turn on the tool.
To turn off the tool, press and hold the main power button again.
1
2
1. Lock-off lever 2. Switch trigger

9ENGLISH
To prevent the switch trigger from being accidentally
pulled, a lock-off lever is provided.
To start the tool, grasp the rear handle (the lock-off lever
is released by the grasp) and then pull the switch trig-
ger. To stop the tool, release the switch trigger.
NOTE:
• The tool is automatically turned off after the tool
is left one minute without any operations.
Speed adjusting
1
1. Main power button

power button.
Each time you tap the main power button, indi-
cator or indicator lights up. is for high speed
and for low speed.
Reverse button for debris removal
WARNING:
• Switch off the tool and remove the battery
cartridge before you remove entangled
weeds or debris which the reverse rotation
function can not remove. Failure to switch off
and remove the battery cartridge may result in

1
1. Reverse button
This tool has a reverse button to change the direction of rotation.
It is only for removing weeds and debris entangled in the tool.
To reverse the rotation, tap the reverse button and pull
the trigger when the tool’s head is stopped. The power
lamp starts blinking, and the tool's head rotates in
reverse direction when you pull the switch trigger.
To return to regular rotation, release the trigger and wait
until the tool's head stops.
NOTE:
• During the reverse rotation, the tool operates
only for a short period of time and then automat-
ically stops.
• Once the tool is stopped, the rotation returns to
regular direction when you start the tool again.
• If you tap the reverse button while the tool's
head is still rotating, the tool comes to stop and
to be ready for reverse rotation.
Nylon cutting head (optional
accessory)
NOTICE:
• The bump feed will not operate properly if the
head is not rotating.
1
1. Most effective cutting area
The nylon cutting head is a dual string trimmer head
provided with a bump & feed mechanism.
To cause the nylon cord to feed out, the cutting head
should be bumped against the ground while rotating.
NOTE: If the nylon cord does not feed out while
bumping the head, rewind/replace the nylon cord
by following the procedures described under
“Maintenance”.
ASSEMBLY
WARNING:
• Always be sure that the tool is switched
off and battery cartridge is removed before
carrying out any work on the tool. Failure to
switch off and remove the battery cartridge may

start-up.
• Never start the tool unless it is completely
assembled. Operation of the tool in a partially
assembled state may result in serious personal


10 ENGLISH
Installing the grip
2
1
5
3
4
1. Grip 2. Hex bolt 3. Cover 4. Clamp 5. Hanger
Fit the grip onto the pipe and tighten it with two hex bolts.
Make sure that the grip is located further than the hanger.
Installing the guard
WARNING:
• Never use the tool without the guard illus-
trated in place. Failure to do so can cause

CAUTION:
 
cutting the nylon cord.
1
3
2
1. Cutter 2. Clamp 3. Bolt
1
32
1. Cutter 2. Clamp 3. Bolt
(The shape of the guard may differ from country to country.)
Align the clamp on the pipe with the protector. And
tighten them with bolts.
Installing nylon cutting head or
plastic blade (optional accessory)
CAUTION:
• If the nylon cutting head / plastic blade acci-
dentally impacts a rock or hard object during
operation, stop the tool and inspect for any
damage. If the nylon cutting head / plastic
blade is damaged, replace it immediately.
Use of a damaged cutting tool could result in

NOTICE:
• Be sure to use genuine Makita nylon cutting head
/ plastic blade.
Turn the tool upside down so that you can replace the
nylon cutting head easily.
1
5
2
3
4
1. Nylon cutting head 2. Metal guard 3. Receive
washer 4. Hex wrench 5. Tighten
3
1
42
5
1. Plastic blade 2. Metal guard 3. Receive washer
4. Hex wrench 5. Tighten
Insert the hex wrench through the hole on the motor
housing and rotate the receive washer until it is locked
with the hex wrench. Place the nylon cutting head /
plastic blade onto the threaded spindle directly and
tighten it by turning it clockwise. Remove the hex
wrench.
To remove the nylon cutting head / plastic blade, turn it
counterclockwise while holding the receive washer with
the hex wrench.

11 ENGLISH
Hex wrench storage

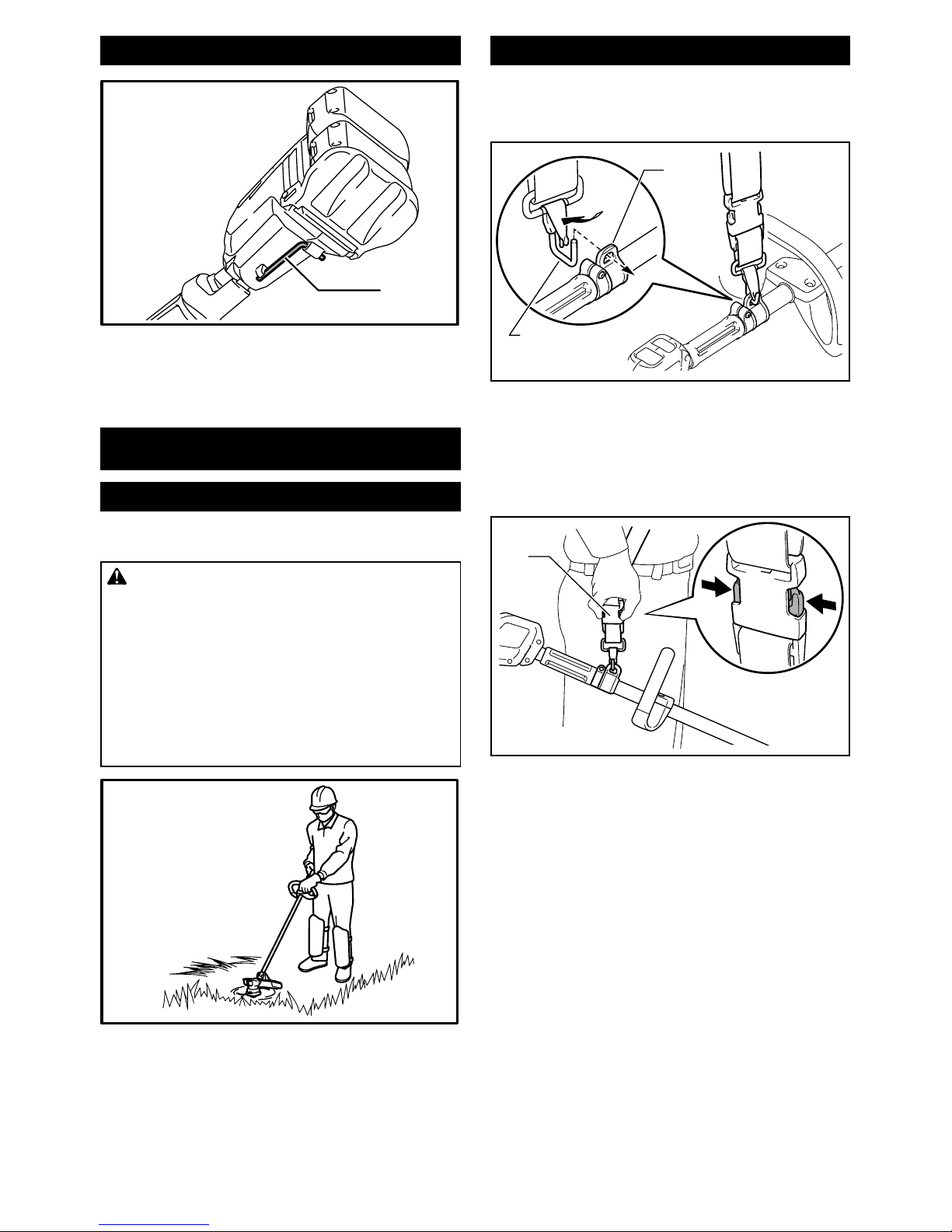

1
1. Hex wrench
When not in use, store the hex wrench as shown in the

OPERATION
Correct handling of tool
Correct posture
WARNING:
• Always position the tool on your right-hand
side. Correct positioning of the tool allows for
maximum control and will reduce the risk of

• Be extremely careful to maintain control of
the tool at all times. Do not allow the tool to

work vicinity. Failure to keep control of the tool

and the operator.
Shoulder harness
Optional accessory
Attachment of shoulder harness
1
2
1. Buckle 2. Hook
Put the shoulder harness on. Then connect the buckles
on both the hook and the harness. Be sure that the
buckles click and lock completely in place.
Detachment
1
1. Buckle
The buckle is provided with a means of quick release.
Simply squeeze the sides and the buckle to release the
tool.

12 ENGLISH
Adjustment of the hanger position
and shoulder harness
1
1. Hex bolt
To change the hanger position, loosen the hex bolt on
the hanger with the supplied wrench. Then move the
hanger.

with the wrench securely.
MAINTENANCE
WARNING:
• Always be sure that the tool is switched
off and battery cartridge is removed before
attempting to perform inspection or main-
tenance on the tool. Failure to switch off and
remove the battery cartridge may result in seri-

NOTICE:
Never use gasoline, benzine, thinner, alcohol or
the like. Discoloration, deformation or cracks may
result.
Replacing the nylon cord
WARNING: Use nylon cord with diameter

heavier line, metal wire, rope or the like. Use rec-
ommended nylon cord only, otherwise it may cause
damage to the tool and result in serious personal

WARNING: Make sure that the cover of the
nylon cutting head is secured to the housing
properly as described below. Failure to properly
secure the cover may cause the nylon cutting head to

For 95-M8R

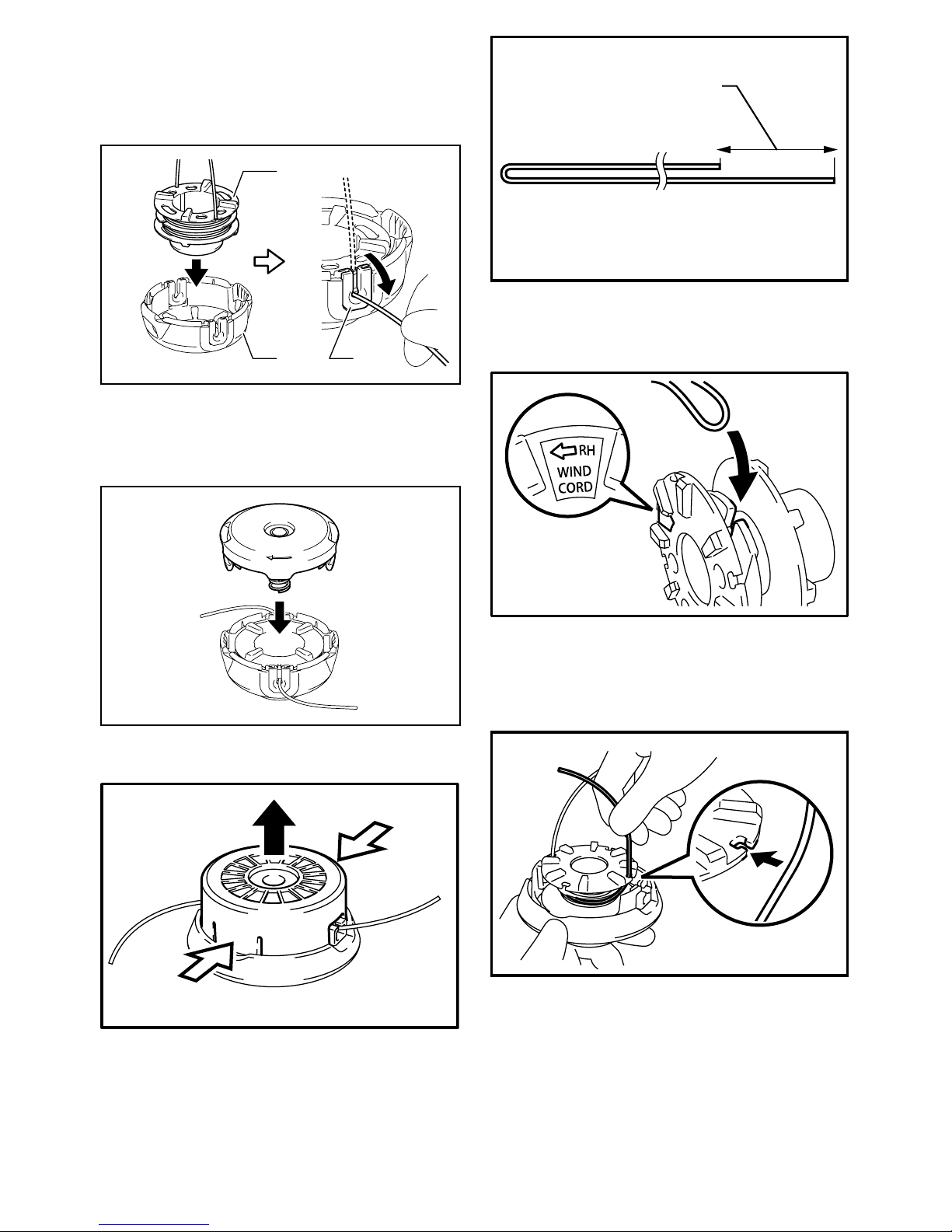

1. Press on the housing latches inward to lift off the
cover, then remove the spool.
1
1
2
1. Latch 2. Cover
2. Prepare approximately 3 m (9 ft) of new nylon
cord. Fold the new nylon cord with one end become

end. Then hook the new nylon cord into the notch in the
center of the spool.

of the head rotation (right-hand direction indicated by
RH on the side of the spool).
1
80 mm(3-1/8”)
1. Spool
3. 
cords, leaving the ends temporarily hooked through a
notch on the side of the spool.
100 mm(3-15/16”)

13 ENGLISH
4. Mount the spool in the housing so that the grooves
and protrusions on the spool match up with those in the
housing. Keep the side with letters on the spool visible
on the top. Now, unhook the ends of the cord from their
temporary position and feed the cords through the
eyelets to come out of the housing.
2
1
3
1. Spool 2. Housing 3. Eyelet
5. Align the protrusion on the underside of the cover

onto the housing to secure it.
For B&F ECO4R
Take off cover from housing, pressing two latches which
are slotted section oppositely on side of housing.
1
1. 80-100 mm
Cut a nylon line in 3 m. Fold the cutting line in two
halves, leave one of half longer 80-100 mm than
another.
Hook the middle of the new nylon cord to the notch
located at the center of the spool between the 2 chan-
nels provided for the nylon cord.

marked on the head for right hand direction indicated
by RH.
Wind all but about 100 mm of the cords, leaving the
ends temporarily hooked through a notch on the side of
the spool.

14 ENGLISH
Mount the spool on the cover so that the grooves and
protrusions on the spool match up with those on the
cover. Now, unhook the ends of the cord from their tem-
porary position and feed the cords through the eyelets
to come out of the cover.
Align the protrusion on the underside of the cover with

the housing to secure it. Make sure the latches fully
spread in the cover.
Replacing the plastic blade
Replace the blade if it is worn out or broken.
When installing the plastic blade, align the direction of
the arrow on the blade with that of the protector.
1
2
1. Arrow on the protector 2. Arrow on the blade
To maintain product SAFETY and RELIABILITY,

be performed by Makita Authorized or Factory Service
Centers, always using Makita replacement parts.

15 ENGLISH
TROUBLE SHOOTING

do not attempt to dismantle the tool. Instead, ask Makita Authorized Service Centers, always using Makita replace-
ment parts for repairs.
Malfunction status
Motor does not run.
Cause
Battery cartridge is not installed.
Battery problem (under voltage)
Rotation is in reverse.
Overheating.
Battery power is dropping.
Electric or electronic malfunction.
Action
Install the battery cartridge.
Remove the foreign object.
Motor stops running after
a little use.
It does not reach maximum
RPM.
Cutting tool does not rotate:
stop the machine immediately!
Abnormal vibration:
stop the machine immediately!
Cutting tool and motor cannot
stop:
Remove the battery
immediately!
The drive system does not work
correctly.
One end of the nylon cord has
been broken.
The drive system does not work
correctly.
Foreign object such as a branch
is jammed between the guard and
the nylon cutting head.
The drive system does
not work correctly.
Battery is installed improperly.
Battery's charge level is low.
The drive system does not work
correctly.
Recharge the battery. If recharging
is not effective, replace battery.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Ask your local authorized service
center for repair.
Remove the battery and ask your
local authorized service center for
repair.
Bump the nylon cutting head
against the ground while it is
rotating to cause the cord to feed.
Recharge the battery. If recharging
is not effective, replace battery.
Install the battery cartridge as
described in this manual.
Stop using of tool to allow it to cool
down.
Recharge the battery. If recharging
is not effective, replace battery.
Change the direction of ratation
with the reversing switch.

www. m a k i t a . c o m
M a k i t a E u r o p e N . V .
M a k i t a C o r p o r a t i o n 3 - 1 1- 8, Sumiyos hi -c ho,
Anj o, Ai c hi 446- 8502 Japan
Jan- B apti s t Vink s tr aat 2,
3070 Kor t enberg, Belgi um
OPTIONAL
ACCESSORIES
WARNING:
• Do not mount a blade on this tool and only
use the recommended accessories or attach-
ments indicated in this manual. The use of a
blade or any other accessory or attachment may

CAUTION:
• These accessories or attachments are recom-

in this manual. The use of any other accessories

persons. Only use accessory or attachment for
its stated purpose.
If you need any assistance for more details regard-
ing these accessories, ask your local Makita Service
Center.
• Nylon cutting head
• Nylon cord (cutting line)
• Plastic blade
• Shoulder harness
• Makita genuine battery and charger
NOTE:
• Some items in the list may be included in the
tool package as standard accessories. They
may differ from country to country.
885388G223
EN
20171207
