Makita HU01 User manual

1
INSTRUCTION MANUAL
MANUEL D'INSTRUCTION
MANUAL DE INSTRUCCIONES
IMPORTANT: Read Before Using.
IMPORTANT: Lire avant usage.
IMPORTANTE: Leer antes de usar.
Cordless Hedge Trimmer
Taille-haie sans fil
Cortasetos Inalámbrico
HU01
010965

2
ENGLISH (Original instructions)
SPECIFICATIONS
Model HU01
Blade length 200 mm (7-7/8")
Strokes per minute 1250/min.
Overall length 460 mm(18-1/8")
Net weight 1.2kg (2.7 lbs)
Rated voltage D.C. 10.8V / 12V max
Standard battery cartridge BL1014
 Due to our continuing programme of research and development, the specifications herein are subject to change without notice.
 Specifications and battery cartridge may differ from country to country.
 Weight, with battery cartridge, according to EPTA-Procedure 01/2003
END010-1
Symbols
The following show the symbols used for the equipment.
Be sure that you understand their meaning before use.
Take particular care and attention.
Read instruction manual.
Danger; be aware of thrown objects.
Keep bystanders away.
Cutting means continues to run after the
motor is switched off.
Do not expose to moisture.
Only for EU countries
Do not dispose of electric equipment or
battery pack together with household
waste material!
In observance of European Directive
2002/96/EC on waste electric and
electronic equipment, 2006/66/EC on
batteries and accumulators and waste
batteries and accumulators and their
implementation in accordance with
national laws, electric equipment and
battery pack that have reached the end
of their life must be collected separately
and returned to an environmentally
compatible recycling facility. ENE014-1
Intended use
The tool is intended for trimming hedges. GEA006-2
General Power Tool Safety
Warnings
WARNING Read all safety warnings and all
instructions. Failure to follow the warnings and
instructions may result in
electric shock, fire and/or
serious injury.
Save all warnings and
instructions for future reference.
The term "power tool" in the warnings refers to your
mains-operated (corded) power tool or battery-operated
(cordless) power tool.
Work area safety
1. Keep work area clean and well lit.
Cluttered or
dark areas invite accidents.
2.
Do not operate power tools in explosive
atmospheres, such as in the presence of
flammable liquids, gases or dust.
Power tools
create sparks which may ignite the dust or fumes.
3.
Keep children and bystanders away while
operating a power tool.
Distractions can cause
you to lose control.
Electrical Safety
4.
Power tool plugs must match the outlet. Never
modify the plug in any way. Do not use any
adapter plugs with earthed (grounded) power
tools.
Unmodified plugs and matching outlets will
reduce risk of electric shock.
5.
Avoid body contact with earthed or grounded
surfaces such as pipes, radiators, ranges and
refrigerators.
There is an increased risk of
electric shock if your body is earthed or grounded.
6.
Do not expose power tools to rain or wet
conditions.
Water entering a power tool will
increase the risk of electric shock.
7. Do not abuse the cord.
Never use the cord for
carrying, pulling or unplugging the power tool.
Keep cord away from heat, oil, sharp edges or
moving parts.
Damaged or entangled cords
increase the risk of electric shock.
8.
When operating a power tool outdoors, use an
extension cord suitable for outdoor use.
Use of
a cord suitable for outdoor use reduces the risk of
Cd
Ni-MH
Li-ion

3
electric shock.
9. If operating a power tool in a damp location is
unavoidable, use a ground fault circuit
interrupter (GFCI) protected supply. Use of an
GFCI reduces the risk of electric shock.
Personal Safety
10. Stay alert, watch what you are doing and use
common sense when operating a power tool.
Do not use a power tool while you are tired or
under the influence of drugs, alcohol or
medication. A moment of inattention while
operating power tools may result in serious
personal injury.
11. Use personal protective equipment. Always
wear eye protection. Protective equipment such
as dust mask, non-skid safety shoes, hard hat, or
hearing protection used for appropriate conditions
will reduce personal injuries.
12. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source and/or battery pack, picking
up or carrying the tool. Carrying power tools with
your finger on the switch or energising power tools
that have the switch on invites accidents.
13. Remove any adjusting key or wrench before
turning the power tool on. Awrench ora key left
attached to a rotating part of the power tool may
result in personal injury.
14. Do not overreach. Keep proper footing and
balance at all times. This enables better control
of the power tool inunexpected situations.
15. Dress properly. Do not wear loose clothing or
jewellery. Keep your hair, clothing, and gloves
away from moving parts. Loose clothes,
jewellery or long hair can be caught in moving
parts.
16. If devices are provided for the connection of
dust extraction and collection facilities,
ensure these are connected and properly used.
Use of dust collection can reduce dust-related
hazards.
Power tool use and care
17. Do not force the power tool. Use the correct
power tool for your application. The correct
power tool will do the job better and safer at the
rate for which it was designed.
18. Do not use the power tool if the switch does
not turn it on and off. Any powertool that cannot
be controlled with the switch is dangerous and
must be repaired.
19. Disconnect the plug from the power source
and/or the battery pack from the power tool
before making any adjustments, changing
accessories, or storing power tools. Such
preventive safety measures reduce the risk of
starting the powertool accidentally.
20.
Store idle power tools out of the reach of
children and do not allow persons unfamiliar
with the power tool or these instructions to
operate the power tool.
Power tools are
dangerous in the hands of untrained users.
21.
Maintain power tools. Check for misalignment
or binding of moving parts, breakage of parts
and any other condition that may affect the
power tools operation. If damaged, have the
power tool repaired before use.
Many accidents
are caused by poorly maintained powertools.
22. Keep cutting tools sharp and clean.
Properly
maintained cutting tools with sharp cutting edges
are less likely to bind and are easier to control.
23.
Use the power tool, accessories and tool bits
etc. in accordance with
these instructions,
taking into account the working conditions
and the work to be performed.
Use of the power
tool for operations different from those intended
could result in a hazardous situation.
Battery tool use and care
24.
Recharge only with the charger specified by
the manufacturer.
A charger that is suitable for
one type of battery pack may create a risk of fire
when used with another battery pack.
25.
Use power tools only with specifically
designated battery packs.
Use of any other
battery packs may create arisk of injury and fire.
26.
When battery pack is not in use, keep it away
from other metal objects, like paper clips,
coins, keys, nails, screws or other small metal
objects, that can make a connection from one
terminal to another.
Shorting the battery
terminals togethermay cause burns or a fire.
27.
Under abusive conditions, liquid may be
ejected from the battery; avoid contact. If
contact accidentally occurs, flush with water.
If liquid contacts ey
es, additionally seek
medical help.
Liquid ejected from the battery may
cause irritation or burns.
Service
28.
Have your power tool serviced by a qualified
repair person using only identical replacement
parts.
This will ensure that the safety of the power
tool is maintained.
29.
Follow instruction for lubricating and
changing accessories.
30.
Keep handles dry, clean and free from oil and
grease.

4
GEB062-2
CORDLESS HEDGE TRIMMER
SAFETY WARNINGS
1. Hold the power tool by insulated gripping
surfaces only, because the cutter blade may
contact hidden wiring. Cutter blades contacting
a "live" wire may make exposed metal parts of the
power tool "live" and could give the operator an
electric shock.
2. Keep all parts of the body away from the cutter
blade. Do not remove cut material or hold
material to be cut when blades are moving.
Make sure the switch is off when clearing
jammed material. A moment of inattention while
operating the hedge trimmer may result in serious
personal injury.
3. Carry the hedge trimmer by the handle with
the cutter blade stopped. When transporting
or storing the hedge trimmer always fit the
cutting device cover. Proper handling of the
hedge trimmer will reduce possible personal injury
from the cutter blades.
4. Do not use the hedge trimmer in the rain or in wet
or very damp conditions. The electric motor is not
waterproof.
5. First-time users should have an experienced
hedge trimmer user show them how to use the
trimmer.
6. The hedge trimmer must not be used by children
or young persons under 18 years of age. Young
persons over 16 years of age may be exempted
from this restriction if they are undergoing training
under the supervision of an expert.
7. Use the hedge trimmer only if you are in good
physical condition. If you are tired, your attention
will be reduced. Be especially careful at the end of
a working day. Perform all work calmly and
carefully. The user is responsible for all damages
to third parties.
8. Never use the trimmer when under the influence of
alcohol, drugs or medication.
9. Check to make sure that the voltage and
frequency of the power supply correspond to the
specifications given on the identification plate. We
recommend the use of a residual-current-operated
circuit breaker (ground-fault circuit interrupter) with
a tripping current of 30 mA or less, or an earth
leakage current protector.
10. Work gloves of stout leather are part of the basic
equipment of the hedge trimmer and must always
be worn when working with it. Also wear sturdy
shoes with anti-skid soles.
11. Before starting work check to make sure that the
trimmeris in good and safe working order. Ensure
guards are fitted properly. The hedge trimmer
must not beused unless fully assembled.
12. Make sure you have a secure footing before
starting operation.
13. Hold the tool firmly when using the tool.
14. Do not operate the tool
at no-load unnecessarily.
15. Immediately switch off the motor and remove the
battery cartridge if the cutter should come into
contact with a fence or other hard object. Check
the cutter for damage, and if damaged repair
immediately.
16. Before checking the cutter
, taking care of faults, or
removing material caught in the cutter, always
switch off the trimmer and remove the battery
cartridge.
17. Switch off the trimmer and remove the battery
cartridge before doing any maintenance work.
18. When moving the hedge trimmer to another
location, including during work, always remove the
battery cartridge. Never carry or transport the
trimmer with the cutter running. Never grasp the
cutter with your hands.
19. Clean the hedge trimmer and especially the cutter
after use, and before putting the trimmer into
storage for extended periods. Lightly oil the cutter
and put on the cover. The cover supplied with the
unit canbehung on the wall, providing a safe and
practical way to store the hedge trimmer.
20. Store the hedge trimmer with the cover on,in a dry
room. Keep it out of reach of children. Never store
the trimmer outdoors.
SAVE THESE INSTRUCTIONS.
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safet
y rules stated in this
instruction manual may cause serious personal
injury.
GEB070-2
CORDLESS GRASS SHEAR
SAFETY WARNINGS
WARNING! IMPORTANT READ CAREFULLY all
safety warnings and all inst
ructions BEFORE USE .
Failure to follow the warnings
and instructions may result
in electric shock, fire and/or serious injury.

5
Save all warnings and
instructions for future reference.
General instructions
1. To ensure correct operation, user has to read this
instruction manual to make himself familiar with
the handling of theequipment. Users insufficiently
informed will risk danger to themselves as well as
others due to improper handling.
2. Never allow people unfamiliar with these
instructions, people (including children) with
reduced physical, sensory or mental capabilities,
or lack of experience and knowledge to use the
equipment. Local regulations can restrict the age
of the operator.
3. Use the equipment with the utmost care and
attention.
4. Operate the equipment only if you are in good
physical condition. Perform all work calmly and
carefully. Use common sense and keep in mind
that the operator or user is responsible for
accidents or hazards occurring to other people or
their property.
5. Never operate the machine while people,
especially children, or pets are nearby.
6. Never use the equipment after consumption of
alcohol or drugs, or if feeling tired or ill.
7. The motor is to be switched off immediately in
case that the equipment shows any problem or
abnormal sign.
8. Switch off and remove the battery cartridge when
resting and when leaving the equipment
unattended, and place it in a safe location to
prevent danger to others or damage to the
equipment.
9. Don't force the equipment. it will do the job better
and with less likelihood ofa risk of injury at the rate
for which it was designed.
10. Don't overreach. Keep proper footing and balance
at all times.
Personal protective equipment
1. Dress Properly. The clothing worn should be
functional and appropriate, i.e. it should be
tight-fitting but not cause hindrance. Do not wear
either jewelry or clothing which could become
entangled. Wear protective hair covering to
contain long hair.
2. Wear eye protection and stout shoes at all times
while operating the machine.
Electrical and battery safety
1. Avoid dangerous environment. Don't use the
equipment in dampor wet locations or expose it to
rain. Water entering an equipment will increase
the risk of electric shock.
2. Recharge only with the charger specified by the
manufacturer. A charger that is suitable for one
type of battery pack may create arisk of fire when
used with another battery pack.
3. Use power tools only with specifically designated
battery packs. Use of any
otherbattery packs may
create a risk of injury and fire.
4. When battery pack is not inuse, keep itaway from
other metal objects, like paper clips, coins, keys,
nails, screws or other small metal objects, that can
make a connection from one terminal to another.
Shorting the battery terminals together may cause
burns or a fire.
5. Under abusive conditions, liquid may be ejected
from the battery; avoi
d contact. If contact
accidentally occurs, flush with water. If liquid
contacts eyes, additionally seek medical help.
Liquid ejected from the battery may cause irritation
or burns.
6. Do not dispose of the battery(ies) in a fire. The cell
may explode. Check with local codes for possible
special disposal instructions.
7. Do not open or mutilate the battery(ies). Released
electrolyte is corrosive and may cause damage to
the eyes or skin. It may be toxic if swallowed.
Starting up the equipment
1. Make sure that there are no children or other
people nearby, also pay attention to any animalsin
the working vicinity. Otherwise stop using the
equipment.
2. Before use always check that the equipment is
safe for operation. Chec
k the security of the
cutting tool and the guard and the switch
trigger/lever for easy and proper action. Check for
clean and dry handles and test the function of the
start/stop.
3. Check damaged parts before further use of the
equipment. A guard or other part that is damaged
should be carefully checked to determine that it
will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting, and any other condition that may affect
itsoperation. A guard or other partthat is damaged
should be properly repaired or replaced by our
authorized service center unless indicated
elsewhere in this manual.
4. Switch on the motor only when the hands and feet
are away from the cutting tool.
5. Before starting make sure that the cutting tool has
no contact with any objects.

6
Method of operation
1. Only use the equipment in good light and visibility.
During the winter season beware of slippery or wet
areas, ice and snow (risk of slipping). Always
ensure a safe footing.
2. Take care against injuryto feetandhands fromthe
cutting tool.
3. Never stand on a ladder and run the equipment.
4. Never climb up into trees to perform cutting
operation with the equipment.
5. Never work onunstable surfaces.
6. Remove sand, stones, nails etc. found within the
working range. Foreign particles may damage the
cutting tool and cancause dangerous kick-backs.
7. Should the cutting tool hit stones or other hard
objects, immediately switch off the motor and
inspect the cutting tool.
8. Inspect the cutting tool atshort regular intervals for
damage (detection of hairline cracks by means of
tapping-noise test).
9. Before commencing cutting, the cutting tool must
have reached full working speed.
10. The cutting tool has to be equipped with the
appropriate guard. Never run the equipment with
damaged guards or without guards in place!
11. All protective installations and guards supplied
with the equipmentmust be used during operation.
12. Always remove the battery cartridge from the
equipment:
whenever leaving the equipment unattended;
before clearing a blockage;
before checking, cleaning or working on the
equipment;
after striking a foreign object;
whenever the equipment starts vibrating
abnormally.
13. Always ensure that the ventilation openings are
kept clear of debris.
Cutting Tools
1. Employ only the correct cutting tool for the job in
hand.
Maintenanceinstructions
1. Thecondition of the equipment, in particular of the
cutting tool of the protective devices must be
checked before commencing work.
2. Turn off the motor and remove the battery
cartridge before carrying out maintenance,
replacing cutting tools or cleaning the equipment
or cutting tool.
3. Check loose fasteners and damaged parts such
as cracks in the cutting attachment.
4. Follow instructions for lubricating and changing
accessories.
5. When not in use, store the equipment indoors in
dry and high or locked-up place - out of the reach
of children. Clean andmaintain before storage.
6. Use only the manufacturer's recommended
replacement parts and accessories.
7. Inspect and maintain the equipment regularly,
especially before/after use. Have the equipment
repaired only by our authorized service center.
8. Keep handles dry, clean and free from oil and
grease.
KEEP FOR FUTURE REFERENCE
WARNING:
DO NOT let comfort or familiarity with product
(gained from repeated use) replace strict adherence
to safety rules for the subject product. MISUSE or
failure to follow the safet
y rules stated in this
instruction manual may cause serious personal
injury.
ENC007-6
IMPORTANT SAFETY
INSTRUCTIONS
FOR BATTERY CARTRIDGE
1.
Before using battery cartridge, read all
instructions and cautionary markings on (1)
battery charger, (2) battery, and (3) product
using battery.
2. Do not disassemble battery cartridge.
3.
If operating time has become excessively
shorter, stop operating immediately. It may
result in a risk of overheating, possible burns
and even an explosion.
4.
If electrolyte gets into your eyes, rinse them
out with clear water and seek medical
attention right away. It may result in loss of
your eyesight.
5. Do not short the battery cartridge:
(1)
Do not touch the terminals with any
conductive material.
(2)
Avoid storing battery cartridge in a
container with other metal objects such as
nails, coins, etc.
(3)
Do not expose battery cartridge to water
or rain.
A battery short can cause a large current flow,
overheating, possible burns and even a
breakdown.
6.
Do not store the tool and battery cartridge in
locations where the temperature may reach or
exceed 50 C (122 F).

7
7. Do not incinerate the battery cartridge even if
it is severely damaged or is completely worn
out. The battery cartridge can explode in a fire.
8. Be careful not to drop or strike battery.
9. Do not use a damaged battery.
SAVE THESE INSTRUCTIONS.
Tips for maintaining maximum battery life
1. Charge the battery cartridge before
completely discharged.
Always stop tool operation and charge the
battery cartridge when you notice less tool
power.
2. Never recharge a fully charged battery
cartridge.
Overcharging shortens the battery service life.
3. Charge the battery cartridge with room
temperature at 10 C - 40 C (50 F - 104 F).
Let a hot battery cartridge cool down before
charging it.
FUNCTIONAL DESCRIPTION
CAUTION:
 Always be sure that the tool is switched off and the
battery cartridge is removed before adjusting or
checking function on the tool.

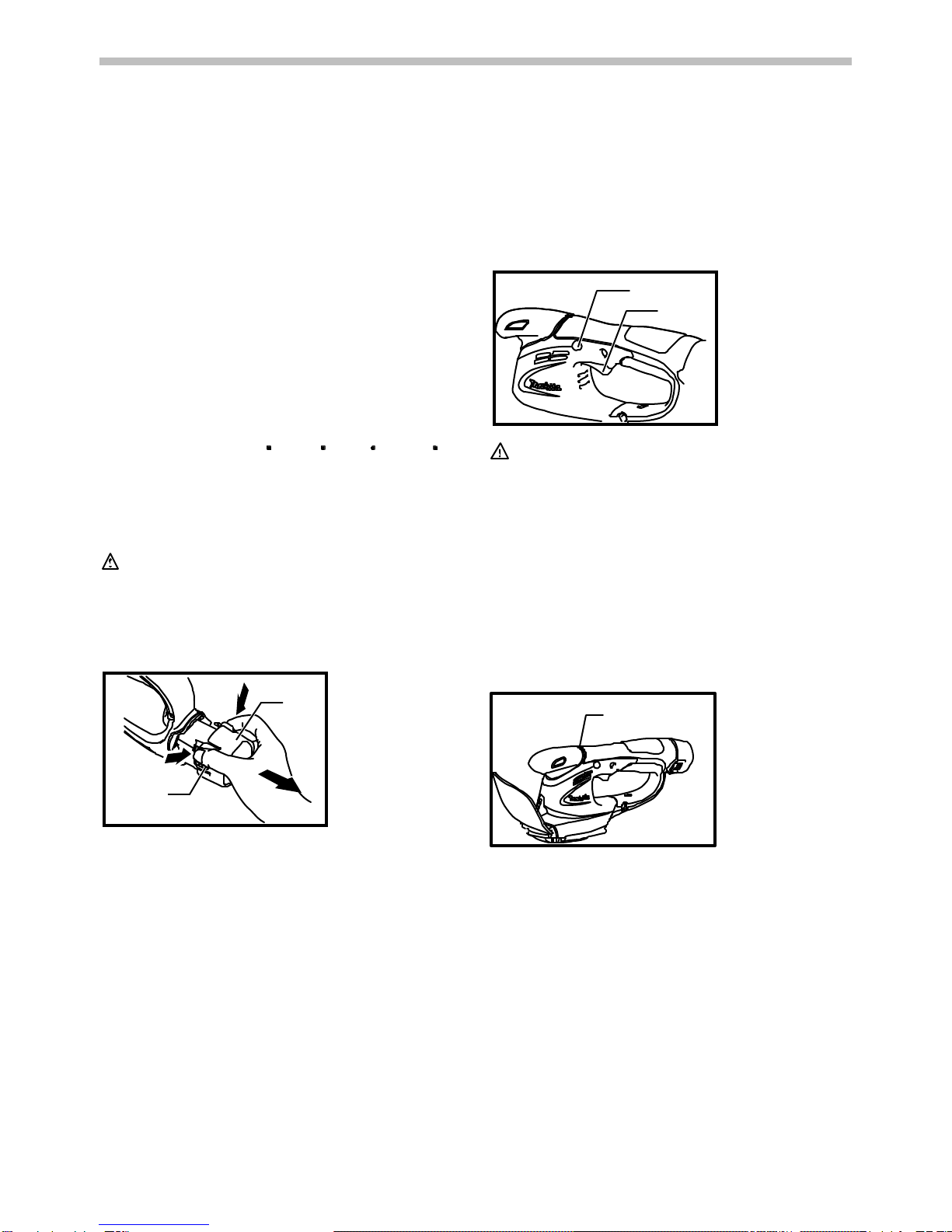

Installing or removing batterycartridge
1
2
010866
 Always switch off the tool before insertion or
removal of the battery cartridge.
 To remove the battery cartridge, withdraw it from
the tool while pressing the buttons on both sides of
the cartridge.
 To insert the battery cartridge, hold it so that the
battery cartridge front shape fits to that of the
battery installment opening and slip it into place.
Always insert it all the way until it locks in place with
a little click. If not, it may accidentally fall out of the
tool, causing injury to you or someone aroundyou.

Do not use force when inserting the battery
cartridge. If the cartridge does not slide in easily, it
is not beinginserted correctly.
Switch action
12
010868
CAUTION:

Before inserting the battery cartridge into the tool,
always check to see thatth
e switch trigger actuates
properly and returns to the "OFF" position when
released.
To prevent the switch trigger from being accidentally
pulled, a lock-off button is provided.
To start the tool, depress the lock-off button and pull the
switch trigger. Release the switch trigger to stop. The
lock-off button can be pressed from either right or left
side.
Indication lamp
1
010969
Running the tool allows the indication lamp to show the
battery cartridge capacity status.
When the toolis also overloaded and has stopped during
operation, the lamp lights up in red.
Refer to the following table for the status and action to be
taken for the indication lamp.
1. Indication lamp
1. Lock-off button
2. Switch trigger
1. Battery cartridge
2. Button

8
   
   

 
 

 


   


 
 
   
  

  
 
 
  
 

010970
OPERATION
Refer to the Safety Warnings before operation.
CAUTION:
 Be careful not to accidentally contact a metal fence
or other hard objects while trimming. The blade will
break and may cause serious injury.
 Also, be careful for the shear blade not to contact
the ground.
 Overreaching with a hedge trimmer, particularly
from a ladder, is extremely dangerous. Donot work
from anything wobbly or infirm.
010878
Do not attempt to cut branches thicker than 10 mm
diameter with this trimmer. These should first be cut with
shears down to the hedge trimming level.
CAUTION:
 Do not cut off dead trees or similar hard objects.
Failure to do so may damage the tool.
 Do not trim the grass or weeds while using hedge
shear blade. The shear blade may entangle the
grass or weeds.
010879
Hold the trimmer with one hand, depress the lock-off
button and pull the switch trigger and then move it in front
of your body.
12
3
010880
As a basic operation, tilt the blades towards the trimming
direction and move it calmly
and slowly at the speed rate
of 3 - 4 seconds per meter.
1. Trimming
direction
2. Tilt the blades
3. Hedge surface to
be trimmed

9
1
010881

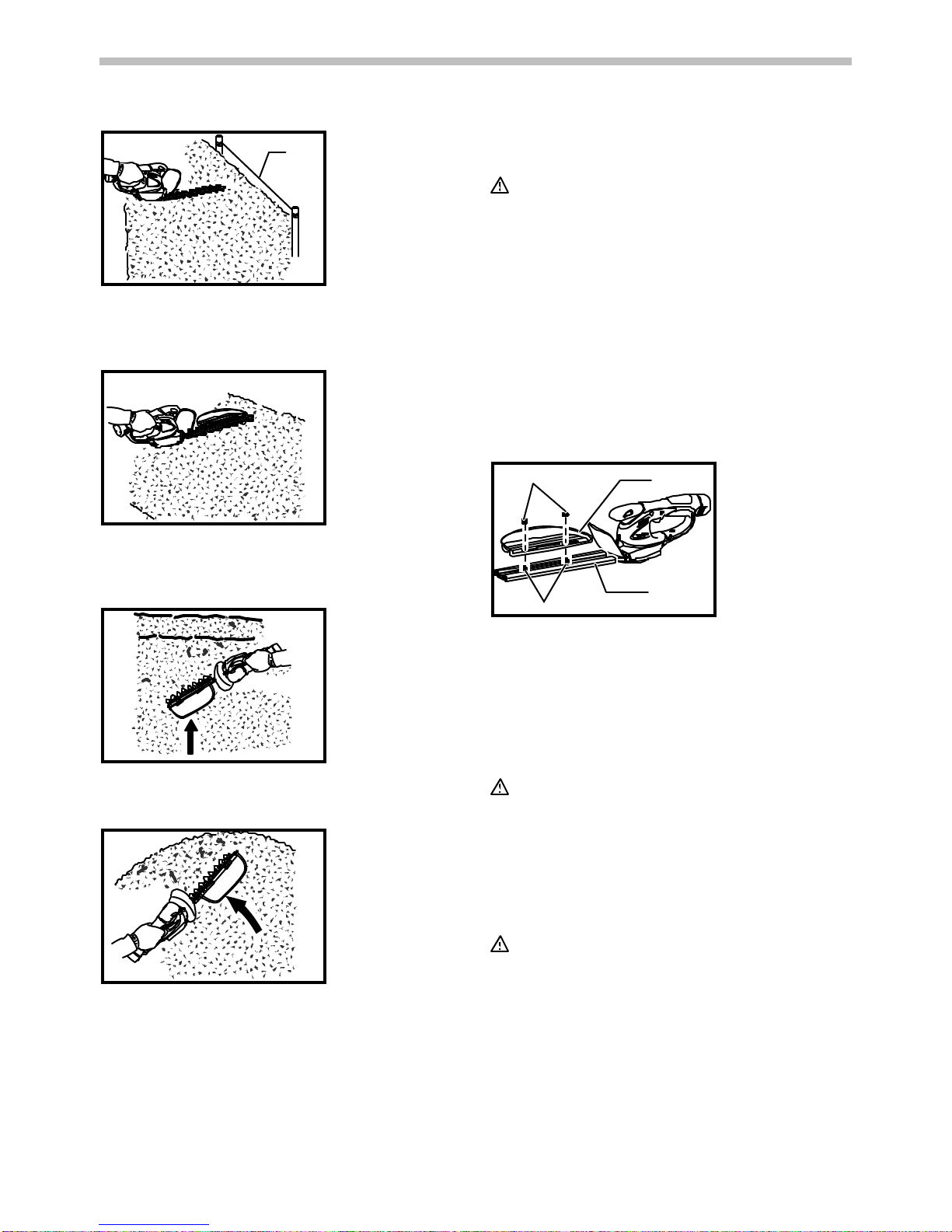

To cut a hedge top evenly, it helps to tie a string at the
desired hedge height and to trim along it, using it as a
reference line.
010966
Attaching the chip receiver (accessory) on the tool when
trimming the hedge straight can avoid cut off leaves'
being thrown away.
010967
To cut a hedge side evenly, it helps to cut from the bottom
upwards.
010968
Trim boxwood or rhododendron from the base toward the
top for a nice appearanceand good job.
Installing or removing chip receiver
(accessory)
CAUTION:

Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing chip receiver.
NOTE:

When replacing the chip receiver, always wear
gloves so that hands and face does not directly
contact the blade. Failure to do so may cause
personal injury.

When replacing the chip receiver, always be careful
not to contact the shear blades.

The chip receiver receives cut-off leaves and
alleviates collecting thrown-away leaves. This can
be installed on either side of the tool.
12
34
010877
Place the chip receiver on the shear blades so that its
slits overlap with the screws on the shear blades and
secure it using two clamping nuts.
To remove the chip receiver, loosen and remove the two
clamping nuts and then take it out.
MAINTENANCE
CAUTION:

Always be sure that the tool is switched off and the
battery cartridge is removed before attempting to
perform inspection or maintenance.
Cleaning the tool
Clean out the tool by wiping off dust with a dry or
soap-dipped rag.
CAUTION:

Never use gasoline, benzine, thinner, alcohol or the
like. Discoloration, deformation or cracks may
result.
1. Clamping nuts
2. Chip receiver
3. Screws on the
shear blades
4. Blade cover to
be always
installed before
installing the
chip receiver
1. String

10
Shear blade maintenance
1
010886
Smear the blade before and once per hour during
operation using machine oil or similars.
1
010885
After operation, remove dust from bothsides of theblade
with wired brush, wipe off it with a rag and then apply
enough low-viscosity oil, such as machine oil etc. and
spray-type lubricating oil.
CAUTION:
 Do not wash the blades in water. Failure to do so
may cause rust or damage on the tool.
Removing or installing hedge shear blades
CAUTION:
 Before removing or installing shear blades, always
be sure that the tool is switched off and the battery
cartridge is removed.
 When replacing the shear blades, always wear
gloves without removing blade cover so that hands
and facedonot directlycontact the blade. Failure to
do so may cause personal injury.
NOTE:
 Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
 For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
Removing the hedge shear blades
1
010890
CAUTION:

Install the blade cover before removing or installing
the shear blades.
Reverse the tool.
12
3
4
010891
To remove the shear blades, press the locking lever and
with the locking lever pressed turn the undercover
counterclockwise until the symbol
on the undercover
is aligned with the symbol on the locking lever.
1
010892
Take out the undercover from the tool.
1
010893
Loosen two screws with a coin and similars and remove
the shear blades.
1. Screws
1. Undercover
1. Undercover
2. Locking lever
3. Press
4. Turn
1. Blade cover
1. Machine oil
1. Brush

11
NOTE:
 Do not remove the screws. Without removing the
screws loosened, shearblades can be removed.
1
2
010894
Remove the crank from the shear blades.
NOTE:
 The crank may remain in the tool.
Installing the hedge shear blades
1 2
3
010904
Prepare the crank, the undercover and new shear
blades.
12
010905
Adjust the three detent pin position so that these three
pins are aligned with the basic alignment lineonthe tool
housing.
1
2
3
4
010906
Fit the crank withits recessed part facing downward onto
the detent pins. At this time, apply a small amount of
grease to the peripheryofthe crankusing grease that the
shear blades as optional accessory are provided with or
that remains inside gear housing.
1
2
3
010907
Overlap the oval hole in the upper blade with that in the
lower one. Move the shear blades so that the hole in the
base plate of shear blades are positioned in the center of
these overlapped oval holes.
1
010908
Take out the blade cover from the old shear blades and fit
it onto the new ones for easy handling during the
replacement of blades.
1. Blade cover
1. Crank
2. Shear blades
1. Crank
2. Apply grease.
3. Pins
4. Recessed part of crank
1. Oval holes that are overlapped
2. Hole in the baseplate of shear blades
3. Base plate
1. Basic alignment line on the tool housing
2. Pins
1. Crank
2. Undercover
3. Shear blades

12
1
010909
Turn the shear blades upside down and install it so that
pin on the tool fit in the hole in the shear blades. Fit the
bent part of the base plate of the shear blades to the
groove in the tool housing. Then make sure that the base
plate of the shear blades is set in place.
1
010910
Tighten twoscrews with a coin or similars firmly.
1
2
010911
Place the undercover so that the symbol on the
undercoveris alignedwith the symbol on the locking
lever.
010912
Press the undercover down and with the undercover
pressed down turn the undercover clockwise until the
symbol on the label is aligned with the symbol on
the locking lever (the undercover is completely locked.).
1
2
010913
At this time, make sure that the lockimg lever fits in the
groove in the undercover.
CAUTION:

Never use the tool without installing the undercover
on it.
Remove the blade cover and then turn on the tool to
check it for proper movement.
NOTE:

When the shear blades does not operate properly,
there is a poor fit between the blades and crank.
Redo from the beginning.
Storage
1
010914
The hook hole in the tool bottom is convenient for
hanging the tool from a nail or screw on thewall.
Put the blade cover on the shear blades so that the
blades are not exposed. Store the tool out of the reach of
children carefully.
Storethe tool in the place not exposed to water and rain.
To maintain product SAFETY and RELIABILITY, repairs,
carbon brush inspection and replacement, any other
maintenance or adjustment should be performed by
Makita Authorized Service Centers, always using Makita
replacement parts.
ACCESSORIES
CAUTION:

These accessories or attachments are
recommended for use with your Makita tool
specified in this manual. The use of any other
accessories or attachments might present a risk of
injury to persons. Only use accessory or
1. Hook hole
1. Groove in the
undercover
2. Locking lever
1. Locking lever
2. Undercover
1. Screws
1. Bent part of the
base plate of
shear blades

13
attachment for its stated purpose.
If you need any assistance for more details regarding
these accessories, ask your local Makita Service Center.
 Hedge shear blade cover
 Hedge shear bladeassembly
 Chip receiver for hedge trimming
 Makita genuine battery and charger
For cordless grass shear use
This tool can be used as a grass shear by using the grass
shear blade (optional accessory) and 2-way change set.
To use this tool as a grass shear, replacing the hedge
shear blades with the grass shear blades is required.
For removing the hedge trimmer blades, refer to the
aforementioned section titled "Removing the hedge
shear blades".
For installing the grass shear blade, refer to the section
below titled "Installing or removing grass shear blades".

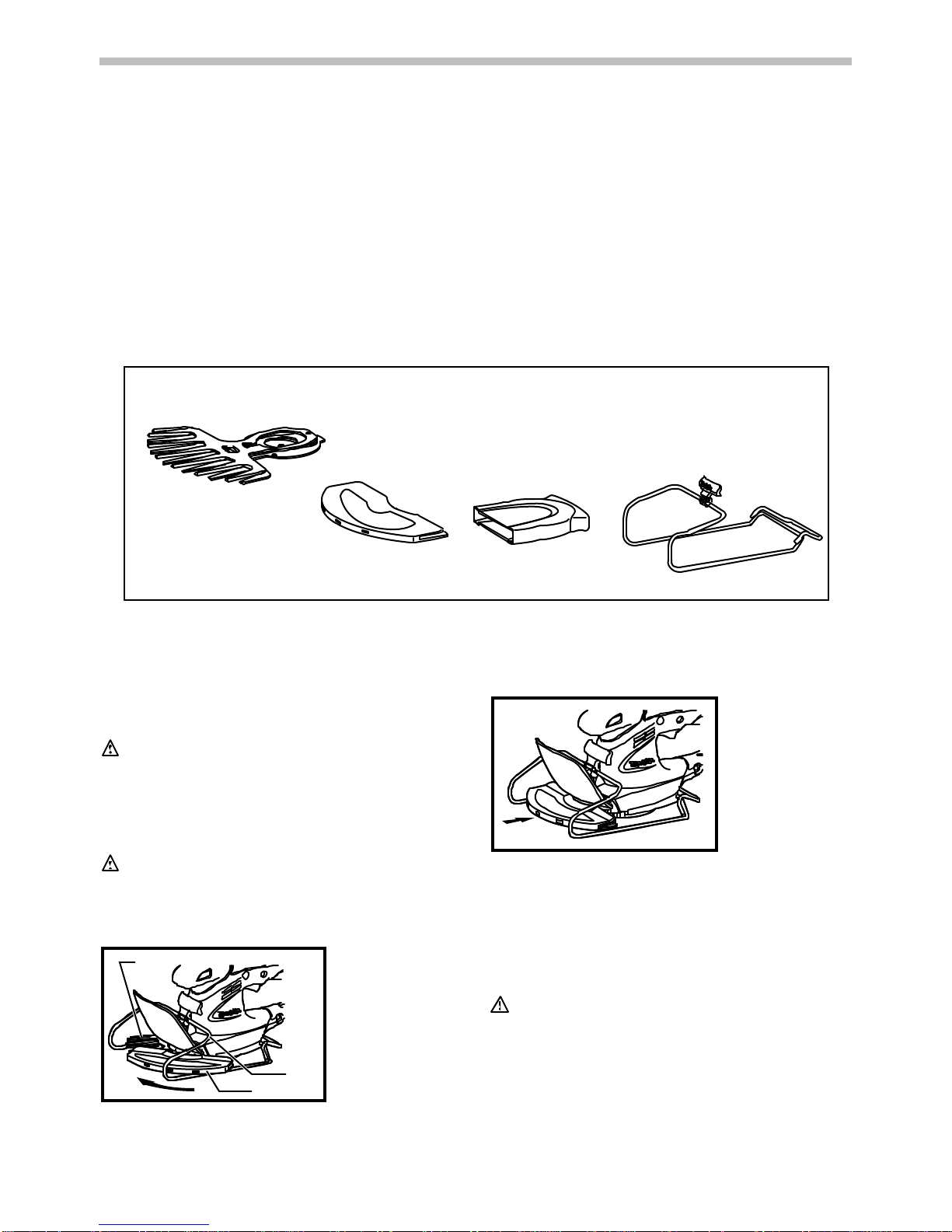

 Grass shear blade assembly (for Grass Shear)

2-way change set consisting of the following three
accessories
 Grass shearblade cover (for Grass Shear)
 Storage case (for blade bottom section)
 Base frame (for Grass Shear)
1
234
011042
 Long handle attachment (for Grass Shear)
ASSEMBLY
CAUTION:
 Always be sure that the tool is switched off and the
battery cartridge is removed before carrying out
any work on thetool.
Installing or removing blade cover
CAUTION:
 Be careful not to contact the shear blade when
installing or removing the blade cover. Contacting
the shear blade may cause personal injuries.
1
2
3
010869
010870
Slide the blade cover from the tool's side until the shear
blade completely hides itself and then push in it lightly
towards the tool from the front.
To remove the blade cover, take the above installation
procedure in reverse.
Installing or removing grass shear blades
CAUTION:

Always be sure that the tool is switched off and the
battery cartridge is removed before installing or
removing shear blades. Failure to switch off and
remove the battery cartridge from the tool may
result in serious injury from accidental start-up.
1. Shear blades
2. Base frame
3. Blade cover
1. Grass shear blade
2. Grass shear blade cover
3. Storage case
4. Base frame

14
 When replacing the shear blade, always wear
gloves without removing blade cover so that hands
and facedoes not directlycontacttheblade. Failure
to do so may cause personal injury.
NOTE:
 Do not wipe off grease from the gear and crank.
Failure to do so may cause damage to the tool.
 For specific way of removing and installing shear
blades refer to the reverse of a package for
accessory shear blades.
1 2 3
010895
To install the grass shear blade, prepare the crank,
undercover and new grass shear blade
1
2
010896
Take out the blade cover from the old shear blades and fit
it onto the new ones for easy handling during the
replacement of blades.
1 2
010897
Adjust the three detent pin position so that these pins are
lined up at right angle in relation to the basic alignment
line on the tool housing.
1
2
34
010898
Fit the crank with its recessed part facing upwards onto
the detent pins. At this time, apply a small amount of
grease to the peripheryofthe crankusing grease that the
shear blades as optional accessory are provided with or
that remains inside gear housing.
12
3
010899
Overlap the oval hole in the upper blade with that in the
lower one. Move the shear blades so that the hole in the
base plate of shear blades are positioned in the center of
these overlapped oval holes.
1. Base plate
2. Holein the base
plate of shear
blades
3. Oval holes that
are overlapped
1. Recessed part o
f
crank
2. Pins
3. Crank
4. Apply grease
1. Blade cover
2. Shear blades
1. Crank
2. Undercover
3. Shear blades
1. Basic alignment line on the tool housing
2. Pins

15
010900
Turn the shear blades upside down and install it so that
the detent pins on the tool fit in the hole in the shear
blades. Make sure that the shear blades are set in place
securely as far as they reach thebase plate.
12
010901
Place the undercover so that the symbol on the
undercoveris alignedwith the symbol on the locking
lever.
010902
Press the undercover down and with the undercover
pressed down turn the undercover clockwise until the
symbol on the label is aligned with the symbol on
the locking lever (the undercover is completely locked.).
1
2
010903
At this time, make sure that the lockimg lever fits in the
groove in the undercover.
Remove the blade cover and then turn on the tool to
check it for proper movement.
NOTE:

When the shear blades does not operate properly,
there is a poor fit between the blades and crank.
Redo from the beginning.
1
010887
Removethe baseframe and place the toolupside down.
CAUTION:

Before placing the tool upside down, be sure to
remove the base frame (only for Model UM164D).
12
3
4
010888
To remove the shear blade, press the locking lever and
with the locking lever pressed turn the undercover
counterclockwise until the symbol
on the undercover
is aligned with the symbol on the locking lever.
1
2
3
010889
Takeout the undercover, shear blade and crank in order
from the tool.
1. Undercover
2. Shear blade
3. Crank
1. Undercover
2. Locking lever
3. Press
4. Turn
1. Blade cover
1. Groove in the
undercover
2. Locking lever
1. Undercover
2. Locking lever

16
1
011043
NOTE:
 In the 2-way usage, the removed hedge shear
blade need to be sheared in the blade storage case
and then stored for future use.
Installing or removing base frame
CAUTION:
 Before installing or removing base frame, be sure
to install the blade cover.
 When installing or removing base frame, take care
that your fingers are not be pinched between the
tool and base frame.
12
010872
To remove the base frame, upset the tool and take it out
of the groove grabbing its bottom.
1
23
010873
To install the base frame, fit the protrusion of base frame
near the change lever into the hole for the sheared grass
height setting. With the base frame so fitted, pull the
lower part of base frame and fit the other part of the base
frame in the groove in thetool.
Adjusting the shearing height
1
23
010871
Changing the position of holdingthe change lever allows
three-stepped setting for sheared grass height (10 mm,
15 mm, 25 mm).
To change setting, tilt the change lever for the base frame
position and with the change lever tilted move it up or
down along the tool surface until the protrusion on base
frame fits in one of the holes in the tool and release it.
OPERATION
WARNING:
 Keep hands away from blades.
CAUTION:

Smear the blade before and once per hour during
operation using machine oil or similars.

Avoid operating the tool under the scorching
sunlight as much as practicable. When operating
the tool, be careful of your physical conditions.
010874
Turn the tool on after adjusting the shearing height and
hold it so thatthe foot of the tool rest on theground. Then
gently move the tool forward into the area to be cut.
010875
When trimming around curb, fence or trees, move the
tool along them. Be careful for the blade not to contact
them.
1. Change lever
2. Protrusionon
base frame
3. Base frame
1. Change lever
2. Protrusionon
base frame
3. Base frame
1. Groove
2. Base frame
1. Storage case

17
010876
When trimming sprouts or foliage of a small tree, remove
the base frame from the tool and cut little by little.
Shear big branches to your desired height beforehand
using branch scissors before using this tool.
CAUTION:
 When trimming twigs and foliage, do not attempt to
trim too much at a time. Proceed gently.Also do not
attempt to cut thick branches.
 Do not let the shear blades contact the grounds
during operation. The blades will be dulled,causing
poor performance.
 Do not trim wet grass or foliage of small trees
MAKITA LIMITED ONEYEAR WARRANTY
Warranty Policy
Every Makita tool is thoroughly inspected and tested
before leaving the factory. It is warranted to be free of
defects from workmanship and materials for the period
of ONE YEAR from the date of original purchase.
Should any trouble develop during this one year period,
return the COMPLETE tool, freight prepaid, to one of
Makitas Factory or Authorized Service Centers. If
inspection shows the trouble is caused by defective
workmanship or material, Makita will repair (or at our
option, replace) without charge.
This Warranty does not apply where:
IN NO EVENT SHALL MAKITA BE LIABLE FOR ANY
INDIRECT, INCIDENTAL OR CONSEQUENTIAL
DAMAGES FROM THE SALE OR USE OF THE
PRODUCT. THIS DISCLAIMER APPLIES BOTH
DURING AND AFTER THE TERM OF THIS
WARRANTY.
MAKITA DISCLAIMS LIABILITY FOR ANY IMPLIED
WARRANTIES, INCLUDING IMPLIED WARRANTIES
OF "MERCHANTABILITY" AND "FITNESS FOR A
SPECIFIC PURPOSE,"AFTER THE ONE YEAR TERM
OF THIS WARRANTY.
This Warranty gives you specific legal rights, and you
may also have other rights which vary from state to
state. Some states do not allow the exclusion or
limitation of incidental or consequential damages, so
the above limitation or exclusion may not apply to you.
Some states do not allow limitation on how long an
implied warranty lasts, so the above limitation may not
apply to you.
repairs have been made or attempted by others:
repairs are required because of normal wear and
tear:
the tool has been abused, misused or improperly
maintained:
alterations havebeen made to the tool.
EN0006-1

18
FRANÇAIS (Mode demploi original)
SPÉCIFICATIONS
Modèle HU01
Longueur de la lame 200 mm (7-7/8")
Nombre d'impacts par minutes 1250 /min.
Longueur totale 460 mm (18-1/8")
Poids net 1,2kg (2,7 lbs)
Tension nominale CC 10,8 V/12 Vmaximum
Batterie standard BL1014
 Étant donné l'évolution constante de notre programme de recherche et de développement, les spécifications contenues dans ce
manuel sont sujettes à modification sans préavis.
 Les caractéristiques techniques et la batterie peuvent varier suivant les pays.
 Poids, batterie comprise, conforme à la procédure EPTA de 01/2003
END010-1
Symboles
Les symboles utilisés pour l'équipement sont indiqués
ci-dessous. Vous devez en avoir compris le sens avant
l'utilisation. Faites particulièrement attention.
Lisez le manuel dinstructions.
Attention : des objets peuvent être
projetés.
Tenirtoute autre personne éloignée.
Les organes de coupe continuent de
fonctionner une fois le moteur éteint.
Conserver à labri de lhumidité.
Uniquement pour les pays dEurope
Ne jetez pas les équipements
électriques ou les batteries avec les
déchets domestiques !
Dans le respect des Directives
Européennes 2002/96/CE sur la mise
au rebut des appareils électriques et
électroniques et 2006/66/CE sur les
batteries et accumulateurs ainsi que les
batteries et accumulateurs usagés, et
de leur exécution conformément à la loi
nationale, les équipements électriques
dont la durée de vie est épuisée doivent
être collectés séparément et renvoyés
dans des installations de recyclage
respectueuses de lenvironnement.
ENE014-1
Utilisation
Cet outil est conçu pour tailler les haies.
GEA006-2
Consignes de sécurité générales
pour outils électriques
MISE EN GARDE Veuillez liretoutes les mises en
garde de sécurité et toutes les instructions.
L'ignorance des mises en garde et des instructions
comporte un risque de choc électrique, d'incendie et/ou
de blessure grave.
Conservez toutes les mises en
garde et instructions pour
référence future.
Le terme outil électrique
qui figure dans les
avertissements fait référence à un outil électrique
branché sur une prise de courant (par un cordon
d'alimentation) ou alimenté par batterie (sans fil).
Sécurité de la zone de travail
1.
Maintenez la zone de travail propre et bien
éclairée.
Les zones de travail encombrées ou
sombres ouvrent grande la porte aux accidents.
2.
N'utilisez pas les outils électriques dans les
atmosphères explosives, par exemple en
présence de liquides, gaz ou poussières
inflammables.
Les outils électriques produisent
des étincelles au contact desquelles la poussière
ou les vapeurs peuvent s'enflammer.
3.
Assurez-vous qu'aucun enfant ou curieux ne
s'approche pendant que vous utilisez un outil
électrique.
Vous risquez de perdre la maîtrise de
l'outil si votre attention est détournée.
Sécurité en matière d'électricité
4. Les fiches d'outil élec
trique sont conçues
pour s'adapter parfaitement aux prises de
courant. Ne modifiez jamais la fiche de
quelque façon que ce soit. N'utilisez aucun
adaptateur de fiche sur les outils électriques
avec mise à la terre.
En ne modifiant pas les
Cd
Ni-MH
Li-ion

19
fiches et en les insérant dans des prises de
courantpour lesquelles elles ont étéconçues vous
réduirez les risques dechoc électrique.
5. Évitez tout contact corporel avec les surfaces
mises à la terre, telles que les tuyaux,
radiateurs, cuisinières et réfrigérateurs. Le
risque de choc électrique est plus élevé si votre
corps se trouve mis à la terre.
6. N'exposez pas les outils électriques à la pluie
ou à l'eau. La présence d'eau dans un outil
électrique augmente le risque de choc électrique.
7. Ne maltraitez pas le cordon. N'utilisez jamais
le cordon pour transporter, tirer ou
débrancher l'outil électrique. Maintenez le
cordon à l'écart des sources de chaleur, de
l'huile, des objets à bords tranchants et des
pièces en mouvement. Le risque de choc
électrique est plus élevé lorsque les cordons sont
endommagés ou enchevêtrés.
8. Lorsque vous utilisez un outil électrique à
l'extérieur, utilisez un cordon prolongateur
prévu à cette fin. Les risques de choc électrique
sont moindres lorsqu'un cordon conçu pour
l'extérieur est utilisé.
9. Si vous devez utiliser un outil électrique dans
un endroit humide, utilisez une source
d'alimentation protégée par un disjoncteur de
fuite à la terre. L'utilisation d'un disjoncteur de
fuite à la terre réduit le risque de choc électrique.
Sécurité personnelle
10. Restez alerte, attentif à vos mouvements et
faites preuve de bon sens lorsque vous
utilisez un outil électrique. Évitez d'utiliser un
outil électrique si vous êtes fatigué ou si vous
avez pris une drogue, de l'alcool ou un
médicament. Un moment d'inattention pendant
l'utilisation d'un outil électrique peut entraîner une
grave blessure.
11. Portez des dispositifs de protection
personnelle. Portez toujours un protecteur
pour la vue. Les risquesde blessure seront moins
élevés si vous utilisez des dispositifs de protection
tels qu'un masque antipoussières, des
chaussures à semelle antidérapante, une coiffure
résistante ou une protectiond'oreilles.
12. Évitez les démarrages accidentels.
Assure z-vous que linterrupteur soit en
position d'arrêt avant de brancher l'outil à la
prise électrique et/ou au bloc-piles, avant de
prendre ou de transporter loutil. Vous ouvrez la
porte aux accidents si vous transportez les outils
électriques avec le doigt sur linterrupteur ou si
vous les branchez alors que linterrupteur est en
position de marche.
13.
Retirez toute clé de réglage ou de serrage
avant de mettre l'outil sous tension.
Toute clé
laissée en place sur une pièce rotative de l'outil
électrique peut entraîner une blessure.
14.
Maintenez une bonne position. Assurez-vous
d'une bonne prise au sol et d'une bonne
position d'équilibre en tout temps.
Cela vous
permettra d'avoir une meilleure maîtrise de l'outil
dans les situations imprévues.
15.
Portez des vêtements adéquats. Ne portez ni
vêtements amples ni bijoux. Vous devez
maintenir cheveux, vêtements et gants à
l'écart des pièces en mouvement.
Les pièces
en mouvement peuvent happer les vêtements
amples, les bijoux et les cheveux longs.
16.
Si des accessoires sont fournis pour
raccorder un appareil d'aspiration et de
collecte de la poussière, assurez-vous qu'ils
sont correctement raccordés et qu'ils sont
utilisés de manière adéquate.
L'utilisation d'un
appareil d'aspiration permet de réduire les risques
liés à la présence de poussière dans l'air.
Utilisation et entretien des outils électriques
17.
Ne forcez pas l'outil électrique. Utilisez l'outil
électrique adéquat suivant le type de travail à
effectuer.
Si vousutilisez l'outil électrique adéquat
et respectez le régime pour lequel il a été conçu, il
effectuera un travail de meilleure qualité et de
façon plus sécuritaire.
18.
N'utilisez pas l'outil électrique s'il n'est pas
possible de mettre sa gâchette en position de
marche et d'arrêt.
Un outil électrique dont
l'interrupteur est défectueux représente un danger
et doit être réparé.
19.
Débranchez la fiche de la source
d'alimentation et/ou retirez le bloc-piles de
l'outil électrique avant d'effectuer tout réglage,
de changer un accessoire ou de ranger l'outil
électrique.
De telles mesures préventives
réduisent les risques de démarrage accidentel de
l'outil électrique.
20.
Après l'utilisation d'un outil électrique,
rangez-le hors de portée des enfants et ne
laissez aucune personne l'utiliser si elle n'est
pas familiarisée avec l'outil électrique ou les
présentes instructions d'utilisation.
Les outils
électriques représentent un danger entre les
mains de personnes qui n'en connaissent pas le
mode d'utilisation.
21. Veillez à lentre tien
des outils électriques.
Assurez-vous que les pièces mobiles ne sont
pa s désa lignées ou coincée s, quaucune pièce
nest cassée e t que lout
il électrique na subi
aucun dommage affectant son bon
fonctionnement. Le cas échéant, faites réparer

20
l'outil électrique avant de l'utiliser. De
nombreux accidents sont causés par des outils
électriques mal entretenus.
22. Maintenez les outils tranchants bien aiguisés
et propres. Un outil tranchant dont l'entretien est
effectué correctement et dont les bords sont bien
aiguisés risquera moins de secoincer et sera plus
facile à maîtriser.
23. Utilisez l'outil électrique, ses accessoires, ses
embouts, etc., en respectant les présentes
instructions, en tenant compte des conditions
de travail et du type de travail à effectuer.
L'utilisation d'un outil électrique à des fins autres
que celles prévues peut entraîner une situation
dangereuse.
Utilisation et entretien des outils alimentés par
batterie
24. Pour recharger, utilisez uniquement le
chargeur spécifié par le fabricant. L'utilisation
d'un chargeur conçu pour un type donné de
bloc-piles comporte un risque d'incendie lorsqu'il
est utilisé avec un autre type de bloc-piles.
25. N'utilisez un outil électrique qu'avec le
bloc-piles conçu spécifiquement pour cet outil.
Il y a risque de blessure ou d'incendie si un autre
bloc-piles est utilisé.
26. Lorsque vous n'utilisez pas le bloc-piles,
rangez-le à l'écart des objets métalliques tels
que trombones, pièces de monnaie, clés,
clous, vis ou autres petits objets métalliques
qui risquent d'établir une connexion entre les
bornes. La mise en court-circuit des bornes de
batterie peut causer des brûlures ou un incendie.
27. Dans des conditions d'utilisation inadéquates
de la batterie, il peut y avoir fuite d'électrolyte;
évitez tout contact avec ce liquide. En cas de
contact accidentel, rincez avec beaucoup
deau. Si le liquide pénètre dans vos yeux, il
faut aussi consulter un médecin. L'électrolyte
qui s'échappe de la batterie peut causer des
irritations ou des brûlures.
Réparation
28. Faites réparer votre outil électrique par un
réparateur qualifié qui utilise des pièces de
rechange identiques aux pièces d'origine. Le
maintien de la sûreté de l'outil électrique sera ainsi
assuré.
29. Suivez les instructions de lubrification et de
changement des accessoires.
30. Maintenez les poignées de l'outil sèches,
propres et exemptes d'huile ou de graisse.
GEB062-2
MISES EN GARDE DE SÉCURITÉ
DU TAILLE-HAIE SANS FIL
1.
Tenez l'outil par ses surfaces de prise isolées
seulement, car la lame pourrait entrer en
contact avec un câblage dissimulé.
En cas de
contact avec un conducteur sous tension, les
pièces métalliques à découvertde l'outil pourraient
conduire le courant et
risqueraient de transmettre
une décharge électrique à l'utilisateur.
2.
Napprochez aucune pa rtie de votre corps de
la lame. N'enlevez pas le matériau coupé ou ne
tenez pas le matériau à couper lorsque les
lames sont en mouvement. Assurez-vous que
loutil est bie n éte int lorsque vous retirez le s
matériaux coincés.
Une seconde dinattention
en manipulant le taille-haie peut entraîner de
graves blessures corporelles.
3. Portez le taille-haie
par les poignées avec la
lame arrêtée. Lorsque vous transportez ou
rangez le taille-haie, mettez toujours la
protection du dispositif de coupe.
Une
manipulation correcte du taille-haie réduit le risque
de blessurescorporelles pouvantêtre causées par
les lames.
4. Ne pas utiliser le taille-haie sous la pluie ou dans
des conditions très humides. Le moteur électrique
nest pas résistant à leau.
5. Il est recommandé aux personnes utilisant le
taille-haie pour la première fois de demander à un
utilisateur expérimenté de leur montrer comment
lutiliser.
6. Le taille-haie ne doit pas être utilisé par des
enfants ou des mineurs. Les mineurs de plus de
16 ans ne sont pas soumis à cette restriction sils
suivent une formation supervisée par un
spécialiste.
7. Utilisez le taille-haie seulement si vous êtes en
bonne forme physique. Si vous êtes fatigué, vous
serez moins attentif. Soyez tout particulièrement
prudent après une journée de travail. Manipulez
délicatement et soigneusement la machine.
Lutilisateur est responsable pour tout dommage
causé à un tiers.
8. Ne jamais utiliser le taille-haie sous lemprise de
lalcool, de drogues ou de médicaments.
9. Assurez-vous que la tension et la fréquence de
lalimentation correspondent aux spécifications
indiquées sur la plaque signalétique. Il est
recommandé dutiliser un disjoncteur courant
résiduel (interrupteur de circuit de défaut de la
terre) avec un courant de déclenchement de 30
mA ou inférieur, ou un disjoncteur de fuite à la
terre.
