Makita VC4210MX3 User manual

107418275 – 2017-03-06
Originalbetriebsanleitung
Original Operating Instructions
Notice d’utilisation d‘origine
Oorspronkelijke Gebruiksaanwijzing
Istruzioni originali
Original driftsinstruks
Bruksanvisning i original
Original brugsanvisning
Alkuperäiset ohjeet
Manual original
Instruções de operação original
Πρωτότυπο οδηγιών χρήσης
Orijinal talimatlar
Izvirna navodila
Izvorni upute
R
Pôvodný návod na použitie
Původní návod k používání
Instrukcja oryginalna
Eredeti használati utasítás
Original instrucţiuni
Оригинална инструкция
Оригинальные инструкции
Algupärane kasutusjuhend
Instrukcijas oriģinālvalodā
Originali instrukcija
Udhëzimet origjinale
Оригинално упатство за употреба
Првобитна упутства
Оригінальні інструкції
VC4210M

Makita VC4210M
A1*)
1
2
1
5
4
5
A2*) M
1
2
1
6
5
6
1
2
1
3
3
4
4
5
5
5
6
6
1
2
1

Makita VC4210M
A4
ø21 ø21
ø27 ø27
ø32 ø32
ø36 ø36
ø38 ø38
2
turn vac on, Vibeke will make
3
2
1
A3*) M
!!
1
2
1
!!
5
4
5
4
3
1
2
1
5
6
6
MAX.
MIN.
4
5

Makita VC4210M
1
1
1
1
1
1
1
A5*)
1
1
1
1
1
1
1
1 2
1
1
1
1
1
1
1
A5*)
1
1
1
1
1
1
1

Makita VC4210M
A6*)
x4
x4
1
1
22
3A
3A
4A
4A
4A
4A
3B
4B
4B

Makita VC4210M
A7*)
x2
x2
x4
B1
20 m/s
=
1
3
2


Makita VC4210M
B2
3
4
3x
AutoClean
B3
10 sec.
2
1

Makita VC4210M
C1 C1
1
7
2
2
3
4
5
6
8

Makita VC4210M
D1 M
5
4
3
1
2
1
7
6
7
5
4
3
1
2
3
2
4
5
6
7
8
8
D2*) M
!!
1
2
1
7
6
7
!!
1
2
1
7
6
7
5
4
7
6
5
4
3
1
2
3
2
5
4
3
8
9
9

Makita VC4210M
D3 M
4
4
4
1
2
3
4
5
6
4
D3
8
7

Makita VC4210M
1
2
1
3
D4 D5
1
2
1
4
1
2
1
5
4
5
4
5
6
4
5
6
4
5
6
4
5
6
1
2
3
7
5
4
3
1
2
3
2
4
56

Makita VC4210M
D5
5
4
3
8
9
9
7

Makita VC4210M
10
2
3
7
8
9
5
4
11
1
6
12
13
Bedienelemente

*) Optional accessories / Option depending on model
Original instruction
12
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
Quick reference guide
Operating elements
1 Hose hook
2 Handle
3 Accessory positions
4 Suction power control
5 Switch
6 Inlet cap
7 Castor
8 Container
9 Inlet fitting
10 Latch
11 Appliance socket
12 LED indicator
13 Hose diameter setting
The pictorial quick reference guide
The pictorial quick reference guide is designed for
helping you when starting up, operating and storing
the unit. The guide are subdivided into 4 sections,
which are represented by symbols:
A
Before starting
DO READ OPERATING INSTRUCTIONS BEFORE
USE!
A1 - Unpack accessories
A2 - Filter bag installation
A3 - Disposal bag installation
A4 - Hose insert & operations
A5 - Accessories placement

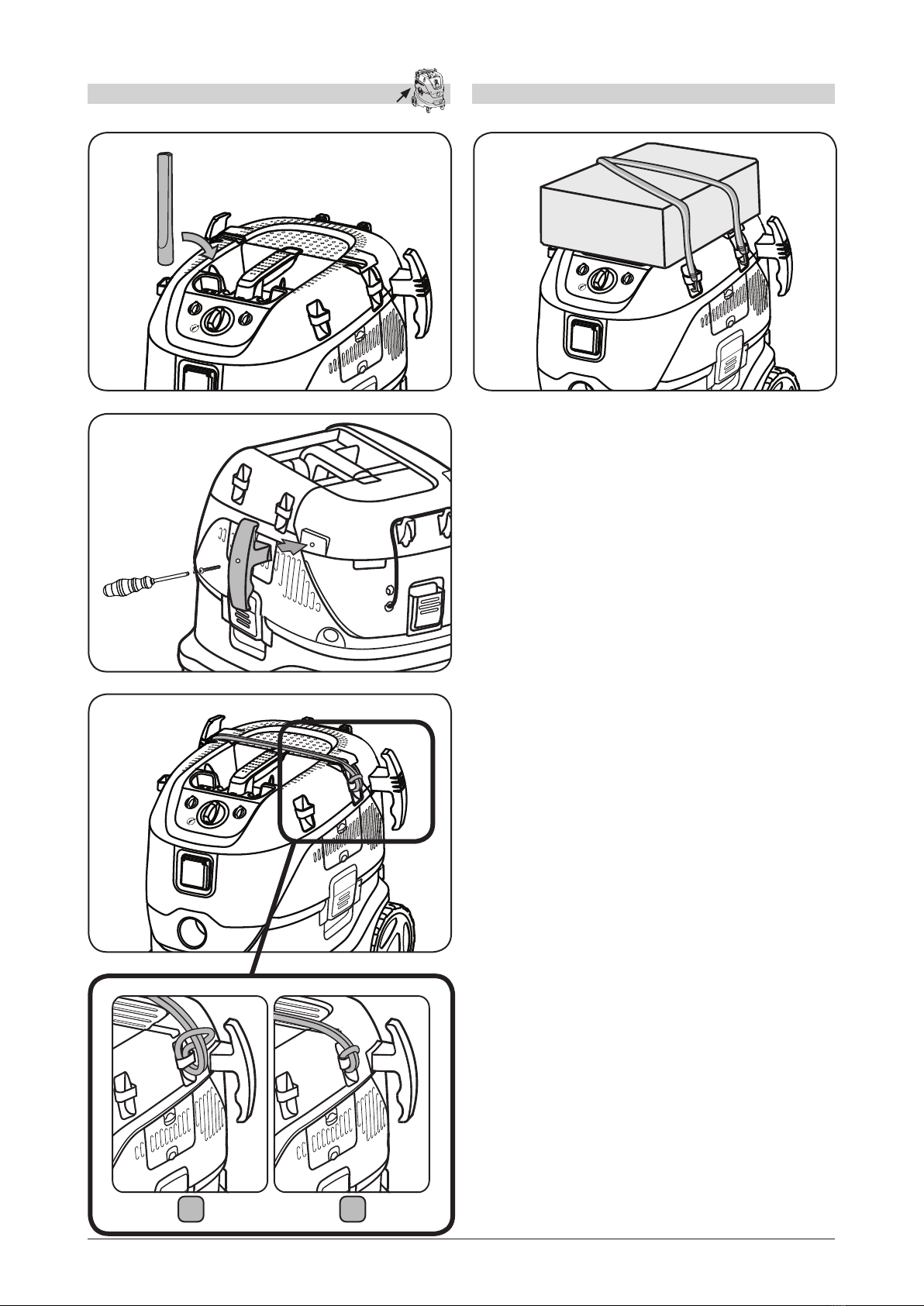

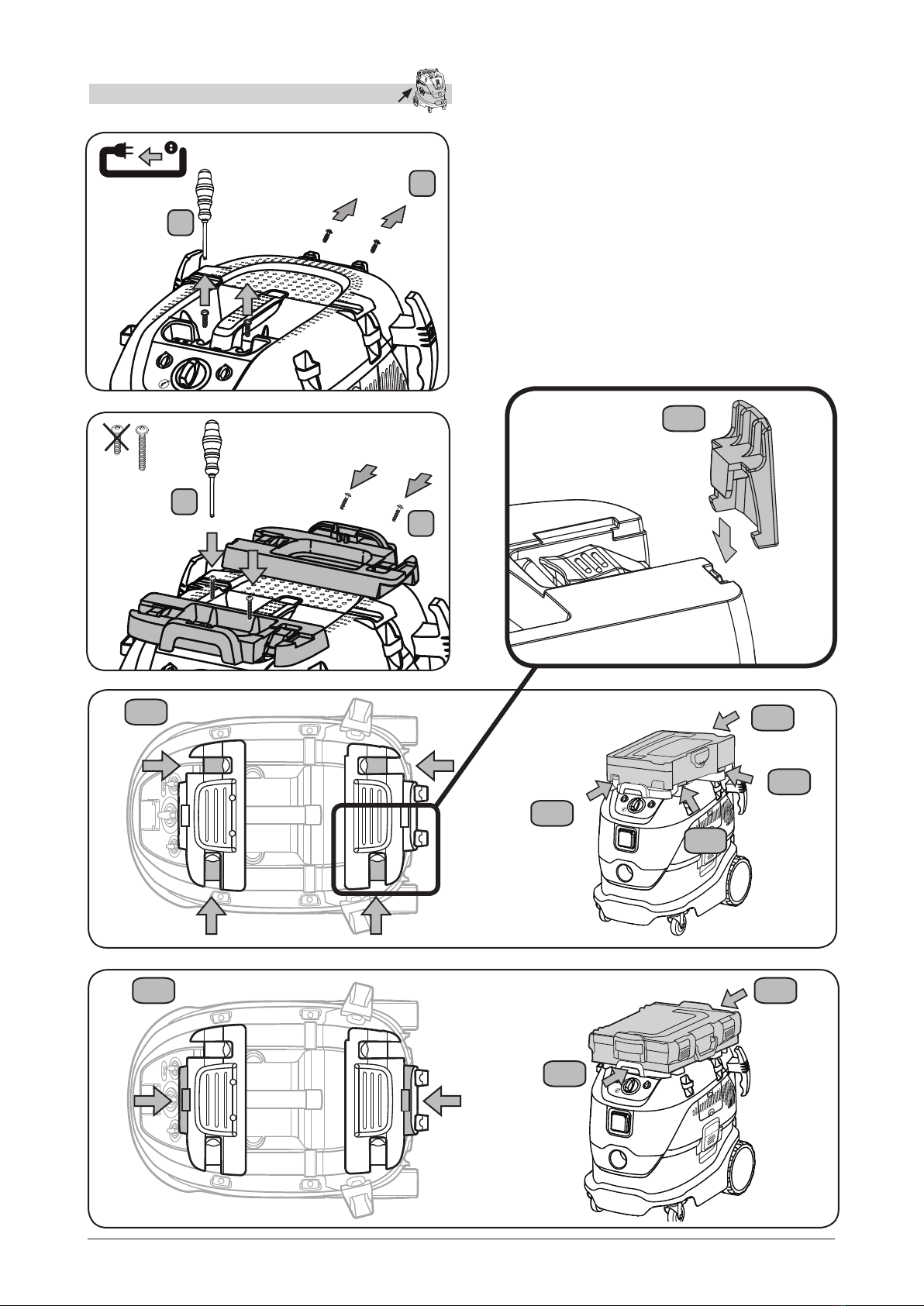

A6 - Adaptor plate installation

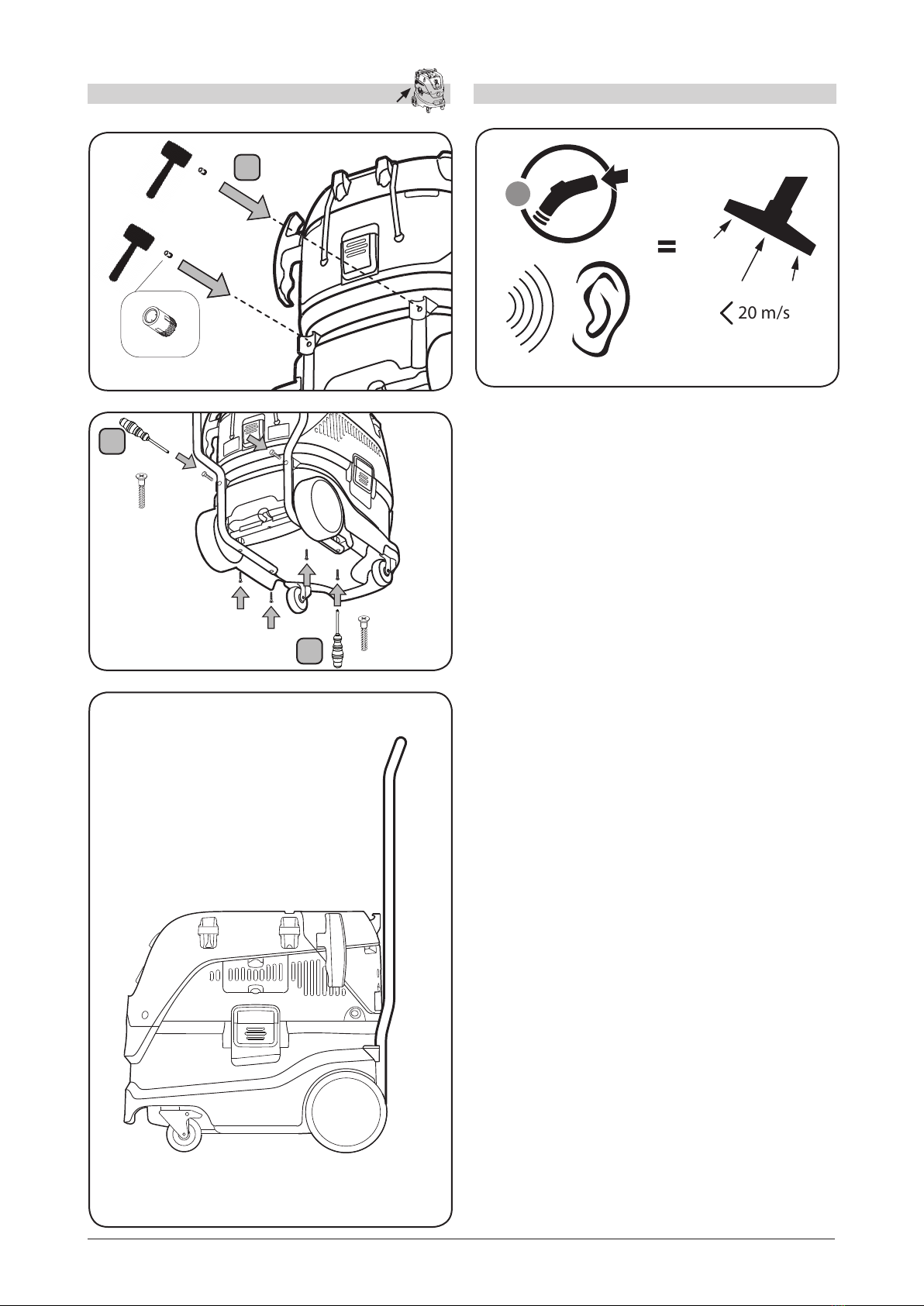

A7 - Trolley handle installation
B
Control/Operation

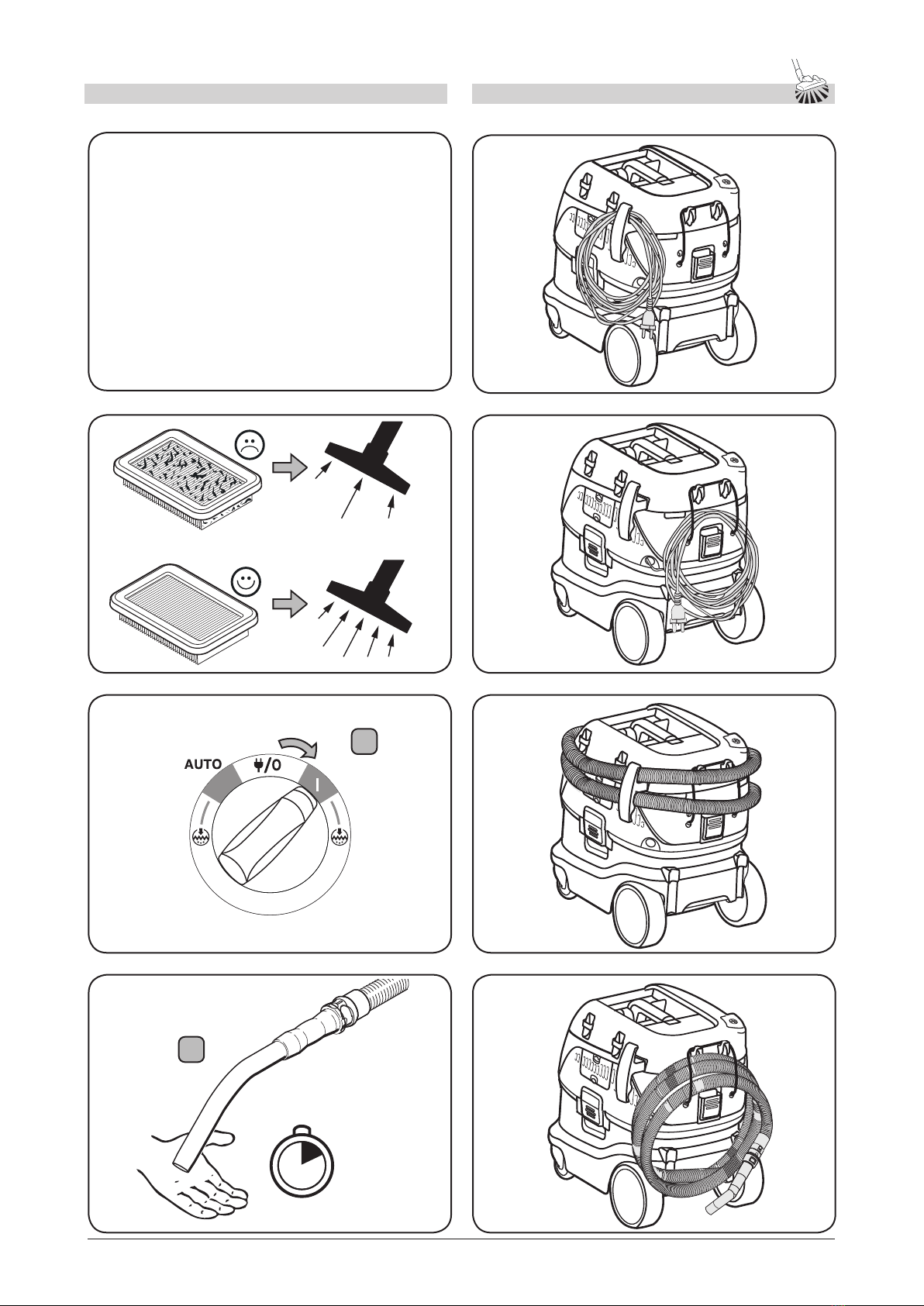

B1 - Flow rate warning
B2 - AutoClean filter cleaning system
B3 - Cable and hose storage
C
Connecting electrical appliances

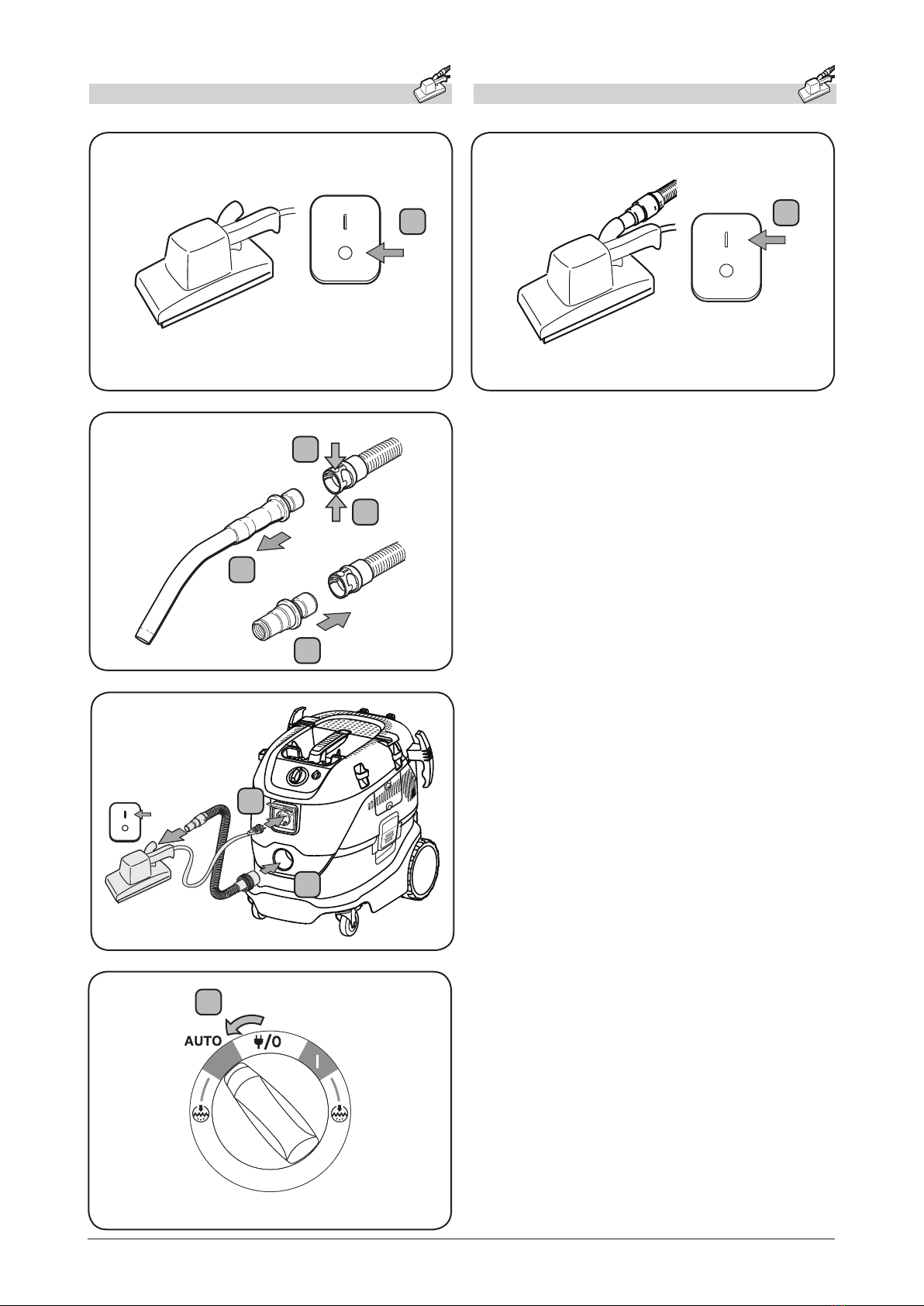

C1 - Power tool adaption
D
Maintenance

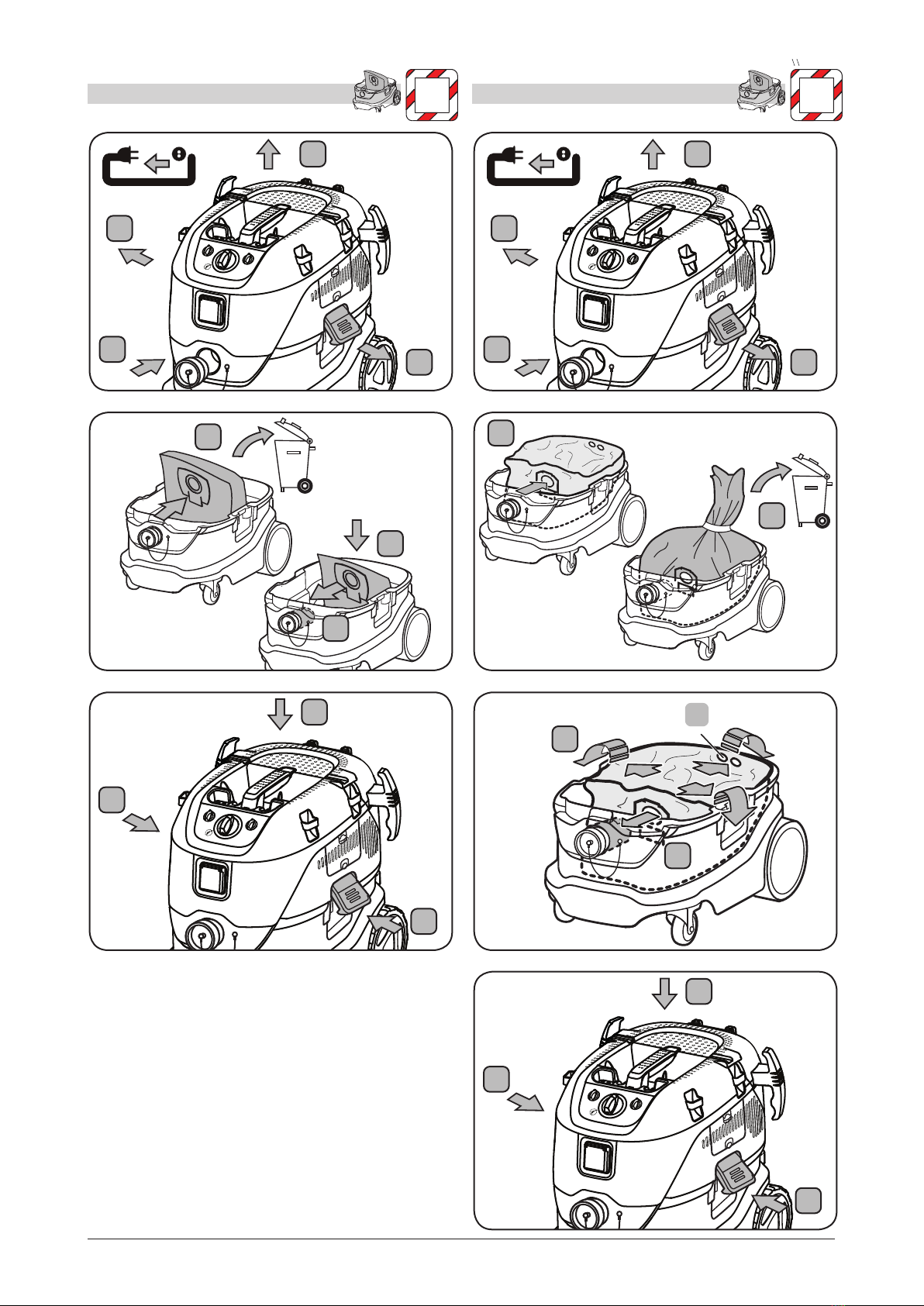

D1 - Filter bag replacement
D2 - Disposal bag replacement

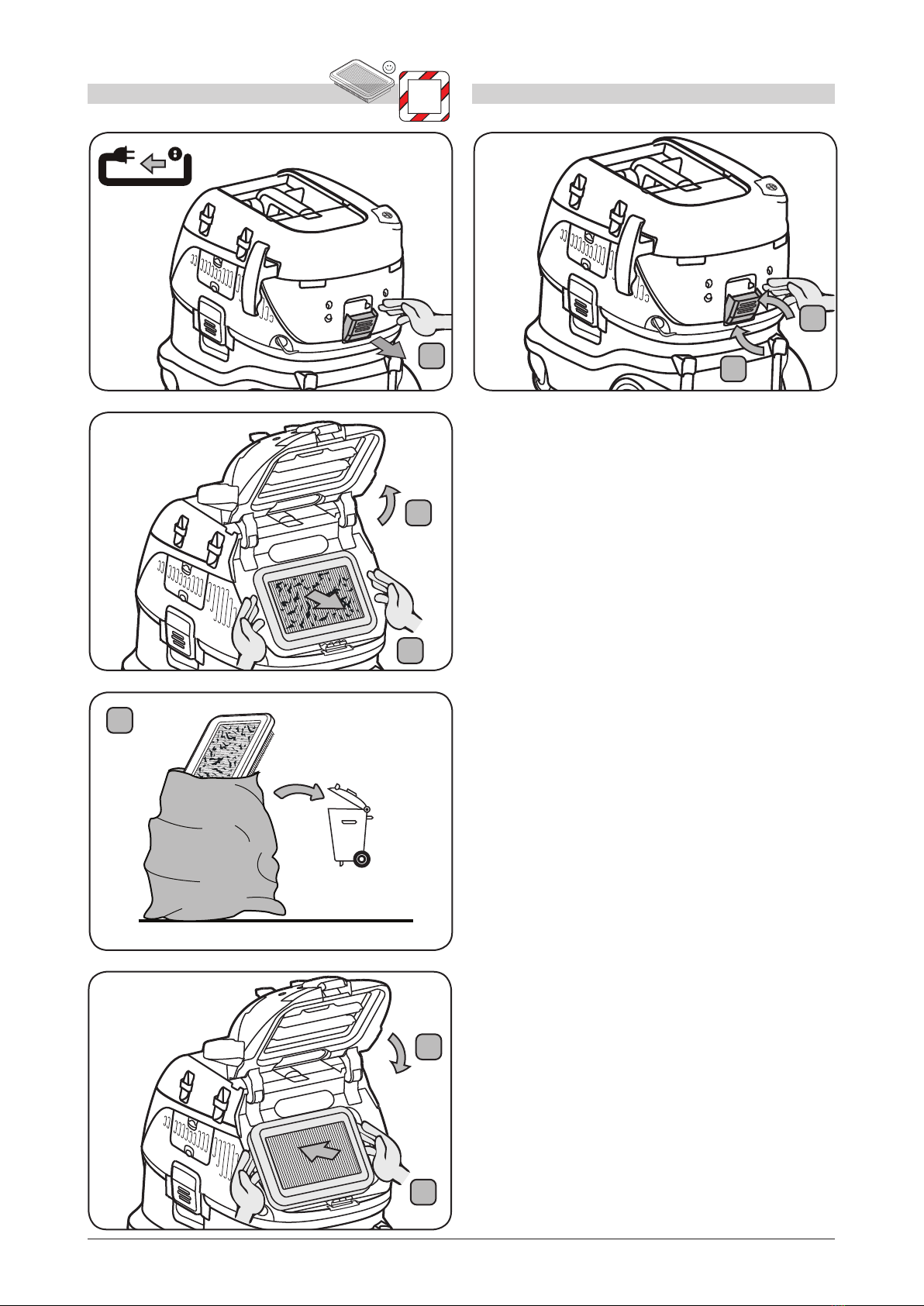

D3 - Filter replacement
D4 - Motor cooling air diffuser cleaning
D5 - Gaskets and floater cleaning
Contents
1 Safety instructions.................................... 13
1.1 Symbols used to mark instructions ............. 13
1.2 Instructions for use...................................... 13
1.3 Purpose and intended use .......................... 13
1.4 Electrical connection ................................... 13
1.5 Extension lead............................................. 14
1.6 Guarantee ................................................... 14
1.7 Important warnings...................................... 14
2 Risks .......................................................... 15
2.1 Electrical components ................................. 15
2.2 Hazardous dust ........................................... 16
2.3 Spare parts and accessories....................... 16
2.4 In explosive or inflammable atmosphere..... 16
3 Control / Operation.................................... 16
3.1 Starting and operating of the machine ........ 16
3.2 Auto-On/Off socket outlet for power tools ... 17
3.3 AutoClean ................................................... 17
3.4 Flow rate warning........................................ 17
3.5 Antistatic connection*) ................................. 18
3.6 Cooling air filter ........................................... 18
3.7 Wet pick-up ................................................. 18
3.8 Dry pick-up .................................................. 18
4 After using the machine ........................... 19
4.1 After use...................................................... 19
4.2 Transport..................................................... 19
4.3 Storage........................................................ 19
4.4 Accessory and tool storage......................... 19
4.5 Recycling the machine ................................ 19
5 Maintenance............................................... 19
5.1 Regular servicing and inspection ................ 19
5.2 Maintenance................................................ 19
6 Further information................................... 20
6.1 EU Declaration of conformity ...................... 20
6.2 Specifications .............................................. 21

*) Optional accessories / Option depending on model
Original instruction
13
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
1 Safety instructions
This document contains the safety information re-
levant for the appliance along with a quick reference
guide. Before starting up your machine for the first
time, this instruction manual must be read through
carefully. Save the instructions for later use.
Further support
Further information on the appliance can be found
on our web site at www.makita.com.
For further queries, please contact the Makita ser-
vice representative responsible for your country.
See reverse of this document.
1.1 Symbols used to mark instructions
DANGER
Danger that leads directly to serious or irre-
versible injuries, or even death.
WARNING
Danger that can lead to serious injuries or
even death.
CAUTION
Danger that can lead to minor injuries and
damage.
1.2 Instructions for use
The appliance must:
• only be used by persons, who have been in-
structed in its correct usage and explicitly com-
missioned with the task of operating it
• only be operated under supervision
This appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge.
Children shall be supervised to make sure that they
do not play with the appliance.
Do not use any unsafe work techniques.
Never use the appliance without a filter.
Switch off the appliance and disconnect the mains
plug in the following situations:
• Prior to cleaning and servicing
• Prior to replacing components
• Prior to changing over the appliance
• If foam develops or liquid emerges
Besides the operating instructions and the binding
accident prevention regulations valid in the country
of use, observe recognised regulations for safety
and proper use.
Before starting work, the operating staff must be
informed on and trained within:
• use of the machine
• risks associated with the material to be picked
up
• safe disposal of the picked up material
1.3 Purpose and intended use
This mobile dust extractor is designed, developed
and rigorously tested to function efficiently and
safely when properly maintained and used in ac-
cordance with the following instructions.
This machine is suitable for industrial use, such as
e.g. plants, construction sites and workshops.
This machine is also intended for commercial use,
for example in hotels, schools, hospitals, factories,
shops, offices and rental businesses.
Accidents due to misuse can only be prevented by
those using the machine.
READ AND FOLLOW ALL SAFETY
INSTRUCTIONS.
The appliance is suitable for picking up dry, non-
flammable dust and liquids.
Any other use is considered as improper use. The
manufacturer accepts no liability for any damage re-
sulting from such use. The risk for such use is borne
solely by the user. Proper use also includes proper
operation, servicing and repairs as specified by the
manufacturer.
The air flow in Safety Vacuum systems has to be
strictly controlled to achieve a minimum flow rate of
Vmin = 20 m/s in the suction hose.
The appliance is suitable for picking up dry, non-
flammable dust, non flammable liquids, sawdust and
hazadous dusts with OEL values (Occupational Ex-
posure Limit) > 0.1 mg/m³.
Dust Class M (IEC 60335-2-69). The dusts which
belong to this class are: dusts with OEL values
> 0.1 mg/m³ as well as saw dust. The machine is
tested in its entirety by vacuums for this dust class.
The maximum degree of permeability is 0.1 % and
the disposal must be low dust.
For dust extractors, ensure adquate air change rate,
when the exhaust air is returned to the room. Ob-
serve national regulations before use.
1.4 Electrical connection
It is recommended that the machine should be con-
nected via a residual current circuit breaker.

*) Optional accessories / Option depending on model
Original instruction
14
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
Arrange the electrical parts (sockets, plugs and cou-
plings) and lay down the extension lead so that the
protection class is maintained.
Connectors and couplings of power supply cords
and extension leads must be watertight.
1.5 Extension lead
As an extension lead, only use the version specified
by the manufacturer or one of a higher quality.
When using an extension lead, check the minimum
cross-sections of the cable:
Cable lenth Cross section
< 16 A < 25 A
up to 20 m 1.5 mm22.5 mm2
20 to 50 m 2.5 mm24.0 mm2
1.6 Guarantee
Our general conditions of business are applicable
with regard to the guarantee.
Unauthorised modifications to the appliance, the use
of incorrect brushes in addition to using the appli-
ance in a way other than for the intended purpose
exempt the manufacturer from any liability for the
resulting damage.
1.7 Important warnings
WARNING
To reduce the risk of fire,
electric shock, or injury,
please read and follow all
safety instructions and caution
markings before use. This ma-
chine is designed to be safe
when used for cleaning func-
tions as specified. Should
damage occur to electrical or
mechanical parts, the machine
and / or accessory should be
repaired by a competent ser-
vice center or the manufactur-
er before use in order to avoid
further damage to the machine
or physical injury to the user.
Do not leave the machine
when it is plugged in. Unplug
from the socket when not in
use and before maintenance.
Outdoor use of the appliance
shall be limited to occasional
use.
Do not use with damaged cord
or plug. To unplug grasp the
plug, not the cord. Do not han-
dle plug or machine with wet
hands. Turn off all controls be-
fore unplugging.
Do not pull or carry by cord,
use cord as a handle, close
a door on cord, or pull cord
around sharp edges or cor-
ners. Do not run machine over
cord. Keep cord away from
heated surfaces.
Keep hair, loose clothing, fin-
gers and all parts of the body
away from openings and mov-
ing parts. Do not put any ob-
jects into openings or use with
opening blocked. Keep open-
ings free of dust, lint, hair, and
anything else that could reduce
the flow of air.
Do not use in outside areas at
low temperature.
Do not use to pick up flamma-
ble or combustible liquids such

*) Optional accessories / Option depending on model
Original instruction
15
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
as gasoline, or use in areas
where they may be present.
Do not pick up anything that
is burning or smoking, such
as cigarettes, matches or hot
ashes.
Use extra care when cleaning
on stairs.
Do not use unless filters are
fitted.
If the machine is not working
properly or has been dropped,
damaged, left outdoors, or
dropped into water, return it to
a service center or dealer.
If foam or liquid escapes from
the machine, switch off imme-
diately.
The machine may not be used
as a water pump. The ma-
chine is intended for vacuum-
ing air and water mixtures.
Connect the machine to a
properly earthed mains sup-
ply. The socket outlet and the
extension cable must have an
operative protective conductor.
Provide for good ventilation at
the working place.
Do not use the machine as a
ladder or step ladder. The ma-
chine can tip over and become
damaged. Danger of injury.
Only use the socket outlet
on the machine for purposes
specified in the instructions.
2 Risks
2.1 Electrical components
DANGER
The upper section of the
machine contains live
components.
Contact with live components
leads to serious or even fatal
injuries.
1. Never spray water on to the
upper section of the ma-
chine.
DANGER
Electric shock due to faulty
mains connecting lead.
Touching a faulty mains con-
necting lead can result in seri-
ous or even fatal injuries.
1. Do not damage the mains
power lead (e.g. by driving
over it, pulling or crushing
it).
2. Regularly check whether the
power cord is damaged or
shows signs of ageing.

*) Optional accessories / Option depending on model
Original instruction
16
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
3. If the electric cable is dam-
aged, it must be replaced
by an authorized Makita dis-
tributor or similar qualified
person in order to avoid a
hazard.
4. In no circumstances should
the power supply cord be
wrapped around fingers or
any part of the operators
person.
2.2 Hazardous dust
WARNING
Hazardous materials.
Vacuuming up hazardous ma-
terials can lead to serious or
even fatal injuries.
1. The following materials
must not be picked up by
the machine:
– hot materials (burning cig-
arettes, hot ash, etc.)
– flammable, explosive,
aggressive liquids (e.g.
petrol, solvents, acids, al-
kalis, etc.)
– flammable, explosive dust
(e.g. magnesium or alu-
minium dust, etc.)
2.3 Spare parts and accessories
CAUTION
Spare parts and accessories.
The use of non-genuine spare parts, brushes
and accessories can impair the safety and or func-
tion of the appliance.
1. Only use original spare parts and accessories
from Makita. Spare parts that can affect health
and safety of the operator and or function of the
appliance, are specified below:
Description Order No.
Flat filter PTFE, 1 pcs.
M
W107418351
Fleece filter bag, 5 pcs W107418353
Disposal bag, 5 pcs W107418355
Motor cooling air filter PET, 1 pcs W107418352
2.4 In explosive or inflammable atmosphere
CAUTION
This machine is not suitable for use in explo-
sive or inflammable atmospheres or where
such atmospheres are likely to be produced by the
presence of volatile liquid or inflammable gas or va-
pour.
3 Control / Operation
CAUTION
Damage due to unsuitable mains voltage.
The appliance can be damaged as a result of
being connected to an unsuitable mains voltage.
1. Ensure that the voltage shown on the rating plate
corresponds to the voltage of the local mains
power supply.
3.1 Starting and operating of the machine
1. Check that the electrical switch is switched off
(in position 0).
2. Check that suitable filters are installed in the
machine.
3. Connect the suction hose into the suction inlet at
the machine by pushing the hose forward until it
fits firmly in place at the inlet.
4. Connect the tubes with the hose handle, twist
the tubes in order to ensure that they are prop-
erly fitted.
5. Attach suitable nozzle to the tube. Choose noz-
zle depending on what type of material that is to

*) Optional accessories / Option depending on model
Original instruction
17
D
GB
F
NL
I
N
S
DK
SF
E
P
GR
TR
SLO
HR
SK
CZ
PL
H
RO
BG
RUS
EST
LV
LT
AL
MK
SR
UK
Makita VC4210M
be picked-up. If used for dust extraction in con-
nection with dust producing tool then connect
end of suction hose with appropriate adapter.
6. Check that hose diameter setting corraspondes
to actual hose diameter.
7. Connect the plug into a proper electrical outlet.
8. Put the electrical switch into position I in order to
start the motor.
Turn I:
Activate the machine
Turn :
Stop the machine. Permanent power
on socket
Turn AUTO:
Activate Auto-On/Off operation
Turn I + Off: Activate the
machine with deactivated automatic
filter cleaning function
Turn AUTO+ Off: Activate Auto-
On/Off operation with deactivated
automatic filter cleaning function
Speed control operation on separate
turning knob
The hose diameter and the setting for suction hose
diameter must be the same.
ø21 ø21
ø27 ø27
ø32 ø32
ø36 ø36
ø38 ø38
3.2 Auto-On/Off socket outlet for power tools
CAUTION
Appliance socket.
The appliance socket is designed for electrical
auxiliary equipment; see technical data for refer-
ence.
1. Prior to plugging in an appliance, always switch
off the machine and the appliance that is to be
connected.
2. Read the operating instructions to the appliance
to be connected and observe the safety notes
contained in these.
An appliance socket with earthing contact is inte-
grated in the machine. An external power tool can
be connected there. The socket features permanent
power on, when the electrical switch is in position
, i.e. the machine can be used as an extension
cord.
In position AUTO the machine can be switched on
and off by the power tool connected. Dirt is picked
up from the source of dust immediately. To comply
with regulations, only approved dust producing tools
should be connected.
The maximum power consumption of the connected
electrical appliance is stated in section “Specifica-
tions”.
Before turning the switch to position AUTO ensure
that the tool connected to the appliance socket is
switched off.
3.3 AutoClean
The machine is equipped with an automatic filter
cleaning system, AutoClean. A frequent cleaning cy-
cle will automatically run during operation to ensure
that suction performance is always at its best.
If suction performance decreases or in extensive
dust applications a manually filter cleaning operation
is recommended:
1. Switch off the machine.
2. Close the nozzles or suction hose opening with
the palm of your hand.
3. Turn the switch to position „I“ and let the ma-
chine operate at full speed for approx. 10 sec-
onds with the suction hose opening closed.
If suction power is still reduced take out the filter and
clean mechanically or replace filter.
For certain applications, like wet pick up, it is recom-
mended to turn off the automatic filter cleaning sys-
tem. For details see chapter 3.1.
3.4 Flow rate warning
CAUTION
Check that all the filters are present and prop-
erly fitted.
The machine is equipped with a system to monitor
air velocity. Before picking up dust with occupational
exposure limit values, check the volume flow moni-
tor.
1. When the motor is running, hold the suction hose
shut to reduce the volume flow. The LED indica-
tor on front panel will light after approx. 1 second.
The acoustic warning sounds after some additional
seconds.
2. Set the diameter setting to the actual hose size.
When LED indicator lights, air velocity is
below 20 m/s.
1. Check if container or filter bag is full.
2. check if air flow is reduced in suction hose, tube/
nozzle, filter.
