MAKS PIR COMBI User manual

ISM wireless interface, up to 2000 m 868.0... 868.6 MHz
secure two-way communication
key - 256 bits
Power
(Lithium battery included)
CR123A 3V battery
power consumption in standby
no more than 10 µA
transmission power consumption
no more than 20 mA
service life of battery up to 5 years
Radiated electromagnetic field immunity
5 V/m
For more information on setting up and operating the
device, please visit www.maks.systems
Our digital passive infrared and acoustic radio channel detector is
equipped with a PIR-sensor and designed for the security of any closed
residential and industrial premises.
When the thermal balance of the environment changes or there is the
sound of break glass, the detector sends an intrusion signal to the MAKS
PRO alarm system center.
For indoor installation.
Radio communication
The detector transceiver operates in several channels of
868.0 ... 868.6 MHz band for redundancy.
Secure two-way radio communication.
Distance - up to 2000 m in the open space.
Three grades of power, maximum - up to 20 mW.
WIRELESS MOTION AND BREAK GLASS SENSOR
INSENSITIVE TO ANIMALS
• sensitive PIR sensor
• equipped with a lens that is insensitive to animals
• digital processing of sound of glass destruction
• adjustable sensitivity of the smartphone response
• secure two-way radio communication with MAKS PRO
• 868,0 ... 868.6MHz, several channels for redundancy,
range - up to 2000 m
• CR123 battery
• up to 5 years of operation on one battery
• easy and convenient installation
Characteristics
Setting
The sensor operates only with MAKS PRO wireless
security system center, connection to other systems
is not provided.
The sensor is connected to the security center and is
configured using the MAKS SETUP mobile application.
Insensitive to animals
The detector has the special lens and is designed for use in areas where
pets (cats, dogs, etc.) can be present.
The device is insensitive to the movement of animals weighing up to 20 kg.
Electrostatic discharge resistance
8 kV
Protection against false positives
Acoustic data processing based on modified speech recognition
algorithm. Sensor analyzes the sequence of the thud and the ringing
sound of falling glass.
Sorts of glass
Ordinary, patterned, tempered, laminated, reinforced, protected by
polymer film of classes A1, A2, A3, double-glazed windows 4x16x4.
Maximum working range
12 m
Optical noise immunity
no less than 6500 Lux
Glass thickness 2 mm . . . 8 mm
Maximal range and detection angle
8 m, 120 °
Break glass sensor
Motion sensor
Glass dimension
0.5 m x 0.5 m .... 3.0 m x 3.0 m
Case color white, black
with a wall bracket
90 x 60 x 34.35 mm
Weight
150 grams
Operating temperature range
-10°C to +55°C
Detector dimensions
with an angle bracket
90 x 60 x 48.84 mm
90 x 60 x 41.6 mm

0 m
5
m
10 m
15 m
5 m
10 m
15 m
95⁰
2.1 m
2.1 m 4.8 m 8.6 m 15 m
up to 20 kg

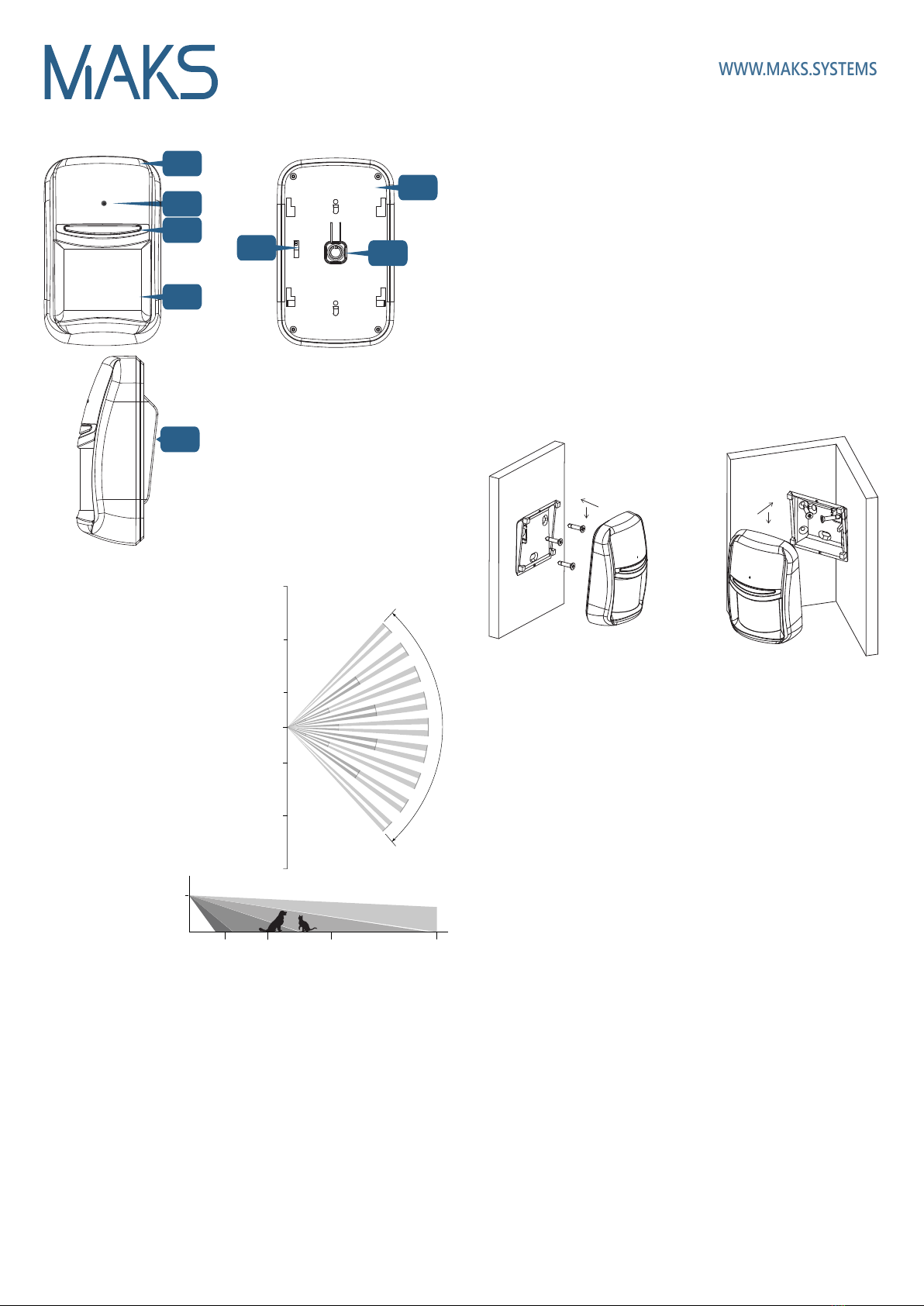

Functional parts of the device
WWW.MAKS.SYSTEMS
1. Detector case
2. Microphone hole
3. Light indicator of the
operation modes
4. PIR element lens
5. Bracket for detector
mounting
6. Tamper contact
7. Case back cover
8. Power button
Selecting the installation
location
Carefully select the installation location
of the MAKS PIR Combi detector, taking
into account the direction of the lens
and microphone and the presence of
obstacles that may limit the view of
the detector.
When installing the detector, make
sure that the area of intrusion detection
and break of glass is within the
maximum coverage of the detector
and the possible direction of intruder’s
movement is perpendicular
to the installation axis.
For the maximum
coverage, place the
detector at a height of
2.1 meters from floor level.
Installation and connection
1. Mount the bracket 5using the supplied screws and wall plugs.
2. Place the device on bracket 5and slide it down to fix it and lock the
tamper contact 6. Flashes on indicator 3will confirm that the tamper is
locked
Registration and setup
1. Place the detector at a distance of no more than 2 m from the MAKS
PRO security center. Registration is run at a minimal possible power to
avoid the influence of neighboring systems that can be being configured
nearby.
2. Start the MAKS SETUP application
3. Follow the application instructions to connect to the MAKS PRO and
start the registration of MAKS wireless devices
4. Turn on the MAKS PIR Combi, after 10-20 seconds it will be registered
5. Set up a new device in your mobile application
Switching on and off
Press button 8to switch on the device - the light indicator will be on. If the
device is registered in MAKS PRO, it switches to standby mode. If the device
has not been registered, it will go into sleep mode after 30 seconds.
To turn off the device, press and hold button 8 for 5 seconds.
Before installing the MAKS PIR Combi, register it in the MAKS PRO and
test the detector signal strength using the MAKS SETUP application.
The detector is supplied with two brackets to place the device on a flat
surface or in a corner of the room.
We recommend to install the device in the following order:
1. Selecting the installation location with the best signal
2. Mounting the bracket
3. Detector installation
Detector installation
The device should not be placed:
1. Outdoors or in areas with unacceptable humidity and temperature
2. In places with a high level of radio interference
3. Near objects that can cause radio signal attenuation or shielding (metal,
mirror, etc.)
4. In a place where the lens is exposed to the direct sunlight.
5. In front of objects with quickly changing temperature or in places with
fast air circulation.
6. Facing any moving objects with human body temperature
7. At a distance of less than 1 m from the security center
Battery replacement
1. Remove the device from the bracket by pushing it upwards.
2. Unscrew and remove the case back cover 7
3. Replace the battery and reassemble the device
Indication in communication test mode
Excellent connection - LED indicator flashes green
Satisfactory connection - LED indicator flashes yellow
Poor connection - LED indicator flashes red
No connection - LED indicator flashes red quickly
In test mode, the unit's radio transmitter operates at medium power.
