EN
Explanation of symbols CFF35, CFF45
8
Please read this manual carefully before starting the device. Keep it in a
safe place for future reference. If the device is passed on to another
person, this manual must be handed over to the user along with it.
The manufacturer cannot be held liable for damage resulting from improper usage
or incorrect operation.
Contents
1 Explanation of symbols. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
2 Safety instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
3 Scope of delivery . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
4 Intended use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
5 Function description. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
6 Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
7 Cleaning and maintenance. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
8 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
9 Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
10 Disposal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
11 Technical data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
1 Explanation of symbols
D
!
!
DANGER!
Safety instruction: Indicates a hazardous situation that, if not avoided,
will result in death or serious injury.
WARNING!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in death or serious injury.
CAUTION!
Safety instruction: Indicates a hazardous situation that, if not avoided,
could result in minor or moderate injury.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 8 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Safety instructions
9
A
I
2 Safety instructions
!WARNING! Failure to obey these warnings could result in death
or serious injury.
Electrocution hazard
• Do not operate the cooling device if it is visibly damaged.
• If this cooling device's power cable is damaged, it must be replaced
to prevent safety hazards.
• This cooling device may only be repaired by qualified personnel.
Improper repairs can lead to considerable hazards.
Fire hazard
• When positioning the device, ensure the supply cord is not trapped or
damaged.
• Do not locate multiple portable socket-outlets or portable power
supplies at the rear of the device.
Health hazard
• This device can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack
of experience and knowledge if they have been given supervision or
instruction concerning use of the device in a safe way and understand
the hazards involved.
• Children shall not play with the device.
• Cleaning and user maintenance shall not be made by children without
supervision.
• Children aged from 3 to 8 years are allowed to load and unload
cooling devices.
Explosion hazard
• Do not store any explosive substances such as spray cans with a
flammable propellant in the cooling device.
NOTICE!
Indicates a situation that, if not avoided, can result in property damage.
NOTE
Supplementary information for operating the product.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 9 Donnerstag, 13. Februar 2020 2:24 14

EN
Safety instructions CFF35, CFF45
10
!CAUTION! Failure to obey these cautions could result in minor or
moderate injury.
Electrocution hazard
• Before starting the cooling device, ensure that the power supply line
and the plug are dry.
• Disconnect the cooling device from the power supply
– before each cleaning and maintenance
– after every use
Health hazard
• Please check if the cooling capacity of the device is suitable for storing
the food or medicine you wish to cool.
• Food may only be stored in its original packaging or in suitable
containers.
• Opening the cooling device for long periods can cause significant
increase of the temperature in the compartments of the device.
• Clean regularly surfaces that can come in contact with food and
accessible drainage systems.
• Store raw meat and fish in suitable containers in the device, so that it is
not in contact with or can drip onto other food.
• If the device is left empty for long periods:
– Switch off the device.
– Defrost the device.
– Clean and dry the device.
– Leave the lid open to prevent mould developing within the device.
ANOTICE! Damage hazard
• Check that the voltage specification on the type plate corresponds to
that of the energy supply.
• Only connect the cooling device as follows:
– With the DC connection cable to a DC power supply in the vehicle
– Or with the AC connection cable to an AC power supply
• Never pull the plug out of the socket by the cable.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device and other power consuming devices from the battery
before connecting a quick charging device.
• If the cooling device is connected to a DC outlet: Disconnect the
cooling device or switch it off when you turn off the engine. Otherwise
you may discharge the battery.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 10 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Scope of delivery
11
• The cooling device is not suitable for transporting caustic materials or
materials containing solvents.
• The insulation of the cooling device contains flammable cyclopentane
and requires special disposal procedures. Deliver the cooling device
at the end of its life-cycle to an appropriate recycling center.
• Do not use electrical devices inside the cooling device unless they are
recommended by the manufacturer for the purpose.
• Do not place the cooling device near naked flames or other heat
sources (heaters, direct sunlight, gas ovens etc.).
•Risk of overheating!
Ensure at all times that there is a minimum of 50 mm ventilation on all
four sides of the cooling device. Keep the ventilation area free of any
objects that could restrict the air flow to the cooling components.
Do not place the cooling device in closed compartments or areas with
none or minimal air flow.
• Ensure that the ventilation openings are not covered.
• Do not fill the inner container with ice or fluids.
• Never immerse the cooling device in water.
• Protect the cooling device and cables against heat and moisture.
• Protect the cooling device from exposure to rain.

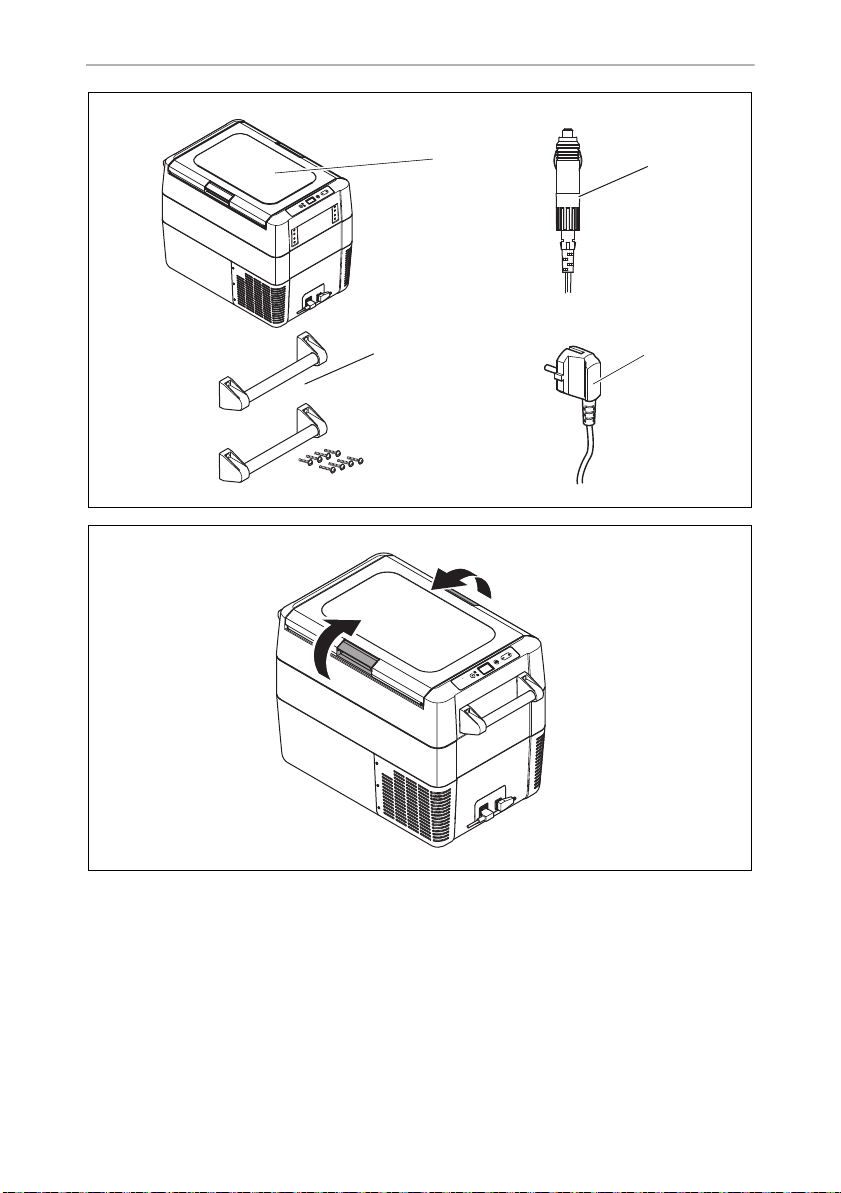

3Scopeofdelivery
Item (fig. 1,
page 3) Quantity Description
1 1 Cooler
2 1 Connection cable for DC connection
3 1 Connection cable for AC connection
4 2 Carry handle, consisting of:
•2holders
•1handle
• 4 fastening screws
• 1 allen wrench
– 1 Operating manual
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 11 Donnerstag, 13. Februar 2020 2:24 14

EN
Intended use CFF35, CFF45
12
4 Intended use
The cooling device is suitable for:
• cooling and freezing foods
• camping use and in mobile applications
The cooling device is designed to be operated from:
• a DC on-board power supply of a vehicle, boat or RV
• a DC auxiliary battery
• an AC power supply
The cooling device is intended to be used in household and similar applications
such as
• staff kitchen areas in shops, offices and other working environments
•farmhouses
• clients in hotels, motels and other residential type environments
• bed and breakfast type environments
• catering and similar non-retail applications
5 Function description
The cooler can chill products, keep them cool as well as freeze them. A low mainte-
nance refrigerant circuit with compressor provides the cooling. The generous insu-
lation and powerful compressor ensure efficient and fast cooling.
The cooler is portable.
The cooler can withstand a short-term inclination of 30°, for example on boats.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 12 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Function description
13
5.1 Scope of functions
• Power supply with priority circuit for connecting to the AC mains
• Three-level battery monitor to protect the vehicle battery
• Display with temperature gauge in °C and °F
switches off automatically at low battery voltage
• Temperature setting: With two buttons in steps of 1 °C (2 °F)
• Display dimming function with 3 brightness levels
• Removable wire basket
• Removable carrying handles
5.2 Operating and display elements

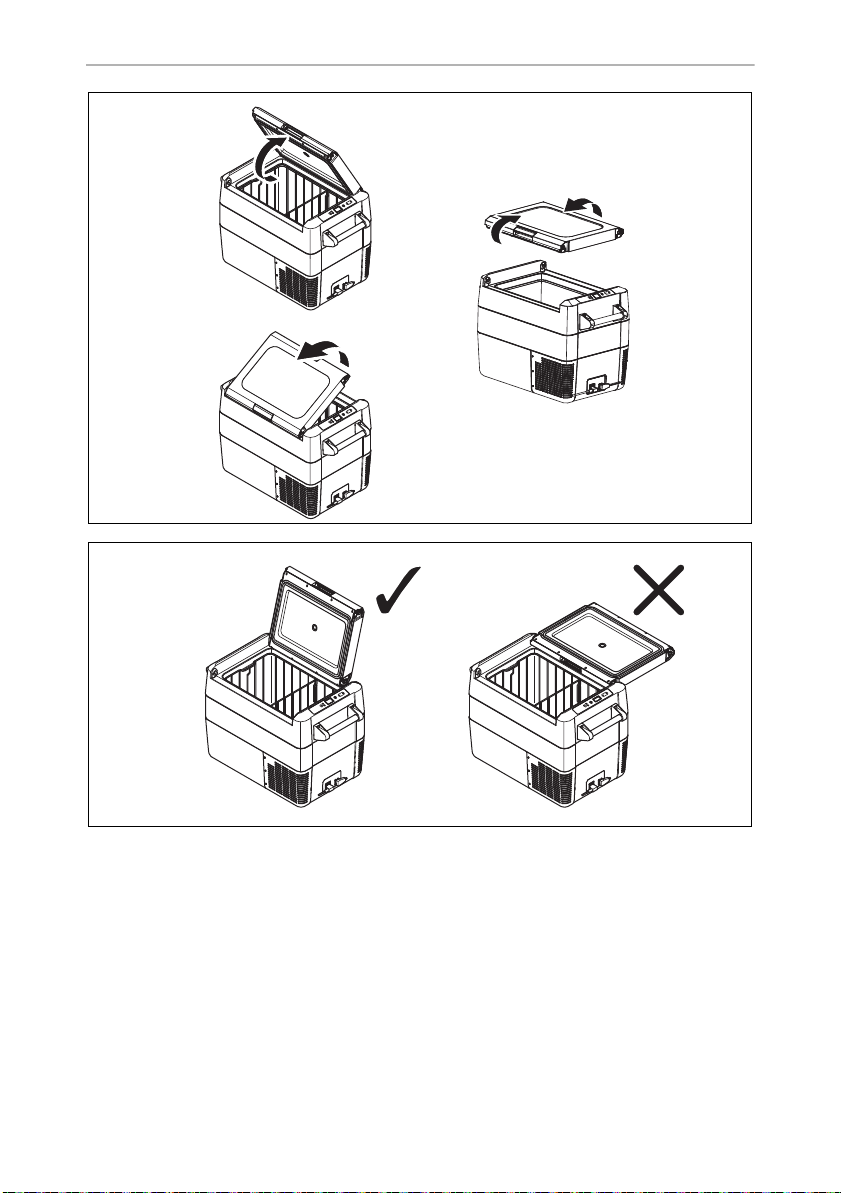

Lid latches (fig. 2, page 3)
Operating panel (fig. 3, page 4)
Item Description Explanation
1ON
OFF
Switches the cooler on or off when the button is pressed for
between one and two seconds
2POWER “P”Status indication
LED lights up green: Compressor is on
LED lights up orange: Compressor is off
LED flashes orange: Display switched off automatically due
to low battery voltage
3 ERROR LED flashes red: Device is switched on but not ready
for operation
4 – Display, shows the information
5 SET Selects the input mode
– Temperature setting
– Celsius or Fahrenheit display
– Set battery monitor
– Set brightness of display
6 DOWN – Press once to decrease the value
7 UP + Press once to increase the value
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 13 Donnerstag, 13. Februar 2020 2:24 14

EN
Operation CFF35, CFF45
14
Connection sockets (fig. 4, page 4)
6Operation
6.1 Before initial use
I
Mounting the handles (fig. 5, page 4)
The handles are enclosed unassembled. If you wish to attach the handles, proceed
as follows:
➤Assemble a handle by putting two holders (1) and a handle (2) together.
➤Fasten the holders with the enclosed screws in the holes provided.

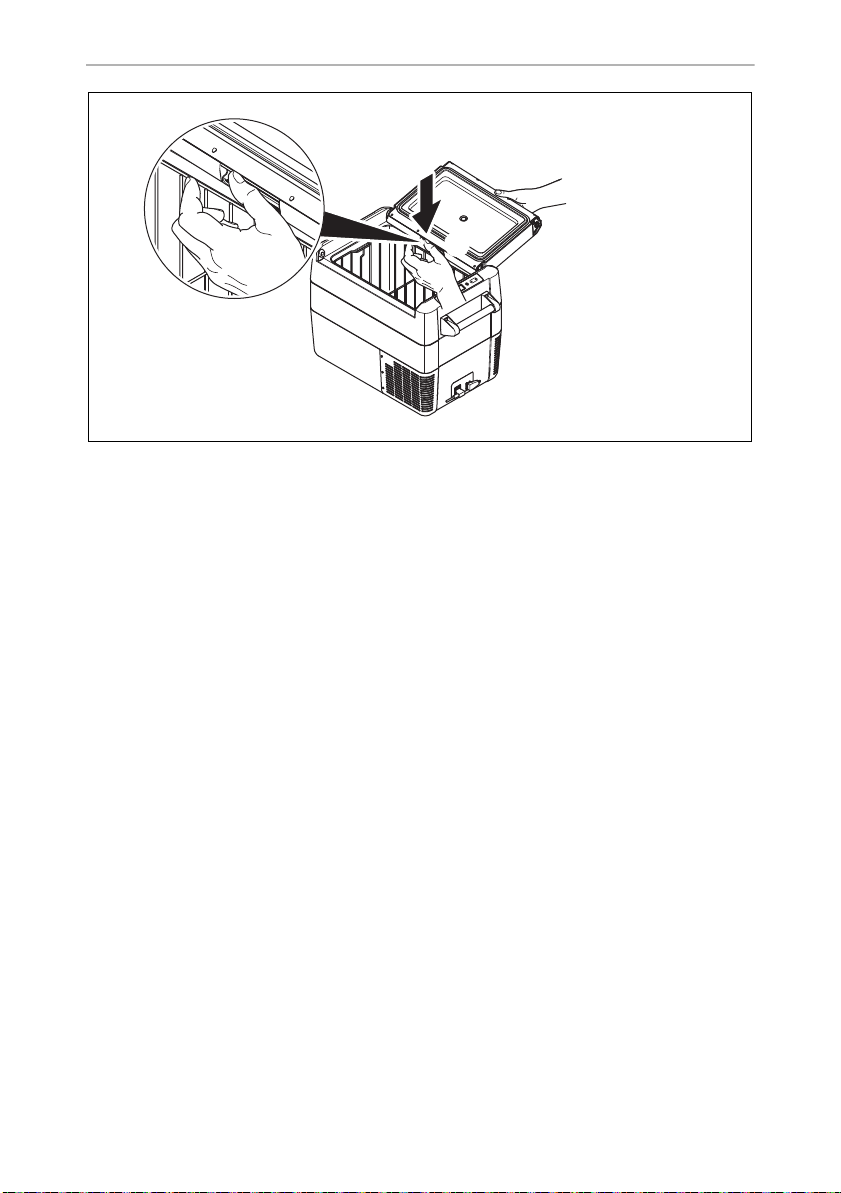

Opening or removing the lid (fig. 6, page 5)
The lid can be opened from either side or removed completely without the need of
tools as follows:
➤To open the lid, unlatch in the preferred opening direction, (A) or (B).
➤To remove the lid, unlatch both sides at the same time (C).
Lid stop position (fig. 7, page 5)
The lid has a built-in stop position (A). Do not force the lid past the built-in stop (B).
Item Description
1 Connection socket AC voltage supply
2 AC fuse holder
3 DC fuse cover
4 Connection socket DC voltage supply
NOTE
Before starting your new cooler for the first time, you should clean it
inside and outside with a damp cloth for hygienic reasons (please also
refer to the chapter “Cleaning and maintenance” on page 22).
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 14 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Operation
15
A
Removing the basket (fig. 8, page 6)
A
Selecting the temperature units
Temperature display units can be switched between Celsius and Fahrenheit as fol-
lows:
➤Switch on the cooler.
➤Press the “SET” button (fig. 35, page 4) twice.
➤Use the “UP +” (fig. 37, page 4) or “DOWN –” (fig. 36, page 4) buttons to
select Celsius or Fahrenheit.
✓The selected temperature unit then appears in the display for a few seconds. The
display flashes several times before it returns to the current temperature.
6.2 Energy saving tips
• Choose a well ventilated location which is protected from direct sunlight.
• Allow warm food to cool down first before placing it in the cooling device to
keep cool.
• Do not open the cooling device more often than necessary.
• Do not leave the cooling device open for longer than necessary.
• Defrost the cooler once a layer of ice forms.
• Avoid unnecessarily low temperatures.
NOTICE!
DAMAGE HAZARD!
Failure to observe this instruction can cause the lid to break off.
➤If the lid has been forced too far, follow the steps described in the
chapter “The lid has been forced past the built-in stop (fig. a,
page 7)” on page 24.
NOTICE!
DAMAGE HAZARD!
Failure to obey this instruction may result in damage to the device.
Removing the basket with the lid open may scratch the lid and deform
the basket. We recommend to remove the lid before removing the
basket.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 15 Donnerstag, 13. Februar 2020 2:24 14

EN
Operation CFF35, CFF45
16

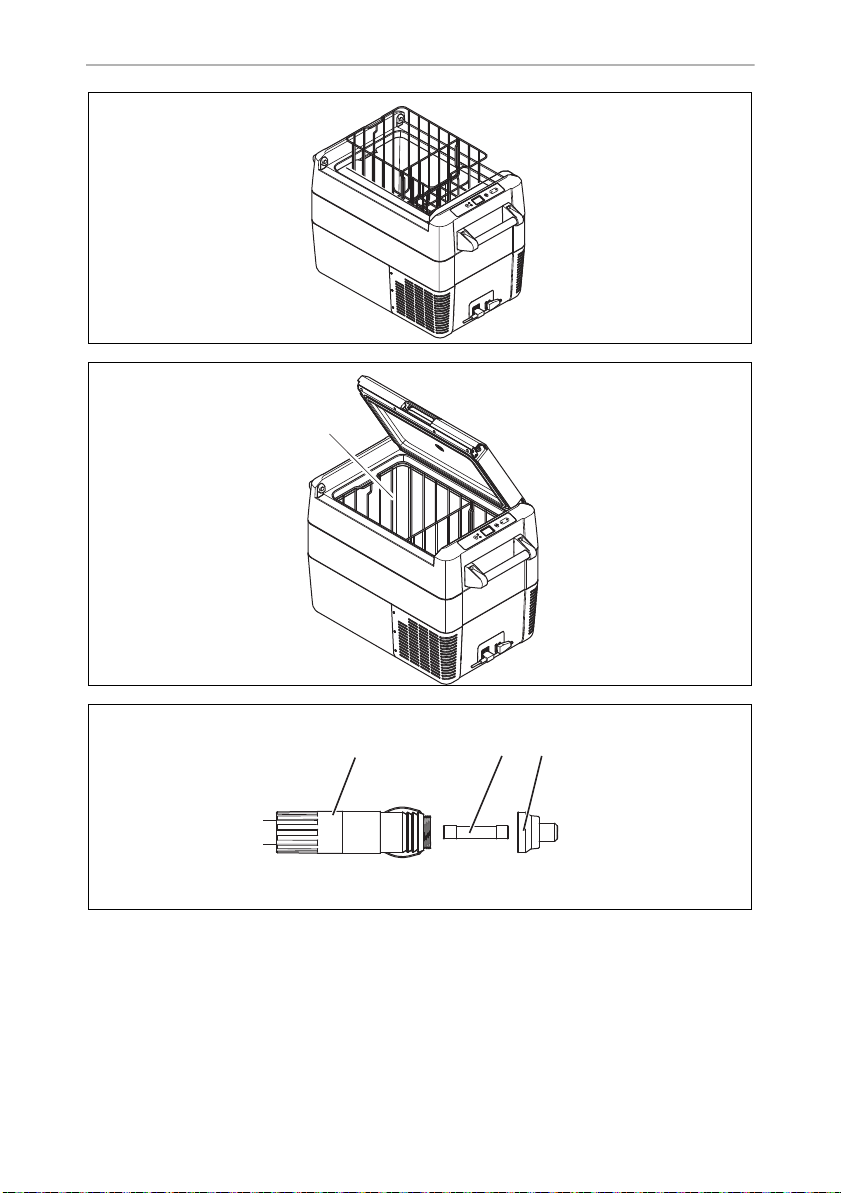

6.3 Connecting the cooler
Connecting to a battery (Vehicle or boat)
The cooler can be operated with 12 V or 24 Vg.
A
For safety reasons the cooler is equipped with an electronic system to prevent
polarityreversal.Thisprotectsthecooleragainstshort-circuiting when connecting to
a battery.
Using the fused DC plug
A
➤Plug the DC connection cable (fig. 12, page 3) into the DC voltage socket of
the cooler (fig. 43, page 4).
➤Connect the connection cable to a DC power outlet.
Connecting to an AC power supply (e.g. in the home or office)
D
NOTICE!
DAMAGE HAZARD!
Failure to obey this instruction may result in damage to the device.
Disconnect the cooler and other consumer units from the battery before
you connect the battery to a quick charging device.
Overvoltage can damage the electronics of the device.
NOTICE!
DAMAGE HAZARD!
Failure to obey this instruction may result in damage to the device.
For protection of the device the DC cable supplied includes a fuse inside
the plug. Do not remove the fused DC plug.
Only use the DC cable supplied.
DANGER!
ELECTROCUTION HAZARD!
Failure to obey these warnings will result in death or serious injury.
• Never handle plugs and switches with wet hands or if you are stand-
ing on a wet surface.
• If you are operating your cooler on board a boat from a AC power
supply,youmustinstallaresidual current circuit breaker between the
AC power supply and the cooler.
Seek advice from a trained technician.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 16 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Operation
17
The coolers have an integrated multi-voltage power supply with priority circuit for
connecting to an AC voltage source. The priority circuit automatically switches the
cooler to AC operation if the device is connected toan AC power supply, even if the
DC connection cable is still attached.
When switching between the AC power supply and the battery supply, the red LED
may light up briefly.
➤Plug the AC connection cable (fig. 13, page 3) into the AC voltage socket of
the cooler (fig. 41,page 4).
➤Connect the connection cable to an AC power outlet.
6.4 Using the battery monitor
The device is equipped with a multi-level battery monitor that protects your vehicle
battery against excessive discharging when the device is connected to the on-board
DC supply.
If the cooler is operated when the vehicle ignition is switched off, thecooler switches
off automatically as soon as the supply voltage falls below a set level. The cooler will
switch back on once the battery has been recharged to the restart voltage level.
A
In “HIGH” mode, the battery monitor responds faster than at the levels “LOW” and
“MED” (see the following table).
The battery monitor mode can be selected as follows:
➤Switch on the cooler.
NOTICE!
DAMAGE HAZARD!
Failure to obey this instruction may result in damage to the battery.
When switched off by the battery monitor, the battery will no longer be
fully charged. Avoid starting repeatedly or operating current consumers
without longer charging phases. Ensure that the battery is recharged.
Battery monitor mode LOW MED HIGH
Switch-off voltage at 12 V 10.1 V 11.4 V 11.8 V
Restart-voltage at 12 V 11.1 V 12.2 V 12.6 V
Switch-off voltage at 24 V 21.5 V 24.1 V 24.6 V
Restart voltage at 24 V 23.0 V 25.3 V 26.2 V
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 17 Donnerstag, 13. Februar 2020 2:24 14

EN
Operation CFF35, CFF45
18
➤Press the “SET” button (fig. 35, page 4) three times.
➤Use the “UP +” (fig. 37, page 4) or “DOWN –” (fig. 36, page 4) buttons to
select the battery monitor mode.
✓Display will be as follows:
Lo (LOW), ΠEd (MED), Hi (HIGH)
✓The selected mode then appears in the display for a few seconds. The display
flashes several times before it returns to the current temperature.
I
6.5 Using the cooler
A
➤Place the cooler on a firm foundation.
Make sure that the ventilation slots are not covered and that the heated air can
dissipate. We recommend keeping a gap of at least 2" around ventilation holes.
I
➤Connect the cooler, see chapter “Connecting the cooler” on page 16.
A
NOTE
When the cooler is supplied by the starter battery, select the battery
monitor mode “HIGH”. If the cooler is connected to a supply battery,
the battery monitor mode “LOW” will suffice.
NOTICE!
OVERHEATING HAZARD!
Failure to obey this instruction may result in damage to the device.
Ensure at all times that there is sufficient ventilation so that the heat that
generated during operation can dissipate. Ensure that the ventilation
slots are not covered. Make sure that the device is sufficiently far away
from walls and other objects so that the air can circulate.
NOTE
Place the cooler as shown (fig. 1, page 3). If you operate the cooler in
a different orientation it can be damaged.
NOTICE!
EXCESSIVELY LOW TEMPERATURE HAZARD!
Failure to obey this instruction may result in damage to the objects
placed in the cooler.
Ensure that the only those objects are placed in the cooler that are
intended to be cooled at the selected temperature.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 18 Donnerstag, 13. Februar 2020 2:24 14

EN
CFF35, CFF45 Operation
19
➤Press the “ON/OFF” button (fig. 31, page 4) for between one and two sec-
onds.
✓The LED “P” lights up (fig. 32, page 4).
✓The display (fig. 34, page 4) switches on and shows the current temperature.
✓The cooler starts cooling the interior.
I
I
Latching the cooler lid
➤Close the lid.
➤Press the latch (fig. 2, page 3) down, until it latches in place audibly.
I
6.6 Setting the temperature
➤Press the “SET” button (fig. 35, page 4) once.
➤Use the “UP +” (fig. 37, page 4) and “DOWN –” (fig. 36, page 4) buttons to
select the cooling temperature.
✓The cooling temperature appears in the display for a few seconds. The display
flashes several times and then the current temperature is displayed again.
NOTE – Displayed temperature
The temperature displayed is that of the large section of the interior com-
partment (fig. 91).
NOTE
When operating from a battery, the display switches off automatically if
the battery voltage is low. The LED “P” flashes orange.
NOTE
When latching the lid, ensure that both latch side pins are fully engaged
to ensure a good lid seal. One latch may engage slightly before the
other.
➤If the lid is not closed equally at both sides, press until a second click
is heard.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 19 Donnerstag, 13. Februar 2020 2:24 14

EN
Operation CFF35, CFF45
20
6.7 Setting the display brightness
The display brightness can be dimmed for low ambient light conditions. To set the
dimming level of the display proceed as follows:
➤Switch on the cooler.
➤Press the “SET” button (fig. 35, page 4) four times.
➤Use the “UP +” (fig. 37, page 4) or “DOWN –” (fig. 36, page 4) buttons to
set the brightness of the display.
✓Display will be as follows:
d0 (default), d1 (medium), d2 (dark)
✓The display shows the set mode for several seconds. The display flashes twice
before it returns to the current temperature.
I
6.8 Switching off the cooler
➤Empty the cooler.
➤Switch the cooler off.
➤Pull out the connection cable.
If you do not want to use the cooler for a longer period of time:
➤Leave the lid slightly open. This prevents odor build-up.
6.9 Defrosting the cooler
Humidity can form frost in the interior of the cooling device or on the evaporator. This
reduces the cooling capacity.
A
NOTE
• The factory setting of brightness of the display is d0 (default).
• If a fault occurs, the brightness automatically reverts to brightness d0
(default). After troubleshooting the set brightness is reactivated.
NOTICE!
DAMAGE HAZARD!
Failure to obey this instruction may result in damage to the device.
Never use hard or pointed tools to remove ice or to loosen objects
which have frozen in place.
DometicCFF35-45_OPM_4445102909_EMEA16.book Seite 20 Donnerstag, 13. Februar 2020 2:24 14
