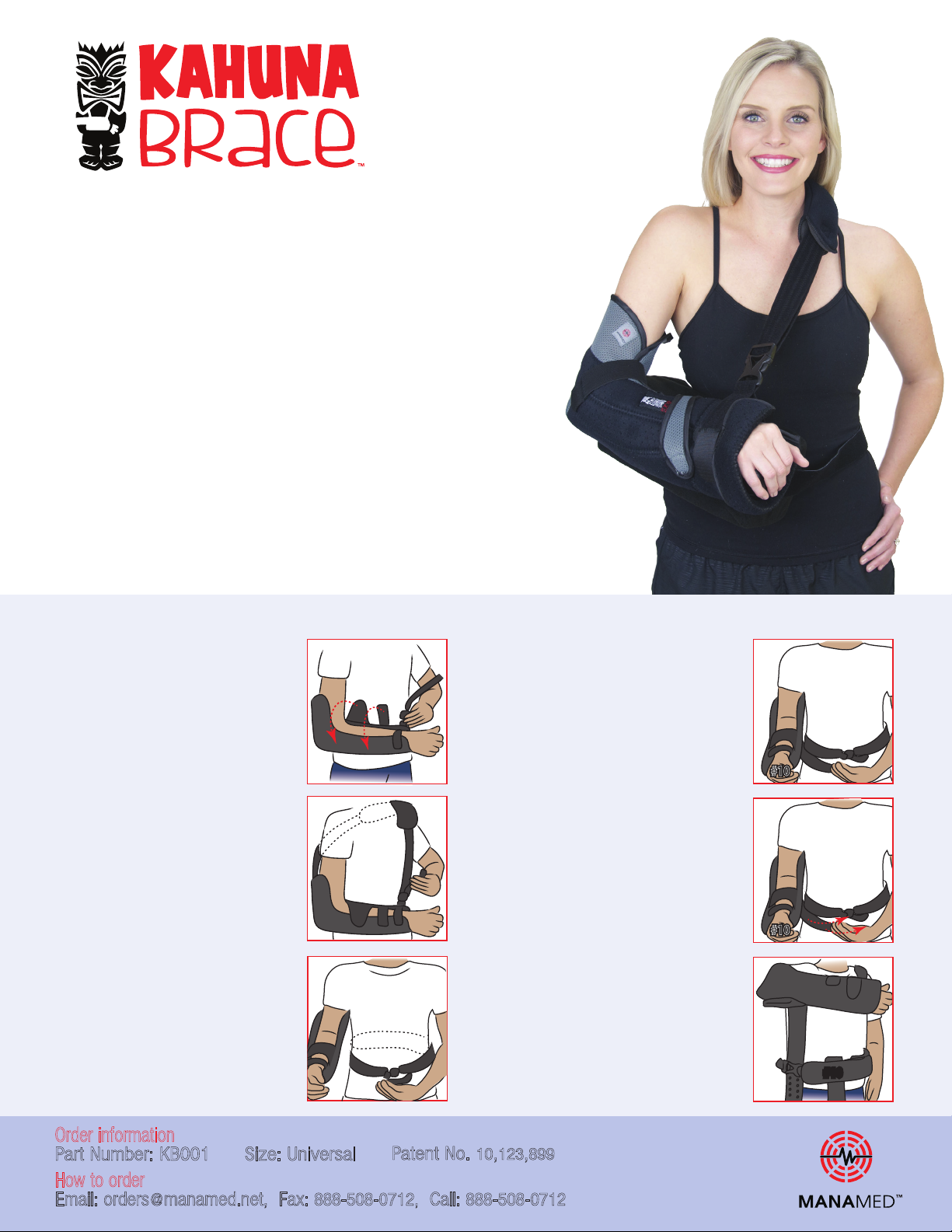

Manamed Kahuna Brace User manual

Patent No. 10,123,899

#1 #2 #3
#4
#5
#5
5. Adjust the abduction toggle bar #9 and
the moldable arm bar
#10 to desired
position. Increase abduction by pulling
the abduction toggle bar
#9 towards the
body.
4. Position the abduction toggle bar
#9 on
the injured side of the body and
position the moldable arm bar
#10
pointing forward.
#6
#7 #8
#6
#7 #8
3. Position the back support pad #6 in the
middle of the patients back. Then adjust
the torso strap by adjusting the belt loop
#7 which is at the base of the buckle #8 .
2. Place shoulder belt
#4 around the
opposite shoulder and adjust the sling
#5 to
fit comfortably around the shoulder.
1. Open velcro strap
#1 and #2 , also open
buckle
#3 on the arm sling. Place arm in
the brace and secure both velcro strap
#1
&
#2 comfortably around arm. To fit your
arm into the sling you can fold the sling
along the pre folded point under the arm
sling buckle
#3 .
#9
#10
#10
#10
#9
#10#10
5240 W. Charleston Blvd.,
Las Vegas, NV 89146
www.ManaMed.com
The Kahuna Brace provides support for shoulder surgeries
in a universal multiple configuration brace. Suitable for all
shoulder surgeries as well as conservative care of
shoulder injuries. The Kahuna Brace is your new go to
shoulder brace for all your clinical needs.
Features and Benefits
Sized universal
Low-profile design
True Airplane or
Gunslinger alignment
Two step application
Multiple abduction angles
Extreme external rotation
Kahuna Brace Fitting Instructions:
The Kahuna Brace is universal and can be applied to the right or the left side of the patient.
When properly applied, the Kahuna Brace can achieve various abduction angles from 30 to 90 degrees.
Indications for Use
Rotator cuff repairs
SLAP repairs
Bankart repairs
Massive rotator cuffs
Anterior Subluxation
Joint Reconstruction
Instability cases
Bicep Tenotomy
Order information
Part Number: KB001 Size: Universal
How to order
Email: [email protected], Fax: [phone], Call: 888-508-0712
Application of the Kahuna Brace:
Patent No. 10,123,899
6. To adjust the Kahuna brace
into Airplane position, attach the
L Bar (airplane bar), remove the
foam padding at the back of the
moldable arm band
#10 and there
are 2 holes to insert the L Bar.
Insert 2 screws (provided with
Allen wrench)
#10#10
