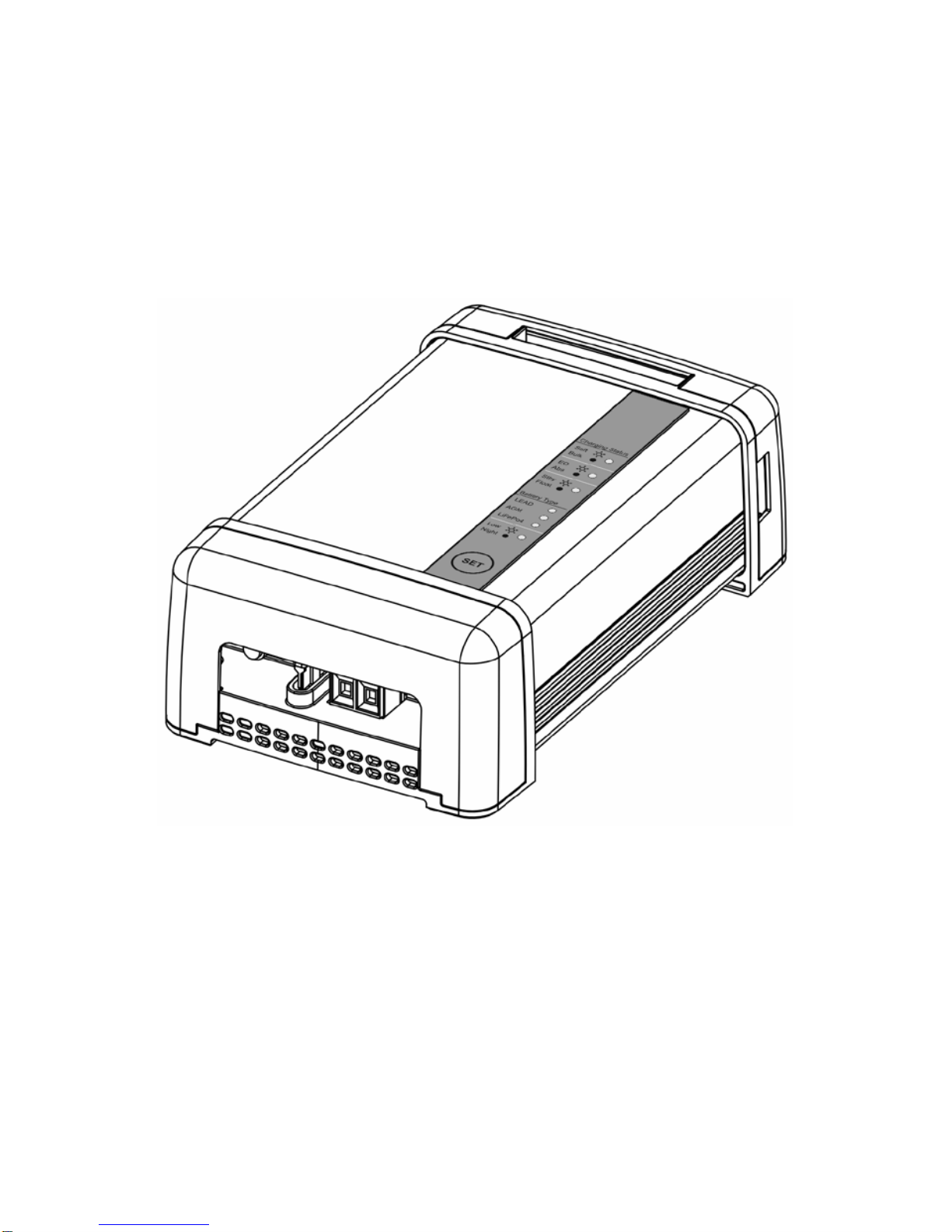

Manson Engineering Industrial CBC-9130 Installation manual

CBC-9130 / 9215
12V 30A / 24V 15A Pro. Charger
Operation manual
Keep this manual in a safe place for quick reference at all times.
This manual contains important safety
and operation instructions for correct use of the battery charger.
Read through the manual and pay special attention to the markings
and labels of the charger, battery and equipment connected to the battery system.
Pay special attention to WARNING & PRECAUTIONS used in this manual.
7673-9130-0000
REV.0.1 201804

Index
Quick user guide 1
Warning / Cautions 2
Introduction 3
Using the charger 4
Battery Type Selection Procedure 4
Low / Night / EQ Selection Procedure 4
Equalization Mode (Recondition Mode) 4
Recommended Battery Capacity 5
Battery Charger installation and Connection 5 - 9
Cable size recommendation for 30A 9
Protection 9
Specification 10
Troubleshooting 11
Smartphone Apps 12
Mounting Hold Diagram 13

Quick user guide
1. Check the rating label for correct AC voltage.
2. Connect to AC socket, Bulk LED is on then quickly moves to Abs LED
3. The LEAD LED is the default setting of battery type.
4. Disconnect AC and connect output to battery then reconnect AC.
USING THE SET BUTTON
Note: LEAD ● means LED for LEAD on panel indicator.
a. Short Presses for battery type and DC source selection.
Short Presses on the SET button will cycle as below:
LEAD ●→AGM ●→LiFePo4 ●→13.5V ●●●→LEAD ●→AGM ●→LiFePo4 ●
→13.5V ●●●
Remark: ●●● 3 battery LED are on for 13.5V DC Source Mode
All 3 battery LED ●●● are on shows output set at 13.5V with 20A Max.
b. Just stop at your desired battery type DC Source Mode and charger.
*Will retain the selected setting even it has been disconnected from AC and
battery.
c. Long Presses (5 sec) for LOW MODE, NIGHT MODE, EQ MODE & EXIT.
When battery type set at AGM or LiFePo4.
Long Press (5 sec)
for LOW→NIGHT→EXIT→LOW→NIGHT→EXIT→LOW→NIGHT→EXIT
When battery type set at LEAD
Long Press (5 sec)
for LOW→NIGHT→EQ→EXIT→LOW→NIGHT→EQ→EXIT→
5. LOW = Low Power Mode: LED flickers
to set charger to Half Power Mode of 15Amp Maximum.
6. NIGHT = Night Mode: LED solid
8 hour without FAN cool and only 15Amp maximum output.
Charger return to normal max 30Amp at the end of 8 hours.
7. Exit from Night mode or Low Power Mode by 5 sec long press to unlock and
further 5 sec press to exit
Remark:
Auto-Lock Up of charger.
The charger will be locked with the desired selection 3 minutes after no further press on
the SET button during operation. If SET button is pressed before Lock Up starts, a new
3 minute count down comes in.
Unlock the charger:
5 second long press on the SET button to unlock and all LEDs will flash to confirm that
charger has been unlocked.

Warning / Cautions
WARNING:
Failure to heed this warning may cause injury to persons and damage to Equipment.
CAUTION:
Failure to observe this warning may result in damage to equipment
and improper functioning of the Charger.
WARNING:
●The charger is not designed for any life saving application.
●The charger is designed for in-door use. Protect the charger from ingress of water.
●This charger is made to charge only properly sized lead acid batteries and Lithium Fe PO4
(LFP).
●Don't recharging non-rechargeable batteries.
●Charging other types of battery or under-sized lead acid batteries may cause fire or
explosion.
●Install the charger in accordance with all local codes.
●Do not use the charger if it has been dropped or damaged.
●Do not remove casing of the charger, there is no user -serviceable parts inside.
●Do not charge the battery on boats. Remove the battery and charge on shore.
●Never attempt to charge a frozen battery.
●Never attempt to charge a damaged battery.
●Wear protective goggles and turn your face away when connecting or disconnecting the
battery.
●Never place the charger on top of a battery.
●Never smoke, use an open flame, or create sparks near battery or charger during normal
charging operation as batteries may give out explosive gas.
●Operation as batteries may give out explosive gas.
●Do not charge batteries in an enclosure (box- in) due to possible explosion of entrapped
explosive gas.
●Use of accessory not recommended may cause risk of fire, electric shock.
●Disconnect the mains supply before connecting or disconnecting the links to the battery.
●If the charger does not work properly or if it has been damaged, unplug all connections.
Copy Right
All rights reserved.
No part of this publication may be reproduced, or transmitted in any form or by any means without
the written permission from Manson Engineering Industrial Ltd.
Changes in the manual.
Manson Engineering Industrial Ltd. has the right to update and change the content of this manual
without any prior notice and obligation.
Disclaimer
Exclusions for documentation, Indemnity and Product application.
Manson Engineering Industrial Ltd. (Manson)
1. Assumes no warranty to the accuracy, suitability of technical information given in the user
manuals or other documentation.
2. Undertakes no responsibility or liability of losses, damages and related expenses whether
specific, direct, indirect consequential or accidental which might result from the use of
information given in this manual.
3. Shall not be liable to anyone for any special, collateral, incidental or consequential damages
in connection with or from the use of these Manson products. The sole and exclusive liability
to Manson, regardless of the form of action shall not exceed the purchase price of the
Manson product.
P.2

Introduction
This pro charger is designed for applications that demand adaptive charging
for Lead Acid based and LiFePO4 (LFP) batteries. Battery with or without load
can be connected to the charger all the time and the charger will keep on
monitoring the battery. It has temperature compensated charging when
connected the supplied battery temperature sensor. The Sleep Mode is to
ensure a full silent 8 hour charging without cooling fan.
Control & Indicators
1. Bulk and soft start charger indicator.
2. Absorption and Equalization charge
indicator.
3. Float charge and Standby indicator.
4. Battery Type & 13.5V DC Source
indicator.
5. Low mode and Night mode indicator
6. Set Button for selection of battery
type & operation mode
P.3

Using the charger
After checking for the correct ac voltage on the rating label and connection to
AC supply, the charger will light up the Bulk LED then quickly to Abs LED.
The default battery type LEAD LED is on showing charger is in good working
condition.

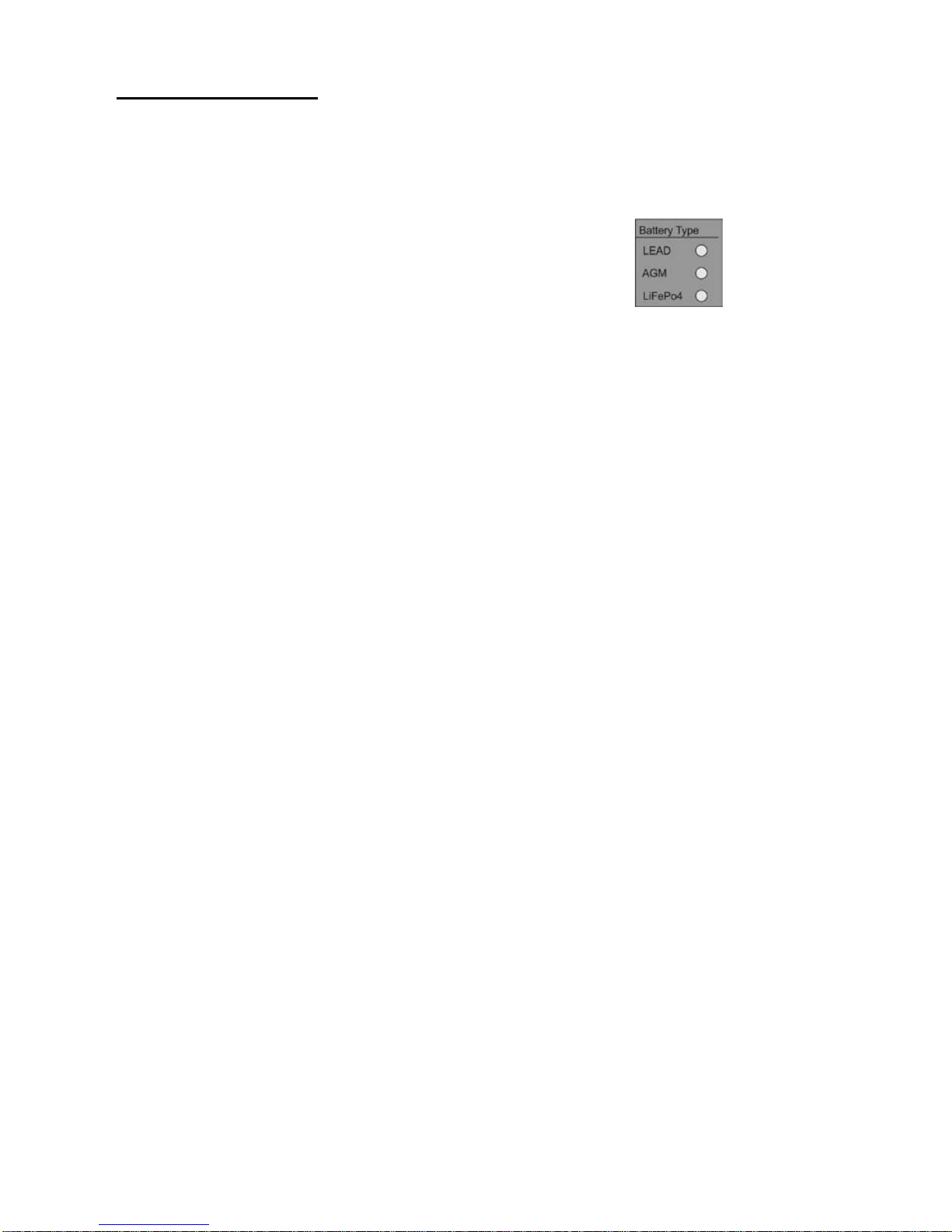

Battery Type and DC source Selection Procedure
You can select your desired battery by short presses on the SET button, to
move LEAD→AGM→LiFePo4→13.5V DC (3 battery type LEDS ON)→
LEAD→AGM→LiFePo4→13.5V DC (3 battery type LEDS ON)….
Just stop at your desired battery type or 13.5V DC Source and the charger
remembers it even AC & Battery are disconnected.
Low / Night / EQ Selection Procedure
Long Presses for LOW MODE, NIGHT MODE, EQ MODE & EXIT.
When battery type set at AGM or LiFePo4.
Long Press (4 second) for
LOW→NIGHT→EXIT→LOW→NIGHT→EXIT→LOW→NIGHT→EXIT
When battery type set at LEAD
Long Press for
LOW→NIGHT→EQ→EXIT→LOW→NIGHT→EQ→EXIT→

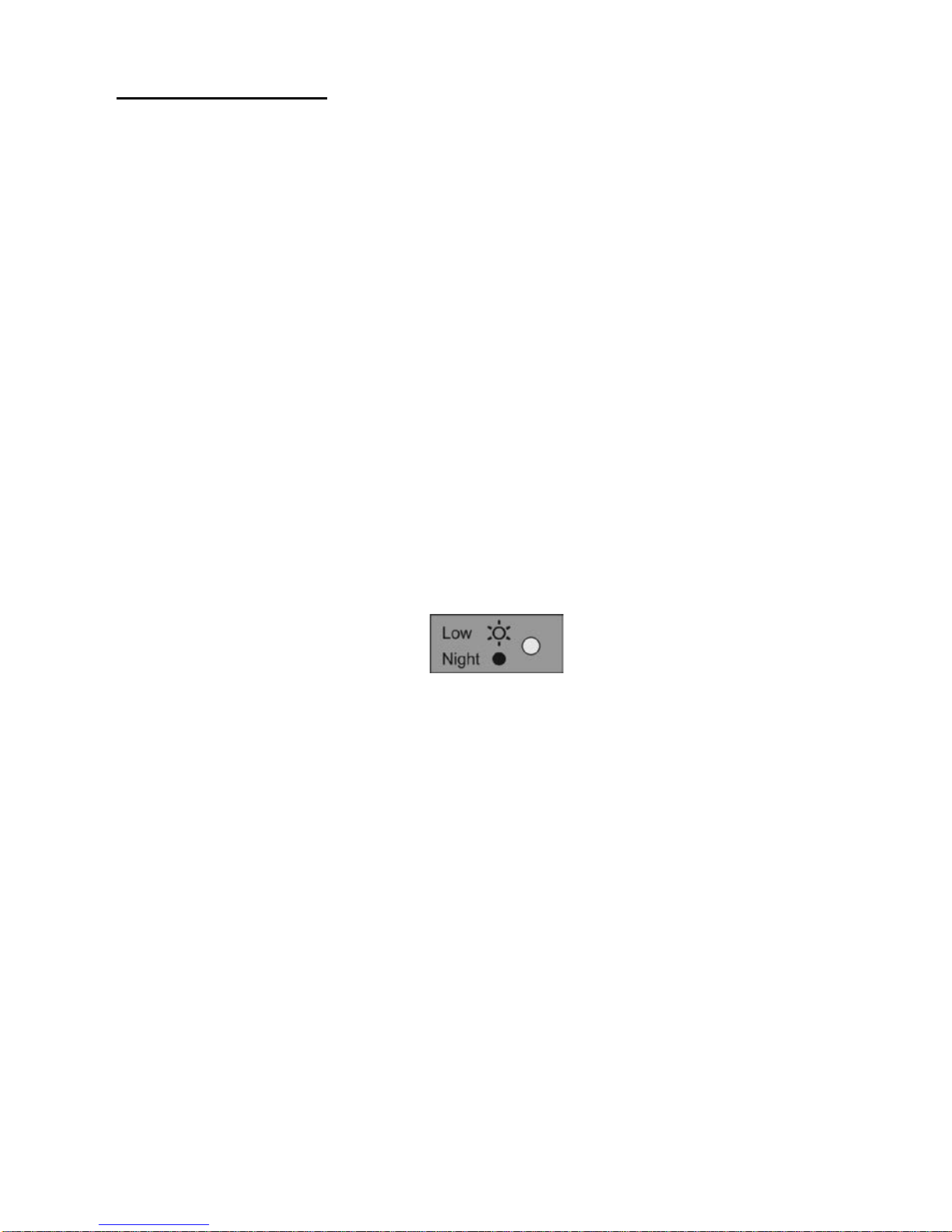

Low Mode & Night Mode
Flickering LED is Low Mode @
Solid LED is Night Mode @
Both mode have only 15 Amp maximum output and the cooling fan does not
rotate at all charging stages so that the charger is virtually noiseless.
The Night Mode has an 8 hour timer and will automatically reset back to normal
mode with maximum 30 Amp charging current.
Low mode is more adaptive for battery with less than 100Ah and further extend
the lower range of battery capacity to 60Ah.
Both modes are ideal for use in caravan or campers where as the Night mode
is good for situation with high day time load and low load at silent night.
Equalization Mode (Recondition Mode)
This charging profile is only applicable to Lead Acid based battery especially
wet type .It reconditions the deeply discharged battery and reduces
stratification ,counter sulfation found in deeply discharged and infrequent used
battery. It also gives battery cells a well balanced charge.
Once set, the charging algorithm is automatic. The charger will go through Soft
Bulk (for deeply discharged battery) -> Bulk -> Absorption -> Equalization ->
Float charge stages. P.4

Precautions
Always check with battery manufacturer for the conditions & suitability for
Equalization Charge.
Disconnect any load connected to the battery.
Only apply Equalization charge occasionally to Flat plate, Cylindrical cell of
lead acid based Sealed type VRLA battery.
Gassing in Wet type battery is common and make sure electrolyte adequate.
Disconnect any load connected to the battery.
Never leave the charger unattended during Equalization Charge.
Procedure for Equalization Charge
1. Disconnect any load to the battery.
2. Fill up the electrolyte of the battery if necessary.
3. Set Battery Type to LEAD.
4. Give Set Button 3 Long Presses (5 second each)
LOW→NIGHT→EQ→EXIT→LOW→NIGHT→EQ→EXIT→LOW
The EQ LED will flicker to indicate charger has been set for EQ Charge.
5. The charger will go through Soft Bulk (for deeply discharged battery)
->Bulk -> Absorption -> Equalization.
EQ charge finishes automatically either when battery rises to 16.2V or
after one hour -> Float charge stage.
6. Exit any time by long press on the SET button to unlock and a further
long press until the flashing EQ LED goes off follow by Float LED On.
Recommended Battery Capacity
Charging Mode Battery Capacity
30A NORMAL 100Ah to 300Ah
15A LOW or NIGHT MODE 60Ah to 150Ah
Battery Charger installation and Connection
Observe the warnings & safety precautions before rushing to install and
operate the charger. Check battery condition, fill up cells for wet battery, clean
battery poles. Secure the battery charger in a well ventilated place, make sure
the mounting surface is flat and without soft covering material or loose paper
sheet. The air intake is at the bottom and air outlet at the Front Exhaust Hood.
It is recommended to install the charger in a vertical position for optimum
cooling and splash proof.
Before connecting or disconnecting the charging cable, unplug AC cord from
the mains.
First connect the Red cable to Positive + terminal of charger and the battery
Positive + Pole.
Then connect the Black cable to the Negative – terminal and the Negative –
Pole of the battery. Make sure all the connections are secured and well tighten
up, double check on the correct polarity.
After AC is on, check for the correct battery type, if not you can always change
to desire battery type by quick short presses without disconnection of the AC
mains or battery. P.5

The 6 Stage Charging Algorithms for Lead Acid Battery
There are two separate charging algorithms:
one for lead acid based and one for Lithium FePo4.
Lead acid based batteries ; wet , sealed , AGM
6 Stages: Soft Start--> Bulk --> Absorption ---> Float --> Standby --->
Refresh Cycle
This 6-Stage charger will give a fast and safe charging according to the state of
your battery, saves energy, and automatically refresh your battery.
Soft Start:
When battery voltage is less than 12V, charger will lower the initial charging
current to 15 Amp to avoid heating up and stress on the battery until battery
voltage rises to 12.4V then switches to normal Bulk Charge.
Bulk Charge:
This stage will give about 80% of the total charge to the battery. Charger is held
in giving out a constant charging current of 30Amp to the battery. Voltage
increases as the charging goes on bulk charge mode giving a steady 30Amp
current to the battery and the temperature of the battery increases as well.
Absorption Charge:
This will give the remaining 20% charge to the battery. When the battery
voltage rises to the voltage level of the selected battery type, the charging
switches to Constant voltage charging. The absorption time is adaptive to the
time spent on bulk charge and the battery type.
The absorption time is also is bounded by a set of upper and lower time limits.
Float Charge:
A low constant voltage charge to top up the battery for slight self discharge or
light occasional loading in order to keep the battery in a fully charged condition
all the time.
Standby Charge:
The charger will enter into an energy conversation (Standby) stage with lower
Float Voltage after long period of inactivity of 8 hours or more has been
detected. This Standby stage also helps to reduce grid corrosion. This will
decrease the gassing and corrosion to the positive terminal.
Refresh Charge
Charger will automatically give a refreshing cycle charge (fast bulk &
absorption, float) at 7 days interval of inactivity. This is to keep the electrolyte
and the cells of the lead acid battery in good working condition.
P.6

Equalization Charge:
It is only applicable to Lead Acid based battery especially wet type.
It reconditions the deeply discharged battery and reduces stratification, counter
sulfation found in deeply discharged and infrequent used battery. It also gives
battery cells a well balanced charge.
Once set, the charging algorithm is automatic. The charger will go through Soft
Bulk (for deeply discharged battery) -> Bulk -> Absorption -> Equalization ->
Float charge stages.
You can exit from Equalization charge to Float anytime by long press at the
SET button.
Sleep Mode & Half Power Mode
Both charge mode have only 15Amp maximum charging current in stead of
30Amp.
The cooling fan will be off all the time to ensure total silence of a quiet charging
operation.
Half Power mode is more suitable for batteries with less than 100Ah capacity.
The sleep Mode has an 8 hour timer, charger will go back to normal maximum
output of 30Amp
Battery with Loads connected such as in caravan, campers & etc.
The charger can be used as a stand alone automotive charger or connected to
battery all the time with and without load as long as the load is not more than
25 Amp in normal mode or 10 Amp in half power /sleep mode.
Lead Acid based batteries: LEAD / AGM
P.7

Charging Profile with Equalization charge set for Lead Acid based batteries.
LiFePO4 (LFP) battery
Caution: Never charge LFP battery when its temperature is below 0°C.
There is a special charge algorithm and treatment for Lithium FePO4 (LFP)
batteries to ensure safe and optimal charging adaptive to the special chemistry
of the battery which is quite different to Lead Acid battery. There are only two
active charging stages namely Bulk and Absorption, at the end of Absorption is
the inactive (no charging current) Standby Stage. There is no Float and no
automatic refreshing cycle charge and no Equalization Charge for LFP.
P.8

DC Source 13.5V
All 3 battery type LED are on at the same time in DC source mode.
Charger can be used as a constant 13.5V voltage DC source with start upload
limited to 8 AMP and subsequent maximum continuous 20Amp load without
the battery.
Battery with load
A load can be connected to the battery during charging as long as the load is
not larger than the rated output of the charger. The maximum continuous load
should be less than 20Amp.
Supplied Accessories
Battery temperature sensor (only for lead acid based battery)
When connected to the battery temperature sensor, the charging voltages
changes inversely with the battery temperature such that charging voltage
decreases with rise of temperature and increases with drop of battery
temperature.
Optional Accessory
Remote control Module
It is an extension of the front panel of the charger with full sets of LED
indicators & the SET button. You can monitor the charging status and do all
sorts of setting on the charger without getting to the charger which is most
likely installed at hard to access spot. This optional Remote Control Module
comes with a 10 meter connection cable.
Cable size recommendation for 30A
AWG Maximum Length (m)
12 2m
10 3.5m
8 5.5m
Protection
Over Temperature Protection of battery
When this sensor detects the temperature of battery over 60ºC, the charger will
decrease the charging current to 1Amp. When the battery temperature reduce
back to 60 ºC.
Over Temperature Protection of charger:
At high operating temperature charger will gradually decreases the output
power to protect the electronic components from further thermal stress and at
the same time keeps a safe and continuous charging. The charger will
decrease output current in 3 levels, while the charger temperature keeps on
increasing, it will decrease output current to 20Amp first, then 10Amp and
finally 1Amp.
Short circuit protection by constant current method and auto reset when fault is
clear.
Reversed polarity protection with 40Amp (CBC-9130)/ 20Amp (CBC-9215)
thermal fuse. P.9

Specification
Model CBC-9130 CBC-9215
AC Input Voltage 190 - 260V~ 50Hz
AC Full Load ≤4A ≤4A
No Load Input Current (Standby) ≤120mA ≤120mA
Output (Charge) Voltage Selection
Absorption Float Absorption Float
Lead 14.4V 13.6V 28.8V 27.2V
AGM 14.7V 13.6V 29.4V 27.2V
LiFePO4 14.4VN/A 28.8VN/A
Equalization for Lead 16.2V / 3A 32.4V / 1.5A
DC Source Mode 13.5V / 20A 26V / 10A
Standby Voltage for
Lead / AGM 13.2V 26.4V
Minimum Battery Voltage 3V
Recycle Day 7 days
Remote Battery Temp. Sensor
(supplied accessory) Yes, -20mV/°C Yes, -40mV/°C
Max. Output Charge Current 30A 15A
Soft Start Bulk Charge Current 15A 7.5A
Low Mode Charge Current 15A 7.5A
Efficiency >91% >91%
Protections Short Circuit protections, self recoverable
Over temperature protection, 3 steps decrease of output
power, self recoverable
Battery over temperature protection, with battery remote
sensor, self recoverable
Reverse Polarity(fused) (Replace by 40A fuse for 9130, 20A
fuse for 9215)
Cooling Thermostatically Controlled Variable Low speed FAN (0 – full
speed)
Operating Temperature -10°C to +50°C (Maximum Output up at 40°C)
Back Drain Current Less than 1Ah/month
Remote Control Optional Accessory
Wireless Remote Control WiFi models only
Remote Control by PC software / Smart phone APPS
Approvals EN55014, EN61000, EN60335, EN62233
Dimension (LxWxH) 223x135x73mm 223x135x73mm
Weight 1.8kg 1.8kg
Recommended Battery Capacity
Range 100Ah-300Ah (30A) 50Ah-150Ah (15A) 50Ah-150Ah (15A) 25Ah-75Ah (7.5A)
P.10

Troubleshooting
Problem
Possible Cause
Fix
All LED on Panel
is OFF
Charger damaged
Check outlook of charger. If
damaged, do not use it again
No AC Input
1. Check AC source.
2. Check cable connection is
correctly connected.
Charger failed
Contact supplier for repairing
service
No Output and
LED on Panel is
ON
Output fuse is broken
Check output fuse
Charger failed
Contact supplier for repairing
service
LED
Consecutive
Rotations
Charger over
temperature
1. Check cooling fan is working.
2. Disconnect any load to battery.
3. Disconnect AC source.
4. Let charger cool down
5. Double check on correct size of
battery.
Battery over
temperature
1. Switch AC and Disconnect
battery from charger and load, let
cool down.
2. Make sure load connected to
battery is less than 20Amp.
3. Make sure temperature sensor is
connected correctly and fix on
battery.
4. Check temperature of battery
near temperature sensor point. If
55°C - 60°C, the charger will
protect.
5. Make sure battery and the sensor
wire are away from any heat source.
P.11

Smartphone Apps
There are Apps for iPhone and Android can be used to monitor Manson CBC
series smart battery charger.
Please go to App Store or Google Play to search “Magnett Charger Monitor”
apps.
P.12

Mounting Hold Diagram
P.13
