Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Cautions on Using Batteries Notes on radio Cable labels
Power cord FM indoor antenna AM loop antenna Sound calibration
microphone
Sound calibration
microphone stand
Remote control unit
(RC034SR)
R03/AAA batteries
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
30°
Approx. 7 m
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0With discrete circuit technology, the power amplifier provides
identical quality for all 7-channels (140 Watts x 7-channels)
For optimum realism and stunning dynamic range, the power amplifier
section features discrete power devices (not integrated circuitry).
By using high current, high power discrete power devices, the amplifier
is able to easily drive high quality speakers.
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Dolby Atmos (v p. 262)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 265)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 265)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

High performance

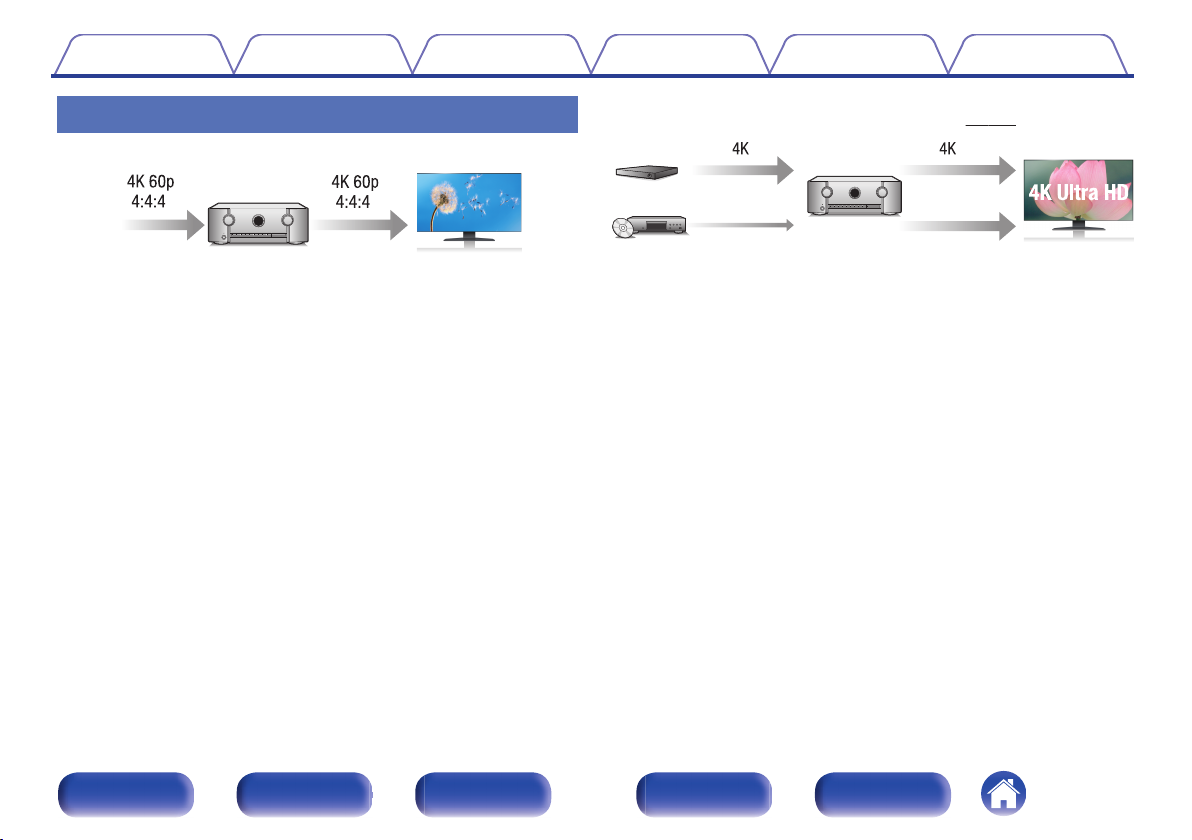

04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 170)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV
devices (8 inputs, 2 outputs)
.
82
OutIn
This unit is equipped with 8 HDMI inputs and 2 HDMI outputs enabling
connection to various HDMI compatible devices such as Blu-ray Disc
players, game consoles and HD video camcorders. This unit is
equipped with 2 monitor outputs, enabling you to project the same
image at the same time using this unit.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 106)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0Wireless connection with Bluetooth devices can be carried out
easily (v p. 76)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.

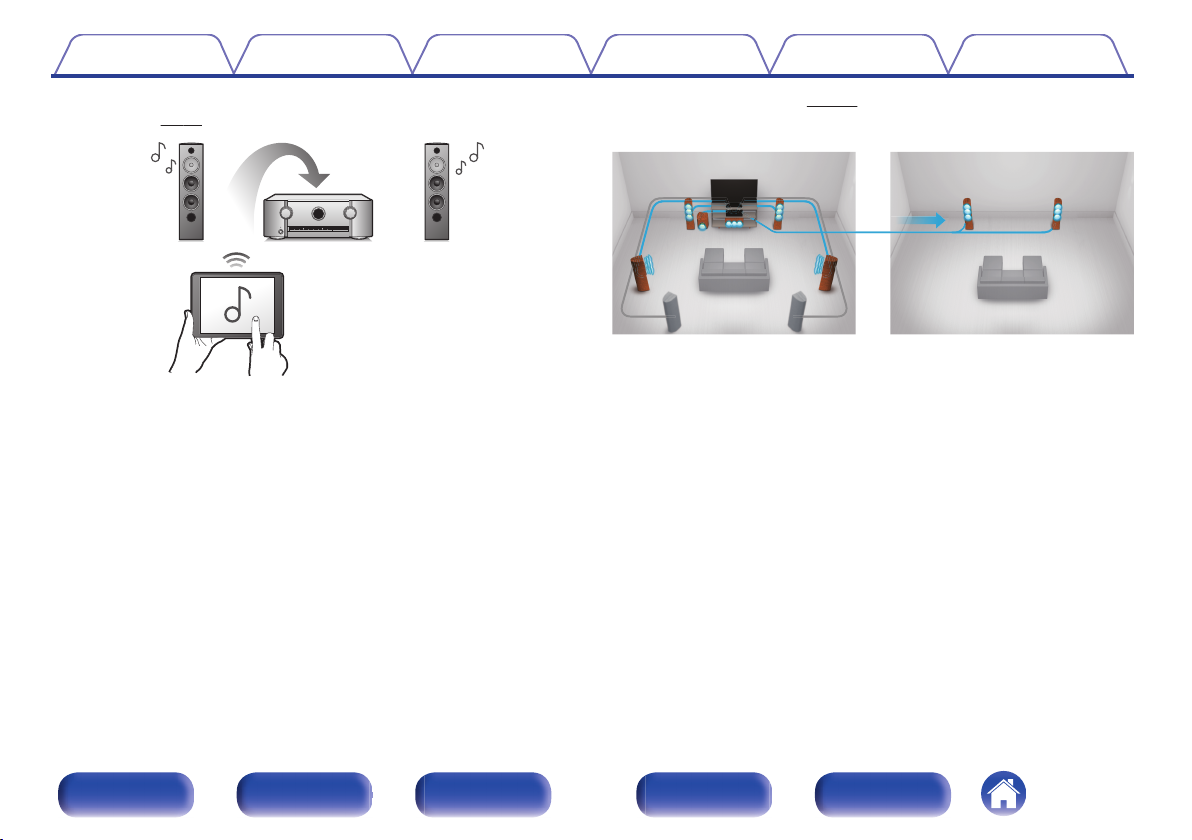

0Multi-Room audio (v p. 117)
.
GMAIN ZONEHGZONE2H
You can select and play back the respective inputs in MAIN ZONE and
ZONE2.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an ECO Mode function that allows you to
enjoy music and movies while reducing the power consumption during
use, and also an auto-standby function that automatically turns off the
power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Compatible with the “Marantz 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Marantz 2016 AVR Remote” App also gives
you quick access to the receiver's status display, option menus,
Marantz Blu-ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Marantz 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Part names and functions

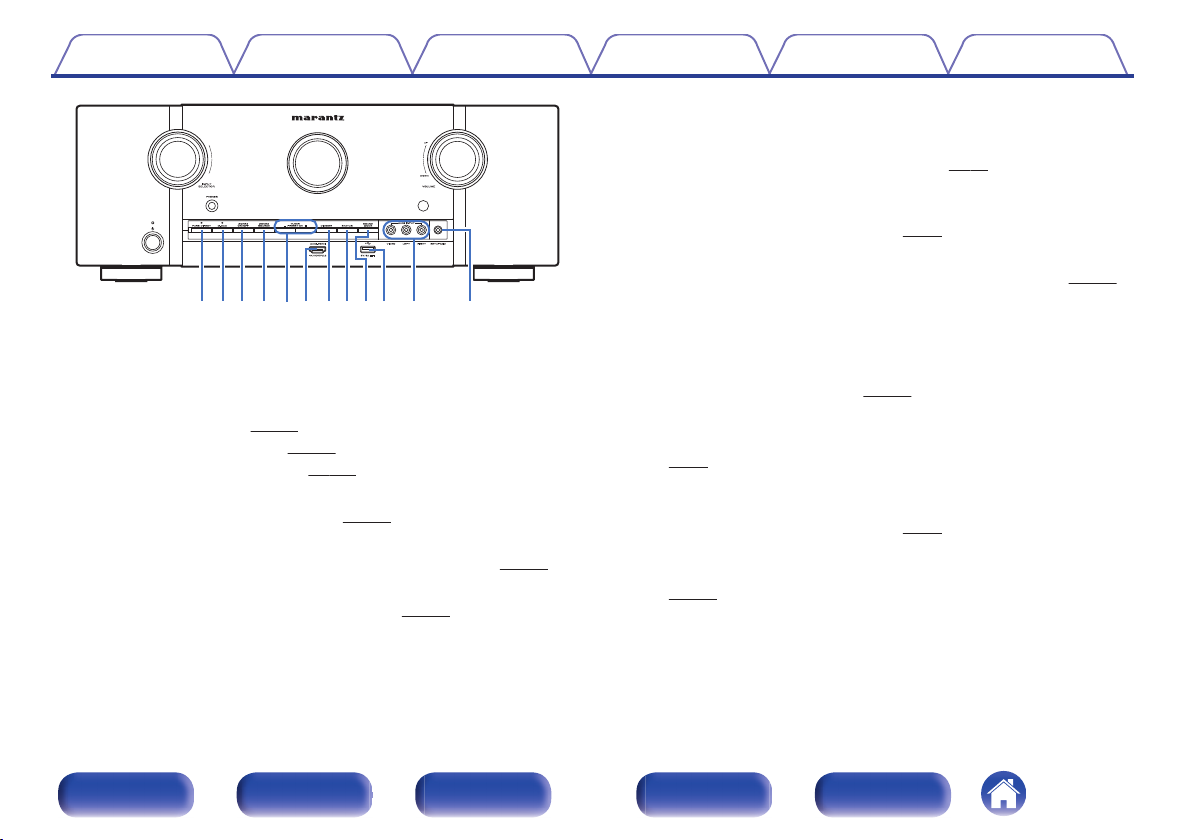

Front panel
.
ewq y
tr ui
W
1
Q
9
W
0
oQ
2
Q
3
Q
4
Q
5
Q
0
Q
1
Q
6
Q
7
Q
8
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

.
o
qwe r t y u i
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 70)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Pass Through” is set to “On” (v p. 163)
0When “HDMI Control” is set to “On” (v p. 165)
0When “Network Control” is set to “Always On” (v p. 205)
CINPUT SELECTOR knob
This selects the input source. (v p. 70)
DPURE DIRECT indicator
This lights when the “Pure Direct” mode is selected as the sound mode.
(v p. 120)
EM-DAX indicator
This lights when the M-DAX mode is selected. (v p. 154)
FDisplay
This displays various pieces of information. (v p. 19)
GRemote control sensor
This receives signals from the remote control unit. (v p. 9)
HVOLUME knob
This adjusts the volume level. (v p. 71)
IHeadphones jack (PHONES)
This is used to connect headphones.
When the headphones are plugged into this jack, audio will no longer
be output from the connected speakers or from the PRE OUT
connectors.
NOTE
0To prevent hearing loss, do not raise the volume level excessively when using
headphones.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

.
W1Q9Q8 W0Q2 Q3 Q4Q5Q0 Q1 Q6Q7
JPURE DIRECT button
This switches the sound mode between Direct, Pure Direct and Auto
surround.
0“Direct playback” (v p. 120)
0“Pure Direct playback” (v p. 120)
0“Auto surround playback” (v p. 121)
KM-DAX button
This switches the M-DAX mode. (v p. 154)
LZONE2 ON/OFF button
This turns the power of ZONE2 (separate room) on/off. (v p. 143)
MZONE2 SOURCE button
This selects the input source for ZONE2. (v p. 143)
NTuner preset channel buttons
(TUNER PRESET CH +, –)
These select preset broadcast stations. (v p. 87)
OAUX1-HDMI connector
This is used to connect HDMI output compatible devices such as video
camcorders and game consoles. (v p. 59)
PDIMMER button
Each press of this switches the brightness of the display. (v p. 213)
QSTATUS button
Each press of this switches the status information that is shown on the
display.
RSOUND MODE button
Switching the sound mode. (v p. 118)
SUSB port (T)
This is used to connect USB storages (such as USB memory devices).
(v p. 61)
TAUX1 INPUT connectors
Used to connect analog output compatible devices such as video
camcorders and game consoles. (v p. 59)
USETUP MIC jack
This is used to connect the supplied Sound calibration microphone.
(v p. 182)
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

Display
The input source name, sound mode, setting values and other information are displayed here.
oStandard display
.
q w
AVolume indicator
BInput source indicator
The currently selected input source name is displayed.
If the input source name has been changed using “Source Rename” in
the menu, the input source name after the change is displayed.
(v p. 177)
oTuner display
These light up according to the reception conditions when the input
source is set to “Tuner”.
.
er
CLights up when the broadcast is properly tuned in.
DIn the FM mode, this lights up when receiving stereo broadcasts.
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

oSleep timer indicator
.
t
EThis lights when the sleep mode is selected. (v p. 133)
oZONE2 power on display
.
y
FThis lights up when ZONE2 (separate room) power is turned on.
(v p. 143)
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
