Marantz AV7005/N1B User manual

Service
Manual
•Some illustrations using in this service manual are slightly different from the actual set.
•Please use this service manual with referring to the operating instructions without fail.
•For purposes of improvement, specications and design are subject to change without notice.
AV Pre Tuner
AV7005 / N1B/U1B
AV7005
AV7005
S0195-1V03DM/DG1011 Copyright 2010 D&M Holdings Inc. All rights reserved.
WARNING: Violators will be prosecuted to the maximum extent possible.
Ver. 3
Please refer to the
MODIFICATION NOTICE.

2
MARANTZ DESIGN AND SERVICE
Using superior design and selected high grade components, MARANTZ company has created the ultimate in stereo sound.
Only original MARANTZ parts can insure that your MARANTZ product will continue to perform to the specifications for
which it is famous.
Parts for your MARANTZ equipment are generally available to our National Marantz Subsidiary or Agent.
ORDERING PARTS :
Parts can be ordered either by mail or by Fax.. In both cases, the correct part number has to be specified.
The following information must be supplied to eliminate delays in processing your order :
1. Complete address
2. Complete part numbers and quantities required
3. Description of parts
4. Model number for which part is required
5. Way of shipment
6. Signature : any order form or Fax. must be signed, otherwise such part order will be considered as null and void.
In case of difficulties, do not hesitate to contact the Technical
Department at above mentioned address.
091105DM/DG
USA
MARANTZ AMERICA, INC
100 CORPORATE DRIVE
MAHWAH, NEW JERSEY 07430
USA
EUROPE / TRADING
D&M EUROPE B. V.
P. O. BOX 8744, BUILDING SILVERPOINT
BEEMDSTRAAT 11, 5653 MA EINDHOVEN
THE NETHERLANDS
PHONE : +31 - 40 - 2507844
FAX : +31 - 40 - 2507860
KOREA
D&M SALES AND MARKETING KOREA LTD.
2F,YEON BLDG.,
88-5, BANPO-DONG, SEOCHO-GU,
SEOUL KOREA
PHONE : +82 - 2 - 715 - 9041
FAX : +82 - 2 - 715 - 9040
CANADA
D&M Canada Inc.
5-505 APPLE CREEK BLVD.
MARKHAM, ONTARIO L3R 5B1
CANADA
PHONE : 905 - 415 - 9292
FAX : 905 - 475 - 4159
JAPAN
D&M BUILDING, 2-1 NISSHIN-CHO,
KAWASAKI-KU, KAWASAKI-SHI,
KANAGAWA, 210-8569 JAPAN
D&M Holdings Inc.
CHINA
D&M SALES AND MARKETING SHANGHAI LTD.
ROOM.808 SHANGHAI AIRPORT CITY TERMINAL
NO.1600 NANJING (WEST) ROAD, SHANGHAI,
CHINA. 200040
TEL : 021 - 6248 - 5151
FAX : 021 - 6248 - 4434
SHOCK, FIRE HAZARD SERVICE TEST :
CAUTION : After servicing this appliance and prior to returning to customer, measure the resistance between either primary
AC cord connector pins (with unit NOT connected to AC mains and its Power switch ON), and the face or Front Panel of
product and controls and chassis bottom.
Any resistance measurement less than 1 Megohms should cause unit to be repaired or corrected before AC power is applied,
and verified before it is return to the user/customer.
Ref. UL Standard No. 60065.
NOTE ON SAFETY :
Symbol zFire or electrical shock hazard. Only original parts should be used to replaced any part marked with symbol z.
Any other component substitution (other than original type), may increase risk of fire or electrical shock hazard.
安全上の注意：
zがついている部品は、安全上重要な部品です。必ず指定されている部品番号の部品を使用して下さい。

3
SAFETY PRECAUTIONS
The following check should be performed for the continued protection of the customer and service technician.
LEAKAGE CURRENT CHECK
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis
resistance check. if the leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the
power cord is less than 460 kohms, the unit is defective.
Be sure to test for leakage current with the AC plug in both polarities, in addition, in each power ON, OFF and STANDBY
mode, if applicable.
CAUTION Please heed the points listed below during servicing and inspection.
◎Heed the cautions!
Spots requiring particular attention when servicing, such
as the cabinet, parts, chassis,etc., have cautions indicated
on labels. be sure to heed these causions and the
cautions indicated in the handling instructions.
◎Caution concerning electric shock!
(1) An AC voltage is impressed on this set, so touching
internal metal parts when the set is energized could
cause electric shock. Take care to avoid electric
shock, by for example using an isolating transformer
and gloves when servicing while the set is energized,
unplugging the power cord when replacing parts, etc.
(2) Tere are high voltage parts inside. Handle with extra
care when the set is energized.
◎Caution concerning disassembly and
assembly!
Through great care is taken when manufacturing parts
from sheet metal, there may in some rare cases be burrs
on the edges of parts which could cause injury if fingers
are moved across them. Use gloves to protect your hands.
◎Only use designated parts!
The set's parts have specific safety properties (fire
resistance, voltage resistance, etc.). For replacement
parts, be sure to use parts which have the same
poroperties. In particular, for the important safety parts
that are marked z on wiring diagrams and parts lists, be
sure to use the designated parts.
◎Be sure to mount parts and arrange the wires
as they were originally!
For safety seasons, some parts use tape, tubes or other
insulating materials, and some parts are mounted away
from the surface of printed circuit boards. Care is also
taken with the positions of the wores omsode amd clamps
are used to keep wires away from heating and high
voltage parts, so be sure to set everything back as it was
originally.
◎Inspect for safety after servicing!
Check that all screws, parts and wires removed or
disconnected for servicing have been put back in their
original positions, inspect that no parts around the area
that has been serviced have been negatively affected,
conduct an inslation check on the external metal
connectors and between the blades of the power plug,
and otherwise check that safety is ensured.
(Insulation check procedure)
Unplug the power cord from the power outlet, disconnect
the antenna, plugs, etc., and turn the power switch on.
Using a 500V insulation resistance tester, check that the
inplug and the externally exposed metal parts (antenna
terminal, headphones terminal, input terminal, etc.) is
1MΩor greater. If it is less, the set must be inspected and
repaired.
Many of the electric and structural parts used in the set
have special safety properties. In most cases these
properties are difficult to distinguish by sight, and using
replacement parts with higher ratings (rated power and
withstand voltage) does not necessarily guarantee that
safety performance will be poreserved. Parts with safety
properties are indicated as shown below on the wiring
diagrams and parts lists is this service manual. Be sure to
replace them with parts with the designated part number.
(1) Schematic diagrams ......Indicated by the z mark.
(2) Parts lists ......Indicated by the zmark.
Using parts other than the designated
parts could result in electric shock, fires
or other dangerous situations.
CAUTION Concerning important safety
parts

4
NOTE FOR SCHEMATIC DIAGRAM
WARNING:
Parts marked with this symbol zhave critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
CAUTION:
Before returning the unit to the customer, make sure you make either (1) a leakage current check or (2) a line to chassis resistance check. If the
leakage current exceeds 0.5 milliamps, or if the resistance from chassis to either side of the power cord is less than 460 kohms, the unit is defective.
WARNING:
DO NOT return the unit to the customer until the problem is located and corrected.
NOTICE:
ALL RESISTANCE VALUES IN OHM. k=1,000 OHM / M=1,000,000 OHM
ALL CAPACITANCE VALUES IN MICRO FARAD. P=MICRO-MICRO FARAD EACH VOLTAGE AND CURRENT ARE MEASURED AT NO SIGNAL
INPUT CONDITION. CIRCUIT AND PARTS ARE SUBJECT TO CHANGE WITHOUT PRIOR NOTICE.
Parts for which "nsp" is indicated on this table cannot be supplied.
When ordering of part, clearly indicate "1" and "I" (i) to avoid mis-supplying.
Ordering part without stating its part number can not be supplied.
Not including General-purpose Carbon Chip Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Parts marked with this symbol zhave critical characteristics. Use ONLY replacement parts recommended by the manufacturer.
Not including General-purpose Carbon Film Resistor in the P.W.Board parts list. (Refer to the Schematic Diagram for those parts.)
Part indicated with the mark "★" is not illustrated in the exploded view.
WARNING:
1.
2.
3.
4.
5.
6.
●Resistors
RD : Carbon
RC : Composition
RS : Metal oxide film
RW: winding
RN : Metal film
RK : Metal mixture
P : Pulse-resistant type
NL : Low noise type
NB : Non-burning type
FR : Fuse-resistor
F : Lead wire forming
2B : 1/8 W
2E : 1/4 W
2H : 1/2 W
3A : 1 W
3D : 2 W
3F : 3 W
3H : 5 W
F:±1%
G:±2%
J:±5%
K:±10%
M:±20%
Ex.: RN
Type
14K
Shape
and per-
formance
2E
Power
182
Resist-
ance
G
Allowable
error
FR
Others
*Resistance
1800ohm=1.8kohm1 8 2
Indicates number of zeros after effective number.
2-digit effective number.
1.2ohm1 R 2
2-digit effective number, decimal point indicated by R.
1-digit effective number.
: Units: ohm
●Capacitors
CE : Aluminum foil
electrolytic
CA : Aluminium solid
electrolytic
CS : Tantalum electrolytic
CQ: Film
CK : Ceramic
CC : Ceramic
CP : Oil
CM: Mica
CF : Metallized
CH : Metallized
HS : High stability type
BP : Non-polar type
HR : Ripple-resistant type
DL : For change and discharge
HF : For assuring high requency
U : UL part
C : CSA part
W : UL-CSA part
F : Lead wire forming
0J : 6.3 V
1A : 10 V
1C : 16 V
1E : 25 V
1V : 35 V
1H : 50 V
2A : 100 V
2B : 125 V
2C : 160 V
2D : 200 V
2E : 250 V
2H : 500 V
2J : 630 V
F:±1%
G:±2%
J:±5%
K:±10%
M:±20%
Z:±80%
:-20%
P : +100%
C:±0.25pF
D:±0.5pF
= : Others
Ex.: CE
Type
04W
Shape
and per-
formance
1H
Dielectric
strength
3R2
Capacity
M
Allowable
error
BP
Others
･Units:μF.
2200μF2 2 2
Indicates number of zeros after effective number.
2-digit effective number. ･Units:μF.
2.2μF2 R 2
2-digit effective number, decimal point indicated by R
1-digit effective number.
*Capacity (electrolyte only)
･When the dielectric strength is indicated in AC,"AC" is included after the dieelectric strength value.
*Capacity (except electrolyte)
･Units:pF
2200pF=0.0022μF2 2 2
Indicates number of zeros after efective number. (More than 2)
2-digit effective number. ･Units:pF
220pF2 2 1
2-digit effective number.
Indicates number of zeros after effective numver. (0 or 1)
NOTE FOR PARTS LIST

5
TECHNICAL SPECIFICATIONS
nAudio Section
• Analog
Input sensitivity/Input impedance : 200 mV/47 kΩ
Frequency response : 10 Hz – 100 kHz — +1, –3 dB (DIRECT mode)
S/N : 105 dB (IHF–A weighted, DIRECT mode)
Distortion : 0.005 % (20 Hz ~ 20 kHz) (DIRECT mode)
Rated output : Unbalanced pre-output: 1.2 V
Balanced pre-output: 2.4 V
• Digital
D/A output : Rated output — 2 V (at 0 dB playback)
Total harmonic distortion — 0.008 % (1 kHz, at 0 dB)
S/N ratio — 102 dB
Dynamic range — 100 dB
Digital input : Format — Digital audio interface
• Phono equalizer (PHONO input — REC OUT)
Input sensitivity : 2.5 mV
RIAA deviation : ±1 dB (20 Hz to 20 kHz)
S/N : 74 dB (A weighting, with 5 mV input)
Rated output : 150 mV
Distortion factor : 0.03 % (1 kHz, 3 V)
nVideo Section
• Standard video connectors
Input/output level and impedance : 1 Vp-p, 75 Ω
Frequency response : 5 Hz – 10 MHz — +1, –3 dB
• Color component video connector
Input/output level and impedance:
Y (brightness) signal — 1 Vp-p, 75 Ω
PB/ CBsignal — 0.7 Vp-p, 75 Ω
PR/ CRsignal — 0.7 Vp-p, 75 Ω
Frequency response :
5 Hz – 60 MHz — +0, –3 dB (when “Video Convert” set to “OFF”)
nTuner section (for U)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10–15 W)
Receiving Range :
[FM] 87.5 MHz – 107.9 MHz [AM]530 kHz – 1710 kHz
Usable Sensitivity :
[FM]1.5 μV (14.8 dBf) [AM]18 μV
S/N (IHF-A) :
[FM]MONO 78 dB [AM]
STEREO 68 dB
HD 85 dB 85 dB
Total harmonic Distortion (at 1 kHz) :
[FM]MONO 0.1 % [AM]
STEREO 0.2 %
HD 0.02 % 0.02 %
nTuner section (for N)
[FM](Note: μV at 75 Ω, 0 dBf = 1 x 10–15 W)
Receiving Range :
[FM] 87.5 MHz – 108.0 MHz [AM]522 kHz – 1611 kHz
Usable Sensitivity :
[FM]1.2 μV (12.8 dBf) [AM]18 μV
S/N (IHF-A) :
[FM]MONO 72 dB
STEREO 67 dB
Total harmonic Distortion (at 1 kHz) :
[FM]MONO 0.3 %
STEREO 0.7 %
nGeneral
Power supply (for U) : AC 120 V, 60 Hz
Power supply (for N) : AC 230 V, 50 Hz
Power consumption :
60 W
0.2 W (Standby)
4.0 W (CEC standby)
Maximum external dimensions : 440 (W) x 187 (H) x 395 (D) mm
Weight : 10.1 kg
nRemote Control Unit (RC011SR)
Batteries : R03/AAA Type (two batteries)
412
52.7
29.8 40.7
100
340
440
16.5
187
23.5 52.7
267
360
395
170.5
257
11.5
DIMENSION

6
CAUTION IN SERVICING
Firmware update
• When you replace the DIGITAL UNIT ASSY (8U-310051E), you need software updates.
Refer to "VERSION UPGRADE PROCEDURE OF FIRMWARE (26 - 36 page) .
Please update the following procedure.
1. First, Please update by DFW (33 - 36 page).
2. Next, Please update the latest firmware by DPMS (26 - 32 page).
Initializing AV Pre Tuner
AV Pre Tuner initialization should be performed when the μcom, peripheral parts of μcom, and Digital P.W.B. are
replaced.
1. Turn off the power using ON/STANDBY button.
2. Press ON/STANDBY button while simultaneously pressing SURROUND MODE and AUTO buttons.
3. Check that the entire display is flashing with an interval of about 1 second, and release your fingers from the 2
buttons and the microprocessor will be initialized.
Service Jigs
When you repair the printing board, you can use the following JIG (Extension cable kit).
Please order to marantz Official Service Distributor in your region if necessary.
8U-110084S : EXTENSION UNIT KIT : 1 Set
(Refer to "JIG FOR SERVICING".)
Note: •If step 3 does not work, start over from step 1.
•All user settings will be lost and this factory setting will be recovered when this initialization mode.
So make sure to memorize your setting for restoring after the initialization.
ON/STANDBY
SURROUND MODE
AUTO

7
DISASSEMBLY
• Disassemble in order of the arrow of the figure of following flow.
• In the case of the re-assembling, assemble it in order of the reverse of the following flow.
• In the case of the re-assembling, observe "attention of assembling" it.
• If wire bundles are untied or moved to perform adjustment or parts replacement etc., be sure to rearrange them neatly
as they were originally bundled or placed afterward.
Otherwise, incorrect arrangement can be a cause of noise generation.
FRONT PANEL ASSY
Refer to "DISASSEMBLY
1. FRONT PANEL ASSY"
and "EXPLODED VIEW"
FRONT UNIT ASSY
(Ref. No. of EXPLODED VIEW : P1)
OPT UNIT
(Ref. No. of EXPLODED VIEW : P2)
H/P UNIT
(Ref. No. of EXPLODED VIEW : P3)
FRONT HDMI UNIT
(Ref. No. of EXPLODED VIEW : P4)
DOORDET UNIT
(Ref. No. of EXPLODED VIEW : P5)
TRANS MAIN
Refer to "DISASSEMBLY
5. TRANS MAIN"
and "EXPLODED VIEW"
TRANS MAIN
(Ref. No. of EXPLODED VIEW : P22)
HEAT SINK ASSY
Refer to "DISASSEMBLY
2. HEAT SINK ASSY"
and "EXPLODED VIEW"
GUIDE TOP UNIT
(Ref. No. of EXPLODED VIEW : P21)
HDAM AMP UNIT
(Ref. No. of EXPLODED VIEW : P23)
PCB REG CNT/PCB REG
Refer to "DISASSEMBLY
3. PCB REG CNT/PCB REG"
and "EXPLODED VIEW"
REG UNIT
(Ref. No. of EXPLODED VIEW : P8)
REG-CNT UNIT
(Ref. No. of EXPLODED VIEW : P9)
CABINET TOP
HDMI UNIT ASSY
Refer to "DISASSEMBLY
4. HDMI UNIT ASSY"
and "EXPLODED VIEW"
FRONT CNT UNIT
(Ref. No. of EXPLODED VIEW : P10)
INPUT UNIT
(Ref. No. of EXPLODED VIEW : P11)
A.AUDIO UNIT
(Ref. No. of EXPLODED VIEW : P13)
VIDEO UNIT ASSY
(Ref. No. of EXPLODED VIEW : P14)
DIGITAL UNIT
(Ref. No. of EXPLODED VIEW : P15)
SIDE-CNT UNIT
(Ref. No. of EXPLODED VIEW : P17)
RS232C UNIT
(Ref. No. of EXPLODED VIEW : P18)
SIRIUS UNIT
(Ref. No. of EXPLODED VIEW : P19)
XLR CONNECT UNIT
(Ref. No. of EXPLODED VIEW : P24)
BALANCE OUT UNIT
(Ref. No. of EXPLODED VIEW : P25)

8
About the photos used for descriptions in the DISASSEMBLY" section.
• The direction from which the photographs used herein were photographed is indicated at "Direction of photograph: ***"
at the left of the respective photographs.
• Refer to the table below for a description of the direction in which the photos were taken.
• Photographs for which no direction is indicated were taken from above the product.
1.FRONT PANEL ASSY
(1) Remove the screws.

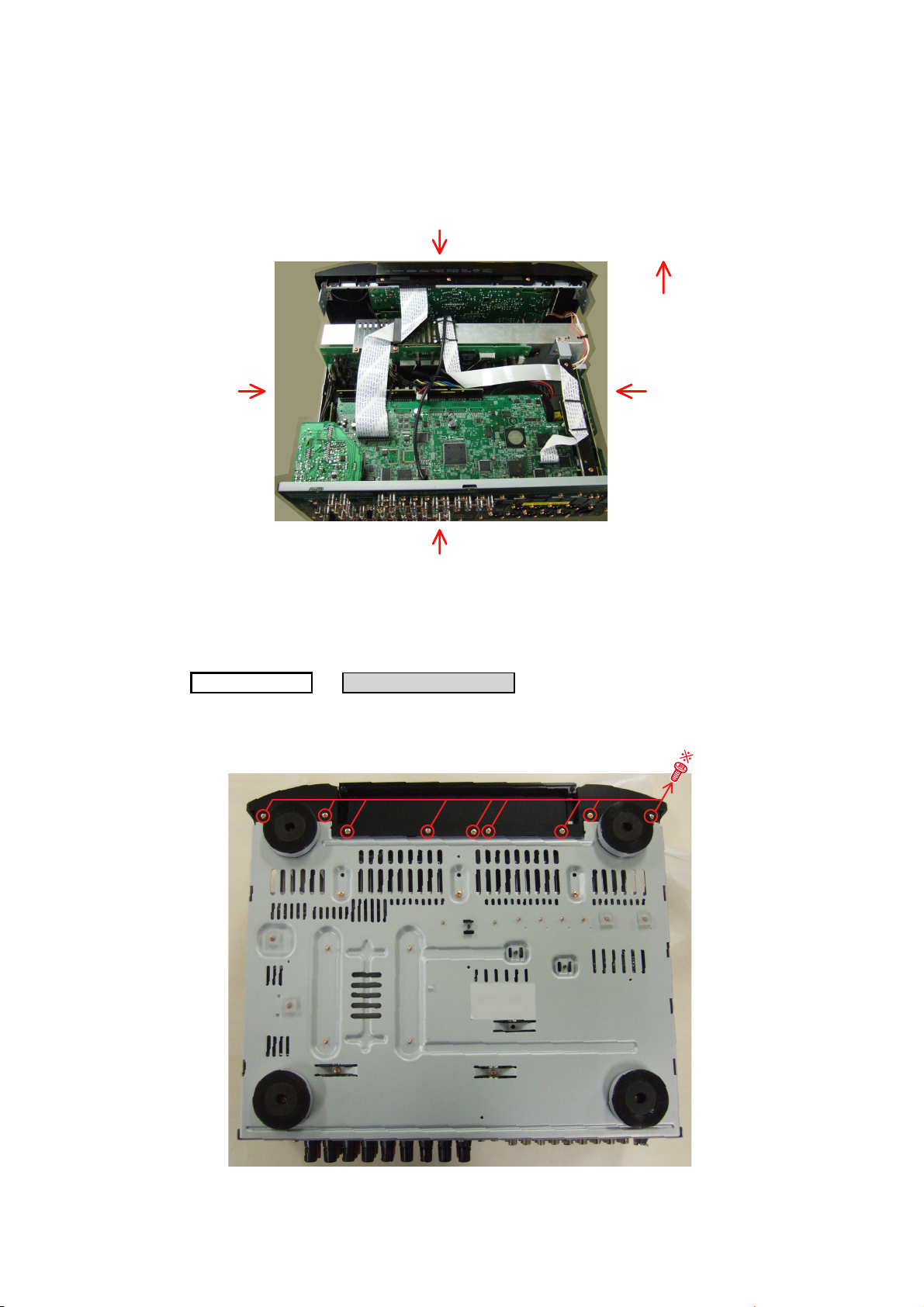

The viewpoint of each photograph
(Photografy direction)
［View from above］
Front side
Direction of photograph: B
Direction of photograph: D
Direction of photograph: C
Direction of photograph: A
CABINET TOP FRONT PANEL ASSY
→
Proceeding :
View from bottom

9
(2) Cut the wire clamp band, then disconnect the connector wires and FFC cable.
bDo not remove the FERRITE CORE when you disconnect the FFC cable.
STYLEPIN : Loose
STYLEPIN : Loose
N4201
N1001
FFC cable FFC cable
cut
FERRITE CORE

10

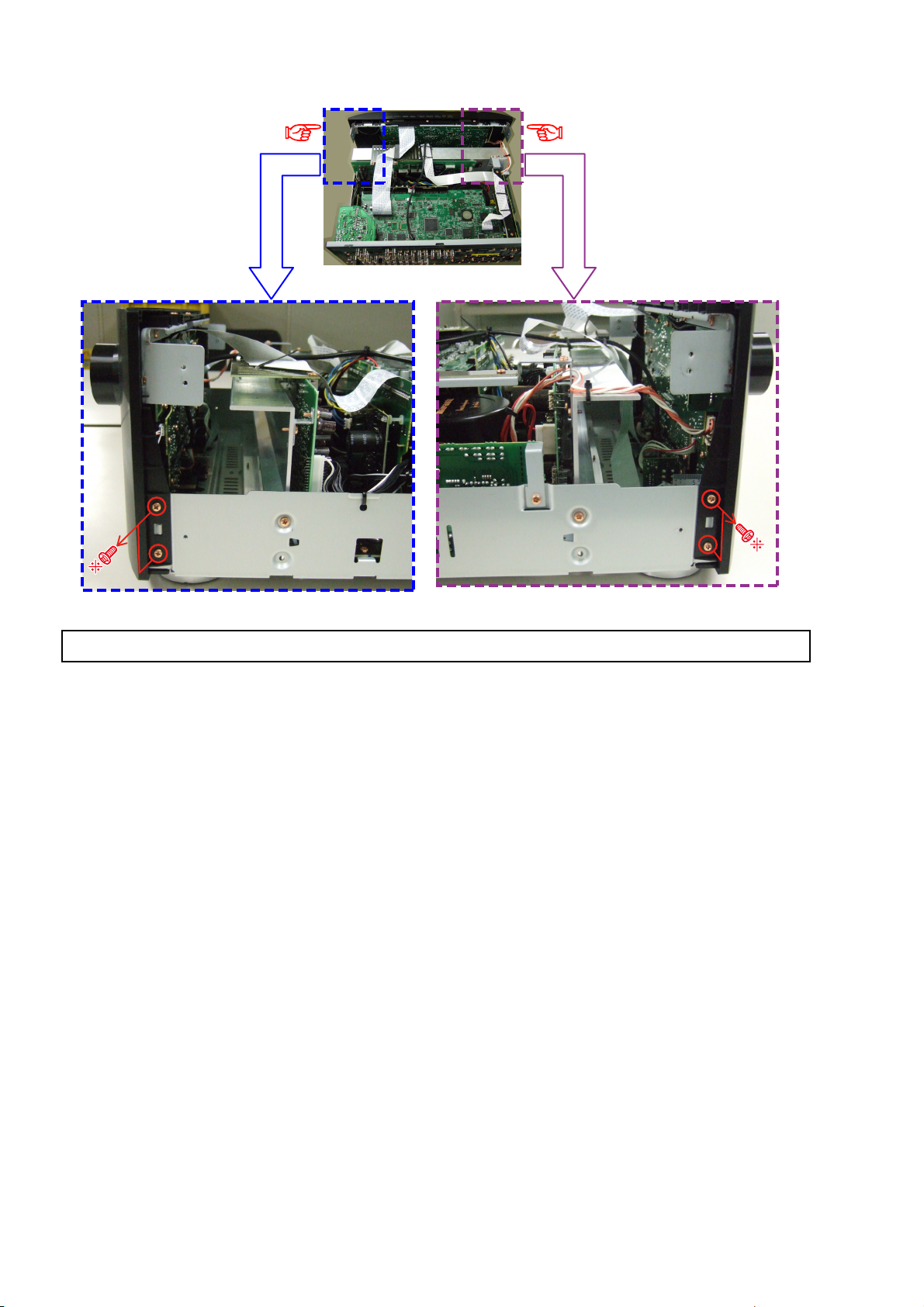

(3) Remove the screws.
Direction of
photograph: D
Direction of
photograph: C
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in FRONT PANEL ASSY.

11
2. HEAT SINK ASSY
(1) Remove the screws.
(2) Cut wire clamp band, then remove the screws. Disconnect the connector wires.
CABINET TOP HEAT SINK ASSY
→
Proceeding :
View from bottom
Direction of
photograph: D
Direction of
photograph: C
N4001
N1001
N4002
cut

12
(3) Remove the screws.
(4) Cut the wire clamp bands, then disconnect the connector wires and FFC cable. Remove the screws, SUPPORT
PWB. and the HDMI BRACKET.
bDo not remove the FERRITE CORE when you disconnect the FFC cable.
Direction of photograph: A
STYLEPIN : Loose
STYLEPIN : Loose
N4201
N1001
FFC cable FFC cable
HEATSINK ASSY
cut
HDMI BRACKET
SUPPORT P.W.B.
FERRITE CORE

13
(5) Disconnect the connector wires.
N4008N4004N4003
N4006
N8003N4009N4005
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HEAT SINK ASSY.

14
3. PCB REG CNT/PCB REG
(1) Remove the screws.
(2) Disconnect the connector wires and connector board.
CABINET TOP HEAT SINK ASSY
→PCB REG CNT/PCB REG →
Proceeding :
PCB REG
N model
CP104
CP102
N2004
Board to board
CP13A
REG CNT UNIT
Direction of photograph: C

15
4. HDMI UNIT ASSY
(1) Remove the screws, then remove the BACK PANEL and the HDMI BRACKET.
(2) Cut wire clamp band, then disconnect the connector wires and the FFC cables. Remove the screws and the
SUPPORT PWB.
Remove the PCB SIRIUS and the PCB RS232 from the PCB SIDE CNT(Board to board).
CABINET TOP HDMI UNIT ASSY
→
Proceeding :
Direction of photograph: A
U model
STYLEPIN : Loose
STYLEPIN : Loose
FFC cable
cut
HDMI BRACKET
SUPPORT P.W.B.
HDMI UNIT ASSY
SIRIUS UNIT
232C UNIT
N4201
FFC cable

16
(3) Cut the wire clamp band, then disconnect the connector wires. Remove the screw.
(4) Disconnect the connector.
Direction of photograph: C
N2004CP13A
N4002
N4001
cut
Direction of photograph: D
N4008N4610
N4003 N4004
N4005
N4006 N4009

17
(5) Disconnect the connector wire, then remove the screws and the P.W.B HOLDER..
(6) Remove the screws and P.W.B HOLDER. Remove the HDMI UNIT ASSY from the main unit.
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in HDMI UNIT ASSY.
5. TRANS MAIN
Please refer to "EXPLODED VIEW" for the disassembly method of each P.W.B included in TRANS MAIN.
Direction of photograph: D
CX102
P.W.B. HOLDER
View from bottom
P.W.B HOLDER
CABINET TOP TRANS MAIN
→
Proceeding : HDMI UNIT ASSY
→

18
SPECIAL MODE
Special mode setting button
bPress the ON/STANDBY button to turn on while pressing both buttons A and B at the same time.
Mode Button A Button B Contents
com/DSP Version display mode STATUS RETURN
Firmware versions such as Main, Sub, DSP are displayed in
the FL manager. Errors are displayed when they occur.
(Refer to 17 page.)
IInitialization mode
(Remove settings for Installer Setup.)
SURROUND
MODE AUTO Backup data initialization is carried out. (Remove settings for Installer Setup)
Initialization mode
(Includes settings for Installer Setup) CURSOR UP PURE DIRECT
Backup data initialization is carried out.
(Includes settings for Installer Setup)
Mode for switching tuner frequency step SURROUND
MODE
PURE
DIRECT
---N model only---
Change tuner frequency step to FM:200kHz/AM:10kHzSTEP
Mode for preventing remote control
acceptance STATUS ENTER
Operations using remote control are rejected.
(Mode cancellation: Turn off power and execute the same
button operations as when performing setup.)
Panel lock mode AUTO DISPLAY Operations using main unit panel buttons or master volume are
rejected.
Panel lock mode
(Remove Master volume) DISPLAY PURE DIRECT Operations using main unit panel buttons are rejected.
Cancellation of panel lock mode CURSOR
DOWN DISPLAY Panel lock mode is cancelled.
Installer Setup mode MENU CURSOR
LEFT
Access Remote Maintenance mode via the internet.
InstallerSetup is displayed on GUI/Option Menu.
NOTE:
If " S " is displayed on the fluorescent display, the unit is set to the special developer's mode and RS-232C
communications are not possible.
Press and hold in the "STATUS" and " i" buttons for over 3 seconds with the power turned on to turn the " S "
display off. RS-232C communications are now enabled.
bWhen power is turned on, pressing both buttons A and B at the same time for 3 seconds or more.
Mode Button A Button B Contents
DUAL BACKUP MEMORY (Backup) SLEEP ENTER Backup of DUAL BACKUP MEMORY is performed.
(Refer to 20 page.)
DUAL BACKUP MEMORY (Recovery) SLEEP MENU Recovery of DUAL BACKUP MEMORY is performed.
(Refer to 20 page.)
DUAL BACKUP MEMORY
(Backup Clear) SLEEP AUTO Backup of DUAL BACKUP MEMORY is cleared. (Refer to 20 page.)
ON/STANDBY
SURROUND MODE SLEEP
RETURNAUTO STATUS
PURE DIRECT
DISPLAY MENU ENTER
CURSOR

19
1. μcom/DSP Version display mode
1.1. Operation specifications
μcom/DSP version display mode:
When started up, the version information is displayed.
Starting up:
With the "RETURN" and "STATUS" buttons pressed, press the "ON/STANDBY" button to turn the power on.
Now, press the "STATUS" button to the display the 2nd item information on the FL Display.
1.2. Display Order
Error information(Refer to 1.3. Error display) qModel destination information wFirmware Package Version 
eMain -com/ROM version rMain 1st Boot Loader tSub -com/Sub FBL yDSP version uAudio PLD
iOSD FPGA Config oOSD Program Q0OSD font data Q1Ethernet(DM860) 1st Boot Loader, Hardware ID
Q2Ethernet(DM860) 2nd Boot Loader, Rhapsody Flag Q3Ethernet(DM860) IMAGE Q4Ethernet(DM860)MAC
ADDRESS information Q5HD RADIO SDK/HD RADIO BBP(U model only) Q6MultEQ Pro APP(Displayed when
Audyssey Pro is complete) Q7MultEQ Pro ICL(Displayed when Audyssey Pro is complete
qModel destination information :
Upper AV7005 *
Lower S/N. **********
wFirmware Package Version :
Upper Firm. Package
Lower Ver.:****
eMain -com & ROM version :
Upper Main :**.**
Lower Main ROM :**.**
rMain 1st Boot Loader :
Upper Main FBL :**.**
Lower
tSub -com & Sub FBL :
Upper Sub :**.**
Lower Sub FBL :**.**
yDSP ROM :
Upper DSP :**.**
Lower
uAudio PLD :
Upper Audio PLD :**.**
Lower
iOSD FPGA Config :
Upper OSD Config:
Lower ************

20
oOSD Program :
Upper OSD PRG:
Lower ************
Q0OSD font data :
Upper OSD DAT:
Lower ************
Q1Ethernet(DM860) 1st Boot Loader, Hardware ID :
Upper *Ethernet FBL
Lower ********-AA
Q2Ethernet(DM860) 2nd Boot Loader, Rhapsody Flag :
Upper *Ethernet SBL
Lower *************-BB
Q3Ethernet(DM860) IMAGE :
Upper *Ethernet IMG
Lower *************
Q4Ethernet(DM860) MAC ADDRESS information :
Upper *Ethernet MAC
Lower ******-******
Q5HD RADIO SDK/HD RADIO BBP (U model only) :
Upper *HDSDK: **.**
Lower *HDBBP:C0002.000
Q6MultEQ Pro APP(Displayed when Audyssey Pro is complete) :
Upper *MultEQ Pro APP
Lower **.**.**.****
Q7MultEQ Pro ICL(Displayed when Audyssey Pro is complete) :
Upper *MultEQ Pro ICL
Lower **.**.**.****
