Marantz AV7703 User manual

.
AV Pre Tuner
AV7703
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Upgrade 7
Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 12
Easy operation 16
Part names and functions 17
Front panel 17
Display 22
Rear panel 26
Remote control unit 30
Connections
Connecting a power amp 35
Speaker installation 35
Connecting a power amp 44
Speaker configuration and “Amp Assign” settings 49
Connecting a TV 71
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 72
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 73
Connection 3 : TV equipped without an HDMI connector 74
Connecting a playback device 75
Connecting a set-top box (Satellite tuner/cable TV) 76
Connecting a DVD player or Blu-ray Disc player 77
Connecting a video camcorder or game console 78
Connecting a turntable 79
Connecting a device with a multi-channel output connector 80
Connecting a USB memory device to the USB port 81
Connecting an HD Radio antenna 82
Connecting to a home network (LAN) 84
Wired LAN 84
Wireless LAN 85
Connecting an external control device 86
REMOTE CONTROL jacks 86
DC OUT jacks 87
Connecting the power cord 88
Playback
Basic operation 90
Turning the power on 90
Selecting the input source 90
Adjusting the volume 91
Turning off the sound temporarily (Muting) 91
Playback a DVD player/Blu-ray Disc player 91
Contents Connections Playback Settings Tips Appendix
Contents
2
Front panel Display Rear panel Remote Index

Playing a USB memory device 92
Playing files stored on USB memory devices 93
Listening to music on a Bluetooth device 96
Playing music from Bluetooth device 97
Pairing with other Bluetooth devices 99
Reconnecting to this unit from a Bluetooth device 100
Listening to an HD RadioTM station 101
Listening to an HD Radio station 103
Tuning in by entering the frequency (Direct Tune) 105
Changing the tune mode (Tune Mode) 105
Selecting an audio program 106
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 106
Presetting the current broadcast station (Preset Memory) 107
Listening to preset stations 107
Specify a name for the preset broadcast station (Preset Name) 108
Skipping preset broadcast stations (Preset Skip) 109
Cancelling Preset Skip 110
Checking the HD Radio reception information 111
Listening to Internet Radio 112
Listening to Internet Radio 113
Playing back files stored on a PC or NAS 114
Playing back files stored on a PC or NAS 115
Getting the HEOS App 118
HEOS Account 119
Playing from streaming music services 120
Listening to the same music in multiple rooms 123
AirPlay function 127
Playing songs from your iPhone, iPod touch or iPad 128
Playing iTunes music with this unit 128
Selecting multiple speakers (devices) 129
Perform iTunes playback operations with the remote control unit
of this unit 129
Spotify Connect function 130
Playing Spotify music with this unit 130
Convenience functions 131
Adding to HEOS Favorites 132
Playing back HEOS Favorites 132
Deleting a HEOS Favorites 133
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 134
Adjusting the tone (Tone) 135
Displaying your desired video during audio playback (Video
Select) 136
Adjusting the picture quality for your viewing environment (Picture
Mode) 137
Playing the same music in all zones (All Zone Stereo) 138
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Selecting a sound mode 139
Selecting a sound mode 140
Direct playback 141
Pure Direct playback 141
Auto surround playback 142
HDMI control function 153
Setting procedure 153
Smart Menu function 154
Sleep timer function 156
Using the sleep timer 157
Smart select function 158
Calling up the settings 159
Changing the settings 160
Panel lock function 161
Disabling all key button operations 161
Disabling all button operations except VOLUME 161
Canceling the Panel lock function 162
Remote lock function 163
Disabling the sensor function of the remote control unit 163
Enabling the remote sensor function 163
Switches light illumination on/off 164
Playback in ZONE2/ZONE3 (Separate room) 165
Connecting ZONE 165
Playback in ZONE2/ZONE3 168
Settings
Menu map 170
Menu operations 174
Audio 175
Dialog Level Adjust 175
Subwoofer Level Adjust 175
Surround Parameter 176
M-DAX 180
Audio Delay 181
Volume 182
Audyssey®183
Graphic EQ 186
Video 188
Picture Adjust 188
HDMI Setup 190
Output Settings 195
Component Video Out 198
On Screen Display 199
TV Format 200
Inputs 201
Input Assign 201
Source Rename 203
Hide Sources 204
Source Level 204
Input Select 205
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Speakers 206
Audyssey® Setup 206
Procedure for speaker settings (Audyssey® Setup) 208
Error messages 214
Retrieving Audyssey® Setup settings 216
Manual Setup 217
Amp Assign 217
Speaker Config. 223
Distances 228
Levels 230
Crossovers 231
Bass 232
Front Speaker 233
2ch Playback 233
Network 236
Information 236
Connection 236
Wi-Fi Setup 237
Settings 239
Network Control 241
Friendly Name 241
Diagnostics 242
HEOS Account 243
I have a HEOS Account 243
Create Account 243
Forgot Password 243
Signed in As 243
Change Location 243
Change Password 243
Delete Account 243
Sign Out 243
General 244
Language 244
ZONE2 Setup / ZONE3 Setup 244
Zone Rename 247
Smart Select Names 247
Trigger Out 1 / Trigger Out 2 247
Auto Standby 248
Front Display 249
Firmware 250
Information 253
Usage Data 255
Setup Lock 255
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Operating external devices with the remote control unit 256
Registering preset codes 257
Operating devices 261
Checking registered preset codes 264
Initializing registered preset codes 264
Operating learning function 265
Remembering remote control codes from other devices 266
Delete saved remote control codes 267
Setting the back light 268
Disabling the backlight 268
Turning the backlight on 268
Specifying the zone used with the remote control unit 269
Tips
Tips 271
Troubleshooting 273
Resetting factory settings 290
Resetting network settings 291
Appendix
About HDMI 292
Video conversion function 295
Playing back a USB memory devices 297
Playing back a Bluetooth device 298
Playing back a file saved on a PC or NAS 299
Playing back Internet Radio 300
Personal memory plus function 300
Last function memory 300
Sound modes and channel output 301
Sound modes and surround parameters 303
Types of input signals, and corresponding sound modes 307
Explanation of terms 311
Trademark information 320
Specifications 323
Index 328
License 331
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Upgrade
Upgrade (Auro-3D)
The text marked with this symbol that will enable after the upgrade of the Auro-3D.
You can experience the best performance of Auro-3D if you install Front Height and Surround Height in addition to standard 5.1-channel. The “Setup
Assistant” will lead you to this setting.
You can use Rear Height speakers from a Dolby Atmos Enabled speaker setup instead of Surround Height speakers for Auro-3D playback.
This unit also can play Auro-3D using standard 5.1-channel and Front Height speakers. If you install any height speakers instead of Surround Height
speakers and Rear Height speakers, you can set the speaker configuration in setup menu.
Auro-3D
Features
High quality sound 11
Connecting a power amp
Speaker installation 37 40
Layout including height speakers and ceiling speakers 43
Speaker configuration and “Amp Assign” settings 50
Auro-3D 9.1/10.1-channel system 62, 66
Selecting a sound mode
Description of sound mode types Auro-3D sound mode 145
Sound mode that can be selected for each input signal 151
Audio
Auro-Matic 3D Preset 178
Auro-Matic 3D Strength 179
Manual Setup
Amp Assign 219, 222
Speaker Config. 227, 228
Appendix
Sound modes and channel output 302
Sound mode and surround parameters 305
Types of input signals, and corresponding sound modes 309
Explanation of terms 312
Trademark information 322
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Quick Start Guide Safety Instructions Notes on radio Cable labels
Power cord FM indoor antenna AM loop antenna
External antennas for
Bluetooth/wireless
connectivity
Sound calibration
microphone stand
Sound calibration
microphone
R03/AAA batteries
Remote control unit
Warranty
(for USA/for CANADA)
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 23 ft/7 m
30°
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Dolby Atmos (v p. 312)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 315)
This unit is equipped with the DTS:X decoder technology. DTS:X
brings the home theater experience to new heights with its immersive
object based audio technology which removes the bounds of channels.
The flexibility of objects allows for sound to be scaled large or small
and moved around the room with greater accuracy than ever before
leading to a richer immersive audio experience.
0Audyssey LFC™ (Low Frequency Containment) (v p. 185)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 207)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

Upgrade (Auro-3D)
0Auro-3D
This unit is equipped with an Auro-3D decoder.
With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel
system to achieve a natural and realistic sound field that is three-dimensional and fully immersive.
After performing the Auro-3D upgrade you will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
2 Auro-3D playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
2Dolby Atmos playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
0Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle, Top Rear, or any Dolby Atmos Enabled speakers.
If you are using these speakers and want to take full advantage of the Auro-3D Upgrade, you need to relocate them to Front Height and Surround Height speaker locations as
shown above.
But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers* to a 5.1 configuration.
zFor an optimum Auro-3D experience Surround Height speakers are strongly recommended.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 197)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 165)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

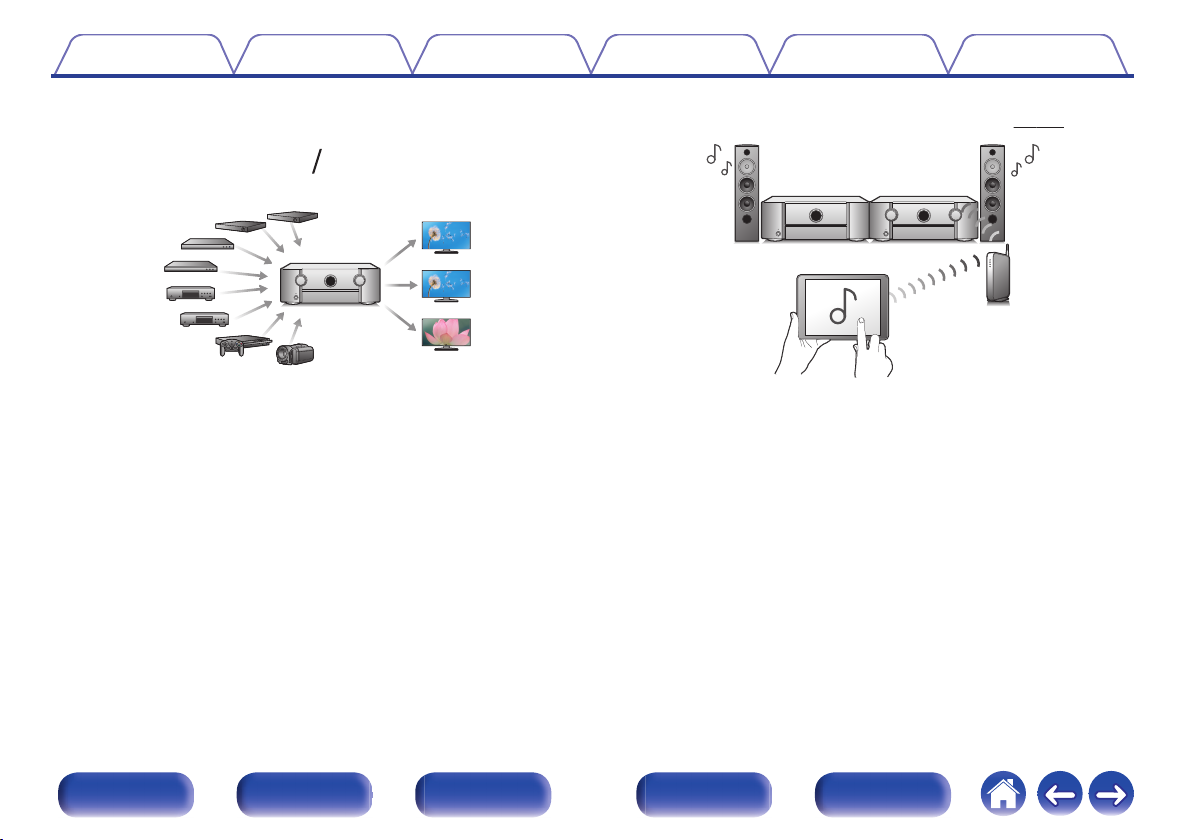

0HDMI connections enable connection to various digital AV
devices (8 inputs, 3 outputs)
.
83
OutIn
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There are dual HDMI outputs for the main room, and a
third HDMI output for ZONE2.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 127)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Wireless connection with Bluetooth devices can be carried out
easily (v p. 96)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.

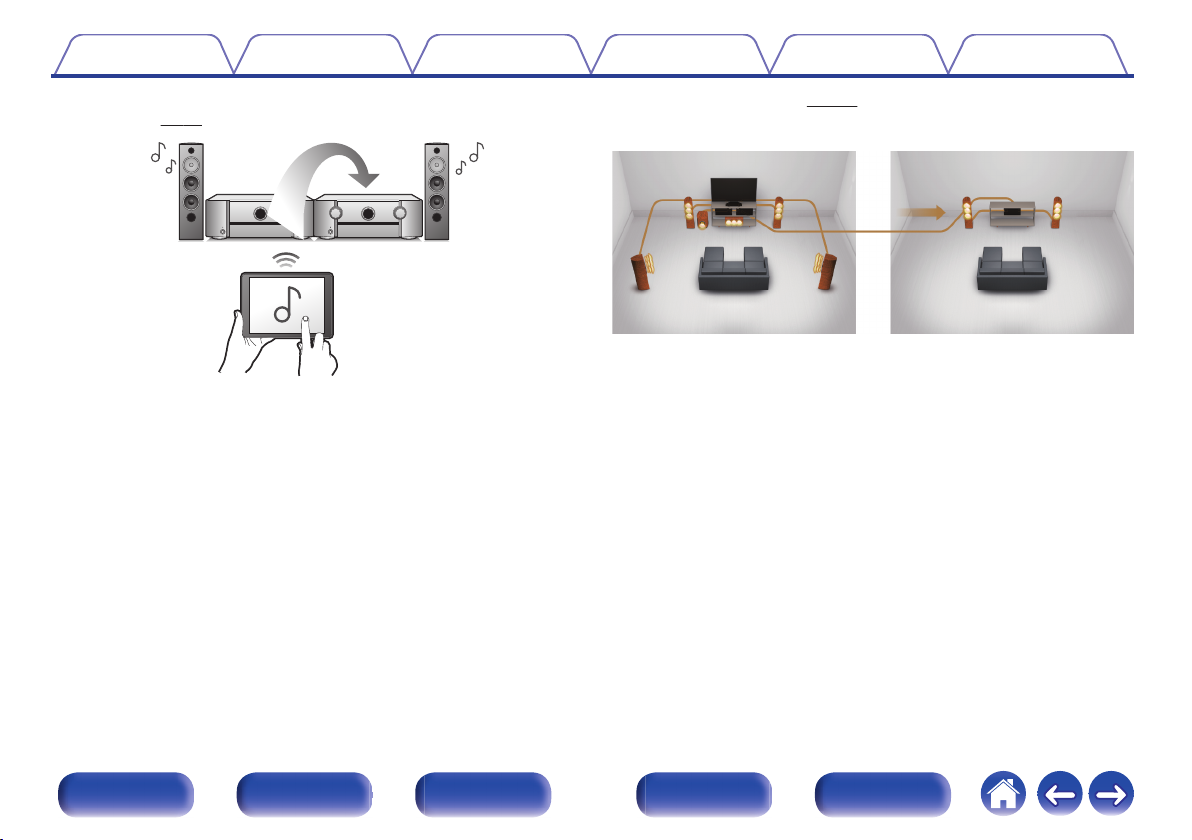

0Multi-Room audio (v p. 138)
.
【MAIN ZONE】【ZONE2】/【ZONE3】
You can select and play back the respective inputs in MAIN ZONE,
ZONE2 and ZONE3.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an auto-standby function that automatically
turns off the power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

0Compatible with the “Marantz 2016 AVR Remote App”z for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Marantz 2016 AVR Remote App” also gives
you quick access to the receiver's status display, option menus,
Marantz Blu-ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Marantz 2016 AVR Remote App” for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
wq te r y
u
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

.
ewqytr
u
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 90)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Control” is set to “On” (v p. 192)
0When “HDMI Pass Through” is set to “On” (v p. 190)
0When “Network Control” is set to “Always On” (v p. 241)
CINPUT SELECTOR knob
This selects the input source. (v p. 90)
DMain display
This displays various pieces of information. (v p. 22)
ERemote control sensor
This receives signals from the remote control unit. (v p. 9)
FVOLUME knob
This adjusts the volume level. (v p. 91)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

With the door open
.
y u ow
qer ti
ADYNAMIC EQ button
This switches the Dynamic EQ settings. (v p. 184)
BPURE DIRECT button/indicator
This switches the sound mode between Direct, Pure Direct and Auto.
(v p. 141 – 142)
This lights when the Pure Direct mode is selected as the sound mode.
CM-DAX button/indicator
This enables the M-DAX mode. (v p. 180)
This lights when the M-DAX mode is selected.
DDynamic Volume button (DYNAMIC VOL)
This switches the Dynamic Volume settings. (v p. 185)
ESub display
This displays various pieces of information. (v p. 24)
FBACK button
This returns to the previous screen.
GCursor buttons (uio p)
These select items.
HENTER button
This determines the selection.
ISETUP button
This displays the menu on the TV screen. (v p. 174)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
Q0 Q1 Q2 Q3 Q4 Q6 Q7Q5
JMOVIE button
This switches the sound mode to “Movie”. (v p. 140)
KMUSIC button
This switches the sound mode to “Music”. (v p. 140)
LGAME button
This switches the sound mode to “Game”. (v p. 140)
MInformation button (INFO)
This displays the status information on the TV screen. (v p. 254)
NSLEEP button
This sets the sleep timer. (v p. 156)
OHDMI OUT button
This sets the HDMI monitor output. (v p. 190)
PDIMMER button
Each press of this switches the brightness of the display. (v p. 249)
QSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
