Marantz AV7705 User manual

.
AV Pre Tuner
AV7705
Owner’s Manual
Contents Connections Playback Settings Tips Appendix
1
Front panel Display Rear panel Remote Index

Accessories 8
Inserting the batteries 9
Operating range of the remote control unit 9
Features 10
High quality sound 10
High performance 12
Easy operation 16
Part names and functions 17
Front panel 17
Display 22
Rear panel 26
Remote control unit 30
Connections
Speaker installation 35
Connecting a power amp 43
Before connecting a power amp 43
Speaker configuration and “Amp Assign” settings 48
Connecting 5.1-channel speakers 50
Connecting 7.1-channel speakers 51
Connecting 9.1-channel speakers 55
Connecting 11.1-channel speakers 62
Connecting 9.1-channel speakers: Bi-amp connection of front
speakers 68
Connecting 9.1-channel speakers: Second pair of front speakers 69
Connecting a TV 70
Connection 1 : TV equipped with an HDMI connector and
compatible with the ARC (Audio Return Channel) 71
Connection 2 : TV equipped with an HDMI connector and
incompatible with the ARC (Audio Return Channel) 72
Connection 3 : TV equipped without an HDMI connector 73
Connecting a playback device 74
Connecting a set-top box (Satellite tuner/cable TV) 75
Connecting a DVD player or Blu-ray Disc player 76
Connecting a video camcorder or game console 77
Connecting a turntable 78
Connecting a device with a multi-channel output connector 79
Connecting a USB memory device to the USB port 80
Connecting an FM/AM antenna 81
Connecting to a home network (LAN) 83
Wired LAN 83
Wireless LAN 84
Connecting an external control device 85
REMOTE CONTROL jacks 85
DC OUT jacks 86
Connecting the power cord 87
Contents Connections Playback Settings Tips Appendix
2
Front panel Display Rear panel Remote Index

Playback
Basic operation 89
Turning the power on 89
Selecting the input source 89
Adjusting the volume 90
Turning off the sound temporarily (Muting) 90
Playback a DVD player/Blu-ray Disc player 90
Playing a USB memory device 91
Playing files stored on USB memory devices 92
Listening to music on a Bluetooth device 95
Playing music from Bluetooth device 96
Pairing with other Bluetooth devices 98
Reconnecting to this unit from a Bluetooth device 99
Listening to FM/AM broadcasts 100
Listening to FM/AM broadcasts 101
Tuning in by entering the frequency (Direct Tune) 102
Changing the tune mode (Tune Mode) 103
Tuning in to stations and presetting them automatically (Auto
Preset Memory) 103
Presetting the current broadcast station (Preset Memory) 104
Listening to preset stations 104
Specify a name for the preset broadcast station (Preset Name) 105
Skipping preset broadcast stations (Preset Skip) 106
Cancelling Preset Skip 107
Listening to Internet Radio 108
Listening to Internet Radio 109
Playing back files stored on a PC or NAS 110
Playing back files stored on a PC or NAS 111
Getting the HEOS App 114
HEOS Account 115
Playing from streaming music services 116
Listening to the same music in multiple rooms 119
AirPlay function 123
Playing songs from your iPhone, iPod touch or iPad 124
Playing iTunes music with this unit 124
Perform iTunes playback operations with the remote control unit
of this unit 125
Play a song from your iPhone, iPod touch or iPad on multiple
synced devices (AirPlay 2) 126
Spotify Connect function 127
Playing Spotify music with this unit 127
Contents Connections Playback Settings Tips Appendix
3
Front panel Display Rear panel Remote Index

Convenience functions 128
Adding to HEOS Favorites 129
Playing back HEOS Favorites 129
Deleting a HEOS Favorites 130
Adjusting the volume of each channel to match the input source
(Channel Level Adjust) 131
Adjusting the tone (Tone) 132
Displaying your desired video during audio playback (Video
Select) 133
Adjusting the picture quality for your viewing environment (Picture
Mode) 134
Playing the same music in all zones (All Zone Stereo) 135
Selecting a sound mode 136
Selecting a sound mode 137
Direct playback 138
Pure Direct playback 138
Auto surround playback 139
Description of sound mode types 140
Sound mode that can be selected for each input signal 144
HDMI Control function 148
Setting procedure 148
Smart Menu function 149
Sleep timer function 151
Using the sleep timer 152
Smart select function 153
Calling up the settings 154
Changing the settings 155
Panel lock function 156
Disabling all key button operations 156
Disabling all button operations except VOLUME 156
Canceling the Panel lock function 157
Remote lock function 158
Disabling the sensor function of the remote control unit 158
Enabling the remote sensor function 158
Switches light illumination on/off 159
Web control function 160
Controlling the unit from a web control 160
Playback in ZONE2/ZONE3 (Another room) 162
Connecting ZONE 162
Playback in ZONE2/ZONE3 165
Contents Connections Playback Settings Tips Appendix
4
Front panel Display Rear panel Remote Index

Settings
Menu map 167
Menu operations 171
Audio 172
Center Level Adjust 172
Subwoofer Level Adjust 172
Bass Sync 173
Surround Parameter 173
M-DAX 178
Audio Delay 179
Volume 180
Audyssey®181
Graphic EQ 184
Video 186
Picture Adjust 186
HDMI Setup 188
Output Settings 193
Component Video Out 197
On Screen Display 197
4K Signal Format 198
TV Format 200
Inputs 201
Input Assign 201
Source Rename 203
Hide Sources 203
Source Level 204
Input Select 205
Speakers 206
Audyssey® Setup 206
Procedure for speaker settings (Audyssey® Setup) 208
Error messages 214
Retrieving Audyssey® Setup settings 216
Manual Setup 217
Amp Assign 217
Speaker Config. 223
Distances 228
Levels 230
Crossovers 231
Bass 232
Front Speaker 233
2ch Playback 233
Contents Connections Playback Settings Tips Appendix
5
Front panel Display Rear panel Remote Index

Network 236
Information 236
Connection 236
Wi-Fi Setup 237
Settings 239
Network Control 241
Friendly Name 241
Diagnostics 242
HEOS Account 243
You have not signed in 243
You have already signed in 243
General 244
Language 244
ZONE2 Setup / ZONE3 Setup 244
Zone Rename 247
Smart Select Names 247
Trigger Out 1 / Trigger Out 2 247
Auto Standby 248
Front Display 249
Firmware 250
Information 253
Usage Data 254
Save & Load 255
Setup Lock 255
Reset 256
Operating external devices with the remote control unit 257
Registering preset codes 258
Operating devices 261
Initializing registered preset codes 264
Setting the back light 265
Disabling the backlight 265
Specifying the zone used with the remote control unit 266
Contents Connections Playback Settings Tips Appendix
6
Front panel Display Rear panel Remote Index

Tips
Tips 268
Troubleshooting 270
Power does not turn on / Power is turned off 271
Operations cannot be performed through the remote control unit 272
Display on this unit shows nothing 272
No sound comes out 273
Desired sound does not come out 274
Sound is interrupted or noise occurs 276
No video is shown on the TV 277
The menu screen is not displayed on the TV 279
The color of the menu screen and operations content displayed
on the television is different from normal 279
AirPlay cannot be played back 280
USB memory devices cannot be played back 281
Bluetooth cannot be played back 282
The Internet radio cannot be played back 283
Music files on PC or NAS cannot be played back 284
Various online services cannot be played 285
The HDMI Control function does not work 285
Cannot connect to a wireless LAN network 286
When using HDMI ZONE2, the devices does not function properly 287
Update/upgrade error messages 288
Resetting factory settings 289
Resetting network settings 290
Appendix
About HDMI 291
Video conversion function 294
Playing back a USB memory devices 296
Playing back a Bluetooth device 297
Playing back a file saved on a PC or NAS 298
Playing back Internet Radio 299
Personal memory plus function 299
Last function memory 299
Sound modes and channel output 300
Sound modes and surround parameters 302
Types of input signals, and corresponding sound modes 305
Explanation of terms 308
Trademark information 317
Specifications 319
Index 324
License 327
Contents Connections Playback Settings Tips Appendix
7
Front panel Display Rear panel Remote Index

Thank you for purchasing this Marantz product.
To ensure proper operation, please read this owner’s manual carefully before using the product.
After reading this manual, be sure to keep it for future reference.
Accessories
Check that the following parts are supplied with the product.
.
Remote control unit
(RC037SR)
R03/AAA batteries External antennas for
Bluetooth/wireless
connectivity
AM loop antennaFM indoor antennaPower cord Sound calibration
microphone
Sound calibration
microphone stand
Cable labelsWarranty
(for USA/for CANADA)
Notes on radioSafety InstructionsQuick Start Guide
Contents Connections Playback Settings Tips Appendix
8
Front panel Display Rear panel Remote Index

Inserting the batteries
1Remove the rear lid in the direction of the arrow and
remove it.
.
2Insert two batteries correctly into the battery
compartment as indicated.
.
Batteries
3Put the rear cover back on.
NOTE
0To prevent damage or leakage of battery fluid:
0Do not use a new battery together with an old one.
0Do not use two different types of batteries.
0Remove the batteries from the remote control unit if it will not be in use for long
periods.
0If the battery fluid should leak, carefully wipe the fluid off the inside of the battery
compartment and insert new batteries.
Operating range of the remote control
unit
Point the remote control unit at the remote sensor when operating it.
.
30°
Approx. 23 ft/7 m
30°
Contents Connections Playback Settings Tips Appendix
9
Front panel Display Rear panel Remote Index

Features
High quality sound
0Current feedback amplifier
This unit uses a high-speed current feedback amplifier circuit for its
preamplifier so that signals from a Blu-ray Disc player and other
equipment that support high-definition audio formats can be amplified
with high fidelity. The high-speed current feedback amplifier also
reproduces a natural sound space.
0Dolby Atmos (v p. 309)
This unit is equipped with a decoder that supports Dolby Atmos audio
format. The placement or movement of sound is accurately reproduced
by the addition of overhead speakers, enabling you to experience an
incredibly natural and realistic surround sound field.
0DTS:X (v p. 312)
This unit is equipped with the DTS:X decoder technology. DTS:X brings
the home theater experience to new heights with its immersive object
based audio technology which removes the bounds of channels. The
flexibility of objects allows for sound to be scaled large or small and
moved around the room with greater accuracy than ever before leading
to a richer immersive audio experience.
0DTS Virtual:X (v p. 312)
DTS Virtual:X technology features DTS’s proprietary virtual height and
virtual surround processing to deliver an immersive sound experience
from any type of input source (stereo to 7.1.4 channel) and speaker
configuration.
zDTS Virtual:X is not for use when Height speakers are connected.
0Audyssey LFC™ (Low Frequency Containment) (v p. 183)
Audyssey LFC™ solves the problem of low frequency sounds
disturbing people in neighboring rooms or apartments. Audyssey
LFC™ dynamically monitors the audio content and removes the low
frequencies that pass through walls, floors and ceilings. It then applies
psychoacoustic processing to restore the perception of low bass for
listeners in the room. The result is great sound that no longer disturbs
the neighbors.
0Discrete subwoofers and Audyssey Sub EQ HT™ (v p. 207)
The unit has two subwoofer output capability and can adjust the level
and delay for each subwoofer individually.
Audyssey Sub EQ HT™ makes the integration seamless by first
compensating for any level and delay differences between the two
subwoofers and then applying Audyssey MultEQ® XT32 to both
subwoofers together for improved deep bass response and detail.
Contents Connections Playback Settings Tips Appendix
10
Front panel Display Rear panel Remote Index

0Auro-3D
This unit is equipped with an Auro-3D decoder.
With Auro-3D, Front Height (FHL + FHR), Surround Height (SHL + SHR) and Top Surround (TS/optional) are added to a conventional 5.1-channel
system to achieve a natural and realistic sound field that is three-dimensional and fully immersive.
You will be able to fully enjoy Auro-3D playback if you properly place the speakers for Auro-3D.
2 Auro-3D playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
2 Dolby Atmos playback
.
FHL FHR
SHL SHR
TS
FL FR
SW
SL SR
C
0Auro-3D does not support a Dolby Atmos configuration using Top Front, Top Middle or Top Rear speakers.
But it is possible to support both an Auro-3D and Dolby Atmos by adding Front Height and Rear Height speakers* to a 5.1 configuration.
zFor an optimum Auro-3D experience Surround Height speakers are strongly recommended.
Contents Connections Playback Settings Tips Appendix
11
Front panel Display Rear panel Remote Index

High performance
04K 60Hz input/output supported
.
When 4K Ultra HD (High Definition) is used, an input/output speed of 60
frames per second (60p) is achieved for video signals. When connected
to 4K Ultra HD and 60p video signal input compatible TV, you can enjoy
the sense of realism only available from high-definition images, even
when viewing fast-moving video.
This unit also supports image processing for 4K 60p, 4:4:4 and 24-bit
videos. By processing the video at the original resolution, this unit lets
you enjoy flawless, high-definition picture quality.
This unit also supports HDR (High Dynamic Range) and BT.2020 wide
color gamut.
0HDCP 2.2
This unit is compatible with HDCP 2.2 copyright protection standard.
0Digital video processor upscales analog video signals (SD
resolution) to HD (720p/1080p) and 4K (v p. 195)
.
4K
Up scaling
Up to 1080p
This unit is equipped with a 4K video upscaling function that allows
analog video or SD (Standard Definition) video to be output via HDMI at
4K (3840 × 2160 pixels) resolution. This function enables the device to
be connected to a TV using a single HDMI cable, and produces high
definition images for any video source.
0Equipped with HDMI ZONE2 output (v p. 162)
The ZONE2 multi-room output includes an HDMI output that lets you
enjoy a different A/V source in that room, with another program playing
in the main room.
Contents Connections Playback Settings Tips Appendix
12
Front panel Display Rear panel Remote Index

0HDMI connections enable connection to various digital AV
devices (8 inputs, 3 outputs)
.
83
OutIn
For connection to a broad range of digital sources, this unit features 8
HDMI inputs, including 1 on the front panel that lets you quickly and
conveniently connect a camcorder, game console or other HDMI-
equipped device. There are dual HDMI outputs for the main room, and a
third HDMI output for another room.
0The device is equipped with a AirPlay® function in addition to
network functions such as Internet radio etc. (v p. 123)
.
You can enjoy a wide variety of content, including listening to Internet
Radio, playing audio files stored on your PC.
This unit also supports Apple AirPlay which lets you stream your music
library from an iPhone®, iPad®, iPod touch® or iTunes®.
0Supports AirPlay 2® wireless audio
Sync multiple AirPlay 2 compatible devices/speakers for simultaneous
playback.
This unit supports AirPlay 2 and requires iOS 11.4 or later.
Contents Connections Playback Settings Tips Appendix
13
Front panel Display Rear panel Remote Index

0Playback of DSD and FLAC files via USB and networks
This unit supports the playback of high resolution audio formats such as
DSD (5.6 MHz) and FLAC 192 kHz files. It provides high quality
playback of high resolution files.
0Wireless connection with Bluetooth devices can be carried out
easily (v p. 95)
.
You can enjoy music simply by connecting wirelessly with your
smartphone, tablet, PC, etc.
0Multi-Room audio (v p. 135)
.
【MAIN ZONE】【ZONE2】/【ZONE3】
You can select and play back the respective inputs in MAIN ZONE,
ZONE2 and ZONE3.
In addition, when the All Zone Stereo function is used, the music being
played back in MAIN ZONE can be enjoyed in all the zones at the same
time. This is useful when you want to let the BGM propagate throughout
the whole house.
0Energy-saving design
This unit is equipped with an auto-standby function that automatically
turns off the power supply when the unit is not in use. This helps reduce
unnecessary power use.
Contents Connections Playback Settings Tips Appendix
14
Front panel Display Rear panel Remote Index

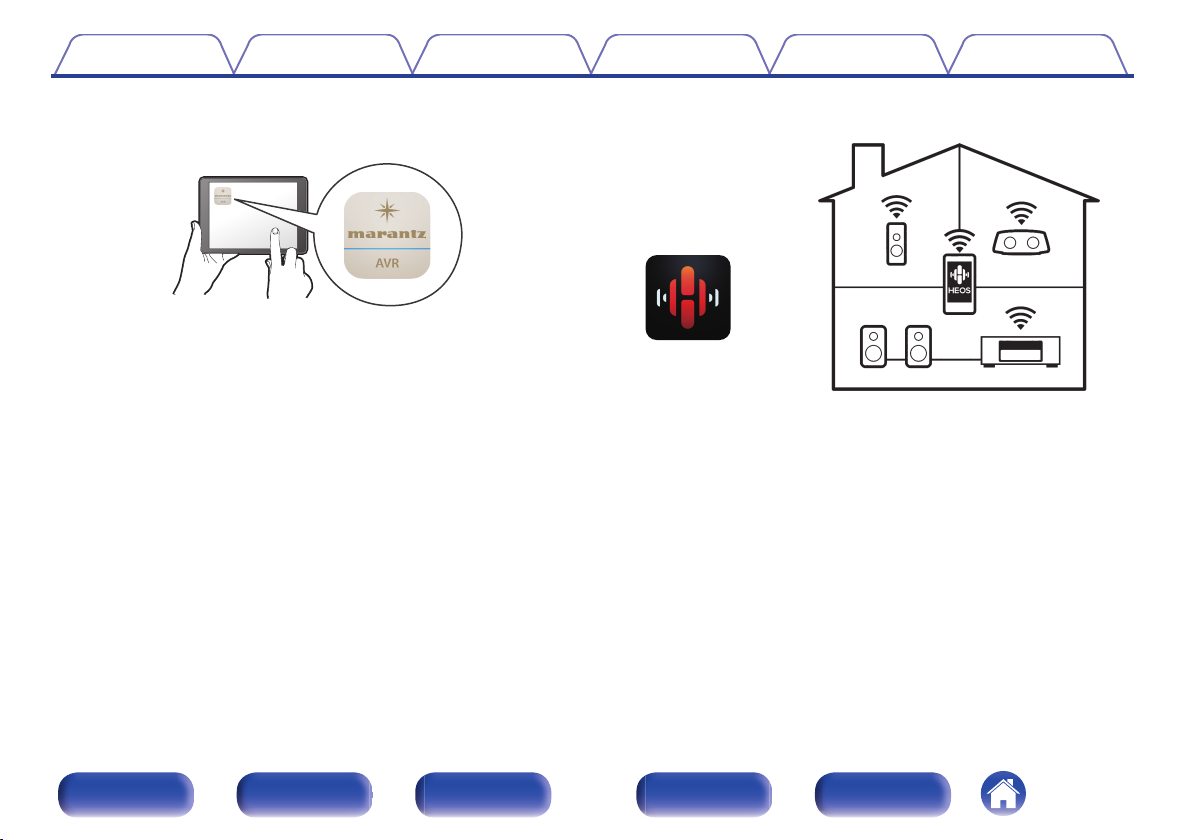

0Compatible with the “Marantz 2016 AVR Remote” Appz for
performing basic operations of the unit with an iPad, iPhone or
Android™ devices (Google, Amazon Kindle Fire)
.
Along with many new features, the graphics and user interface have
been completely overhauled. The new app gives you full control of the
AVR as well as access to its setup menu for detailed adjustments from
your phones or tablets. “Marantz 2016 AVR Remote” App also gives
you quick access to the receiver's status display, option menus,
Marantz Blu-ray Disc player control, and online owner's manual for your
convenience.
zDownload the appropriate “Marantz 2016 AVR Remote” App for your iOS or
Android devices. This unit needs to be connected to the same LAN or Wi-Fi
(wireless LAN) network that the iPhone or iPod touch is connected to.
0HEOS provides streaming music from your favorite online music
sources
.
HEOS wireless multi-room sound system that enables you to enjoy your
favorite music anywhere and everywhere around your home. By utilizing
your existing home network and the HEOS App (available for iOS,
Android and Amazon devices), you can explore, browse, and play
music from your own music library or from many online streaming music
services.
When multiple HEOS devices are connected to the same network,
HEOS devices can be grouped to play back the same music on all
devices simultaneously, or different music can be played on each
separate HEOS device.
Contents Connections Playback Settings Tips Appendix
15
Front panel Display Rear panel Remote Index

Easy operation
0“Setup Assistant” provides easy-to-follow setup instructions
First select the language when prompted. Then simply follow the
instructions displayed on the TV screen to set up the speakers, network,
etc.
0Easy to use Graphical User Interface
This unit is equipped with a Graphical User Interface for improved
operability.
Contents Connections Playback Settings Tips Appendix
16
Front panel Display Rear panel Remote Index

Part names and functions
Front panel
.
wq te r y
u
For details, see the next page.
Contents Connections Playback Settings Tips Appendix
17
Front panel Display Rear panel Remote Index

.
ewqytr
u
APower operation button (X)
Used to turn the power of the MAIN ZONE (room where this unit is
located) on/off (standby). (v p. 89)
BPower indicator
This is lit as follows according to the power status:
0Off: Power on
0Red: Normal standby
0Orange:
0When “HDMI Pass Through” is set to “On” (v p. 188)
0When “HDMI Control” is set to “On” (v p. 190)
0When “Network Control” is set to “Always On” (v p. 241)
CINPUT SELECTOR knob
This selects the input source. (v p. 89)
DMain display
This displays various pieces of information. (v p. 22)
ERemote control sensor
This receives signals from the remote control unit. (v p. 9)
FVOLUME knob
This adjusts the volume level. (v p. 90)
GDoor
When you are using buttons and/or connectors behind the door, press
the bottom of the door to open it. Be careful not to catch your fingers
when closing the door.
.
Contents Connections Playback Settings Tips Appendix
18
Front panel Display Rear panel Remote Index

With the door open
.
u ow
qer iy t
ADYNAMIC EQ button
This switches the Dynamic EQ settings. (v p. 182)
BPURE DIRECT button/indicator
This switches the sound mode between Direct, Pure Direct and Auto.
(v p. 138 – 139)
This lights when the Pure Direct mode is selected as the sound mode.
CM-DAX button/indicator
This enables the M-DAX mode. (v p. 178)
This lights when the M-DAX mode is selected.
DDynamic Volume button (DYNAMIC VOL)
This switches the Dynamic Volume settings. (v p. 183)
ESub display
This displays various pieces of information. (v p. 24)
FBACK button
This returns to the previous screen.
GCursor buttons (uio p)
These select items.
HENTER button
This determines the selection.
ISETUP button
This displays the menu on the TV screen. (v p. 171)
Contents Connections Playback Settings Tips Appendix
19
Front panel Display Rear panel Remote Index

.
Q0 Q1 Q2 Q3 Q4 Q6 Q7Q5
JMOVIE button
This switches the sound mode to “Movie”. (v p. 137)
KMUSIC button
This switches the sound mode to “Music”. (v p. 137)
LGAME button
This switches the sound mode to “Game”. (v p. 137)
MInformation button (INFO)
This displays the status information on the TV screen. (v p. 254)
NSLEEP button
This sets the sleep timer. (v p. 151)
OHDMI OUT button
This sets the HDMI monitor output. (v p. 188)
PDIMMER button
Each press of this switches the brightness of the display. (v p. 249)
QSTATUS button
Each press of this switches the status information that is shown on the
display.
Contents Connections Playback Settings Tips Appendix
20
Front panel Display Rear panel Remote Index
