Marcy ME-704 User manual
REGENERATING
MAGNETIC ELLIPTICAL
ME-704
IMPORTANT: Please read the Important Safety Notice and Assembly Information in
the Owner’s manual before assembling this product.
Assembly Manual
190408
©IMPEX INC.
www.marcypro.com
1
Part No.
Description
Q'ty
1
Main frame
1
2
Rear stabiliser
1
7
Left pedal
1
8
Left pedal tube
1
20
Front stabiliser
1
22
Cover for front post
1
32
Front post
1
29L/R
Cover for pedal tube L/R
1/1
36/47
L/R Handlebar
1/1
40
Stationary grip
1
46
Console
1
50
Right pedal
1
51
Right pedal tube
1
104/105
Front/Rear stationary handlebar cover
1/1
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
2
^dWϭ
Attach the frontstabiliser (#20) with Allen screw (#4), lock washer (#33), and curved washer (#3) to the
main frame (#1).
^dW Ϯ
Attach the rear stabiliser (#2) with Allen screw (#4), locked washer (#33) and curved washer (#3) to the
main frame (#1).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
3
STEP 3
1. Pull up the ring (#102) and the cover for the front post (#22) and connect the upper console wire (#54)
to lower console wire (#52).
2. Tighten the front post (#32) with curved washer (#3) lock washer (#33) and Allen screw (#24).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
4
^dW ϰ
Connect the upper console wire (#54) and hand pulse wire middle (#107) to the computer (#46) and
attach the computer to the front post with screw for console (#45).
The screws are pre-assembled onthe computer.
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
5
^dWϱ
1. Insert the stationary grip(#40) through the rear stationary handle bar cover (#105) and connect hand
pulse wire (#58) and middle hand pulse wire (#107), tighten with flat washer (#17) and hex head
screw (#31).
2. Secure the front stationary handlebar cover (#104) with Phillip screw (#41) and self-tapping screw
(#106) to the rear stationary handle bar cover (#105) and front post.
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
6
^dW ϲ
1. Put the flat washer (#16) into the run disk, and tighten the left pedal tube (#8) with spindle washer
(#9), flat washer (#10), end cap for pedal tube (#11) and Allenscrew (#12).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
7
^dW ϳ
1. Install the left pedal tube (#8) to the left bottom handlebar (#26).
2. Put hex bolt (#15) into the sleeve (#14), then tighten with flat washer (#17) and aircraft nut (#18).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
8
^dW ϴ
1. Put the flat washer (#16) into the run disk and tighten the right pedal tube (#51) with spindle washer
(#9),flat washer (#10), end cap for pedal tube (#11) and Allenscrew (#12).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
9
^dW ϵ
1. Install the right pedal tube (#51) to the right bottom handlebar (#49).
2. Put hex bolt (#15) into the sleeve (#14), then tighten with flat washer (#17) and aircraft nut (#18).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
10
^dW ϭϬ
Attach the cover for pedal tube (29 L)/(29R) to left bottom handlebar (#64) and tighten with self-tapping
screws (#64).
^dW ϭϭ
Attach the cover for pedal tube (29 L)/(29R) to right bottom handlebar (#49) and tighten with self-tapping
screws (#64).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
11
^dW ϭϮ
1. Attach the right handlebar (#47) to right bottom handlebar, tighten with carriage bolt (#34) and Allen
bolt (#35).
2. Attach the left handlebar (#36) to leftbottom handlebar,tighten with carriagebolt (#34) and Allen bolt
(#35).
www.puretecfitness.com
©IMPEX INC.
www.marcypro.com
12

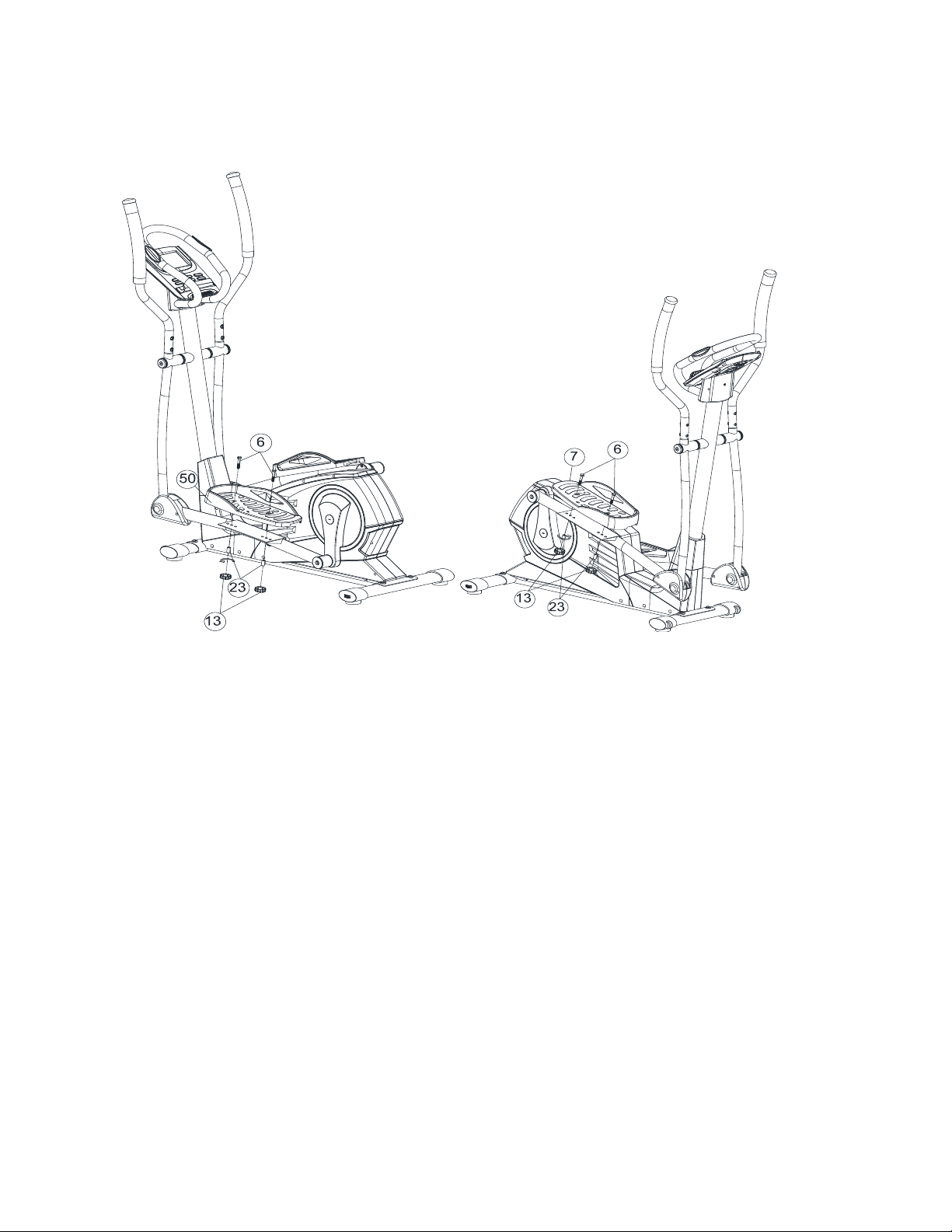

^dW ϭϯ
1. Tighten the leftpedal (#7) with hex bolt (#6), lock knob (#13) and sleeve for pedal (#23).
2. Tighten the right pedal (#50) with hex bolt (#6), lock knob (#13) and sleeve for pedal (#23).
IMPEX®INC.
2801 S. Towne Ave, Pomona, CA 91766
Tel: (800) 999-8899 Fax: (626) 961-9966
www.marcypro.com
