Mars MPAAD User manual

MPAAD UserManual 1
User Manual
AutomaticSecuring Device
MPAAD
4th Edition
InJeví ko, in10/2004
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 2
CONTENTS
HEAD I
1. Introduction
2. Designation
HEAD II
Description
1.Function
2. Additionalfunctions
3. User menu
4. Mainparts
5. Locationofthedevice
HEAD III
Technicaldata
HEAD IV
Contents
1. Deactivated device
2. Device activation
3. Device deactivation
4. Calibration
5. Stand-bymode
6. Jumpmode
7. Adjustmentduringajumpoutside anairport
8. Error statutes
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 3
HEAD V
Assembly
HEAD VI
Maintenance
1. Specialmaintenance
2. Proper functioncheck
3. Batteryreplacement
4. Choppingmechanismreplacement
5. Device adjustmentchanges
HEAD VII
Service lifeandwarrantyconditions
HEAD VIII
Caution
Placing the MPAAD securing device intoapacking bag
MPAAD –Activation report
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 4
HEAD I
1. Introduction
MPAADisaresultofseveralyearsofdevelopment,research,andtests.Thisdevice
combinesinitselfthelatestelectronictechnologiesandcomponents.Itsdevelopment
prioritized higherreliabilityandresistance aswell asthesatisfactionofcurrentparachuting
requirements.Italsoaimed atsettingstandardsforthethirdgenerationofsecuringdevices.
Thelocationoftheentiredevice inacompact,duralumincasewithoutouterconnecting
cablesprincipally excludesanypossiblemechanicaldamage andsimultaneously markedly
enhancesresistance againstelectromagneticinterferences.MPAADisamodern,electronic,
microprocessor-controlled securingdevice thatdoesnot requireanyspecialmaintenance
andthatfeaturesseveraladditionalfunctions.Thedevice canbearbitrarily setasEXPERT,
BEGINNERor TANDEM.
2. Designation
Thedevice isdesigned for all typesofparachutejumps, includingthefollowing:
RW,CRW,FREEFLY,FREESTYLE, SIT-FLYING,SKYSURFING,jumpswitha
CAMERA,PRECISION LANDING,INDIVIDUALACROBATICS,AFF,TANDEMS
andBEGINNERS.
CAUTION:
-Thedevice isnot designed for jumpsfromfirmstructures–
BASE JUMPS!
-Thedevice isnot designed for PARAGLIDING, PARASCENDING
Or PARASAILING!
-Thedevice isnot designed for theprimaryopeningoftheparachute!
-Thedevice isnot designed for jumpsinto water!
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 5
HEAD II
Description
1. Function
Theprimaryfunctionofthisdevice isto activateareserveparachutewhenaparachutist
free-fallsatadangerousheightandthusto preventtheparachutist’s directfall onthe
ground.Thelimitvaluesofactivationdifferdependingonthespecificadjustmentofthe
device;i.e.EXPERT, BEGINNER,andTANDEM.Theheightofactivationmeansthe
highestadmissibleheightwhenactivationcantake place.Thedevice canbestarted atany
heightbetweentheactivationheightandtheground,ifafall ratehasbeenexceeded.
Activationatalowerheightthantheactivationheightispossible,forinstance,afteralow
release.Aheightlock indicatestheheightthathasto beovercomeinorderto unlock the
device.Ifthisheighthasnot beenreached,butactivationconditionshavebeenmet,the
device will not beactivated.
EXPERT
Activationtakesplace iftheheightabovethegroundisless than270mandthefall
rateisgreater than35 m.s-1. Theheightlock is450m.
BEGINNER
Activationtakesplace iftheheightabovethegroundisless than270mandthefall
rateisgreater than20 m.s-1. Theheightlock is450m.
TANDEM
Activationtakesplace iftheheightabovethegroundisless than560mandthefall
rateisgreater than35 m.s-1. Theheightlock is900m.
2. Additional functions
Thedevice hasabuilt-inreal-timeclock thatrunscontinuously ifthereisabatteryinthe
device.Whenstartingthedevice,theconditionofthebatteryisindicated inpercentsof
remainingcapacity.Nootheradjustmentproceduresapartfromthedevice’s start-up have
to bemade prior to thefirstjump. Ifalandingsurface issituated lower or higher thanastart
point,thisdifference canbesetonthedevice (±600 m). Aqualified personmaychange the
adjustmentofthedevice to theTANDEM,EXPERTorBEGINNERsettingaccordingto
theuser’s requirements.Thequalified personcanalsosetthetimeofthestandbymode to 1
to 19 hours.Detailed datafromthepreviousjumparestored inthedevice memory.The
device operatesasa‘black box’.Suchdetailscanberetrieved ifneeded bythequalified
person. Thedataareautomatically rewrittenafter eachjump.
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 6
3. UserMenu
Theuser canaccess asimplemenuwherehecanview thefollowingdata:
Theheightofopeningduringthepreviousjump
Totalnumber ofjumps
Remainingbatterycapacityinpercents
Batteryvoltage involts
Device manufacturingnumber
Controllingfirmwareversion
4. Mainparts
All ofthedevice partsarecontained inaflat,metalcasethatisdivided inthree
compartments.Theupperonecontainsamicroprocessor, areal-timeclock,supporting
electriccircuits,abarometricpressuresensorwithadisplayandtwobuttons.Thelower
compartmentcontainsabattery.Themiddlecompartmentcontainsapyrotechnicchopping
mechanism. Thebatteryandthechoppingmechanismcanbereplaced.
5. Locationof the device
Thedevice islocated underthelowerpartofthepackingbag ofthereserveparachute.Its
controlbuttonsanddisplaycanbeaccessed throughawindowontherearside ofthe
packing.Theclosingloopofthereserveparachuterunsthroughtheopeninginthecentral
device partwherethechoppingmechanismisplaced aswell.MPAADfillsup thearea that
isnaturally created inthebetween-the-blade partofthepackingofthereserveparachuteby

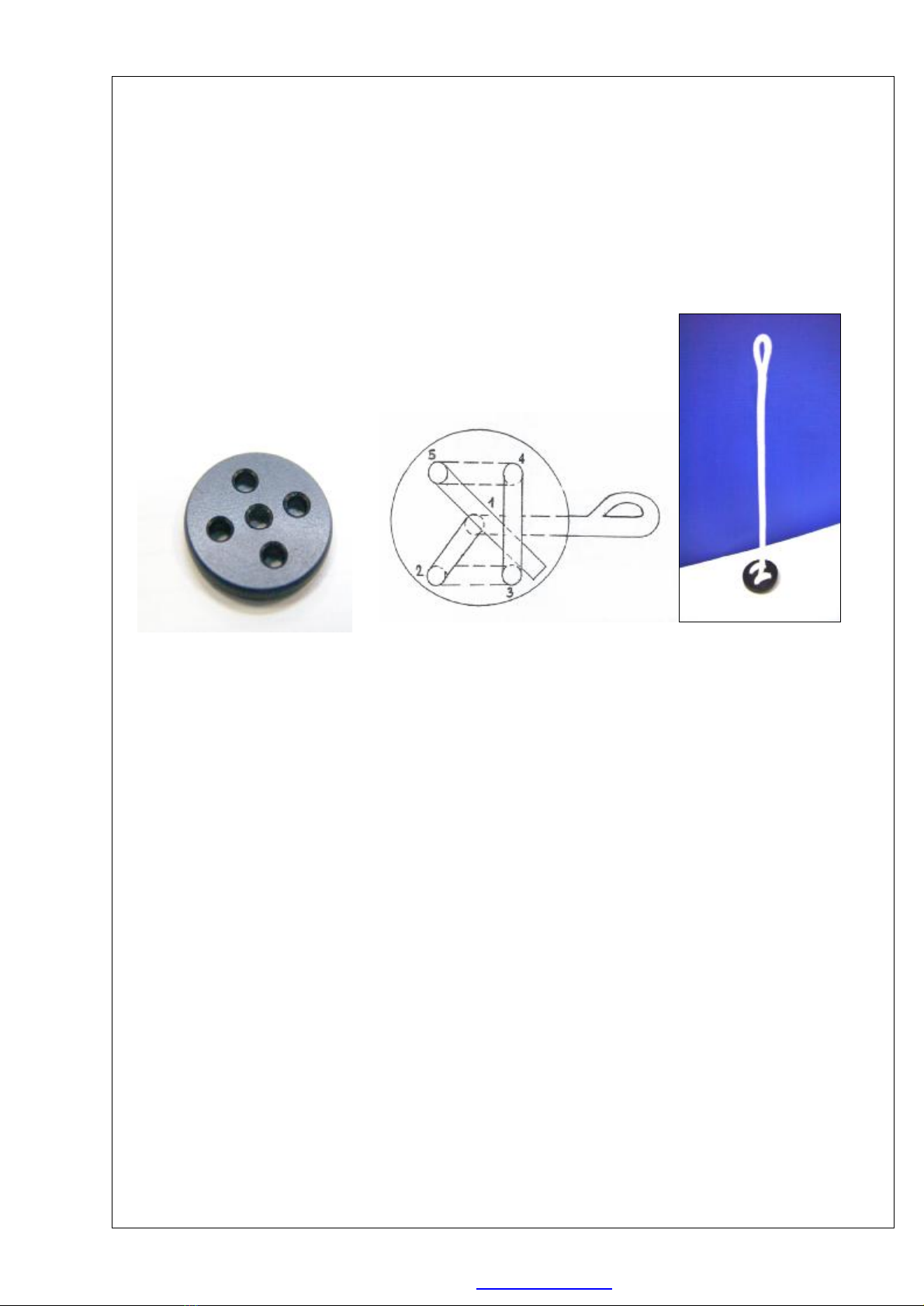

pullingtheclosingloopthroughapaddingplate.
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 7
HEAD III
Technical data
Size (mm):100 x62 x20
Weight(g):ca 250 g
Volume(ccm)124 ccm
Battery:Speciallithiumbatteries
Batteryservice lifeUp to 4yearsor 300 flyinghours
Range ofapplication(m) - 600 up to +10000 m(abovesea level
AGL)
Activationheight(m)
<270 mExpert
<270 mBeginner
<560 mTandem
Activationrate(m/s)
>35 m.s-1 Expert
>20 m.s-1 Beginner
>35 m.s-1 Tandem
Heightlock (m)
450 mExpert
450 mBeginner
900 mTandem
Accuracy:(%) ±7%
Temperaturerange ( ºC) - 20 ºCup to +60 ºC
Stand-bymode (h)Canbesetto 1-19 hoursathourly intervals
Landingoutside airportCanbesetto ±600 m
Device service life15 years
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 8
HEAD IV
Maintenance
1. Deactivateddevice
Thedisplayisemptyandwhenevertheleftorrightbuttonispressed,intentionally orby
accident, thedisplayindicates [ OFF ] .
2. Device activation
Thedevice isstarted bypressingthebuttonsoftheso-called activationsequence several
times.Firstreleasebothbuttons.Press theleftbuttonandkeep itpressed (o).Afterthree
seconds,thedisplaywill shownumberone [1].Press therightbutton (>) three timesin
arowandreleaseit.Aftereachpressingthedisplaywill showagrowingrowofnumbers
[ 12 ], [123 ] and [1234 ].Once numeral4hasappeared onthedisplay,releasetheleft
controlbutton (o). Thisactivationsequence isthencomplete.Thewholesequence must
not lastlongerthantenseconds.Ifamistake ismade thewholeproceduremustbe
repeated.
Thedisplayshows [ON ] briefly andthenitimagestheremainingcapacityofthebattery
rangingfrom [100%] to [0%].Subsequently,automaticcalibrationtakesplace and
[ CAL] appearsonthedisplay. Afterwards, themachineswitchesto astand-bymode.

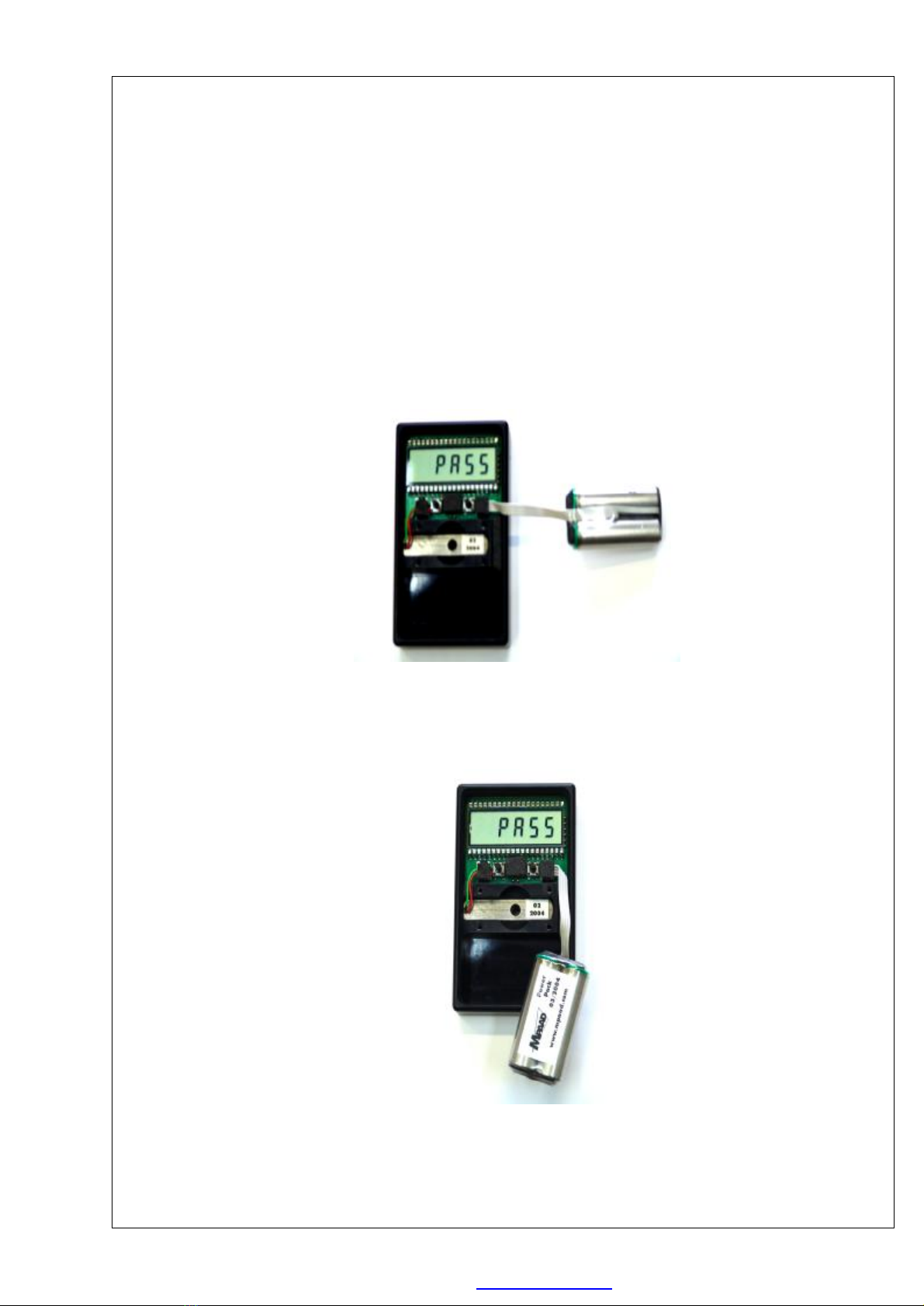

Duringtheactivationprocedure, MPAADchecksthebattery, choppingmechanismand
electronics.
3. Machine deactivation
Turnoff thedevice inthesamewayinwhichyouactivated it–i.e.bymeansofthe
activationsequence.Thedisplayshows [ OFF ]. Ifyouforgetto turnthedevice off, itturns
off automatically once thetimeofthestand-bymode hasbeenfulfilled.Thedevice canbe
turned off duringthestand-byandjumpmodes.
4. Calibration
Calibrationiscarried outto setazeroheightforthelandingsurface.Itisstarted when
activatingthedevice andthenautomatically aftereachjump.When [CAL] appearsonthe
display, thedevice measuresacurrentpressureandsetsitasaheightzerovalue.
Therefore,youshouldalwaysactivatethedevice only inthearea ofthelandingsurface.If
thevaluesfluctuatebadly duringthemeasurementofpressure,anerrorisshownonthe
display. Thedevice hasto bedeactivated.
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 9
Ifyoulandoutside anairportunintentionally andfindyourselfatamarkedly lower or higher
heightonyourwayback (±10 m), turnthedevice off manually afterarrivalandthenturnit
onagain!Ifyouareindoubt,proceed inthesamewayto beonthesafeside!Thiswill
securetheproper re-calibrationofthedevice prior to thenextjump.
5. Stand-bymode
Wheninthestand-bymode,thedevice isontheground.Pressureandapossibleairplane
startarechecked regularly.Thismode startsassoonasthecalibrationiscompleted.The
displayshowsatimecountdownuntil theautomaticturningoff ofthemachine.For
instance,thedisplayshowstimeinformation [14:00 ] withaflickeringsecond-indicating
coloninthemiddle.Thisindicatestheintroductionofthedevice into thestand-bymode for
fourteenhoursafterwhichthedevice turnsoff automatically.All thetimethedisplaywill
continue to showthetimeremainingto theturnoff,forinstance, [14:00 ], [ 13:59 ], [
13:58 ], ……, [ 00:01 ], [ 00:00 ].
Ifthedevice issetto adifferentmode thanEXPERT, thisisindicated onthedisplay.The
TANDEMadjustmentisindicated byletter ‚t’ inthefar-rightdisplayfield,forinstance,
[ 14:00t]. TheBEGINNERadjustmentisindicated byletter ‚b’, forinstance, [14:00b ].
WhentheEXPERT adjustmentisused, thefar-rightdisplayfieldisempty.
6. Jumpmode
Justawhileafteranairplane’s startthedevice automatically changesto ajumpmode.The
displaystopsimagingtimeandshowsacurrentreached heightabovetheground(AGL).
Afterlandingacalibrationsequence takesplace andthedevice automatically switchesback
to astandbymode.
Note:
Justalookatthedisplaycancheck not only themode inwhichthedevice isoperatingbut
alsothetimeremainingto anautomaticturnoff aswell astheproper functionofthedevice.
7. Adjustmentduringa jumpoutside anairport
Ifthelandingsurface islocated higherorlowerthanthestartingplace,thedevice hasto be
adjusted to acorrectvalue asfollows:
Ifthedevice ison,turnitoff.Activatethedevice bymeansoftheactivationsequence.As
soonasthedisplaybeginsto read [ON ], press therightbutton (>) andkeep itpressed
until thedisplaystartsto show [SEt].Bypressingtherightbuttonorkeepingitpressed
adjusttherequired heightofthelandingground(±600 m). Confirmyourselectionby
pressingtheleftbutton (o).Once thecalibrationhasbeencompleted,thedevice switches
to astand-bymode.Thedisplayshows,inturns,atimecountdownandasetheight,for
instance, [ 14:00 ] …[ +120 ] …[ 14:00 ].
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz

MPAAD UserManual 10
Afterplanned landingonthelandinggroundoutside anairportusingthere-calibrationof
thelandinggroundheight,thedevice turnsoff automatically!Thedisplayisemptyand
whenpressingonthebuttonthe [OFF ] signbecomesdisplayed.Priorto thenextjump,
beitontheoriginalor anew landingground, turnonthedevice again.
8. UserMenu
Toenter theUser Menupress therightbutton ( >) andkeep itpressed for about4seconds.
Thedisplaywill show [-01-]. Releasethebuttonandthedisplaywill showtheheightof
opening.Ifyoukeep onpressingthebutton,youwill startgoingthroughthemenu.Press
theleftbutton ( o) to leavethemenu. After awhilethemenuwill deactivateitself.
Menubeginning
[ -01- ] [ 888o ] openingheightduringthelastjump
[ -02- ] [ 888J ] totalnumber ofjumps
[ -03- ] [ 88%] remainingbatterycapacityinpercents
[ -04- ] [ 3.65v ] batteryvoltage involts
[ -05- ] [ 888d ] batteryage indays
[ -06- ] [ 41b8 ] device manufacturingnumber
[ -07- ] [ 01.00 ] controllingfirmwareversion
Menuend
9. Errorstatuses
If [Exxx ] (error) appearsonthedisplayduringautomaticcontroloratanytime,itis
necessaryto replace either thebatteryor thechoppingmechanism, or to restartthedevice.
If [Fxx ] (failure)appearsonthedisplay,thedevice mustbesentto themanufacturerfor
inspection. Inthiscasethedevice becomesblocked andcannot beturned off.
E001, E010 Range error duringcalibration. Thescatter ofpressuresamplesistoo large.
E002, E020 Choppingmechanismerror. Pyrocartridge isfaultyor activated.
E004, E040 Batteryerror. Batteryvoltage islow.
PDFbylvytvo en zkušební verzí FinePrint pdfFactory www.fineprint.cz
