Introduction
Thank you for purchasing a professional gym weighing scale. Ideal for areas of heavy traffic and guaranteed accurate weight
readings. Continue reading for instructions on how to use the device and company contact information.
Product Specification
Model
M-165
Capacity/Division
250kg x 100g
Weight of Scale
Approximately 8kg
Units of Measure
Kg/St
Function Keys
ON/ZERO/OFF, UNIT, SEND, HOLD/BMI, TARE/BSA
Stabilization Time
1-2 Seconds
Operating Temperature
5 ˚C to 35˚C
Power Supply
6x 1.5V AA batteries or 12V 1A adaptor (UE24WCP1 – 120100SPA)
Indicator Display
3cm display with 5 active digits
Dimensions
Base: 310mm x 310mm x 83mm Indicator: 174mm x 107.6mm x 50mm
Warranty
4 year
Safety Instructions
Before putting the device into use, please read with care the information given in this user manual, which contains important
instructions for proper installation, use and maintenance of the device.
Marsden and/or the manufacturer shall not be liable for damages arising from failure to heed the following instructions:
•When using electrical components under increased safety requirements, always comply with appropriate regulations.
•Inappropriate installation/use will render the warranty null and void.
•Ensure the voltage marked on the power supply unit matches your mains supply.
•This device is designed for use indoors only.
•Observe the permissible ambient temperatures for use.
•The device meets the requirements for electromagnetic compatibility. Do not exceed the maximum values specified
in the applicable standards.
•Batteries should be kept away from small children. If swallowed, promptly seek urgent medical assistance.
If you have any problems with this scale, please contact Marsden/your local dealer/your service partner.
If a serious incident occurs in relation to this device, it should be reported to the manufacturer and the competent authority of
the Member State in which the user and/or patient is established.

Page 3 of 15
Cleaning
•We recommend using alcohol-based wipes or similar when cleaning the scale.
•Please do not use corrosive liquids, large amounts of water or high-pressure washers.
•Always disconnect the scale from the mains power supply before cleaning.
Maintenance
•The scale does not require any routine maintenance. However, we recommend checking the scale’s accuracy at
regular intervals. If any inaccuracies occur, please contact your local dealer or service partner.
•If you are in the UK, service contracts are available from Marsden to keep your scale accurate and reliable for longer.
Call 01709 364296 for more information.
Disposing of the Scale
•This product should not be treated as regular household waste but should be handed in to an electrical/electronic
equipment recycling centre.
•You can obtain further details from your local council, your municipal waste disposal company or from where you
purchased the product.
•Alternatively, you can return this product to Marsden –we will recycle this free of charge,
Intended Use
•This scale is intended for use to determine the weight of patients, supported by professional personnel and in rooms
intended for carrying out healthcare. The weighing value can be read after a stable weighing value has been
obtained. Before use, the scale must be checked by an authorised person to ensure it's in a suitable condition.
•Device is intended to measure one subject at a time.

Page 4 of 15
Explanation of Graphic Symbols
Caution, consult
accompanying
documents before use
Separate collection for
waste of electrical and
electronic equipment,
in accordance with
Directive 2002/96/EC
Manufacturer of medical
device
Manufacturing year of
medical device
Carefully read user
manual before
installation and usage,
and follow instructions
for use.
Medical electrical
equipment with Type B
applied part
Device catalogue
number
Authorized
representative in the
European Community
Manufacturer's batch or
lot number
Device is a medical
device
Serial number
Unique Device
Identifier
Device conforms to 93/42/EEC as amended by 2007/47/EC Medical
Device Directive. Four digit number refers to Notified Body.
Device complies with International Organization of Legal Metrology
(Class III) requirements (verified models only)
Device complies with EC directives (verified models only)
M: Conformity label in compliance with Directive 2014/31/EU for non-
automatic weighing instruments
19: Year in which conformity verification was performed and the CE
label was applied. (ex: 19=2019)
0122: Refers to Notified Body for metrology
Device complies with UK Regulation.
M: Non-Automatic Weighing Instruments Regulations 2016.
21: Year in which conformity verification was performed and the CE
label was applied. (ex: 21=2021)
0120: Refers to the Approved Body for metrology

Page 5 of 15
Power Supply & Low Battery
The indicator uses power from 6x AA batteries, or can be powered from the mains via the adaptor.
Make sure the batteries are installed in the battery box of the indicator. Alternatively, plug the adaptor (12V 1A) into the port on
the side of the scale.
Installing Batteries

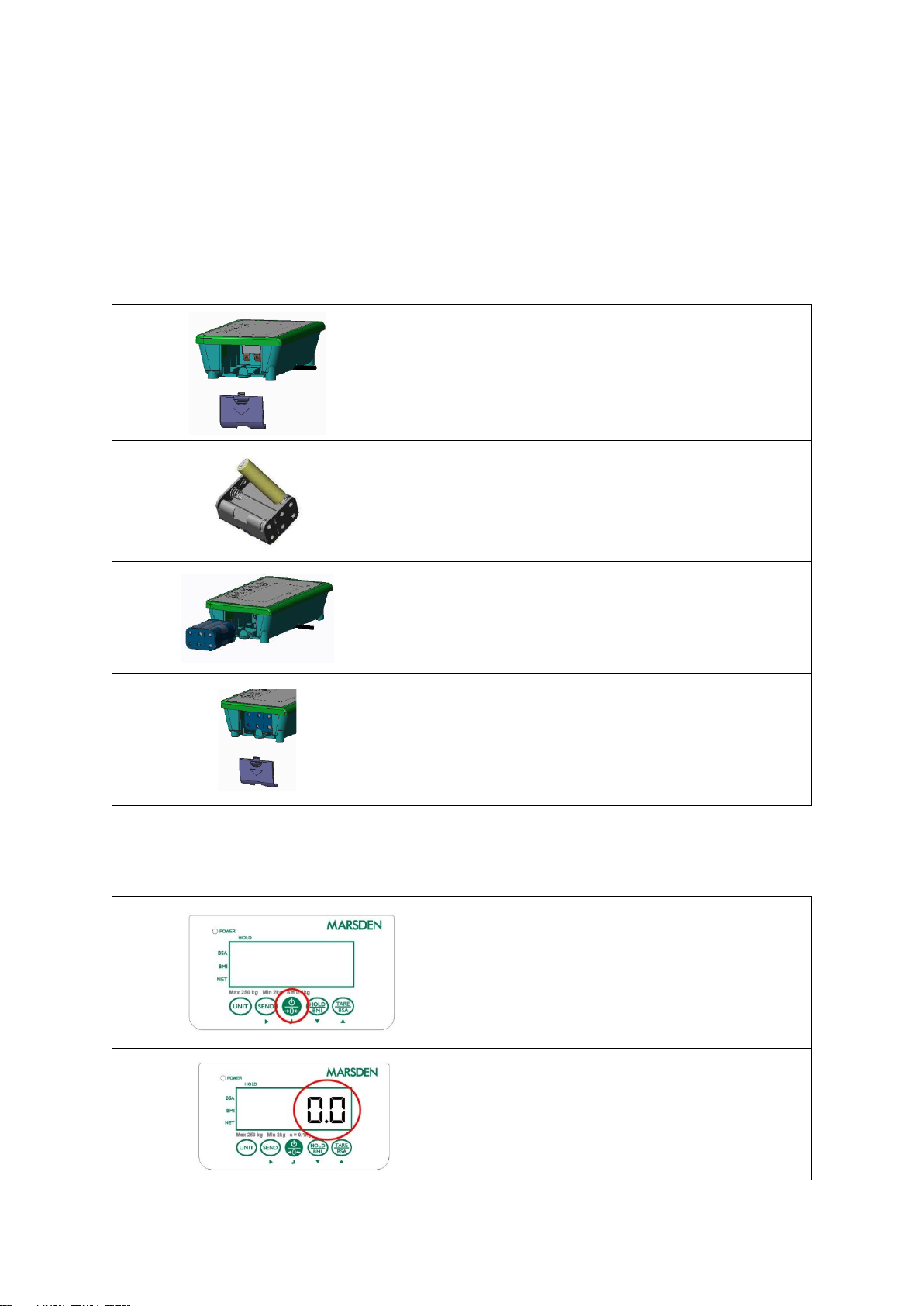

Remove the battery cover.
Remove the battery case and insert batteries, ensuring they are
properly installed.
Install the battery housing.
Refit the battery cover.
Switching on the Scale
Press the ON/ZERO/OFF button firmly.
When the scale shows 0.0 on the display you are ready to
start weighing.

Page 6 of 15
Switching off the Scale
Hold the ON/ZERO/OFF button for three seconds when the
scale is turned on. The scale will power down.
Setting the Scale to Zero
If the display shows a reading other than 0.0 when nothing is
on the scale, it can be reset to zero.
Press ON/ZERO/OFF once.
The scale will return to 0.0.

Page 7 of 15
Hold Function

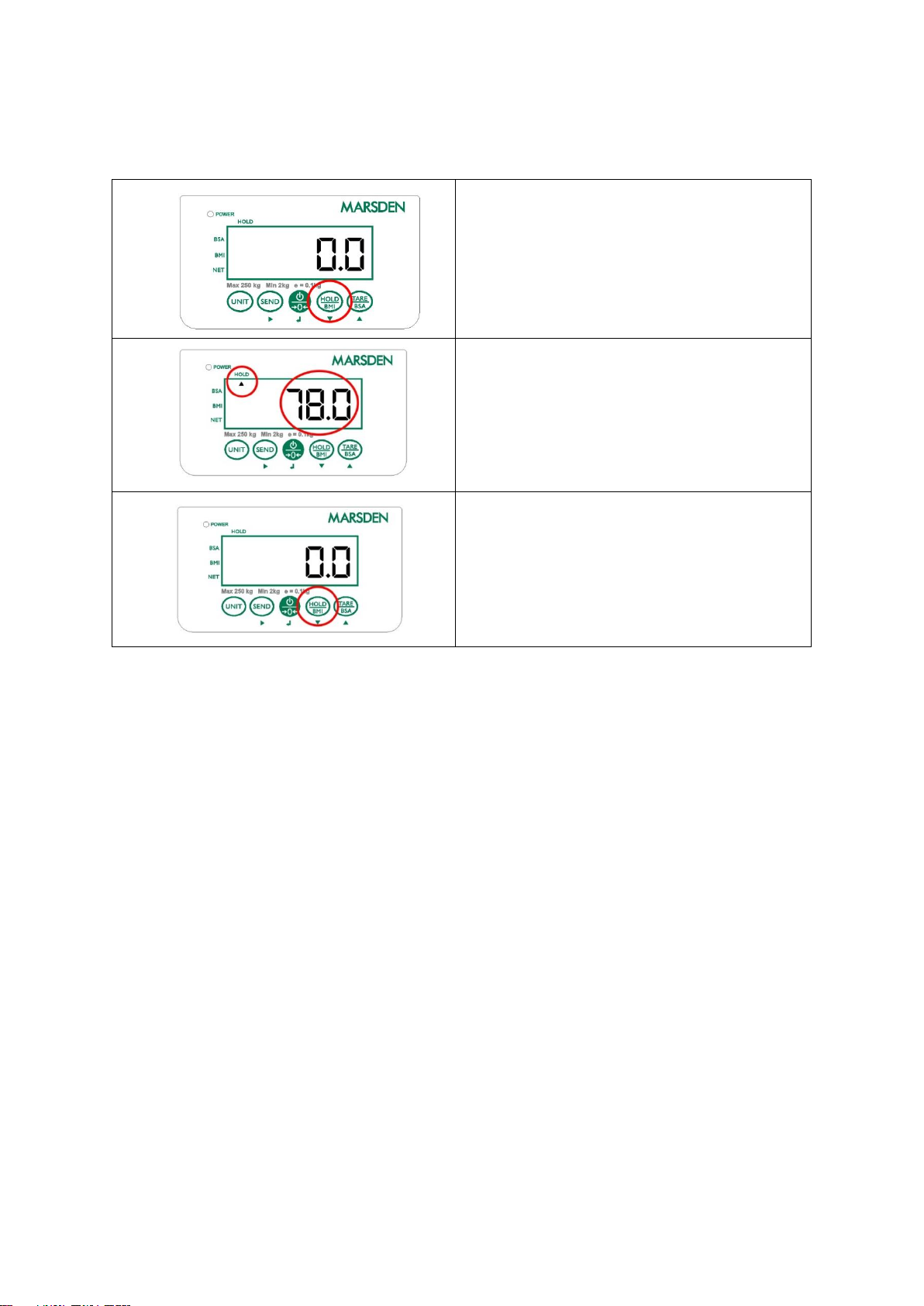

Press the HOLD/BMI button once, either whilst the patient is
stood on the scale or before they step onto the scale.
After a few seconds the scale will lock on the person’s weight.
When the patient leaves the scale, the weight will remain on
the display.
Press HOLD/BMI again to disable the Hold function and
return the scale to 0.0.
Note: If the weight reading remains on the display for more than five minutes, the Hold
function will automatically disable and the display will return to 0.0. If another patient steps on the scale whilst a held weight
reading is being displayed, the Hold function will be disabled.

Page 8 of 15
Body Mass Index (BMI) Function
The patient should first stand on the scale.
Hold down the HOLD/BMI button to enter BMI mode.
The scale will enter height setting mode and the
extreme left digit will flash.
Enter the height by using the TARE/BSA button to
decrease the value and HOLD/BMI button to increase
the value. To move to the next digit, press SEND.
To confirm the height hold down the ON/ZERO/OFF
button, after a few seconds the display will alternate
between weight, height and BMI.
To exit BMI mode and return to normal weighing mode,
hold down the HOLD/BMI button.

Page 9 of 15
Body Surface Area (BSA)
After calculating BMI, you can then calculate BSA. After going
through the first four steps on the previous page steps to
calculate BMI, press TARE/BSA and Body Surface Area will
be displayed.
Tare Function
Place the item/s you wish to deduct from the reading (such as
a pair of shoes) on the scale and press TARE/BSA.
Remove the item/s, and the scale will show a minus reading.
Weigh the patient as normal and the negative weight reading
will be deducted from the total weight.

Page 10 of 15
Assembling the Column (M-165 only)
Assembling the M-165’s column should ideally be carried out by two people.
Holding both the column and the base, ensuring all wiring is tucked inside the column housing, turn the scale over so that the
column can be screwed to the base from the underside of the base.
Use the four screws provided, screwing them carefully into the four holes as shown in the drawing.
Before Use
1) Place the scale on a firm and level surface
2) Unwind the levelling feet until they make contact with the ground.
3) Ensure that all four of the levelling feet and the wheels are firmly on the ground and that the spirit level bubble is
located in the center as shown below:
Correct: Incorrect:

Page 11 of 15
Attaching the Height Measure (M-165 only)
The M-165 can be purchased with a height measure. If you did not purchase your M-160 with a height measure, it is also
available separately (model HM-201M).

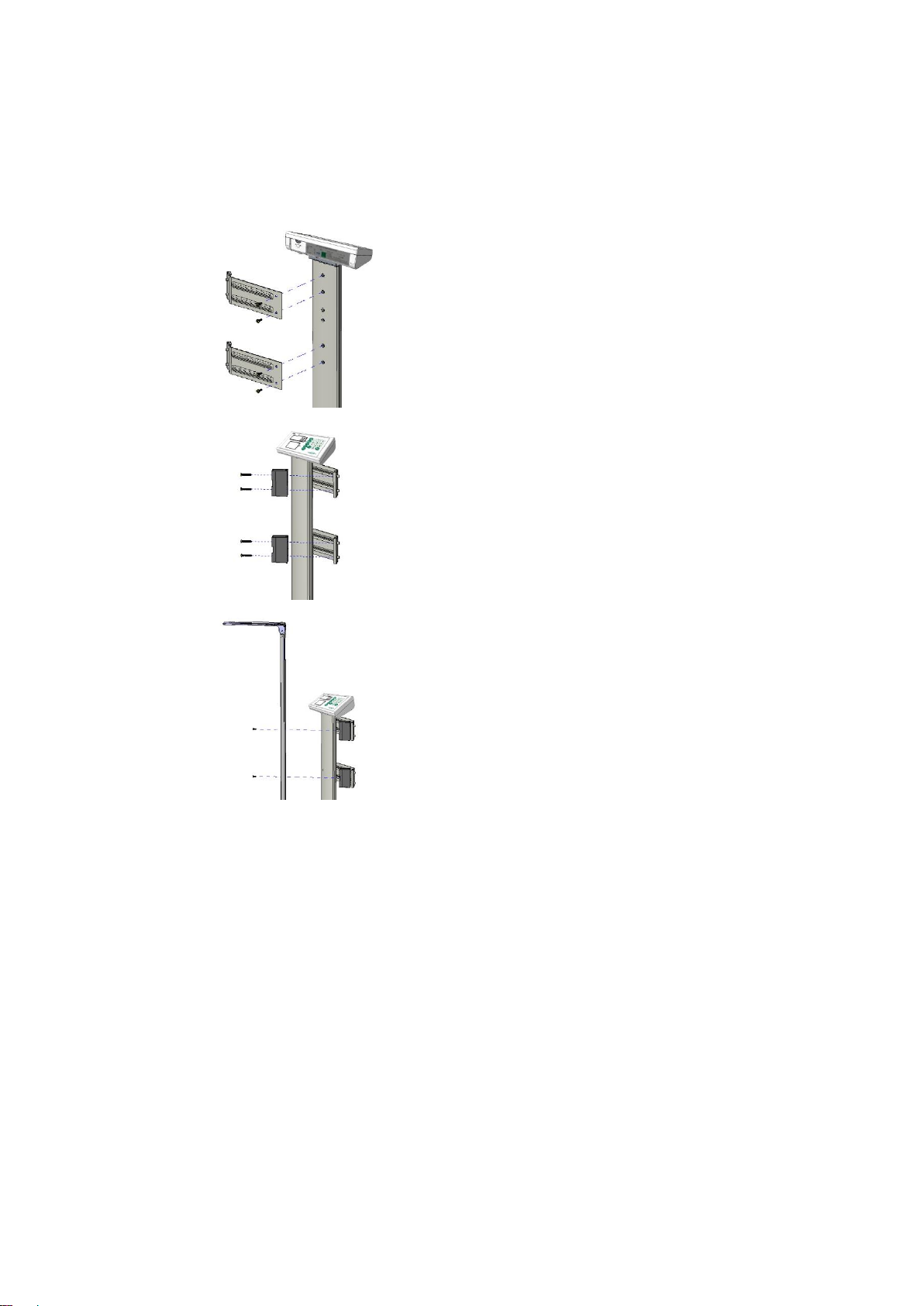

Using the four M5*0.8*9 screws provided, mount the two
brackets onto the column of the M-165.
Using the four M5*0.8*25 screws provided, screw the black
blocks onto the mounting brackets.
Using the two M6*1.0*10 screws provided, screw the HM-
201M to the black blocks.
To measure a person’s height, retract the height rod and
position the head stop accordingly.
For M-165 spare parts, call Marsden on 01709 364296.

Page 12 of 15
EMC Guidance and Manufacturer’s Declaration
Guidance and manufacturer’s declaration-electromagnetic emissions
The SCALE M-165 is intended for use in the electromagnetic environment specified below.
The customer or the user of the SCALE M-165 should assure that it is used in such an environment.
Emission test
Compliance
Electromagnetic environment-guidance
RF emissions CISPR 11
Group 1
The SCALE M-165 uses RF energy only for its
internal function. Therefore, its RF emissions are
very low and are not likely to cause any
interference in nearby electronic equipment.
RF emissions CISPR 11
Class B
The SCALE M-165 is suitable for use in all
establishments, including domestic
establishments and those directly connected to
the public low-voltage power supply network that
supplies buildings used for domestic purposes.
Harmonic emissions IEC 61000-3-2
Class A
Voltage fluctuations /flicker emissions
IEC 61000-3-3
Compliance
Guidance and manufacturer’s declaration-electromagnetic immunity
The M-165 intended for use in the electromagnetic environment specified below.
The customer or the user of the M-165 should assure that it is used in such an environment.
Immunity test
IEC 60601 test level
Compliance level
Electromagnetic environment-
guidance
Electrostatic
discharge(ESD)
IEC 61000-4-2
± 8 kV contact
± 2 kV, ± 4 kV, ± 8 kV, ±
15 kV air
± 6 kV contact
± 8 kV air
Floors should be wood, concrete or
ceramic tile. If floors are covered with
synthetic material, the relative
humidity should be at least 30%
Electrical fast
transient/burst IEC
61000-4-4
± 2kV for power supply
lines + 1kV for
input/output lines
± 2kV for power supply
lines Not applicable
Mains power quality should be that of
a typical commercial or hospital
environment.
Surge IEC 61000-4-5
± 1kV line(s) to line(s) ±
2kV line(s) to earth
± 1kV differential mode
Not applicable
Mains power quality should be that of
a typical commercial or hospital
environment.
Voltage Dips, short
interruptions and voltage
variations on power
supply input lines IEC
61000-4-11
0% UT for 0,5 cycle
0% UT for 1 cycle
70% UT(30% dip in UT)
for 25 cycles
0% UT for 5 s
<5% UT(>95% dip in UT)
for 0,5 cycle 40% UT(60%
dip in UT) for 5 cycles
70% UT(30% dip in UT)
for 25 cycles <5%
UT(>95% dip in UT) for 5
s
Mains power quality should be that of
a typical commercial or hospital
environment. If the user of the M-165
requires continued operation during
power mains interruptions, it is
recommended that the M-165 be
powered from an uninterruptible
power supply or a battery.
Power frequency(50/60
Hz) magnetic field IEC
61000-4-8
30 A/m
3 A/m
The M-165 power frequency
magnetic fields should be at levels
characteristic of a typical location in a
typical commercial or hospital
environment.
NOTE UT is the a.c. mains voltage prior to application of the test level.
Guidance and manufacturer’s declaration-electromagnetic immunity
The M-165 is intended for use in the electromagnetic environment specified below.
The customer or the user of the SCALE M-165 should assure that is used in such and environment.
Immunity test
IEC 60601 test level
Compliance level
Electromagnetic environment-guidance
Conducted RF
IEC 61000-4-6
3 Vrms
150 KHz to 80 MHz
6 V in ISM bands
between 0,15 MHz and
80 MHz
80 % AM at 1 kHz
3 Vrms
Portable and mobile RF communications
equipment should be used no closer to
any part of the M-165 including cables,
than the recommended separation
distance calculated from the equation
applicable to the frequency of the
transmitter.
Recommended separation distance:
d = 1,2 √P
d = 1,2 √P 80MHz to 800 MHz
d = 2,3 √P 800MHz to 2,7 GHz
Where P is the maximum output power
rating of the transmitter in watts (W)
according to the transmitter
manufacturer and d is the recommended
separation distance in metres (m).
Field strengths from fixed RF
transmitters, as determined by an

Page 13 of 15
Radiated RF IEC
61000-4-3
3 V/m 80MHz to 2,7 GHz
3 V/m
electromagnetic site surveya, should be
less than the compliance level in each
frequency rangeb.
Interference may occur in the vicinity of
equipment marked with the following
symbol:
NOTE1 At 80 MHz and 800 MHz, the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.
a Field strengths from fixed transmitters, such as base stations for radio (cellular/cordless) telephones and land mobile
radios, amateur radio, AM and FM radio broadcast and TV broadcast cannot be predicted theoretically with accuracy. To
assess the electromagnetic environment due to fixed RF transmitters, an electromagnetic site survey should be considered.
If the measured field strength in the location in which the M-165 is used exceeds the applicable RF compliance level above,
the M-165 should be observed to verify normal operation. If abnormal performance is observed, additional measures my be
necessary, such as re-orienting or relocating the M-165.
b Over the frequency range 150 kHz to 80 MHz, field strengths should be les than 3 V/m.
Recommended separation distance between portable and mobile RF communications equipment.
The M-165 is intended for use in an electromagnetic environment in which radiated RF disturbances are controlled. The
customer or the user of the M-165 can help prevent electromagnetic interference by maintaining a minimum distance
between portable and mobile RF communications equipment (transmitters) and the M-165 as recommended below,
according to the maximum output power of the communications equipment.
Rated maximum output power of
transmitter
W
Separation distance according to frequency of transmitter m
150 kHz to 80 MHz
d =1,2√P
80 MHz to 800 MHz
d =1,2√P
800 MHz to 2,7 GHz
d =2,3√P
0,01
0,12
0,12
0,23
0,1
0,38
0,38
0,73
1
1,2
1,2
2,3
10
3,8
3,8
7,3
100
12
12
23
For transmitters rated at a maximum output power not listed above, the recommended separation distance d in metres (m)
can be estimated using the equation applicable to the frequency of the transmitter, where p is the maximum output power
rating of the transmitter in watts (W) according to the transmitter manufacturer.
NOTE1 At 80 MHz and 800 MHz, the separation distance for the higher frequency range applies.
NOTE2 These guidelines may not apply in all situations. Electromagnetic propagation is affected by absorption and
reflection from structures, objects and people.

Page 14 of 15

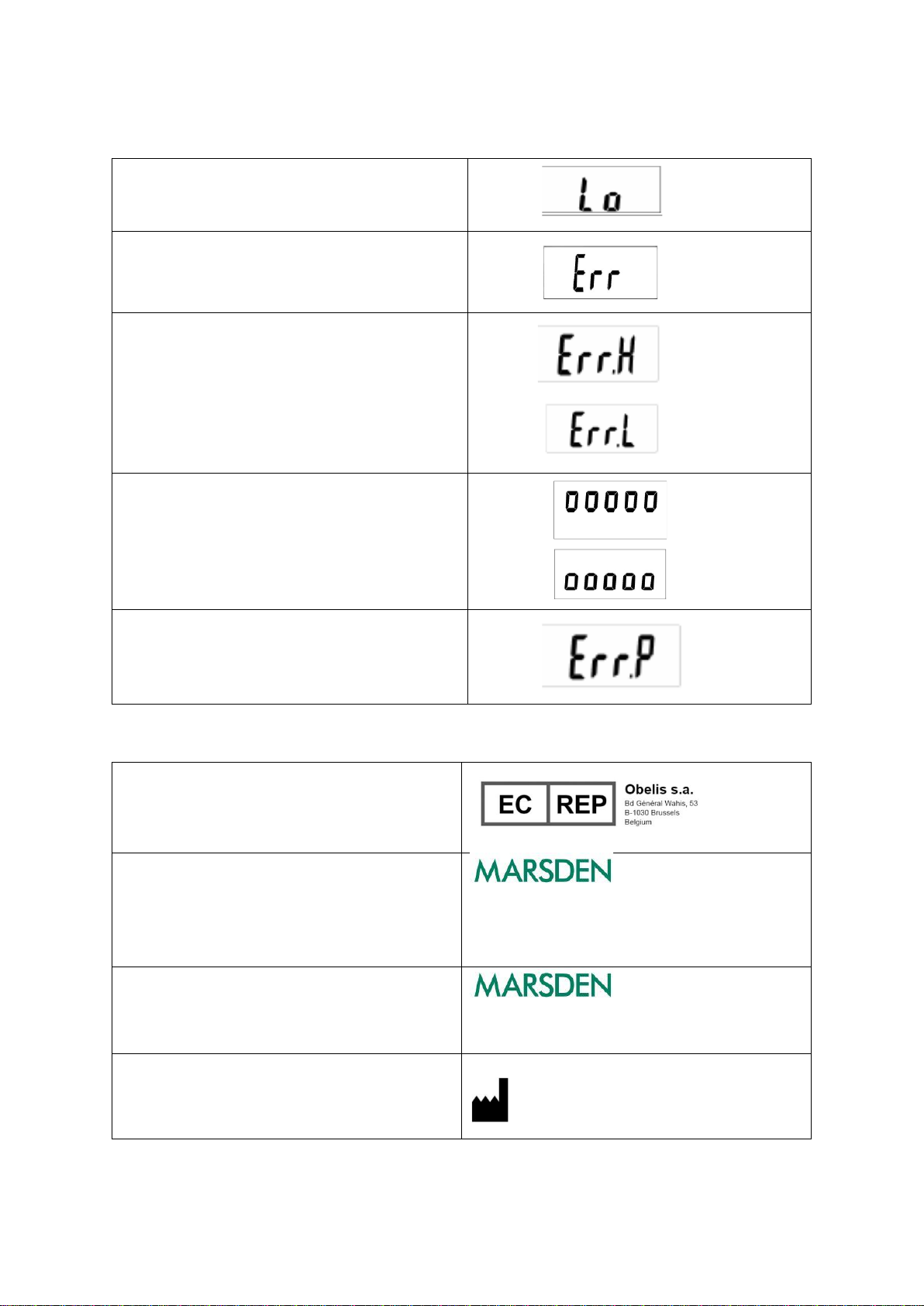

Error Messages
Low Battery
The scale’s alkaline AA type batteries are flat; please replace
the batteries.
Overload
This indicates that the scale’s load sensor(s) have been
overloaded. Reduce the loading and retry.
Counting Error
1. The signal from the load cells is too high. Please
remove any weight from the scale and try to power
on again. If the scale continues to show the error
message, it indicates a fault with the electronics or
wiring.
2. The signal from the load cells is too low. Please
remove any weight from the scale and try again. If
the scale continues to show the error message, it
indicates a fault with the electronics or wiring.
High/Low Zero Count
1. The scale is above its zero range. Please remove
any weight from the scale and power on again. If
the scale continues to show the error message, it
indicates a fault with the electronics.
2. The scale is below its zero range. Check there is
nothing jammed underneath the scale and power
on again. If the scale continues to show the error
message, it indicates a fault with the electronics.
EEPROM Error
This indicates there is a fault with the scale’s software and is
normally caused by a fault with the load cell or wiring. Contact
your local service representative.
EU Authorized Representative:
Distributor:
Marsden Weighing Machine Group Ltd,
Unit 1, Genesis Business Park, Sheffield Road, Rotherham,
UK, S60 1DX
EU Importer:
Marsden Weighing Machine Group Europe Ltd,
The Black Church, St. Mary's Place, Dublin 7, Dublin,
Ireland, D07 P4AX
Manufactured by:
Charder Electronic Co., Ltd.
No.103, Guozhong Rd., Dali Dist.,
Taichung City 41262 ,Taiwan (R.O.C.)

Page 15 of 15
MARSDEN
Unit 1, Genesis Business Park,
Sheffield Road, Rotherham,
S60 1DX
Telephone: + 44 (0) 1709 364296
Version 2.0
