marsden MSS-I-400 User manual

USER MANUAL
MSS-I-400
Please take time to read these
instructions before starting
to use the scale
Version 1.0 01/17

Contents
Product Specification 3
Safety Instructions 4
Before Using the Scale 5
Operation: Basic Functions 6
Operation: Advanced Functions 7
Setting the Screensaver 11
Error Messages 12
Page 2

Product Specification
Model
Marsden MSS-I-400
Capacity/Division
3kg to 150kg x 1g to 20g
Units of Measure
Kg
Function Keys
HOLD, TOTAL, LB/KG, GROSS, TARE, ZERO,
PRINT/ON/OFF
Stabilization Time
1-2 Seconds
Operating Temperature
-10 to 40°C
Protection level
IP5X
Power Supply
6V4Ah battery
Mains lead
Indicator Display
32mm LED display with 6 active digits
Base Dimensions
300mm x 300mm / 400mm x 400mm /
600mm x 600mm
Please note: Marsden’s policy is one of continuous development and therefore
we reserve the right to change product specification without notice.
Indicator images in this manual are for illustration purposes only.
Page 3

Safety Instructions
Before putting this scale into use, please read with care the information given in this user
manual, which contains important instructions for proper installation, use and maintenance
of the device.
Marsden/the manufacturer shall not be liable for damages arising from failure to heed the
following instructions:
When using electrical components under increased safety requirements, always
comply with appropriate regulations.
Inappropriate installation/use will render the warranty null and void.
Ensure the voltage marked on the power supply unit matches your mains supply.
This product is not waterproof. We do not recommend using the scale in humid,
damp or wet environments.
Observe the permissible ambient temperatures for use.
The device meets the requirements for electromagnetic capability. Do not exceed
the maximum values specified in the applicable standards.
If you have any problems, contact Marsden/your local dealer/your service partner.
Cleaning
Please do not use corrosive liquids or large amounts of water to clean the scale.
Always disconnect the scale from the mains power supply before cleaning.
Maintenance
The scale does not require any routine maintenance. However, we recommend
checking the scale’s accuracy at regular intervals. If any inaccuracies occur, please
contact your local dealer or service partner.
You can book an accuracy check with the Marsden Service team on 01709 364296.
Page 4

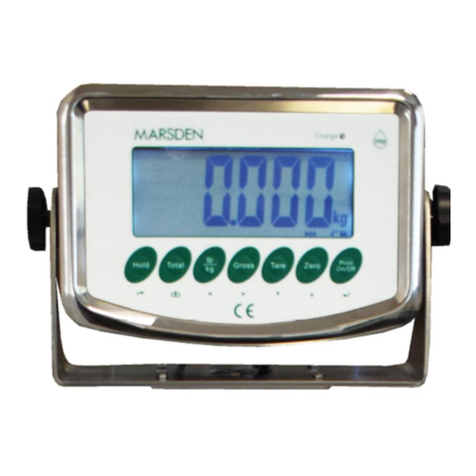

Before using the Scale
The scale’s indicator, the I-400 uses power from the 6V4Ah rechargeable battery, or can
be powered from the mains lead which is hard wired into the indicator.
Once switched on, the scale is only ready to use once the display shows 0.000.
Levelling the Scale
The mild steel base is fitted with four adjustable levelling feet. Please adjust these accordingly
to ensure the base is level. An un-level surface for weighing could result in inaccurate
readings.
Page 5

Operation: Basic Functions
Switching the Scale on/off
Press PRINT/ON/OFF to power-on the
scale. When the scale shows 0.000 it
is ready for weighing.
To switch the scale off, press and hold
PRINT/ON/OFF for three seconds. The
scale will now power down.
Setting the Scale to Zero
If at any time the reading shows
anything other than 0.000 when
there is nothing on the scale, you can
reset the display by pressing ZERO
once.
Page 6

Operation: Advanced Functions
Hold Function
With the scale switched on, add an
item to the base.
Press HOLD once. The scale will lock
onto and stabilise the weight reading
for the item. The reading will remain
displayed after the item is removed.
Press HOLD again to disable the
Hold function and return the scale to
0.000.
Tare Function
Place the item you wish to deduct
the weight of (such as a plate or
bowl) on the scale and press TARE.
Page 7

The scale will show a minus reading.
Weigh as normal and the negative
weight reading will be deducted from
the total weight.
Press HOLD again to disable the
Hold function and return the scale to
0.000.
Switching Between Kg and lb
To switch the weight reading
between kg and lb, press LB/KG.
The LED panel will indicate whether
the reading is showing in kg or lb as
shown on the left.
Page 8

Counting Function
To count items on the scale, first
place a sample quantity on the scale.
Switch the indicator to count mode
by pressing TOTAL, holding the
button until ‘SAMPLE’ is displayed
Press PRINT/ON/OFF. ‘PCS’ will
display on the screen.
Use the LB/KG and GROSS keys for
left and right and TARE and ZERO as
up and down to input the sample
size.
To confirm the amount, press
PRINT/ON/OFF. Adding more items
will increase the count on the display.
Press HOLD to return to weighing
mode.
Page 9

Accumulation Function
You can use the scale to total up
several loads. Add your first item to
the scale and press TOTAL. Remove
the item from the scale.
Add the next item to the scale and
press TOTAL again.
If you would like to see the current
total at any time, press and hold
TOTAL for at least two seconds.
To clear accumulated readings press
ZERO.
Press HOLD to return to normal
weighing mode.
Page 10

Setting the Screensaver
To save battery power, the screen can
power off after a set period of time.
To set the time out function, with the
indicator switched on and nothing on
the scale, press and hold down HOLD
until ‘F1’ is displayed.
Press and hold ZERO until ‘F3’ is
displayed.
Press and hold PRINT/ON/OFF until
‘F3.1’ is displayed. Press PRINT again.
Using GROSS and ZERO, set the time
out period you require (between 0
and 99 minutes).
Press PRINT/ON/OFF once and HOLD
twice to set the time out period and
return to normal weighing mode.
Note: If the scale is inactive for 150 minutes or more, it will automatically power off.
Page 11

Error Messages
Display
Problem
Solution
Unable to reset after start
up
Ensure there is nothing on
the scale when switching
on
Possible scale overload
Remove weight from the
scale
Scale is below zero
Press zero to re-zero the
scale
Out of balance range
Remove any weight from
the scale and try again
Invalid operation
EEPROM error
Switch the scale on again; if
the error message still
shows, contact your
dealer/Marsden
AD initialization error
Switch off the scale and
restart. If the error occurs
again, contact your
dealer/Marsden
Page 12
