Marsh TD2100 User manual

TD2100 Manual Gummed Tape Dispenser
Owner’s Manual
Marsh Shipping Supply Co. LLC
926 McDonough Lake Road
Collinsville, IL 62234
www.msscllc.com
Customer Service
Phone: [phone]
Fax: [phone]
Technical Support: (573)-437-7030
1 40974 Rev. 03-24-2009

A wall-socket must be close to the product and readily accessible.
The overall system is protected against overload by the branch circuit
protection in accordance with the current edition of the NEC or CEC
Table of Contents
Introduction..................................................................................................................................... 3
Warranty Information ..................................................................................................................... 4
Specifications.................................................................................................................................. 5
Setup Instructions............................................................................................................................ 6
Operating Instructions..................................................................................................................... 9
Maintenance.................................................................................................................................... 9
Troubleshooting............................................................................................................................ 12
Parts List ....................................................................................................................................... 13
2 40974 Rev. 03-24-2009

3 40974 Rev. 03-24-2009
Introduction
Congratulations on the purchase of your new MARSH TD2100 Gummed Tape Dispenser from
MSSC, LLC. We are confident you will be very pleased with the operation and performance of
this durable, quality built machine for many years to come.
The TD2100 Gummed Tape Dispenser Owner’s Manual provides the necessary information
about the operation and maintenance of your new tape dispenser.
The Setup section was designed to be simplistic in the basic setup of the machine to allow you to
quickly get the machine up and running to do what it was designed to do… Dispense Gummed
Tape quietly, quickly and accurately.
The Operating section provides information on the operation of the machine.
The Maintenance Section provides information about required care and maintenance of the
machines and further adjustments if required for your particular use.
This owner’s manual provides a Troubleshooting section to help you with possible operating
problems and corrective actions. Should you require replacement parts, please refer to the Parts
List.
Should you need assistance, or if you would like to obtain information about any Marsh product,
contact your Marsh distributor or MSSC, LLC at:
MSSC, LLC
Address: 926 McDonough Lake Road
Collinsville, IL 62234 USA
Telephone: [phone]
Fax: [phone]
E-mail: [email protected]
Website: www.msscllc.com
Technical Support
Telephone: [phone]
Fax: [phone]

4 40974 Rev. 03-24-2009
Warranty Information
MSSC, LLC warrants that your selling distributor will repair, replace, or adjust components
found to be defective in factory materials or workmanship for a period of 18 months. Your
Marsh distributor will provide free service for ninety (90) days from the beginning of the
warranty period. The warranty period begins on the original installation date as indicated on
your on-line warranty registration.
Conditions of warranty:
1. Properly regulated electrical power that is free of surges and spikes must be provided
for electrical equipment.
2. Operating personnel must be properly instructed on use of machine.
3. Maintenance procedures must be observed – see Owner’s Manual.
4. Use only approved Marsh accessories and replacement parts.
5. Warranty must be validated by MSSC, LLC. If no warranty is submitted, coverage
begins on the date of shipment from MSSC, LLC.
Exclusions: Damage due to tampering, abuse, improper adjustments, use of non-approved
components or electrical interference will not be covered by the warranty.

Specifications
Shipping Weight: 31 pounds (14.1 kg)
Water Bottle Capacity: 70 ounces (2070 ml)
Tape: Dry gummed tape – paper or reinforced – between 1 to 3 inches
(25.4 to 76.2 mm) wide, up to 1000 feet (304.8 m) long and 9
inches (228.6 mm) max roll diameter
For Units with Heater:
Electrical Requirements: 115 volts AC or 220 volts AC
50/60 Hz
4 amps at 115 volts
2 amps at 220 volts
Power Cord Length: 7 feet (2.3 m)

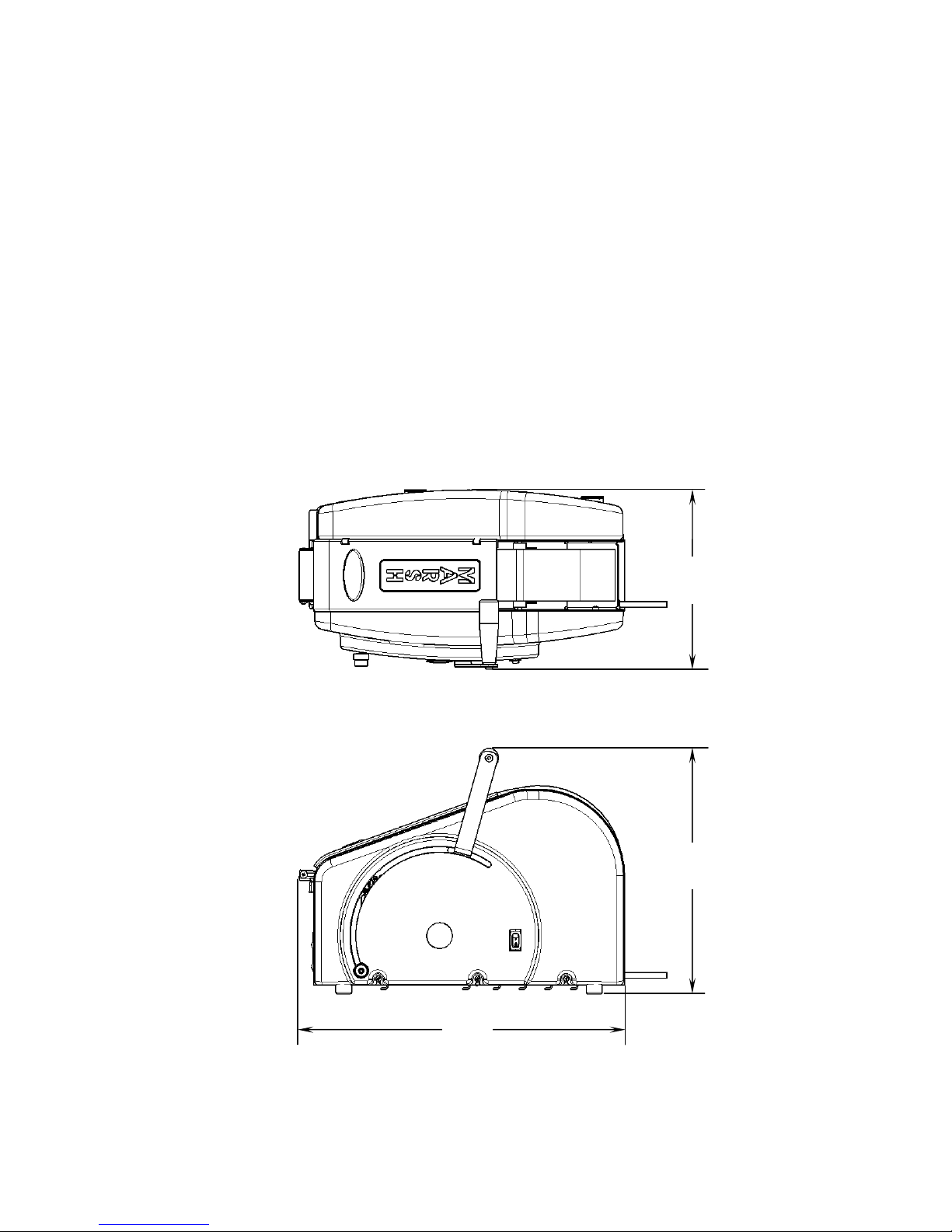

Dimensions:
18.9 in
48.0 cm
13.7 in
34.8 cm
10.5 in
26.6 cm
Figure 1- Tape Machine Dimensions
5 40974 Rev. 03-24-2009

Setup Instructions
6 40974 Rev. 03-24-2009
Figure 2 – Loading Tape
Pressure
Plate
Tape Guide
Pinch Roller
Top Roller
Tape Guide
Turnbuckle
Lighted
Power Switch
(Units with
Heater Onl
y)
Length Scale
Mechanical Stop
Top Cover
Loading Tape – Figure 2 & 3
1. Open the top cover of the machine.
2. Adjust the tape guides, with the tape guide turnbuckle, wide enough to get the tape
between them.
3. Place the roll of tape into the machine.
4. Adjust the tape guides, with the tape guides turnbuckle, to hold the tape in the middle of
the machine with a 1/8” clearance on both sides.
5. Remove the pressure plate from the machine.
6. Feed the tape, gummed side down, over the top roller, under the tape guide flaps, and
then under the pinch roller, see Figure 3.
NOTE: For gummed side out tape (typically used in Europe), load the tape roll opposite
as shown and route the gummed side over the top roller.
7. Place the pressure plate over the tape and release the pinch roller.
8. Close the top cover.

Figure 3 – Tape Routing
7 40974 Rev. 03-24-2009
Cutter
Assembly
Pinch Roller
Shaft Pinch
Roller
Pressure
Plate Top Roller 1000 ft.
Roll of
Tape
Gummed Side
Out Tape
Water
Bottle
Duck bill
Valve
Tape
Weight
Brush
Tank
Water
Bottle
Brackets Pos
t
Figure 4 – Filling the Water Bottle, Adjusting the Brush Tank Water Level, Adjusting the Tape Weight

Filling the Water Bottle – Figure 4
1. Remove the water bottle from the machine.
2. Remove the duckbill valve from the water bottle.
3. Fill the water bottle with water.
4. Place the duckbill valve back into the water bottle.
5. Place the water bottle back onto the machine; verify that the post in the brush tank is
inserted through the duckbill valve.

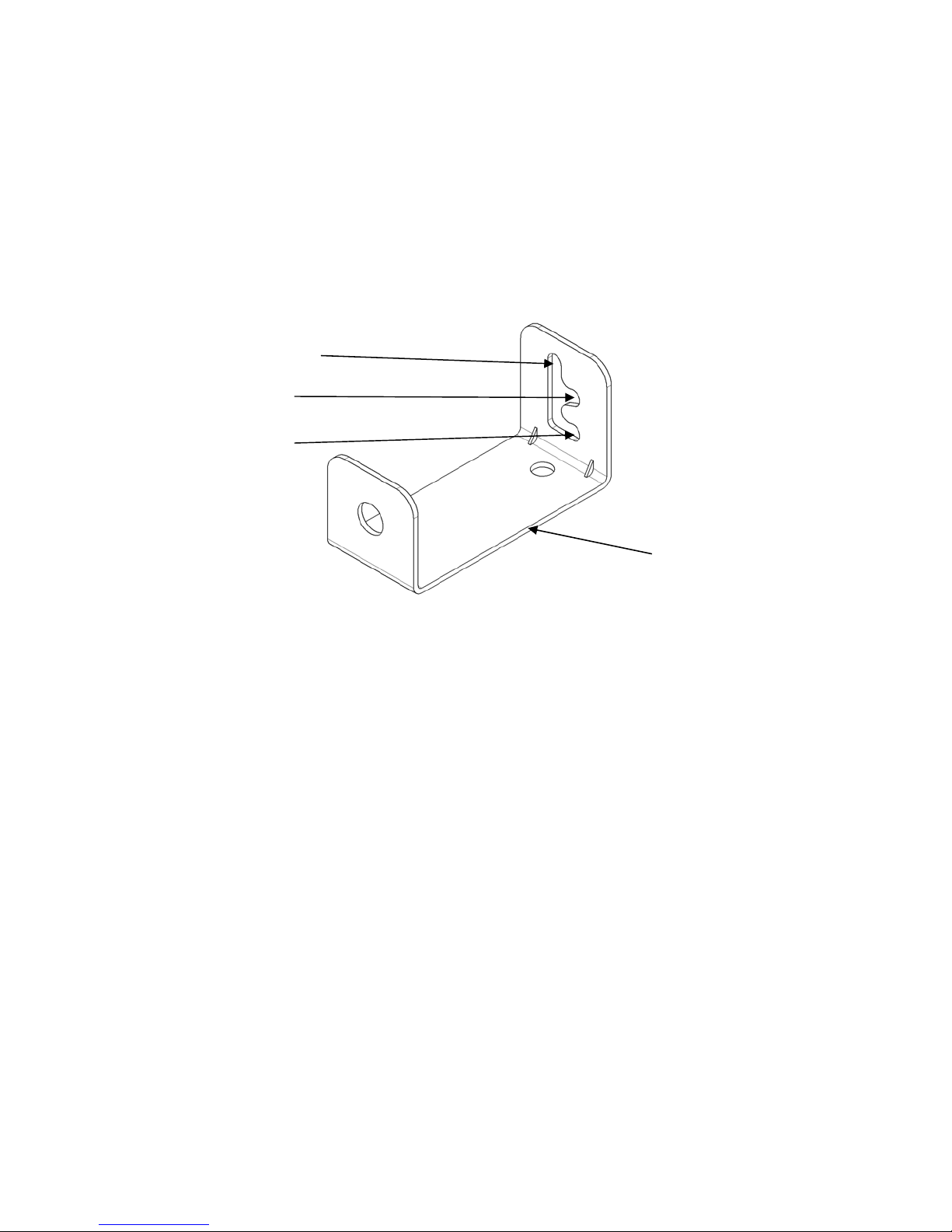

High
Low
Water Bottle
Bracke
t
Medium
Figure 5 – Adjustable Water Level Positions
Adjusting the Brush Tank Water Level – Figure 4 & 5
1. Loosen the retaining screws on the water bottle brackets.
2. Move the water bottle brackets to the desired position to obtain the desired water level in
the brush tank, light weight tapes would typically be set at the low position, Figure 5.
3. Both brackets should be at the same position.
4. Tighten the retaining screws on the water bottle brackets.
Adjusting the Tape Weight – Figure 4
1. Loosen the retaining screw.
2. Slide the tape weight forward for greater pressure, typically heavy weight tapes which
will apply more water on the tape.
3. Slide the tape weight backwards less pressure, typically light weight tapes which will
apply less water on the tape.
4. Tighten the retaining screw.
8 40974 Rev. 03-24-2009

9 40974 Rev. 03-24-2009
Operating Instructions
Once the machine has been properly setup for use, pull the operating handle to the
desired length that is on the scale and release the handle, when the handle returns to the
resting position the tape will be cut. The mechanical stop is provided on the side of the
machine (Figure 2) to be used if a known length will be used repeatedly. The mechanical
stop can moved to the desired position by loosening the knurled nut a half of a turn and
sliding up or down the slot in the machine and retightening.
Caution: The knurled nut should never be removed.
Maintenance
The Marsh TD2100 requires very little maintenance, but it is important to regularly clean
the brush, brush tank, cutter mechanism, and remove debris from the tape path. A
suggested time for cleaning the machine and its parts is at the same time as when the
water bottle needs to be refilled.
CAUTION: For units with a power switch (units with heater), before beginning
maintenance or adjustments be sure the tape machine is turned off and unplugged.
Cleaning Water Feed System
1. For units with a heater turn the power switch to the off position and unplug thepower
cord.
2. Clean the brush by soaking it in warm soapy water and then rinse.
3. Clean the brush tank by rinsing it with warm water.
4. Rinse out the water bottle and duckbill valve with warm water.

10 40974 Rev. 03-24-2009
Figure 6 – Cleaning the Cutter Assembly, Cleaning the Tape Path
Cleaning the Cutter Assembly – Figure 6
1. For units with heater, turn the power switch to the off position and unplug the power
cord.
2. Open top cover.
3. Remove pressure plate.
4. Remove the tape from the tape path.
5. Using minimal amount of a non-flammable lubricant (MG Chemicals Super Penetrating
Lubricant [www.mgchemicals.com], WD 40, or Marsh Industrial Silicon Spray are
recommended), spray the cutter assembly behind the cutter guard, using the available
gaps in front and behind the cutter guard. Allow the lubricant to dry or wipe dry.
6. Place the tape back in the tape path, refer to loading tape section.
7. Place the pressure plate back into the machine. The pressure plate must be loaded so it
touches the pinch roller shaft and the arrow on the pressure plate points toward the front
of the machine.
8. Close top cover.
Cutter
Assembly
Weighted
Brush Tank
Cove
r
Water Tank
Shelf
Cutter
Guard Cleaning
Ga
p
s
Tape Channel
Pressure
Plate

11 40974 Rev. 03-24-2009
Cleaning the Tape Path – Figure 6
1. For units with heater, turn the power switch to the off position and unplug the power
cord.
2. Open the top cover.
3. Remove pressure plate.
4. Remove tape from tape path.
5. Using compressed air remove all debris form the tape path.
6. Using a moist cloth wipe down all sheet metal parts within tape path (tape channel,
pressure plate, weighted brush tank cover, and water tank holder) to remove the gum
adhesive buildup.
7. Using compressed air, remove any visible moisture from the tape path or let the machine
air dry.
8. Referring to the tape loading section, place the tape back into the tape path.
9. Place the pressure plate back in the machine. The pressure plate must be loaded so it
touches the pinch roller shaft and the arrow on the pressure plate points toward the front
of the machine.
10. Close the top cover.

12 40974 Rev. 03-24-2009
Troubleshooting
This section describes potential problems you may encounter while working with your TD2100
tape machine and outlines possible causes and solutions for these problems. To avoid problem
situations, be sure to follow the procedures in the setup and maintenance sections. For units
with heater, before performing any repair procedures be sure that the power switch is in
the off position and is disconnected from the power source. For further assistance please
contact your Marsh distributor or MSSC, LLC technical support at;
Telephone: [phone]
Fax: [phone]
Email: [email protected]
The tape is jamming, tearing, or won’t feed.
Possible Cause: Solution:
1. Is there debris in the
tape path? Clean the tape path, refer to the maintenance section.
2. Are the tape guides
too tight? Adjust the tape guides with the tape guide turnbuckle; refer to the loading tape section.
3. Is the tape routed
correctly? Route the tape according to Figure 3 (p. 7).
4. Is the pressure plate
in place? Verify that the pressure plate is in place.
5. Is there to much
weight on the
brush?
Adjust the amount of weight on the brush, refer to the setup
section.
6. Is the cutter cutting
the tape? Clean the cutter assembly; refer to the maintenance section, if problem persists, contact the Marsh distributor or MSSC, LLC.

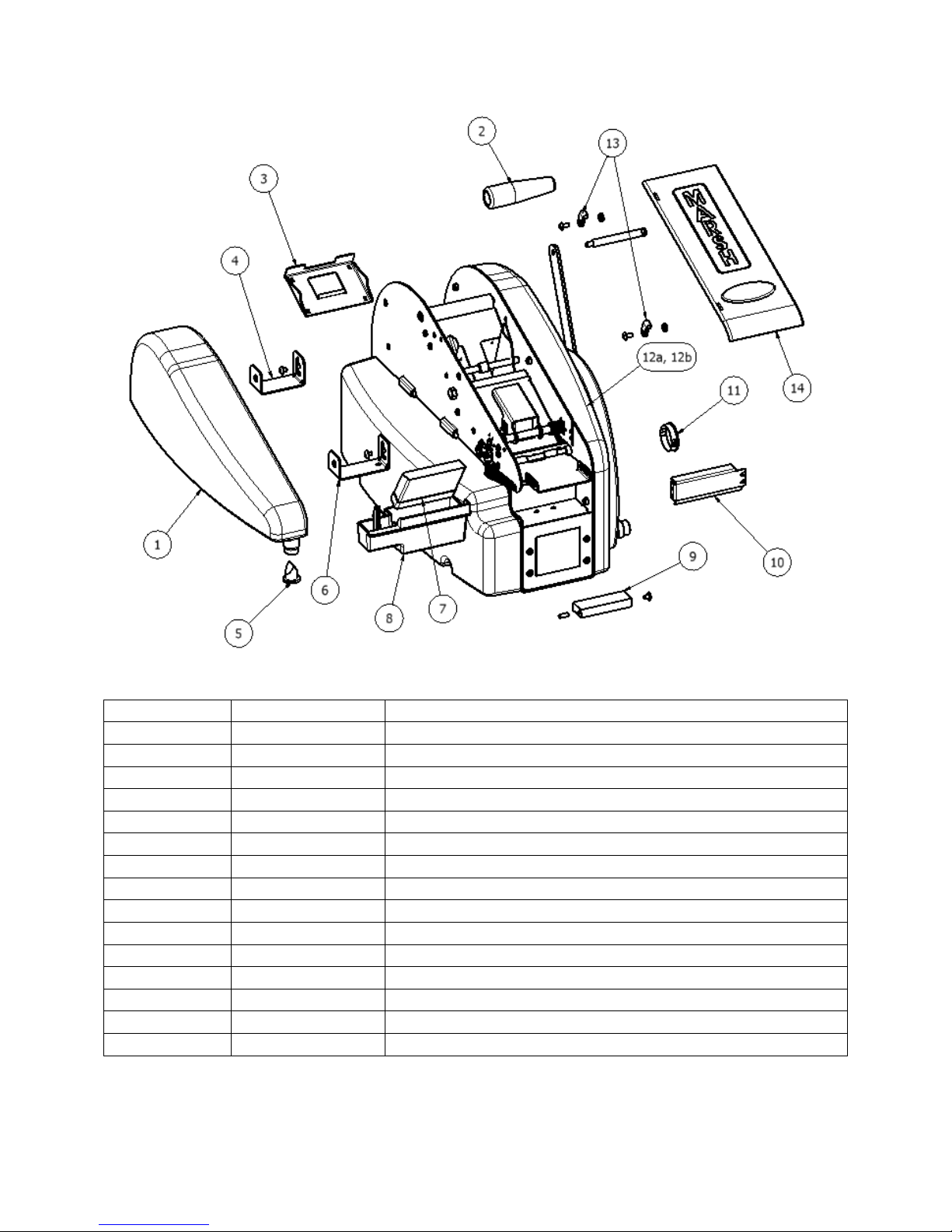

Parts List
Item Number Part Number Description
1 RP40401 Water Bottle
2 RP41257 Handle
3 RP40505 Pressure Plate
4 RP40404 Rear Water Bottle Bracket with Screw
5 RP33460 Duck Bill Valve
6 RP40403 Front Water Bottle Bracket
7 RP40407 Brush
8 RP40405 Brush Tank
9 RP40517 Tape Weight with Screw
10 RP41325 Cutter Guard with Screws
11 RP41302 Hole Plug
12a RP41260 Inch Meashuring Strip
12b RP41262 Metric Measuring Strip
13 RP40311 Top Cover Hinge with Screw (Qty 2)
14 RP40310 Top Cover
13 40974 Rev. 03-24-2009
