INTRODUCTION
Congratulations on your purchase of MARSHALLTOWN’s DuoTex™ Texture sprayer. Packed full of innovative features, the
DuoTex™ is a powerful machine, capable of spraying many different textures. Six different nozzle sizes allow for the spraying
of a variety of patterns including orange peel, knockdown, and splatter. The DuoTex™ can also be used to apply mud to
walls and ceilings, allowing for the hand finishing of stomp, crow’s foot, Level 5, skim coats, and a variety of other patterns.
The machine can also be used as a stand alone air compressor to power pneumatic tools on the job site.
Unlike most competitors, your DuoTex™ sprayer has separate air and mud controls to dial in the perfect spray pattern.
Powered by a 5.75 CFM compressor, along with a 2.6 GPM material delivery pump, the DuoTex™ sprays any texture quickly
and evenly.
Through years of research, development, and field testing with experts, MARSHALLTOWN has created a texture sprayer
with a host of features never seen on a sprayer in its class. Among those are:
• A large 16 gallon hopper that is easy to clean and has a sealable lid to keep mud fresh between jobs
• Flat free tires with swivel front caster for easy transportation and mobility on the job site
• A built-in mud pan holder to store your pan while wiping walls
• Durable powder coated finish for years of use
• Comfortable material gun with 2-finger trigger pull
This owner’s manual provides the information needed to operate and maintain this MARSHALLTOWN sprayer. Carefully
read and follow all safety and operating instructions in this manual. Ensure every operator of this sprayer reads this
manual before operating the unit. The replacement of any part on this sprayer by other than the manufacturer’s authorized
replacement part may adversely affect the performance, durability or safety of the product.
Be sure safety precautions are observed. Read and follow all safety and operating instructions in this operator’s
manual. The manufacturer reserves the right to make changes on or add improvements to its product at any time without
prior notice or obligation. The manufacturer reserves the right to decide, upon its sole discretion and at any time, to
discontinue this product.
This manual covers all MARSHALLTOWN DuoTex™ models and options. For technical questions or repair parts, please call
MARSHALLTOWN customer service at 1-800-888-0127, 641-753-6341 or visit www.MARSHALLTOWN.com.

3 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
TABLE OF CONTENTS
Safety Precautions ................................................................................................... ………………………………….4
Safety Decals ............................................................................................................................................................5
Warranty ...............................................................................................................……………………………………. 5
Specifications ............................................................................................................................................................6
Common Components...............................................................................................................................................7
Assembly................................................................................................................................................................8-9
Material Nozzle Installation and Selection...............................................................................................................10
Sprayer Cleaning.....................................................................................................................................................11
Removing the Hopper..............................................................................................................................................12
Replacing Pump Hose.............................................................................................................................................12
Breaking in a New Pump Hose................................................................................................................................13
Using the Unit as an Air Compressor ......................................................................................................................13
Parts Breakdowns ..............................................................................................................................................14-23
Troubleshooting ..................................................................................................................................................24-25
Maintenance............................................................................................................................................................26

4 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
SAFETY PRECAUTIONS
• DANGER or WARNING safety signs are located near specific hazards.
• General precautions are listed on CAUTION safety signs.
• This notation appears before warnings in the text. It means that the step that follows must be carried out
to avoid the possibility of personal injury or death. These warnings are intended to help the technician
avoid any potential hazards encountered in the normal service procedures. We strongly recommend that the reader takes
advantage of the information provided to prevent personal injury or injury to others.
THE FOLLOWING PRECAUTIONS ARE SUGGESTED TO HELP PREVENT ACCIDENTS. A CAREFUL OPERATOR IS
THE BEST OPERATOR. MOST ACCIDENTS CAN BE AVOIDED BY OBSERVING CERTAIN PRECAUTIONS. READ AND
TAKE THE FOLLOWING PRECAUTIONS BEFORE OPERATING THIS EQUIPMENT TO HELP PREVENT ACCIDENTS.
EQUIPMENT SHOULD BE OPERATED ONLY BY THOSE WHO ARE RESPONSIBLE AND INSTRUCTED TO DO SO.
• Read all operating and maintenance instructions before operating or servicing the sprayer.
• A sprayer is only as safe as its operator. Give complete and undivided attention to the operation of the sprayer.
• Know how to stop the sprayer instantly.
• Always have all guards and safety devices attached and in place before operating sprayer.
WARNING!
NEVER operate sprayer with engine guards off.
• Keep inexperienced and unauthorized people away from the sprayer at all times.
• Never leave the sprayer unattended while it is running.
• Shut off sprayer and disconnect the electric motor from the outlet before making any adjustments or putting hands or
tools in the motor compartment.
WARNING!
NEVER reach into the motor compartment while the sprayer is running.
• Keep the sprayer in good operation condition. Loose or damaged parts are dangerous.
• Avoid loose clothing that could get caught in moving parts.
WARNING!
Keep hands and feet away from moving parts.
• Keep all warning, caution and safety instruction labels in good condition. Replace missing, damaged or illegible labels.
• Clear the work area around the machine to prevent tripping or falling onto the sprayer.
• Operate on level ground to prevent the sprayer from tipping over.
• DO NOT OPERATE this sprayer under the influence of alcohol or while taking medication that impairs your reactions.
• Do not pull the cord to disconnect it. Keep the cord away from heat, oil, and sharp edges.
• Use factory authorized parts for replacement.
• Wear safety glasses when sprayer is in use.
• With electric motors, properly grounded electric circuit is required to protect the operator from possible electric shock.
DANGER!
NEVER unplug the motor while standing in or around wet ground.
• Unplug power cord when cleaning sprayer with water.
•
Always turn off the machine while changing gun nozzles and accessories, or when disconnecting it from the air or mud hoses.
• Only operate the sprayer with the supplied gun, Part Number MTS200G.
• Wear proper protective clothing while operating sprayer, including eye, ear, clothing, and respirator.
• Handle all solvents and cleaning agents with care and follow manufacturer’s instructions on safety and disposal.
• NEVER use or store the sprayer with water or material in it when temperatures are below freezing (32˚F).
CAUTION! CAUTION!
DANGER!
WARNING!

5 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
WARRANTY
This product is warranted to the original purchaser only, to be free of defects in material and workmanship under normal
use, for one year from purchase date. Marshalltown Company shall without charge for parts and labor, repair or replace
such parts which are found to be defective. All transportation charges for replacement parts must be borne by the purchaser.
For warranty service, the product must be delivered, with proof of purchase date, to the dealer of original purchase, or any
factory authorized service dealer. The delivery of the unit must be made no later than 30 days after the expiration of the
warranty period.
If difficulty is encountered in having warranty work performed, contact the Customer Service Department.
All implied warranties, including those of merchantability and fitness for a particular purpose, are limited to one year from
date of purchase by the original retail customer and to the extent permitted by law any and all implied warranties are
excluded and disclaimed after the expiration of such period.
Some states do not allow limitations on how long an implied warranty lasts, or the exclusion or limitations of incidental or
consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal
rights, and you may also have other rights, which vary from state to state.
Exclusion from this warranty:
1. All consequential damages, including pickup and delivery of the unit, communication, mileage charges and/or
rental of a replacement unit during repairs are not covered under this warranty, or are any loss of income and/or
other loss resulting from the failure of the product to function due to a warranty defect.
2. This warranty will not apply when the product becomes inoperative due to misuse, normal wear, neglect, improper
maintenance, accident or freight damage; has not been operated and maintained in accordance with the
instructions furnished in the Operator’s Manual; or has been altered or modified without approval from the factory
Service Department.
3. No parts or products are to be returned to the factory without prior written approval from the factory.
WS1252
WS1251
WS1253
WS1254
WS1250
SAFETY DECALS
If your safety and operating decals are damaged, they can be replaced by contacting Customer Service

6 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
Pump Power 2 HP
Pump Voltage 115V
Pump Amp Draw 11.5A
Pump Output 2.6 GPM
Compressor Output 5.75 CFM @ 40 PSI
3.00 CFM @ 90 PSI
Number of Nozzles 6
Nozzle Sizes (mm) 3, 4, 6, 8, 10, 12
Hopper Capacity 16 Gal
Hose Size 1" X 25'
Unit Weight 155 lbs.

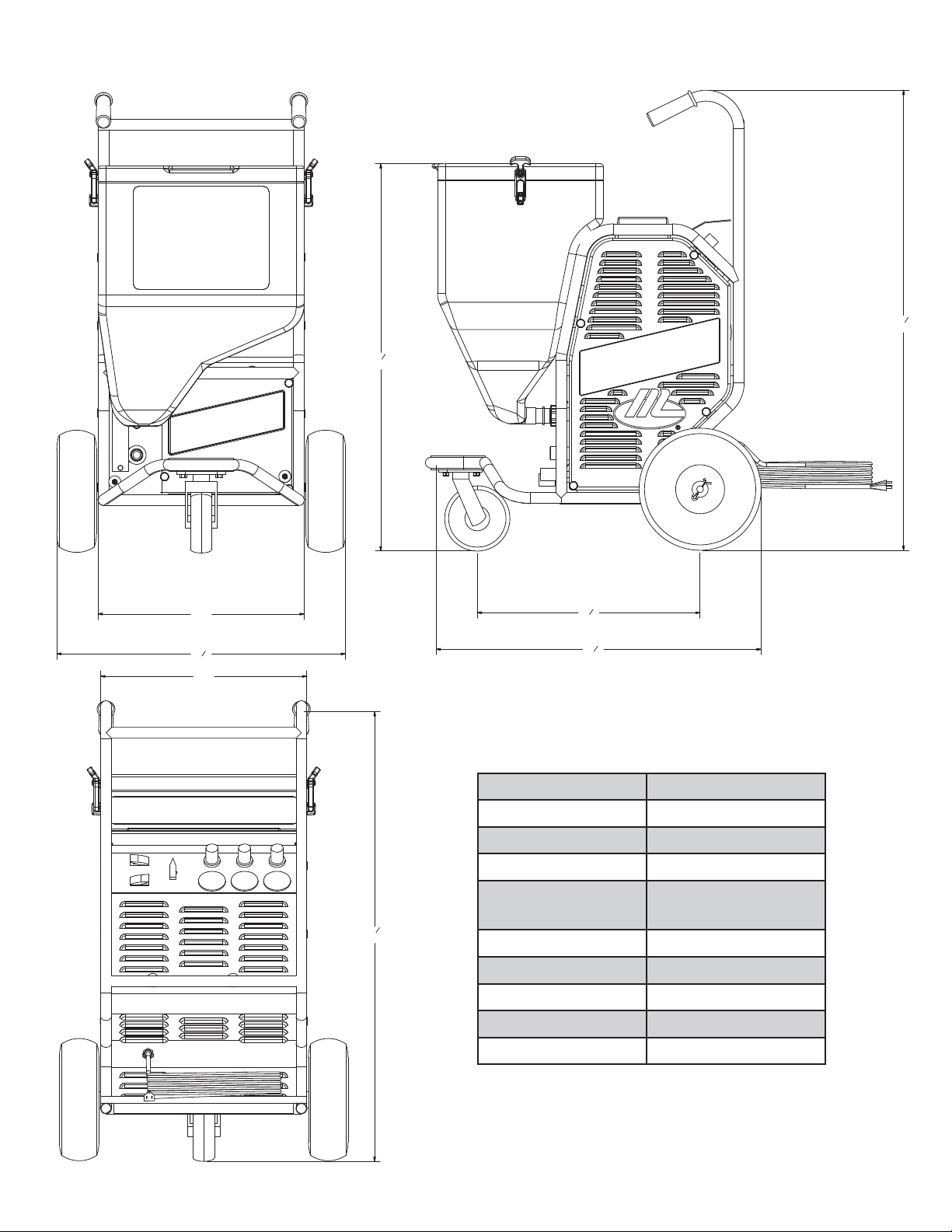

SPECIFICATIONS
2658
[675.6]
19
[482.6]
291516
[760.4]
4238
[1076.2]
2012
[521.4]
351116
[905.9]
41716
[1052.5]
19
[482.6]

7 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
COMMON COMPONENTS
1. On/Off Switch
2. Electrical Cord
3. Air mode selector
4. Air pressure gauge and regulator
5. Mud pressure gauge and regulator
6. Spray pressure and regulator
7. Prime Switch
8. Air hose coupler - spray
9. Air hose coupler - tools
10. Mud hose coupler
11. Removable sides
12. Pump
13. Water drain valve
14. Hopper
15. Removable lid
16. Lid tether
17. Lid locks
18. Handle bars (2)
19. Air/Material Hose
20. Gun
21. Gun Nozzles (6)
22. Front Caster
23. Rear Wheels (2)
24. Tip storage bag
25. Plastic slides (2)
1
21
810
9
3
11
25
7
4
5
6
2
16
22
12
13
14
17
18
23
20
19
24
15

8 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
Air Hose
Coupler - Spray
Mud Hose
Connector
ASSEMBLY
ATTACHING THE AIR HOSE TO THE MACHINE AND GUN:
Your sprayer has 2 different air hose coupler fittings on it. Connect the air hose with the female coupler to the spray gun.
Then connect the male coupler on the air hose to the sprayer. Note, when using the DuoTex™ as a texture machine, you
must connect the air hose to the coupler near the material hose coupler. (See Fig. 1)
When using the DuoTex™ as a stand-alone air compressor, connect the air hose
to the coupler on the opposite side of the machine.
(See Fig. 1)
ATTACHING THE MATERIAL HOSE TO THE MACHINE AND GUN:
Once the air hose is attached, screw the material hose on to both the gun and
sprayer. The material hose has a threaded coupler that is located directly below the
hopper. (See Fig. 1) Hand tighten firmly, and do not over tighten.
ATTACHING THE LID:
Attach the lid by placing it on the hopper and securing with the two rubber fasteners on the sides of the hopper. With the
fasteners engaged, the lid seals tightly, helping to keep the drywall compound fresh while transporting the sprayer or storing
over night, and between jobs. The lid should NEVER be fastened down while spraying. Doing so may cause a vacuum
to form inside the tank, thus reducing the efficiency of the sprayer.
SPRAYER OPERATION
SPRAYER PRIMING:
There are 2 ways to prime the unit.
First method is the self-priming method. Simply turn up the mud flow and release a small amount of air out of the gun. The
ball valve on the gun will need to be slightly open to allow air flow. This will overcome the system's "slow start" mechanism
and allow the unit to self-prime. Aiming your gun back into the hopper is a good way to keep your work area clean during the
priming process.

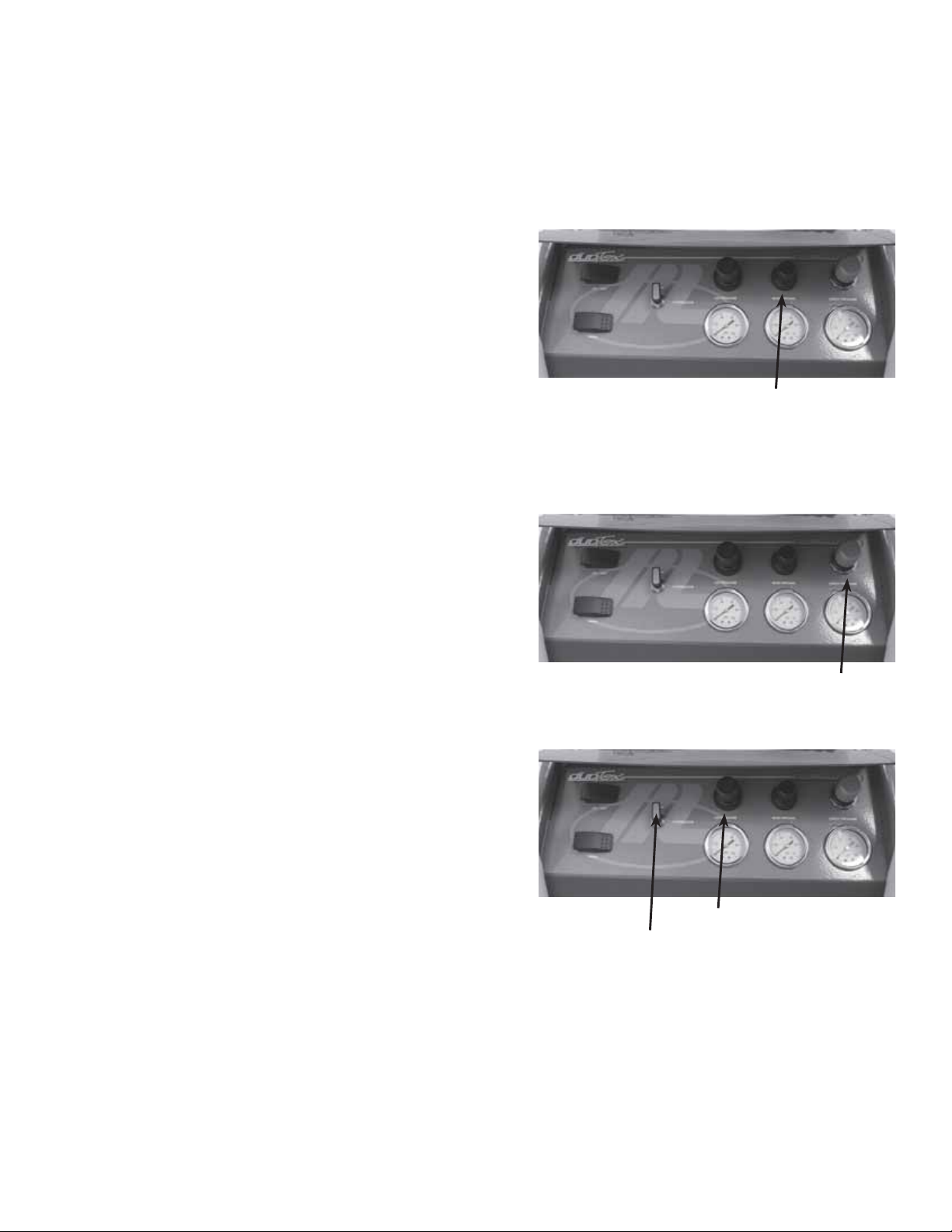

Second method is using the prime switch (See Fig. 2). This is a
similar method to the first, but allows the unit to prime without air
going to the gun. Simply turn on the unit, make sure the mud flow
and air flow are dialed slightly up. Using the ball valve at the gun,
turn the air off at the gun. Press the prime button to allow the mud
hose to prime. Hold the trigger on the gun closed and aim the gun
into the hopper. Once the mud sprays into the hopper, the unit is
primed. Release the prime button and begin using the sprayer.
NOTE: Prior to each new use (meaning the hopper is empty and refilled with a new batch of texture), the material hose
needs to be moistened. This procedure cleans any debris out of the tank, hose and gun and also keeps the initial run of
material from hardening in the hose. See next page.
PRODUCT OPERATION, INSTRUCTION INFORMATION
Air Hose
Coupler - Tools
Prime Switch
On/Off Switch
Fig. 1
Fig. 2

9 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
To wet the hose:
1. Pour at least 1 gallon of clean water into the hopper.
2. Follow the same instructions for priming the unit, as explained in the "Sprayer Priming" above.
3. Once water is flowing freely from the gun back into to the hopper, discard the water into an empty bucket.
4. Continue to spray into the discard bucket until all water is expelled from the hopper and hose.
MATERIAL PRESSURE ADJUSTMENTS:
An important feature of the DuoTex™ is the ability to adjust the
material and air pressures separately. This allows for the tuning of
very precise texture patterns. The material (mud) pressure regulator
is the middle of the three regulators on the control panel (See FIG. 4).
This regulator has a lockable dial that needs to be pulled up to
adjust. Once the dial is pulled up, turn clockwise to increase mud
pressure or counter-clockwise to decrease mud pressure. Once the
desired mud pressure is selected, pushing the dial back down will keep
the unit running at a consistent pressure. 50 PSI is the maximum mud pressure.
SPRAY PRESSURE ADJUSTMENTS:
This regulator increases/decreases the air pressure delivered to the
gun when the unit is used as a texturing machine (See FIG. 5). This
dial needs to be pulled up to be operated and pushed back down to
lock it into place. After pulling up on the dial, turn clockwise to increase
air pressure or counter clockwise to decrease pressure. Press the dial
back down to lock in the pressure setting. The spray air pressure
setting will have no effect on the material pressure setting.
AIR PRESSURE ADJUSTMENTS (WHEN USED AS AN AIR COMPRESSOR):
The DuoTex™ is capable of being used as a stand-alone air
compressor to power pneumatic job site tools like nailers and staplers.
To use as an air compressor, switch the Mode Selector dial from
Spray to Compressor (See FIG. 6). Connect air hose to the coupler
used for compressor mode Use the dial on the air compressor
regulator, named "Air Pressure" to adjust the pressure of the
compressor. This dial needs to be pulled up to be operated and
pushed back down to lock it into place. After pulling up on the dial,
turn the dial clockwise to increase air pressure or counter-clockwise to
decrease pressure. Press the dial back down to lock in the
pressure setting.
Mud Regulator
Spray Regulator
Air Pressure Regulator
Mode Selector Dial
Fig. 4
Fig. 5
Fig. 6

10 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
MATERIAL NOZZLE SIZE SELECTION:
A few general statements should be noted:
1. Always read and follow the spray material manufacturer's mixing instructions. If not
specified in those instructions, the compound should be thoroughly mixed, free of
lumps, and be the consistency of pancake batter.
2. Always set your pattern on scrap sheetrock before spraying your finished product.
Note the compound consistency, orifice size, air pressure at the compressor, relative
ball valve position, and trigger setting for future reference.
3. The more open the trigger, the more material that will be applied with a resulting coarser pattern.
4. The higher the air pressure, the finer the pattern; the lower the air pressure, the coarser the pattern.
5. The higher the air flow, the finer the pattern; the lower the air flow, the coarser the pattern.
6. Larger orifice openings will produce a coarser pattern than a smaller opening.
7. The position of the trigger controls the amount of material flow. As the trigger is pulled back, more material is
allowed to feed through. Generally the distance between the air nozzle and the material nozzle should be
slightly greater than the size of the selected orifice.
The gun on the DuoTex™ is intended to utilize a full trigger pull at all times. Adjusting the trigger flow control dial determines
how far the air nozzle is pulled back. This allows for a more comfortable, full trigger pull. Use the trigger lock for reduced
fatigue on larger projects.

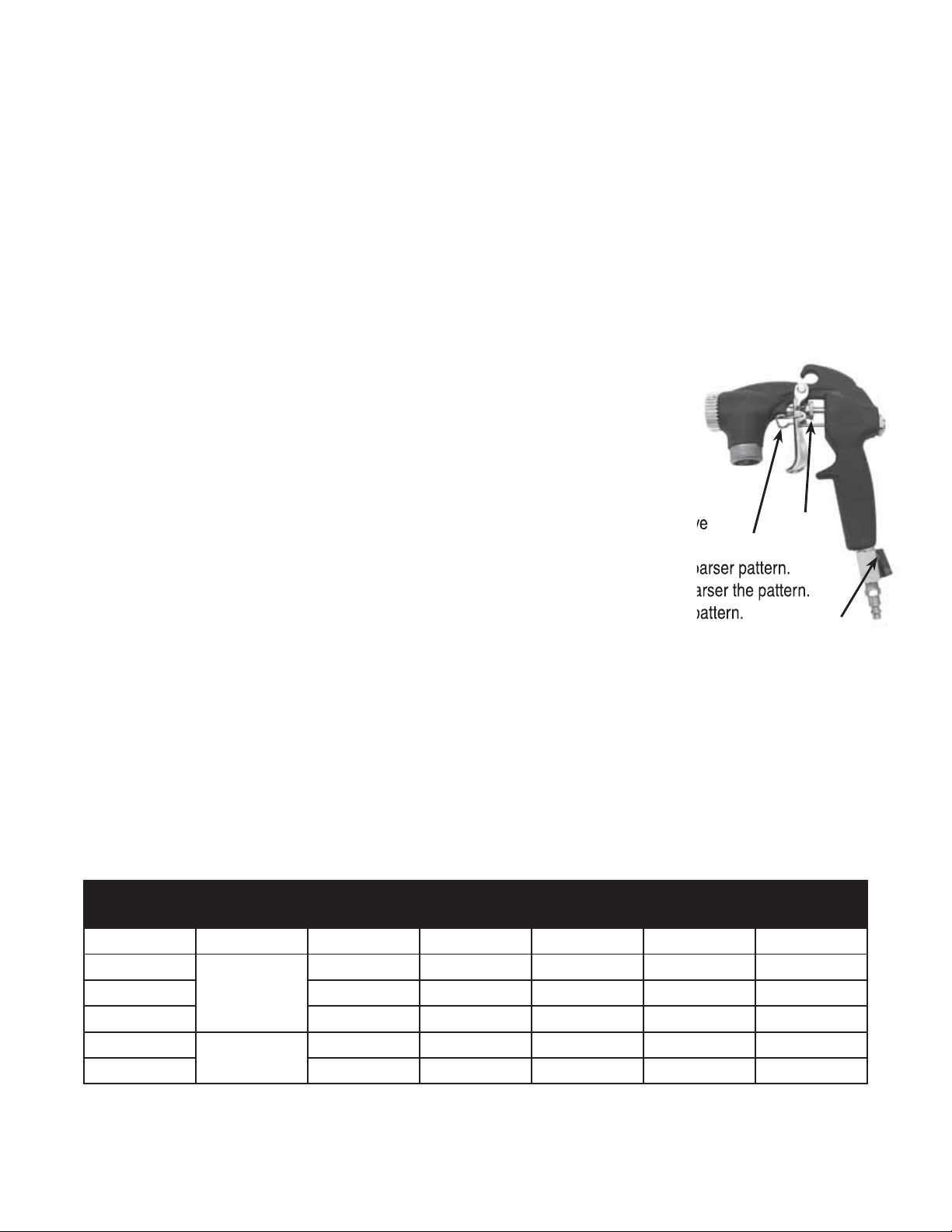

NOZZLE & AIR PRESSURE RECOMMENDATIONS:
Texture Pattern / Material
Nozzle Size Air Pressure Fog Orange Peel Splatter/
Knockdown EIFS Stucco
3 HIGH X X
4MEDIUM TO
HIGH
XX
6XX
8 XXX
10 HIGH XXX
12 XXX
NOTE: These settings are only suggestions to get the sprayer set in the right range. There are several factors that might
affect the results of the final texture pattern, including: length of hoses used, consistency of material, and material aggregate
size.
The DuoTex™ ships with six standard nozzle sizes: 3, 4, 6, 8, 10 and 12mm openings. The sprayer must be used with a
spray nozzle at all times. To install a nozzle:
1. Make sure machine is switched off or unplugged from the wall.
2. Open ball valve on gun (vertical position) and wait for all excess air to escape the system. Close ball valve
(horizontal position) once air stops coming out of the end of the gun.
3. If there is material in the hose, press the gun trigger while the gun is directly over the hopper (with lid off).
This will allow any pressurized mud in the hose/gun to empty back into the hopper.
4. Unscrew nozzle retaining collar and remove nozzle (if previously equipped).
5. Replace with new nozzle, and reconnect retaining collar. Pull the trigger on the gun while screwing on the
retaining collar to allow the nozzle to seat completely.
MATERIAL NOZZLE INSTALLATION AND SELECTION
Control Dial
Trigger Lock
Ball Valve

11 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
SPRAYER CLEANING
The DuoTex™ has a sealable lid and is able to store unused material in-between uses for short periods of time. Materials
that cure through exposure to the air (like drywall compound) can be stored in the hopper, but materials that chemically cure
or contain portland cement (like stucco) can’t be stored in the hopper, as they will cure without exposure to air.
MATERIAL STORAGE:
If material is to be stored in the hopper, always clean overspray material off the outside of the machine, hose, and the
external gun body. Leave the nozzle and retaining collar attached to gun while in storage.
Never clean the outside of the sprayer while it is plugged in
• Always make sure the seals on the lid are in good shape
• Always engage the 2 lid fasteners on the side of the hopper
• Leave all hoses attached to the machine and the gun attached to the hoses
CLEANING THE HOPPER:
Always spray remaining texture into a waste bucket. Fill hopper with water and spray through gun (with nozzle off) into a
waste bucket. Continue to spray until water exiting the gun is clean.
The tank and body of the sprayer can be cleaned with hot, soapy water and a nylon brush or sponge. Do not use wire or
metallic brushes, especially on the inside of the hopper, as metal will chip the inside of the hopper. This will cause the gun to
clog and pieces of plastic to enter the spray pattern.
CLEANING THE GUN:
Clean the gun in clean water, making sure all material is removed from the inside chamber of the gun. To do so, remove
the gun from both the mud hose and air hose. Unscrew the nozzle retaining collar from the gun and remove the air nozzle.
A nylon or soft brass cleaning brush can be used to remove material build-up from tight areas inside the gun, nozzle and
collar. Always flush the gun and it’s components with clean water after all material has been removed. Dry completely.
MARSHALLTOWN offers a gun cleaning kit, part number 14285.
CLEANING THE MATERIAL HOSE:
The material hose can be cleaned with the supplied sponge cleaning ball.
After cleaning the hopper follow these steps:
1. Remove gun from both hoses.
2. Remove the material hose from the sprayer and insert the cleaning ball into the
material hose. Push the ball into the hose (at the material hose end), past the
narrow part of the fitting.
3. Reconnect the material hose.
4. Fill the hopper with at least 2 gallons of clean water.
5. Put the discharge end of the material hose in a waste bucket.
6. Start the sprayer and use the prime button to allow the ball to pass through the
hose, to clean the inside walls of the hose.
7. Repeat if necessary, using clean water. All water passing through the hose should
be clean.
DANGER!
Push cleaning ball
past this point

12 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
CLEANING THE SPRAYER:
Always make sure the sprayer is unplugged while cleaning its exterior body and frame. Final wipe should
be with clean water and a soft cloth.
Warm soapy water and a nylon bristled scrub brush can be used to clean the exterior of the sprayer. Do not
pressure wash or use a garden hose with a pressured nozzle. Doing so can force water into the electronics
and controls of the sprayer, causing damage, malfunction and risk of electrical shock.
REMOVING THE HOPPER
The hopper can easily be removed for replacement, cleaning, or maintenance.
Unscrew the coupler that connects the material hose to the outlet of the hopper.
Simply remove the three screws on the inside of the hopper that connect it to its back rail. Note:
There is no need to remove the bucket rest from the hopper, simply remove the screw holding it in place.
Your hopper is now ready for removal. Replacement is opposite of removal.

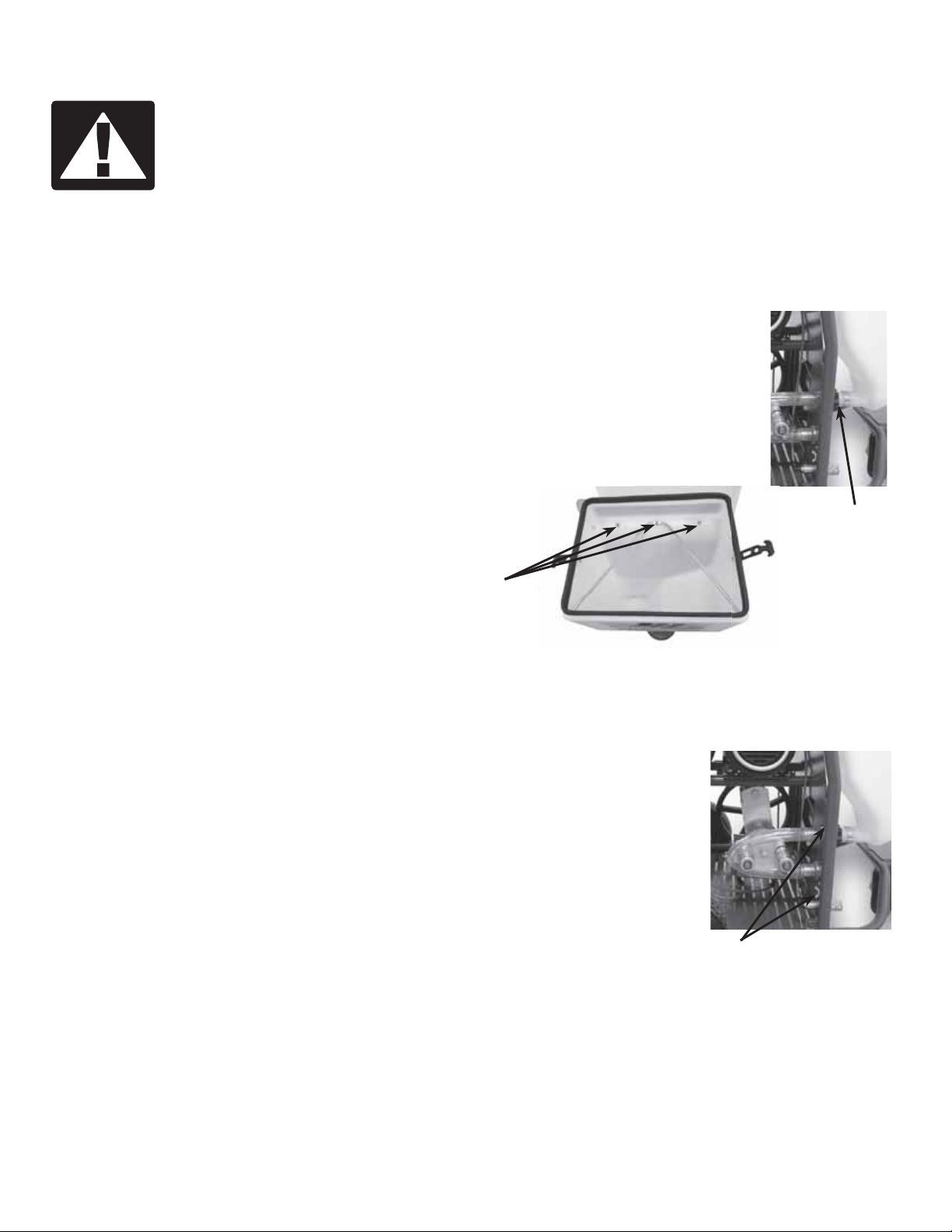

The DuoTex™ pump hose is easily replaceable in the field.
1. Make sure machine is off and unplugged.
2. Remove the material hose from the sprayer.
3. Remove the hopper from the machine. See “Removing Hopper” above for instructions.
4. Remove wing nuts that hold on pump hose retention plate.
5. Slide bottom hose fitting to the left and remove through the hole in the frame. Then
repeat with upper fitting
6. Slide hose to the two open spots left by the removal of the retention plate,
then pull the fittings back through the front of the frame.
Note: Reassembly is opposite of removal.
REPLACING PUMP HOSE
WARNING!
Hopper coupler
Hopper screws
Wing nuts for
retention plate

13 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
Once hose is replaced you will need to break it in.
1. Ensure all holes are securely fastened.
2. Pour hot water into hopper.
3. Turn mud pressure to approximately 40 psi.
4. Turn machine on.
5. Engage prime switch, pumping water out of the hose and back into the hopper.
6. Run in this fashion for 1-2 minutes.
7. Empty water.
BREAKING IN A NEW PUMP HOSE
USING THE UNIT AS AN AIR COMPRESSOR
Your DuoTex™ is capable of being used as a stand-alone air compressor to power pneumatic tools on the job site. It is
capable of an air flow of 5.75 CFM @ 40 PSI, 3.00 CFM @ 90 PSI.
To operate as an air compressor:
1. Connect air hose powering pneumatic tool to air coupler for use as a compressor.
2. Turn selection dial on control panel to "compressor".
3. Adjust air pressure as desired using the dial labeled "Air Pressure". Pull up
on the regulator knob to adjust. Once correct pressure is selected, push
knob back down to lock it in place.
ELECTRICAL WIRING
Refer to the air compressor’s serial label for the unit’s voltage and amperage requirements. Use a dedicated circuit. For
best performance and reliable starting, the air compressor must be plugged into a dedicated circuit, as close as possible to
the fusebox or circuit breaker. The compressor will use the full capacity of a typical 15 amp household circuit. If any other
electrical devices are drawing from the compressor’s circuit, the compressor may fail to start. Low voltage or an overloaded
circuit can result in sluggish starting that causes the motor overload protection system or circuit breaker to trip, especially in
cold conditions.
NOTE: A circuit breaker is recommended. If the air compressor is connected to a circuit protected by a fuse, use dual
element time delay fuses (Buss Fusetron type “T” only).
EXTENSION CORDS & USING WITH A GENERATOR
NOTE: Avoid use of extension cords.
For optimum performance, plug the compressor power cord directly into a grounded wall socket, or a generator with a
minimum rating of 15 amps and 7500 watts. Do not use an extension cord unless absolutely necessary. Instead, use a
longer air hose to reach the area where the air is needed. If use of an extension cord cannot be avoided, the cord should
be no longer than 50 feet and be a minimum wire size of 12 gauge (AWG). Do not use a 16 or 14 gauge extension cord.
Use only a 3-wire extension cord that has a 3-blade grounding plug, and a 3-slot receptacle that will accept the plug on the
product. Make sure your extension cord is in good condition. An undersized cord will cause a drop in line voltage, resulting in
loss of power and overheating. The smaller the gauge number, the heavier the cord.
Air Hose
Coupler - Tools

14 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com

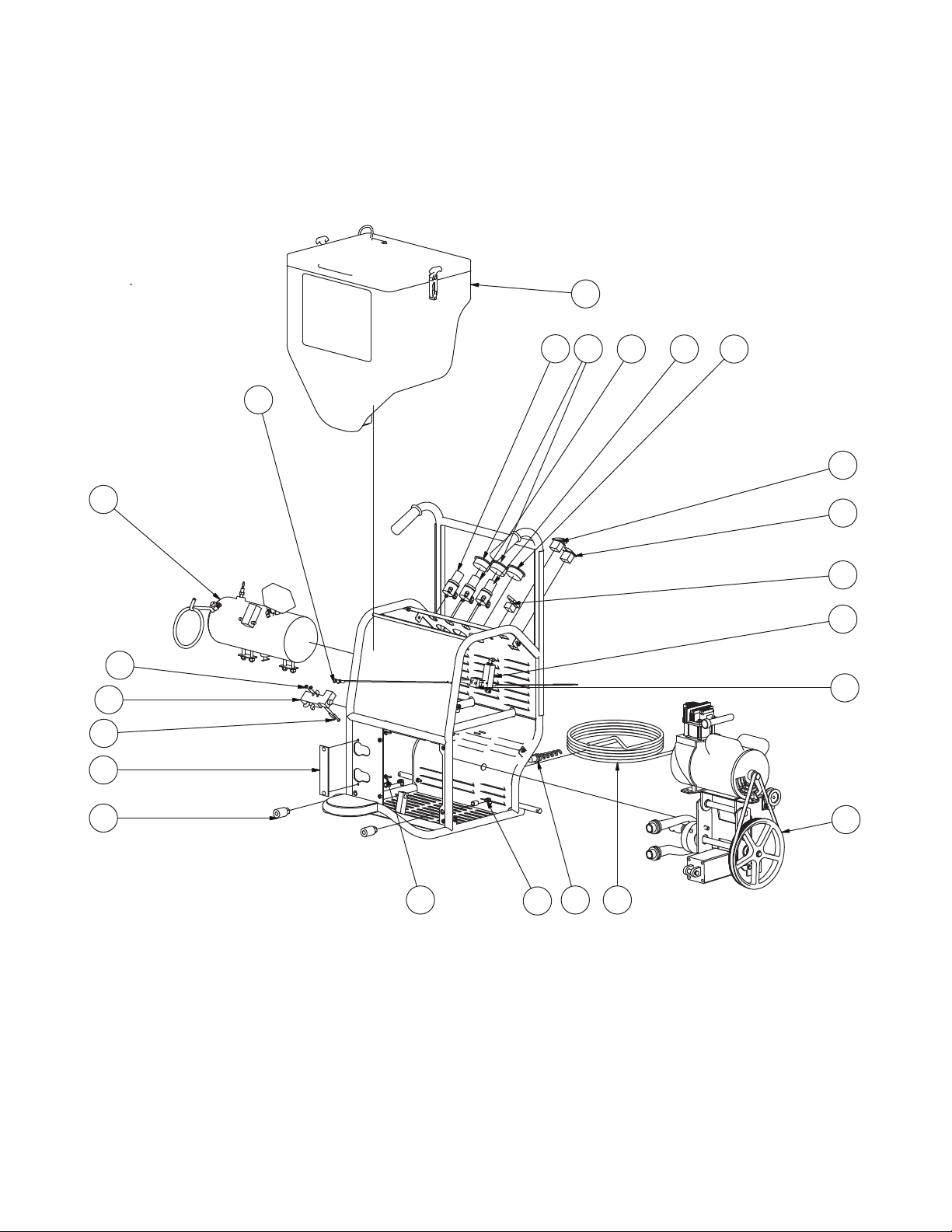

GUARDS/WHEELS ASSEMBLY
9
11
10
9
15
14
13
12
11
10
9
8
4
3
2
1
7
6
5
16

15 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com

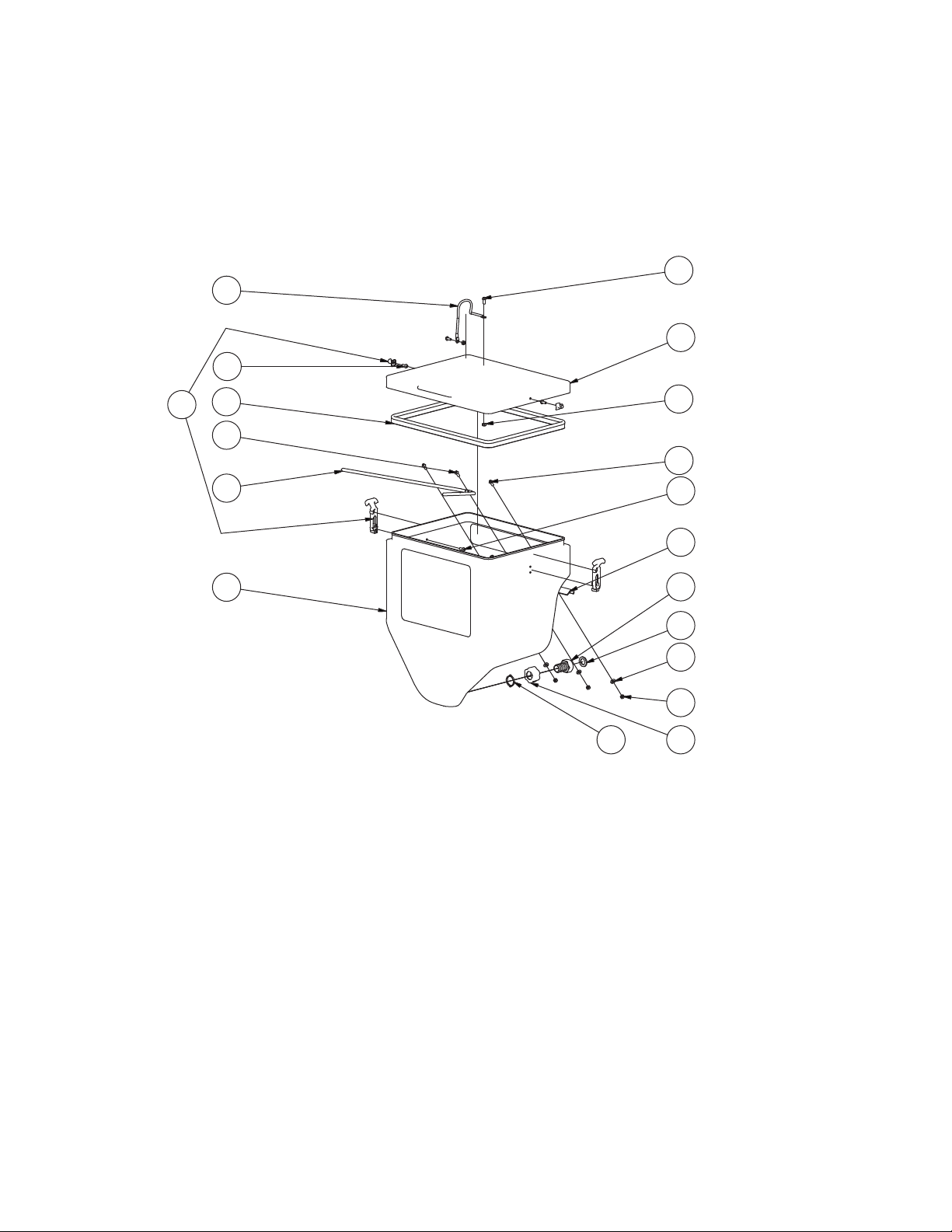

REF # NAME PART# Quantity Also Includes
1 MUD HOPPER ASSEMBLY 27696 1 38-55
2 1/4"-20 X 5/8" STAINLESS STEEL MACHINE SCREW 27697 4 6,7
3 GUARD, TOP W/HARDWARE 27698 1 2
4 BAG, SPRAY TIPS 27699 1
5 RAIL SLIDE 27785 2
6 1/4" LOCK WASHER - STAINLESS STEEL 27697 4 2,7
7 1/4"-20 NUT - STAINLESS STEEL 27697 4 2,6
8 GUARD, LEFT SIDE W/HARDWARE 27701 1 9
9 SCREW, THUMB 27702 12
10 WHEEL W/HARDWARE 27703 2 11
11 1/4" COTTER PIN 27704 2
12 CASTER W/HARDWARE 27705 1 13
13 3/8"-16 LOCKNUT 27706 4
14 GUARD, FRONT W/HARDWARE 27707 1 9
15 GUARD, RIGHT SIDE W/HARDWARE 27708 1 9
16 GRIP, HANDLE 27795 2
GUARDS/WHEELS ASSEMBLY PARTS FOR RE-ORDER

16 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
36
34
32
37
31
17 20
24
22
23
25
28 2730
1
19 21
18
35
33
29
26
A
CONTROLS ASSEMBLY

17 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
REF # NAME PART# Quantity Also Includes
17 RELIEF VALVE 27709 1
18 GAUGE, 0-50 27713 2
19 REGULATOR, 50 PSI 27710 1
20 REGULATOR, 100 PSI 27711 1
21 GAUGE, 0-100 27712 1
22 ON/OFF SWITCH 27714 1
23 PRIME SWITCH 27715 1
24 BALL VALVE 27716 1
25 FLOW BLOCK ASSEMBLY 27717 1
26 SPACER - FLOW BLOCK 27742 1
27 ELECTRICAL CORD 27718 1
28 STRAIN RELIEF, CORD 27719 1
29 COUPLER, AIR OUTLET 27720 2
30 1/4"-20 WINGNUT 27721 2
31 QUICK AIR COUPLER 27722 2
32 RETAINING PLATE W/HARDWARE 27723 1 30
33 #8-32 X 1-1/2" MACHINE SCREW 27805 2 35
34 SOLENOID, CYLINDER W/HARDWARE 27724 1 33,35
35 #8-32 LOCK NUT 27805 2 33
36 AIR TANK ASSEMBLY 27726 1 83-93
37 BOLT - FLOW BLOCK 27725 2
CONTROLS ASSEMBLY PARTS FOR RE-ORDER

18 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
55
54
53
51
39
39
41
46
47
44
4849
42
40
38
45
43
52
50
HOPPER TANK ASSEMBLY

19 of 28
WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
REF # NAME PART# Quantity Also Includes
38 #10-24 X 1/2" MACHINE SCREW 27739 2 40,55
39 MUD HOPPER 27727 1
40 #10-24 LOCKNUT 27739 2 38,55
41 1/4"-20 X 5/8" STAINLESS STEEL MACHINE SCREW 27728 2 46,47,52
42 #10-24 X 3/4" MACHINE SCREW 27735 6 50,54
43 BRACKET - HOPPER W/HARDWARE 27807 1 41,46,47,52
44 FITTING, BRASS - FEMALE 27730 1 48,49
45 O-RING, BRASS FITTING 27783 1
46 1/4" LOCK WASHER - STAINLESS STEEL 27728 3 41,47,52
47 1/4"-20 NUT - STAINLESS STEEL 27728 3 41,46,52
48 GRIP - FITTING 27730 1 44,49
49 CLAMP - MUD HOPPER 27730 1 44,48
50 LATCH, HOPPER W/HARDWARE 27735 2 42,54
51 BUCKET REST W/HARDWARE 27736 1 46,47,52
52 1/4"-20 X 1" STAINLESS STEEL MACHINE SCREW 27728 1 41,46,47
53 SEAL - HOPPER 27738 1
54 #10-24 X 3/4" MACHINE SCREW 27735 2 42,50
55 TETHER - HOPPER W/HARDWARE 27739 1 38,40
GUARDS/WHEELS ASSEMBLY PARTS FOR RE-ORDER

20 of 28 WS1225
8-2017/Rev.B
104 S. 8th Ave. Marshalltown, IAPhone 800-888-0127 / 641-753-0127 • Fax [phone] www. MARSHALLTOWN .com
Di t \LH\T t S \COMPONENTDRAWING REV Aid
65666768697071
64
61
60
59
62 63
58
56
82
7273747576
7170
78
79
80
66
6581
77
57
DRIVE ASSEMLBY
(PARTS 57-75 ASSEMBLED)
A
98
99
DRIVETRAIN ASSEMBLY
