Marson MT8200S User manual

-I-
ma
r
son
MT8200S
2D Handheld Scanner
User Manual
V1.0
2018 / 5 / 10

-II -
‐Table of Content s ‐
1 Gettting Started....................................................................................................................................................... 1
1.1 Introduction...................................................................................................................................................1
1.2 Configuring MT8200S.................................................................................................................................1
1.2.1 Barcode Configurability...................................................................................................................1
1.2.2 Factory Default................................................................................................................................. 2
1.2.3 Custom Default.................................................................................................................................2
1.2.4 Check Version.................................................................................................................................. 2
2 Interface....................................................................................................................................................................3
2.1 USB HID....................................................................................................................................................... 3
2.2 USB VCP...................................................................................................................................................... 4
3 Reading Mode......................................................................................................................................................... 5
3.1 Trigger Mode................................................................................................................................................ 5
3.2 Continuous Mode........................................................................................................................................ 6
3.3 Auto-sensing Mode..................................................................................................................................... 8
4 Centering............................................................................................................................................................... 10
5 Illumination and Aimer......................................................................................................................................... 12
5.1 Illumination................................................................................................................................................. 12
5.2 Aimer........................................................................................................................................................... 12
6 Buzzer and Output............................................................................................................................................... 13
6.1 Buzzer - General....................................................................................................................................... 13
6.2 Buzzer - Good Read.................................................................................................................................13
6.3 Encoding Format....................................................................................................................................... 14
6.4 Keyboard Layout....................................................................................................................................... 15
6.5 Alt Code...................................................................................................................................................... 16
6.6 Receipt Mode.............................................................................................................................................16
6.7 Inverse Barcode........................................................................................................................................ 16
6.8 Mirrored Barcode...................................................................................................................................... 17
7 Data Editing........................................................................................................................................................... 18
7.1 Preamble.................................................................................................................................................... 18
7.2 Postamble.................................................................................................................................................. 19
7.3 CODE ID..................................................................................................................................................... 20
7.4 Terminator...................................................................................................................................................22
7.5 Truncate...................................................................................................................................................... 23
7.6 Read Fail.................................................................................................................................................... 25
7.7 Protocol.......................................................................................................................................................25
8 Symbologies.......................................................................................................................................................... 26
8.1 All Symbologies......................................................................................................................................... 26
8.2 Roll Angle Tolerance................................................................................................................................. 26
8.3 Pitch/Skew Angle Tolerance....................................................................................................................26
8.4 EAN13.........................................................................................................................................................27

-III -
8.5 EAN8........................................................................................................................................................... 27
8.6 UPC-A......................................................................................................................................................... 28
8.7 UPC-E0.......................................................................................................................................................29
8.8 UPC-E1.......................................................................................................................................................29
8.9 Code 128.................................................................................................................................................... 30
8.10 Code 39.................................................................................................................................................... 30
8.11 Code 93.................................................................................................................................................... 31
8.12 Codabar.................................................................................................................................................... 32
8.13 QR Code.................................................................................................................................................. 33
8.14 Interleaved 2 of 5.................................................................................................................................... 33
8.15 Industrial 2 of 5........................................................................................................................................34
8.16 Matrix 2 of 5............................................................................................................................................. 34
8.17 Code 11.................................................................................................................................................... 35
8.18 MSI............................................................................................................................................................ 36
8.19 GS1 Databar (RSS-14)..........................................................................................................................36
8.20 Data Matrix...............................................................................................................................................37
8.21 PDF417.................................................................................................................................................... 38
9 Appendix A: Code ID Table................................................................................................................................. 39
10 Appendix B: ASCII Table................................................................................................................................... 40
11 Appendix C: Numeric Barcodes...................................................................................................................... 44
12 Appendix D: Save / Delete / Abort...................................................................................................................46

-1-
1 Gettting Started
1.1 Introduction
MT8200S is a 2D handheld scanner capable of decoding major 2D barcodes as well as all major 1D
barcodes. It is designed to achieve the efficient and affordable barcode scanning solution. This
cost-effective, reliable handheld scanner is an ideal choice for a variety of applications, including
ticketing, access control, mobile payment and manufacturing.
1.2 Configuring MT8200S
With industry-leading image capture and decode capability, MT8200S can read barcodes accurately
and easily even when the barcode is tilted in various angles. To read a barcode, simply press the trigger
and make sure the aimer is positioned on top of the barcode.
1.2.1 Barcode Configurability
Scanning below configuration barcodes will allow/prohibit user to change settings by scanning
configuration barcodes in this manual.
*Enable Barcode Configurability Disable Barcode Configurability
Scan below configuration barcodes to enable/disable configuration barcode data output.
*Disable Configuration Barcode Data Output Enable Configuration BarcodeDataOutput

-2-
1.2.2 Factory Default
Scanning below configuration barcode will reset MT8200S to factory default settings.
Factory Default
1.2.3 Custom Default
You can create your own custom default. Scan Save Custom Default configuration barcode below
and the entire current settings of MT8200S will be saved to your custom default, with previous custom
default, if any, being overwritten. Scan Custom Default to reset MT8200S to the custom default
settings.
Save Custom Default Custom Default
1.2.4 Check Version
To check firmware version, please scan below configuration barcode.
Check Version

-3-
2Interface
MT8200S supports two interfaces, USB HID and USB VCP. The following paragraph offers user all
the functions related to the two interfaces.
2.1 USB HID
Scanning below configuration barcode will set MT8200S to USB HID interface, in which data is
transferred in HID keyboard format.
*USB HID
Below configuration barcodes allow you to modify the polling intervals between host and MT8200S.
*1ms 3ms
5ms 10ms
Below configuration barcodes allow you to modify Inter-character Delay.
*0ms 1ms 5ms

-4-
10ms 15ms
Below configuration barcodes allow you to modify Inter-block Delay.
0ms *1ms 5ms
10ms 15ms
Below configuration barcodes allow you to enable/disable CapsLock.
*Off On
2.2 USB VCP
Scanning below configuration barcode will set MT8200S to USB VCP interface, in which data is
transferred via virtual COM port.
USB VCP

-5-
3 Reading Mode
3.1 Trigger Mode
In Trigger Mode MT8200S will start scanning when trigger button is pressed and stop scanning after
trigger button is released or a barcode is successfully decoded.
*Trigger Mode
In Trigger Mode MT8200S can enter Deep Sleep after a period of inactivity once this function is
enabled.
Enable Deep Sleep *Disable Deep Sleep
Once in Deep Sleep MT8200S can be woken up by pressing the trigger button, after which
MT8200S will restart.
If Deep Sleep is not enabled, below configuration barcodes allow you to modify the period of
inactivity before MT8200S automatically enters Light Sleep.
0ms *500ms
3000ms 5000ms

-6-
3.2 Continuous Mode
In Continuous Mode MT8200S scans barcode continuously without the need of pressing trigger
button. After a successful decode, MT8200S waits for a period of time (configurable) before the next
scan starts. A press to the trigger button will prompt MT8200S to stop scanning; another press will
prompt MT8200S to start scanning again.
Continuous Mode
Scan Period
In Continuous Mode MT8200S first enters Scan Period, during which MT8200S will try capturing
any barcode within focus. Scan Period terminates when a barcode is successfully decoded or this
pre-set period of time has elapsed. Afterwards MT8200S enters Scan Interval, during which MT8200S
stops scanning. Scan Period is configurable from 0.1 to 25.5 seconds (unit = 0.1 sec); when set to 0
second, it means Scan Period is infinite. By default Scan Period is 5 seconds.
1000ms 3000ms
*5000ms 0 (Infinite)

-7-
Scan Interval
Scan Interval is the period of time between one Scan Period and another. MT8200S stops scanning
within Scan Interval, which is configurable from 0 to 25.5 seconds (unit = 0.1 sec); by default Scan
Interval is 1 second.
0ms 500ms *1000ms
1500ms 2000ms
Same Code Interval
Same Code Interval is the period of time between two consecutive scans on thesamebarcode.
Once enabled, MT8200S does not decode the same barcode twice before Same Code Interval
terminates.
Enable Same Code Interval *Disable Same Code Interval
After enabling Same Code Interval, you may further adjust the period of Same Code Interval using
below configuration barcodes.
Infinite 500ms 1000ms
3000ms 5000ms

-8-
3.3 Auto-sensing Mode
In Auto-sensing Mode MT8200S starts detecting any image change within its range. When image
change occurs, MT8200S will start scanning (Scan Period) after Image Stabilization Period
terminates. After a barcode is successfully decoded or the Scan Period terminates, MT8200S enters
Scan Interval and detection state respectively. Pressing the trigger button will prompt MT8200S to start
scanning immediately. After the trigger button is released or a barcode has been successfully decoded
MT8200S will switch back to detection state.
Auto-sensing Mode
Scan Period
Scan Period is a period of time during which MT8200S tries capturing any barcode within range.
Scan Period terminates when a barcode is successfully decoded or this pre-set period of time has
elapsed. Afterwards MT8200S enters Scan Interval, during which MT8200S stops scanning and detects
image change only. Scan Period is configurable from 0.1 to 25.5 seconds (unit = 0.1 sec); when set to 0
second, it means Scan Period is infinite. By default Scan Period is 5 seconds.
1000ms 3000ms
*5000ms 0 (Infinite)
Scan Interval
MT8200S enters Scan Interval when a barcode has been decoded or Scan Period terminates.
MT8200S will start detecting image change until Scan Interval terminates, which is configurable from 0
to 25.5 seconds (unit = 0.1 sec); by default Scan Interval is 1 second.
Infinite 500ms *1000ms

-9-
1500ms 2000ms
Image Stabilization Period
Image Stabilization Period is the period of time for which MT8200S should wait until the image
stabilizes before switching from detection to scanning (Scan Period). Image Stabilization Period is
configurable from 0 to 25.5 seconds (unit = 0.1 sec); by default Scan Interval is 0.4 second.
100ms *400ms
1000ms 2000ms
Image Sensitivity
Image Sensitivity is a range that increases or decreases MT8200S’s reaction time to image change.
When the image changes to the level that conforms to/ surpasses the pre-set degree of sensitivity
MT8200S will switch from detection to scanning (Scan Period).
*Normal Low
High Extra High
Same Code Interval
Same Code Interval is the period of time between two consecutive scans on the same barcode. It
prevents MT8200S from scanning the same barcode twice within a pre-set period of time. Please refer to
Same Code Interval under 3.2 Continuous Mode chapter for configuration barcodes.

-10 -

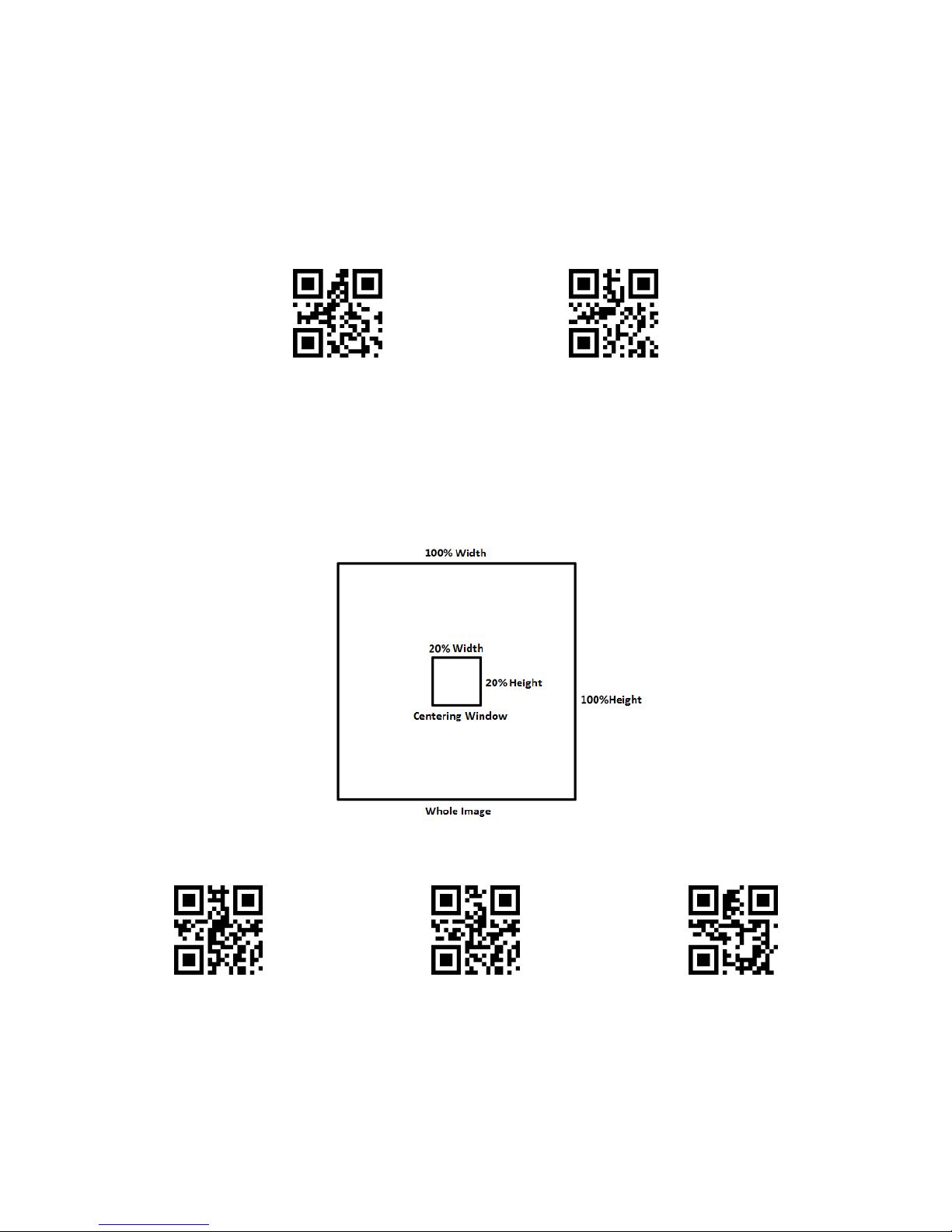

4Centering
Use Centering to narrow MT8200S’s field of view to make sure that it scans only those barcodes
intended by the user.
*Centering Off Centering On
Centering Window
Centering Window is an area at the center of whole image. The size of Centering Window is set in
proportion to that of the whole image, with a configurable range from 1 to 100%; for example, if set to
20%, Centering Window is a square the size of 20% of the whole image at the center.
Centering Window Size
Below are the frequently used Centering Window Sizes:
Centering Window Size-20% Centering Window Size-40% Centering Window Size-60%

-11 -
You may also use Set Centering Window Size to modify Centering Window to a specific size.
Set Centering Window Size
Example: Set Centering Window Size to 50%
1. Find the Hexadecimal equivalent ‘32’ to the Decimal value ‘50’ using ASCII Table (see Appendix
B)
2. Make sure Barcode Configurability is enabled (see Chapter 1.2.1)
3. Scan ‘Set Centering Window Size’
4. Scan ‘3’and‘2’ respectively from Numeric Barcodes (see Appendix C)
5. Scan ‘Save’ configuration barcode (see Appendix D)

-12 -
5 Illumination and Aimer
5.1 Illumination
Illumination increases the image quality, making it easier for MT8200S to decode barcodes when
ambient light is relatively low.
Normal (Default): Illumination only turns on during scanning.
Always On: Illumination keeps as long as MT8200S is powered on.
Always Off: Illumination is always off in any condition.
*Normal Always On Always Off
5.2 Aimer
Aimer assists user to locate target barcode more quickly.
Normal (Default): Aimer only turns on during scanning.
Always On: Aimer keeps on as long as MT8200S is powered on.
Always Off: Aimer is always off in any condition.
*Normal Always On Always Off

-13 -
6 Buzzer and Output
6.1 Buzzer - General
Below configuration barcodes allow you to adjust buzzer pitch (frequency):
Buzzer Pitch - Low *Buzzer Pitch - Medium
Buzzer Pitch - High
Below configuration barcodes allow you to mute/unmute buzzer:
Mute *Unmute
6.2 Buzzer - Good Read
Below configuration barcodes allow you to enable/disable Good Read beep indication.
*GoodReadOn GoodReadOff

-14 -
Below configuration barcodes allow you to modify the beep duration on a Good Read, which by
default is 60mS.
Good Read Duration - 30ms *Good Read Duration - 60ms
Good Read Duration - 90ms Good Read Duration - 120ms
6.3 Encoding Format
Below configuration barcodes allow you to choose input data encoding format, which depends on
how the characters are encoded in the barcode being scanned by MT8200S.
*Input Encoding Format - GBK Input Encoding Format - UTF8
Input Encoding Format - AUTO
Below configuration barcodes allow you to choose output data encoding format. This depends on
which application you want to use for barcode data output. For example, GBK can be used on Notepad;
UNICODE can be used on Word and other messaging applications.
*Output Encoding Format - GBK Output Encoding Format - UNICODE

-15 -
Output Encoding Format - UTF8
6.4 Keyboard Layout
Please scan the configuration barcode below that corresponds to the keyboard layout used by your
host PC:
*US Czech French
German Hungarian Italian
Japanese Spanish Turkish-F
Turkish-Q

-16 -
6.5 Alt Code
Alt Code enables data output using the Alt Numpad method (pressing and holding the Alt key while
typing the number identifying the character with the keyboard's numeric keypad). This allows user to
output correct key code in any condition, at the cost of slowing down some output speed.
*Standard Alt Code
6.6 Receipt Mode
Receipt Mode enables MT8200S to work with receipt system. You may use following configuration
barcodes to enable/disable barcode data conversion to receipt format.
*Disable Receipt Mode Enable Receipt Mode
6.7 Inverse Barcode
If Inverse Barcode is enabled, it allows you to scan barcodes that are inverted.
*Disable 1D Inverse Barcode Enable 1D Inverse Barcode
*Disable 2D Inverse Barcode Enable 2D Inverse Barcode

-17 -
6.8 Mirrored Barcode
If Mirrored Barcode is enabled, it allows you to scan mirrored 2D barcode, at the cost of slowing
down decode speed.
Enable 2D Mirrored Barcode *Disable 2D Mirrored Barcode
