Martin Acrobat User manual

Acrobat
user manual
P/N 35000039

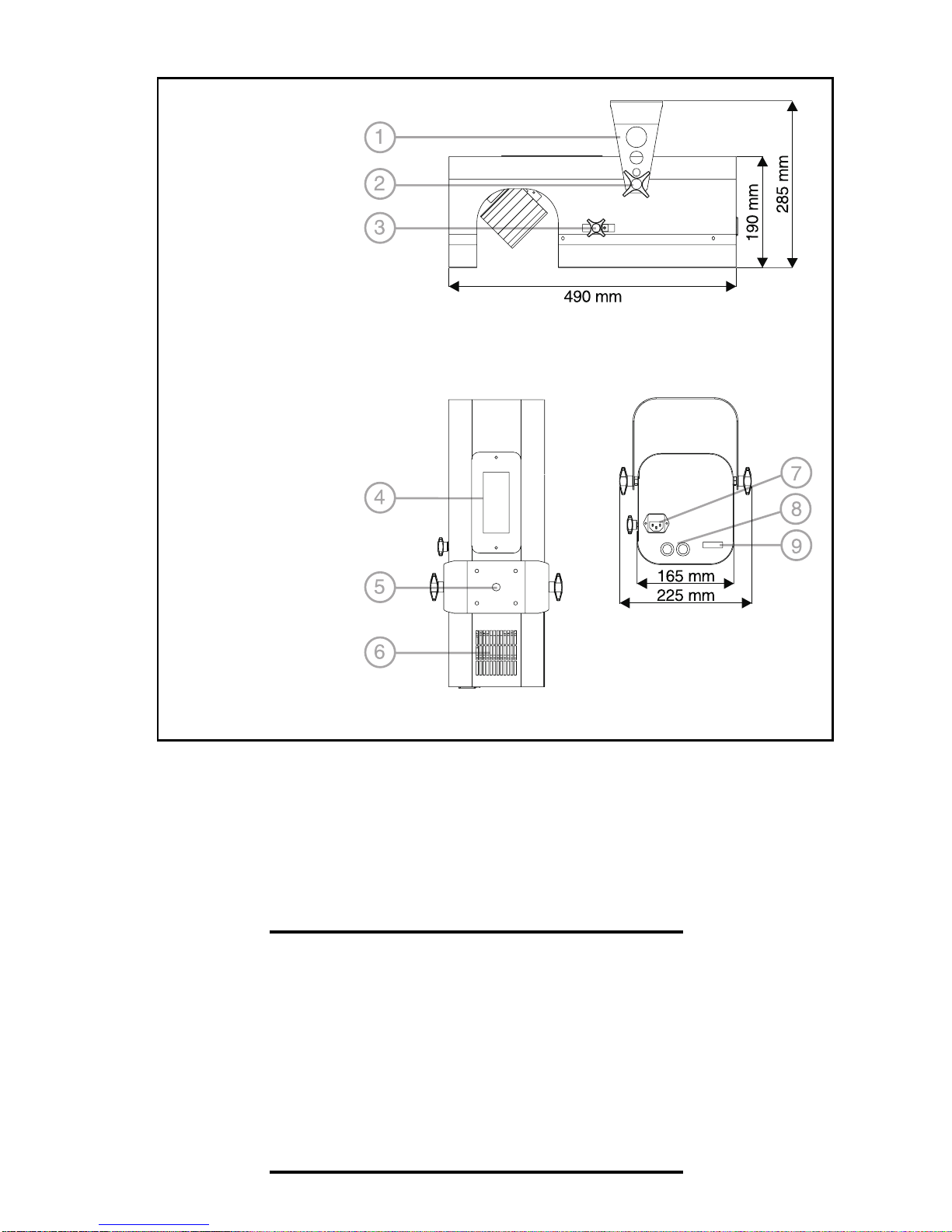

1 mounting bracket
2 swivel locks
3 focus adjustment
4 lamp access
5 13 mm clamp hole
6 air vent
7 AC input & main
fuse
8 data sockets
9 DIP-switch
©1999 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.
Printed in Denmark.
P/N 35000039, Revision B

Acrobat user manual Introduction 3
I
NTRODUCTION
1
Thank you for selecting the Martin Acrobat. The Acrobat is an automated disco
lighting fixture that provides strobe effects, continuous electronic dimming, 18
color/gobo effects, a revolving mirror drum with variable swivel angle, adjustable
focus, and DMX and stand-alone control options.
ACROBAT SAFETY INFORMATION
Warning! This product is not for household use. It presents risks of
lethal or severe injury due to fire and heat, electric shock, and
falls.
Read this manual before powering or installing the fixture, follow the safety
precautions listed below and observe all warnings in this manual and printed on
the fixture. If you have questions about how to operate the fixture safely, please
contact a Martin distributor for assistance.
To protect yourself and others from electric shock
• Disconnect the fixture from AC power before removing or installing the lamp,
fuses, or any part, and when not in use.
• Always ground (earth) the fixture electrically.
• Use only a source of AC power that complies with local building and electrical
codes and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Refer all service to a qualified technician.
• Never operate the fixture with missing or damaged lenses and/or covers.

4 Introduction Acrobat user manual
To protect yourself and others from burns and fire
• Never attempt to bypass the thermostatic switch or fuses. Always replace
defective fuses with ones of the specified type and rating.
• Keep all combustible materials (for example fabric, wood, paper) at least 0.1
meters (4 inches) away from the fixture. Keep flammable materials well away
from the fixture.
• Do not illuminate surfaces within 0.3 meters (12 inches) of the fixture.
• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.
• Replace the lamp if it becomes defective or worn out. When replacing the lamp,
allow the fixture to cool for at least 5 minutes before opening the fixture or
removing the lamp. Protect your hands and eyes with gloves and safety glasses.
• Never place filters or other materials over the lens or mirror drum.
• The exterior of the fixture can reach temperatures up to 60° C (140° F). Allow the
fixture to cool for at least 5 minutes before handling.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
To protect yourself and others from injury due to falls
• When suspending the fixture above ground level, verify that the structure can hold
at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and use
an approved means of secondary attachment such as a safety cable.
• Block access below the work area whenever installing or removing the fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during shipment -
always use it to transport the fixture.
The Acrobat comes with:
• mounting bracket
• 1.5-meter, 3-wire IEC power cable
•usermanual
Important! The mirror drum is secured for transport with a plastic tie. Cut
and remove the tie before use.

Acrobat user manual Lamp installation 5
L
AMP INSTALLATION
2
The Acrobat uses a 24V, 250W ELC halogen lamp. Two models are available, an
economical 300 hour lamp from Philips and a high-output 50 hour lamp from
Osram. Installing any other lamp may damage the fixture!
Lamp life can be extended beyond the stated average hours by reducing the lamp
voltage slightly using DIP-switch pin 12. Set pin 12 to ON for longer lamp life, or
OFF for maximum brightness.
Allow the lamp to cool for at least 5 minutes before packing and moving the
fixture. To avoid possible damage, remove the lamp when shipping the fixture.
Warning! Always disconnect the fixture from AC power and allow it to
cool for 5 minutes before installing the lamp.
To install a lamp in the Acrobat
1 Disconnect the fixture from AC power. If replacing a lamp, allow it to cool for
5 minutes before removing the lamp access cover. The lamp cools faster with
the cover in place.

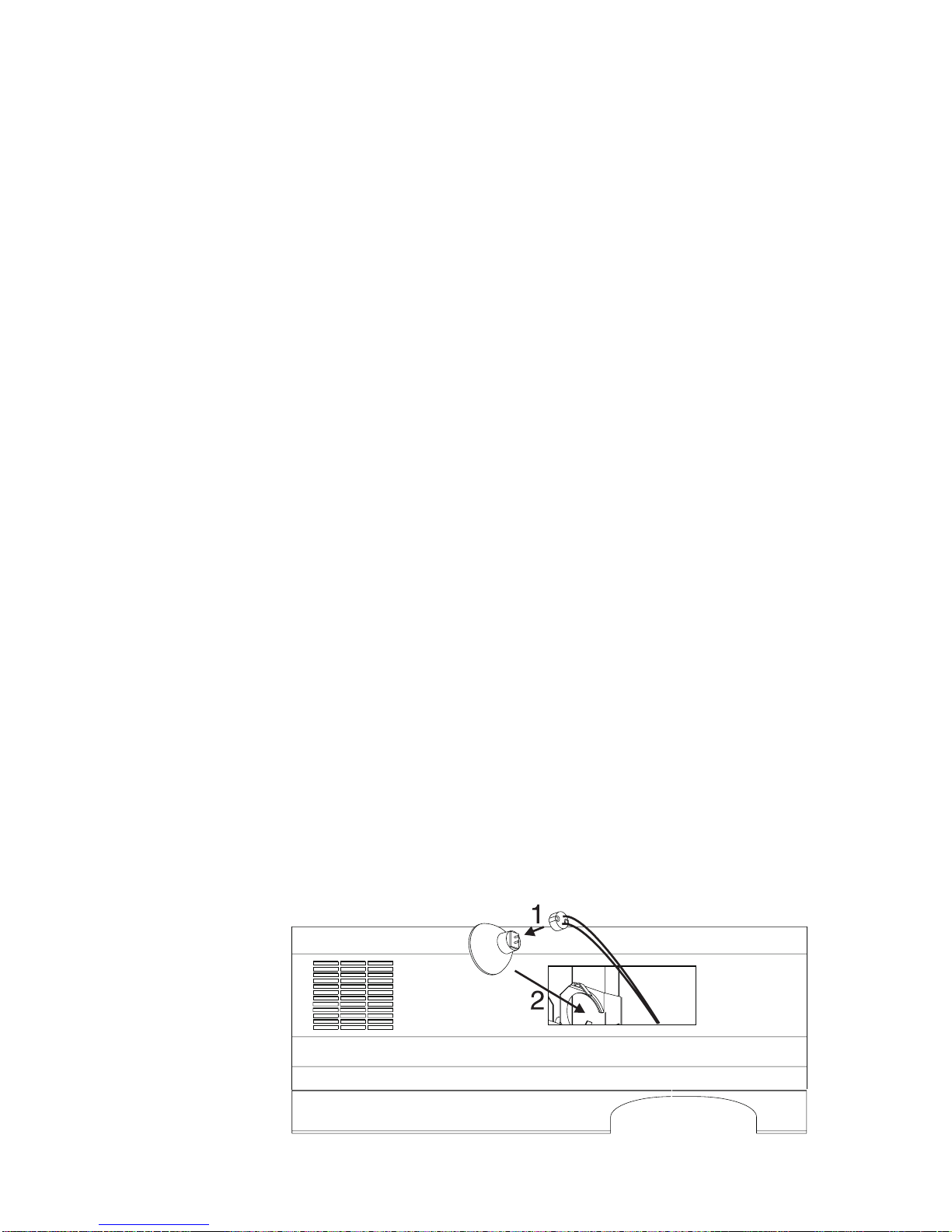

2 Remove both screws from the lamp access cover and lift the cover off.
3 If replacing a lamp, grasp the old lamp by the reflector and pull it out of the
holder. Then pull the socket off the lamp. Do not pull the wires.
4 Push the socket fully onto the pins of the new lamp.
5 Gently push the lamp into the holder until it snaps into place.
6 Replace the lamp access cover and screws.

6 AC power connection Acrobat user manual
AC
POWER CONNECTION
3
The Acrobat’s operating voltage is printed on the serial number label near the AC
input. Verify that the operating voltage closely matches the AC supply voltage
before applying power. Contact your Martin dealer if the operating voltage differs
from the supply voltage by more than five percent.
To install a plug on the mains lead
The fixture’s mains lead may require a grounding-type cord cap that fits your
power distribution cable or outlet. Consult a qualified electrician if you have
any doubts about proper installation.
Warning! For protection from dangerous electric shock, the fixture must
be grounded (earthed). The AC mains supply shall have
overload and ground-fault protection.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
• Following the cord cap manufacturer’s instructions, connect the yellow and
green wire to ground (earth), the brown wire to live, and the blue wire to
neutral. The table below shows some pin identification schemes.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground green

Acrobat user manual Installation 7
I
NSTALLATION
4
The Acrobat can be permanently installed or hung with a clamp (not included), or
it can be placed on the floor as described below. For maximum lamp life, do not
place the fixture directly on or beside a speaker cabinet or other source of strong
vibrations.
Once the Acrobat is installed and connected, the focus may be adjusted by
loosening and sliding the focus adjustment knob.
Warning! Block access below the work area before proceeding.
Warning! Always use a secure means of secondary attachment.
To install the mounting bracket

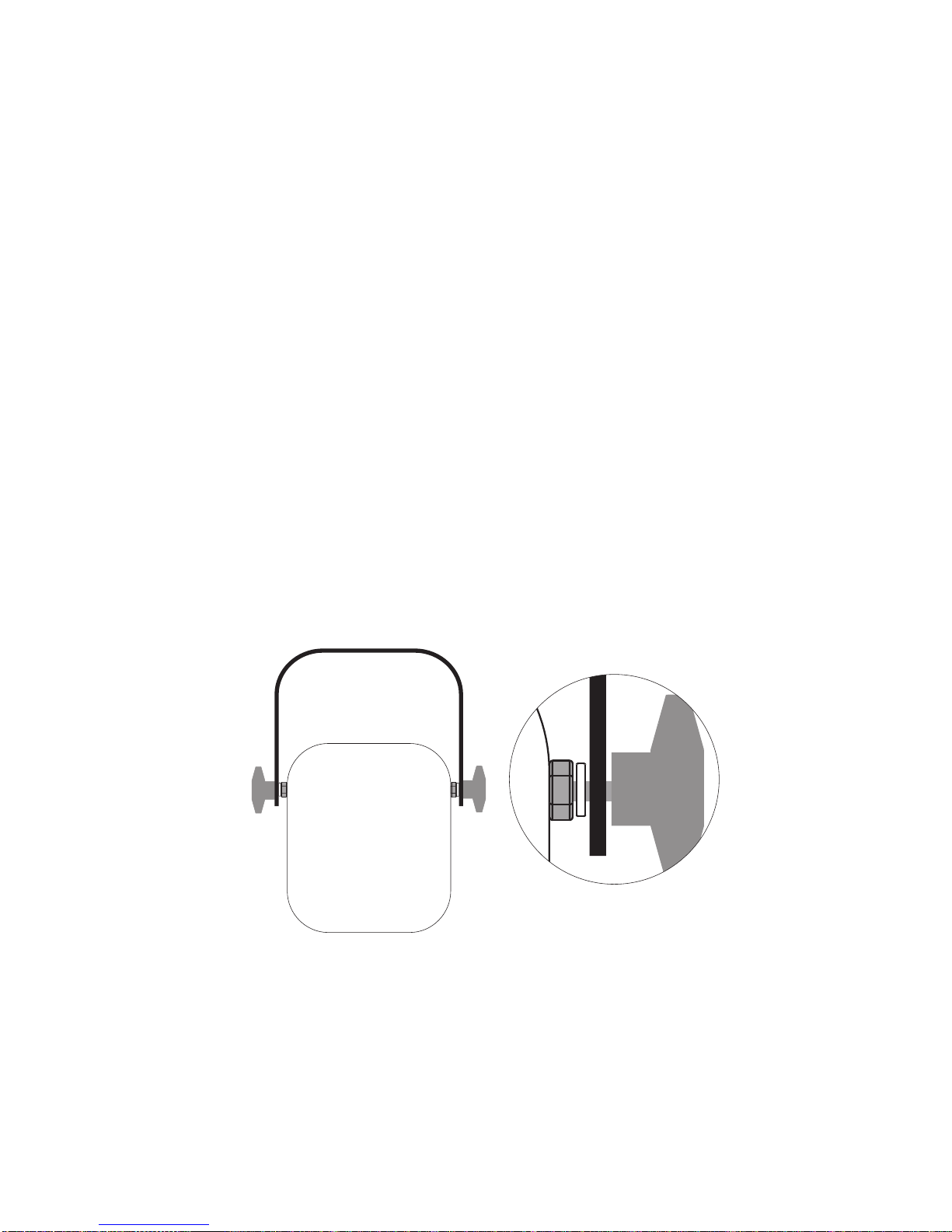

• Install the mounting bracket on the chassis as shown. Place the washers on
the stud before the bracket.
To install or hang the Acrobat
1 Verify that the structure can support at least 10 times the weight of all
installed fixtures, clamps, cables, auxiliary equipment, etc.
2 If hanging the fixture with a rigging clamp, verify that the clamp is
undamaged and is designed for the fixture’s weight. Bolt the clamp securely
to the bracket with a grade 8.8 (minimum) M12 bolt and lock nut, or as

8 Installation Acrobat user manual
recommended by the clamp manufacturer, through the clamp hole in the
mounting bracket.
3 If permanently installing the fixture, verify that the hardware (not included)
and mounting surface can bear at least 10 times the fixture’s weight. The four
6 mm holes and the clamp hole in the mounting bracket may be used for
attachment.
4 Working from a stable platform, clamp or fasten the fixture to the structure.
5 Install a safety cable that can hold at least 10
times the weight of the fixture through/over the
support and mounting bracket as shown.
6 Loosen the swivel locks, tilt the fixture to the
desired angle, and retighten.
7 Verify that the fixture is at least 0.3 meters (12 in.)
from the surface to be illuminated and at least 0.1
meters (4 in.) from any combustible materials.
Verify that the clearance around the air vents is at
least 0.1 meters (4 in.).
To use the bracket as a floor stand

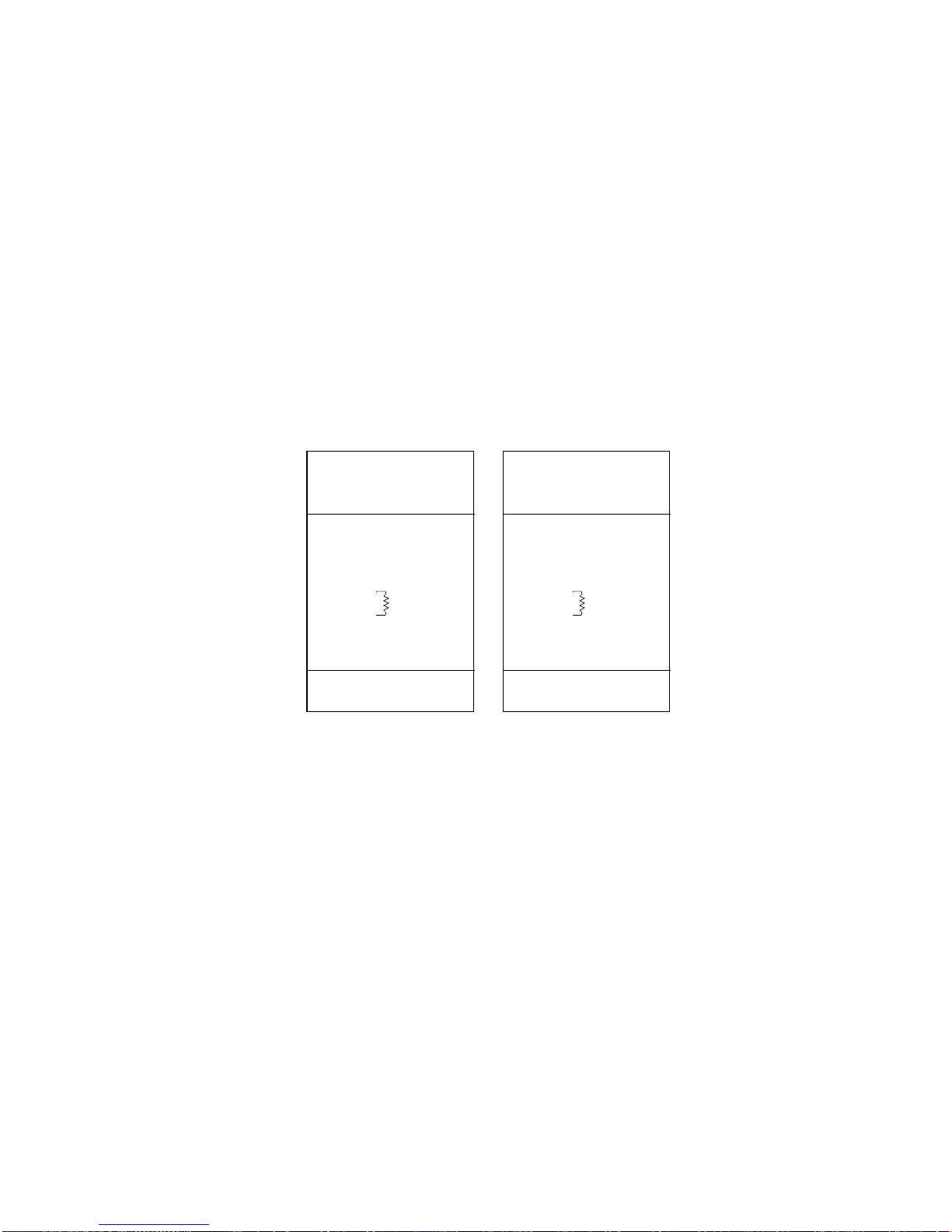

The Acrobat may be placed on
the floor by standing it squarely
on the drum end or with the
support of the mounting bracket.
Never lay the fixture flat on its
back!
1 Install the mounting bracket as described above.
2 Set the fixture flat on its drum end or in one of the positions shown below.
Adjust the mounting bracket and tighten both swivel locks.
3 Verify (1) that the fixture is stable, (2) that the fixture is at least 0.3 meters (12
in.) from the surface to be illuminated and at least 0.1 meters (4 in.) from any
combustible materials, and (3) that the clearance around the air vents is at
least 0.1 meters (4 in.).
Rigging clamp not shown!

Acrobat user manual DIP-switch settings 9
DIP-
SWITCH SETTINGS
5
This section describes how to select the address, when used with a controller, and
how to select various options using the DIP-switch.
DMX ADDRESS SELECTION
When the Acrobat is used with a DMX controller, its DIP-switch must be set to a
control address. The control address, also known as the start channel, is the first
channel used to receive instructions from the controller. For independent control,
each fixture must be assigned its own control address and non-overlapping
channels.
Two Acrobats may, however, share the same address if you want them to respond
identically. In this case, the fixtures receive the same instructions and individual
control is not possible.
The Acrobat uses 6 channels for full DMX operation. There is also a 1-channel
DMX mode that is described on page 14.
To set a DMX address
1 Select an address for the fixture on your controller.
2 Look up the DIP-switch setting for the address on page 10.
3 Set pins 1 through 9 to the ON (1) or OFF (0) position as listed in the table.
4 Set pin 10 to the OFF position.
5 Set pin 11 to the OFF position for full 6-channel DMX operation or to the ON
position for 1-channel DMX operation.

10 DIP-switch settings Acrobat user manual
DIP-SWITCH ADDRESS TABLE
Find the address in the table below. Read the settings for pins 1 - 5 to the left and
read the settings for pins 6 - 9 above the address. “0” means OFF and “1” means
ON.
Important! Pins 10 and 11 must be OFF for full DMX control. Pin 10 must
be OFF and pin 11 must be ON for 1-channel DMX control.
',306ZLWFK#6HWWLQJ
3# #2))
4# #21
&<3333333344444444
&;3333444433334444
&:3344334433443344
&93434343434343434
&4 &5 &6 &7 &8
3 3 3 3 3 65 97 <9 45; 493 4<5 557 589 5;; 653 685 6;7 749 77; 7;3
4 3 3 3 3 4 66 98 <: 45< 494 4<6 558 58: 5;< 654 686 6;8 74: 77< 7;4
3 4 3 3 3 5 67 99 <; 463 495 4<7 559 58; 5<3 655 687 6;9 74; 783 7;5
4 4 3 3 3 6 68 9: << 464 496 4<8 55: 58< 5<4 656 688 6;: 74< 784 7;6
3 3 4 3 3 7 69 9; 433 465 497 4<9 55; 593 5<5 657 689 6;; 753 785 7;7
4 3 4 3 3 8 6: 9< 434 466 498 4<: 55< 594 5<6 658 68: 6;< 754 786 7;8
3 4 4 3 3 9 6; :3 435 467 499 4<; 563 595 5<7 659 68; 6<3 755 787 7;9
4 4 4 3 3 : 6< :4 436 468 49: 4<< 564 596 5<8 65: 68< 6<4 756 788 7;:
3 3 3 4 3 ; 73 :5 437 469 49; 533 565 597 5<9 65; 693 6<5 757 789 7;;
4 3 3 4 3 < 74 :6 438 46: 49< 534 566 598 5<: 65< 694 6<6 758 78: 7;<
3 4 3 4 3 43 75 :7 439 46; 4:3 535 567 599 5<; 663 695 6<7 759 78; 7<3
44343 44 76 :8 43: 46< 4:4 536 568 59: 5<< 664 696 6<8 75: 78< 7<4
3 3 4 4 3 45 77 :9 43; 473 4:5 537 569 59; 633 665 697 6<9 75; 793 7<5
4 3 4 4 3 46 78 :: 43< 474 4:6 538 56: 59< 634 666 698 6<: 75< 794 7<6
34443 47 79 :; 443 475 4:7 539 56; 5:3 635 667 699 6<; 763 795 7<7
4 4 4 4 3 48 7: :< 444 476 4:8 53: 56< 5:4 636 668 69: 6<< 764 796 7<8
3 3 3 3 4 49 7; ;3 445 477 4:9 53; 573 5:5 637 669 69; 733 765 797 7<9
43334 4: 7< ;4 446 478 4:: 53< 574 5:6 638 66: 69< 734 766 798 7<:
3 4 3 3 4 4; 83 ;5 447 479 4:; 543 575 5:7 639 66; 6:3 735 767 799 7<;
4 4 3 3 4 4< 84 ;6 448 47: 4:< 544 576 5:8 63: 66< 6:4 736 768 79: 7<<
33434 53 85 ;7 449 47; 4;3 545 577 5:9 63; 673 6:5 737 769 79; 833
4 3 4 3 4 54 86 ;8 44: 47< 4;4 546 578 5:: 63< 674 6:6 738 76: 79< 834
3 4 4 3 4 55 87 ;9 44; 483 4;5 547 579 5:; 643 675 6:7 739 76; 7:3 835
44434 56 88 ;: 44< 484 4;6 548 57: 5:< 644 676 6:8 73: 76< 7:4 836
3 3 3 4 4 57 89 ;; 453 485 4;7 549 57; 5;3 645 677 6:9 73; 773 7:5 837
4 3 3 4 4 58 8: ;< 454 486 4;8 54: 57< 5;4 646 678 6:: 73< 774 7:6 838
34344 59 8; <3 455 487 4;9 54; 583 5;5 647 679 6:; 743 775 7:7 839
4 4 3 4 4 5: 8< <4 456 488 4;: 54< 584 5;6 648 67: 6:< 744 776 7:8 83:
3 3 4 4 4 5; 93 <5 457 489 4;; 553 585 5;7 649 67; 6;3 745 777 7:9 0
43444 5< 94 <6 458 48: 4;< 554 586 5;8 64: 67< 6;4 746 778 7:: 0
3 4 4 4 4 63 95 <7 459 48; 4<3 555 587 5;9 64; 683 6;5 747 779 7:; 0
4 4 4 4 4 64 96 <8 45: 48< 4<4 556 588 5;: 64< 684 6;6 748 77: 7:< 0

Acrobat user manual DIP-switch settings 11
SPECIAL SETTINGS
DIP-switch pins 1 - 9 are used to select special options in stand-alone and
master/slave mode. To enable these options, pin 10 must be ON.
Pin 11 toggles between 1 and 6 channel DMX control. It must be OFF for
master/slave operation.
Lamp life can be extended by reducing the voltage slightly. Set DIP-switch pin 12
to ON for longer lamp life, or OFF for full output intensity.
Note: the fixture shall be disconnected from AC power when changing DIP-
switch settings. Changes take effect only after the fixture has been turned off.
Important! Pin 10 must be ON to enable special settings on pins 1 - 9.
Pin Setting Effect
1ON Music trigger
OFF Automatic trigger
2ON Stand-alone mode on, single or master fixture
OFF Stand-alone mode off / slave fixture
3ON Test and adjustment program for service use
OFF Normal operation
4ON Slow mirror movement (set on master fixture)
OFF Fast mirror movement
5 ON/OFF No function
6ON Random effect wheel position (set on slave fixture)
OFF Effect wheel position same as master
7ON Inverted effect wheel position (set on slave fixture)
OFF Normal effect wheel position
8ON Inverted tilt (set on slave fixture)
OFF Normal tilt
9ON Inverted pan (set on slave fixture)
OFF Normal pan
10 ON Enable special settings with pins 1 - 9
OFF Enable DMX address with pins 1 - 9
11 ON 1-channel mode on
OFF 1-channel mode off
12 ON Reduced power / increased lamp life
OFF Full power / maximum intensity

12 Data connection Acrobat user manual
D
ATA CONNECTION
6
This section describes how to connect fixtures to a controller.
RECOMMENDED CABLE
A reliable data connection begins with the right cable. Standard microphone cable
cannot transmit DMX data reliably over long runs. For best results, use cable
specifically designed for RS-485 applications. Your Martin dealer can supply high
quality cable in various lengths.
CONNECTIONS
The Acrobat’s XLR data sockets are wired with pin 1 to ground, pin 2 to signal -
(cold), and pin 3 to signal + (hot). This is the standard pin assignment for DMX
devices.
One or more adaptor cables may be required to connect the Acrobat to the
controller and/or other lights because many devices have 5-pin connectors and
others may have reversed signal polarity, that is, pin 2 hot and pin 3 cold.
Phase-Reversing
Adaptor
Male Female
1
2
3
1
2
3
3-pin to 3-pin
P/N 11820006
Adaptor
Male Female
1
2
3
4
5
1
2
3
5-pin to 3-pin
P/N 11820005
Adaptor
Male Female
1
2
3
1
2
3
4
5
3-pin to 5-pin
P/N 11820004

Acrobat user manual Data connection 13
To connect the data link
1 Connect a data cable to the controller’s output. If controller has a 5-pin
output, use a 5-pin male to 3-pin female adaptor cable (P/N 11820005).
2 Lead the data cable from the controller to the first fixture. Plug the cable into
the fixture’s data input.
3 Connect the output of the fixture closest to the controller to the input of the
next fixture. If connecting two fixtures with reversed polarity on pins 2 and 3,
insert a phase-reversing cable between the two fixtures.
4 Continue connecting fixtures output to input. Up to 32 devices may be
connected on a serial link.
5 Terminate the link by inserting a male termination plug (P/N 91613017) into
the data output of the last fixture. A termination plug is simply an XLR
connector with a 120 ohm, 0.25 W resistor soldered across pins 2 and 3.
Male XLR
1
2
3
Male
P/N 91613017
120
Female XLR
1
2
3
Female
120
Termination PlugTermination Plug
P/N 91613018

14 Operation Acrobat user manual
O
PERATION
7
FULL DMX OPERATION
For DMX operation, connect the Acrobat to a DMX controller as described on
page 12 and set the control address as described on page 9. The Acrobat
automatically defaults to music-trigger stand-alone mode if there is no control
signal.
DMX CHANNEL DESCRIPTION
See also the DMX protocol on page 18.
Channel 1 controls the light intensity and the strobe rate. It also allows you to
execute a random “stand-alone” program using automatic or music trigger, and to
reset the fixture to its home position.
Channel 2 controls the rotation of the parabolic reflector. This channel has no
effect if the stand-alone program is selected on channel 1.
Channel 3 controls the color/gobo wheel. This channel functions even if the
stand-alone program is selected. When strobe is selected, the wheel alternates
between the selected position and the one before it. To strobe between open and
closed, select the open position.
Channel 4 controls the mirror drum’s pan (swivel) angle.
Channel 5 controls mirror drum rotation. Channels 4 and 5 have no effect if the
stand-alone program is selected.
Channel 6 controls the drum’s pan speed, allowing you to vary the speed with
controllers without cross-fade times. If your controller has cross-faders and you
use them, turn the speed function off by setting channel 6 to 0 percent. This
channel has no effect if stand-alone is selected.
1-CHANNEL DMX OPERATION
The Acrobat may be operated in 1-channel mode with the MC-1 or any DMX
controller. For 1-channel operation, connect the controller as described on page
12. DIP-switch pin 11 must be set to ON.

Acrobat user manual Operation 15
If using the MC-1, select DMX channel 1. If using a DMX controller, any
channel within the controller’s range may be assigned.
The single-channel controllable functions are shown below.
STAND-ALONE OPERATION
Several stand-alone options are available; see “Special settings” on page 11.
MASTER / SLAVE OPERATION
Multiple Acrobats can be connected together for synchronized “master/slave”
operation in which slave units mimic the master unit. To operate in this mode, the
Acrobats must be connected together and DIP-switch pin 2 must be set to off on
all fixtures except the master.
To setup units for master / slave operation
Important! Set only 1 fixture as master (with DIP-switch pin 2 and 10 ON):
errors and damage can occur if there is more than 1 master.
1 Connect the output of one Acrobat to the input of the next Acrobat.
2 Connect additional Acrobats output to input. Up to 32 may be connected.
3 Terminate the link on both ends by inserting a female termination plug into
the data input of the first fixture and a male termination plug into the data
output of the last fixture. (See page 13).
Do not connect the output of the last
fixture to the input of the first fixture.
4 Select one fixture to be the master. Set DIP-switch pins 2 and 10 to ON. Set
DIP-switch pins 3, 5, 6, 7, 8, 9, and 11 to OFF. Set DIP-switch pins 1, 4, and 12
ON or OFF, as desired, to select the options described on page 11.
5 On all other fixtures (slaves), set DIP-switch pin 1 to ON, set pins 2 - 11 to
OFF, and set pin 12 ON for longer lamp life or OFF for higher intensity. To use
the special settings described on page 11, set DIP-switch 10 to ON, set pins
1, 2, 3, 4, 5 and 11 to OFF, and set DIP-switch pins 6, 7, 8, and 9 ON or OFF, as
desired.
DMX value Percent Function
0 - 10
11 - 20
21 - 80
81 - 115
116 - 140
141 - 175
176 - 210
211 - 255
0 - 4
5 - 7
8 - 31
32 - 45
46 - 55
56 - 68
69 - 82
83 - 100
Blackout (light off)
Open (light on)
Strobe
Random action with slow music trigger
Random action with medium music trigger
Random action with fast music trigger
Random action with random music trigger
Manual trigger area, crossover at 240 (94%)

16 Service Acrobat user manual
S
ERVICE
8
There are no user-serviceable parts inside the Acrobat. Please refer all service to a
Martin distributor, dealer, or service center.
To replace the main fuse
1 Unplug the mains cable from the input socket. Pry open the fuse holder and
remove the fuse.
2 Replace the fuse with one of the same type. The fuse rating is listed on serial
number label.

Acrobat user manual Troubleshooting 17
T
ROUBLESHOOTING
9
Problem Probable cause(s) Remedy
Fixture is completely dead.
No power to fixture. Check that power is switched on
and cables are plugged in.
Primary fuse blown. Replace fuse.
Secondary fuse blown. Contact Martin technician for
service.
Fixture resets correctly but does
not respond to controller.
The DMX signal is not
transmitted. Connect controller. Inspect connections and cables. Correct
poor connections. Repair or
replace damaged cables.
The DMX data signal is
reversed. Insert a phase-reversing cable in the link before the fixture.
Incorrect address or other DIP-
switch setting. Check DIP-switch settings.
Intermittent flicker or strange
behavior.
Data link not terminated. Insert termination plug in output
of the last fixture on the link.
One of the fixtures is
transmitting as a master or is
defective.
Bypass one fixture at a time
until normal operation is
regained: unplug both
connectors and connect them
directly together. Have the
defective fixture serviced by a
qualified technician.
Effect fails to reset correctly. The effect requires mechanical
adjustment. Contact Martin technician for service.
No light. Lamp missing or blown Disconnect fixture and replace
lamp.
Lamp cuts out intermittently or
burns out too quickly.
Extreme vibrations. Relocate fixture away from
speakers.
The operating voltage does not
match AC supply. Contact Martin technician for service.
Blocked air vent. Increase clearance around
fixture.
Dust buildup inside fixture. Contact Martin technician for
professional cleaning.

18 DMX protocol Acrobat user manual
DMX
PROTOCOL
A
See also “1-channel DMX operation” on page 14.
Channel Value Percent Function
1
0 - 4
5 - 154
155 - 169
170 - 229
230 - 239
240 - 249
250 - 255
0 - 1
2 - 60
61 - 66
67 - 89
90 - 93
94 - 97
98 - 100
Dimmer, Strobe, Reset
Light off
Dimmer, closed to open
Dimmer full open
Strobe, fast to slow
Stand-alone, music trigger
Stand-alone, auto trigger
Reset
2
0 - 1
2 - 122
123 - 132
133 - 253
254 - 255
0 - 1
1 - 48
49 - 52
52 - 99
99 - 100
Parabolic Reflector
Stop
CCW rotation, slow to fast
Stop
CW rotation, fast to slow
Stop
3
0 - 11
12 - 23
24 - 35
36 - 47
48 - 59
60 - 71
72 - 83
84 - 95
96 - 107
108 - 119
120 - 131
132 - 143
144 - 155
156 - 167
168 - 179
180 - 191
192 - 203
204 - 215
216 - 227
228 - 239
240 - 255
0 - 4
5 - 8
9 - 13
14 - 18
19 - 23
24 - 27
28 - 32
33 - 37
38 - 41
42 - 46
47 - 51
52 - 55
56 - 60
61 - 65
66 - 70
71 - 74
75 - 79
80 - 84
85 - 88
89 - 96
97 - 100
Color / Gobo Wheel
Open
Worms
Web
Petals
Spokes
Cone
Maze
Crater
Holes
Cross
Jagged Cross
Atomic
Dot Circle
Nordic
Aim
Pie
Tie
Nova
Triple Beam
Blackout
Random “stand-alone” position w/ music or auto trigger
4 0 - 255 0 - 100 Mirror Drum Swivel
Left to right (127 = neutral)
5
0 - 1
2 - 122
123 - 132
133 - 253
254 - 255
0 - 1
1 - 48
49 - 52
52 - 99
99 - 100
Mirror Drum Rotation
Stop
CCW rotation, slow to fast
Stop
CW rotation, fast to slow
Stop
6 0 - 2
3 - 255 0 - 1 2 - 100
Mirror Pan Speed
Tracking (speed function off)
Fast to slow

Acrobat user manual Specifications 19
S
PECIFICATIONS
B
PHYSICAL
• Size (L x W x H)................................... 490 x 165 x 190 mm (19.3 x 6.5 x 7.5 in)
• Weight............................................................................................. 8 kg (17.5 lbs)
THERMAL
• Maximum ambient temperature (Ta) ...............................................40° C (104° F)
• Maximum surface temperature........................................................60° C (140° F)
CONTROL AND PROGRAMMING
• Data pin-out............ 3-pin locking XLR, pin 1 shield, pin 2 cold (-), pin 3 hot (+)
• Control protocol..............................................................USITT DMX-512 (1990)
• DMX channels................................................................................................... 1/6
AC POWER
• Input................................................................................ 3-prong IEC male socket
• Maximum power and current..............................................275 W, 1.2 A @ 230 V
• Primary fuse, EU version........................................2.5 AT / 250 V, P/N 05020010
• Primary fuse, US version........................................5.0 AT / 250 V, P/N 05020018
• Secondary fuse........................................................2.0 AT / 250 V, P/N 05020009
INSTALLATION
• Minimum distance to combustible materials....................................... 0.1 m (4 in)
• Minimum distance to illuminated surfaces........................................ 0.3 m (12 in)
• Minimum clearance around fan and air vents.......................................0.1 m (4 in)
ACCESSORIES
• MC-1 controller, EU................................................................................90718000
• MC-1 controller, US ................................................................................90718100
• Osram 24V/250W ELC 50 h halogen lamp.............................................97000104
• Philips 24V/250W ELC 300 h halogen lamp..........................................97000106
• G-clamp ..................................................................................................91602003
• Half-coupler clamp .................................................................................91602005

4
2
white
58 83 :8 433 458 483 4:8 533 558 583
B/
Ofast slow auto
Acrobat 6-Channel DMX Protocol
STROBE DIMMER
87
516
Stand-alone
PARABOLIC REFLECTOR
MIRROR DRUM ROTATION
43 53 63 73 83 93 :3 ;3 <3
58 83 :8 433 458 483 4:8 533 558 583
58 83 :8 433 458 483 4:8 533 558 583
43 53 63 73 83 93 :3 ;3 <3
58 83 :8 433 458 483 4:8 533 558 583
43 53 63 73 83 93 :3 ;3 <3
MIRROR PAN SPEED
slow
43 53 63 73 83 93 :3 ;3 <3
58 83 :8 433 458 483 4:8 533 558 583
B/O MUSIC TRIGGER
Acrobat 1-Channel DMX Protocol
2
1
3
4
6
5
S
TAND
-
ALONE
music
openclosed
36 9 10 11 12 13 14 15 17 18 19 closed
MIRROR DRUM PAN
rightleft
fast slow
L
IGHT
ON
STROBE
medium fast MANUAL TRIGGER
open 5
H
V
H
W
COLOR/GOBO EFFECTS
R
I
I
random
0DUWLQ#3URIHVVLRQDO#$26
Olof Palmes Allé 18 8200 Aarhus N Denmark Tel.: [phone] Fax: [phone] www.martin.dk
CCW rotation fast
slow stop fast CW rotation slow
CCW rotation fast
slow stop fast CW rotation slow
V
W
R
S
V
W
R
S
V
W
R
S
V
W
R
S
ÅÆ
