Martin FiberSource QFX 150 User manual

FiberSource QFX 150
user manual
35000079B.fm Page 1 Thursday, December 9, 1999 11:47 AM

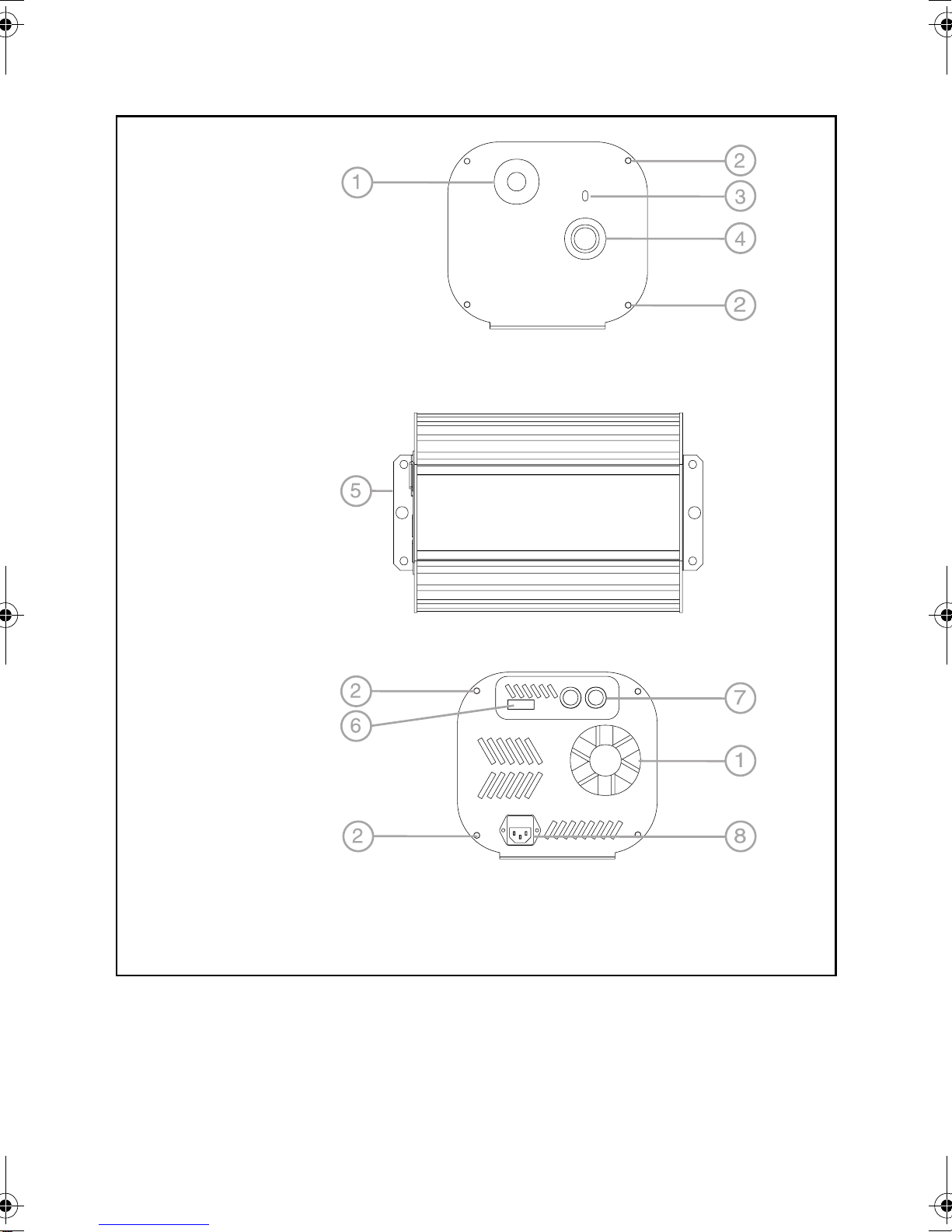

1 cooling fan
2 lamp access
cover screw
3 adaptor set screw
4 cable socket
5 mounting flange
6 DIP-switch
7 data sockets
8 AC input & main
fuse
©1999 Martin Professional A/S, Denmark.
All rights reserved. No part of this manual may be
reproduced, in any form or by any means, without
permission in writing from Martin Professional A/S,
Denmark.
Printed in Denmark.
P/N 35000079, Rev. B
35000079B.fm Page 2 Thursday, December 9, 1999 11:47 AM

3
INTRODUCTION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
LAMP. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6
AC POWER . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
INSTALLATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
FIBER OPTIC CABLE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
CONTROLLER OPERATION. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
STAND-ALONE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
MASTER/SLAVE OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
BASIC SERVICE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
DMX PROTOCOL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
35000079B.fm Page 3 Thursday, December 9, 1999 11:47 AM

4 Introduction
I
NTRODUCTION
1
Thank you for selecting the Martin FiberSource QFX 150. This fiber optic lighting
fixture uses a long-life 150 watt discharge lamp and provides 4 colors plus white,
full-range dimming, and a variable-speed twinkle effect. It operates with DMX-512
controllers, in stand-alone mode, and in master/slave configuration.
SAFETY INFORMATION
Warning! This product is for professional use only. It is not for household use.
This product presents risks of lethal or severe injury due. Read this manual before
powering or installing the fixture, follow the safety precautions listed below and
observe all warnings in this manual and on the fixture. If you have questions about
how to operate the fixture safely, please contact your Martin dealer or call the
Martin 24-hour service hotline.
To protect yourself and others from electric shock
• Disconnect the fixture from power before removing or installing the lamp, fuses, or
any part, and when not in use.
• Always ground (earth) the fixture electrically.
• Use only a source of power that complies with local building and electrical codes
and has both overload and ground-fault protection.
• Do not expose the fixture to rain or moisture.
• Refer all service to a qualified technician.
To protect yourself and others from UV radiation and lamp
explosion
• Do not operate the fixture without a fiber optic cable inserted.
• When replacing the lamp, allow the fixture to cool for at least 5 minutes before
opening. Protect your hands and eyes with gloves and safety glasses.
• Never look at a lamp while it is lit.
• Replace the lamp when it becomes defective or worn out, or before usage exceeds
110 percent of the rated average life.
35000079B.fm Page 4 Thursday, December 9, 1999 11:47 AM

Introduction 5
To protect yourself and others from burns and fire
• Never attempt to bypass the thermostatic switch or fuses. Always replace defective
fuses with ones of the specified type and rating.
• Keep all combustible materials (for example fabric, wood, paper) at least 0.1 meters
(4 inches) away from the fixture. Keep flammable materials well away from the
fixture.
• Provide a minimum clearance of 0.1 meters (4 inches) around fans and air vents.
• Allow the fixture to cool before handling.
• Do not modify the fixture or install other than genuine Martin parts.
• Do not operate the fixture if the ambient temperature (Ta) exceeds 40° C (104° F).
To protect yourself and others from injury due to falls
• When suspending the fixture above ground level, verify that the structure can hold
at least 10 times the weight of all installed devices.
• Verify that all external covers and rigging hardware are securely fastened and use an
approved means of secondary attachment such as a safety cable.
• Block access below the work area whenever installing or removing the fixture.
UNPACKING
The packing material is carefully designed to protect the fixture during shipment -
always use it to transport the fixture.
The FiberSource QFX 150 comes with:
• Osram HQI-R 150 W lamp
• 3 m power cable w/ 3-pin IEC female cord cap
• 4 dichroic color filters
•usermanual
35000079B.fm Page 5 Thursday, December 9, 1999 11:47 AM

6 Lamp
L
AMP
2
The FiberSource QFX 150 is designed for use with the Osram HQI-R 150 lamp. Do
not install any other type of lamp.
Warning! Disconnect the fixture from power and allow it to cool before
opening.
Important! Turn the lamp so that the arc is horizontal.
To install or position the lamp
1 Remove the 4 lamp access
cover screws and pull off the
access cover, which is
indicated by the arrow on the
rear panel.
2 To remove the lamp, place a
hand under it and pull it out. Do
not lift by the ceramic base
alone. Squeeze the sides of the
lamp plug and pull it out.
3 To position the lamp, turn it so the wires,
where they exit the lamp base, point
towards the ground when the fixture is
installed
.
This puts the arc in its ideal
burning position.
4 To install a lamp, plug in the connector
and then place the reflector rim in the
slot. Gently press the lamp between the
springs until it snaps into place.
5 Remove and turn the diffusion filter 90°, if necessary, so the long sides of the
prisms align with the arc.
6 Check the power setting as described in the next section before replacing the
lamp access cover.
Turn lamp so wires
point towards
ground and arc is
horizontal.
Align long edge of
diffuser prisms
with arc.
35000079B.fm Page 6 Thursday, December 9, 1999 11:47 AM

AC power 7
AC
POWER
3
The FiberSource QFX 150 has 10 switch-selectable power supply settings. Always
use the setting that is closest to the local AC supply.
Warning! For protection from electric shock, the fixture must be grounded
(earthed). The power supply shall have overload and ground-
fault protection.
Important! Install fuse and verify that power supply settings match local
AC supply before use.
To check or change the voltage
setting
1 Disconnect the fixture from power.
Remove the lamp access cover.
2 Set the 5-position switch to the
setting closest to the AC voltage. Use
the higher setting if the voltage is
halfway between 2 settings. For
example, use the 230 V setting
instead of the 210 V setting for
operation with 220 V power.
3 Set the 2-position switch to the AC
frequency (50 / 60 Hz).
4 Replace the cover and apply a new
power setting label to the serial
number label.
50Hz 60Hz
250 V
230 V
210 V
100 V
120 V
35000079B.fm Page 7 Thursday, December 9, 1999 11:47 AM

8 AC power
To install the main fuse
Fuses are provided for 100 - 130 V and 200 - 250 V operation. Use only the fuse
specified for the operating voltage.
1 Locate the bag containing the fuse for your AC voltage. Insert the fuse in the
fuse holder. The holder may be packed with the other fuse.
2 Remove the label covering the mains input socket.
3 Insert the fuse holder in the empty slot in the mains input socket. See also “To
replace the main fuse” on page 20.
To install a plug on the power cable
The power cable must be fitted with a grounding-type cord cap that fits your power
distribution system. Consult an electrician if you have any doubts about proper
installation.
Important! Verify that the feed cables are undamaged and rated for the
current requirements of all connected devices before use.
• Following the cord cap manufacturer’s instructions, connect the yellow and
green wire to ground (earth), the brown wire to live, and the blue wire to neutral.
The table below shows some pin identification schemes.
Wire Pin Marking Screw color
brown live “L” yellow or brass
blue neutral “N” silver
yellow/green ground green
35000079B.fm Page 8 Thursday, December 9, 1999 11:47 AM

Installation 9
I
NSTALLATION
4
The FiberSource QFX 150 can be fastened directly through the 4 rubber washers in
the mounting flanges, or hung with 2 rigging clamps (not included) fastened
through the 13 mm holes.
INSTALLATION REQUIREMENTS
For optimum performance and ease of service, install the fixture such that

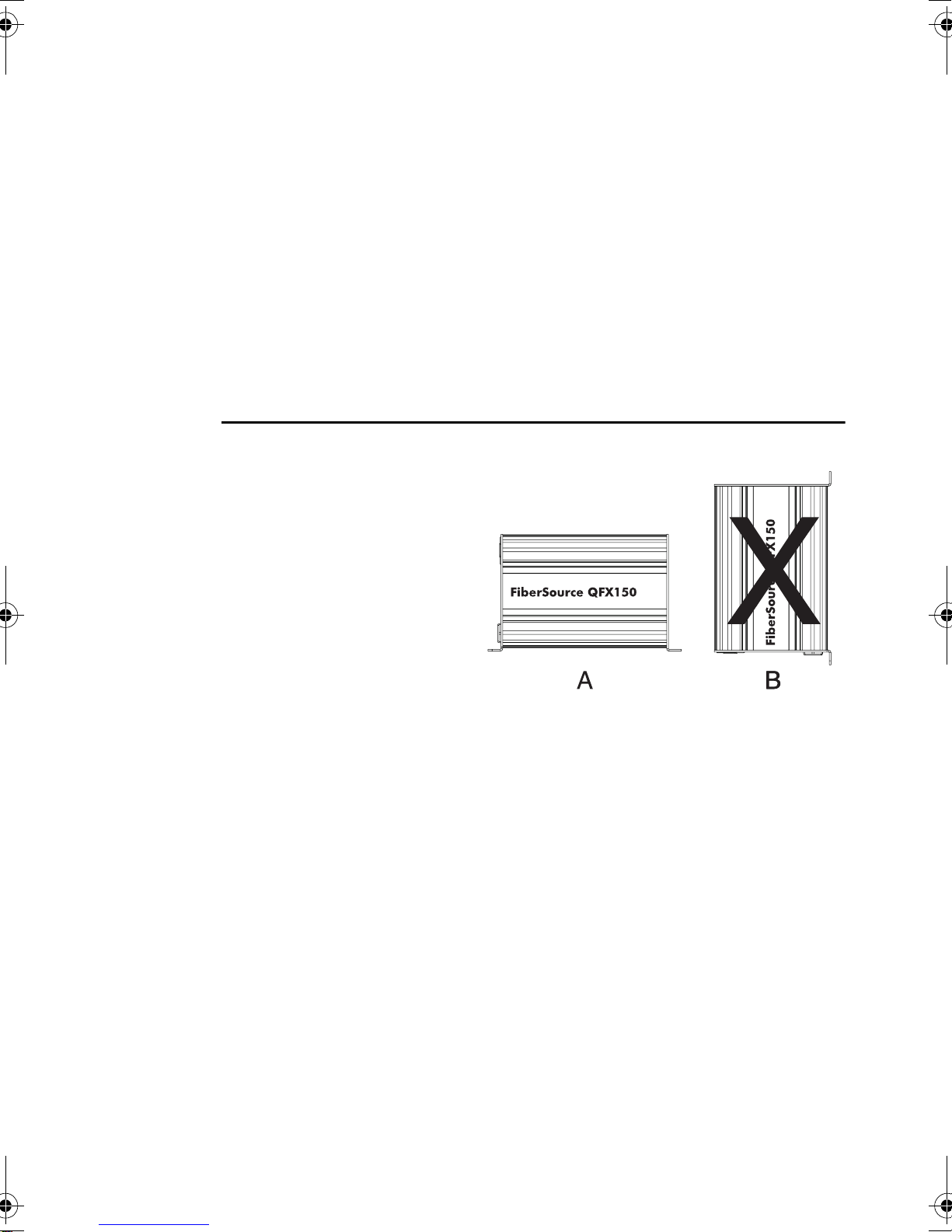

• The long axis is horizontal as
shown in A to right. This
positions the lamp electrodes
for maximum lamp life. Do not
install as shown in B.
• The minimum clearance around
the fans and air vents at both
ends is 10 cm (4 in.) and
circulation is adequate keep the
air around the fixture at 40° C
(104° F) or below.
• The DIP-switch is accessible and there is room to insert cables.
• The lamp access panel can be removed.
• All safety requirements are met.
To install the FiberSource QFX 150
Warning! Always use a secure means of secondary attachment when
hanging the fixture with clamps.
1 Verify that the fasteners or clamps can bear 10 times the fixture’s weight. Verify
that the structure can support 10 times the weight of all installed fixtures,
clamps, cables, auxiliary equipment, etc.
2 Block access below the work area.
3 If fastening directly, place a metal washer over each rubber washer. The metal
washer must be as wide as the rubber washer, or wider, to insure a secure hold.
Fasten with 4 suitable fasteners 4 - 5 mm (5/32 - 3/16 in.) in diameter.
35000079B.fm Page 9 Thursday, December 9, 1999 11:47 AM

10 Installation
4 If clamping, bolt the clamps securely to the flanges with grade 8.8 (minimum)
M12 bolts and lock nuts, or as recommended by the clamp manufacturer,
through the 13 mm holes. Install a safety cable that can hold at least 10 times
the weight of the fixture through one of the small holes and around the truss or
pipe. Remove a rubber washer if necessary to thread the safety cable.
5 Verify that the fixture is located at least 0.1 meters (4 in.) from any combustible
materials. Verify that the clearance around the fan and air vents is at least 0.1
meters (4 in.). Verify that there are no flammable materials nearby.
35000079B.fm Page 10 Thursday, December 9, 1999 11:47 AM

Fiber optic cable 11
F
IBER OPTIC CABLE
5
The FiberSource male adaptor for 50 - 300 strand cables, P/N 91611016 (not
included), is tapered to fit fiber optic cables 8.3 - 19.3 mm (5/16 - 3/4 in.) in
diameter. With cables over 8.3 mm in diameter, the adaptor must be shortened for
proper fit and maximum light output. Please follow the instructions included with
the fiber adaptor.
CABLE CONNECTION
The following guidelines provide a starting point for estimating your needs. Light
transmission through fiber-optic cable depends on its quality and results will vary
depending on the type of cable used.
SIDE-EMITTING CABLE
With 1 fixture, best results are had when the fiber optic cable is 10 m (33 ft.) or
shorter. The length may be increased to 15 m (50 ft.) by looping the cable and
illuminating both ends. With 2 fixtures, one at each end of the cable, lengths up to
30 m (100 ft.) can be achieved.
END-EMITTING CABLE
Light output decreases with length: keep the cable as short as possible. The
maximum recommended length is 25 meters. Cut the light emitting end of the fibers
with a sharp knife for maximum output.
To install fiber optic cable
1 Install the cable in the fiber adaptor according to the instructions packaged
with the adaptor.
2 Insert the adaptor fully into the fiber optic cable socket.
3 Tighten the set screw with a 2 mm (5/64 in.) Allen wrench.
35000079B.fm Page 11 Thursday, December 9, 1999 11:47 AM

12 Controller operation
C
ONTROLLER OPERATION
6
This FiberSource QFX 150 may be operated with any DMX-512 protocol
controller.
DATA CONNECTION
A reliable data connection begins with the right cable. Standard microphone cable
cannot transmit DMX data reliably over long runs. For best results, use cable
specifically designed for RS-485 applications. Your Martin dealer can supply high
quality cable in various lengths.
The FiberSource QFX 150’s data sockets are wired pin 1 to ground, pin 2 to signal -
(cold), and pin 3 to signal + (hot). This is the standard pin assignment for DMX
devices.

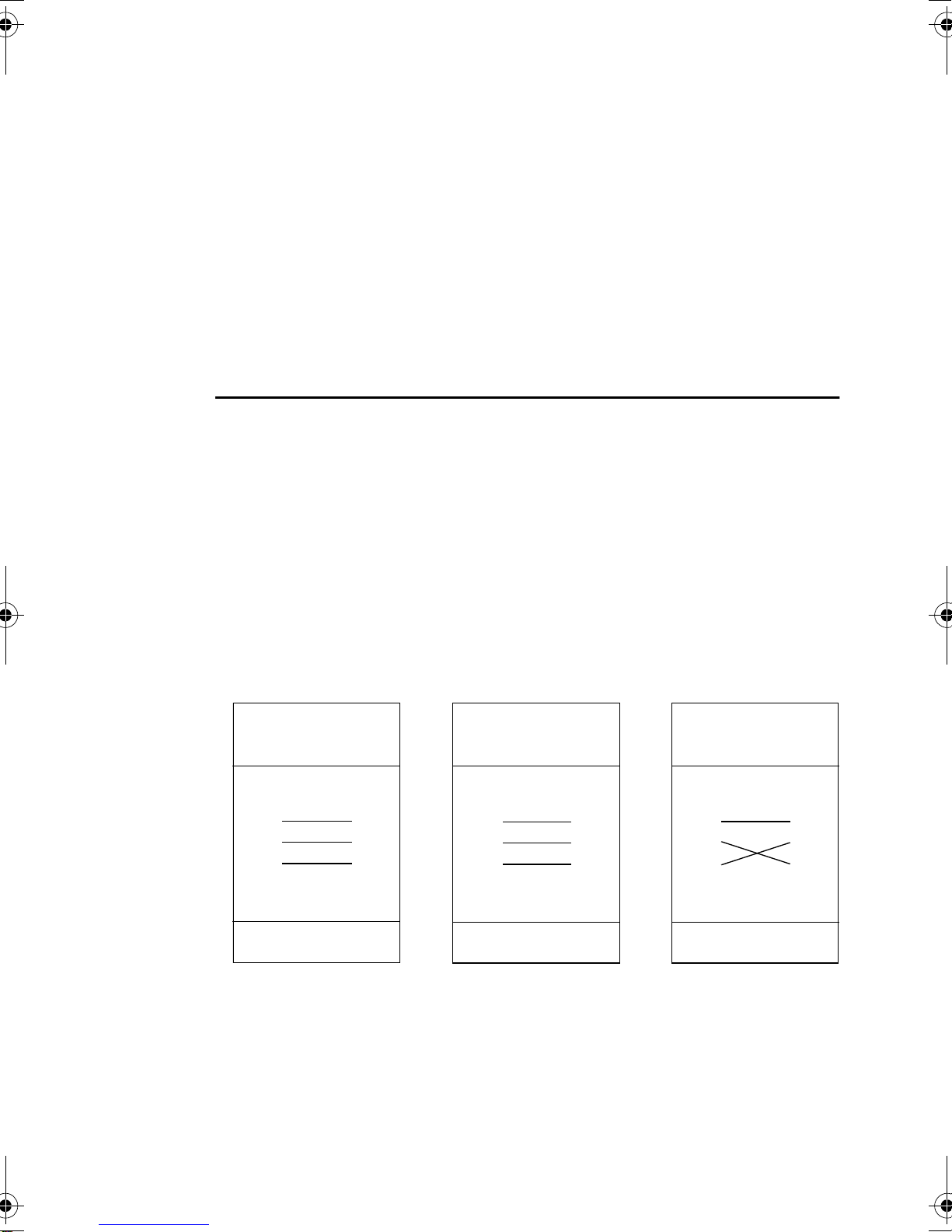

One or more adaptor cables may be required to connect the fixture to the controller
and other devices because many devices have 5-pin connectors and others may have
reversed signal polarity, that is, pin 2 hot and pin 3 cold.
To connect the data link
1 Connect a data cable to the controller’s data output. If controller has a 5-pin
output, use a 5-pin male to 3-pin female adaptor cable (P/N 11820005).
2 Lead the data cable from the controller to the first fixture and plug the cable
into the data input.
Phase-Reversing
Adaptor
Male Female
1
2
3
1
2
3
3-pin to 3-pin
P/N 11820006
Adaptor
Male Female
1
2
3
4
5
1
2
3
5-pin to 3-pin
P/N 11820005
Adaptor
Male Female
1
2
3
1
2
3
4
5
3-pin to 5-pin
P/N 11820004
35000079B.fm Page 12 Thursday, December 9, 1999 11:47 AM

Controller operation 13
3 Connect the output of the fixture closest to the
controller to the input of the next fixture. If
connecting to a fixture with reversed-polarity (pin 3
cold), insert a phase-reversing cable between the two
fixtures.
4 Continue connecting fixtures output to input. Up to
32 devices may be connected on a serial link.
5 Terminate the link by inserting a male termination
plug (P/N 91613017) into the data output of the last
fixture. A termination plug is simply an XLR
connector with a 120 ohm, 0.25 W resistor soldered
across pins 2 and 3.
ADDRESS SELECTION
A control address must be set using the DIP-switch on the rear panel. The control
address, also known as the start channel, is the first channel used to receive
instructions from the controller. The FiberSource QFX 150 uses 5 DMX channels.
Each fixture must be assigned its own address and non-overlapping control
channels for individual control. Two FiberSource QFX 150s may share the same
address, but they will respond identically and individual control will not be
possible.
Important! Disconnect the fixture from power before changing the DIP-
switch setting. Changes take effect after the fixture has been
turned off and back on.
To set the address
1 Select an address for the fixture between 1 and 508 on your controller.
2 Look up the DIP-switch setting for the address on page 14.
3 Disconnect the fixture from power.
4 Set pins 1 through 9 to the ON (1) or OFF (0) position as listed in the table.
5 Set pin 10 to the OFF position.
Male XLR
1
2
3
Male
P/N 91613017
120
Termination Plug
35000079B.fm Page 13 Thursday, December 9, 1999 11:47 AM

14 Controller operation
DIP-SWITCH ADDRESS TABLE
Find the address in the table below. Read the settings for pins 1 - 5 to the left and
read the settings for pins 6 - 9 above the address. “0” means OFF and “1” means
ON.
Important! Pin 10 must be OFF for controller operation.
DIP-Switch Setting
0 = OFF
1 = ON
#90000000011111111
#80000111100001111
#70011001100110011
#60101010101010101
#1 #2 #3 #4 #5
00000 326496128160192224256288320352384416448480
10000 1336597129161193225257289321353385417449481
0 1 0 0 0 2 34 66 98 130 162 194 226 258 290 322 354 386 418 450 482
11000 3356799131163195227259291323355387419451483
00100 43668100132164196228260292324356388420452484
1 0 1 0 0 5 37 69 101 133 165 197 229 261 293 325 357 389 421 453 485
01100 63870102134166198230262294326358390422454486
11100 73971103135167199231263295327359391423455487
0 0 0 1 0 8 40 72 104 136 168 200 232 264 296 328 360 392 424 456 488
10010 94173105137169201233265297329361393425457489
01010 104274106138170202234266298330362394426458490
1 1 0 1 0 11 43 75 107 139 171 203 235 267 299 331 363 395 427 459 491
00110 124476108140172204236268300332364396428460492
10110 134577109141173205237269301333365397429461493
0 1 1 1 0 14 46 78 110 142 174 206 238 270 302 334 366 398 430 462 494
11110 154779111143175207239271303335367399431463495
00001 164880112144176208240272304336368400432464496
1 0 0 0 1 17 49 81 113 145 177 209 241 273 305 337 369 401 433 465 497
01001 185082114146178210242274306338370402434466498
11001 195183115147179211243275307339371403435467499
0 0 1 0 1 20 52 84 116 148 180 212 244 276 308 340 372 404 436 468 500
10101 215385117149181213245277309341373405437469501
01101 225486118150182214246278310342374406438470502
1 1 1 0 1 23 55 87 119 151 183 215 247 279 311 343 375 407 439 471 503
00011 245688120152184216248280312344376408440472504
10011 255789121153185217249281313345377409441473505
0 1 0 1 1 26 58 90 122 154 186 218 250 282 314 346 378 410 442 474 506
11011 275991123155187219251283315347379411443475507
00111 286092124156188220252284316348380412444476508
1 0 1 1 1 29 61 93 125 157 189 221 253 285 317 349 381 413 445 477 509
01111 306294126158190222254286318350382414446478510
11111 316395127159191223255287319351383415447479511
35000079B.fm Page 14 Thursday, December 9, 1999 11:47 AM

Controller operation 15
CONTROLLABLE EFFECTS
LAMP POWER AND RESET
The lamp on command is on channel 1, the address channel. When set up for
controller operation, the lamp remains off until a lamp-on command is sent.
A peak of electric current many times the operating current is drawn briefly when
striking a lamp. Striking many discharge lamps at once may cause a voltage drop
that prevents lamps from striking or trips circuit breakers. When striking multiple
fixtures, space lamp on commands at 5 second intervals.
The lamp can be turned off as well, but then it must be allowed to cool for several
minutes before it can be turned back on. To prevent accidental lamp off commands,
this command only works when the dimmer is closed (ch. 2 < 3) and the twinkle
effect is rotating slowly CCW (ch. 4 > 252). If a hot lamp does not strike, send the
lamp off command and wait several minutes before trying again.
All effects reset to their home positions when the fixture is powered up. There is
also a reset command on channel 1. To prevent accidental resets, the command must
be sent for 5 seconds.
DIMMER
The intensity of the light is controlled from full-off to full-on on channel 2.
COLOR
The color wheel is controlled on channel 3. You can program split-color effects with
continuous scroll, stick to full color positions using stepped scroll, and rotate the
wheel continuously. The speed at which colors fade from one position to another
can be controlled on channel 5, the speed channel.
TWINKLE
The speed and direction of the twinkle effect is controlled on channel 4. When
stopped, the effect wheel returns to its home position where there is a removable
section. The light output can be made more uniform if the twinkle effect is not used
by removing this section.
FADE SPEED
Channel 5 controls the speed of the color wheel, allowing you to achieve variable
fades on controllers without cross-faders. If your controller has cross-faders, and
you use them, then set channel 5 to 0 (tracking), for best results.
35000079B.fm Page 15 Thursday, December 9, 1999 11:47 AM

16 Stand-alone operation
S
TAND
-
ALONE OPERATION
7
CONTROL OPTIONS
The FiberSource QFX 150 can be operated without a controller in stand-alone
mode. This mode provides various combinations of color and twinkle effect that are
selected using DIP-switch pins 1 - 7.
The twinkle effect may by set to off, slow, medium, or fast using DIP-switch pins 1
and 2. If the twinkle effect is not required, a section of the effect wheel can be
removed to increase the uniformity of the output: refer to “To remove or replace the
twinkle wheel section” on page 19.
The speed at which the color wheel moves from one color to the next may be set to
snap, slow, medium, or fast using DIP-switch pins 3 and 4. This setting has no effect
if white or color 1 is selected.
The color or colors are selected using DIP-switch pins 5, 6, and 7. You can select
white, color 1 (position 1), a range of colors, and continuous rotation. If continuous
color wheel rotation is selected, then the color change speed must be slow, medium,
or fast.
If a range of colors is selected, the color wheel holds at position 1 for 1 second,
moves to position 2 at the selected change speed, holds for 1 second, and so on.
When the last position is reached, the color wheel reverses direction. Colors can be
arranged in any order as described under “To change color filters” on page 19.
To set stand-alone behavior
1 Disconnect the fixture from power.
2 Set DIP-switch pins 1 - 7 on or off as shown in the table below to achieve the
desired combination of effects.
3 Set pins 8 and 9 to off. Set pin 10 to on.
4 Apply power to the fixture.
The option setting will take effect and the lamp will automatically strike. Note,
however, that a hot lamp must cool for several minutes before it can be restruck. If
the lamp does not strike, disconnect the fixture from power for several minutes to
reduce strain on the starter while the lamp cools.
35000079B.fm Page 16 Thursday, December 9, 1999 11:47 AM

Stand-alone operation 17
Important! DIP-switch pin 10 must be ON for stand-alone operation.
* Continuous rotation is not available when snap color change is selected.
0 = OFF
1 = ON
pin 1 pin 2 pin 3 pin 4 pin 5 pin 6 pin 7 pin 8 pin 9 pin 10
Effect Setting
no twinkle 0 0 0 0 1
slow twinkle 1 0 0 0 1
medium twinkle 0 1 0 0 1
fast twinkle 1 1 0 0 1
snap color change 0 0 0 0 1
slow color change 1 0 0 0 1
medium color change 0 1 0 0 1
fast color change 1 1 0 0 1
white 000001
color1 100001
color1-2 010001
color1-4 110001
color1-6 001001
color1-8 101001
color1-9 011001
continuousrotation* 111001
35000079B.fm Page 17 Thursday, December 9, 1999 11:47 AM

18 Master/slave operation
M
ASTER
/
SLAVE OPERATION
8
Several FiberSource QFX 150s may be connected together for synchronous
operation without a controller. They are connected together and one, the master, is
set up in stand-alone mode and sends control instructions to the others. Up to 32
fixtures can be can be connected and operated this way.
Important Verify that all slave fixtures are set as described. Damage can
be caused if there is more than 1 device (master fixture or
controller) sending control signals on the serial data link.
To connect and set fixtures for master/slave operation
1 Disconnect all fixtures from power.
2 Plug a 3-pin XLR data cable into the OUT socket of the first fixture and the IN
socket of the next fixture.
3 Continue connecting fixtures output to input. Up to 32 FiberSource QFX 150s
may be connected.
4 Terminate the data link on
both ends. Insert a female
termination plug (P/N
91613018) into the IN socket
of the first fixture. Insert a
male termination plug (P/N
91613017) into the OUT
socket of the last fixture. A
termination plug is an XLR
connector with a 120 ohm,
0.25 W resistor soldered
across pins 2 and 3.
5 Select any one fixture to be the master. Set the desired stand-alone options
using the master’s DIP-switch as described on page 16.
6 On all other fixtures (slaves), set DIP-switch pin 1 to the ON position; set all
other DIP-switch pins to the OFF position.
7 Apply power to the fixtures.
Male XLR
1
2
3
Male
P/N 91613017
120
Female XLR
1
2
3
Female
120
Termination PlugTermination Plug
P/N 91613018
35000079B.fm Page 18 Thursday, December 9, 1999 11:47 AM

Basic service 19
B
ASIC SERVICE
9
The FiberSource QFX 150 requires simple routine maintenance. The maintenance
schedule depends heavily on the operating environment; please consult a Martin
service technician for recommendations.
Any service procedure not described here should be referred to a qualified
technician.
Warning! Disconnect the fixture from power before removing any cover.
Important! Excessive dust, grease, and smoke fluid buildup degrades
performance and causes overheating and damage to the fixture
that is not covered by the warranty.
To change color filters
1 Disconnect the fixture from power. Remove the lamp access cover.
2 Turn the color wheel by hand until the desired filter is accessible.
3 Using a soft cloth or gloves, gently tilt the outside edge of the filter back
towards the lamp to unlock. Remove filter.
4 To place a filter in the wheel, insert the plastic holder between the spring clip
with the protruding tab facing forwards until it snaps into place.
5 Replace the lamp access cover before applying power.
To remove or replace the twinkle wheel section
The twinkle wheel has a removable section for uniform light output when the effect
is not used.
1 Disconnect the fixture from power. Remove the lamp access cover.
2 Turn the twinkle wheel by hand until the removable section is aligned with the
cable socket. Turn the color wheel so that the open position is aligned with the
cable socket.
3 Support the twinkle wheel with one hand and unlock the removable section by
pulling the outside edge back towards the lamp. Grasp the section and pull it
up and out.
4 To replace the section, turn the wheel to the open position and slide the section
between the wheel and the spring clip, with the heads of the screws towards
35000079B.fm Page 19 Thursday, December 9, 1999 11:47 AM

20 Basic service
the cable socket. Center the section and then support the wheel with a finger
from the front as you press the 2 screw heads through the wheel.
5 Replace the lamp access cover before applying power.
To clean optical components
Use care when cleaning optical components. The surface of the color filters is
fragile and small scratches may be visible.
1 Disconnect the fixture from power and allow it to cool completely. Remove the
lamp access cover.
2 Blow or vacuum away loose dust. Remove residues from filters with a soft cloth
or cotton swabs wetted with isopropyl alcohol. Regular glass cleaner may also
be used, but no residues may remain.
3 Rinse with distilled water. Mixing the water with a small amount of wetting
agent such as Kodak Photoflo will help prevent streaking and spotting.
4 Dry with a clean, soft and lint-free cloth or blow dry with compressed air.
To clean the fan and air vents
To maintain adequate cooling, dust must be cleaned from the fan and air vents
periodically.
1 Disconnect the fixture from power.
2 Remove dust and dirt from the fan blades and vent grills using a soft brush,
cotton swab, vacuum, or compressed air.

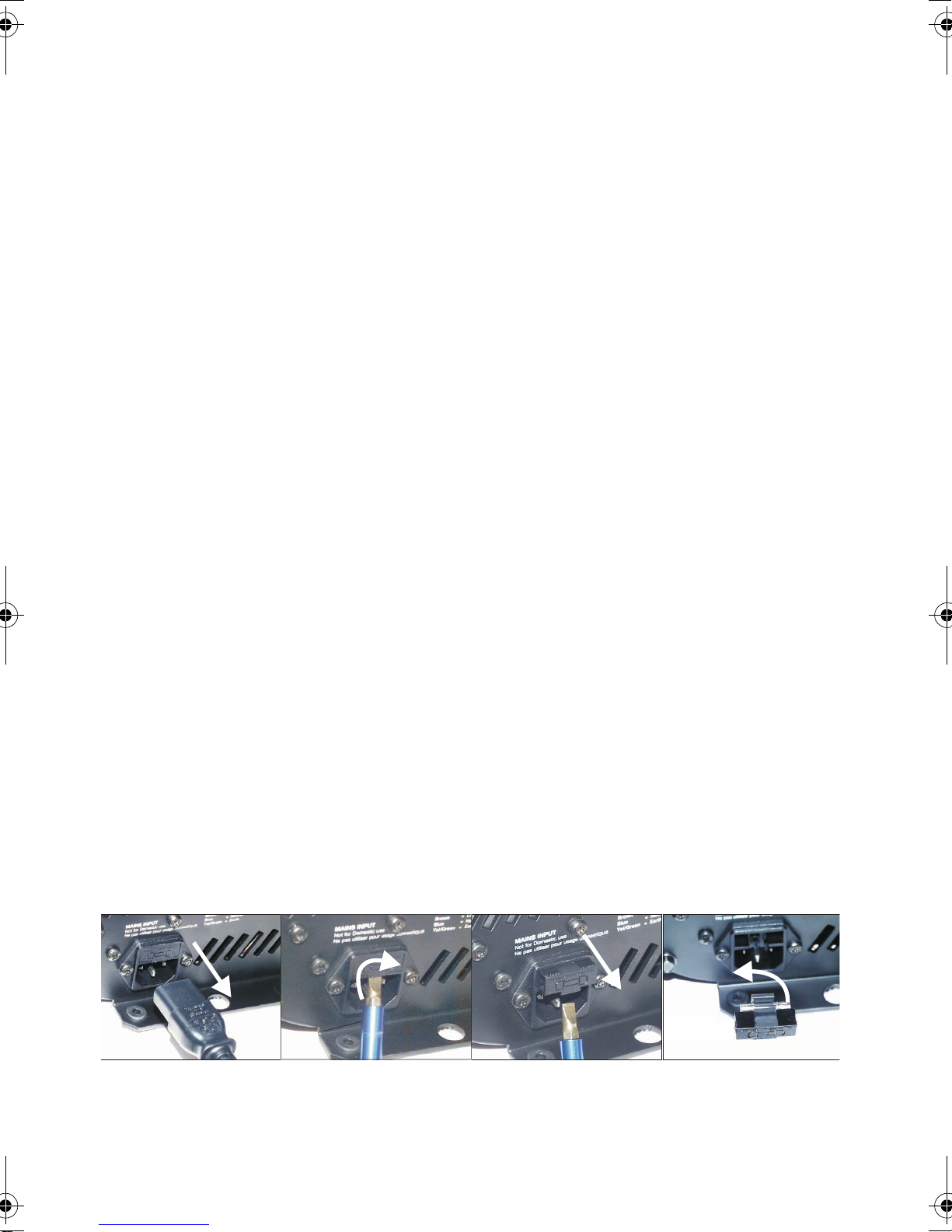

To replace the main fuse
1 Unplug the mains cable from the input socket. Pry open the fuse holder as
shown.
2 Remove the defective fuse and replace it with one of the same type and rating.
3 Replace the fuse holder in the mains input socket.
35000079B.fm Page 20 Thursday, December 9, 1999 11:47 AM
