Martin Brush Cleaner User manual

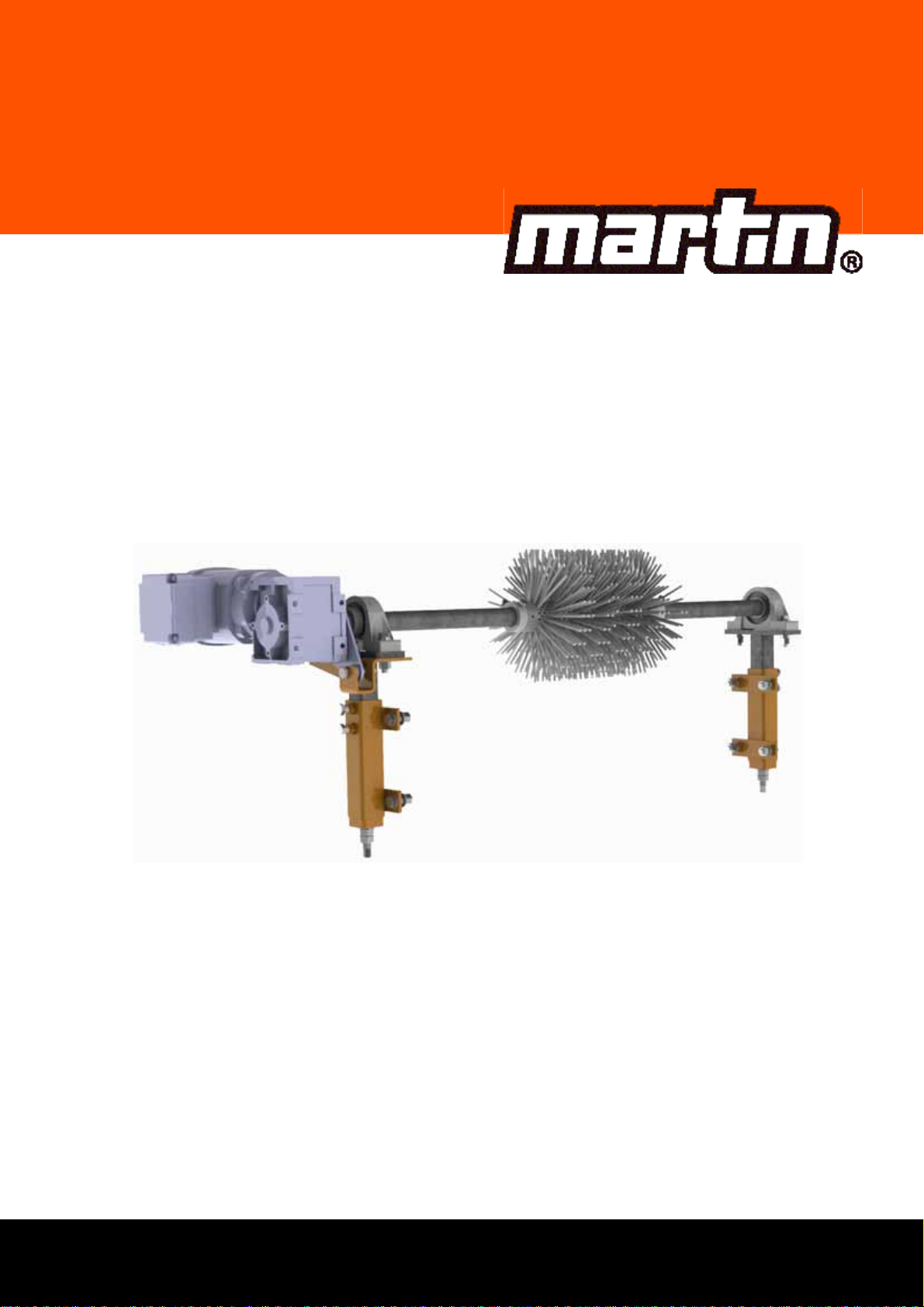

MARTIN®BrushCleanerwith
external Motor
Installation Instructions
M3289UK

© Martin Engineering GmbH M3289UK-01/17

© Martin Engineering GmbH 1 M3289UK-01/17
Table of contents
1 Table of contents
1 Table of contents ............................................................. 1
2 Introduction ...................................................................... 3
2.1 Concerning these installation instructions.......................... 3
2.1.1 Scope ............................................................................ 3
2.1.2 Copyright ....................................................................... 3
2.1.3 Exclusion of liability ....................................................... 3
2.1.4 Reference to additional documents ............................... 4
2.1.5 Classification of the hazards.......................................... 5
2.2 Intended usage .................................................................. 6
2.2.1 Conveyor systems with open transfer systems .............6
2.2.2 Usage in explosion-protected areas .............................. 6
2.2.3 Restrictions on the use of the product ........................... 6
2.3 Occupational safety............................................................ 7
2.3.1 Safety information, occupational safety ......................... 7
2.3.2 Duties of the owner-operator ......................................... 7
2.3.3 Authorised personnel ..................................................... 7
3 Description of the product .............................................. 8
3.1 Design and function ........................................................... 8
3.2 Type clarification ................................................................ 9
4 Preparing for the installation ........................................ 10
4.1 Before the installation....................................................... 10
4.1.1 Required materials and tools ....................................... 10
4.1.2 Preparatory measures ................................................. 10
5 Installation ...................................................................... 11
5.1 Safety information............................................................ 11
5.2 Installation process .......................................................... 12
5.2.1 Determination of the installation position ..................... 12
5.2.2 Installing the tensioner................................................. 16
5.2.3 Installing the cleaner.................................................... 17
5.2.4 Electrical connection.................................................... 19
5.2.5 Centring the mainframe beneath the conveyor belt ..... 20
5.2.6 Aligning the mainframe parallel to the conveyor belt... 22
5.2.7 Aligning the mainframe horizontally ............................. 23
5.2.8 Tensioning the secondary cleaner............................... 24
5.3 Test run............................................................................ 26
5.4 Placement of warning labels and warning tags................ 28
6 Maintenance ................................................................... 29
6.1 Safety information............................................................ 29
6.2 Weekly maintenance........................................................ 29
6.3 Replacement of the cleaning elements............................ 31
6.3.1 Lowering of secondary cleaner.................................... 32
6.3.2 Replace cleaning elements ......................................... 34
7 Troubleshooting ............................................................. 37
7.1 Safety information............................................................ 37
7.2 Troubleshooting .............................................................. 37
8 Storage, de-installation, disposal ................................. 39

© Martin Engineering GmbH 2 M3289UK-01/17
Table of contents
8.1 Packing and transportation .............................................. 39
8.2 Storage............................................................................. 39
8.3 De-installation .................................................................. 39
8.4 Disposal ........................................................................... 39
9 Part numbers .................................................................. 40
9.1 Explanation of part numbers............................................ 40
9.2 MARTIN®Inspection doors .............................................. 40
9.3 Installation manuals ......................................................... 41
9.4 Warning labels / Warning tags......................................... 41
9.5 Accessories and options.................................................. 41
9.5.1 Inspection doors .......................................................... 41
9.5.2 Cleaning elements ....................................................... 41
9.6 Martin®Brush Cleaner....................................................... 42
9.6.1 Technical Specification Angular Gear Motor............... 46
10 Declaration of Incorporation ......................................... 47

© Martin Engineering GmbH 3 M3289UK-01/17
Introduction
2 Introduction
2.1 Concerning these installation instructions
Non-compliancewiththeseinstallation instructions canresult inloss
of compensation for damage and/or warranty claims.
2.1.1 Scope
These installation instructions apply solely for the product described
herein and are intended for those persons who install this product,
commission it, and monitor its usage.
2.1.2 Copyright
The products described and these installation instructions are
protected by copyright. Any reproduction without a licence will be
prosecuted. All rights to the present document are reserved,
including its reproduction and/or copying in any conceivable
manner. Reprints of this document require the written consent of
Martin Engineering.
The technical standard at the time of delivery of the product and its
technical documentation are decisive as long as no other
information is provided. The product and documentation are subject
to technical changes without prior notification. Earlier documents
thenlose theirvalidity. Martin Engineering's GeneralTerms ofSales
and Delivery shall apply.
2.1.3 Exclusion of liability
Martin Engineering guarantees the flawless function of its product in
accordance with its advertising, the published product information,
and its technical documentation. Martin Engineering shall assume no
liability for efficiency and flawless function if the product is used for a
purpose other than that described in the “Intended Use” section or for
damage resulting from the use of accessories and/or spare parts
which were not supplied and/or certified by Martin Engineering.
Martin Engineering products are designed for a long service life.
They correspond to the relevant, current state of the scientific and
technical art and have been thoroughly inspected before delivery.
Martin Engineering also carries out continuous further development
of products as well as product and market research.
Martin Engineering offers competent support whenever
malfunctions and/or technical problems occur. Suitable actions are
taken immediately. The warranty provisions of Martin Engineering
apply and can be sent to you as needed.

© Martin Engineering GmbH 4 M3289UK-01/17
Introduction
2.1.4 Reference to additional documents
Reference is made in these installation instructions to the following
documents:
• Installation instructions for the MARTIN®inspection door
Publication no. M3127.
• Operating instructions for 3-phase motor DR.71-225, 315.
• Installationandoperatinginstructionsforgearboxesoftype
series R..7, F..7, k..7, S..7, SPIROPLAN®W
The following standards and directives were complied with in the
preparation of these installation instructions:
• Machinery Directive (2006/42/EC)
• ISO/IEC Guide 37 “Installation instructions for products
used by consumers”, 1995 Edition
• DIN 1421 “Arrangement and numbering in texts”,
Edition 1983-01
• DIN/EN/ISO 12100 “Safety of machinery - General
principles for design - Risk assessment and risk reduction”,
Edition 2011-03.
• DIN/ISO 16016 “Technical product documentation -
Protection notices for restricting the use of documents and
products“, Edition 2007-12
• DIN/EN 60204-1 “Safety of machines - Electrical
Equipment of Machines, Part 1: General requirements”,
Edition 2007-06
• DIN/EN 1083-1; -2 Power-driven brushes Part 1:
Definitions and nomenclature” and “Part 2: Safety
requirements”, Edition 1997-07.
• DIN EN 82079-1 - Creation of user manuals - Structuring,
content and presentation, Part 1 General principles and
detailed requirements.

© Martin Engineering GmbH 5 M3289UK-01/17
Introduction
2.1.5 Classification of the hazards
DANGER!
Represents an immediately threatening danger which leads to
serious bodily injuries or death if not avoided.
WARNING!
Represents a possibly hazardous situation which could lead to
serious bodily injuries or death if not avoided.
CAUTION!
Represents a possibly hazardous situation which could lead to
minor bodily injuries and/or property damage if not avoided.
NOTE
Contains comments about the installation and/or the product's
usage to point out situations which cause neither personal injury
nor property damage but include important information.

© Martin Engineering GmbH 6 M3289UK-01/17
Introduction
2.2 Intended usage
The secondary cleaner can only be used for the cleaning of
conveyor belts that are used for the transportation of bulk material.
It can be used on conveyor belts with a maximum belt width of
2000 mm and a maximum conveyor speed of 10 m/s.
Every other usage of this product is deemed as misuse. Please
contact Martin Engineering customer service if you would like to use
this product for a different purpose. We will be happy to assist you
with the product configuration.
2.2.1 Conveyor systems with open transfer systems
These installation instructions describe the installation on conveyor
systems with encapsulated transfer systems. Various MARTIN®
installation brackets can be used on open transfer systems.
Martin Engineering or one of its representatives can assist with the
positioning or with special solutions in cases where the installation
conditions are complicated such as insurmountable static
components or a head pulley as the tensioning station.
2.2.2 Usage in explosion-protected areas
This product may not be used in explosion-endangered areas.
2.2.3 Restrictions on the use of the product
The product specified here may only be used within the scopeof the
specifications referred to above. Usage in a higher equipment
protection category or under other operating conditions than those
specified by Martin Engineering shall be deemed misuse and is only
permitted if approved by Martin Engineering.
Martin Engineering or one of its representatives can assist you with
the product configuration if you need to use this product for
a different purpose.

© Martin Engineering GmbH 7 M3289UK-01/17
Introduction
2.3 Occupational safety
2.3.1 Safety information, occupational safety
These installation instructions must be read through in their entirety
before work may be started on the product or on the conveyor
system supplied by the customer.
The owner-operator must ensure that all installation, inspection and
maintenance work is performed solely by trained specialists.
Work on conveyor systems and their accessories must always be
performed during shut-down. The procedures described in the
applicable installation instructions for shutting down the conveyor
belt system must always be complied with.
All of the safety devices and safeguards must be reattached and/or
made operational again immediately following completion of the
work.
The installation must be carried out tocompletion before the system
is started up. The flawless execution of all operating steps must be
tested before the conveyor system can be started up again. Please
observe all information on the installation and start-up of the
product.
2.3.2 Duties of the owner-operator
This product's owner-operator must ensure that this product is
installed, serviced and used solely by those persons who
• know the rules regarding occupational safety and accident
prevention,
• were trained on using this product and have read and
understood these installation instructions.
2.3.3 Authorised personnel
Personnel are considered authorised when they have suitable
training and technical experience, can demonstrate knowledge of
the applicable standards and guidelines, and are able to evaluate
tasks in order to recognise critical situations at an early stage.
Operating, maintenance and installation personnel
Personnel are considered authorised when they have been trained
on using the product and have read and understood these operating
instructions in their entirety.

© Martin Engineering GmbH 8 M3289UK-01/17
Description of the product
3 Description of the product
3.1 Design and function
The product is provided especially for cleaning difficult profile belts,
e.g. chevron or slatted belts, and baked-on material. It is largely
used as a single cleaning system; can however also be used in
combination with a main cleaner.
The product installation is centred below the head pulley so as to
feed the bulk solid back into the material stream. If by the use of this
product, the material handling process is interrupted or the product
contaminated, the user is responsible for taking any counter
measures necessary.
Various bristle materials can be selected for a very large range of
applications. For this, there are two different materials (polyester
and brass) availablethat are specified in more detail in thetechnical
data sheet. These are available for selection inthree different bristle
patterns (full, spiral-shaped and straight).
Only the same material and bristle pattern type can be used
together. A mixture of different material and bristle pattern is not
intended and must be checked in any individual case.
NOTE
An unfavourably or improperly installed product can disrupt the
conveyor process or contaminate the bulk material to be
transported.
The owner-operator is responsible for taking the required
countermeasures.
In the case of applications with contaminants, Martin Engineering
or one of its representatives can assist with the positioning or with
special solutions.

© Martin Engineering GmbH 9 M3289UK-01/17
Description of the product
3.2 Type clarification
There are three different bristle patterns available in the brushes for
the product. A selection matrix for usage options is shown in the
appropriate data sheet.
full trim spiral-shaped straight

© Martin Engineering GmbH 10 M3289UK-01/17
Preparing for the installation
4 Preparing for the installation
4.1 Before the installation
4.1.1 Required materials and tools
No special tools are required for the installation and maintenance of
the product.
4.1.2 Preparatory measures
1. Inspect the delivery for the following conditions:
• Is the delivery complete? Does the number of pallets/
crates/containers delivered match the number on the
delivery note?
• Do all of the transport packages appear to be undamaged?
Does damage to the packaging exist which indicates
damage to the product contained inside?
2. Always record any incompleteness or transport damage
discovered in the delivery andhave it confirmed by the shipper.
All damaged products must be kept for inspection.
3. The delivery should include the following parts, depending on
the scope of the order:
• Brush cleaners incl. two tensioners.
• Two Conveyor Products Warning Labels:
Part no. 23395
• Installation instructions
4. Report any missing or damaged parts to Martin Engineering or
one of its authorised dealers.
NOTE
Perform the inspections carefully and completely as described.
The shipping company is liable for any transport damage!
Please contact the shipper with any damage claims.
NOTE
An unfavourably or improperly installed product can disrupt the
conveyor process or contaminate the bulk material to be
transported.
The owner-operator is responsible for taking the required
countermeasures.
In the case of applications with contaminants, please seek the
advice of Martin Engineering or
one of its representatives.

© Martin Engineering GmbH 11 M3289UK-01/17
Installation
5 Installation
5.1 Safety information
NOTE
Read this section completely before starting any kind of work!
WARNING! RISK OF INJURY!
Body parts and/or clothing may get caught and pulled in by
rotating parts or by the moving conveyor belt.
Before any installation or maintenance work is carried out, ensure
that all power sources to the conveyor belt system and its
accessories are switched off and secured against unauthorised
reactivation. Use warning signs!
WARNING! RISK OF EXPLOSION!
Increased risk when using a cutting torch or welding device in
closed rooms!
Check the gas and dust content of the air before usage.
NOTE
The chute wall on which the angular geared motor is installed is
designated in the following as the "operator side". The opposite
chute wall is referred to as the "opposite side".

© Martin Engineering GmbH 12 M3289UK-01/17
Installation
5.2 Installation process
5.2.1 Determination of the installation position
The position of the axle and the tensioning device of the secondary
cleaner must be determined on both sides of the chute wall. In this
process, the positions are therefore determined for where the shaft
of the secondary cleaner is routed through the chute wall and/or
where the tensioner is installed on the chute wall.
The secondary cleaner is delivered jointly with a tensioner. This is
delivered as a work´s dismantled unit and will be installed together
with the secondary cleaner during the general installation.
The installation process forthe secondary cleaner and the tensioner
is described in the supplied installation instructions.
An overview of the installation steps follows:
Various on-site conditions requiring different work steps are
possible for the installation. These are presented as follows:
Installation on an encapsulated transfer system
• Follow the instructions given in Section 5.2.2.
Installation on an encapsulated transfer system with pre-existing
installation openings and air line brackets for belt cleaners.
• Follow the instructions given in Section 5.2.3.
Installation on an open transfer system
• Use the equipment provided at the site to comply with the
dimensions for correct installation.
No. Installation step Instructions
1 Determining the installation position M3289
2Installing the cleaner M3289
3 Installing the tensioner M3289
4Tightening the cleaner M3289
Tab. 1:

© Martin Engineering GmbH 13 M3289UK-01/17
Installation
NOTE
Martin Engineering recommends installing a MARTIN®inspection
door for the purpose of better accessibility for maintenance and
repairs.
NOTE
The secondary cleaner should ideally be installed near a head
pulley or a counter-pressure roller. The clearance should not be
more than 200 mm.
NOTE
The installation position is to be so selected that sufficient space is
available for the installation of the MARTIN®brush cleaner.
This distance should lie at least 350 mm outside the chute wall on
the operator side and at least 100 mm on the opposite side.

© Martin Engineering GmbH 14 M3289UK-01/17
Installation

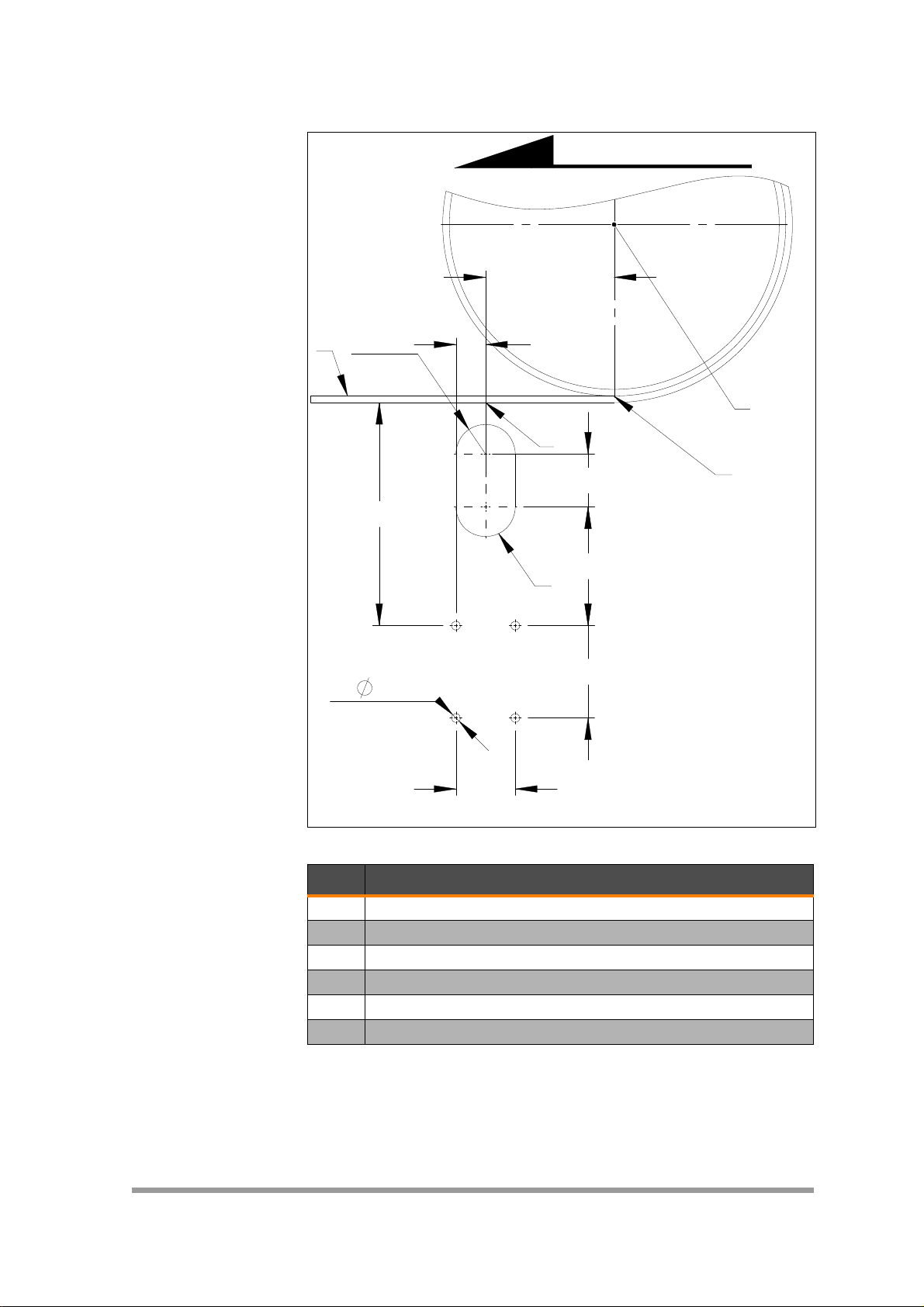

Fig. 1:
Pos. Description
A Conveyor belt
BCentre point of the driving drum
C Exit point of the conveyor belt from the driving drum
DSlot
E Installation holes in the tensioner
FPosition of the brush ends of the conveyor belt cleaner
90
140
E
13,5
305
180
45
80
R45
min. 50
max. 200
Conveying direction
A
B
C
D
F

© Martin Engineering GmbH 15 M3289UK-01/17
Installation
1. Deactivate the conveyor system and all accessories before
starting the installation work and secure them against
inadvertent reactivation.
2. Mark the vertical and horizontal centre line of the driving drum
on the operator side of the chute wall to determine the centre
point (B, Fig. 2) of the driving drum. Extend the vertical
centreline to determine the point C.
3. Mark a position (F, Fig. 2) at a distance from 50 to no more than
200 mm in the conveying direction (A, Fig. 2) from the point at
which the belt leaves the head pulley (C, Fig. 2).
4. Draw a vertical line at this position (F, Fig. 2) going downwards
at a right angle to the conveyor belt.
5. Use the dimensions from Figure 2 to mark the installation holes
for the tensioner.
6. Create the slot-shaped cut-out and installation holes as shown
in Figure 2.
7. Repeat steps 1 to 6 on the opposite side of the chute wall.

© Martin Engineering GmbH 16 M3289UK-01/17
Installation
5.2.2 Installing the tensioner
1. Attach the tensioner (1, Fig. 3) to the chute wall using the
installation holes shown in Fig. 2
2. Repeat step 1 on the opposite side.

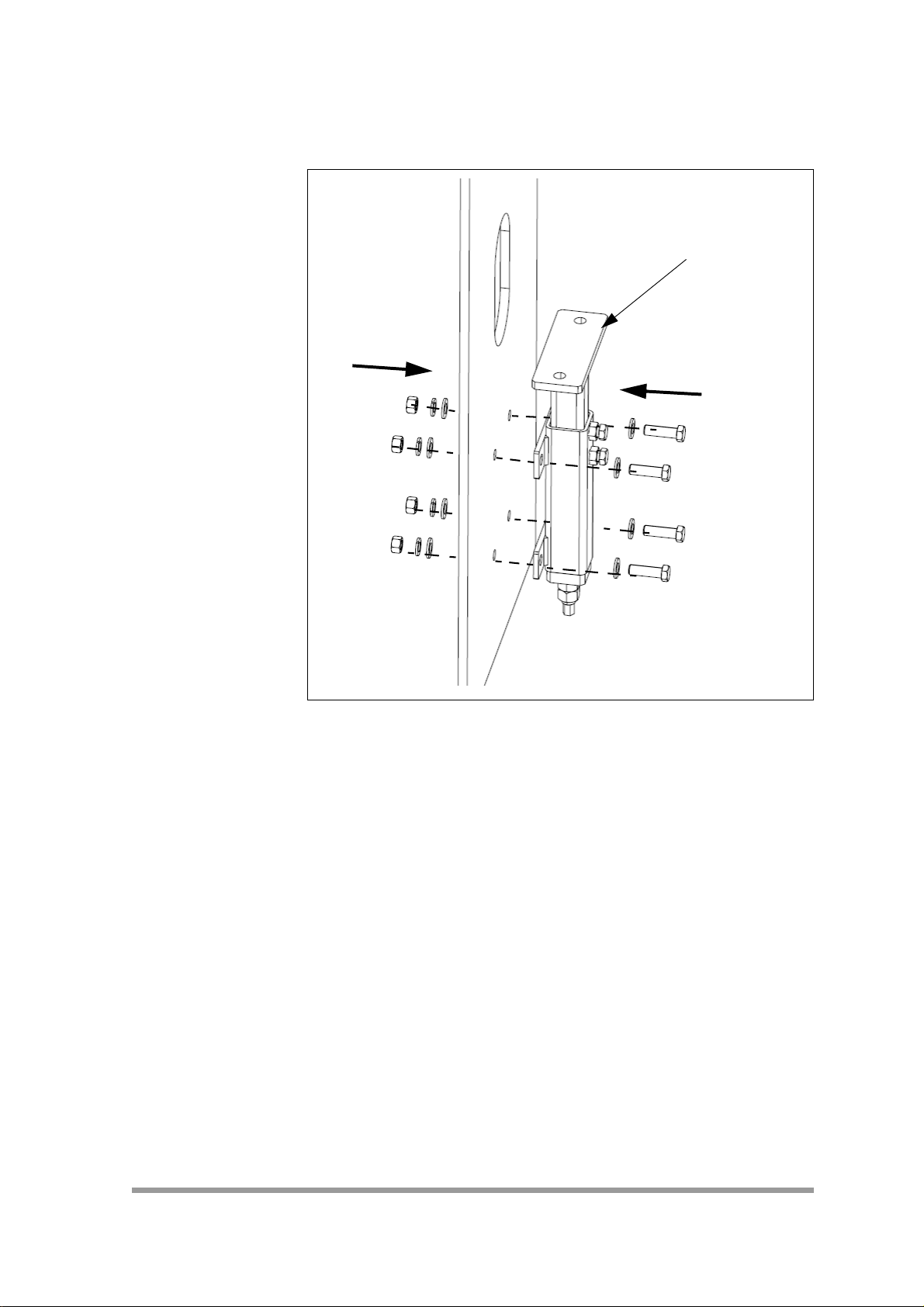

Fig. 2:
1

© Martin Engineering GmbH 17 M3289UK-01/17
Installation
5.2.3 Installing the cleaner
1. Fix the pillow block (3, Fig. 4) on both sides of the main shaft
(2, Fig. 4) .
2. Slide the main axle (2, Fig. 4) though the two slots (4, Fig. 4) in
chute wall.
3. Secure the pillow blocks (3, Fig. 4) using the bolts (5, Fig. 4) to
the tensioners (6, Fig. 4).
4. Insert the feather key into the axle, if not already done.
WARNING! RISK OF INJURY!
The secondary cleaner is heavy and can cause serious injuries if it
is dropped during lifting or moving.
Always use a suitable lifting device or engage the help of several
persons when lifting the brush cleaner. Do not stand under
hanging loads.
NOTE
Check the oil level in the angled gearbox of the motor before
installing.
Observe the information in the manufacturer's documentation
supplied with the device.

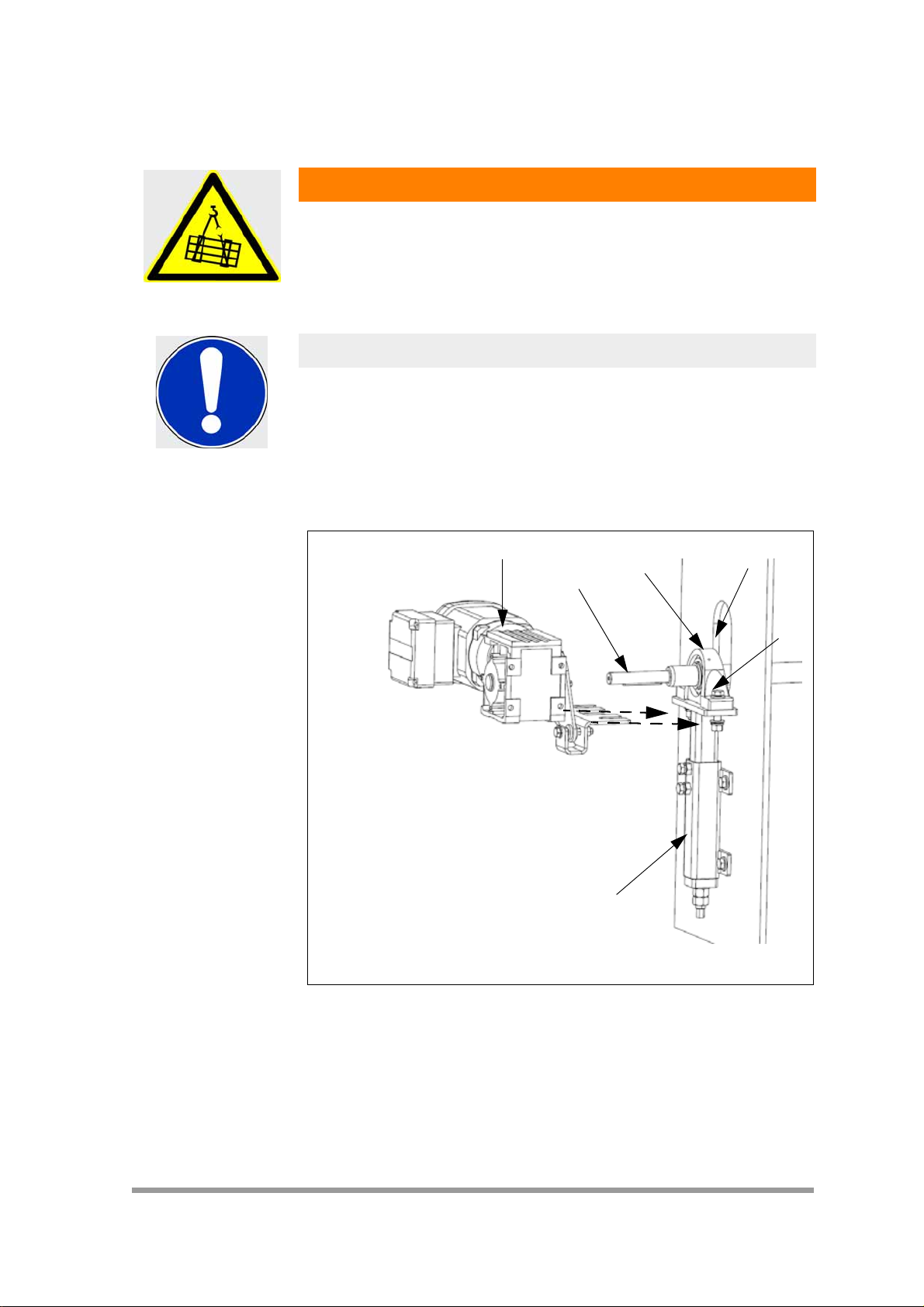

Fig. 3:
134
2
5
6

© Martin Engineering GmbH 18 M3289UK-01/17
Installation
5. Push the angled gearbox motor with mounting plate for motor
torque support (1, Fig. 4) onto the shaft.
6. Fix bolts (4, Fig. 4) of the pillow block on both sides with the
nuts.

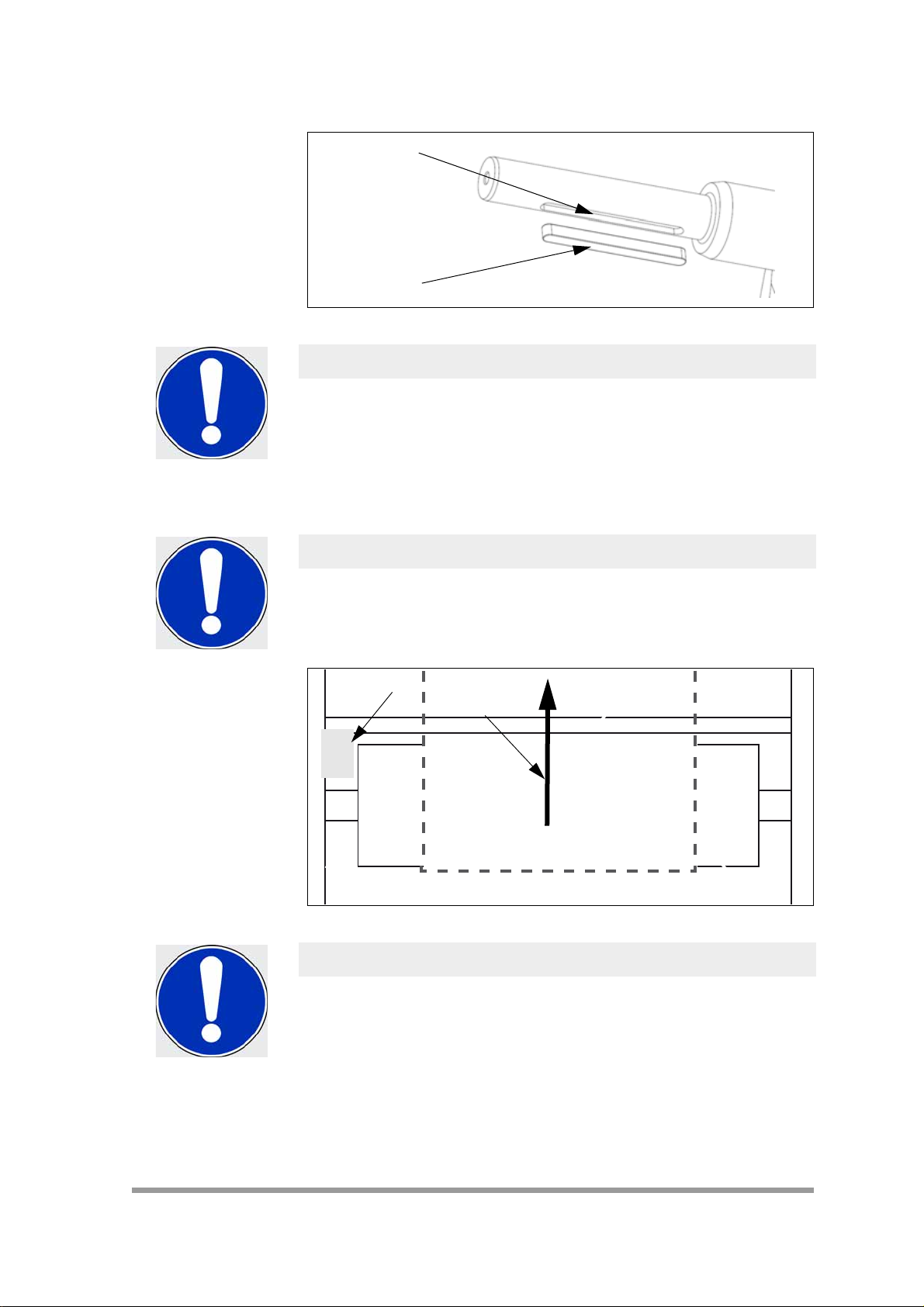

Fig. 4:
NOTE
Make sure that the feather key (2, Fig. 5) lies in the keyway
(1, Fig. 5) of the axle.
NOTE
The mounting plate must be installed from below onto the
tensioner. The angled gearbox motor should always be placed on
the shaft flush with the conveyor belt.
Fig. 5:
NOTE
The angled gearbox motor (1, Fig. 6) can only be mounted in the
transport direction (2, Fig. 6) on the left side, a changeover to the
right side is not possible.
1
2
12
