Operator’s Manual
M3735
MARTIN®PIT VIPER™
Belt Cleaner

Important
MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO
CONTAMINATION OF THE MATERIAL; USER’S FAILURE TO INSPECT, MAINTAIN AND TAKE
REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR
APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS
CONTAINED HEREIN. MARTIN ENGINEERING’S LIABILITY SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.
Observe all safety rules given herein along with owner and Government standards and regulations. Know
and understand lockout/tagout procedures as defined by American National Standards Institute (ANSI)
z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources -
Minimum Safety Requirements and Occupational Safety and Health Administration (OSHA) Federal
Register, Part IV, 29 CFR Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule.
The following symbols may be used in this manual:
DANGER
!
Danger: Immediate hazards that will result in severe personal injury or death.
WARNING
!
Warning: Hazards or unsafe practices that could result in personal injury.
CAUTION
!
Caution: Hazards or unsafe practices that could result in product or property damages.
IMPORTANT
Important: Instructions that must be followed to ensure proper installation/operation of equipment.
NOTE
Note: General statements to assist the reader.

Martin Engineering M3735-03/09 iMARTIN® PIT VIPER™Belt Cleaner
Table of Contents
Section Page
List of Figures and Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installations without chutework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Belt cleaner inspection access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Before Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before Installing Belt Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Locating and cutting mounting holes. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Installing mainframe and blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
After Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Weekly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Table of Contents

Martin Engineering M3735-03/09 ii MARTIN® PIT VIPER™Belt Cleaner
List of Figures
Figure Title Page

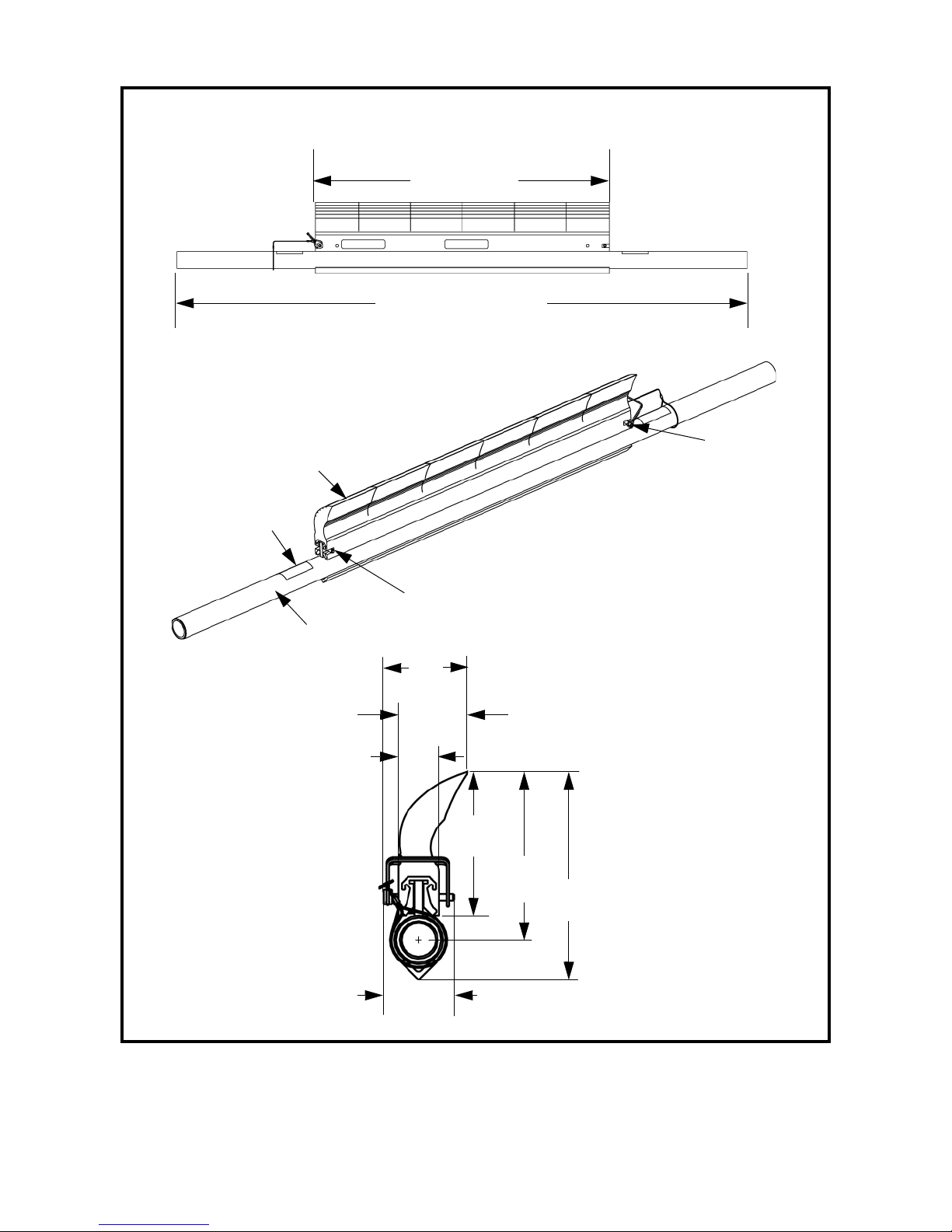

1 MARTIN®PIT VIPER™ Belt Cleaner Assembly, P/N PV1S-XXXXXXXXXX . . . 14,15
2 Conveyor Products Warning Label, P/N 23395 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
List of Tables
Table Title Page
IMARTIN
®PIT VIPER™ Belt Cleaner Assembly Part Numbers. . . . . . . . . . . . . . 15
II MARTIN®PIT VIPER™ Belt Cleaner Blade Part Numbers . . . . . . . . . . . . . . . . . 16
List of Figures/Tables

Martin Engineering M3735-03/09 1MARTIN®PIT VIPER™Belt Cleaner
Introduction
General To introduce product back into the product flow, a Pre-Cleaner is installed on
the face of the head pulley. On a dual cleaner system, the Secondary Cleaner
is installed immediately following the Pre-Cleaner to remove stubborn
material left on the conveyor belt. If a Pre-Cleaner cannot be used because of
space limitations, the Secondary Cleaner is installed alone. If the material-
handling process or product could be affected by contamination from the use
of these belt cleaners, the user is responsible for taking the necessary steps to
prevent contamination. Consult Martin Engineering or a representative for
alternate belt cleaners or belt cleaner locations to use where contamination
may be an issue.
Installations
without chutework
These procedures were written for equipment that is being installed on
enclosed pulley chutework. If the pulley is not enclosed, the equipment should
be installed using the best available field resources and methods to ensure that
the critical dimensions are followed for proper installation.
Belt cleaner
inspection access
If the belt cleaner is installed on enclosed pulley chutework, a MARTIN®
Inspection Door should be installed. MARTIN®Inspection Doors are
available from Martin Engineering or a representative. See “Part Numbers”
for a list of MARTIN®Inspection Doors and part numbers.
References The following documents are referenced in this manual:
• American National Standards Institute (ANSI) z244.1-1982, American
National Standard for Personnel Protection - Lockout/Tagout of Energy
Sources - Minimum Safety Requirements, American National Standards
Institute Inc., 1430 Broadway, New York, NY 10018.
• Federal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910,
Control of Hazardous Energy Source (Lockout/Tagout); Final Rule,
Department of Labor, Occupational Safety and Health Administration
(OSHA), 32nd Floor, Room 3244, 230 South Dearborn Street,
Chicago, IL 60604.
Introduction

Martin Engineering M3735-03/09 2MARTIN®PIT VIPER™Belt Cleaner
Safety All safety rules defined in the above documents and all owner/employer safety
rules must be strictly followed when working on the belt cleaner.
DANGER
!
Do not touch or go near the conveyor belt or conveyor
accessories when the belt is running. Your body or clothing
can get caught and you can be pulled into the conveyor,
resulting in severe injury or death.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner/
tensioner, turn off and lock out/tag out all energy sources to
the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
WARNING
!
Before using a cutting torch or welding the chute wall, cover
the conveyor belt with a fire retardant cover. Failure to do so
can allow the belt to catch fire.
WARNING
!
Remove all tools from the installation area and conveyor belt
before turning on the conveyor. Failure to do so can cause
serious injury to personnel or damage to the belt and
conveyor.
WARNING
!
Mainframe with blade can be heavy and may require two
people to lift. Attempting to lift the belt cleaner without
assistance could result in injury.
Introduction

Martin Engineering M3735-03/09 3MARTIN®PIT VIPER™Belt Cleaner
Before Installing Belt Cleaner
IMPORTANT
The delivery service is responsible for damage occurring in
transit. Martin Engineering CANNOT enter claims for
damages. Contact your transportation agent for more
information.
1. Inspect shipping container for damage. Report damage to delivery service
immediately and fill out delivery service’s claim form. Keep any damaged
goods subject to examination.
2. Remove belt cleaner assembly from shipping container.
3. If anything is missing contact Martin Engineering or a representative.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner/
tensioner, turn off and lock out/tag out all energy sources to
the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
4. Turn off and lock out/tag out energy source according to ANSI standards
(see “References”).
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
5. If using a cutting torch or welding, test atmosphere for gas level or dust
content. Cover conveyor belt with fire retardant cover.
IMPORTANT
Center the belt cleaner blades to clean an area narrower than
the conveyor belt width. This allows for side-to-side
movement of the belt and prevents damage to the belt edge.
NOTE
The chute wall that the tensioner will be located on is referred
to as the “operator side.” The other side of the chute is
referred to as the “far side.” (If installing dual tensioners, side
that is most accessible is “operator side.”)
6. Determine which side of chute is easiest to access. Locate the tensioner
on the most accessible chute wall.
Before Installation

Martin Engineering M3735-03/09 4MARTIN®PIT VIPER™Belt Cleaner

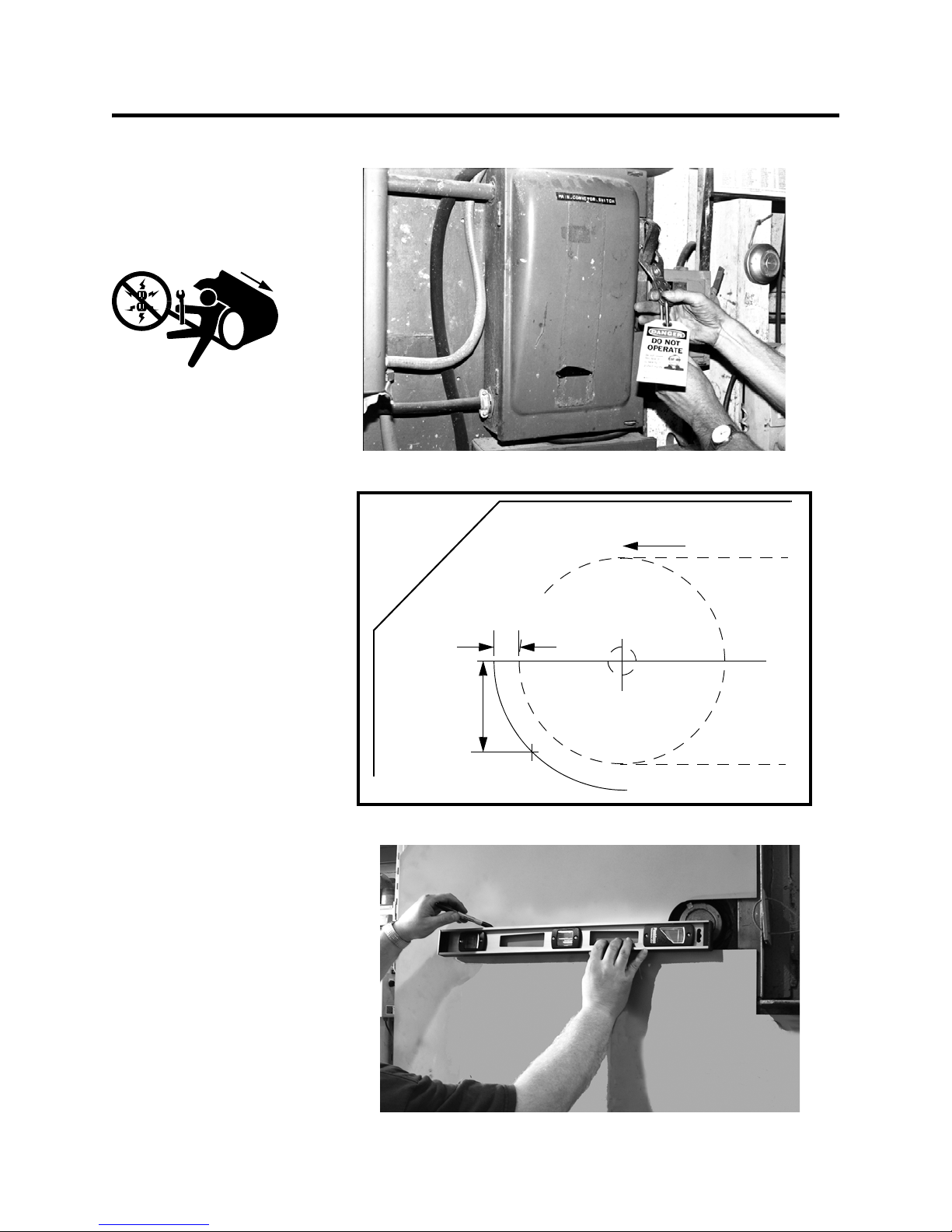

Installation
Locating and
cutting mounting
holes
1
2
C
L
7.50 (191)
min.
(70-76)
2.75-3.00
X =
Operator Side
Installation

Martin Engineering M3735-03/09 5MARTIN®PIT VIPER™Belt Cleaner

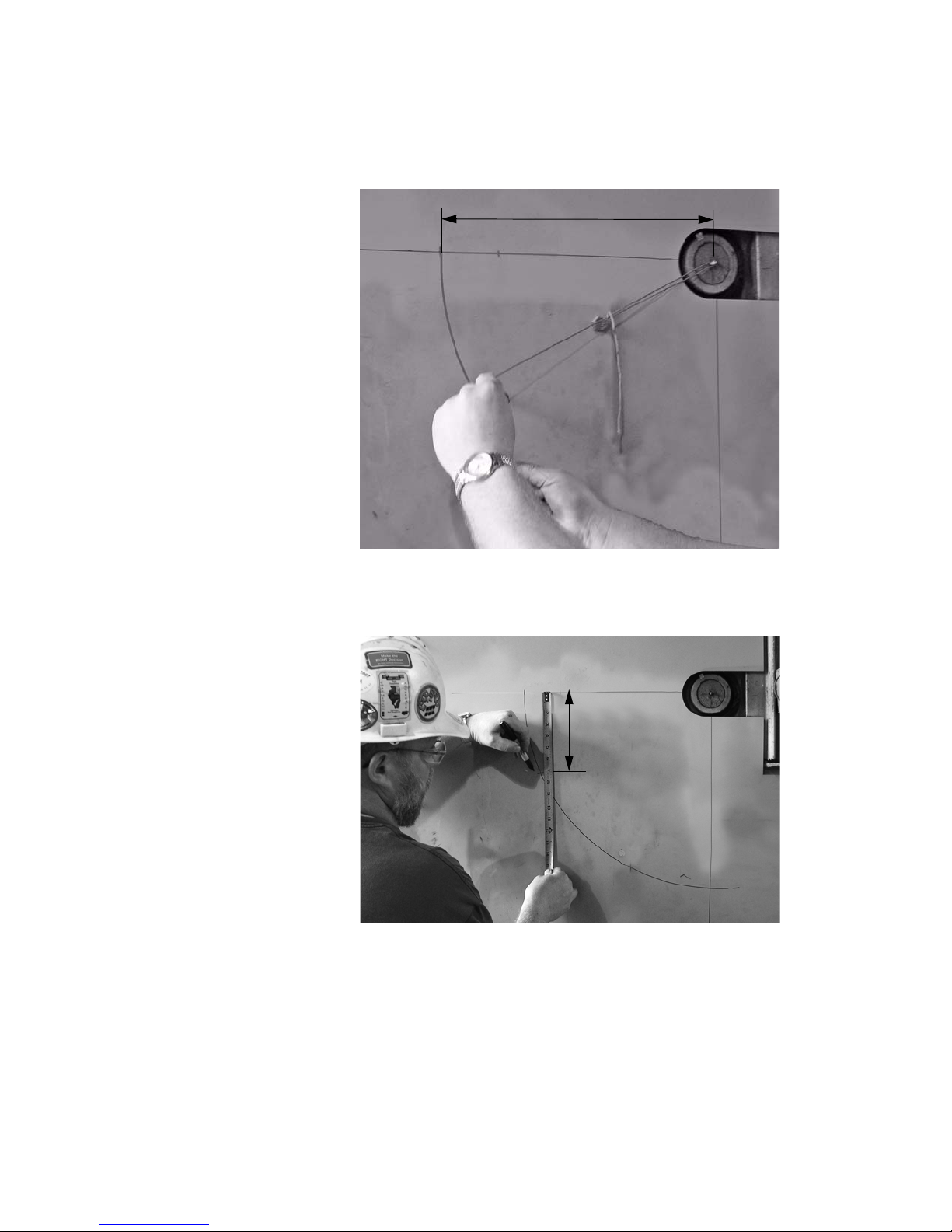

2 (cont.)
C
L
Pulley Radius + Lagging Thickness +
C
L
7.50
(191)
Min.
Belt Thickness + X
Installation

Martin Engineering M3735-03/09 6MARTIN®PIT VIPER™Belt Cleaner

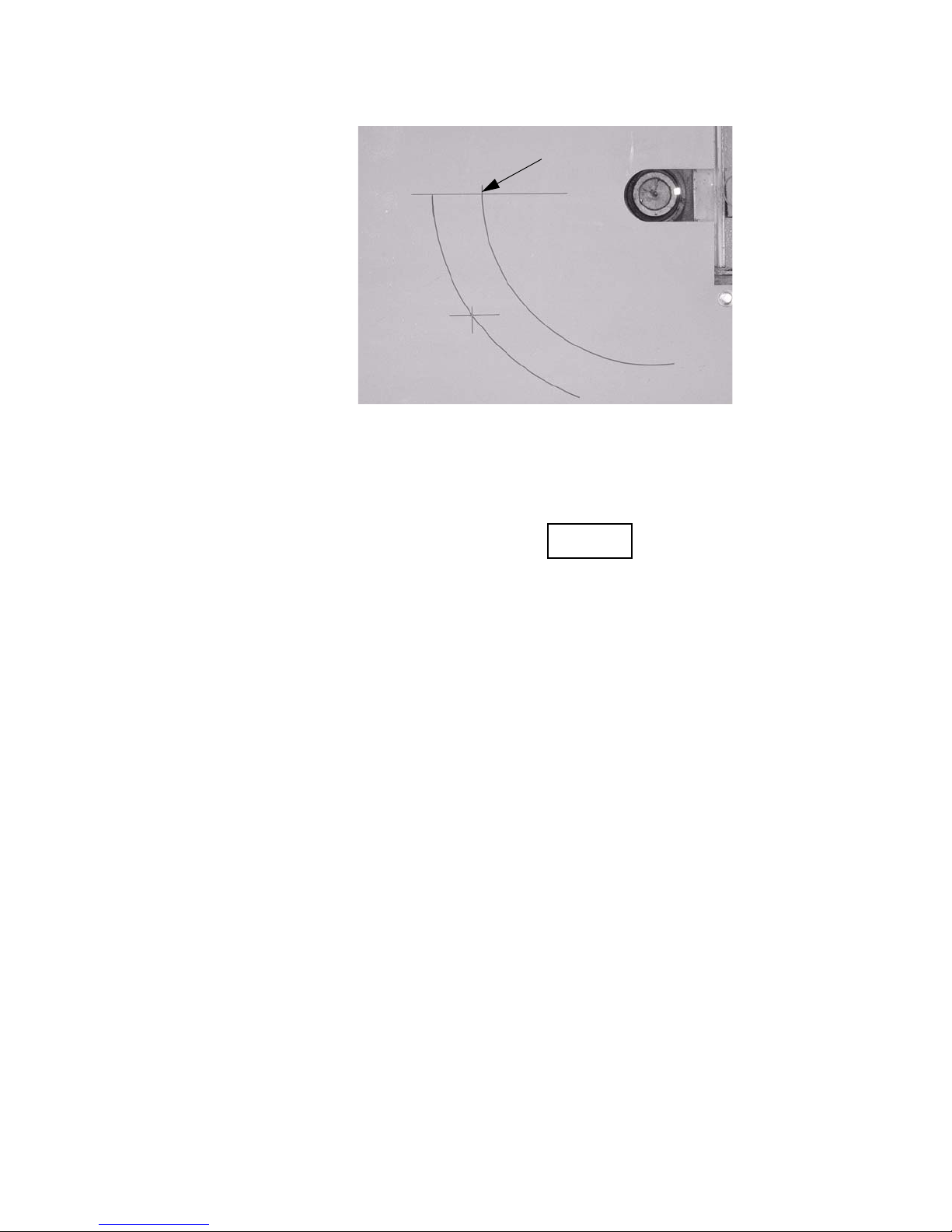

3
4 Repeat steps 2 and 3 on far side of chute.
NOTE
Refer to applicable tensioner manual for tensioner installation
procedure.
Head Pulley Face
Installation

Martin Engineering M3735-03/09 7MARTIN®PIT VIPER™Belt Cleaner

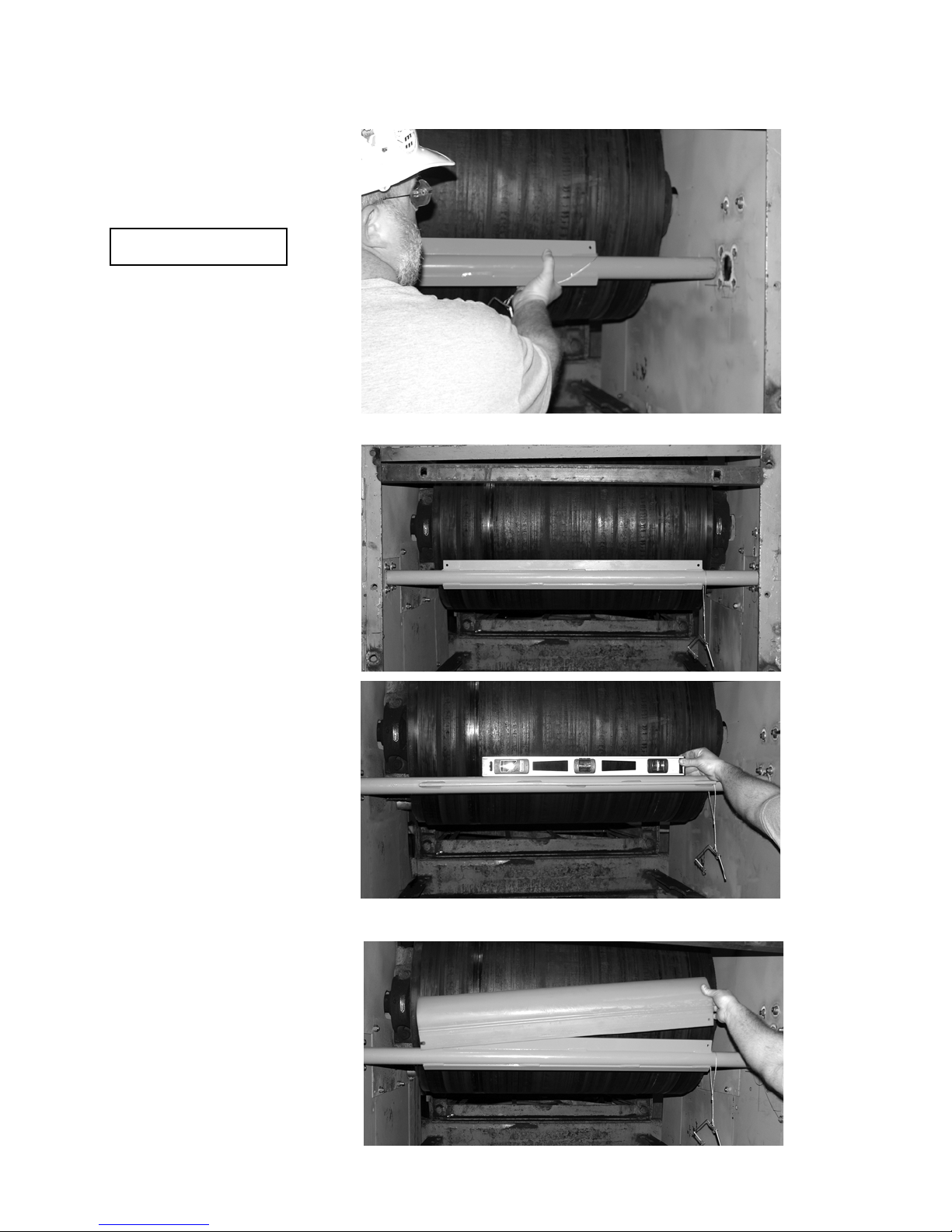

Installing
mainframe and
blade
1
2
Installation
IMPORTANT
If mainframe is too long
to fit inside chute for
installation, cut one or
both ends of mainframe.

Martin Engineering M3735-03/09 8MARTIN®PIT VIPER™Belt Cleaner
3
4 Center cleaner blade on pulley.
NOTE
Refer to applicable tensioner manual to complete installation
and adjustment of tensioner.
Installation

Martin Engineering M3735-03/09 9MARTIN®PIT VIPER™Belt Cleaner
After Installing Belt Cleaner
1. Thoroughly wipe chute wall clean above tensioner.

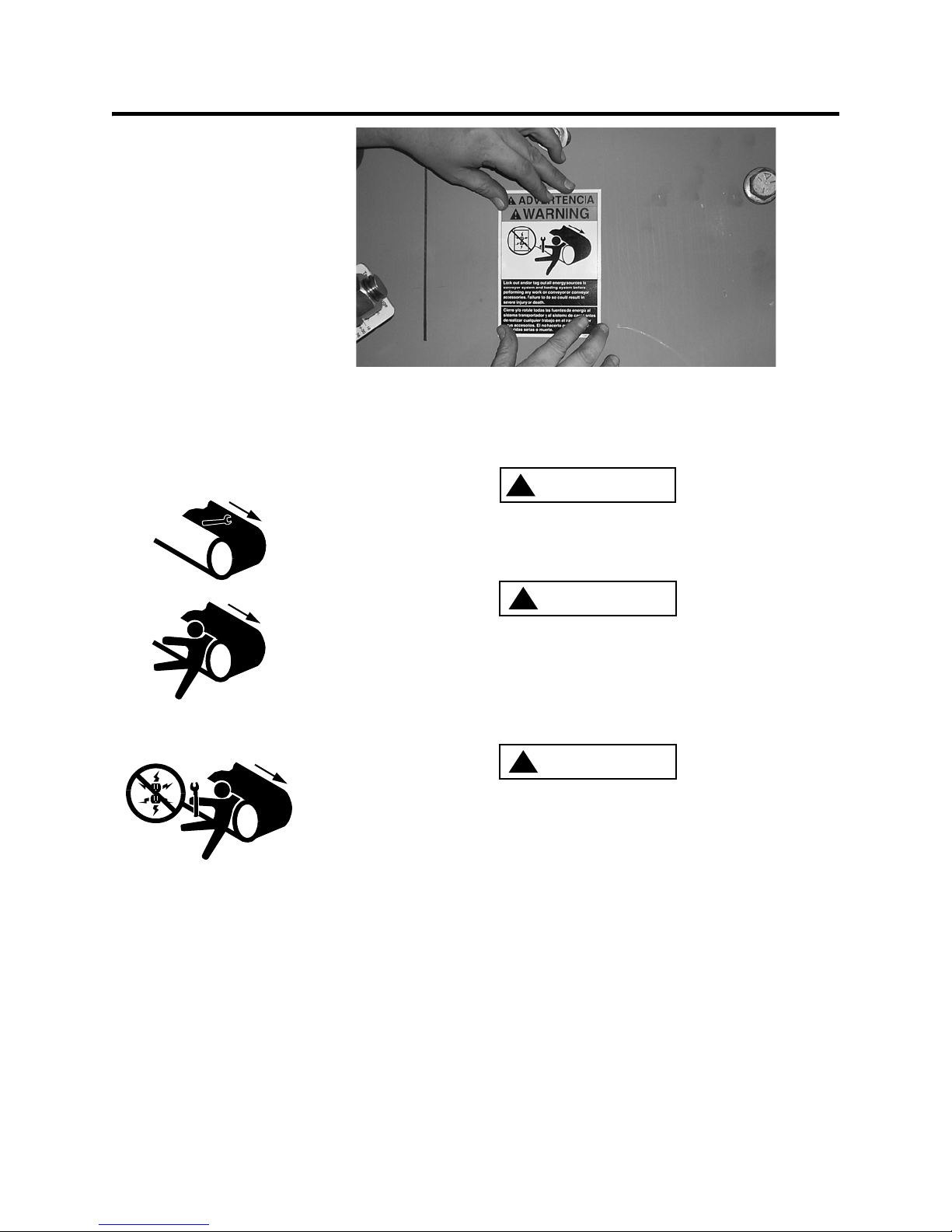

2. Place Conveyor Products Warning Label (P/N 23395) on outside chute
wall visible to belt cleaner operator.
WARNING
!
Failure to remove tools from installation area and conveyor
belt before turning on energy source can cause serious injury
to personnel and damage to belt.
DANGER
!
Do not touch or go near conveyor belt or conveyor accessories
when conveyor belt is running. Body or clothing can get
caught and pull body into conveyor belt, causing severe injury
or death.
3. Turn on conveyor belt for 1 hour, then turn off.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner/
tensioner, turn off and lock out/tag out all energy sources to
the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
4. Make sure all fasteners are tight. Tighten if necessary.
5. Inspect belt cleaner for the following:
• Wear. (A small amount of “break-in” wear may be found. This will
stop once blades wear to conveyor belt contour.)
• Material buildup. (No material between blades and return side of
conveyor belt should be found.)
6. If wear, material buildup, or some other problem exists, see
“Troubleshooting.”
After Installation

Martin Engineering M3735-03/09 10 MARTIN®PIT VIPER™Belt Cleaner
Weekly Maintenance
IMPORTANT
Read entire section before beginning work.
NOTE
Maintenance inspection should be performed no less than
weekly. Some applications may require more frequent
maintenance inspections.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner/
tensioner, turn off and lock out/tag out all energy sources to
the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
1. Remove any material from belt cleaner.
2. Make sure all fasteners are tight. Tighten if necessary.
3. Check tension on cleaner. Re-tension if necessary.
4. Wipe all labels clean. If labels are not readable, contact Martin
Engineering or a representative for replacements.
5. Check blades for excessive wear. Replace if necessary.
6. Remove equipment from service if there is any indication it is not
functioning properly. Call Martin Engineering or a representative for
assistance. Do NOT return equipment to operation until the cause of the
problem has been identified and corrected.
WARNING
!
Failure to remove tools from installation area and conveyor
belt before turning on energy source can cause serious injury
to personnel and damage to belt.
7. Remove all tools from maintenance area.
DANGER
!
Do not touch or go near conveyor belt or conveyor accessories
when conveyor belt is running. Body or clothing can get
caught and pull body into conveyor belt, causing severe injury
or death.
8. Start conveyor belt.
Weekly Maintenance

Martin Engineering M3735-03/09 11 MARTIN®PIT VIPER™Belt Cleaner
Troubleshooting
NOTE
Conveyor equipment such as conveyor belt cleaners are subject to a wide variety of bulk materials
characteristics and often have to perform under extreme operating or environmental conditions. It is
not possible to predict all circumstances that may require troubleshooting. Contact Martin
Engineering or a representative if you are experiencing problems other than those listed in the
“Troubleshooting” chart above. Do not return the equipment to operation until the problem has been
identified and corrected.
Installation
checklist
If after taking the corrective actions suggested under “Troubleshooting” you
are still experiencing problems, check for the following:
Symptom Corrective Action
Insufficient cleaning and
carryback.
• Tension of cleaner on belt is set too low or too high. Increase or
decrease tensioner setting.
• Blades are worn. Check blades and replace if necessary.
Noise or vibration.
Tension is not sufficient or is set too high. Correct tension as
necessary. If this does not correct problem, blade urethane may not
match application. Contact Martin Engineering or representative.
High blade wear rate. Tension of cleaner on belt is set too high. Reduce tensioner setting.
Unusual wear or damage to
blades. Check belt splice(s) and repair as necessary.
Bent or broken mainframe
or support frame due to
blade slipping through.
If blades are worn to or past the wear line, replace blades. If blades
are not worn, check mainframe location.
Corrosion or chemical
degradation.
Blade urethane may not match application. Contact Martin
Engineering or representative.
Installation Checklist
✓Pre-Cleaner mainframe is proper distance from belt surface on both ends of mainframe.
✓Pre-Cleaner blade tip is at or below horizontal center line of pulley and does not lie in path
of material flow.
✓Blades are centered on belt.
Troubleshooting

Notes

Martin Engineering M3735-03/09 13 MARTIN®PIT VIPER™Belt Cleaner
Part Numbers
This section provides product names and corresponding part numbers for
MARTIN®PIT VIPER™ Belt Cleaner and related equipment. Please
reference part numbers when ordering parts:
MARTIN®
PIT VIPER™
Belt Cleaner and
Blades
MARTIN®PIT VIPER™Belt Cleaner Assembly:
P/N PV1S-XXXXXXXXXX.
MARTIN®PIT VIPER™Pre-Cleaner Blade:
P/N PV-XXXX(XX)XX.
MARTIN®
Tensioners
MARTIN®Single Spring Cable Tensioner Assembly: P/N 37944.
MARTIN®TWIST™Tensioner Assembly: P/N 31443 or 31443-2R.
MARTIN®Cable Tensioner Adapter Mount Plate Kit: P/N 38100.
Operator’s
Manuals
MARTIN®Single Spring Cable Belt Cleaner Tensioner Operator’s
Manual: P/N M3734.
MARTIN®TWIST™Belt Cleaner Tensioner Operator’s Manual:
P/N M3296.
Part Numbers

Martin Engineering M3735-03/09 14 MARTIN®PIT VIPER™Belt Cleaner
Figure 1. MARTIN®PIT VIPER™ Belt Cleaner Assembly, P/N PV1S-XXXXXXXXXX*
Mainframe Length
Blade Width
2
4
1
3
3.22
1.57
(40)
(82)
2.81
(71)
6.21
(158)
7.17
(182) 8.73
(222)
2.67
(68)
Part Numbers
5

Martin Engineering M3735-03/09 15 MARTIN®PIT VIPER™Belt Cleaner
Figure 1. MARTIN®PIT VIPER™ Belt Cleaner Assembly, P/N PV1S-XXXXXXXXXX*
NS = Not Shown
* PV1S indicates a standard-duty pre-cleaner. First XX indicates belt width. XX indicates blade type: Slit and Segmented (00); Slit
(01); Solid (11); Segmented (10). The next XX indicates the blade coverage: no blade (00). The next XX indicates blade urethane
type: no blade (00); orange blade (OR); tan blade (CL); navy blue blade (NB). The next X indicates the mainframe type: no
mainframe (0); standard painted mainframe (P). The last X indicates accessory options: no options (0); with spring cable tensioner
54-inch belts or less only (C); with MARTIN®TWIST™tensioner (T); with spring cable tensioner with mount plate adapter
18-inch–54-inch belts only (M).
Table I. MARTIN®PIT VIPER™ Belt Cleaner Assembly Part Numbers
Item Qty. Description Part Number
11MARTIN
®QC™ #1 Mainframe Weldment Table I
21MARTIN
®PIT VIPER™ Pre-Cleaner Blade Table II
3 1 Lock Pin Lanyard Assembly 38168
4 1 Pin Slotted Spring 5/16 x 2 ZP 32774
5 2 Label, Martin Products 38048
NS 2 Label, Conveyor Products Warning 23395
NS 1 Manual Operator’s M3735
NS 1 Spring Cable Tensioner Assembly 37944
NS 1 MARTIN®TWIST™ Tensioner Assembly Table I
NS 1 Spring Cable Tensioner Adapter Mount Plate Kit 38100
Assembly
Part Number
Blade Width
in (mm)
Mainframe
Length in (mm)
Part Number
Item 1
Part Number
Item 8
Weight (lbs)
w/o Tensioners
PV1S-18XX12XXXX 12.00 (305) 48.00 (1219) 32756-18 31443 21.8
PV1S-18XX16XXXX 16.00 (406) 48.00 (1219) 32756-18 31443 23.1
PV1S-24XX18XXXX 18.00 (457) 54.00 (1372) 32756-24 31443 26.9
PV1S-24XX22XXXX 22.00 (559) 54.00 (1372) 32756-24 31443 28.1
PV1S-30XX24XXXX 24.00 (610) 60.00 (1524) 32756-30 31443 31.8
PV1S-30XX28XXXX 28.00 (711) 60.00 (1524) 32756-30 31443 33.1
PV1S-36XX30XXXX 30.00 (762) 66.00 (1676) 32756-36 31443 36.8
PV1S-36XX34XXXX 34.00 (864) 66.00 (1676) 32756-36 31443 38.1
PV1S-42XX36XXXX 36.00 (914) 72.00 (1829) 32756-42 31443 41.8
PV1S-42XX40XXXX 40.00 (1016) 72.00 (1829) 32756-42 31443 43.0
PV1S-48XX42XXXX 42.00 (1067) 78.00 (1981) 32756-48 31443 46.8
PV1S-48XX46XXXX 46.00 (1168) 78.00 (1981) 32756-48 31443 48.0
PV1S-54XX48XXXX 48.00 (1219) 84.00 (2134) 32756-54 31443-2R 51.7
PV1S-54XX52XXXX 52.00 (1321) 84.00 (2134) 32756-54 31443-2R 52.9
PV1S-60XX54XXXX 54.00 (1372) 90.00 (2286) 32756-60 31443-2R 56.7
PV1S-60XX58XXXX 58.00 (1473) 90.00 (2286) 32756-60 31443-2R 57.8
PV1S-72XX66XXXX 66.00 (1676) 102.00 (2591) 32756-72 31443-2R 66.7
PV1S-72XX70XXXX 70.00 (1778) 102.00 (2591) 32756-72 31443-2R 67.9
Part Numbers

Martin Engineering M3735-03/09 16 MARTIN®PIT VIPER™Belt Cleaner
Table II. MARTIN®PIT VIPER™ Belt Cleaner Blade Part Numbers
Figure 2. Conveyor Products Warning Label, P/N 23395
Assembly
Part Number
Part Number
Item 2
Blade
Color
PV1S-XXXXXXBRXX PV-XXXXXXBR Brown
PV1S-XXXXXXCLXX PV-XXXXXXCL Tan
PV1S-XXXXXXGRXX PV-XXXXXXGR Green
PV1S-XXXXXXNBXX PV-XXXXXXNB Navy Blue
PV1S-XXXXXXORXX PV-XXXXXXOR Orange
Lock out and/or tag out all energy sources to
Cierre y/o rotule todas las fuentes de energía al
Label P/N 23395
conveyor system and loading system before
performing any work on conveyor or conveyor
accessories. Failure to do so could result in
severe injury or death.
sistema transportador y al sistema de carga antes
de realizar cualquier trabajo en el transportador
o sus accesorios. El no hacerlo puede resultar
en heridas serias o muerte.
ADVERTENCIA
WARNING
!
!
Part Numbers
