Martin HD QB1 User manual

Martin®HD
QB1™ Cleaner
Operator’s Manual
M4101
Go to Martin®HD QB1™ Cleaner web page

Important
MARTIN ENGINEERING HEREBY DISCLAIMS ANY LIABILITY FOR: DAMAGE DUE TO
CONTAMINATION OF THE MATERIAL; USER’S FAILURE TO INSPECT, MAINTAIN AND TAKE
REASONABLE CARE OF THE EQUIPMENT; INJURIES OR DAMAGE RESULTING FROM USE OR
APPLICATION OF THIS PRODUCT CONTRARY TO INSTRUCTIONS AND SPECIFICATIONS
CONTAINED HEREIN. MARTIN ENGINEERING’S LIABILITY SHALL BE LIMITED TO REPAIR
OR REPLACEMENT OF EQUIPMENT SHOWN TO BE DEFECTIVE.
Observe all safety rules given herein along with owner and Government standards and regulations. Know
and understand lockout/tagout procedures as defined by American National Standards Institute (ANSI)
z244.1-1982, American National Standard for Personnel Protection - Lockout/Tagout of Energy Sources -
Minimum Safety Requirements and Occupational Safety and Health Administration (OSHA) Federal
Register, Part IV, 29 CFR Part 1910, Control of Hazardous Energy Source (Lockout/Tagout); Final Rule.
The following symbols may be used in this manual:
DANGER
!
Danger: Immediate hazards that will result in severe personal injury or death.
WARNING
!
Warning: Hazards or unsafe practices that could result in personal injury.
CAUTION
!
Caution: Hazards or unsafe practices that could result in product or property damages.
IMPORTANT
Important: Instructions that must be followed to ensure proper installation/operation of equipment.
NOTE
Note: General statements to assist the reader.

Martin Engineering M4022-01/19 iMartin®HD QB1™ Cleaner
Table of Contents
Section Page
List of Figures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
List of Tables . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ii
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
General . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Installations without chutework . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Belt cleaner inspection access . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Belt cleaner blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
References . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Materials required . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
Urethane shelf life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
Before Installing Belt Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
Installing Belt Cleaner and Tensioner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Locating belt cleaner mainframe . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Removing blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing torque tubes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Installing tensioner. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Checking mainframe location . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Installing blade. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
After Installing Belt Cleaner . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10
Weekly Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
Part Numbers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Appendix A. Martin® HD QB1™ Cleaner Assembly with
Martin®Twist Tensioner Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . A-1
Table of Contents

Martin Engineering M4022-01/19 ii Martin®HD QB1™ Cleaner
List of Figures
Figure Title Page

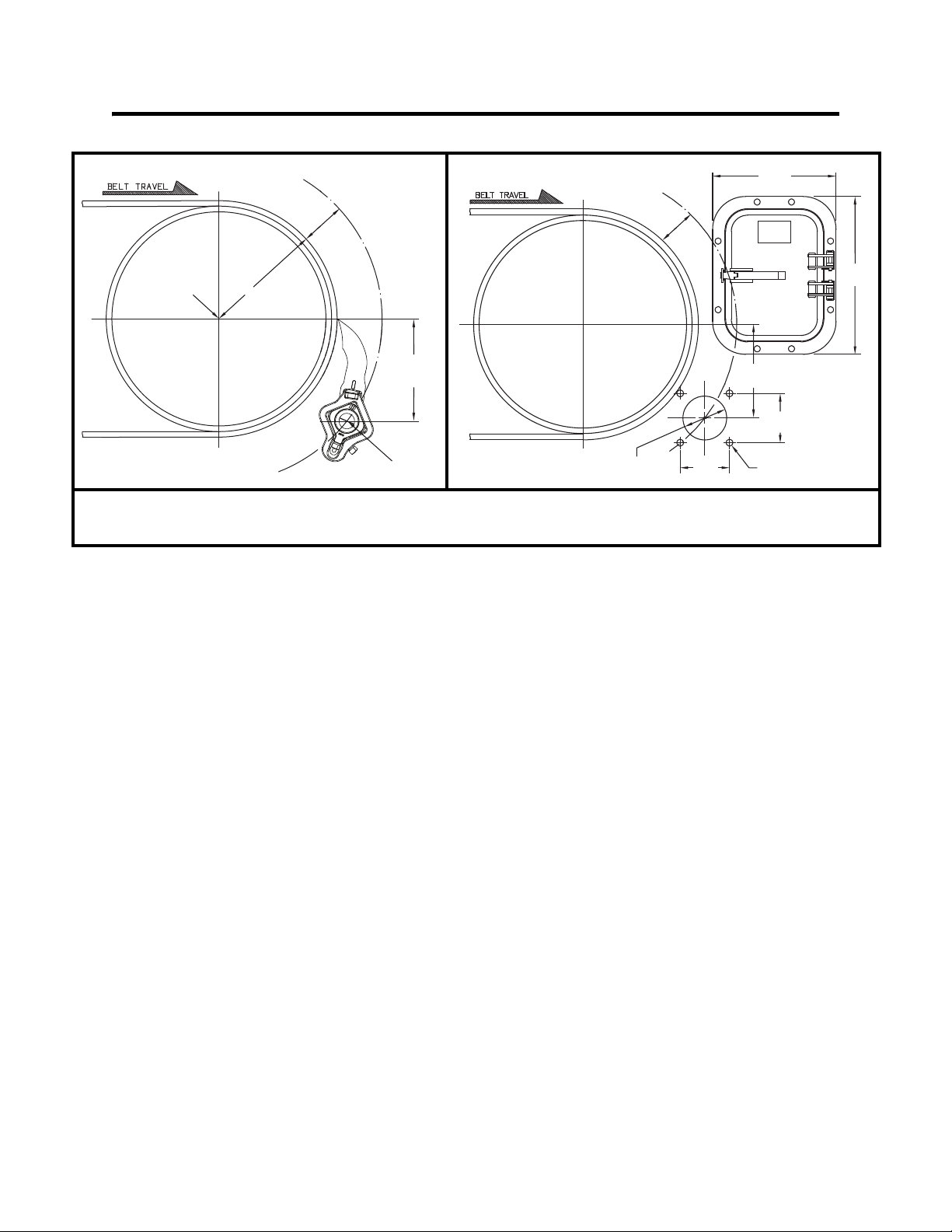

1 Belt Cleaner Mounting Locations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

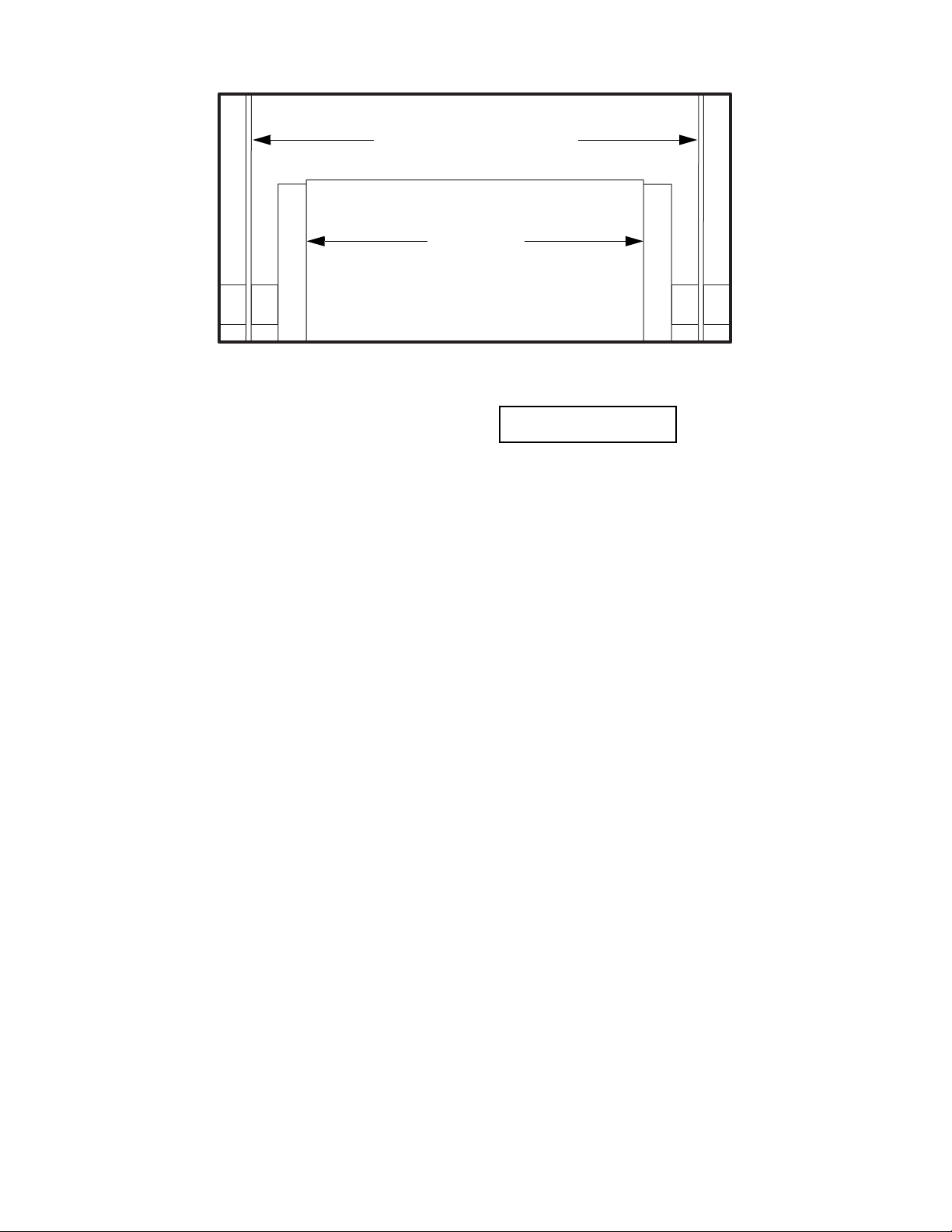

2 Chute Width Requirements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6

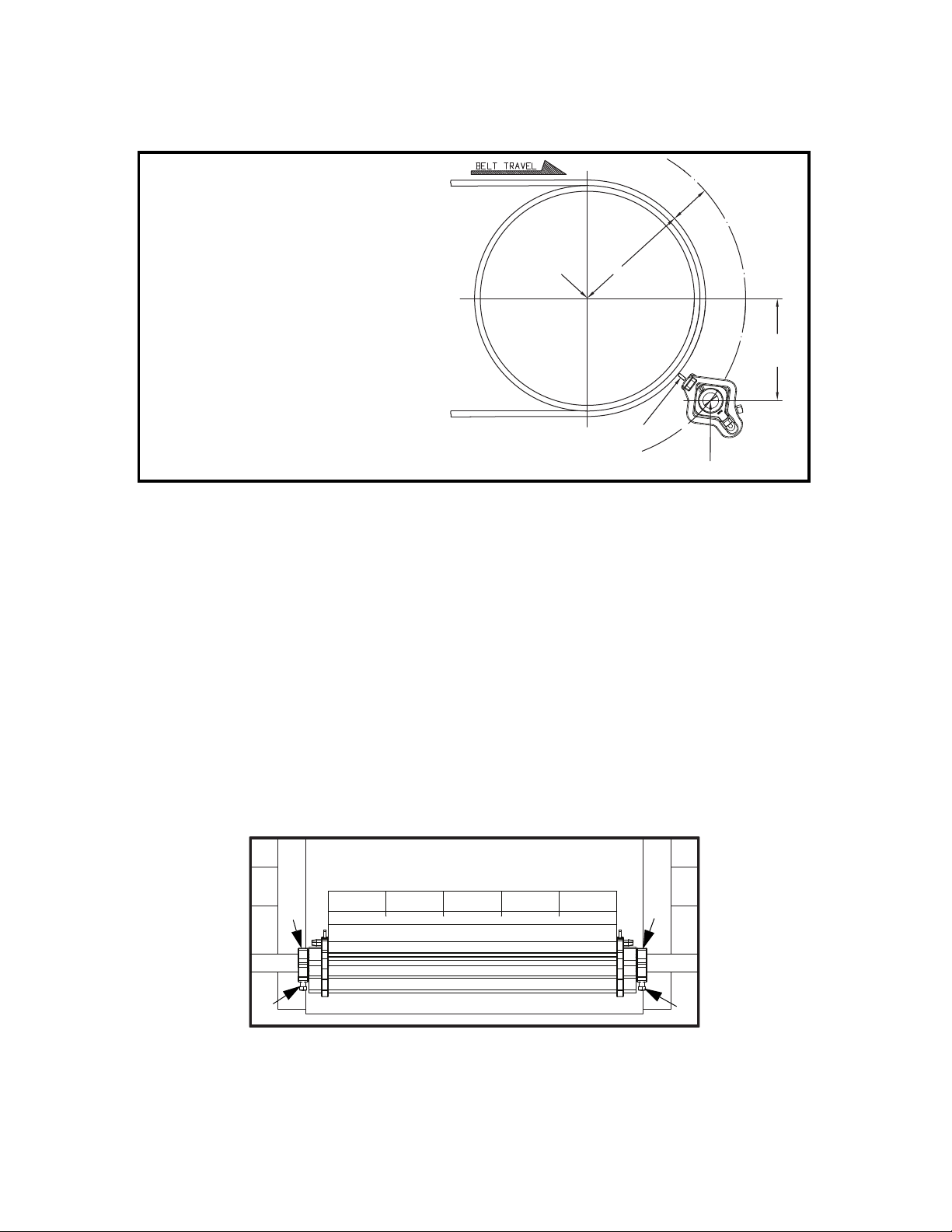

3 Belt Cleaner Mainframe Location & Chute Wall Cutouts. . . . . . . . . . . . . . . . . . . . 7
4 Removing and Installing Blade . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5 Torque Tube Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
6 Mainframe Locating Tabs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
7 Centering Cleaner on Belt . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
8 Martin®HD QB1™ Cleaner Assembly, P/N C1QHASXXSXXXXRX. . . . . . . . . 14
9 Martin®Conveyor Products Warning Label, P/N 23395 . . . . . . . . . . . . . . . . . . . . . 16
List of Tables
Table Title Page
I Martin® HD QB1™ Cleaner Blade Colors, Materials and Specifications. . . . . . . . 2
II Urethane Shelf Life . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
III Part Numbers and Dimensions for Martin® HD QB1™ Cleaner Assembly . . . . . . 15
List of Figures/Tables

Martin Engineering M4101-01/19 1Martin®HD QB1™ Cleaner
Introduction
Introduction
General The Martin®HD QB1™ Cleaner combines effective removal of carryback
with a long-lasting, one-piece blade. To introduce product back into the
product flow, the Martin®HD QB1™ Cleaner is installed on the face of the
head pulley. On a dual-cleaner system, a Secondary Cleaner is installed
immediately following the Pre-Cleaner to remove stubborn material left on
the conveyor belt. If a Pre-Cleaner cannot be used because of space
limitations, Secondary Cleaners can be installed alone. Multiple Pre-Cleaners
and/or Secondary Cleaners may be required to clean the belt. If the material-
handling process or product could be affected by contamination from the use
of these belt cleaners, the user is responsible for taking the necessary steps to
prevent contamination. Consult Martin Engineering or a representative for
alternate belt cleaners or belt cleaner locations to use where contamination
may be an issue.
Installations
without chutework
These procedures were written for equipment that is being installed on
enclosed pulley chutework. If the pulley is not enclosed, the equipment should
be installed using the best available field resources and methods to ensure that
the critical dimensions are followed for proper installation.
Belt cleaner
inspection access
If the belt cleaner is installed on enclosed pulley chutework, at least one
Martin®Inspection Door should be installed. Martin®Inspection Doors are
available from Martin Engineering or a representative.
Belt cleaner blades Martin®HD QB1™ Cleaner Blades are available in five different materials
(see Table I for specifications). Only standard (orange) Martin®HD QB1™
Cleaner Blades are made of materials that meet Mine Safety and Health
Administration (MSHA) requirements under “Interim Fire and Toxicity
Criteria for Products Taken Into Underground Mines,” March 22, 1977
(MSHA acceptance number MSHA-IC-95/1, MSHA-IC-95/7).
References The following documents are referenced in this manual:
• American National Standards Institute (ANSI) z244.1-1982, American
National Standard for Personnel Protection - Lockout/Tagout of Energy
Sources - Minimum Safety Requirements, American National Standards
Institute, Inc., 1430 Broadway, New York, NY 10018.
• Federal Register, Volume 54, Number 169, Part IV, 29 CFR Part 1910,
Control of Hazardous Energy Source (Lockout/Tagout); Final Rule,
Department of Labor, Occupational Safety and Health Administration
(OSHA), 32nd Floor, Room 3244, 230 South Dearborn Street, Chicago,
IL 60604.
•Martin®Inspection Door Operator’s Manual, P/N M3891
•Martin®Twist Tensioner Operator Manual, P/N M3837
•Martin® Spring and Air Tensioners Operator Manual, P/N M3263
Materials required Installation of this equipment requires the use of standard hand tools, grinder,
welder, and cutting torch.

Martin Engineering M4101-01/19 2Martin®HD QB1™ Cleaner
Table I. Martin®HD QB1™ Cleaner Blade Colors, Materials and Specifications
Urethane shelf life
IMPORTANT
Urethane put in service after exceeding it’s shelf life may wear
differently and deteriorate quicker than normal urethane.
NOTE
Code Date is written near bottom of blade as mm/dd/yy-x. In
addition to or in place of this date, you may see an imprinted
date medallion similar to the example shown. In this example,
“14” stands for the year 2014. The small circles represent the
quarter of the year. If three circles are “punched” the blade
was produced in the first quarter. If none of the circles are
“punched” the blade was produced in the fourth quarter. If
code date on your blade(s) is not legible or is missing, contact
Martin Engineering or a representative.
Table II. Urethane Shelf Life
URETHANE
SELECTION APPLICATION DESCRIPTION TYPICAL MATERIALS
CONTINUOUS
TEMPERATURE
Orange
Standard Martin®Urethane
Suitable for 80% or more of all belt cleaner
applications, including abrasive conditions.
Bauxite, Coke,
Coal, Overbur-
den Refuse
-20° to 160°F
(-29° to 71°C)
Brown
(BR)
Chemical-Resistant Urethane
Improves resistance to chemicals; reduced
absorption of water in high-moisture environments.
Limestone -40° to 160°F
(-40° to 71°C)
Green
(GR)
High-Temperature Urethane
For exposure to intermittent temperatures up
to 350°F (177°C).
Clinker -40° to 300°F
(-40° to 149°C)
Clear
(CL)
Low-Rigidity Urethane
For dry products such as sand and gravel.
Gravel,
Dry Sand
-20° to 160°F
(-29° to 71°C)
Navy Blue
(NB)
Low-Adhesion Urethane
For sticky or tacky materials.
Cement, Glass,
Wood Chips
-20° to 160°F
(-29° to 71°C)
14
Blade Color Shelf Life
Blue 1 Year from Code Date
Brown 2 Years from Code Date
Clear 1 Year from Code Date
Green 2 Years from Code Date
Orange 1 Year from Code Date
Introduction

Martin Engineering M4101-01/19 3Martin®HD QB1™ Cleaner
Safety All safety rules defined in the above documents and all owner/employer safety
rules must be strictly followed when working on the belt cleaner.
DANGER
!
Do not touch or go near the conveyor belt or conveyor
accessories when the belt is running. Your body or clothing
can get caught and you can be pulled into the conveyor,
resulting in severe injury or death.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
Follow local confined space procedures.
WARNING
!
Before using a cutting torch or welding the chute wall, cover
the conveyor belt with a fire retardant cover. Failure to do so
can allow the belt to catch fire. Follow local fire watch
procedures.
WARNING
!
Remove all tools from the installation area and conveyor belt
before turning on the conveyor. Failure to do so can cause
serious injury to personnel or damage to the belt and
conveyor.
WARNING
!
Mainframe with blade can be heavy and may require two
people to lift. Attempting to lift the belt cleaner without
assistance could result in injury.
Introduction

Martin Engineering M4101-01/19 4Martin®HD QB1™ Cleaner
Before Installing Belt Cleaner
IMPORTANT
The delivery service is responsible for damage occurring in
transit. Martin Engineering CANNOT enter claims for
damages. Contact your transportation agent for more
information.
1. Inspect shipping container for damage. Report damage to delivery service
immediately and fill out delivery service’s claim form. Keep any damaged
goods subject to examination.
2. Remove belt cleaner assembly from shipping container.
3. If anything is missing contact Martin Engineering or a representative.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
4. Turn off and lockout / tagout / blockout / testout energy source according
to ANSI standards (see “References”).
DANGER
!
If this equipment will be installed in an enclosed area, test the
gas level or dust content before using a cutting torch or
welding. Using a torch or welding in an area with gas or dust
may cause an explosion resulting in serious injury or death.
Follow local confined space procedures.
5. If using a cutting torch or welding, test atmosphere for gas level or dust
content. Cover conveyor belt with fire retardant cover.
IMPORTANT
Center the belt cleaner blades to clean an area narrower than
the conveyor belt width. This allows for side-to-side movement
of the belt and prevents damage to the belt edge.
NOTE
The chute wall that the tensioner will be located on is referred
to as the “operator side.” The other side of the chute is
referred to as the “far side.” (If installing dual tensioners, side
that is most accessible is “operator side.”)
Before Installation

Martin Engineering M4101-01/19 5Martin®HD QB1™ Cleaner
Figure 1. Belt Cleaner Mounting Locations
±30°
maximum
Conveyor Center Line
Conveyor Center Line ±30°
maximum
±30°
maximum
Conveyor Center Line
±30°
maximum
Conveyor Center Line
45°
minimum
BELT TRAVEL
Possible Material
Buildup Area
Before Installation

Martin Engineering M4101-01/19 6Martin®HD QB1™ Cleaner
Figure 2. Chute Width Requirements
IMPORTANT
Inside chute width must be a minimum of belt width plus
5 inches to insure there is adequate space to install cleaner and
tensioner. If chute width is too narrow either the tensioner will
need to be spaced off of the chute wall or the mainframe can
be cut down. The mainframe can only be cut down if the blade
is belt width minus 6 or 8 inches.
6. Inspect belt cleaner mounting area for possible obstructions that could
interfere with proper mounting. Refer to following guidelines:
a. The cleaner can be mounted anywhere on the arc from +30 degrees to
-30 degrees from a center line parallel to the belt line as long as:
(1) The blade is not in the direct flow of discharging material causing
premature blade wear.
(2) The diameter of the pulley is big enough that the blade does not
trap or hold material between the inside of the blade and the belt.
(3) There is at least the equivalent of a 45 degree angle between the
blade and belt to prevent material buildup in this space.
b. Lack of service is the main cause of poor belt cleaning performance.
Follow CEMA guidelines for access:
(1) Clearance for service outside the chute must be at least equal to the
belt width.
(2) Cleaners must have service platforms. CEMA recommends
cleaners be mounted at least 24 in. (600 mm) above the work
platform.
(3) If the belt width is 54 in. (1400 mm) or larger consider access
doors on both sides of the chute.
c. Refer to “Installing Belt Cleaner and Tensioner” and “Part Numbers”
sections of this manual for specific mounting and cleaner dimensions.
Belt Width
Belt Width + 5 in. minimum
Before Installation

Martin Engineering M4101-01/19 7Martin®HD QB1™ Cleaner
Installing Belt Cleaner and Tensioner
Figure 3. Belt Cleaner Mainframe Location & Chute Wall Cutouts
Locating belt
cleaner
mainframe
1. On operator side of chute, find pulley center point (A).
2. Measure radius of head pulley including lagging and belt thickness (B).
To this dimension, add 3.50 in. (89 mm).
3. Starting from center point (A), measure the total distance calculated in
step 2 (B + 3.50) and draw an arc on chute wall.
4. Measure down from pulley's horizontal centerline the distance shown in
Figure 3 and draw a horizontal line parallel to it. Locate center point of
belt cleaner mainframe (C) where this line intersects the arc on the chute
wall.
5. Make sure mainframe and blade do not lie in path of material unloading
from conveyor belt.
6. Repeat steps 1 through 5 for far side chute wall.
7. Drill or cut holes for tensioner mounting plates on chute walls as follows:
a. If bolting tensioner mounting plates to chute walls, do the following:
(1) Drill or cut one 4-in. hole for mainframe and four 5/8-in. holes for
screws in both operator side and far side chute walls. Remove
burrs and sharp edges.
b. If welding tensioner mounting plates to chute walls, do the following:
(1) Drill or cut one 4-in. hole for mainframe in both operator side and
far side chute walls. Remove burrs and sharp edges.
8. If using Martin®Inspection Door, cut access door opening and mounting
holes according to Martin®Inspection Door Operator's Manual,
P/N M3891.
Center point of pulley Center point of belt Radius of head pulleyA. B. C.
including lagging and belt cleaner mainframe
8.50
(216)
minimum
B
3.50
(89)
A
C
Ø4.00
(102) 4.50
(114)
Ø0.625
(16)
4.50
(114)
8.50 (216)
minimum
3.50
(89)
14.39
(365)
11.26
(286)
Installation

Martin Engineering M4101-01/19 8Martin®HD QB1™ Cleaner
Figure 4. Removing and Installing Blade
Removing blade
NOTE
Blade clamps should remain captive to mainframe assembly
during blade removal and installation.
1. Loosen set screws (A) from operator side of mainframe (E).
2. Disengage blade clamp (B) from blade cartridge (D).
3. Pull blade cartridge away from blade clamp (C) and remove from
mainframe.
Figure 5. Torque Tube Installation
Installing torque
tubes
1. Insert torque tube (F) into mainframe (E).
2. Slide torque tube collar (G) onto torque tube.
3. Align collar (G) with mainframe. Tap collar into mainframe with hammer
until collar is fully engaged in mainframe.
A. Set Screw
B. Blade Clamp
C. Blade Clamp
D. Blade Cartridge
E. Mainframe
B
A
D
C
E
Blade stop removed for clarity.
E
F
G
Installation

Martin Engineering M4101-01/19 9Martin®HD QB1™ Cleaner
Installing
tensioner
1. Install tensioner according to applicable tensioner’s manual.
2. If using Martin®Inspection Door, install according to Martin®Inspection
Door Operator's Manual, P/N M3891.
Figure 6. Mainframe Locating Tabs
Checking
mainframe
location
1. Rotate mainframe and locating tabs (D) to verify mounting location.
There should be less than 1/16 in. between tip of locating tab and belt.
2. If necessary, adjust mainframe location.
3. After verifying mainframe location, bend and remove tabs (D) from blade
stops.
Installing blade 1. See Figure 4. Position blade on mainframe with blade curve facing
conveyor belt. Push far side end of blade into blade stop (C) until it locks.
2. Push blade cartridge (D) onto mainframe (E) until it is fully seated.
3. Install blade stop (B).
4. Tighten set screws (A) to 20 ft-lbs (27.1 Nm).
Figure 7. Centering Cleaner on Belt
5. Make sure blades are centered on belt and mainframe is parallel to belt.
6. Tighten set screws (H) on torque tube collars (G) to 40 ft-lbs (54.2 Nm).
7. Tension belt cleaner according to applicable tensioner’s manual.
8.50
(216)
minimum
B
3.50
(89)
A
C
D
Center point of pulley
Center point of belt
Radius of head pulley
A.
B.
C.
including lagging and belt
cleaner mainframe
Mainframe Locating TabD.
HH
GG
Installation

Martin Engineering M4101-01/19 10 Martin®HD QB1™ Cleaner
After Installing Belt Cleaner
1. Thoroughly wipe chute wall clean above tensioner.
2. Place Conveyor Products Warning Label (P/N 23395) on outside chute
wall visible to belt cleaner operator.
3. Additional safety labels are available from CEMA. For more information
regarding CEMA safety labels visit www.cemanet.org.
WARNING
!
Failure to remove tools from installation area and conveyor
belt before turning on energy source can cause serious injury
to personnel and damage to belt.
DANGER
!
Do not touch or go near conveyor belt or conveyor accessories
when conveyor belt is running. Body or clothing can get
caught and pull body into conveyor belt, causing severe injury
or death.
4. Turn on conveyor belt for 1 hour, then turn off.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
a. Make sure all fasteners are tight. Tighten if necessary.
b. Inspect belt cleaner for the following:
(1) Wear. (A small amount of “break-in” wear may be found. This will
stop once blades wear to conveyor belt contour.)
(2) Material buildup. (No material between blades and return side of
conveyor belt should be found.)
c. If wear, material buildup, or some other problem exists, see
“Troubleshooting.”
After Installation

Martin Engineering M4101-01/19 11 Martin®HD QB1™ Cleaner
Weekly Maintenance
IMPORTANT
Read entire section before beginning work.
NOTE
Maintenance inspection should be performed no less than
weekly. Some applications may require more frequent
maintenance inspections.
DANGER
!
Before installing, servicing, or adjusting the belt cleaner, turn
off and lockout / tagout / blockout / testout all energy sources
to the conveyor and conveyor accessories according to ANSI
standards. Failure to do so could result in serious injury or
death.
1. Remove any material from belt cleaner.
2. Make sure all fasteners are tight. Tighten if necessary.
3. Check tension on cleaner. Re-tension if necessary.
4. Wipe all labels clean. If labels are not readable, contact Martin
Engineering or a representative for replacements.
5. Check blades for excessive wear. Replace if necessary.
6. Remove equipment from service if there is any indication it is not
functioning properly. Call Martin Engineering or a representative for
assistance. Do NOT return equipment to operation until the cause of the
problem has been identified and corrected.
WARNING
!
Failure to remove tools from maintenance area and conveyor
belt before turning on energy source can cause serious injury
to personnel and damage to belt.
7. Remove all tools from maintenance area.
DANGER
!
Do not touch or go near conveyor belt or conveyor accessories
when conveyor belt is running. Body or clothing can get
caught and pull body into conveyor belt, causing severe injury
or death.
8. Start conveyor belt. Observe belt cleaner operation for several revolutions
of the belt. Service or adjust belt cleaner as necessary to ensure proper
belt cleaner operation.
Weekly Maintenance

Martin Engineering M4101-01/19 12 Martin®HD QB1™ Cleaner
Troubleshooting
NOTE
Conveyor equipment such as conveyor belt cleaners are subject to a wide variety of bulk materials
characteristics and often have to perform under extreme operating or environmental conditions. It is
not possible to predict all circumstances that may require troubleshooting. Contact Martin
Engineering or a representative if you are experiencing problems other than those listed in the
“Troubleshooting” chart above. Do not return the equipment to operation until the problem has been
identified and corrected.
Installation
checklist
If after taking the corrective actions suggested under “Troubleshooting” you
are still experiencing problems, check for the following:
Symptom Corrective Action
Insufficient cleaning and
carryback.
• Tension of cleaner on belt is set too low or too high. Increase or
decrease tensioner setting.
• Blades are worn. Check blades and replace if necessary.
Blade wears only in the
center.
• Use a segmented style blade for crown pulleys.
• Consider narrowing the blade width to clean the middle of the belt.
Noise or vibration.
Tension is not sufficient or is set too high. Correct tension as
necessary. If this does not correct problem, blade urethane may not
match application. Contact Martin Engineering or representative.
High blade wear rate. Tension of cleaner on belt is set too high. Reduce tensioner setting.
Unusual wear or damage
to blades. Check belt splice(s) and repair as necessary.
Bent or broken mainframe
or support frame due to
blade slipping through.
If blades are worn to or past the wear line, replace blades. If blades
are not worn, check mainframe location.
Corrosion or chemical
degradation.
Blade urethane may not match application. Contact Martin
Engineering or a representative.
Installation Checklist
✓Pre-Cleaner mainframe is proper distance from belt surface on both ends of mainframe and
parallel to the pulley shaft.
✓Pre-Cleaner blade tip does not lie in path of material flow.
✓Blades are centered on belt.
Troubleshooting

Martin Engineering M4101-01/19 13 Martin®HD QB1™ Cleaner
Part Numbers
This section provides product names and corresponding part numbers for
Martin®HD QB1™ Cleaner and related equipment. Please reference part
numbers when ordering parts:
Martin®HD
QB1™ Cleaner
Martin®HD QB1™ Cleaner Assembly:
P/N C1QHASXXSXXXXRX. See Figure 8.
Recommended
Tensioners
Belts 18 to 48 in. wide:
Martin®Twist Tensioner: P/N 38850.
Martin®Twist Tensioner with “L” Bracket: P/N 38850-L.
Martin®Spring Tensioner: P/N 38180
Belts 54 to 96 in. wide:
Dual Martin®Twist Tensioners: P/N 38850-2.
Dual Martin®Twist Tensioners with “L” Bracket: P/N 38850-2L.
Dual Martin®Spring Tensioners: P/N 38180-2
Operator’s
manuals
Martin®Spring and Air Tensioners Operator’s Manual: P/N M3263.
Martin®Twist Tensioner Operator’s Manual: P/N M3837.
Martin®Inspection Door Operator’s Manual: P/N M3891.
NOMENCLATURE C1QHA - SXX SXX X X R X
Belt Width (inches)
Blade Width (inches)
Urethane Color
Solid/Segemented
Mainframe
Tensioner
BLADE LENGTH
000: No Blade
SA0: 100 Inches
SA2: 102 Inches
SA4: 104 Inches
SA8: 108 Inches
SOLID/SEGMENTED
0: Segmented Blade / No Blade
1: Solid Blade
URETHANE COLOR
0: No Blade
B: Brown
T: Tan
G: Green
N: Navy Blue
O: Orange
TENSIONER
T: Martin
®
Twist Tensioner
S: Martin
®
Spring Tensioner
Part Numbers

Martin Engineering M4101-01/19 14 Martin®HD QB1™ Cleaner
Figure 8. Martin®HD QB1™ Cleaner Assembly, P/N C1QHASXXSXXXXRX
NS = Not Shown
Item Description Part No. Qty.
1 Mainframe Table III 1
2 Blade Table II 1
3 Blade Retainer with Set Screw C1QHRIT 2
4 Torque Tube Collar with Set Screw C1QACIT 2
5 Torque Tube Table III 2
6 (NS) Label Martin®Products 38048 2
7 (NS) Label Conveyor Products Warning 23395 2
8 (NS) Manual Operator’s M4101 1
9 (NS) Martin®Twist Tensioner Assembly 38850/38850-2 1
Martin®Spring Tensioner Assembly 38180/38180-2 1
10.95
(278)
6.22
1
45
Dim. A
Dim. B
2
(158)
3
Part Numbers

Martin Engineering M4101-01/19 15 Martin®HD QB1™ Cleaner
Table III. Part Numbers and Dimensions for Martin®HD QB1™ Cleaner Assembly
Standard Assembly
Part No.
Dim. A
in. (mm)
Dim. B
in. (mm)
Item
No. 1
Item
No. 2
Item
No. 5
C1QHAS18S10XXRX 10 (254) 34 (864) C1QAMRS16 C1QHBS10XX C1QATTS16
C1QHAS18S12XXRX 12 (305) 34 (864) C1QAMRS16 C1QHBS12XX C1QATTS16
C1QHAS18S14XXRX 14 (356) 34 (864) C1QAMRS16 C1QHBS14XX C1QATTS16
C1QHAS24S16XXRX 16 (406) 46 (1168) C1QAMRS22 C1QHBS16XX C1QATTS19
C1QHAS24S18XXRX 18 (457) 46 (1168) C1QAMRS22 C1QHBS18XX C1QATTS19
C1QHAS24S20XXRX 20 (508) 46 (1168) C1QAMRS22 C1QHBS20XX C1QATTS19
C1QHAS30S22XXRX 22 (559) 52 (1321) C1QAMRS28 C1QHBS22XX C1QATTS19
C1QHAS30S24XXRX 24 (610) 52 (1321) C1QAMRS28 C1QHBS24XX C1QATTS19
C1QHAS30S26XXRX 26 (660) 52 (1321) C1QAMRS28 C1QHBS26XX C1QATTS19
C1QHAS36S28XXRX 28 (711) 60 (1524) C1QAMRS34 C1QHBS28XX C1QATTS24
C1QHAS36S30XXRX 30 (762) 60 (1524) C1QAMRS34 C1QHBS30XX C1QATTS24
C1QHAS36S32XXRX 32 (813) 60 (1524) C1QAMRS34 C1QHBS32XX C1QATTS24
C1QHAS42S34XXRX 34 (864) 72 (1829) C1QAMRS40 C1QHBS34XX C1QATTS24
C1QHAS42S36XXRX 36 (914) 72 (1829) C1QAMRS40 C1QHBS36XX C1QATTS24
C1QHAS42S38XXRX 38 (965) 72 (1829) C1QAMRS40 C1QHBS38XX C1QATTS24
C1QHAS48S40XXRX 40 (1016) 78 (1981) C1QAMRS46 C1QHBS40XX C1QATTS24
C1QHAS48S42XXRX 42 (1067) 78 (1981) C1QAMRS46 C1QHBS42XX C1QATTS24
C1QHAS48S44XXRX 44 (1118) 78 (1981) C1QAMRS46 C1QHBS44XX C1QATTS24
C1QHAS54S46XXRX 46 (1168) 84 (2134) C1QAMRS52 C1QHBS46XX C1QATTS24
C1QHAS54S48XXRX 48 (1219) 84 (2134) C1QAMRS52 C1QHBS48XX C1QATTS24
C1QHAS54S50XXRX 50 (1270) 84 (2134) C1QAMRS52 C1QHBS50XX C1QATTS24
C1QHAS60S52XXRX 52 (1321) 90 (2286) C1QAMRS58 C1QHBS52XX C1QATTS30
C1QHAS60S54XXRX 54 (1372) 90 (2286) C1QAMRS58 C1QHBS54XX C1QATTS30
C1QHAS60S56XXRX 56 (1422) 90 (2286) C1QAMRS58 C1QHBS56XX C1QATTS30
C1QHAS66S58XXRX 58 (1473) 96 (2438) C1QAMRS64 C1QHBS58XX C1QATTS30
C1QHAS66S60XXRX 60 (1524) 96 (2438) C1QAMRS64 C1QHBS60XX C1QATTS30
C1QHAS66S62XXRX 62 (1575) 96 (2438) C1QAMRS64 C1QHBS62XX C1QATTS30
C1QHAS72S64XXRX 64 (1626) 102 (2591) C1QAMRS70 C1QHBS64XX C1QATTS30
C1QHAS72S66XXRX 66 (1676) 102 (2591) C1QAMRS70 C1QHBS66XX C1QATTS30
C1QHAS72S68XXRX 68 (1727) 102 (2591) C1QAMRS70 C1QHBS68XX C1QATTS30
C1QHAS78S70XXRX 70 (1778) 108 (2743) C1QAMRS76 C1QHBS70XX C1QATTS42
C1QHAS78S72XXRX 72 (1829) 108 (2743) C1QAMRS76 C1QHBS72XX C1QATTS42
C1QHAS78S74XXRX 74 (1879) 108 (2743) C1QAMRS76 C1QHBS74XX C1QATTS42
C1QHAS84S76XXRX 76 (1930) 114 (2896) C1QAMRS82 C1QHBS76XX C1QATTS42
C1QHAS84S78XXRX 78 (1981) 114 (2896) C1QAMRS82 C1QHBS78XX C1QATTS42
C1QHAS84S80XXRX 80 (2032) 114 (2896) C1QAMRS82 C1QHBS80XX C1QATTS42
C1QHAS90S82XXRX 82 (2083) 120 (3048) C1QAMRS88 C1QHBS82XX C1QATTS42
C1QHAS90S84XXRX 84 (2134) 120 (3048) C1QAMRS88 C1QHBS84XX C1QATTS42
C1QHAS90S86XXRX 86 (2184) 120 (3048) C1QAMRS88 C1QHBS86XX C1QATTS42
C1QHAS96S88XXRX 88 (2235) 126 (3200) C1QAMRS94 C1QHBS88XX C1QATTS42
C1QHAS96S90XXRX 90 (2286) 126 (3200) C1QAMRS94 C1QHBS90XX C1QATTS42
C1QHAS96S92XXRX 92 (2337) 126 (3200) C1QAMRS94 C1QHBS92XX C1QATTS42
C1QHASA2S94XXRX 94 (2388) 132 (3734) C1QAMRSA0 C1QHBS94XX C1QATTS42
C1QHASA2S96XXRX 96 (2438) 132 (3734) C1QAMRSA0 C1QHBS96XX C1QATTS42
C1QHASA2S98XXRX 98 (2489) 132 (3734) C1QAMRSA0 C1QHBS98XX C1QATTS42
C1QHASA8SA0XXRX 100 (2540) 138 (3505) C1QAMRSA6 C1QHBSA0XX C1QATTS42
C1QHASA8SA2XXRX 102 (2591) 138 (3505) C1QAMRSA6 C1QHBSA2XX C1QATTS42
C1QHASA8SA4XXRX 104 (2642) 138 (3505) C1QAMRSA6 C1QHBSA4XX C1QATTS42
Part Numbers

Martin Engineering M4101-01/19 16 Martin®HD QB1™ Cleaner
Figure 9. Martin®Conveyor Products Warning Label, P/N 23395
Lock out and/or tag out all energy sources to
Cierre y/o rotule todas las fuentes de energía al
Label P/N 23395
conveyor system and loading system before
performing any work on conveyor or conveyor
accessories. Failure to do so could result in
severe injury or death.
sistema transportador y al sistema de carga antes
de realizar cualquier trabajo en el transportador
o sus accesorios. El no hacerlo puede resultar
en heridas serias o muerte.
ADVERTENCIA
WARNING
!
!
Part Numbers
