MARTINDALE MM94 User manual

MM94 HIGH PEFORMANCE
TRMS MULTIMETER
INSTRUCTION
MANUAL
ALWAYS READ THESE INSTRUCTIONS BEFORE PROCEEDING
Thank you for buying one of our products. For safety and a full
understanding of its benefits please read this manual before use.
Technical support is available from 01923 441717 and
[e-mail]
CONTENTS
1 Safety Information 1
1.1 Meaning of Symbols and Markings 1
1.2 Precautions 2
2 Introduction 5
2.1 Inspection 5
2.2 Description 5
2.3 Accessories 6
3 Operation 6
3.1 General 6
3.2 Low Battery Indication 6
3.3 Description of Terminals 7
3.4 Description of Press Buttons 7
3.5 Description of LCD Symbols 7
3.6 Auto Power Off 9
3.7 Backlight 9
3.8 Auto/Manual Ranging 9
3.9 Relative Function 9
3.10 Min/Max 10
3.11 Display Hold 10
3.12 High Frequency Rejection 11
3.13 Use of the TL16 Test Leads 11
3.14 AC Voltage Measurements 11
3.15 DC Voltage Measurements 12
3.16 AC+DC Voltage Measurements 12
3.17 Current Measurements 12
3.18 Peak Hold Measurement 13
3.19 Resistance Measurements 13
3.20 Conductance Measurements 13
3.21 Capacitance Measurements 14
3.22 Frequency and Duty Cycle Measurements 14
3.23 Temperature Measurements 15
3.24 Continuity Testing 15
3.25 Diode Testing 16
4 Maintenance 16
4.1 Battery Replacement 16
4.2 Fuse Replacement 17
4.3 Test Lead Replacement 17
4.4 Calibration 17
4.5 Cleaning 18
4.6 Repair & Service 18
4.7 Storage Conditions 18
5 Warranty 19
Measurement Categories 20
Specifications
1
1. SAFETY INFORMATION: Always read before proceeding.
REMEMBER: SAFETY IS NO ACCIDENT
These instructions contain both information and warnings that are
necessary for the safe operation and maintenance of this product. It
is recommended that you read the instructions carefully and ensure
that the contents are fully understood. Failure to understand and
to comply with the warnings and instructions can result in serious
injury, damage or even death.
Particular attention should be paid to the Warnings, Precautions and
Technical Specifications.
Please keep these instructions for future reference. Updated
instructions and product information are available at: www.
martindale-electric.co.uk
1.1 Meaning of Symbols and Markings
Caution - risk of danger & refer to instructions
Caution - risk of electric shock
Equipment protected by double or reinforced
insulation
(Class II)
CAT II (Measurement Category II) is applicable to test and
measuring equipment connected directly to utilization
points (socket outlets and similar points) of the low-
voltage MAINS installation.

2
CAT III (Measurement Category III) is applicable to test and
measuring equipment connected to the distribution part of
the building’s low-voltage MAINS installation.
CAT IV (Measurement Category IV) is applicable to test and
measuring equipment connected at the source of the
building’s low-voltage MAINS installation.
For further information on measurement categories
see page 21 or visit
www.martindale-electric.co.uk/measurement_categories.php
Equipment complies with relevant EU Directives
End of life disposal of this equipment should be in accordance
with relevant EU Directives.
1.2 Precautions
This product has been designed with your safety in mind, but please
pay attention to the following warnings and cautions before use.
Warnings
In order to avoid the danger of electrical shock, it is important that
proper safety measures are taken when working with voltages
exceeding 30V AC rms, 42V AC peak or 60V DC.
Where applicable other safety measures such as the use of protective
gloves, goggles etc. should be employed.
The multimeter must only be used by a skilled and competent person
who is familiar with the relevant regulations, the safety risks involved
and the consequent normal safe working practices, and under the
3
conditions and for the purposes for which it has been constructed
and specified.
Before each use the multimeter and any associated test leads
and accessories should be examined for damage, cracks, cuts or
scratches. Do not use if damaged in any way.
Make sure the multimeter and test leads are dry, clean and free from
dust, grease and moisture while in use to avoid the danger from
electric shock due to surface leakage.
Always test this unit on an appropriate proving device or a known
good voltage source before and after using it to determine if a
hazardous voltage exists in a circuit to be tested. Do not use the
unit if it does not function correctly during proving.
Measuring/testing for a voltage/current that exceeds the specified
limits of the unit may damage the unit and may expose the operator
to a shock hazard. Always check the unit’s specified limits before
use.
The multimeter must only be used on CAT IV installations up to
600V to earth, CAT III and CAT II installations up to 1000V to earth,
and within the operating temperature and humidity range specified.
The CAT III 1000V marking does not mean the clamp meter can
be used to 1000V AC rms, but that it will be safe to the user if
inadvertently connected across a voltage up to 1000V AC rms to
earth.
If the removable probe tip caps are not fitted to the probes of the test
leads, their measurement category becomes CAT II 1000V, and they
4
must not be used on CAT III or CAT IV installations to avoid the
risk of shorting high energy circuits and arc flash.
When this unit is used in combination with test leads, the
measurement category of the combination is the lower
measurement category of either this unit or the test leads used.
Likewise if test lead accessories such as crocodile clips are also
used, the measurement category will be the lowest measurement
category in that combination.
Do not use if the battery compartment cover is not fitted.
When using test leads, always keep your fingers behind the finger
guard on the test lead probe.
To avoid electrical shock, and damage to the multimeter, do not use
the multimeter and the associated temperature probe when voltages
at the measurement surface exceed 30V AC rms or 60V DC.
Cautions
Avoid severe mechanical shock or vibration and extreme
temperature.
When using test leads avoid excessive stresses to the cable entry
points at the probe and 4mm plug connector.
To avoid burns or damage to equipment, do not take temperature
measurements inside microwave ovens.
To avoid possible corrosion from a leaking battery, remove the
battery when the unit is not in use for an extended period.
5
2. INTRODUCTION
2.1 Inspection
Examine the shipping carton for any sign of damage. Inspect the
unit and any accessories for damage. If there is any damage then
consult your distributor immediately.
2.2 Description
The Martindale MM94 has the following measurement functions:
True rms AC voltage to 750V
DC voltage to 1000V
True rms AC current to 20A
DC current to 20A
Resistance to 60M:
Conductance to 60nS
Capacitance to 6mF
Frequency to 10MHz
Duty cycle
Temperature (Type K thermocouple)
Continuity with audible indication
Diode testing
Further functions are:
Display hold
Min/Max indication
Peak hold measurement
Selectable high frequency rejection
Relative function
Selectable 6000 or 60000 count display
Display backlight

Auto or manual ranging
Auto power off
2.3 Accessories
The MM94 comes with the following accessories:
TL16 test leads
TT1P Type K thermocouple
9V PP3 battery (Installed)
Instructions
3. OPERATION
3.1 General
If the magnitude of a parameter to be measured is uncertain, but
known to be within the maximum safe limits of the electrical tester,
manually set the range to maximum. E.g. If measuring AC voltage
and the voltage magnitude is unknown, set the range to 750 V,
then if required select the correct range for a satisfactory reading.
If the insulation clamp meter displays OL or -OL then the
measurement limits of the range have been exceeded.
3.2 Low Battery Indication
The battery capacity is shown by one of the following symbols on
the LCD:
If the symbol is displayed, the battery needs replacing as
measurement accuracy can no longer be guaranteed (See section
4.1 Battery Replacement). This will be followed by a bAtt display
and the multimeter will power down after 5 seconds.
6
3.3 Description of Terminals
20A Input terminal for AC & DC current measurements to 20A
μA mA Input terminal for AC & DC current measurements to 400 mA
COM Common terminal
nsHz%
V :
Input terminal for AC and DC voltage, resistance,
conductance, continuity, diode test , frequency and duty cycle
K-TYPE
Input terminals for temperature probes
3.4 Description of Press Buttons
RANGE Selects manual ranging
REL Selects relative function
MIN/MAX Selects min/max function
HOLD Selects display hold function
PEAK ±
cal>2s Selects peak hold measurement
Turns on/off the backlight
SHIFT Selects secondary functions
HFR Selects -3db point of high frequency rejection filter
6000 Sets display to 6000 counts

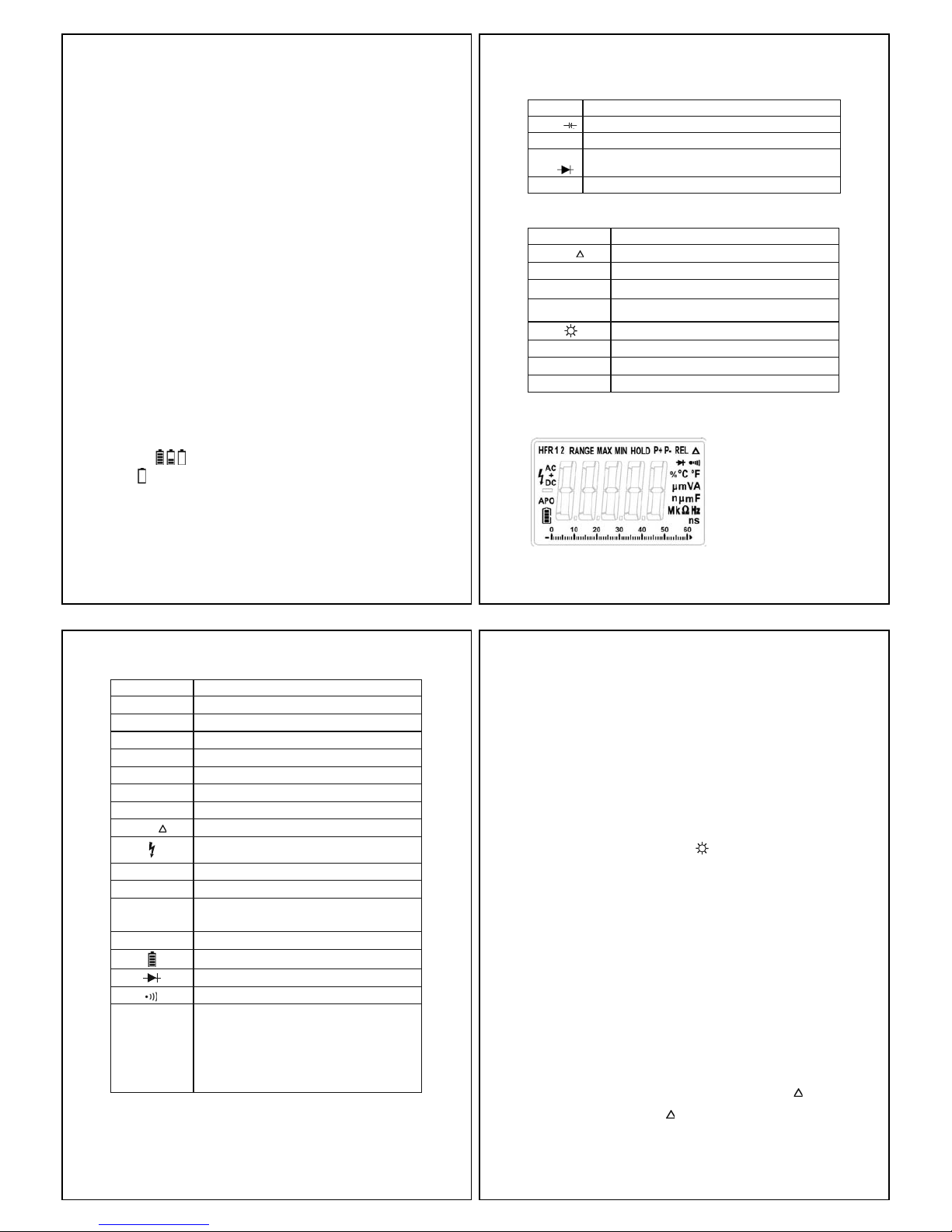

3.5. Description of LCD Symbols
7
HFR1 High frequency reject > 1 kHz selected
HFR 2 High frequency reject > 100 kHz selected
RANGE Manual ranging is selected
MAX Maximum indication is displayed
MIN Minimum indication is displayed
HOLD Display hold is activated
P+ Indicates peak + measurement
P- Indicates peak - measurement
REL Relative function selected
Indicates >30V at input terminals
AC Indicates AC measurement
DC Indicates DC measurement
AC
+
DC
Indicates AC + DC measurement
APO Auto power off is activated
Indicates battery level
Diode testing function is selected
Continuity function is selected
mV, V,
μA, mA, A,
nF, μF, mF,
:, k:, M:,
nS,
Hz, kHz, MHz,
%,
°C, °F
Units of measurement being displayed
8
3.6 Auto Power Off
If the multimeter is inactive for a period of 30 minutes it will
automatically power off.
If any button is pressed after the clamp meter has automatically
powered off, the clamp meter will turn back on.
To disable the auto power off function hold the MIN/MAX button at
the same time as turning the rotary switch from OFF to any position.
The APO symbol will no longer be displayed on the LCD.
3.7 Backlight
To switch on the backlight press the button. Press again to turn
the backlight off.
The backlight will automatically power off after approx. 3 minutes.
3.8 Auto/Manual Ranging
To select manual ranging, press the RANGE button. The RANGE
symbol will be displayed on the LCD.
To manually select a range when in manual mode press the RANGE
button until the required range is selected.
To exit manual ranging, hold down the RANGE button for >2
seconds. The RANGE symbol will no longer be displayed.
3.9 Relative Function
The relative function is used to remove an offset or residual value
from a measurement.
To remove and store an offset to memory, press the REL button.
The LCD will display the REL symbol and the offset will be
removed from all consequent readings until the relative mode is
deactivated.
9

To view the measured value without the offset being removed from
the measurement and without losing the stored offset from memory,
press the REL button again. The LCD will display the REL
symbol flashing.
Pressing the REL button once more will again remove the stored
offset from the measurement.
To exit the relative function press the REL button for >2 seconds.
The LCD will no longer display the REL symbol and the stored
offset will be deleted from memory.
Note: Changing range or measurement function will also exit the
relative function and any stored offset will be lost.
3.10 Min/Max
To activate the Min/Max function, press the MIN/MAX button. The
multimeter exits autorangeing and the LCD will display RANGE and
MAX.
Press MIN/MAX as required to alternate between displaying the
maximum and minimum measured values.
Press MIN/MAX for >2 seconds to exit the Min/Max function.
Note: Pressing the RANGE button will exit the Min/Max function.
3.11 Display Hold
To hold a displayed value, press the HOLD button. The LCD will
display HOLD.
Press again to exit display hold.
10
3.12 High Frequency Rejection
If the AC voltage ranges are selected, there is a choice between
two high frequency rejection filters.
The multimeter defaults to HFR 2 (100kHz - 3dB point). The LCD
will display the HFR 2 symbol.
To select HFR1 (1kHz - 3dB point), press the HFR button. The
LCD will display the HFR1 symbol.
Press again to return to HFR2.

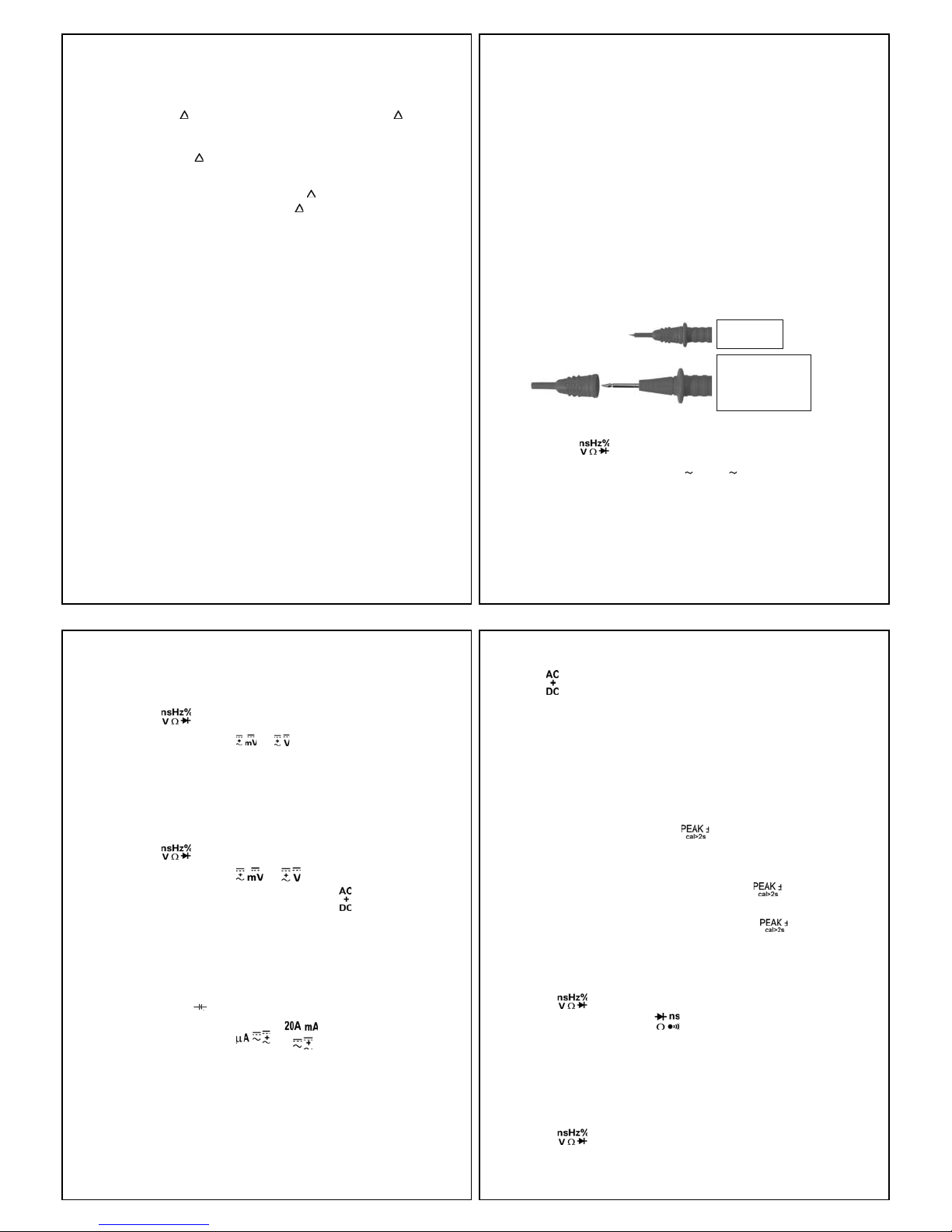

3.13 Use of the TL16 Test Leads
Before use, always check the continuity of the test leads.
Where access to test points may require extended probe tips, the
probe tip caps may be removed by gently pulling them forward until
they unclip from the probe body.
CAT III 1000V
CAT IV 600V
CAT II 1000V ONLY
DO NOT USE ON
CAT III or CAT IV
installations
3.14 AC Voltage Measurements
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the HFRmVor HFRVposition as
required.
Set the high frequency rejection as required (see section 3.12).
Taking all necessary safety precautions connect the test leads to
the circuit being measured and read the measured ac voltage from
the display.
11
3.15 DC Voltage Measurements
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the or position as required.
Taking all necessary safety precautions connect the test leads to
the circuit being measured and read the measured dc voltage from
the display.
3.16 AC+DC Voltage Measurements
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the or position as required.
Press the SHIFT button. The LCD will display the symbol.
Taking all necessary safety precautions connect the test leads to
the circuit being measured and read the measured ac+dc voltage
from the display.
3.17 Current Measurements
Connect the black test lead to the COM terminal and the red test
lead to the μA mA or 20A terminal as required.
Set the rotary switch to the or position as required.
The multimeter defaults to dc current measurement. The LCD will
display the DC symbol.
To measure ac current press the SHIFT button. The LCD will
display the AC symbol.
Press SHIFT again to measure ac+dc current. The LCD will display
12
the symbol.
Pressing SHIFT once more will revert back to dc current
measurement.
Taking all necessary safety precautions connect the test leads to
the circuit being measured and read the measured dc, ac or ac+dc
current from the display.
3.18 Peak Hold Measurement
To record the peak+ or peak- value when making AC voltage or AC
current measurements press the button for >2 seconds.
The LCD will display CAL followed by P+ and the measured peak +
value.
To display the measured peak - value, press the button. The
LCD will display P-.
To exit the peak measurement function, press the button for >2
seconds.
3.19 Resistance Measurements
Connect the black test lead to the COM terminal and the red test lead
to the terminal.
Set the rotary switch to the position.
Taking all necessary safety precautions connect the test leads to the
circuit being measured and read the measured resistance from the
display.
3.20 Conductance Measurements
Connect the black test lead to the COM terminal and the red test lead
to the terminal.
13

Set the rotary switch to the position.
Press the SHIFT button three times. The LCD will display the nS
symbol.
Taking all necessary safety precautions connect the test leads to the
circuit being measured and read the measured resistance from the
display.
Note: Display resolution is 6000 counts only, for the conductance
function.
3.21 Capacitance Measurements
Be sure the capacitor being tested is completely discharged
before connecting the test leads.
Connect the black test lead to the COM terminal and the red test
lead to the μA mA terminal.
Set the rotary switch to the position.
Taking all necessary safety precautions and observing the correct
polarity for electrolytic capacitors, connect the test probes to the
capacitor to be measured.
Read the measured capacitance from the display.
Note: Display resolution is 6000 counts only, for the capacitance
function.
3.22 Frequency and Duty Cycle Measurements
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the Hz % position.
Taking all necessary safety precautions connect the test leads to the
14
circuit being measured and read the measured frequency from the
display.
To display the measured duty cycle press the SHIFT button. The
LCD will display the %symbol.
Press again to revert back to measured frequency.
3.23 Temperature Measurements
Set the rotary switch to the °C °F position.
The multimeter defaults to measurement in °C.
For measurement in °F press the SHIFT button.
Press again to revert back to °C.
Connect a Type K thermocouple probe, suitable for the type of
temperature measurement and temperature range being made, to
the K-TYPE sockets.
Taking all necessary safety precautions position the thermocouple
at the surface or in the medium to be measured and read the
measured temperature from the display.
3.24 Continuity Testing
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the position.
Press the SHIFT button once. The LCD will display the symbol.
Taking all necessary safety precautions connect the test leads to
the circuit being tested.
If the resistance is <40:, the buzzer will sound continuously. The
resistance value will be displayed if d600:.
15
3.25 Diode Testing
If the diode to be tested is in circuit, be sure the circuit power is
switched off.
Connect the black test lead to the COM terminal and the red test
lead to the terminal.
Set the rotary switch to the position.
Press the SHIFT button twice. The LCD will display the
symbol.
Taking all necessary safety precautions connect the test leads to
the diode being tested.
If the diode is good a forward bias will give a display reading of
around 0.6V (silicon diode) and a reverse bias will give a display of
OL. If the diode is shorted or open circuit the display will indicate
approx. 0V or OL respectively for both forward and reverse bias.
4. MAINTENANCE
4.1 Battery Replacement
To avoid shock, injury or damage to the multimeter,
disconnect it from any external circuits or components and
remove the test leads before proceeding.
The battery compartment is inside the unit and can be accessed
by undoing the 4 screws securing the rear casing using a Phillips
head screwdriver, and removing the rear casing.
Fit a new 9V, PP3 alkaline battery (IEC 6LR61, NEDA 1604A)
observing correct polarity.
Replace the rear casing and screws.
16
4.2 Fuse Replacement
To avoid shock, injury or damage to the multimeter,
disconnect it from any external circuits or components
and remove the test leads and battery before proceeding.
Replace only with the fuses specified.
The fuses are inside the unit and can be accessed by undoing
the 4 screws securing the rear casing using a Phillips head
screwdriver, and removing the rear casing. Remove the protective
cover from fuse F1 if required.
Replace F1 only with the original type 0.5 A/1000V 6.3x32mm fast
blow ceramic fuse.
Replace F2 only with the original type 20 A/600V 10x38mm fast
blow ceramic fuse.
Replace the fuse protective cover over F1, then the rear casing
and screws.
4.3 Test Lead Replacement
If the test leads become damaged they should be replaced.
The replacement test leads must have the same (or
better) overvoltage category rating as the TL16 test leads
supplied.
4.4 Calibration
To maintain the integrity of measurements made using your
instrument, Martindale Electric recommends that it is returned
at least once a year to an approved Calibration Laboratory for
recalibration and certification.
Martindale Electric is pleased to offer you this service. Please
contact our Service Department for details.
Email: [email protected]
Tel: [phone]
17

18
4.5 Cleaning
To reduce the risk of surface leakage, this instrument must
be kept in a clean condition.
Prior to cleaning, ensure that the instrument is disconnected
from any voltage source.
If contamination is found, clean with a damp soft cloth and if
necessary a mild detergent or alcohol. Do not use abrasives,
abrasive solvents, or detergents which can cause damage to the
unit. If a mild detergent is used, the unit should subsequently
be thoroughly cleaned with a water dampened soft cloth. After
cleaning, dry and allow to remain in a dry environment for 2 hours
before use.
4.6 Repair & Service
There are no user serviceable parts in this unit other than those
that may be described in section 4. Return to Martindale Electric
if faulty. Our service department will quote promptly to repair any
fault that occurs outside the guarantee period.
Before the unit is returned, please ensure that you have checked
the: unit, battery, leads and poor connections.
4.7 Storage Conditions
The instrument should be kept in warm dry conditions away from
direct sources of heat or sunlight, and in such a manner as to
preserve the working life of the unit. It is strongly advised that the
unit is not kept in a tool box where other tools may damage it.
19
5. WARRANTY AND LIMITATION OF LIABILITY
This Martindale product is warranted to be free from defects in material
and workmanship under normal use and service. The warranty period
is 2 years and begins on the date of receipt by the end user. This
warranty extends only to the original buyer or end-user customer,
and does not apply to fuses, disposable batteries, test leads or to any
product which, in Martindale’s reasonable opinion, has been misused,
altered, neglected, contaminated, or damaged by accident or abnormal
conditions of operation, handling or storage.
Martindale authorised resellers shall extend this warranty on new and
unused products to end-user customers only but have no authority to
extend a greater or different warranty on behalf of Martindale.
Martindale’s warranty obligation is limited, at Martindale’s option, to
refund of the purchase price, free of charge repair, or replacement of
a defective product which is returned to Martindale within the warranty
period.
This warranty is the buyer’s sole and exclusive remedy and is in lieu
of all other warranties, expressed or implied, including but not limited
to any implied warranty of merchantability or fitness for a particular
purpose. Martindale shall not be liable for any special, indirect,
incidental or consequential damages or losses, including loss of data,
arising from any cause or theory.
Since some jurisdictions do not allow limitation of the term of an implied
warranty, or exclusion or limitation of incidental or consequential
damages, the limitations and exclusions of this warranty may not
apply to every buyer. If any part of any provision of this warranty
is held invalid or unenforceable by a court or other decision-maker
of competent jurisdiction, such holding will not affect the validity or
enforceability of any other provision or other part of that provision.
Nothing in this statement reduces your statutory rights.
20
ELECTRICAL
All specified accuracies are at 23°C ± 5°C, <70% R.H. for 1 year.
Temperature coefficient:
0.1 x (specified accuracy) per °C. (0°C to 18°C, 28°C to 50°C).
All accuracies below are expressed as ± (percentage of reading + digits)
DC Voltage
Range Resolution Input
impedance Accuracy
600mV 0.01mV 10M:
0.08% + 5
6V 0.0001V
11M:
60V 0.001V
10M: 600V 0.01V
1000V 0.1V
Overload protection: 1000V DC or 750V AC rms
Specification
MM94 TRMS Digital Multimeter

AC Voltage (True RMS)
Range Resolution Input
impedance
Accuracy
HFR1
selected
45 to 60Hz
HFR2 selected
45Hz
to
500Hz
500Hz
to
1kHz
1kHz
to
2kHz
600mV 0.01mV 10M:
2.0% + 20
1.0% +
20
1.5% +
20
N/A
6V 0.0001V 11M:
60V 0.001V
10M:
2.0%
+ 20
600V 0.01V
750V 0.1V 2.0% + 20 N/A
AC coupled true rms AC voltage accuracy is specified from 2% to 100% of range.
Crest factor: 3 at full scale, 6 at half scale
High frequency reject filter -3dB points: HFR1 at 1kHz, HFR2 at 100kHz
Peak hold accuracy (45Hz to 500Hz): 60V to 750V AC ± (3.0% rdg + 500 dgts)
Peak hold response time: 1ms
Overload protection: 1000V DC or 750V AC rms
AC + DC Voltage (True RMS)
Range Resolution Input
impedance
Accuracy
45Hz
to
500Hz
500 Hz
to
1 kHz
1 kHz
to
2 kHz
600mV 0.01mV 10M:
1.5% + 30 2.0% + 30
N/A
6V 0.0001V
11M:
60V 0.001V
10M:2.5% + 30
600V 0.01V
750V 0.1V
2.5% + 30 N/A
Specification
MM94 TRMS Digital Multimeter
AC coupled true rms AC voltage accuracy is specified from 2% to 100% of
range.
Crest factor: 3 at full scale, 6 at half scale
Overload protection: 1000V DC or 750V AC rms
Current
Range Resolution Voltage
burden
Accuracy
DC
AC
(true rms)
AC+DC
(true rms)
45 Hz to 1 kHz
600μA 0.01μA 500mV
0.5% + 10 1.5% + 20 2.0% + 30
6000μA 0.1μA
2V
60mA 0.001mA 500mV
400mA 0.1mA
2V
1.0% + 10
20A
Note 1
1mA 2.0% +10 2.5% + 20 3.0% + 30
AC coupled true rms AC current accuracy is specified from 2% to 100% of range.
Crest factor: 3 at full scale, 6 at half scale
Peak hold accuracy on AC current ranges (45Hz to 500 Hz):
± (3.5% rdg + 500 dts)
Peak hold response time: 1ms
Input protection: 0.5 A/1000 V fast blow ceramic fuse on 600μA to 400mA ranges
20A/600V fast blow ceramic fuse on 20 A range
Note 1: Apply currents >10 A for 30 seconds maximum, then allow a 10 minute
cooling period.
Specification
MM94 TRMS Digital Multimeter
Resistance
Range Resolution Open circuit
voltage Accuracy
600:0.01:-3.0V dc
0.3 % + 20
6k:0.0001k:
-1.2V dc
60k:0.001k:
600k:0.01k:
6M:0.0001M:1.0% + 10
60M:0.001M:3.0%+ 20
Overload protection: 600V DC or AC rms
Conductance (6000 counts only)
Range Resolution Open circuit
voltage Accuracy
60nS 0.01nS -0.7V dc 1.0
% + 10
Overload protection: 600V DC or AC rms
Capacitance (6000 counts only)
Range Resolution Accuracy
6nF 0.001nF 3.0% + 30
60nF 0.01nF
3.0% + 10
600nF 0.1nF
6μF 0.001μF
60μF 0.01μF
600μF 0.1μF
6mF 0.001mF 5.0% + 10
Overload Protection: 600V DC or AC rms
Specification
MM94 TRMS Digital Multimeter Specification MM94 TRMS Digital Multimeter
Frequency
Range Resolution Trigger
level Accuracy
60Hz 0.001Hz
>1.5V
0.1% + 10
600Hz 0.01Hz
6kHz 0.0001kHz
60kHz 0.001kHz
600kHz 0.01kHz
6MHz 0.0001MHz
>2.5V, <5V
10MHz 0.001MHz
Minimum input: >6Hz
Minimum pulse width: >100 ns
Duty cycle limits: >30% and <70%
Overload protection: 600V DC or AC rms.
Duty Cycle
Range Resolution Resolution Pulse
width
Accuracy
(5V logic)
5% to 95% 40Hz to 1kHz
0.1% >10μs 2.0% + 10
10% to 90% 1kHz to 10kHz
20% to 80% 10kHz to 20kHz
Overload protection: 600V DC or AC rms

Specification
MM94 TRMS Digital Multimeter
Temperature (Type K Thermocouple)
Range Resolution Accuracy
0°C to 400°C
0.1°C
1.0% + 1°C
-50°C to 0°C, 400°C to 1300°C 2.0% + 3°C
32°F to 750°F
0.1°F
1.0% + 2°F
-58°F to 32°F, 750°F to 2372°F 2.0% + 6°F
Overload protection: 30V DC or AC rms
Continuity
Range Resolution Response
time
Open
circuit
voltage
Audible
indication
600: 0.01:100 ms
approx. -3.0V dc <40:
Overload protection: 600V DC or AC rms
Diode Test
Range Resolution Test
current
Open
circuit
voltage
Audible
indication Accuracy
2V 0.1 mV 0.5 mA
typical
3.0V dc
typical <0.05V dc 2.0% + 10
Overload protection: 600 V DC or AC rms
GENERAL
Display: Liquid crystal display
Digital, 60000 counts, updates 2/sec
Polarity: Automatic, positive implied, ‘-‘ for negative polarity indication
Overrange: (OL) or (-OL) is displayed
Bar-graph, 60 segments, updates 20/sec
Power: 9V, PP3 alkaline batteries (IEC 6LR61, NEDA 1604A)
Battery life: 50 hours typical with alkaline
Low battery indication: The LCD will display
Auto power off: After 30 minutes
Fuses: 0.5 A/1000V 6.3x32mm fast blow ceramic fuse
20 A/600V 10x38mm fast blow ceramic fuse
Dimensions: 198 x 90 x 44mm
Weight: Approx. 400g, including battery
Includes: TL16 test leads, TT1P Type K thermocouple, 9V PP3 battery (installed),
instructions
ENVIRONMENTAL
Temperature & Humidity (Operating): 0°C to 50°C <70% R.H.
(Storage): -20°C to 60°C < 80% R.H.
Altitude: up to 2000m
Pollution degree: 2, indoor use
SAFETY
Conforms to BS EN 61010-1, BS EN 61010-2-033, CAT IV 600V, CAT III 1000V
Class II, double insulation
EMC
Conforms to BS EN 61326-1
Specification
MM94 TRMS Digital Multimeter
SPECIFICATION FOR TL16 TEST LEADS
Maximum voltage: 1000V AC/DC
Maximum current: 10A continuous
Connector: 4mm banana plug with fixed shroud
Environmental
Temperature (Operating & Storage): 0°C to 40°C
Altitude: up to 2000m
Pollution degree: 2
Safety
Conforms to BS EN 61010-031,
CAT IV 600V, CAT III 1000V, 10A (Probe tip caps fitted)
CAT II 1000V, 10A (Probe tip caps removed)
Class II, double insulation
Specification
MM94 TRMS Digital Multimeter 17th Edition Testers
Accessories
 Calibration Equipment
Continuity Testers
Electricians’ Kits
Environmental Products
Full Calibration & Repair Service
Fuse Finders
Digital Clamp Meters
Digital Multimeters
Labels
Microwave Leakage Detectors
Motor Maintenance Equipment
Multifunction Testers
Non-trip Loop Testers
Pat Testers & Accessories
Phase Rotation Testers
Proving Units
Socket Testers
Thermometers & Probes
Test Leads
Voltage Indicators
Specialist Metrohm Testers (4 & 5kV)
Specialist Drummond Testers
Check out what else you can get from Martindale:
Martindale Electric Company Limited
Tel: +Metrohm House, Imperial Park, Imperial Way,
Watford, Hertfordshire, WD24 4PP, UK
T: [phone] Fax: [phone]
E-mail:[email protected]
Website: www.martindale-electric.co.uk
© 2016 Martindale Electric Company Ltd.
Registered in England No. 3387451. Rev1 LITMM94
