Masibus UC-12 User manual

User’s Manual
U
UN NI IV VE ER RS SA AL L C CA AL LI IB BR RA AT TO OR R
U
UC C- -1 12 2
Masibus Automation & Instrumentation Pvt. Ltd.
B/30, GIDC Electronics Estate,
Sector-25, Gandhinagar-382044, Gujarat, India
[phone] [phone]
Email: [e-mail]
Web: www.masibus.com
Doc. Ref. no.:mM12/om/101 Issue no. 01

User Manual P a g e |1of 100
Contents
1. Introduction ......................................................................................................4
Foreword.......................................................................................4
Notice............................................................................................4
Trademarks...................................................................................4
Safety ............................................................................................4
General warnings.........................................................................5
Electrical warnings.......................................................................5
Cautions........................................................................................5
Summary of functions..................................................................6
2. UC-12 Hardware Parts & Accessories............................................................7
2.1 Unpacking & Inspection.......................................................7
2.2 Operational Sections and Connections..............................8
2.2.1 The Terminal Connections ...........................................8
2.2.2 The KeyPad ...............................................................17
2.2.3 The Display................................................................18
2.2.4 The USB Connection..................................................18
2.2.5 Stand for Table Top Use ............................................18
2.3 Power Options....................................................................19
2.4 Battery.................................................................................19
2.4.1 Charge time................................................................19
2.4.2 Operating Time ..........................................................20
3. Start Up & Basic Operations .........................................................................21
3.1 Power ON or OFF..................................................................21
3.2 The User Interface................................................................21
3.2.1 The Status Bar...........................................................22
3.2.2 The Function key Bar.................................................22
3.2.3 Display Mode .............................................................23
3.2.4 Display Operations.....................................................30
3.2.5 SCR1 and SCR2 Key Option : mQUICK-SETUP Key 35
4. Menu Layout...................................................................................................36
4.1 MENU page .........................................................................36

2of 100| P a g e User Manual
4.2 MEASURE Page..................................................................36
4.3 SOURCE Page ....................................................................39
4.3.1 ET Setup......................................................................39
4.3.2 TC Setup......................................................................46
4.3.3 RTD Setup...................................................................50
4.3.4 Pulse Setup..................................................................55
4.4 DISPLAY Page ......................................................................56
4.4.1 EM Display Settings.....................................................57
4.4.2 Switch test Display Settings .........................................58
4.4.3 ET Display Settings......................................................59
4.4.4 TC Display Settings......................................................60
4.4.5 RTD Display Settings...................................................62
4.5 DATA LOGGING Page..........................................................64
4.5.1 Transferring the Results to a Personal Computer:......66
4.6 CJC SETTING Page..............................................................67
4.7 Wire Select Page ..................................................................68
4.8 Alarm Page............................................................................69
4.9 SETTING Page ....................................................................70
4.9.1 HART Settings ...........................................................70
4.9.2 Display Settings .........................................................71
4.9.3 Date/Time Settings.....................................................71
4.9.4 Calibration..................................................................72
4.9.5 Battery Info.................................................................86
4.9.6 Set Password.............................................................86
4.9.7 Factory Reset.............................................................86
4.9.8 About Us....................................................................87
5. Maintenance & Troubleshooting...................................................................87
5.1 Common Problems.............................................................87
5.2 Replacing the Battery.........................................................88
5.3 Related Information............................................................89
5.3.1 Thermocouple Measurement/Simulation, Connections and
troubleshooting. ....................................................................89
5.3.2 Parallel Functions in UC-12..........................................92
6. General Specifications...................................................................................93

User Manual P a g e |3of 100
6.1 General Specifications.........................................................93
6.2 Display & Keys .....................................................................93
6.3 Special Features...................................................................94
6.4 Power Supply........................................................................94
6.5 Physical.................................................................................94
6.6 Electrical Measurement Parameters and Accuracy..........95
6.7 Electrical Simulation Parameters and Accuracy................95
6.8 Resistance Measurement 0 ... 4000 ohm ............................95
6.9 Resistance Simulation 0 ... 4000 ohm.................................95
6.10 RTD Measurement and Simulation....................................95
6.11 Available RTD Types..........................................................96
6.12 Thermocouple/mV Resolution and Accuracy...................97
6.13 Frequency Measurement ...................................................97
6.14 Pulse counting....................................................................97
6.15 Frequency Generation .......................................................97
6.16 Pulse Generation................................................................98
6.17 Enclosure Dimensions.......................................................99
6.18 Ordering Code ....................................................................99

4of 100| P a g e User Manual
1. Introduction
Foreword
Thank you for purchasing Universal Calibrator UC-12.
The UC-12 calibrator is compact hand-held calibrator
with an easy to use graphical user interface.
This manual describes the basic functions and
operation methods. Please read through this user’s
manual carefully before using the product.
Notice
The contents of this manual are subject to change
without notice as a result of continuous improvements
to the instrument’s performance and functions.
Every effort has been made to ensure accuracy in the
preparation of this manual. Should any errors or
omissions come to your attention, however, please
inform MASIBUS Sales office or sales representative.
Under no circumstances may the contents of this
manual, in part or in whole, be transcribed or copied
without our permission.
Trademarks
Our product names or brand names mentioned in this
manual are the trademarks or registered trademarks of
Masibus Automation and Instrumentation (P) Ltd.
(Herein after referred to as MASIBUS).
Adobe, Acrobat, and Postscript are either registered
trademarks or trademarks of Adobe Systems
Incorporated. All other product names mentioned in this
user's manual are trademarks or registered trademarks
of their respective companies.
Safety
Before you use the instrument, make sure that you
read and understand all the related data. This includes:
the applicable local safety procedures, this publication,
and the instructions for the
accessories/options/equipment you are using it with.

User Manual P a g e | 5of 100
General
warnings
WARNING
It is dangerous to ignore the specified limits
for the instrument or its related accessories.
Do not use the instrument or accessory if it is
not in its normal condition.
Use the applicable protection and obey all
safety precautions.
Do not use the instrument in locations with
explosive gas, vapor or dust. There is a risk
of an explosion
Electrical
warnings
To prevent electrical shocks or damage to the
instrument, do not connect more than 30V
between the terminals, or between the
terminals and the ground.
This instrument uses a Lithium-Ion battery
pack. To prevent an explosion or fire, do not
short circuit, do not disassemble, and keep it
safe from damage. For operating conditions,
see section 6.1 on Page-85
To prevent battery leakage or heat generation,
only use the battery charger in the temperature
range 0 to 45°C (32 to 113°F). For operating
conditions, see section 6.1 on Page-85.
To make sure the display shows the correct
data, disconnect the test leads before you set
the power to on or change to another measure
or source function.
Cautions
To prevent damage to the display, do not use
sharp objects on the screen.
Before you start an operation or procedure in this
publication, make sure that you have the
necessary skills (if necessary, with qualifications
from an approved training establishment). Follow
good engineering practice at all times.

User Manual P a g e | 6of 100
Summary of
functions
This table gives a summary of the available functions
with the UC-12 calibrator.
Function
Easy to read liquid crystal display (LCD) in color
Rechargeable lithium Ion battery with enhanced power control
for prolonged battery life.
* Measure RTD(Pt10, Pt50, Pt100, Pt200, Pt400, Pt1000,
Pt100(3926),Ni100(672), Ni100(618), Ni120(672), Cu10(427),
Cu50(427), Cu100(427)), Resistance (0 to 4000 ohms), mA,
mA(2W), V,Thermocouple (E,J,K,T,B,R,S,N), mV(-10 to
250mV),Switch-test, Frequency, Pulse
* Simulate RTD(Pt10, Pt50, Pt100, Pt200, Pt400, Pt1000,
Pt100(3926),Ni100(672), Ni100(618), Ni120(672), Cu10(427),
Cu50(427), Cu100(427)), Resistance (0 to 4000
ohms),Thermocouple (E,J,K,T,B,R,S,N), mV(-10 to 250mV), mA,
mA(2W), V, Frequency, Pulse
Step/Ramp functions: Automatic/Manual
Universal Serial Bus (USB) communications ports: For computer
Communications, Battery Charging& Firmware Upgrade
Data Logging
Other functions:
Maximum / Minimum / Average, filter, tare, adjustable backlight,
alarm indication (on the display and buzzer), Glance Screen.
Continuity Test, Automatic / Manual Wire Selection for RTD
Measurement, RTD CJ Compensation.
* Refer to the Specification Sheet on Page: 95

User Manual P a g e | 7of 100
2. UC-12 Hardware Parts & Accessories
2.1 Unpacking & Inspection
At the factory each new UC-12 passes a careful inspection. It should be
free of scrapes and scratches and in proper operation order upon receipt.
The receiver should, however, inspect the unit for any damage that may
have occurred during transit. If there are signs of obvious mechanical
damage, package contents are incomplete, or the instrument does not
operate according to specifications, contact the purchasing sales office as
soon as possible. The standard accessories are as follows:
If you have to return the instrument to the factory for any reason, use the
original packing whenever possible. Include a detailed description of the
reason for the return.
Sr. No
Description
Qty
1.
Calibration Certificate
1
2.
UC-12 user guide
1
3.
4mm to 4mm banana cable Red , 100cm
3
4.
4mm to 4mm banana cable Black , 100cm
3
5.
Crocodile clip Red
3
6.
Crocodile clip Black
3
7.
Test lead Cu-Cu(Miniature TC Plug Cu type to 4mm
Test lead)
1
8.
USB A to mini USB B type cable for PC
communication and charging
1
9.
5V 1A charging adaptor
1
10.
Leather cover of UC-12
1
11.
UC-12 configuration & Logging software CD-mCAL.
1

8of 100| P a g e User Manual
2.2Operational Sections and Connections
All sections and connections are presented in detail on the next pages.
Note:
Keep in mind that the next picture (as well as all pictures of UC-12 in this
manual) has an example configuration of modules. The configuration of
your UC-12 may vary significantly from the one in the picture.
2.2.1 The Terminal Connections
1
Terminal Connection For
Measure & Source
2
Keypad Section
3
TFT Color Display
4
USB Connection Slot for
PC Communication &
Charging

User Manual P a g e | 9of 100
EM (Electric Measurements and 24V Supply) Measure Terminals
Input Terminals for measuring voltage, current, supplying loop power,
and Frequency and pulse types refer specification sheet on page no.
95 Section 6.6 and page no. 97 Section 6.13, 6.14.
Current Measurement
UC-12 supports current measurement using either UC-12 as the
loop power supply while at the same time measuring the current or
simply measuring the current while an external power supply is
used.
The following picture displays the connection for Current
Measurement for different mode. And also different ways of
providing the supply power to the loop.
mA Current Measurement
In this mode UC-12 not providing any supply voltage. For
proper measurement the external device should capable of
providing the voltage supply. If the external device should not
capable, an external Power Supply should be connected in
series.

10 of 100| P a g e User Manual

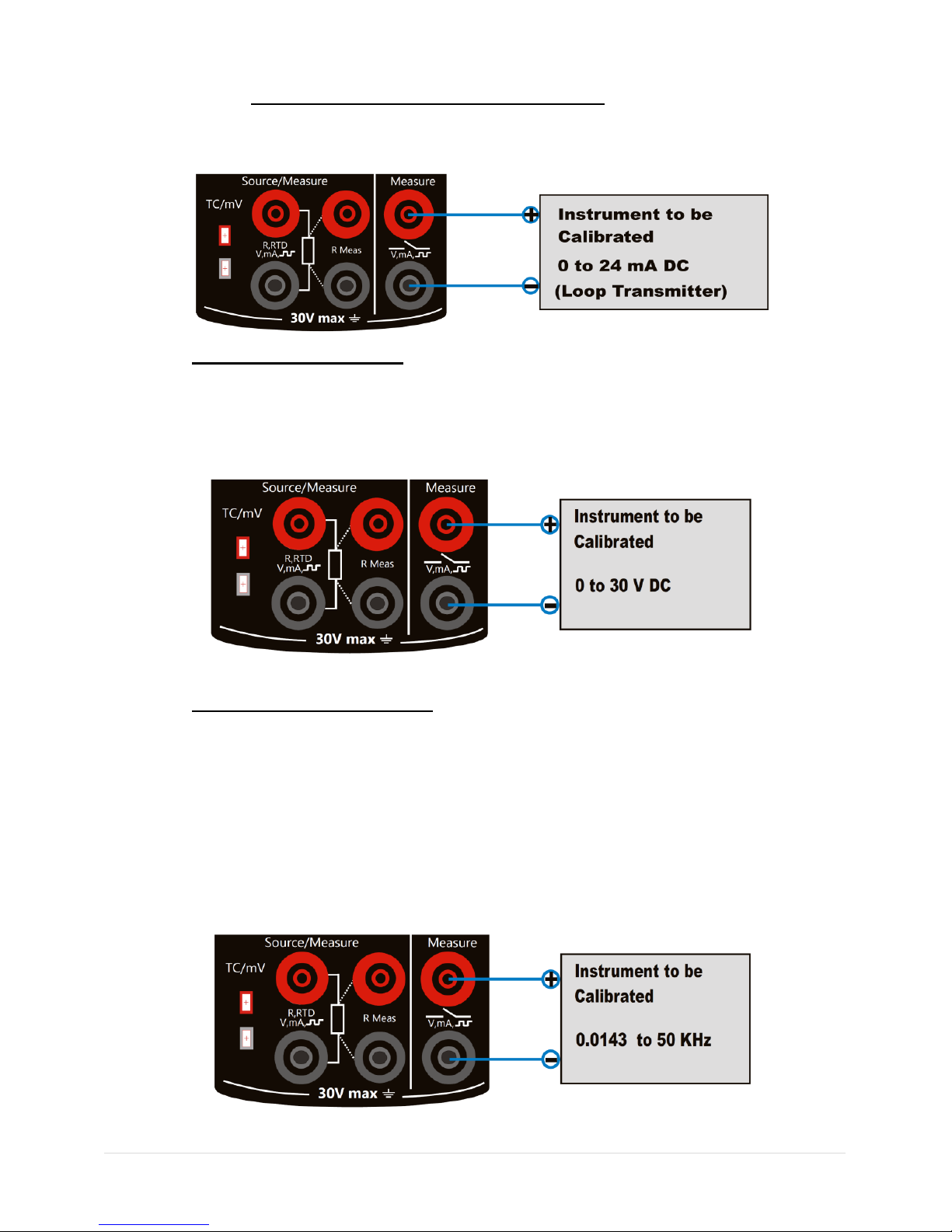

mA Read Power Current Measurement
In this mode UC-12 works as Loop Power Supply while at the
same time measuring the current.
Voltage Measurement
UC-12 is capable of voltage measurement. The following picture
displays the connection for voltage measurement.
Frequency Measurement
UC-12 is capable of frequency measurement. The following picture
displays the connection for frequency measurement.
Also check the Trigger Level setting. There you can specify the
trigger level and whether to use a test voltage during the frequency
measurement

User Manual P a g e | 11 of 100

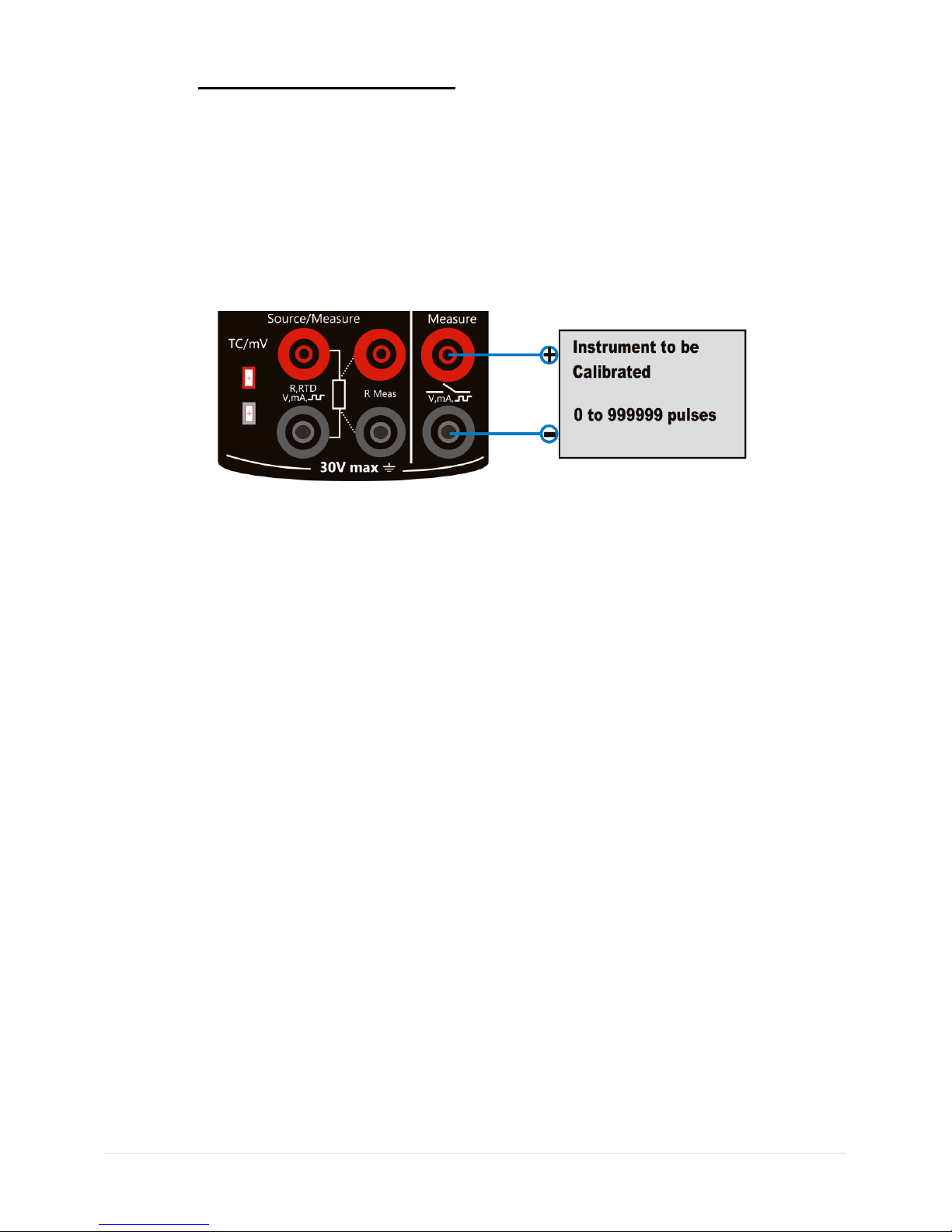

Pulse Count Measurement
UC-12 is capable to count number of pulses. The following picture
displays the connection for pulse count measurement.
Check the Trigger Level setting to specify the trigger level and
whether to use a test voltage during the pulse counting. Also check
the Trigger Edge (Rising or Falling) setting so it suits your need.

12 of 100| P a g e User Manual
ET (Electrical source Terminal) Terminals
Terminals for Simulating voltage, current, supplying loop power types
refer specification sheet on page no. 95 Section 6.7
Current Generation
In source mode UC-12 provides the supply power to the loop.
The following picture displays the connection for current source for
different mode.
mA Current Source
mA 2-Wire Source
Voltage Generation
UC-12 is capable of voltage generation the following picture
displays the connection for voltage source.

User Manual P a g e | 13 of 100
RTD Terminals
Terminals for measuring & simulating RTD / Ω. For RTD/Ωtypes refer
specification sheet on Page No.95- 97 Section 6.8, 6.9, 6.10, 6.11
RTD/Resistance Source
UC-12 is capable of RTD/Resistance generation. The following
picture displays the connection for RTD and Resistance simulation.
In RTD simulation UC-12 mimics an RTD. The instrument under test
generates the current for the RTD measurement.UC-12 controls the
voltage across its terminals so that the resistance (voltage to
Current ratio) corresponds to the simulated temperature. Use of 2, 3
or 4-wire connection is up to the receiver instrument. Use only the
two leftmost terminals with every wiring option. Connect the possible
third and fourth wire according to the Requirements of the
connected instrument but use only the two leftmost terminals.

14 of 100| P a g e User Manual

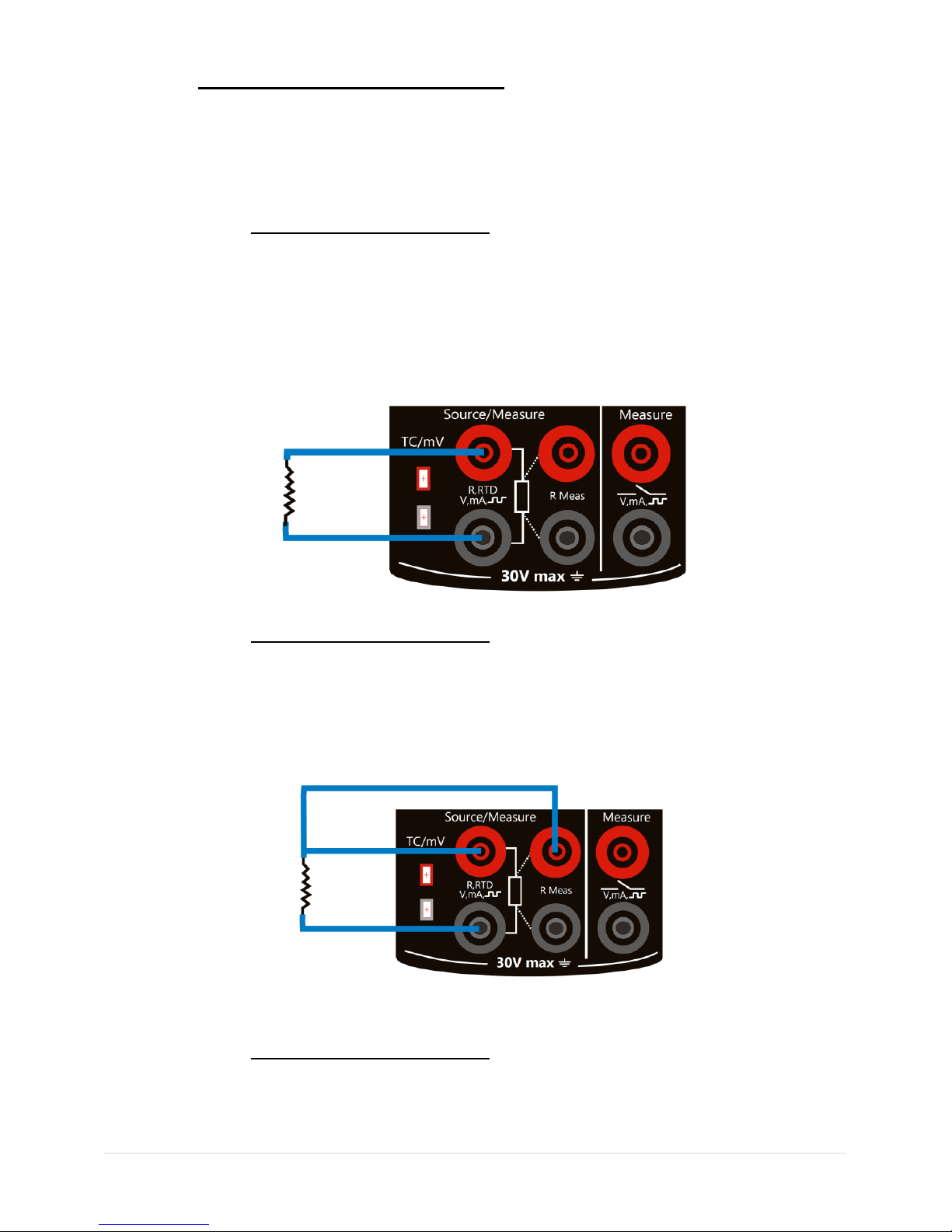

RTD / Resistance measurement
UC-12 is capable of RTD/Resistance measurement. The following
picture displays the connection for RTD and Resistance
measurement.
2-Wire RTD Measurement
Two leftmost terminals are used in 2-wire systems. UC-12
displays the selected wiring system in run page. UC-12
sources current through the resistor and measure the voltage
drop across same terminals. The result is acceptable, if the
resistance of the connection wires is significantly smaller than
actual measured resistance.
3-Wire RTD Measurement
UC-12 sources current through the resistor and measure the
voltage drop across the entire current loop and across the
upper side connection wire as shown in figure. If both left side
connection wires are identical, UC-12 can compensate for the
resistance of the connection wires.

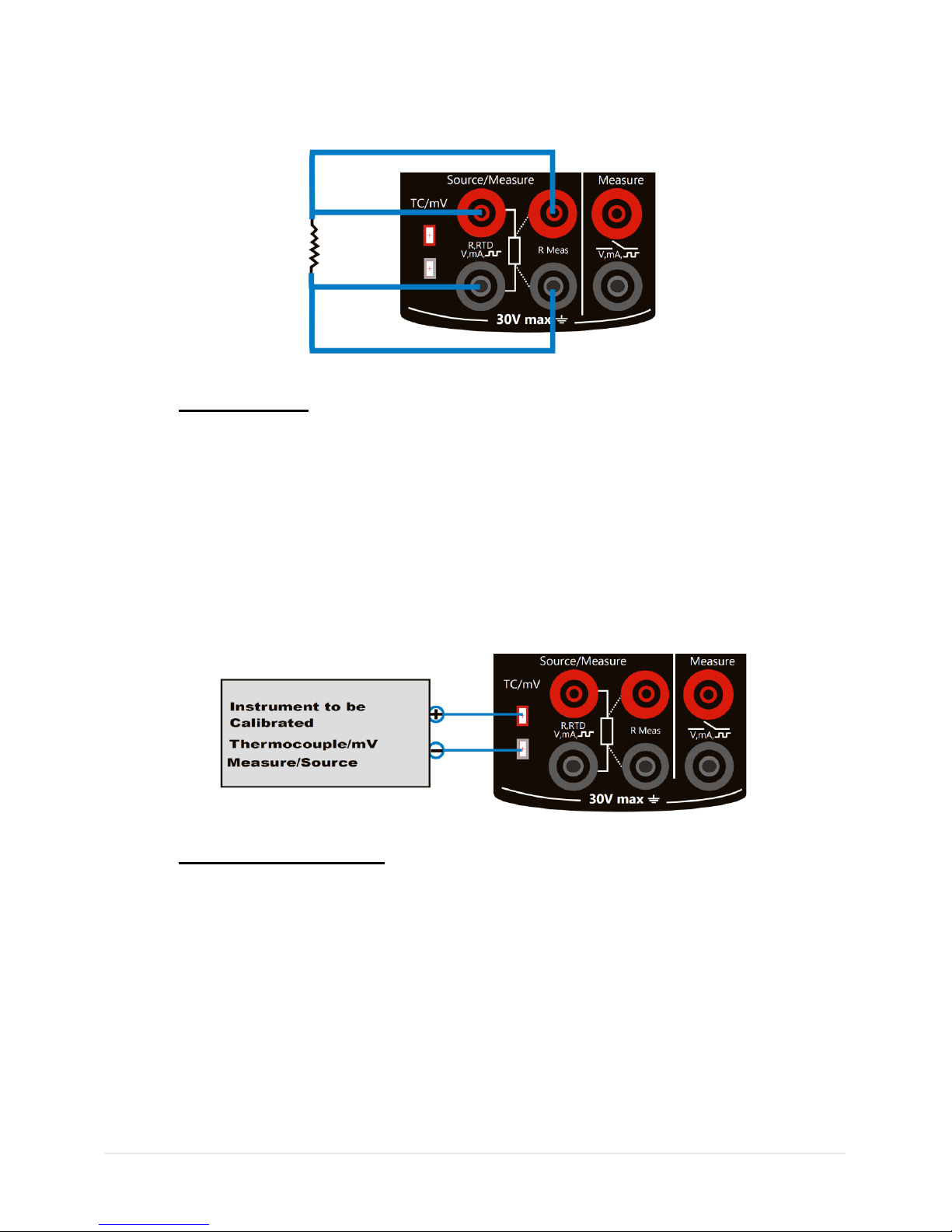

4-Wire RTD Measurement
UC-12 sources current through the resistor from two left side
terminals and measure the voltage drop across the resistor
from the two right side terminals. The 4-wire method gives the

User Manual P a g e | 15 of 100
resistance between the terminals of the resistor; it is
insensitive to the resistance of the connection wires.
TC Terminals
Terminal for measuring & simulating thermocouples and mV. This
terminal accepts a miniature polarized thermocouple plug with flat, in-
line blades spaced 7.9 mm (0.312 in) center to center.
For specification refer Section 6.12
UC-12 supports measurement and simulation of Thermocouple and
mV.
Frequency Terminals
UC-12 is capable of Frequency Generation. The following picture
displays the connection for Frequency Generation.
For specification refer Section 6.15

16 of 100| P a g e User Manual
Pulse Terminals
UC-12 is capable of Pulse Generation. The following picture displays
the connection for Pulse Generation. For specification refer Section
6.16

User Manual P a g e | 17 of 100
2.2.2 The KeyPad
UC-12 has nine different keys. The key description is given below.
This key has different functionalities in different menu. And that
is shown on Bottom Left Part of Display.
Pulse Resetting Shortcut: The counter may be cleared (zeroed)
by long Pressing F1 key for 3 sec during Pulse Measurement
Only.
This key has different functionalities in different menu. And that
is shown on Bottom Right Part of Display.
This key is use to scroll down to the next parameter. And also
for decrementing the value of digit in Editbox.
This key is use to scroll up to the previous parameter. And also
for incrementing the value of digit in Editbox.
This Key is use for Entering into the MENU Page from Run
Page.
And Also for Saving Edited Parameter to the memory.
This key is use to log current reading in memory if device is on
Run Page& Log Mode is Manual. (In other Page than Run
Mode, this key is use to come directly to Run Page.
Long presses (Approx.2 Sec) on this key will ON-OFF the Unit.
This key is used to go in Screen 1 setup menu page.
This key is used to go in Screen 2 setup menu page.
This key is used to switch between measure and source mode
(Only applicable for T/C,mV and RTD Measure / Simulation).

18 of 100| P a g e User Manual
2.2.3 The Display
OR
This is a LCD with a 3.2” color display.
The display has resolution of 240x320 pixels supporting 262K
Colors.
Refer Section 3.2.3 on Page-23for more details on Different Display
Mode and Icon Details
2.2.4 The USB Connection
The USB Connection Connector is given at Top of the UC-12. It’s a
USB A Male to USB mini B Male Connector.
It is common for PC Communication & Charging the device.
The USB cable given with the device is USB A-type Male to USB
mini B-type male.
2.2.5 Stand for Table Top Use
This Stand would offer the best support for table top use which
gives good viewing angle when UC12 is placed table
top
Procedure to Open Stand
ois being engraved on the top of the
stand. You should pull a bit first.
ois being engraved on the bottom of the
stand. Now during first pull of above you can
release this lower part easily so that you can maneuver the
stand as you like.

User Manual P a g e | 19 of 100
2.3 Power Options
There are three power options:
Lithium-Ion battery: All the instrument functions are available with
a charged battery.
5 V DC Charging Adaptor: It supplies power to the instrument and
charges the battery at the same time. It charges the battery when
the instrument is on or off.
USB mini Type B connection: This charges the battery when the
instrument is off and increases the battery life when the instrument
is on. Instrument cannot be charged with USB when it is ON.
2.4Battery
The Device uses 3000mAh Lithium-Ion
Battery. Explosion or fire, do not short
circuit, do not disassemble, and keep it
safe from damage. For more specification
refer Section 6.4
To prevent an explosion or fire, use only the Masibus specified
battery, battery charger & USB Cable.
To prevent battery leakage or heat generation, only use the
battery charger in the temperature range 0 to 45°C (32 to
113°F).
To get more information on Battery go to Battery Info Page in
Setting Menu.
2.4.1 Charge time
Note:
USB mini Type B connector charges the battery when the instrument is off
and increases the battery life when the instrument is on
\Charge
Method
Charge Time (to Full Capacity)
External
Charging
Adaptor
≈ 5 hours
