Master audio X-12C User manual

XCELLENCE SERIES
X-12C - X-15C - X-18W Systems
Pol. Ind. Norte - Perpinyà, 25
08226 TERRASSA (Barcelona-SPAIN)
Copyright © 2009 [email protected]
All rights reserved master-audio.com
Nov 09
User’s manual

Master Audio
Xcellence Series.Ver 1.1 Nov 09 2
ENGLISH
Safety Instructions
1. All safety instructions must be read before using this device.
2. The exclamation mark in the triangle indicates internal components which if
replaced can affect safety.
3. The lightning symbol within the triangle indicates the presence of dangerous
uninsulated voltages.
4. This device must not be exposed to rain or humidity. It must not be used for
example near swimming pools, fountains or any other place where it might be
affected by liquids.
5. Only clean the device with a dry cloth.
6. Do not situate the equipment where its ventilation system might be interfered with.
7. Do not install the device near heat sources such as radiators, heaters or other
heat-emitting elements.
8. The equipment must be repaired by qualified technical service personnel when:
A. The mains supply cable is damaged, or
B. Any object or liquid has damaged the device; or
C. The equipment does not function normally or correctly; or
D. The equipment has been exposed to the rain; or
E. The chassis is damaged
9. Disconnect the device in the case of electric storms or during long periods of
disuse.
10. Never hang the equipment by its handle.
11. Only use manufacturer recommended accessories.
CAUTION
RISK OF ELECTRIC SHOCK
DON’T OPEN
To reduce the risk of fire or electric shock do
not expose this equipment to rain or moisture
WARNING:

Master Audio
Xcellence Series.Ver 1.1 Nov 09 3
1. INTRODUCTION
1.1. General product information
Master Audio thank you for the trust placed in our Xcellence loudspeaker system.
The Xcellence series combines the benefits of its coaxial point sound sources, the
convenience of a self-powered system and the flexibility of the DSP (digital system
processing) for cabinet control.
More than 35 years’ experience in amplifier and acoustic cabinet design using the
highest technology and components come together to give you a product ideal for a
multitude of applications, from sound back-up systems for theatres, clubs or TV
channels to even churches, corporative events or concert halls.
Coaxial technology achieves a sound distribution system which is totally coherent and
in phase (as a point source). This is due to the fact that the directivity of the high and
low frequency transducers couples up perfectly with the crossover frequency from the
filters. This results in very smooth transitions between the bass and high frequency
zone and the elimination of secondary null zones due to polar lobbing, typical of
those systems using separate woofer and horn.
The directivity of the cabinets with coaxial transducers is totally symmetric in the
horizontal or vertical plane.
We suggest you read the following information with attention, assured that it will be of
maximum use in helping you to achieve the best results and optimum performance.
1.2. Features and appearance
X-12C & X-15C
- Self-powered cabinet.
- 750W amplifier for mid range.
- 250W amplifier for high range.
- DSP with 48 bit bus and 28 bit filter coefficients.
- DSP Controls (parametrics, delay, volume and limiters).
- RJ45 output for control via computer.
- Overvoltage protection (>250V-400V).
- 2 way coaxial speaker with 80º symmetry, including one 12” / 15” woofer in
neodymium and one 3” voice coil diameter, titanium diaphragm compression
driver.
- Birch plywood construction.
- Varnished finish. Optional black textured paint finish: totally ecological.
- Frontal steel grille with acoustically transparent grey cloth.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 4
X-18W Subwoofer
- Self-powered cabinet.
- 1500W amplifier for bass range.
- DSP with 48 bit bus and 28 bit filter coefficients.
- DSP Controls (parametrics, delay, volume and limiters).
- RJ45 output for control via computer.
- Overvoltage protection (>250V-400V).
- 18” speaker in neodymium, 4” voice coil and demodulation rings to reduce
distortion and the transitory response.
- Birch plywood construction.
- Varnished finish. Optional black textured paint finish: totally ecological.
- Frontal steel grille with acoustically transparent grey cloth.
2. XC Systems. Features
The X-12C &X-15C cabinet are ideal for a multitude of applications. They include
750W bi-amplification for the mid range woofer, 250W for the high range compression
driver and digital signal control by DSP. The manufacturer presets FACTORY,
NEARFIELD, SPEECH, MONITOR, and XOVER make it easy, flexible and user-
friendly.
In terms of its electro-acoustic qualities, the coaxial transducer gives a totally
symmetrical response free of null zones from polar lobbing effect. It comprises a 12”
or 15” woofer with a 3” voice coil and a compression driver with 3” voice coil and
titanium diaphragm.
The result is a clean, high quality sound whether for nearfield listening or at full power
in larger sites.
Thanks to its wedge shape it can be used as an onstage monitor, obtaining stable,
homogeneous response and coverage.
The upper and lower surfaces incorporate a pole mount socket for a standard 35mm
tripod, which at the same time allows for the use of a UBX hanging support (see
accessories).
2.1. Technical description
The XC cabinets come with DSP control, full range sound delivery thanks to their
direct radiation coaxial transducer and acoustic bass reflex cabinet. As a full range
system, its response is 58-18kHz (+/- 3dB) with a usable bandwidth between 50Hz-
20kHz (-10dB) for X-12C and 53Hz-18kHz (+/- 3 dB) with a usable bandwidth
between 45Hz-20kHz (-10dB) for X-15C.
It has 1000W continuous amplification (750W + 250W), thermal protection, anti-short
circuit protection at the output, maximum power limiters for each channel, and
protection against overvoltage. The DSP includes 5 presets which can be selected
either accessing the cabinet’s rear control panel or via the computer with RJ45
connection for the RS485 bus. The FACTORY preset gives a maximum flat response
in free field conditions; NEARFIELD has +3dB in high and low frequencies, -3dB in

Master Audio
Xcellence Series.Ver 1.1 Nov 09 5
mid range for medium volume, close range listening; SPEECH has -9dB bass, -6dB
high for voice use with a microphone; MONITOR gives a flat response in half space
(floor position); XOVER has a high pass filter at 100Hz for bass frequency back up
(subwoofer).
The XC cabinets are connected using the XLR balanced connector. Mains supply is
through PowerCon at 230V.
Built in birch plywood, which has a high resistance to vibrations and humidity.
Varnished finish and optional (by order) textured water-based acrylic resin black paint
which is totally ecological. The front face is protected by a 1.5 mm thick steel grille
with acoustically transparent grey cloth.
Wedge shape. As onstage monitor, the front baffle is oriented at 35º from vertical.

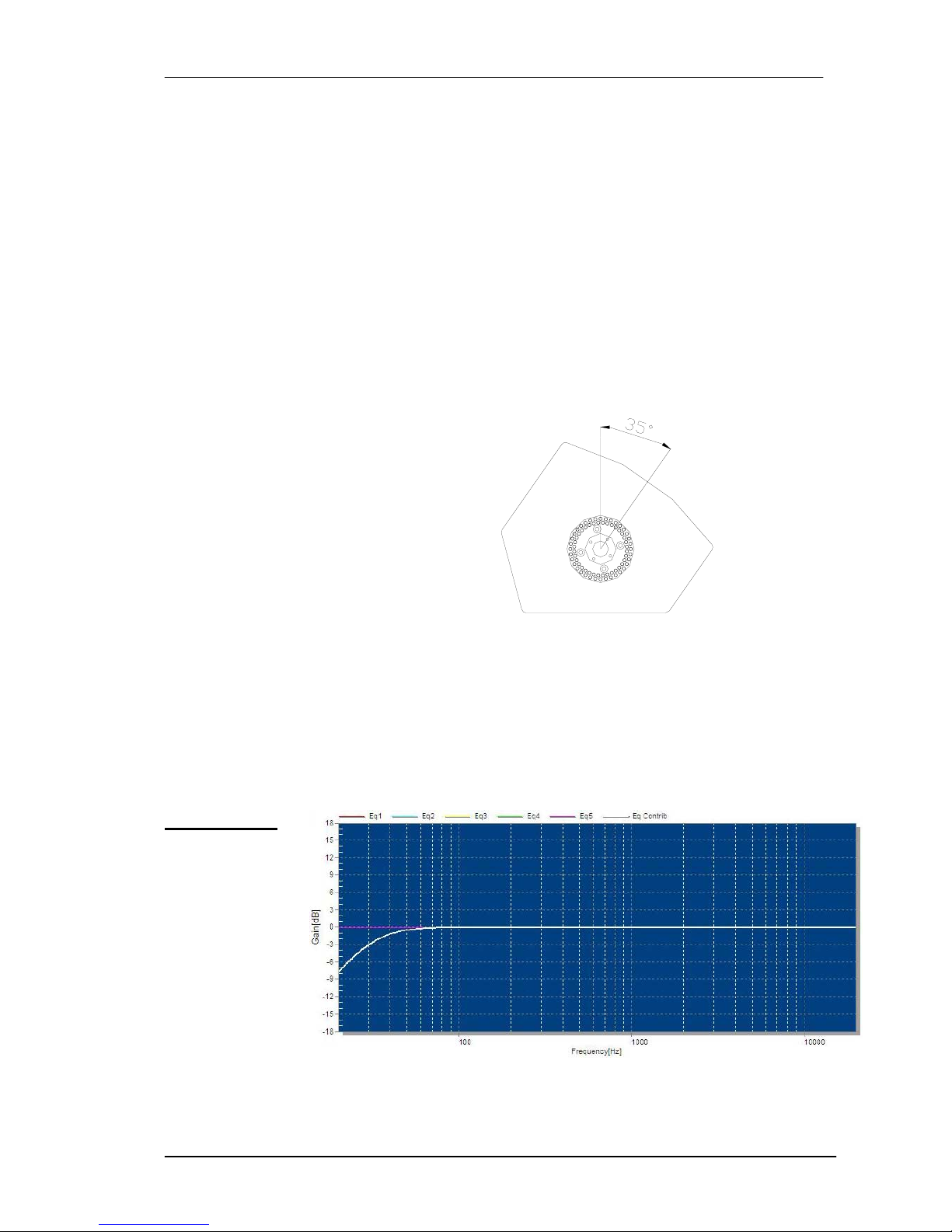

Fig.1. XC as onstage monitor
2.2. Presets
The XC include five manufacturer presets for different types of application. The DSP
system can also store up to 16 other presets, depending on user requirements
P1-FACTORY
Flat response
(freefield)

Master Audio
Xcellence Series.Ver 1.1 Nov 09 6
P2-NEARFIELD
+3dB Low
+3dB High
-3dB Mid
(nearfield)
P3-SPEECH
-9dB Low
-6dB High
(speech)
P4-MONITOR
Flat response
(half space/floor)
P5-XOVER
HFP 100Hz
(with subwoofer)
Fig.2. XC PRESET options

Master Audio
Xcellence Series.Ver 1.1 Nov 09 7
2.3. Connection Panel (for all Xcellence models)
Each unit contains a rear panel comprising:
a) RJ45 INPUT: Computer connection input.
b) RJ45 LINK: Computer signal link.
c) INPUT SIGNAL: XLR balanced signal connector.
1= Shield 2= Live 3= Return

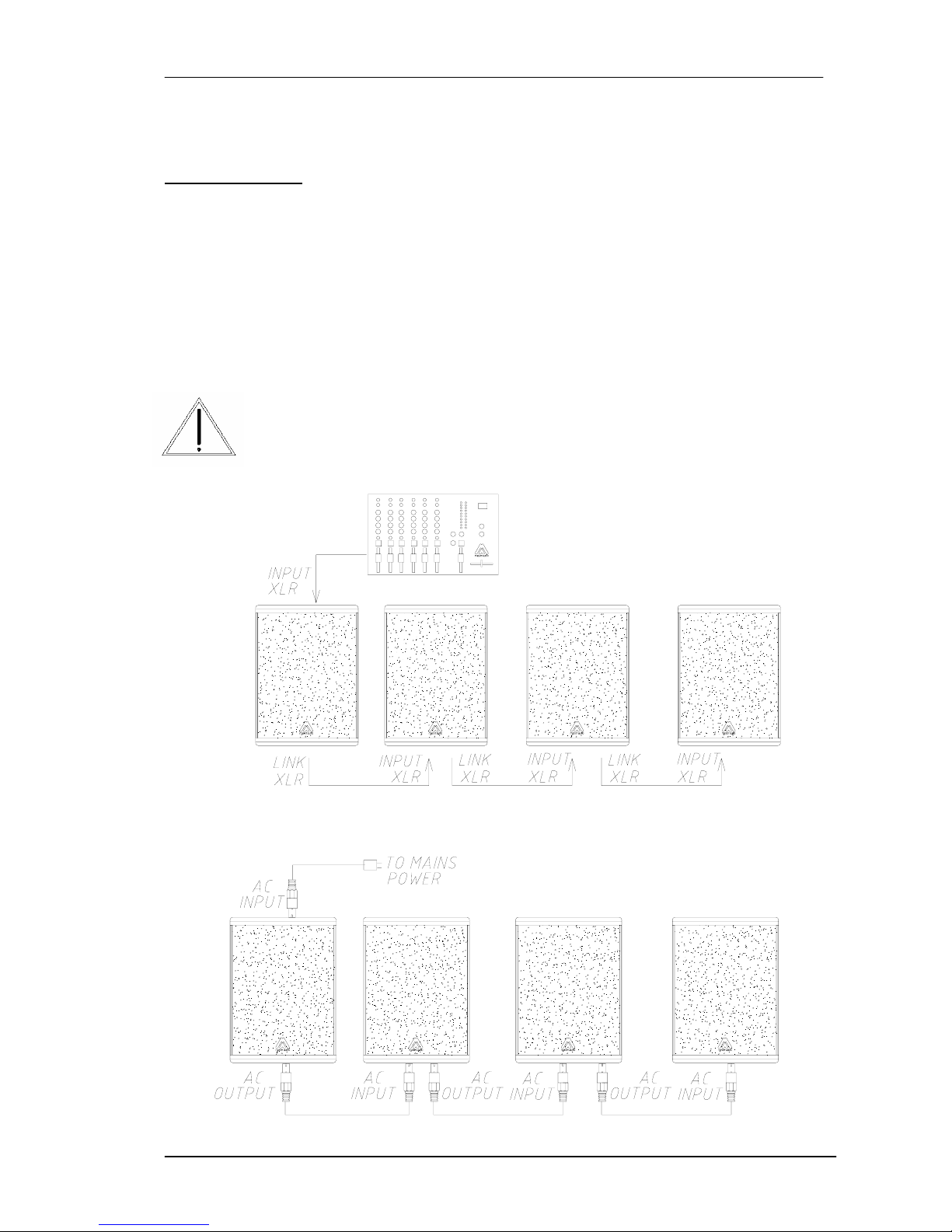

d) LINK INPUT SIGNAL: XLR connector for parallel connection of various cabinets
with the same input signal.
1= Shield 2= Live 3= Return
e) AC INPUT: Mains supply via PowerCon.
f) AC LINK: Power link for PowerCon connector to feed other units in parallel (up to a
maximum of 3 extra units).
g) AC INDICATORS (Power supply)
- ON: lights up with correct AC signal.
- STAND BY: lights up during switch on sequence.
- OVERVOLTAGE PROTECTION: lights up if the AC input signal exceeds
250VAC. The system shuts down automatically and cannot be connected
until the AC level is correct. This protects against erroneous connection to
400V or neutral voltage drop.
E G A B C D
F
Fig.3. X-12C/X-15C connection panel
Always use mains power cable supplied by manufacturer.
Never connect the XC to an unearthed mains supply or by using an
unearthed mains cable.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 8
3. DIMENSIONS:
X-12C has height 56 cm, width 41 cm, depth 40.1 cm
X-15C has height 65 cm, width 46 cm, depth 42.9 cm
Fig.4. X-15C cabinet. External dimensions
As a low frequency reinforcement, we offer the X-18W subwoofer which is totally
compatible with X-12C or X-15C top cabinets.
4. X-18W Subwoofer
The X-18W cabinet is ideal for bass reinforcement in general and specifically in
combination with models X-12C and X-15C. It includes 1500W amplification for the
woofer and digital signal control by DSP. The manufacturer presets (LPF90+,
LP110+, LPF130+, LPF90-, LPF110-, LPF130-) make it easy, flexible and user-
friendly.
The 18” neodymium woofer used, thanks to its exclusive magnetic design, combines
excellent bass frequency response, high performance and low distortion. These
features are mainly due to the presence of demodulation rings which drastically
reduce the inter-modulation and third order distortion and considerably improve the
transitory response. There is excellent heat dissipation due to the external positioning
of the magnet set. Without any doubt one of the finest bass transducers currently
available.
The result is a clean, high quality sound.
The upper surface incorporates a pole mount socket for a standard 35mm bar.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 9
4.1. Technical description
The X-18W cabinet comes with DSP control, with direct radiation transducer and
acoustic bass reflex cabinet. As a bass reinforcement system, its frequency response
is 35Hz-130Hz (+/- 3dB) with a usable bandwidth between 30Hz-140Hz (-10dB,
preset LPF130).
It has 1500W continuous amplification, thermal protection, anti-short circuit protection
at the output, maximum power limiters for each channel, and protection against
overvoltage. The DSP includes 6 presets which can be selected either accessing the
cabinet’s rear control panel or via the computer with RJ45 connection for the RS485
bus. The LPF90+ and LPF90- presets mean low pass filter at 90Hz; LPF110+ and
LPF110- mean low pass filter at 110Hz; LPF130+ and LPF130- mean low pass filter
at 130Hz.
By upping the low pass filter a greater ‘boom’ sensation can be achieved, but clarity is
lost. It is down to the user to decide on the most suitable preset.
The X-18W is connected using the XLR balanced connectors. Mains supply is
through PowerCon at 230V.
Built in birch plywood, which has a high resistance to vibrations and humidity.
Varnished finish and optional (by order) textured water-based acrylic resin black paint
which is totally ecological. The front face is protected by a 1.5 mm thick steel grille
with acoustically transparent grey cloth.
Dimensions: Height 56.7 cm, width 61 cm, depth 65 cm.
Fig.5. X-18W cabinet. External dimensions

Master Audio
Xcellence Series.Ver 1.1 Nov 09 10
4.2. Presets
The X-18W includes six manufacturer presets for different types of application. The
DSP system can also store up to 16 other presets, depending on user requirements.
ATTENTION: When the X-18W is used in conjunction with the X-12C and X-15C in
XOVER preset, the X-18W must operate in positive polarity (LPF90+, LP110+,
LPF130+).
When the X-18W is used in conjunction with the X-12C and X-15C in FACTORY,
NEARFIELD, SPEECH or MONITOR presets, the X-18W must operate in negative
polarity (LPF90-, LP110-, LPF130-).
P1-LPF90+
P4-LPF90-
Low pass filter
at 90Hz
P2-LPF110+
P5-LPF110-
Low pass filter
at 110Hz
P3-LPF130+
P6-LPF130-
Low pass filter
at 130Hz
Fig.6. X-18W PRESET options

Master Audio
Xcellence Series.Ver 1.1 Nov 09 11
4.3. Connection Panel: Exactly the same as XC Full-Range Systems
5. CONNECTING
5.1. Parallel connection
Connect the signal (mixing desk output) to INPUT on the first unit. Use the LINK
output to transfer the INPUT signal to the second unit and thus sequentially for further
units. All of the units in this chain must be switched on.
For the mains connection in parallel use the cable with grey Neutrik PowerCon
NAC3FCB at one end and the blue Neutrik PowerCon NAC3FCA at the other end.
Do not connect more than 4 X-12C or X-15C units using the AC Stacking
output connector.
Do not connect Xcellence series units in parallel using PowerCon-
PowerCon without earth.
Fig.7. Parallel connection for the Xcellence series(signal
Fig.8. Parallel connection for the Xcellence series (mains)

Master Audio
Xcellence Series.Ver 1.1 Nov 09 12
5.2. Parallel connection with subwoofer
You can connect the X-18W subwoofer in parallel with both X-12C and X-15C
cabinets. Please, follow the same parameters as explained in figures 7 and 8. Never
connect more than 4 units using the AC Stacking.
6. OVERVOLTAGE PROTECTION
The Xcellence series models incorporate protection against mains voltage overload.
In the mains input an electronic circuit compares the actual voltage with a reference
value. When the input tension exceeds 250 Volts, the circuit reacts by blocking the
input tension until it returns to its correct limits (230V +/- 10%).
When the overvoltage LED lights up red, the unit stops running, until the correct
voltage is re-established.
Generally the cause of such an anomaly tends to be a neutral voltage drop or
incorrect connection of the equipment to 400V supply. Whenever the overvoltage
LED lights up, check the tension of the electrical phases: other devices in the sound
system are also at risk of electrical fault.
7. FUNCTIONS of the INTERNAL DSP
All the XCELLENCE series are equipped with an internal DSP unit, which can be
operated by the LCD and keypad located at the rear panel of the cabinet and/or by an
external PC (RJ45 connector)
a) Through keypad and without PC, the following functions will be accessible:
Gain Control, independent for each way (low and high).
Limiter Adjust, also independent for each way.
Delay Adjust, in meters or milliseconds.
Mute: temporary signal cut-off
Load a configuration: one of the 5 factory pre-loaded presets or one of the 16
available user memories
To gain access to these functions it is necessary to unlock the keypad, which is
automatically locked after some time of inactivity to avoid accidental or undesired
manipulation. To unlock the keypad, press the MEM key followed by OK. The LCD
will light up and show the current settings:
Name of the unit, ID: -- (Bus identification, only used for PC connection) and PR
(loaded preset) FACTORY.
At this point, all describved functions are accessible. Use the OK key to enter the
main menu and OK again to enter the Audio settings. Then with the left-right cursors
the Gain, Delay, Limiter and Mute are selected:
P01:FACTORY
X12C ID:--

Master Audio
Xcellence Series.Ver 1.1 Nov 09 13
Enter Audio Settings Menu
Select option
Enter option menu
Click OK to select the desired setting. With the up-down cursors the numerical
parameters can be changed. Press always OK to confirm. Please note that any
change will be lost if the unit is powered off. To prevent that it is necessary to store
the modified settings using the SAVE function. The new settings will be stored in a
memory slot which will be identified bny an 8-character name given by the user:
Select target memory slot
Confirm
Once this step is completed, the settings will be stored in the internal memory. Next
time this setting is required, it can be loaded using the MEM key:
Select Memory
Confirm and back to main screen
P01:FACTORY
Memory List
M01:-empty-
Save
Gain
Audio Settings
Audio Settings
Main Menu
Ok
Ok
Ok
Ok

Master Audio
Xcellence Series.Ver 1.1 Nov 09 14
Once a memory or preset is loaded, it will remain in the memory even is the
equipment is powered off. Next time the unit is powered on, the last loaded memory
will be used. After some seconds of inactivity of the keypad, the keypad and LCD will
automatically lock.
b) With external PC. Once the required connections between the cabinets and PC
are made, the cabinets can be controlled by the PC. All functions described above
plus 5 parametric EQ or filters (Butt-LR-Shelf) can be configured.
For more information about the software and the connections required, please refer to
the DSPController Manual or Quick Installation Guide, available at your dealer or at
Master Audio’s technical service: [email protected]
8. MOUNTING AND INSTALLATION
Whenever possible, mount the Full Range units in a high position (between 2 and 3
meters above ground), angled towards the audience. If the units are mounted close to
the ground the back row listeners will receive low quality sound.
Due to the coaxial technology design the cabinets must be oriented so that the
central angle axis (0º) is directly focused at the rear part of the audience. Thus all the
high frequency energy is directed towards the furthest spectators; those the front
rows will receive high frequencies generated beyond the acoustic axis, with a more
acute yet balanced, equalized level in respect to the back rows.
Fig.9. Orientation of Xcellence full range units(X-12C, X-15C)
The X-12C and X-15C models incorporate a 35mm pole mount socket for standard
tripod in the upper and lower sides.
To use the socket, unscrew the four bolts on the central face plate.
Fig.15. Socket for tripod

Master Audio
Xcellence Series.Ver 1.1 Nov 09 15
Do not use the tripod on sloping surfaces nor mount the cabinets too high to avoid
total instability of the system.

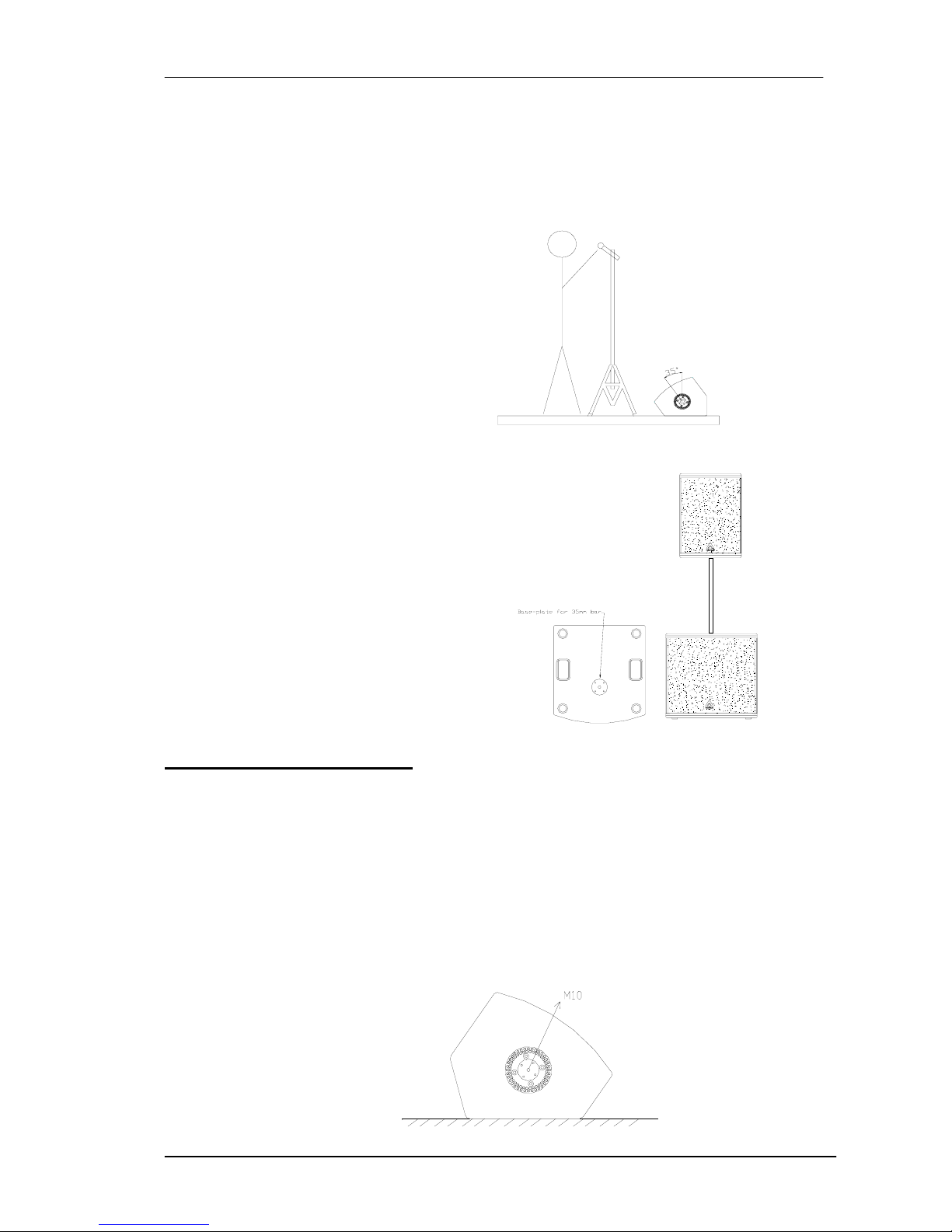

The wedge shape of X-12C and X-15C units allows for use an onstage monitor
without the need of incorporating any other accessory. Remember to use the
MONITOR preset in this case.
Fig.11. Use as onstage monitor
The brand logo can be turned for use in the horizontal position.
The X-18W incorporates a base-plate on its upper side
for the attachment of a standard 35mm diameter bar.
Fig.12. Combination with subwoofer
9. MOUNTING ACCESSORIES
The UB-X12 is an optional U-bracket accessory for wall (horizontal orientation) and
truss mounting (horizontal orientation) of the X12C.
The UB-X15 is an optional U-bracket accessory for wall (horizontal orientation) and
truss mounting (horizontal orientation) of the X15C.
9.1 TRUSS MOUNTING

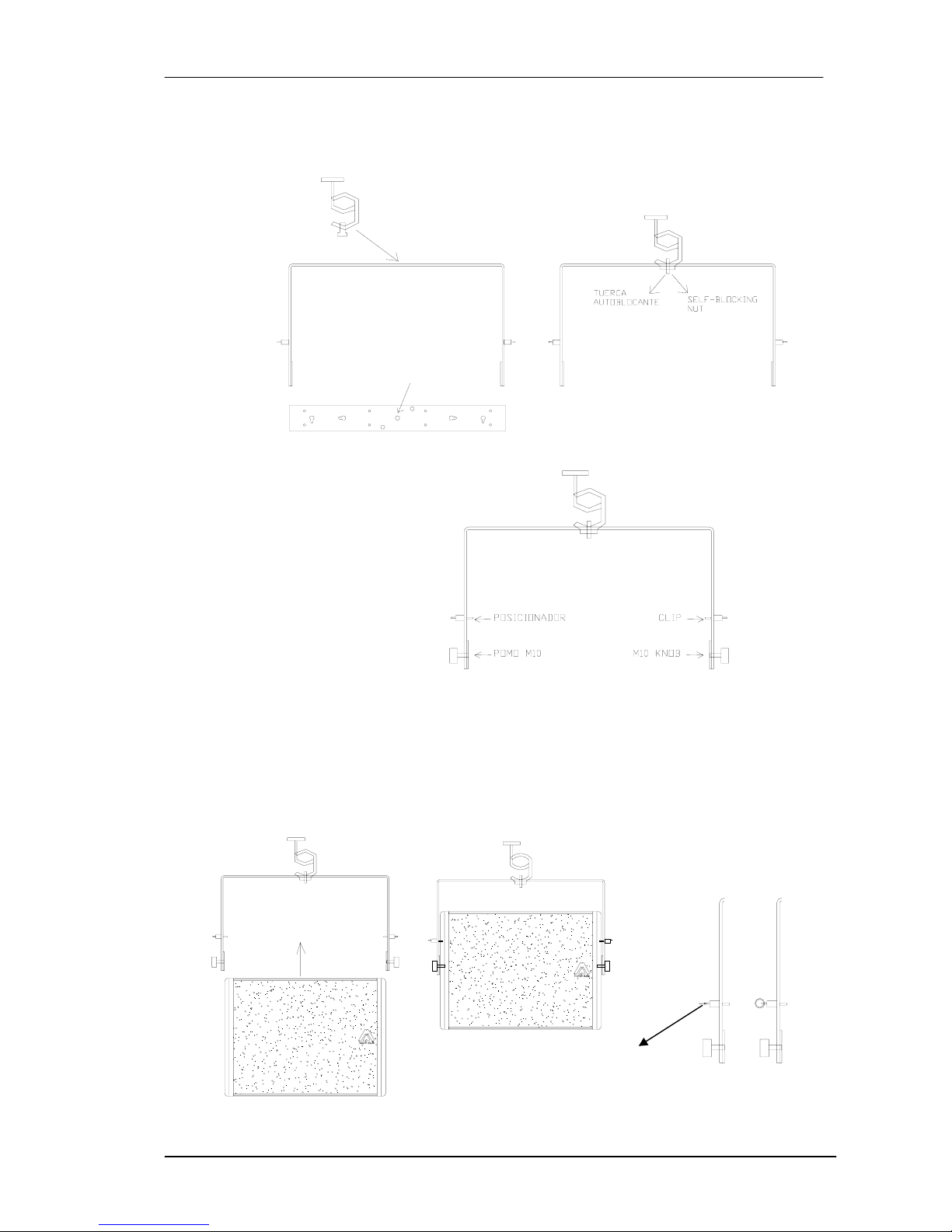

1- Place the box on the floor or in a comfortable working position. The lateral sockets
must include the M10 small plates.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 16
2- Set the optional accessory HC-X (hook clamp) on the UB-X bracket. Block it with a
self-locking nut. Use the central hole (marked with an arrow).
3- Set the M10 knobs on both laterals.
4- Set the UB-X bracket onto X12/15C cabinet. Block both laterals with the M10
knobs. Put the lateral clips in a random position (later you will adjust the desired
angle).
Turn the clip’s ring to block/release it.
Block / release

Master Audio
Xcellence Series.Ver 1.1 Nov 09 17

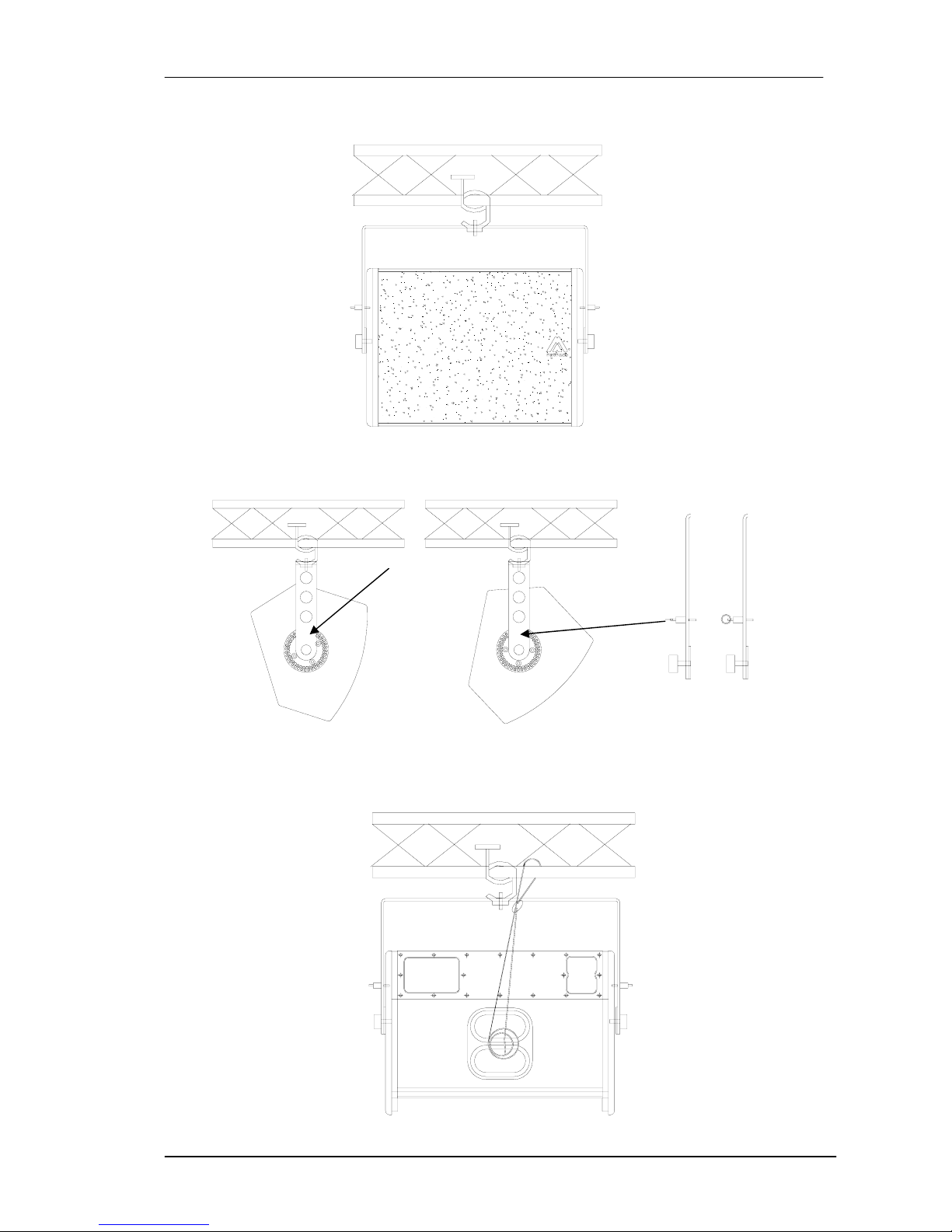

5- Place all the system on the Truss bar. Block the hook clamp.
6- Use the lateral clips to choose the desired tilt angle.
7- You can use the safety cable around the cabinet’s handle and the truss bar.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 18

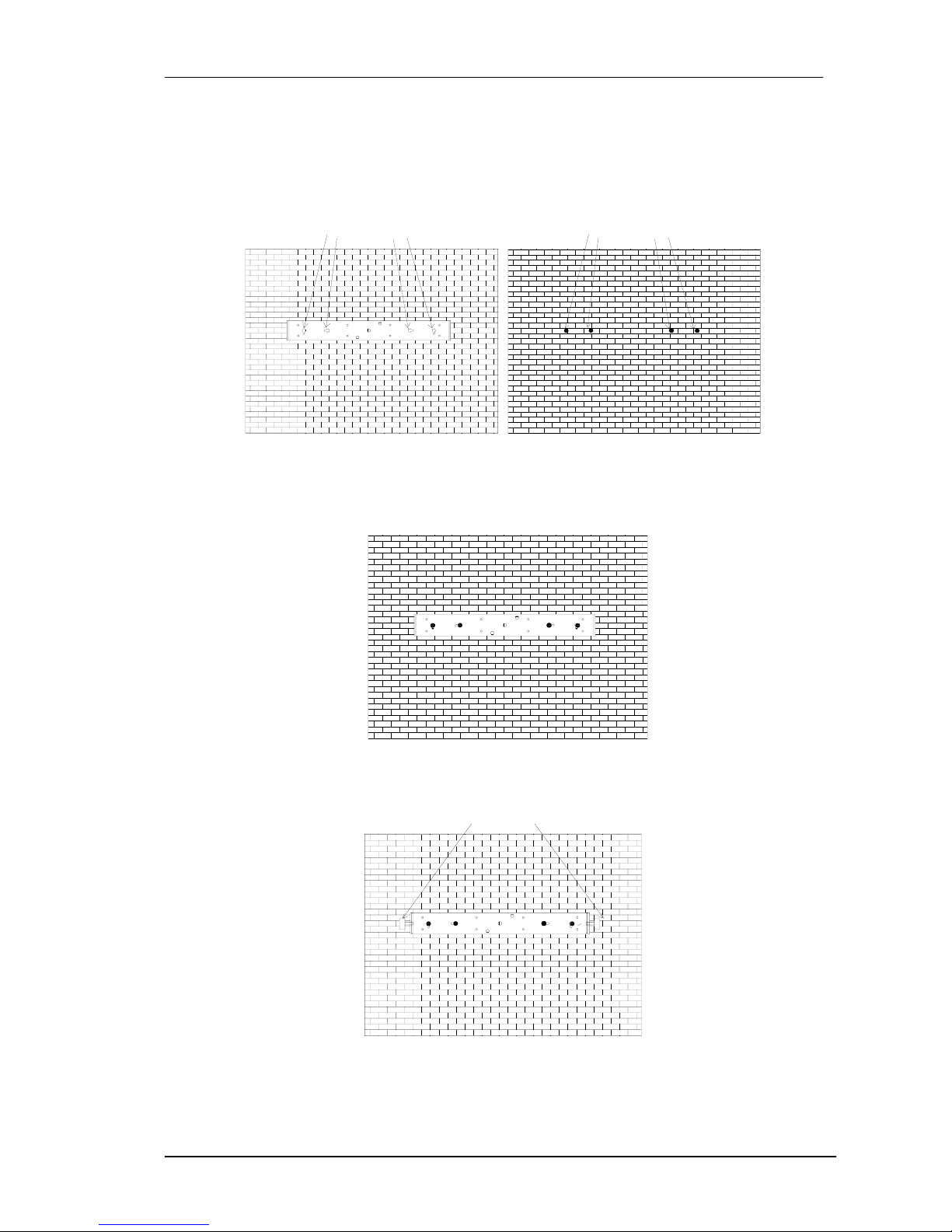

9.2 WALL MOUNTING
1- Place the UB-X bracket in front of the mounting surface, so you can mark the
locations of the mounting holes.
2- Drill some corresponding pilot holes on the wall and fix the bracket with some
screws.
3- Set both M10 knobs on the bracket’s laterals.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 19
4- Set the cabinet on the bracket and fix it with both M10 knobs.
5- Use the lateral clips to choose the desired tilt angle.
6-You can use the safety cable around the cabinet’s handle. In this case, fix the
safety cable on the lateral hole of the bracket.

Master Audio
Xcellence Series.Ver 1.1 Nov 09 20
10. TECNICHAL SPECIFICATIONS
10.1. X-12C & X-15C Specifications
Balanced line input: 1,8 V Impedance: 10k ohm
Mains: 230V +/- 10% / 50-60Hz (overvoltage protection >250V)
Maximum power consumption: 3A
Frequency response X-12C X-15C
Frequency response (+/-3 dB) 58Hz-18kHz 53Hz-18kHz
Usable bandwidth (-10 dB) 50Hz-20kHz 45Hz-20kHz
(1W, preset FACTORY)
Maximum output level (PR FACTORY) 127 dB SPL
Total amplifier power 1500 W (2 x 750 W/4 ohm)
Power delivered to transducers
LF 750 W
HF 250 W
Nominal directivity (-6dB) Axis-symmetrical 80º
Components
LF 1 x neodymium woofer (3” voice coil) 12” 15”
HF 1 x neodymium driver, titanium diaphragm (3” voice coil)
Cabinet
Height 560 mm 650 mm
Width 410 mm 460 mm
Depth 401 mm 429 mm
Angle (monitor) 35º to vertical
Weight (net) Kg. 19,2 23,2
Connectors 2 x AC PowerCon (input, link)
2 x XLR (input, link)
2x RJ45 for computer connection (input, link)
Material Birch plywood, Steel frontal grille with grey acoustic cloth
Finish Varnished. Optionally with ecological acrylic resin base black paint
Rigging Optional “U” bracket
Accessories: Flight-Case (TouringSet) for TWO units (optional)
