Master FVS25E User manual

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
1

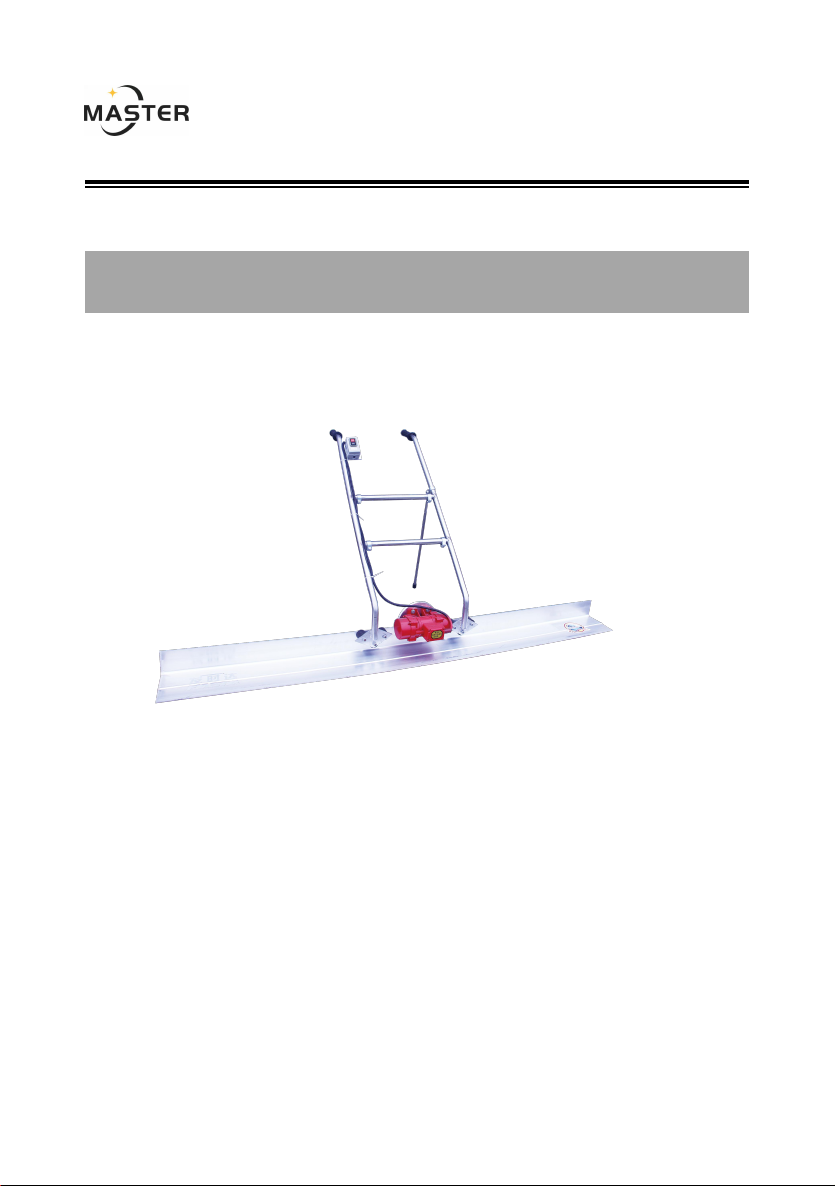

OPERATION MANUAL
FVS25E Vibratory screed
Machine
P E R F O R M A N C E · E F F I C I E N T · R E L I A B L E

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
2
Master sincerely thanks you for selecting the Concrete
Cutting Machine. For your Safety and proper operation,
before you start to operate or carry out any maintenance on
this equipment, YOU MUST READ and STUDY this manual
carefully. Be sure to always keep it ready for reference.
Produced By Henan Master Machinery Co.,Ltd
Dear Customer,
Thanks for choosing Master machine.
To ensure the safety and proper use of the machine,
please read the instruction book carefully before use.
Also, please fill this card and save it for warranty use.
Buyer Name
Purchase
Time
Tel
Contact
Person
Address
Product
Name
Vibratory screed Machine
MODEL
FVS25E
Motor Model
Note

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
3
Maintenance record
Preventative maintenance and routine service plan
This Master Concrete Vibratory screed has been assembled with care
and will provide years of service. Preventative maintenance and routine
service are essential to the long life of your Master Concrete vibratory
screed. After reading through this manual thoroughly you will find that
you can do some of the regular maintenance yourself. However, when
in need of parts or major service be sure to see your Master dealer. For
your convenience we have provided this space to record relevant data
about your concrete vibratory screed. When in need of parts or service
be prepared to provide your screed serial number.
FOREWARD
◇For your own safety and protection from bodily injuries, carefully read, understand
and follow the safety instructions in this manual.
◇Please operate and maintain your machine in accordance with the instructions in
this manual.
◇Defective machine parts are to be replaced as soon as possible.
◇Keep this owner's manual handy, so you can refer to it at any time.
◇No part of this publication may be reproduced without written permission.
◇We expressly reserve the right to technical modifications- even without express
due notice - which aim at improving our machines or their safety standards.
APPLICATION
This screed is a modern, high production machine intended to provide accurate
strike-off of concrete slabs with or without the support of grade stakes or forms. The
vibrations produced by the eccentric weight are equally transmitted along the beam
length and will provide adequate consolidation of unreinforced slabs up to eight
inches in depth. Multiple blade lengths and variable exciter weight positions allow

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
4
for optimum compaction and production of the slab placement.
SAFETY PRECAUTIONS
1. Before starting operation, the operator has to check that all control and safety
devices function properly.
2. NEVER allow anyone to operate this equipment without proper training. People
operating this equipment must be familiar with the risks and hazards associated
with it.
3. NEVER touch the engine or muffler while the engine is on or immediately after it
has been turned off. These areas get hot and may cause burns.
4. NEVER operate this machine in applications for which it is not intended.
5. ALWAYS wear protective clothing appropriate to the job site when operating
equipment.
6. ALWAYS remain aware of moving parts and keep hands, feet, and loose clothing
away from the moving parts of the machine.
7. ALWAYS operate the machine with all safety devices and guards in place and
in working order.
OPERATOR SAFETY WHILE USING INTERNAL COMBUSTION
ENGINES
Danger! Internal combustion engines present special hazards during operation and
fueling. Read and follow the warning instructions in the engine owner’s manual and
the safety guidelines below. Failure to follow the warnings and safety guidelines
could result in severe injury or death.
1. DO NOT run the machine indoors or in an enclosed area such as a deep trench
unless adequate ventilation, through such items as exhaust fans or hoses, is
provided. Exhaust gas from the engine contains poisonous carbon monoxide gas;
exposure to carbon monoxide can cause loss of consciousness and may lead to
death.

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
5
2. DO NOT smoke while operating the machine.
SERVICE SAFETY
Warning! Poorly maintained machines can become a safety hazard! In order for the
machine to operate safely and properly over a long period of time, periodic
maintenance and occasional repairs are necessary.
1. DO NOT attempt to clean or service the machine while it is running. Rotating
parts can cause severe injury.
2. ALWAYS keep the area around the muffler free of debris such as leaves, paper,
cartons, etc. A hot muffler could ignite the debris and start a fire.
3. ALWAYS keep the machine clean and labels legible. Replace all missing and
hard-to-read labels. Labels provide important operating instructions and warn of
dangers and hazards.
4. ALWAYS check all external fasteners at regular intervals.
5. ALWAYS handle blades carefully. The blades can develop sharp edges which
can cause serious cuts.
6. ALWAYS turn engine off before performing maintenance or making repairs.
OPERATION
BEFORE STARTING & OPERATING
◇REMEMBER! It is the owner’s responsibility to communicate information on the
safe use and proper operation of this unit to the operators.
◇Review ALL of the Safety Precautions listed on page 3 of this manual.
◇Familiarize yourself with the operation of the machine and confirm that all
controls function properly.
◇Know how to STOP the machine in case of an emergency.
◇Make sure hands, feet, and clothing are at a safe distance from any moving
parts.
◇AIR CLEANER - Check to ensure element is in good condition and properly
installed.

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
6
STARTING ENGINE
1. Turn engine switch to “ON”.
2. Choke engine if necessary (you may not need to choke a warm engine).
3. Pull starter rope repeatedly until engine starts.
4. If choke was moved to the closed position to start, gradually move it to the open
position as the engine warms up.
5. Allow engine to warm up for one or two minutes.
STOPPING ENGINE
1. Move throttle to idle position.
2. Let engine idle for one or two minutes.
3. Turn switch on engine to “STOP” position.
4. Turn off electric valve
Warning! Always stop the engine before:
1. Cutting electric.
2. Leaving the equipment unattended for any amount of time.
3. Before making any repairs or adjustments to the machine.
Warning! Never run the Screed above idle when the float blade is not in contact
with concrete. This can damage the float blade.
USER SCREED
The Screed can be used with or without forms. The following describes the use of
the Screed without forms.
1. Use a hand float to make a 300-500mm diameter wet pad (A) at the desired
grade in the four corners of the area you wish to screed. The outer extents of
the wet pads should not exceed the length of the float blade being used.
NOTE: Use a laser receiver, transit level, or grade stakes to help establish the
correct grade.

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
7
2. Run the Screed between the wet pads to create two parallel strips (B) that define
the grade for the remainder of the wet screeding. These strips should be 300-500
wide.
2. Place one end of the float blade on each of the parallel strips (B) and screed
the concrete (C) in between the strips. Be sure the float blade follows the
contour of the parallel strips

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
8
TRANSPORTING
It is recommended to transport the Screed with the float bar removed. The float
bar is more likely to be damaged if attached to the main unit during transport.
STORAGE
The following steps
should be
taken to prepare your
Screed for
extended storage.
1. Close fuel shut off
valve.
2. Siphon excess
gasoline from
tank.
3. Start engine until it
stops from
lack of fuel. This will
use up all the
fuel in the carburetor
and prevent
formation of deposits
due to
evaporation of fuel.
4. Remove spark plug and pour 2 oz. of SAE-30 or SAE-40 motor oil into the
cylinder. Slowly crank the engine 2 or 3 times to distribute the oil throughout the
cylinder. This will help prevent rust during storage. Replace spark plug.
5. Store the unit in an upright position in a cool, dry, well ventilated area.
Item
Maintenance
Each
use
Every
20
hours
Every
100
hours
Each
year
Engine
Refer to engine
operator/owner
manual
×
Part
Check and
tighten as
×
×

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
9
MAINTENANCE SCHEDULE
ENGINE MAINTENANCE
Refer to the engine owner’s manual for maintenance intervals and procedures.
ENGINE SPEED
The idle speed of the engine should not exceed the following:
Honda - 3500 rpm
Robin - 2000 rpm
If the idle speed is greater the clutch may not disengage. Check engine owner’s
manual for procedure on setting idle speed.
CLEANING
Clean any concrete from the Screed immediately after each use. DO NOT allow
concrete to harden on the screed.
1. Use a hose to remove any excess concrete.
2. Remove any buildup with hard plastic bristle brush.
NOTE: DO NOT use a wire brush, hammer, or pressure washer to remove concrete
from the main unit or float blade.
3. Remove the blade.
4. Start engine and run the exciter for about 10 seconds.
5. Shut down the engine.
needed
Shockmount
s
Check for cracks
or tears
×
×

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
10
DIAGRAM
1．VS25 screed assembly
Item
Part no.
part name
Qty

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
11
1
10001
Lock Nut M8
1
2
10002
Washer8
1
3
10003
Shock mount
2
4
10004
Kickstand
1
5
10005
Bushing
1
6
10006
Handle assembly
1
7
10007
Gasket8
1
8
10008
Bolt M8x30
1
9
10009
Lock Nut M8
6
10
10010
Washer8
6
11
10011
Damp block
4
12
10012
Gasket8
4
13
10013
Screed
1
14
10014
Bolt M8x20
4
15
10015
Bolt M8x30
6
16
10016
Gasket8
6
17
10017
Exciter
1
18
10018
Engine GX35
1
2．Handle assembly

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
12
Item
Part no.
part name
Qty
1
1000601
Bushing φ25
2
2
1000602
Throttle Control assembly
1
3
1000603
Handle
1
6
1000604
Gasket10
2
7
1000605
Bolt M10x90
2
8
1000606
Bolt M8x16
4
9
1000607
Gasket8
4
10
1000608
Engine-mounting plate
1
11
1000609
Nut M10
2

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
13
12
1000610
Switch
1
2．Throttle control assembly
Item
Part no.
part name
Qty
1
100060201
Screw M6×16
1
2
100060202
Washer
2
3
100060203
Bushing
1
4
100060204
Lever
1
5
100060205
Screw M4×6
1
6
100060206
Screw M5×6
2
7
100060207
Lock washer5
2
8
100060208
Plate
1
9
100060209
Gasket 6
1
10
100060210
Lock nut M6
1

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
14
11
100060211
Cable
1
12
100060212
Bushing
1
13
100060213
Bolt
1
14
100060214
Nut M6
2
3．Exciter assembly

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
15
Item
Part no.
part name
Qty
1
1001701
Shaft pin
1
2
1001702
Rubber ring
1
3
1001703
Flange
1
4
1001704
Gasket 6
4
5
1001705
Screw 6×20
4
6
1001706
Retaining ring 52
1
7
1001707
Washer 12
1
8
1001708
Bearing 6205-2RS
1
9
1001709
Lock Nut 12
1
10
1001710
Shaft
1
11
1001711
Shaft pin
1
12
1001712
Bearing 6204-2RS
1
13
1001713
Exciter mount
1
14
1001714
Washer 8
4
15
1001715
Gasket 8
4
16
1001716
Bolt 8×20
4
17
1001717
Cover
1
18
1001718
Bolt 6×12
4
19
1001719
Gasket 6
4
20
1001720
Shaft
1
21
1001721
Lock Nut 8
4
22
1001722
Seal 40×17×10
1
23
1001723
Washer 8
4
24
1001724
Lock Nut 8
4
25
1001725
Flange
1
26
1001726
Bearing1000803
2

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
16
17×26×5
27
1001727
Screw 8×16
8
28
1001728
Retaining ring 20
1
29
1001729
Gasket 8
8
30
1001730
Bolt 12×55
1
31
1001731
Gasket 12
1
32
1001732
Bearing 6204-2RS
1
33
1001733
Retaining ring 47
1
34
1001734
Shaft pin
1
Changge Master Machinery Co., Ltd. values your business and always attempts to
provide you the very best service. The Master warranty policy is designed to
achieve business agility and provides you with different options to protect your
valuable assets. In this document you will find all you need to know about Master
Warranty in terms of Duration, Coverage and Customer service.
Warranty Period
Master warrants its products to be free from manufacturing defects or technical
defects for a period of one year after original date of purchase. This warranty only
applies to the original owner and is not transferable.
Warranty Coverage
Master products are warranted to be free from defects in material and workmanship
under normal use within the warranty period. Products not sold through Master
Authorized Distributors are not covered in the warranty agreement. Warranty
obligations for customized products are governed by separate contracts and not
covered in this document.

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
17
Master does not warranty engines. Engine warranty claims should be made directly
to an authorized factory service center for the particular engine manufacturer.
Master's warranty does not cover the normal maintenance of products or its
components (such as engine tune-ups and oil & filter changes). The warranty also
does not cover normal wear and tear items (such as belts and consumables).
Master's warranty does not cover the defect resulted from operator abuse, failure to
perform normal maintenance on the product, modification to product, alterations or
repairs made to the product without the written approval of Master.
Exclusions from Warranty
Master assumes no liability as a consequence of following circumstances, under
which the warranty becomes void and ceases to take effect.
1) The product is found to be defective after the warranty period has expired
2) The product has been subjected to misuse, abuse, negligence, accident,
tampering, altering or unauthorized repair, whether by accident or other causes
3) The product has been damaged due to disasters or extreme conditions,
whether natural or human, including but not limited to flood, fire, lightning strikes or
power line disturbances
4) The product has been subject to environmental conditions beyond the
designed tolerance
Customer Service
In order to help the customer to resume normal operation as soon as possible and

Henan Master Machinery Co., Ltd
Tel:[phone] www.mastermachinerys.com
18
avoid examination fees on devices that are not actually damaged, we are eager to
assist you with remote troubleshooting and seek every possible way to fix the
device without the unnecessary time and expense of returning the device for repair.
If you have a question or you would like to contact us for something else, please do
not hesitate to contact us and we will be happy to answer any question or concern
you may have.
