MasterCraft HV700 User manual

1211071
2012-07-24
MasterCraft: X-Series
Models HV700 and HV450 Owners Manual

We continually strive to bring you the highest quality, full featured products. As a result, you may find
that your actual display screens may be slightly different than what was represented in this manual at the
time of printing.

Table of Contents
Product Information for the HV700........................................................................................... 5
Care and Maintenance..................................................................................................5
Basic Navigation Features ............................................................................................6
HV700 Features ............................................................................................................8
Product Information for the HV450......................................................................................... 46
Care and Maintenance................................................................................................ 46
Basic Navigation Features .......................................................................................... 47
HV450 Features .......................................................................................................... 48
Troubleshooting........................................................................................................................ 59

2012-07-24 1211071
- 5 –
Product Information for the HV700
The X-Series is designed for instrumentation and control on electronically controlled engines
communicating via SAE J1939 and NMEA 2000. The displays are multi-functional tools that
provide GPS tracking, Multimedia Display, Cruise control, rider profiles and enables equipment
operators to view many different engine, ballast, transmission parameters and service codes.
Included with this solution is HV700 Touch unit.
Care and Maintenance
General maintenance is not required; however a soft cloth can be used for cleaning the units.
Window cleaner or alcohol can also be used to clean the glass portion of the display. Do not
use harsh or abrasive cleaners on the unit.

2012-07-24 1211071
- 6 –
Basic Navigation Features
All product features are easily accessed through Quick Access Keys, Touch Point commands
and Menus.
Quick Access Keys
The following controls are accessed via the Quick Access Keys: Audio, Ballast/Trim, Gauges,
Video, Settings Menu, GPS, User Profiles, Cruise ON/OFF, Increase Value and Decrease
Value. They are called quick access keys because a new screen can be accessed quickly by
pressing the key.

2012-07-24 1211071
- 7 –
Touch Point Commands for the HV700
Once the desired screen is accessed, navigation within the screen is controlled with Touch
Point commands. They are executed by touching the screen in areas that are outlined with a
highlighted bezel. In addition, there are areas where sliding the finger up or down can adjust
settings. For example on the Ballast and Tabs Screen, sliding the finger up on the inside of the
tank area adjusts the ballast setting. There are also areas where sliding the finger from side to
side will scroll through a list or change screens.
NOTE: While the slide area might appear to be curved, it is really a
straight line.

2012-07-24 1211071
- 8 –
HV700 Features
Audio
If the boat is equipped with a Clarion radio, please see the Clarion owner’s manual. If the boat
is equipped with a JL Audio Media Master, please see their owner’s manual.
Ballast and Trim
The Ballast and Trim screen can be accessed by pressing the Quick Access Key on the
HV700. This screen displays the current state of the ballasts and trim tabs.
To adjust the Ballast settings slide finger up the tank to the desired level or tap the UP or
DOWN arrows to right of the tank. To adjust the Tabs settings, slide finger down to the desired
level as shown above.
Touch Commands
Function
Description
Touch to turn cruise control OFF or ON.
Touch to turn Autolaunch ON or OFF. When Autolaunch is on, it
automatically controls the center tab. When speed is above the autolaunch
speed the center tab will be retracted to 0% or if a profile is selected, it

2012-07-24 1211071
- 9 –
Function
Description
deploys the center tab to the profile setting. If the speed is above the
autolaunch speed and then decelerated below the autolaunch speed, the
tab deploys to 100.
Touch to save the settings to the current rider profile.
NOTE: If no rider profile is selected, does nothing.
Touch to save these settings to a new rider profile. A keyboard is displayed
to name the new profile and the new profile process is launched. (See
Profiles for more information.)
Touch to fill all ballasts.
Touch to empty all ballasts.

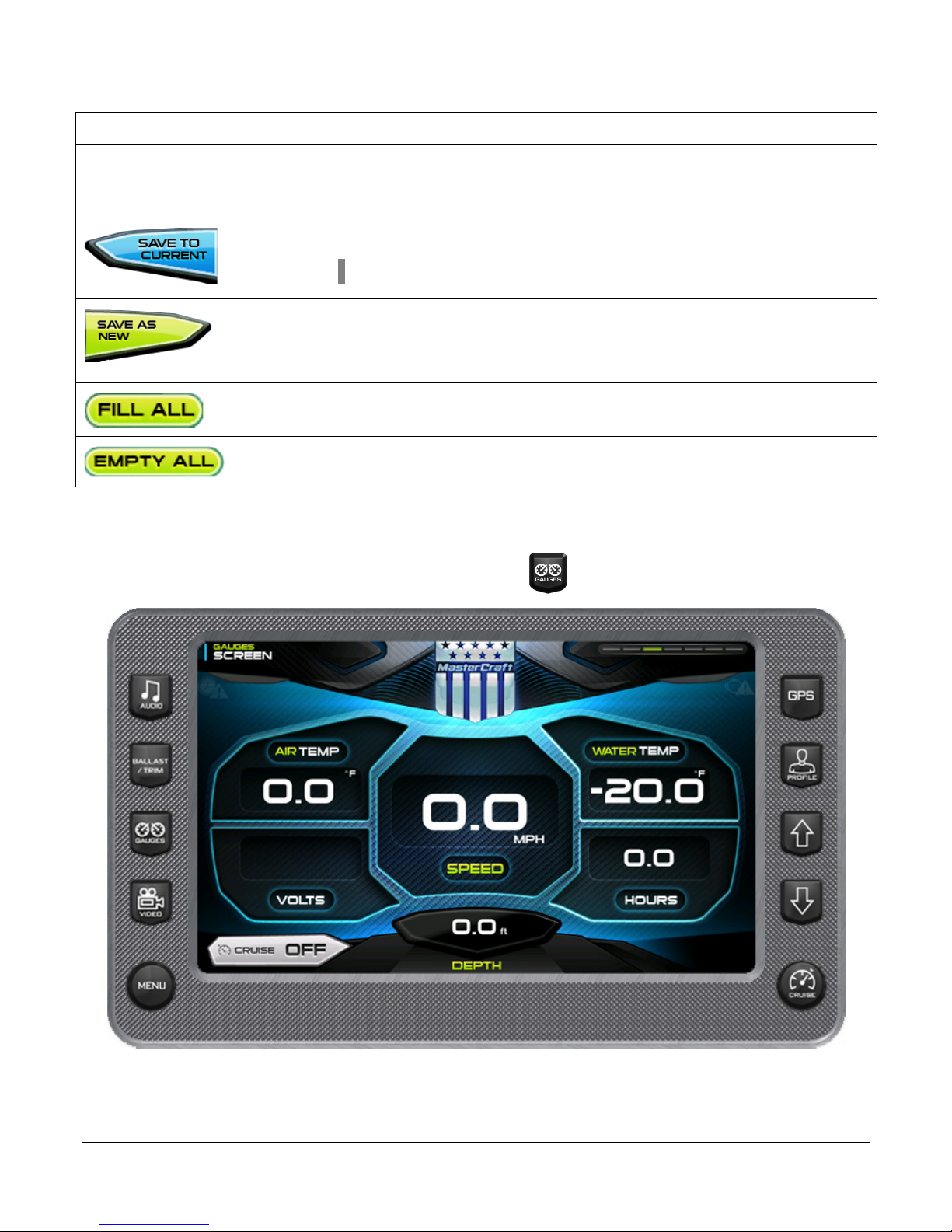

Gauges
The Gauges screen can be accessed by pressing the Quick Access Key on the HV700.

2012-07-24 1211071
- 10 –
This screen shows the Speedometer, Air Temperature, Water Temperature, Battery Voltage,
Water Depth and Engine Hours Gauges. The Cruise control can be turned ON or OFF from
this screen by touching [CRUISE].
Video
The Video screen can be accessed by pressing .
There is access to three video sources provided on the screen:
•Tower
•Aux Video
•Media
Touch appropriate source for the video to be displayed. Cruise can be turned ON or OFF by
touching [CRUISE].

2012-07-24 1211071
- 11 –

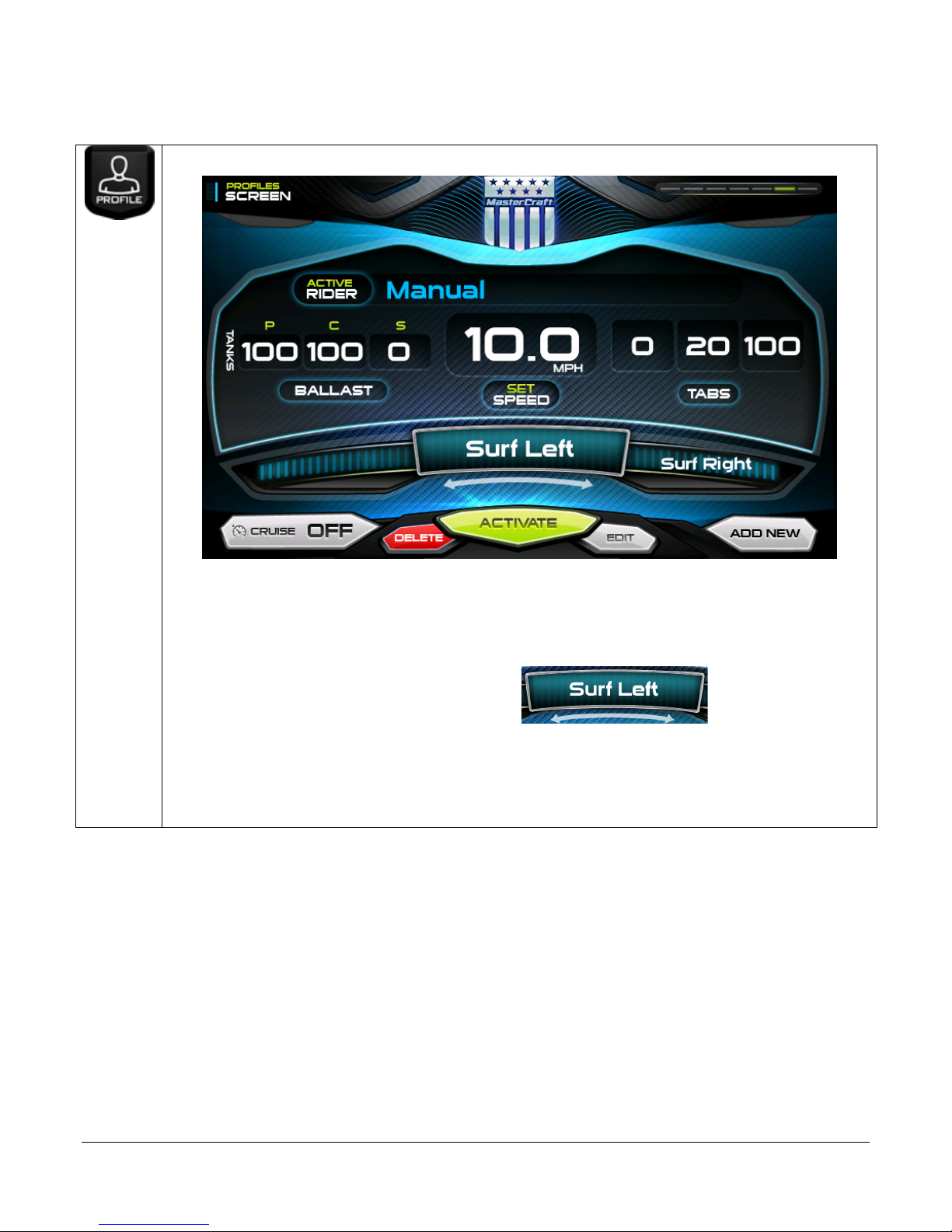

Profiles
The Profiles screen can be accessed by pressing the Quick Access Key on the HV700.
This feature displays rider/user profiles for cruise controls based on user preferences for
speed, ballast, and smart plate settings. To scroll through the available profiles, touch
and slide finger to the left and right. Touch when the desired profile
is shown.
Up to 16 rider/user profiles can be created and stored.

2012-07-24 1211071
- 12 –
Profiles Screen - Soft Key Commands
PROFILES – provides utilities for adding new users, editing/deleting existing users.
Touch Screen Commands for Profiles include:
CRUISE – touch to turn the cruise ON or OFF.
DELETE –deletes selected rider after confirmation warning.
ADD NEW – provides an interface to add new user information (see Page 9).
ACTIVATE – makes the user displayed in active with all
settings activated.
EDIT – select and edit existing user name information.
ADD NEW – Allows for the addition of new riders. See the process in the next
section.

2012-07-24 1211071
- 13 –
New User Profile
A new rider profile can be setup using the HV700 Touch.
Function
Description

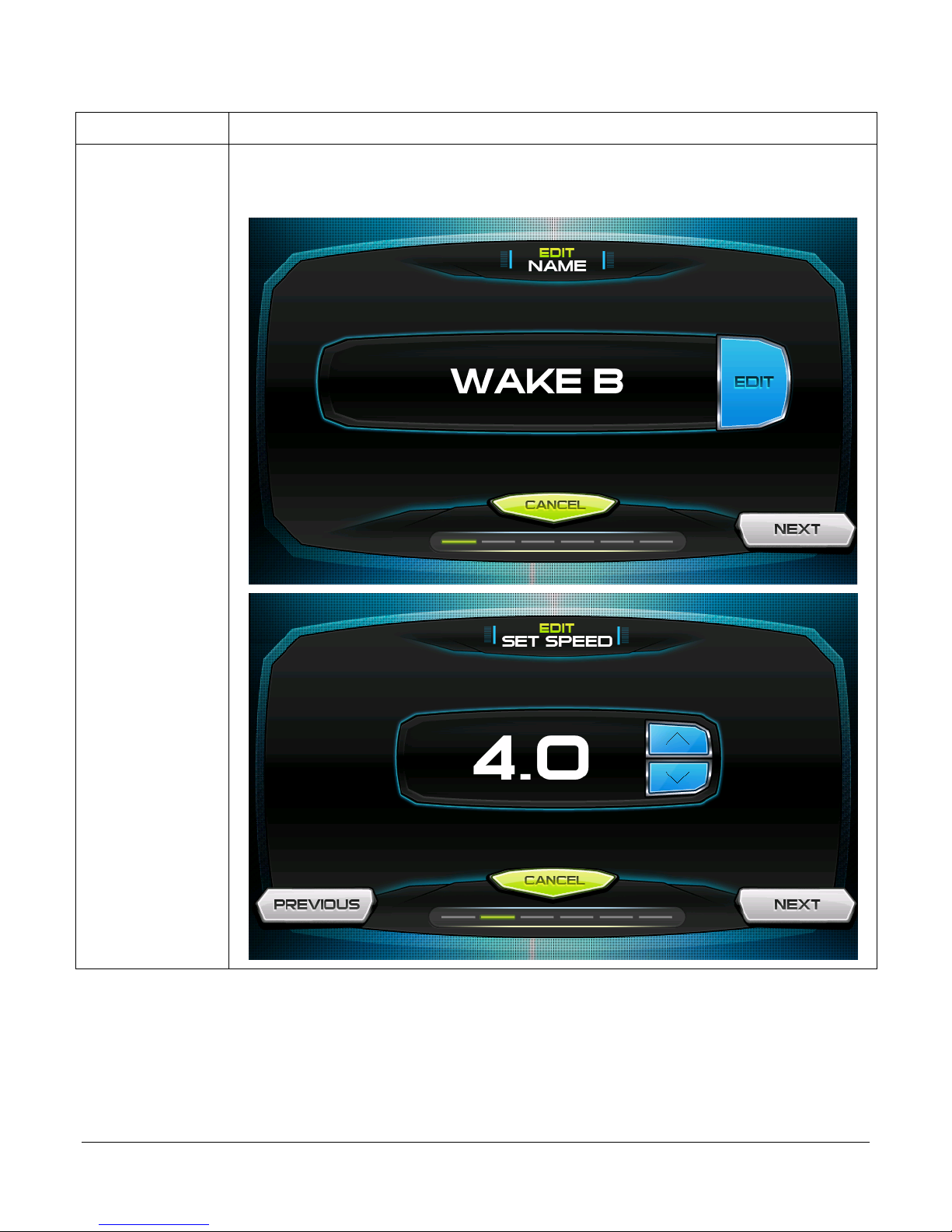

To create a new profile press the [Profile] Quick Access Key:
Touch [ADD NEW] to create a new profile.
Type a name for the new profile using the touch keypad and touch [DONE].
Touch [EDIT] to retype the name, touch [NEXT] to continue or [CANCEL] to
return to the Profiles Screen. If [NEXT] was touched, set the speed for this

2012-07-24 1211071
- 14 –
Function
Description
profile. Touch the [UP] arrow to increase the speed or the [DOWN] arrow to
decrease the speed. Touch [CANCEL] to go back to the Profiles screen,
[PREVIOUS] to go back to the last screen or [NEXT] continue.

2012-07-24 1211071
- 15 –
Function
Description
Set the tabs by either touching and sliding the finger down the ridged area
or by touching the [UP] and [DOWN] arrows next to the ridged area. Touch
[NEXT] to continue. Set the ballast tanks by touching and sliding the finger
up the tank area or by touching the [UP] and [DOWN] arrows alongside the
tank area. Touch [NEXT] to continue.
Review the Profile settings. Touch [SAVE] to save the profile and return to
the Profiles screen with the new profile displayed. Touch [ACTIVATE] to
activate the settings for this profile.

2012-07-24 1211071
- 16 –
Function
Description
EDIT – Touch [EDIT]to modify the user profile. See the following section for
how to edit an existing profile.

2012-07-24 1211071
- 17 –
Function
Description
DELETE – Touch [DELETE]to delete the current profile. A confirmation
overlay is displayed. Touch [CANCEL] to abort the process and [YES] to
confirm delete. Touch [OK] to return to the Profiles screen.

2012-07-24 1211071
- 18 –
Edit Current User
Function
Description
Touch [EDIT] to modify the user profile.

2012-07-24 1211071
- 19 –
Function
Description
Touch [EDIT] to retype the name, touch [DONE]to continue or [CANCEL]
to return to the Profiles Screen. If [DONE]was touched, set the speed for
this profile. Touch the [UP] arrow to increase the speed or the [DOWN]
arrow to decrease the speed. Touch [CANCEL] to go back to the Profiles
screen, [PREVIOUS] to go back to the last screen or [NEXT] to continue.

2012-07-24 1211071
- 20 –
Function
Description
Set the tabs by either touching and sliding the finger down the ridged area
or by touching the [UP] and [DOWN] arrows next to the ridged area. Touch
[NEXT] to continue. Set the ballast tanks by touching and sliding the finger
up the tank area or by touching the [UP] and [DOWN] arrows alongside the
tank area. Touch [NEXT] to continue.
