model no. 054-6602-4
PLANER
IMPORTANT:
Read and understand this instruction manual thoroughly before
using the product.
INSTRUCTION
MANUAL

headline bars
continuation tabs
notes
warnings
3
TABLE OF CONTENTS
Technical Specifications 4
Safety Guidelines 5–8
Key Parts Diagram 9–10
Important Information 11–12
Assembly Instructions 13–14
Operating Instructions 15–17
Maintenance 18–20
Troubleshooting 21
Part list 22–23
Warranty 24–25
NOTE: If any parts are missing or damaged, or if you have any
questions, please call our toll-free helpline at 1-800-689-9928
SAVE THESE INSTRUCTIONS
• This manual contains important safety and operating
instructions. Read all instructions and follow them with
use of this product.
TABLE OF CONTENTS

headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
5
4
TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
Input 6.0 A
Rating 120V~, 60Hz
No load speed 17,000 RPM
Planing capacity:
Planing width
Planing depth
Rabbetting depth
3 1/4" (8.2 cm)
0–1/8" (0–3.0 mm)
1/2" (12.7 mm)
Tool weight 6 lb 3 oz (2.8 kg)
Level of vibration ah(k=1.5m/s2) ah=2.3 m/s2
RULES FOR SAFE OPERATION
WARNING!
Safety symbols in this Instruction Manual are used to flag possible dangers. The safety symbols
and their explanations require your full understanding. The safety warnings do not, by themselves,
eliminate any danger, nor are they substitutes for proper accident prevention measures.
WARNING!
This Safety Alert Symbol indicates caution, warning, or danger. Failure to obey a safety warning
can result in serious injury to yourself or others. To reduce the risk of injury, fire, or electric shock,
always follow the safety precautions.
KNOW YOUR TOOL
To operate this tool, carefully read this Instruction Manual and all labels affixed to the Planer before using.
Keep this manual available for future reference.
IMPORTANT
This tool should only be serviced by a qualified service technician. For more information, call the toll-free
helpline at 1-800-689-9928.
READ ALL INSTRUCTIONS THOROUGHLY
SAVE THESE INSTRUCTIONS
SAFETY GUIDELINES FOR POWER TOOLS
WARNING!
Read all safety warnings and instructions. Failure to follow the warnings and instructions may
result in electric shock, fire and/or serious injury.
SAVE ALL WARNINGS AND INSTRUCTIONS FOR FUTURE REFERENCE.
The term “power tool” in the warnings refers to your mains-operated (corded) power tool or battery-operated
(cordless) power tool.
WORK AREA SAFETY
• Keepworkareacleanandwelllit.Cluttered or dark areas invite accidents.
• Donotoperatepowertoolsinexplosiveatmospheres,suchasinthepresenceofflammable
liquids,gasesordust.Power tools create sparks, which may ignite the dust or fumes.
• Keepchildrenandbystandersawaywhileoperatingapowertool.Distractions can cause you to
lose control.
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
7
6
ELECTRICAL SAFETY
• Powertoolplugsmustmatchtheoutlet.Never modify the plug in any way. Do not use any adapter
plugs with earthed (grounded) power tools.Unmodified plugs and matching outlets will reduce risk of
electric shock.
• Avoidbodycontactwithearthedorgroundedsurfacessuchaspipes,radiators,rangesand
refrigerators.There is an increased risk of electric shock if your body is earthed or grounded.
• Donotexposepowertoolstorainorwetconditions.Water entering a power tool will increase the
risk of electric shock.
• Donotabusethecord.Never use the cord for carrying, pulling or unplugging the power tool. Keep the
cord away from heat, oil, sharp edges or moving parts. Damaged or entangled cords increase the risk of
electric shock.
• Whenoperatingapowertooloutdoors,useanextensioncordsuitableforoutdooruse. Use of a
cord suitable for outdoor use reduces the risk of electric shock.
• Ifoperatingapowertoolsinadamplocationisunavoidable,useaground-faultcircuit
interrupter(GFCI)protectedsupply. Use of a GFCI reduces the risk of electric shock.
PERSONAL SAFETY
• Stayalert,watchwhatyouaredoingandusecommonsensewhenoperatingapowertool.Do
not use a power tool while you are tired or under the influence of drugs, alcohol or medication.A moment of
inattention while operating power tools may result in serious personal injury.
• Usepersonalprotectiveequipment.Always wear eye protection. Protective equipment such as dust
mask, non-skid safety shoes, hard hat, or hearing protection used for appropriate conditions will reduce
personal injuries.
• Preventunintentionalstarting.Ensure that the switch is in the off-position before connecting to power
source or battery pack, picking up or carrying the tool.Carrying power tools with your finger on the switch
or energising power tools that have the switch on invites accidents.
• Removeanyadjustingkeyorwrenchbeforeturningthepowertoolon.A wrench or a key left
attached to a rotating part of the power tool may result in personal injury.
• Donotoverreach.Keepproperfootingandbalanceatalltimes.This enables better control of the
power tool in unexpected situations.
• Dressproperly.Donotwearlooseclothingorjewellery.Keepyourhair,clothingandgloves
awayfrommovingparts. Loose clothes, jewellery or long hair can be caught in moving parts.
• Ifdevicesareprovidedfortheconnectionofdustextractionandcollectionfacilities,ensurethat
theseareconnectedandproperlyused.Use of dust collection devices can reduce dust-related hazards.
POWER TOOL USE AND CARE
• Donotforcethepowertool. Use the correct power tool for your application. The correct power tool will
do the job better and more safely at the rate for which it was designed.
• Donotusethepowertooliftheswitchdoesnotturnitonandoff.Any power tool that cannot be
controlled with the switch is dangerous and must be repaired.
• Disconnecttheplugfromthepowersourceand/orthebatterypackfromthepowertoolbefore
makinganyadjustments,changingaccessories,orstoringpowertools.Such preventive safety
measures reduce the risk of starting the power tool accidentally.
• Storeidlepowertoolsoutofthereachofchildrenanddonotallowpersonsunfamiliarwiththe
powertoolortheseinstructionstooperatethepowertool.Power tools are dangerous in the hands
of untrained users.
• Maintainpowertools.Check for misalignment or binding of moving parts, breakage of parts and any
other condition that may affect the power tool’s operation. If damaged, have the power tool repaired before
use. Many accidents are caused by poorly maintained power tools.
• Keepcuttingtoolssharpandclean.Properly maintained cutting tools with sharp cutting edges are less
likely to bind and are easier to control;
• Usethepowertool,accessories,toolbits,etc.inaccordancewiththeseinstructions,takinginto
accounttheworkingconditionsandtheworktobeperformed.Use of the power tool for operations
different from those intended could result in a hazardous situation.
SERVICE
• Haveyourpowertoolservicedbyaqualifiedrepairpersonusingonlyidenticalreplacement
parts.This will ensure that the safety of the power tool is maintained.
SAFETY GUIDELINES
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
9
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
8
PACKAGE CONTENTS
Planer, edge guide, blade change wrench (installed on the planer), rabbetting depth scale, dust bag, vacuum
adaptor and instruction manual.
KEY PARTS DIAGRAM
12
11
10
9
6
3
4
18
17
16
15
2
14 8
5 7
1
513
SAFETY GUIDELINES FOR PLANER
• Waitforthecuttertostopbeforesettingthetooldown.An exposed, rotating cutter may engage the
surface and result in possible loss of control and serious injury.
• Holdthepowertoolbyinsulatedgrippingsurfacesonly,becausethecuttermaycontactits
owncord.Cutting a “live” wire may make exposed metal parts of the power tool “live” and could give the
operator an electric shock.
• Useclampsoranotherpracticalwaytosecureandsupporttheworkpiecetoastableplatform.
Holding the work by your hand or against the body leaves it unstable and may lead to loss of control.
• Thelabelonyourtoolmayincludethefollowingsymbols.Thesymbolsandtheirdefinitionsare
asfollows:
V ..................... Volts
A ..................... Amperes
Hz ................... Hertz
W .................... Watts
min ................. Minutes
............... Alternating current
............. Direct current
n0................... No-load speed
............... Class II Construction
…/min ........... Revolutions or reciprocation per minute
............... Grounding terminal
BPM ............... Beats per minute
.............. WARNING – To reduce the risk of injury, user must read instruction manual.
• Alwaysstarttheplanerbeforebladeisincontactwiththeworkpieceandallowthebladeto
cometofullspeedbeforecontactingtheworkpiece. The tool can vibrate or chatter if the blade speed
is too slow at beginning of the cut and can possibly kickback.
• Checktheworkpiecefornails.Iftherearenails,eitherremoveorsetthemwellbelowintended
finishedsurface. If the planer blades strike objects like nails it may cause the tool to kickback and serious
personal injury may result.
• Unplugtheplanerbeforechangingaccessories.Before plugging the tool in, check that the trigger lock
is “OFF”. Accidental start-ups may occur if planer is plugged in while changing an accessory.
• Alwaysholdthetoolfirmlywithbothhandsformaximumcontrol.
• Neverpulltheplanebackwardovertheworkpiece.Loss of control may occur.
• Alwayswearearandeyeprotectionandabreathingmask. WARNING!
• Remove the planer from the package and examine it carefully. Do not discard the carton or
any packaging material until all parts have been examined.
FPO
KEY PARTS DIAGRAM
SAFETY GUIDELINES

headline bars
continuation tabs
notes
warnings
11
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
10
No. Part No. Part
1 On/off trigger switch 10 Clamping element
2 Lock-off button 11 Clamping screw
3 Depth-adjustment knob 12 Adjustable front base
4 Handle 13 Fixed rear base
5 Dust/chip extraction port 14 Edge guide
6 Edge-guide attachment knob 15 Rabbetting depth stop
7 Dust/chip extraction guide switch 16 Vacuum adapter
8 Reversible blade 17 Dust bag
9 Blade drum 18 Blade change wrench
IMPORTANT INFORMATION
Before attempting to use this tool, become familiar with all of its operating features and safety requirements.
For optimum performance and safety, read the following operating instructions carefully before using.
DUST/CHIP EXTRACTION GUIDE
SWITCH (fig 1)
Moving the switch to the left of the tool will cause chips
to be discharged to the right; moving it to the right of tool
causes chips to be discharged the left.
DUST/CHIP EXTRACTION
The planer is equipped with two dust/chip extraction
ports, which may be used with a vacuum adapter or a
dust bag to keep your work environment cleaner.
Firmly attach the vacuum adapter or dust bag to the
extraction port. A workshop dust-extraction system or a
household vacuum cleaner can be connected to the vacuum
adapter for the efficient removal of dust and shavings.
The extraction port will fit 1-1/4" hoses.
DUST BAG
When planing, attach the dust bag to the dust/chip
extraction port for smaller jobs.
In addition, wear a suitable dust mask, as there may be
some residual airborne dust particles in the area.
To attach the dust bag (fig 2): Align the raised emboss
on the dust bag with the groove in the extraction port,
and slide the dust bag into the port. Then rotate the dust
bag towards the front of tool to lock it in place.
Empty the dust bag: Empty the dust bag by unzipping the
bag (fig 3) and then gently tap the bag to remove the dust.
For a more thorough cleaning of the dust bag, slip the
bag off of the frame and turn bag inside out. Use a soft
brush to brush the dust off of the lining.
fig 3
WARNING!
• Do not allow familiarity with the planer to cause a lack of alertness. A fraction of a second
of carelessness is enough to cause severe injury.
• Always ensure that the tool is switched OFF and unplugged from the power supply before
assembling parts, making adjustments, installing or removing planer blades, cleaning, or
when it is not in use. Disconnecting the planer will prevent accidental starting, which could
cause serious personal injury.
FPO
fig 1
IMPORTANT INFORMATION
KEY PARTS DIAGRAM
fig 2

headline bars
continuation tabs
notes
warnings
13
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
12
BLADE CHANGE WRENCH STORAGE
AREA
(fig 4)
Your tool is equipped with a blade wrench that is
conveniently located in the handle base where it is
always handy and unlikely to get lost or misplaced.
TOOL PARK REST
The park rest swings down to help keep the blade from
coming in contact with the work surface when the planer
is not in use (fig 5). The tool park rest was designed to
swing up and out of the way by itself when the back of
the planer crosses the leading edge of the workpiece.
ASSEMBLY INSTRUCTIONS
EDGE GUIDE
1. To attach the edge guide, remove the edge-guide
attachment knob and slide the edge guide into the
planer.
2. Replace the edge-guide attachment knob and firmly
tighten it (fig 6).
3. Loosen the locking nut and slide the edge guide to
the desired position. Securely tighten the locking nut
(fig 7).
RABBETTING DEPTH STOP (fig 8)
The rabbetting depth stop allows the user to set any
rabbetting depth from 0 to 12.7 mm. For best results,
it is important that the blade be properly aligned with
the front base. The width of the rabbet is controlled by
the edge guide. The maximum cutting width is 3-1/4",
and the final depth is achieved by repeating the planing
procedure until the rabbetting depth stop contacts the
workpiece.
CAUTION!
• Always ensure that the tool is switched OFF and unplugged from the power supply before
making any adjustments and attaching accessories.
FPO
fig 6
fig 7
fig 4
fig 8
Indicator line
IMPORTANT INFORMATION
ASSEMBLY INSTRUCTIONS
fig 5
Tool park rest

headline bars
continuation tabs
notes
warnings
15
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
14
SETTING THE RABBETTING DEPTH
1. Loosen rabbetting depth-stop locking nut and set the desired rabbet depth by aligning the depth scale on
the rabbetting depth stop with the indicator line.
2. Securely tighten locking nut.

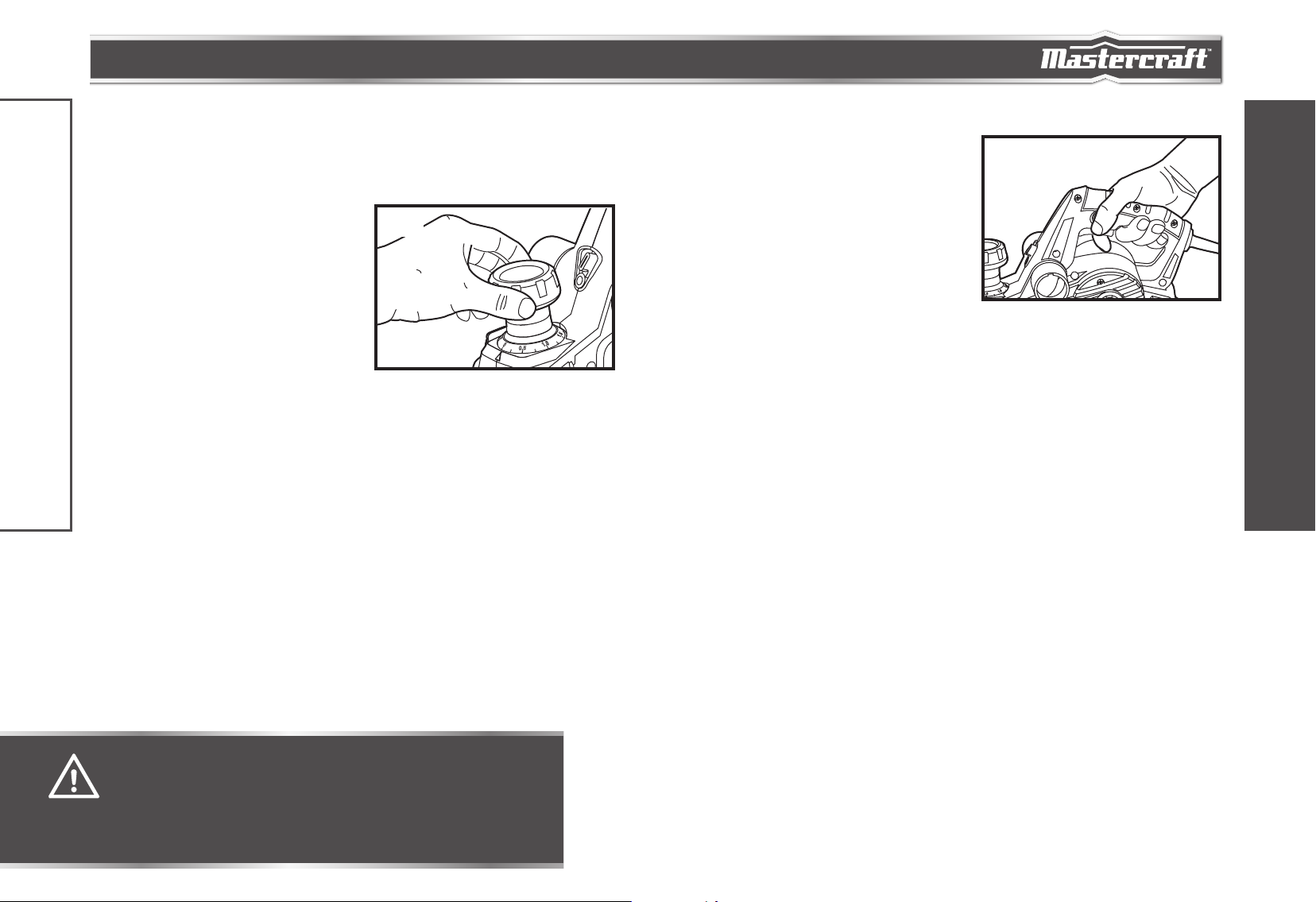

ADJUSTING THE DEPTH OF CUT (fig 9)
The proper cutting depth should be determined
according to the hardness, gumminess or moisture
content of the material being cut, as well as the feed
rate, and is largely a matter of experience. Rotate the
depth adjustment knob clockwise for a deeper cut and
counterclockwise for a shallower cut.
The numbers on the ring under the depth adjustment
knob indicate the depth of cut, e.g., when 1 mm is next
to the pointer on the front of the planer, the depth of cut
is approximately 1 mm.
If it is necessary to accurately determine the depth of cut, plane a scrap piece of wood, measure the difference
in thickness and adjust the setting.
OPERATING INSTRUCTIONS
SWITCHING ON AND OFF
(fig 10)
1. Connect the power cord of your planer to a standard
household power outlet.
2. To turn the planer ON, hold the tool with both hands,
push in the lock-off button first, and then press the
on/off trigger switch.
3. To turn the planer OFF, release the trigger switch.
fig 10
ASSEMBLY INSTRUCTIONS
OPERATING INSTRUCTIONS
WARNING!
• Always ensure that the tool is switched OFF and unplugged from the power supply before
making adjustments.
CAUTION!
• Always set the depth adjustment knob at the “P” position when the tool is not in use. This
retracts the planer blade, allowing the power tool to be placed down without the danger of
causing damage to the workpiece or the planer blade.
FPO
fig 9

headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
17
16

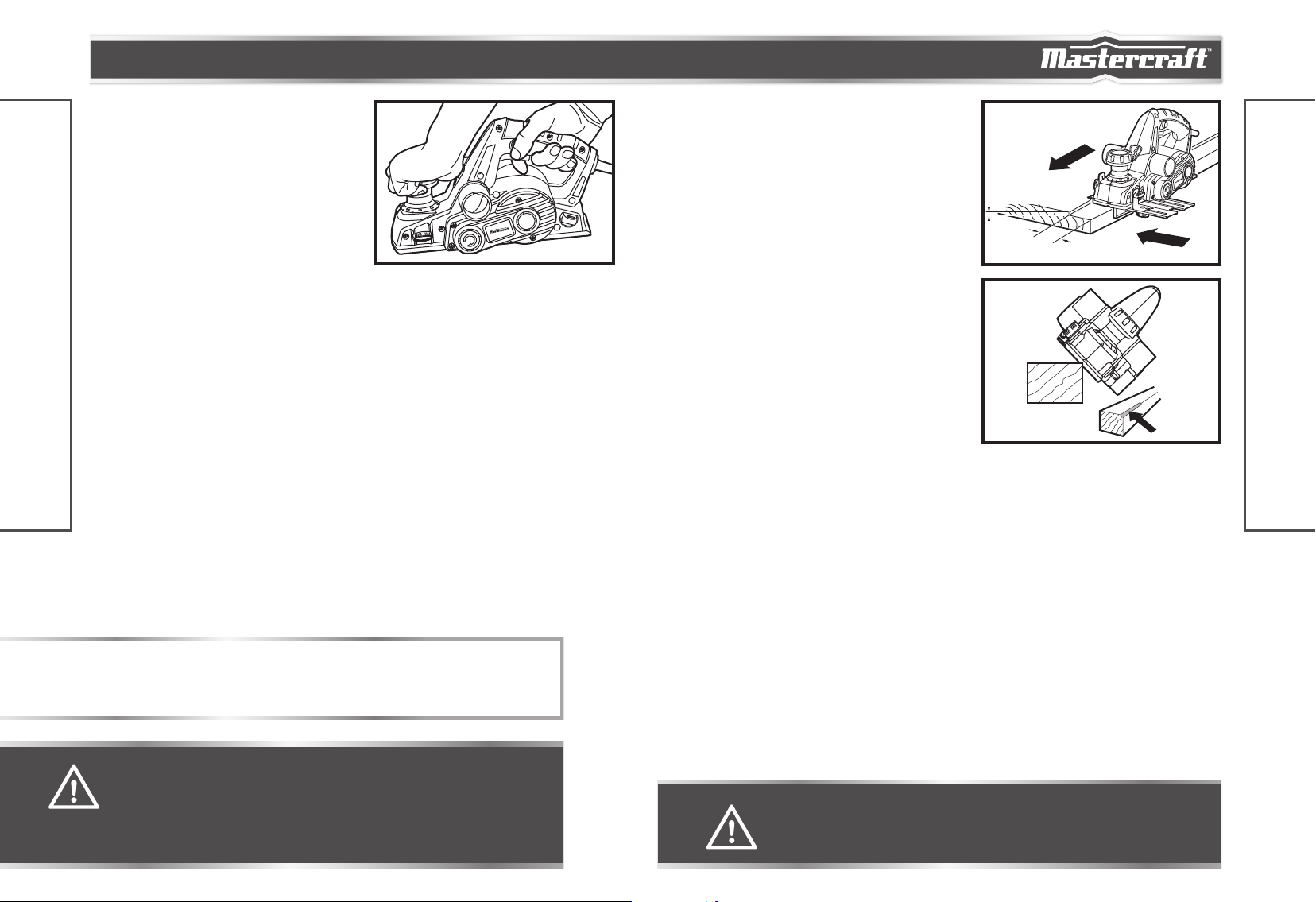

PLANING (fig 11)
1. Unplug the planer and adjust the edge guide and
cutting depth as appropriate.
2. Clamp the workpiece securely on a workbench,
3. Connect the power cord of your planer to a standard
household power outlet.
4. While standing comfortably, hold the planer firmly
with both hands.
5. Place the front base of the planer against the
workpiece surface without the blades making any contact with the workpiece.
6. Switch on the tool and guide the tool with even feed over the surface to be planed.
7. Move the tool gently forward, applying pressure on the front of the tool at the beginning of the planing pass
and pressure at the rear of the tool at the end of the planning pass.
8. Push the planer beyond the edge of the workpiece without tilting it downwards.
The rate of planing and the depth of cut determine the quality of the cut. For rough cutting, you can increase
the depth of cut. To achieve a smooth cut, you will need to reduce the depth of cut and advance the planer
slowly across the workpiece.
The proper feed rate will depend on the type of material being cut and the depth of the cut. When planing hard
materials (e.g., hardwood), as well as when utilizing the maximum planer width, set only low planing depths
and reduce the planer feed as required.
Practice first on a scrap piece of material to gauge the correct feed rate and the cut dimensions.
PLANING WITH THE EDGE GUIDE
The edge guide can be used to control the width of the
cut or for simply providing added stability and protection
when cutting materials that are up to 3-1/4" (82 mm)
wide (fig 12).
CHAMFERING (fig 13)
The “V” groove in the front base allows quick and easy
chamfering of workpiece edges.
1. Place the “V” groove on the front base over the edge
to be chamfered. Be sure the blades are not touching
the workpiece.
2. Position the “V” groove absolutely flat on the edge to
be beveled.
3. Grasp the tool firmly with both hands, turn the tool on
and push the planer forward with steady pressure on
the front base.
WARNING!
• Hold the tool with both hands while starting the tool, since torque from the motor can
cause the tool to twist.
FPO
fig 13
fig 12
12.7 mm
max
82 mm
max
OPERATING INSTRUCTIONS
OPERATING INSTRUCTIONS
fig 11
NOTICE:
• Planing is easier if you incline the workpiece slightly away from you so that you plane “downhill”.
• Moving the planer too quickly may cause a poor quality of cut and can damage the blades or the motor.
Moving the planer too slowly may burn or mar the workpiece.
WARNING!
• Hold the tool with both hands while starting the tool, since torque from the motor can
cause the tool to twist.
CAUTION!
• Always use two hands when holding the planer.
• Wherever possible, clamp the workpiece to a workbench or clamping table.
FPO

headline bars
continuation tabs
notes
warnings
19
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
18
MAINTENANCE
BEFORE EACH USE
1. Inspect the planer, the trigger switch, the cord and the accessories for damage.
2. Check for damaged, missing, or worn parts.
3. Check for loose screws, misalignment or binding of moving parts, or any other condition that may affect
the operation.
4. If abnormal vibration or noise occurs, turn the tool off immediately and have the problem corrected before
further use. Unplug the tool from power source before cleaning or performing any maintenance.
5. Using compressed air may be the most effective cleaning method. Always wear safety goggles when
cleaning tools with compressed air.
PLANER BLADES
The planer blades have two cutting edges and may be reversed. When both cutting edges are dull, the planer
blade must be replaced.
The planer blades may not be re-sharpened. Do not attempt to sharpen or use re-sharpened blades of any kind.
Use only blades designated for use with this model, because other blades will cause vibration, decrease
performance and may not clamp securely in the blade holder.

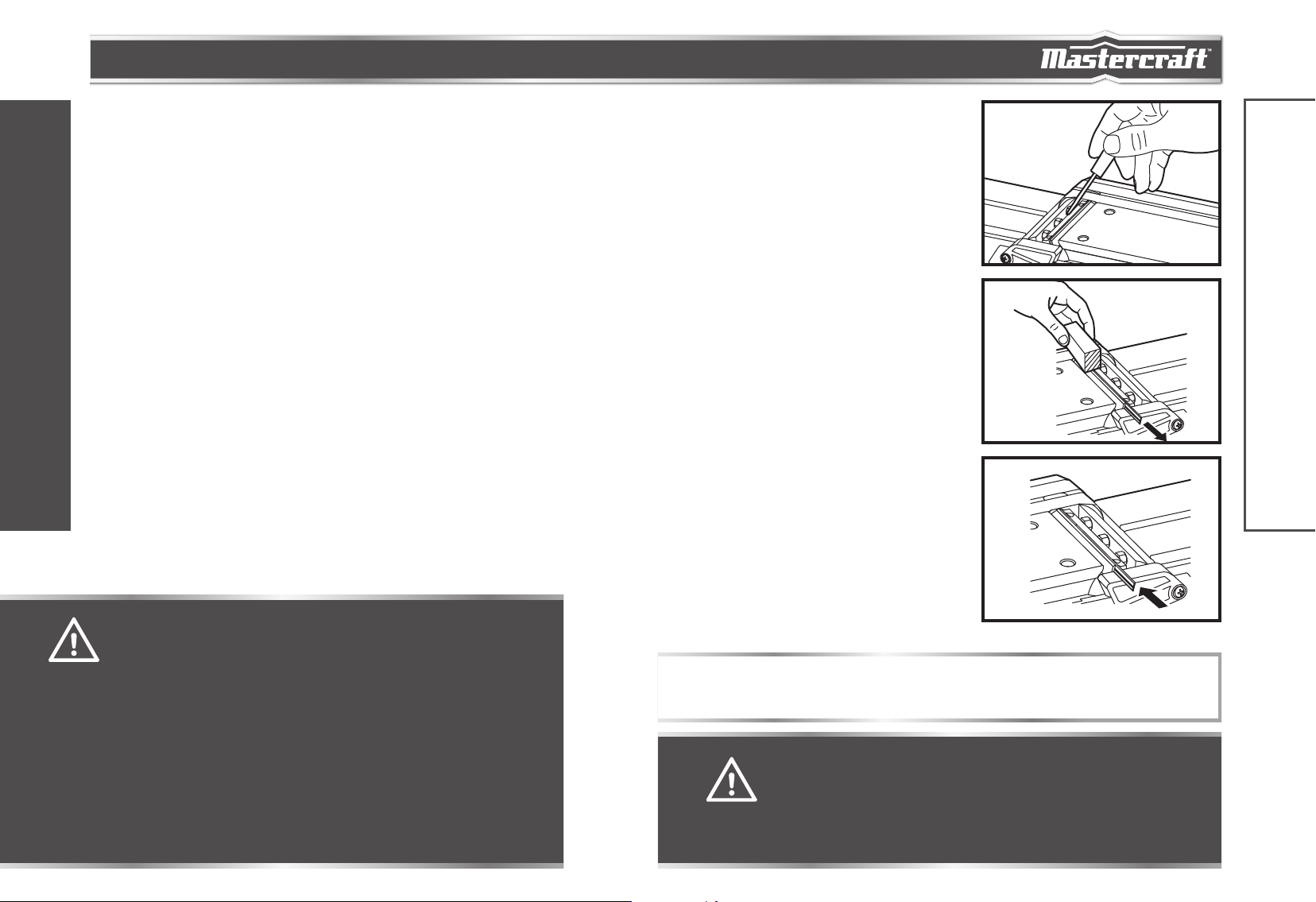

REPLACING THE PLANER BLADES
REMOVING THE OLD PLANER BLADES
1. Disconnect the plug from the power source.
2. Place the planer upside down on a flat surface.
3. Loosen the three clamping screws with the wrench
that is provided (fig 14).
4. Push the blade sideways out of the blade drum.
A piece of wood may be used for this purpose (fig 15).
INSTALLING NEW PLANER BLADES
1. Disconnect the plug from power source.
2. Place the planer upside down on a flat surface.
3. Clean all surfaces before reinstalling the new blade,
as this will ensure an accurate blade setting and
proper tool performance.
4. Slide a new sharp blade into the blade holder of the
clamping element (fig 16). The blade groove must
engage with the blade holder.
5. Tighten the three clamping screws again with the
wrench (provided).
CAUTION!
• When installing blades, first clean out all chips and/or foreign matter adhering to the
blade drum and the clamping element. Use blades of the same dimensions and weight, or
else the drum will oscillate and vibrate, causing poor planing action and tool breakdown.
Tighten the clamping screws carefully when attaching the blades to the planer. A loose
clamping screw could be extremely dangerous. Regularly check and ensure that the
clamping screws are securely tightened.
FPO
MAINTENANCE
fig 16
fig 14
NOTICE: Your planing surface will end up rough and uneven unless the blades are set properly and
securely. The blades must be mounted so that the cutting edge is absolutely level relative to the surface of the
front and rear base.
MAINTENANCE
fig 15
WARNING!
• Do not allow brake fluids, gasoline and petroleum-based products, penetrating oil,
etc. come into contact with plastic parts. These substances contain chemicals that
can damage, weaken, or destroy plastic.
• When servicing, use only identical replacement parts. The use of any other parts may create
a hazard or cause damage to the product.
• Use only accessories that are recommended for this planer by the manufacturer.
Accessories that may be suitable for one tool may become hazardous when used with
another tool.
• Maintain tools with care. Keep cutting tools sharp and clean. Properly maintained tools with
sharp cutting edges are less likely to bind and are easier to control.
• To ensure safety and reliability, all repairs should be performed by a qualified service
technician.
• Be cautious when replacing the planer blades. Do not grasp the planer blades by the cutting
edges. Injury may result due to the sharp cutting edges of the planer blades.
• Always ensure that the tool is switched OFF and unplugged from the power supply before
installing or removing blades.
FPO

headline bars
continuation tabs
notes
warnings
21
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
20

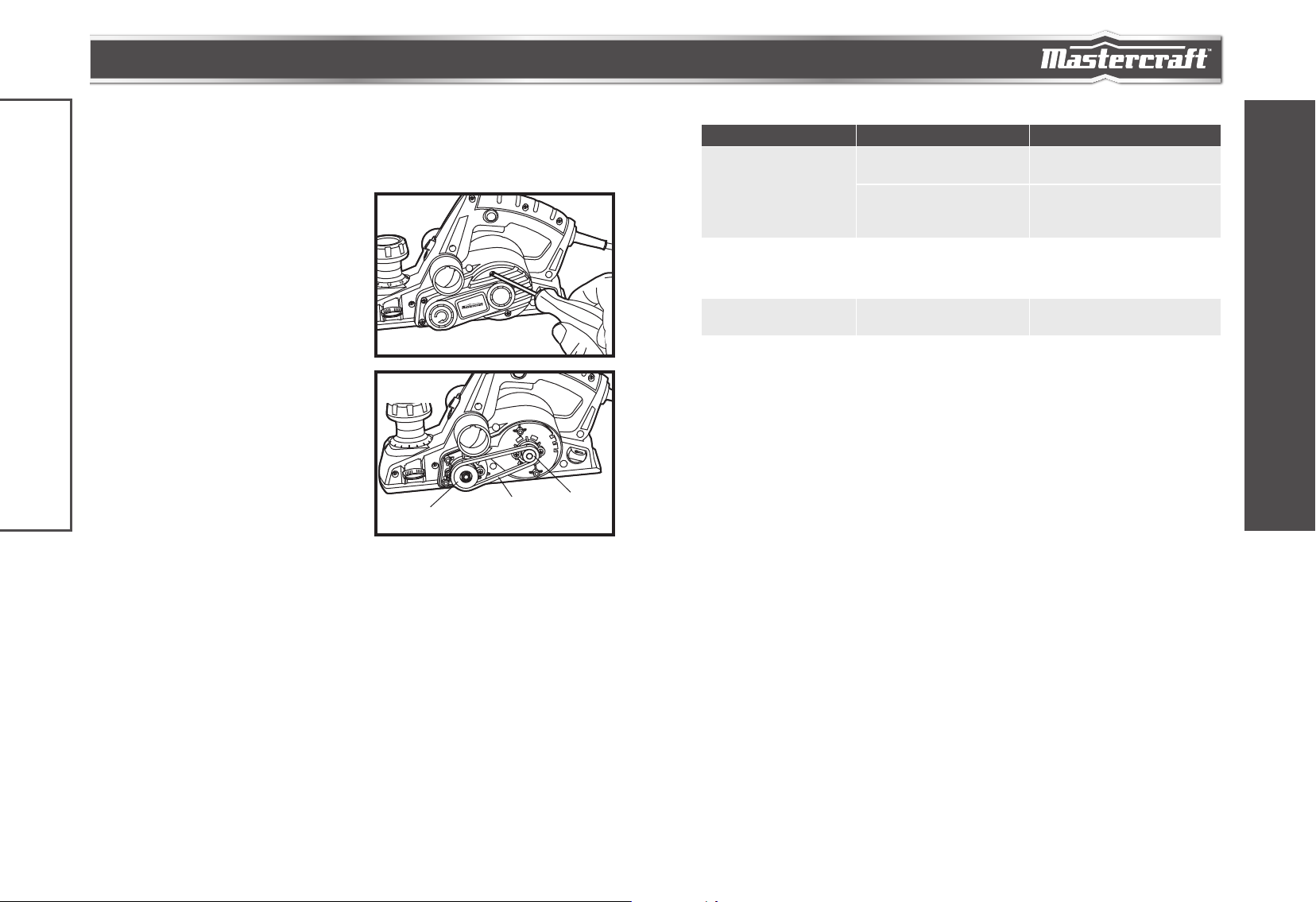

DRIVE BELT
The drive belt is a normal maintenance part and should be inspected periodically for wear. If the drive belt
shows signs of drying out, cracking or tearing, it should be replaced. If the drive belt will not track properly or
comes off the pulleys, it should be replaced.
INSTALLING NEW DRIVE BELT
1. Disconnect the plug from the power source.
2. Loosen the four screws with a Philips screwdriver
and remove the drive belt cover (fig 17).
3. Cut and remove the worn drive belt. Before installing the
new drive belt, clean both pulleys thoroughly (fig 18).
4. Place the new drive belt onto the drive pulley then
rotate it clockwise while pushing the belt onto the
driven pulley.
5. Reinstall the drive belt cover and securely tighten
screws.
TROUBLESHOOTING
Problem Possible Causes Solution
The motor does not start
1. The tool is not connected to a
power source 1. Connect the tool to a power source
2. The lock-off button is not
depressed before squeezing the
on/off trigger switch
2. Press down the lock-off button and
hold it, then depress the trigger
switch to turn on the planer.
Planer does not plane properly
1. Blades are dull 1. Change the blades
2. Blades are not installed
correctly
2. Install the blades correctly (see
Installing new planer blades)
The motor is overheating Cooling vents may be obstructed
by dust or other obstacles
Clean and clear vents. Do not cover
with hand during operation
If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline,
at 1-800-689-9928.
MAINTENANCE
TROUBLESHOOTING
fig 17
Drive pulley Drive
belt
Driven
pulley
fig 18

headline bars
continuation tabs
notes
warnings
23
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
22
EXPLODED VIEW
PART LIST
No. Part No. Description No. Part No. Description
1 054660201 Front Sole Plate 29 054660229 Backplane Positioning Bar
2 054660202 Big Spring 30 054660230 Spring
3 054660203 Steel Ball 31 054660231 Support
4 054660204 Spring 32 054660232 Backplane
5 054660205 Scale 33 054660233 Screw
6 054660206 Scale Support 34 054660234 Fari Baffel
7 054660207 Knob Base 35 054660235 Stator
8 054660208 Washer 36 054660236 Screw
9 054660209 Screw 37 054660237 Rotor
10 054660210 Knob Cover 38 054660238 Bearing
11 054660211 Screw 39 054660239 Switch
12 054660212 Depth Fence 40 054660240 Belt Cover
13 054660213 Knob 41 054660241 Cord Clamp
14 054660214 Blade Guard 42 054660242 Screw
15 054660215 Spring 43 054660243 Cord Guard
16 054660216 Screw 44 054660244 Cord Set
17 054660217 Motor Cover 45 054660245 Left Housing
18 054660218 Screw 46 054660246 Screw
19 054660219 Brush Holder 47 054660247 Bearing
20 054660220 Brush 48 054660248 Screw
21 054660221 Right Housing 49 054660249 Driven Doller
22 054660222 Bearing 50 054660250 Spanner
23 054660223 Blade Body Assembly 51 054660251 Canister
24 054660224 Spanner 52 054660252 Belt
25 054660225 Switching Plate 53 054660253 Nut
26 054660226 Spring 54 054660254 Driving
27 054660227 Steel Ball 55 054660255 Bearing
28 054660228 Pin 56 054660256 Screw
If any parts are missing or damaged, or if you have any questions, please call the Toll-free Helpline,
at 1-800-689-9928.
PART LIST

headline bars
continuation tabs
notes
warnings
25
headline bars
continuation tabs
notes
warnings
model no. 054-6602-4 | contact us 1.800.689.9928
24
This Mastercraft product is guaranteed for a period of 3yearsfromthedateoforiginalretailpurchase
against defects in workmanship and materials, except for the following components:
a) Component A: Batteries, chargers and carrying case, which are guaranteed for a period of 2 years from the
date of original retail purchase against defects in workmanship and materials;
b) Component B: Accessories, which are guaranteed for a period of 1-year from the date of original retail
purchase against defects in workmanship and materials.
Subject to the conditions and limitations described below, this product, if returned to us with proof of purchase
within the stated warranty period and if covered under this warranty, will be repaired or replaced (with the
same model, or one of equal value or specification), at our option. We will bear the cost of any repair or
replacement and any costs of labour relating thereto.
These warranties are subject to the following conditions and limitations:
a) a bill of sale verifying the purchase and purchase date must be provided;
b) this warranty will not apply to any product or part thereof which is worn or broken or which has become
inoperative due to abuse, misuse, accidental damage, neglect or lack of proper installation, operation or
maintenance (as outlined in the applicable owner’s manual or operating instructions) or which is being
used for industrial, professional, commercial or rental purposes;
c) this warranty will not apply to normal wear and tear or to expendable parts or accessories that may be supplied
with the product that are expected to become inoperative or unusable after a seasonable period of use;
d) this warranty will not apply to routine maintenance and consumable items such as, but not limited to, fuel,
lubricants, vacuum bags, blades, belts, sandpaper, bits, fluids, tune-ups or adjustments;
e) this warranty will not apply where damage is caused by repairs made or attempted by others (i.e. persons
not authorized by the manufacturer);
f) this warranty will not apply to any product that was sold to the original purchaser as a reconditioned or
refurbished product (unless otherwise specified in writing);
g) this warranty will not apply to any product or part thereof if any part from another manufacturer is installed
therein or any repairs or alterations have been made or attempted by unauthorized persons;
h) this warranty will not apply to normal deterioration of the exterior finish, such as, but not limited to, scratches,
dents, paint chips, or to any corrosion or discolouring by heat, abrasive and chemical cleaners; and
i) this warranty will not apply to component parts sold by and identified as the product of another company,
which shall be covered under the product manufacturer’s warranty, if any.
WARRANTY
WARRANTY
Additional Limitations
This warranty applies only to the original purchaser and may not be transferred. Neither the retailer nor the manufacturer
shall be liable for any other expense, loss or damage, including, without limitation, any indirect, incidental, consequential
or exemplary damages arising in connection with the sale, use or inability to use this product.
Notice to Consumer
This warranty gives you specific legal rights, and you may have other rights, which may vary from province to
province. The provisions contained in this warranty are not intended to limit, modify, take away from, disclaim
or exclude any statutory warranties set forth in any applicable provincial or federal legislation.
