Masterflex L/S 07525-20 User manual

OPERATING MANUAL:
DIGITAL PUMP
DRIVES
Model Nos.
07525-20
07525-40
77123-00
®
®
A12997328
Edition 03
(US & Canada only) Toll Free 1800MASTERFLEX • 18006373739
(Outside US & Canada) 18475497600 • 18473817050
www.masterflex.com • [email protected]
®
MASTERFLEX® 77123-00 and 07525-20

© 2019 Cole-Parmer Instrument Company. All rights reserved.
Masterflex – Reg TM Cole-Parmer Instrument Company.
Trademarks bearing the ®symbol in this publication are registered in the U.S. and in other countries.
PUMP FOR LIQUIDS
ORIGINAL INSTRUCTIONS
Masterflexii MASTERFLEX®Digital Pump Drive Operating Manual

Masterflex MASTERFLEX®Digital Pump Drive Operating Manual iii
DANGER: High voltages exist and are accessible. Use extreme caution
when servicing internal components.
WARNINGS: Tubing breakage may result in fluid being sprayed from
pump. Use appropriate measures to protect operator and equipment.
Turn drive off before removing or installing tubing. Fingers or loose
clothing could get caught in drive mechanism.
WARNINGS: Do not operate the pump drive in a manner not
specified in the documentation. Misuse of the pump drive may result in
a hazard and may compromise the safety protection built into the pump
drive. If the pump drive is damaged, turn it off and not use it until
service-trained personnel can check its safety.
Single-Phase Only. Not to be used with Split-Phase lines.
Main disconnect is accomplished by disconnecting the detachable
power supply cord at the appliance coupler or at the main plug. Ensure
the power cord is easily accessible and removable, in the event of an
emergency, which requires immediate disconnection.
The operator should check the detachable power supply cord condi-
tion. The equipment should not be operated if the power supply cord is
cracked or broken. Any obvious damage to the enclosure (from a drop
or fall) should be checked by service personnel for loose or damaged
parts inside.
CAUTIONS: Power must be disconnected before connecting the
external remote control cable to prevent damage to the drive.
Do not block the rear panel of the pump drive. The power cord must
always be easy to disconnect.
Replace the power cord only with one of the same type and rating.
The power cord set supplied with your pump drive meets the require-
ments of the country where you purchased the pump drive. If you use
the pump drive in another country, you must use a power cord set that
meets the requirements of that country.
When using hazardous chemical and biological agents, take all suit-
able protective measures, such as wearing protective glasses and
gloves resistant to the substances used. Follow local and/or national
regulations for safe operation and maintenance of the system.
Preface
Safety Precautions
SAFETY
PRECAUTIONS

iv MASTERFLEX®Digital Pump Drive Operating Manual
CAUTION: To avoid electrical shock, the power cord protective
grounding conductor must be connected to ground. Not for
operation in wet locations as defined by EN61010-1.
CAUTION: Risk of Danger. Consult Operator’s manual for nature of
hazard and corrective actions.
CAUTION: Risk of crushing. Keep fingers away from rotor while
pump is in operation. Stop pump before loading or unloading
tubing.
CAUTION: Risk of electric shock. Consult Operator’s manual for nature
of hazard and corrective actions.
This product is not designed for, nor intended for use in patient
connected applications; including, but not limited to, medical and
dental use, and accordingly has not been submitted for FDA approval.
This product is not designed for, nor intended for use in
hazardous duty areas as defined by ATEX or the NEC (National
Electrical Code); including, but not limited to use with flammable
liquids. Consult the factory for products suitable for these types of
applications
Preface
Safety Precautions
Explanation of
Symbols
WARNING:
Product Use
Limitation
SAFETY
PRECAUTIONS
(continued)
Masterflex

Masterflex MASTERFLEX®Digital Pump Drive Operating Manual v
Table of Contents
Page
INTRODUCTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Application Solutions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
General Description . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-2
INSTALLATION AND SETUP . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
Before Starting Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2-1
OPERATION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Turning On the Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-1
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Priming the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-3
Main Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-4
Continuous Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Global Options Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11
Remote Control Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
Remote Control Voltage Input Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
Remote Control Voltage Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-15
Remote Control Current Input Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-17
Remote Control Current Output Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-19
DB-25 Pin Configuration with Wiring Scheme . . . . . . . . . . . . . . . . . . . . . . .3-21
Remote Control Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-22
Open Collector Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-24
Sound Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25
Keypad Lockout Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-27
Display Contrast Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-28
Autostart Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-29
Default Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-31
Copy Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-32
Settings Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-33
Copy Flow Rate Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-34
Set Copy Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-35
Set Batch Count Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-36
Off Time Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-38
Global Options Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-38
Section 1
Section 2
Section 3

vi MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Table of Contents
(continued)
Table of Contents
Page
MAINTENANCE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Replacement Parts and Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4-1
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Troubleshooting Chart . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-1
Error Definitions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5-2
ACCESSORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6-1
SPECIFICATIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7-1
WARRANTY, PRODUCT RETURN, and TECHNICAL ASSISTANCE . . .8-1
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-1
Product Return . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Technical Assistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8-2
Section 8
Section 7
Section 6
Section 5
Section 4

Figures
Page
Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-2
Flow Rate Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-5
Continuous Mode Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-6
Flow Unit Selection Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-7
Tubing Size Selection Screens. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-8
Tubing Calibration Selection Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-9
Tubing Calibration Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-10
Global Options Menu Screen . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-11
Remote Control Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-13
DB-25 Pin Configuration with Wiring Scheme . . . . . . . . . . . . . . . . . . . . . . .3-21
Terminating Open Collector Output to a PLC . . . . . . . . . . . . . . . . . . . . . . . .3-24
Sound Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-25
Keypad Lockout Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-27
Display Contrast Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-28
Autostart Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-29
Default Settings Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-31
Copy Mode Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-32
Copy Flow Rate Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-34
Set Copy Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-35
Set Batch Count Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-36
Set Off Time Menu Screens . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-38
MASTERFLEX®Digital Pump Drive Operating Manual viiMasterflex
Figures

Tables
Page
Remote Control Inputs and Outputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-22
Continuous Mode Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3-30
MASTERFLEX®Digital Pump Drive Operating Manual ixMasterflex
Tables

MASTERFLEX®Digital Pump Drive Operating Manual 1-1Masterflex
Application Solutions
Section 1 Introduction
The Digital drive controls the speed of MASTERFLEX® Pump Heads to
provide flow rates from 0.00013 to 324 mL/min.
Advantages of Peristaltic Pumps:
• No seals in contact with the medium pumped.
• No valves to clog.
• Inner surfaces are smooth and easy to clean.
• Fluid contacts only the tubing or tube material.
• Suction lift and priming up to 1.5m water column at sea level.
• Low shearing for handling the most shear sensitive of fluids like latex
or fire fighting foam.
• Capable of running dry and pumping fluids with high quantities of
entrained air, such as black liquor soap.
• High volumetric efficiency allows operation in metering or dosing
applications where high accuracy is required.
• Handle extremely viscous fluids.
• Tubing and tube materials are available that are suitable for food and
pharmaceutical use.

1-2 MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Section 1
Introduction
The MASTERFLEX Digital Peristaltic Pump Drive offers flow rate
capacities from 0.00013 mL/min to 324 mL/min depending on model
and tubing being used. Features include a small footprint, plus non-
stainless steel drives that are stackable.
The MASTERFLEX digital pump provides a motor speed repeatability of
+/- 0.1 percent to maximize productivity in precision liquid dosing, batch
dispensing and filling applications. A turndown ratio up to 3000-to-1,
bidirectional flow and self-priming capabilities allow for smooth, seamless
operation and an extremely broad flow range within one tubing size.
In addition to high accuracy, precision, repeatability and resolution
of speed (or flow rate), the MASTERFLEX drive features an intuitive,
man/machine interface with a four-line graphical LCD display providing
direct readout of pump speed (rpm), flow rate (user-selected units),
number of dispenses, and menu options.
The easy-to-use keypad eliminates setpoint overshoot and provides easy
navigation through menu options that include a number of on-screen
programming features.
These drives use high precision, no-maintenance brushless motors for
improved reliability. This, combined with its high turndown, superior
accuracy, and intuitive interface make the MASTERFLEX drives ideally
suited where ultra-precise, repeatable flow control is required. The pump
accommodates a variety of product fill volumes and batch dispensing
profiles, and fluid only contacts the tubing, providing for contamination-
free pumping.
MASTERFLEX pumps are self-priming, can operate dry without damage,
are suitable for most chemicals and contain no valves or seals. See Tubing
Guides within this flash drive or on the web.
General Description

MASTERFLEX®Digital Pump Drive Operating Manual 2-1Masterflex
Section 2 Installation and Setup
• The drive should be mounted on a flat horizontal surface.
• The ambient air temperature should not exceed 104° F (40° C) and
adequate air flow should be provided for.
CAUTION: Do not block the rear panel of the pump drive. The
power cord must always be easy to disconnect.
• Tubing should be clean and routed so that bend radii are at a
minimum four (4) times the tube diameter and as short as possible.
WARNING: Turn drive off before removing or installing tubing.
Fingers or loose clothing could get caught in drive mechanism.
• Use a tube size of appropriate diameter for the flow rate and
viscosity required.
• To maintain the best accuracy of flow rates, re-calibrate tubing
regularly. See Tubing Calibration section of this manual.
• For tubing selection and compatibility, see Tubing Selection Guide
within this flash drive or on the web.
• When cleaning or performing maintenance, please remove power from
the drive.
CAUTION: The power cord set supplied with your pump drive
meets the requirements of the country where you purchased the
pump drive. If you use the pump drive in another country, you
must use a power cord set that meets the requirements of that
country.
DANGER: High voltages exist and are accessible. Use extreme
caution when servicing internal components.
Before Starting Drive

CAUTION: When using hazardous chemical and biological
agents, take all suitable protective measures, such as wearing
protective glasses and gloves resistant to the substances used.
Follow local and/or national regulations for safe operation and
maintenance of the system.
2-2 MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Section 2
Installation and Setup
Before Starting Drive
(continued)

MASTERFLEX®Digital Pump Drive Operating Manual 3-1Masterflex
Section 3 Operation
WARNING: Do not operate the pump drive in a manner not speci-
fied in the documentation. Misuse of the pump drive may result
in a hazard and may compromise the safety protection built into
the pump drive. If the pump drive is damaged, turn it off and not
use it until service-trained personnel can check its safety.
1. Plug the power cord into the IEC Connector of the 24V DC desktop
power supply. Plug the opposite end of the power cord into an
electrical outlet.
2. Plug the barrel connector of the 24V DC desktop power supply into
the rear of the pump drive.
3. After plugging in the barrel connector, Continuous mode of operation
will appear on the LCD screen. (NOTE: Each start-up after the initial
will revert to the mode of operation screen previously in use.)
Turning On the Drive
CAUTION: To avoid electrical shock, the power cord protective
grounding conductor must be connected to ground. Not for
operation in wet locations as defined by EN61010-1.
CAUTION: Power must be turned off before connecting the exter-
nal remote control cable to prevent damage to the drive.
WARNING: Tubing breakage may result in fluid being sprayed
from pump. Use appropriate measures to protect operator and
equipment.

Figure 3-1. Control Panel.
• To navigate all menus on the drive use the (UP key),
• The key located on the top right of the control panel is used
to enter or select a highlighted field or option. is key is often
referred to as the ENTER key in this manual.
• The key located on the bottom right of the control panel is
used to go back to a previously selected highlighted field or screen.
is key is often referred to as the BACK key in this manual.
• The key located at the middle right of the control panel is
used to start and pause the drive. is key is often referred to as
the START/STOP key in this manual.
• The (PRIME) function located at the left of the control panel
is activated by pressing and holding the UP and DOWN keys
simultaneously. While the keys are pressed, these keys operate the
drive at the maximum allowed speed/flow rate and in the direction
shown on the display. When released, the drive returns to its
original speed or flow rate.
3-2 MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Section 3
Operation
Control Panel
(DOWN key), (ENTER key), and (BACK key).

1. Open the Pump Head to drive. NOTE: On 07525-20 and 07525-40
only, opening the Pump Head while the drive is powered will display a
pump open warning. If the drive is running it will stop the drive. Press
the start key or activate the START/STOP remote contact to restart
the drive.
2. Insert appropriate tubing into Pump Head.
3. Insert tube inlet into supply fluid.
4. Insert tube outlet into desired container.
5. Press and hold the UP and DOWN keys simultaneously, this will
activate the prime function on the drive console to prime the pump.
Priming will stop when keys are released.
CAUTION: Keep fingers away from rotor while pump is in
operation. Stop pump before loading or unloading tubing.
MASTERFLEX®Digital Pump Drive Operating Manual 3-3Masterflex
Section 3
Operation
Priming the Pump

3-4 MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Section 3
Operation
Main Screen e drive has two different modes of operation—Continuous mode and
Copy Dispense mode. e drive also can be controlled directly via the
control panel or remotely through input signals to the 25-pin connector
on the back panel of the drive. Several primary control functions
including starting and stopping the pump, adjusting the rpm/flow rate,
and changing pump direction can be performed independently via use of
the control panel or through the remote control. is is true for both
Continuous and Copy Dispense modes (see the Remote Control section
following for more details).
CONTINUOUS MODE is the default pumping mode. e pump
will operate continuously at the set rpm (or flow rate) unless the drive is
either stopped or the flow rate/rpm is changed by the user. Refer to
Continuous Mode in this manual.
COPY DISPENSE MODE allows for dispensing at specific
volume intervals. (Example…repetitively filling vials with the same
volume by a single press of a button, foot switch or dispensing
wand.) Each dispense can be started either via the Enter Key
on the control panel or through the Start/Stop contact on the back
of the drive (see Remote Control section following). e Off Time feature
further allows for a continuous dispensing pattern by which a specific
off time interval between each dispense can be set. us a continuous
Dispense-Off Time-Dispense- Off Time cycle is created. An additional
feature of the Copy Dispense mode is Batch Count (0000/0015). is allows
you to set a limit to the number of dispenses the pump will deliver before
stopping. Once the count limit is achieved, the batch count will have to be
reset to zero to continue pumping. Please note that batch count can be set
to infinity ( ) to allow for continuous dispense cycling. Refer to Copy
Dispense Mode in this manual.
SETTINGS Mode settings menu.
PUMP DIRECTION Select the direction of the pump flow. e
icon will rotate when the pump is running.

MASTERFLEX®Digital Pump Drive Operating Manual 3-5Masterflex
Section 3
Operation
FLOW RATE: Set the flow rate in flow unit listed at the top of the screen.
(NOTE: To change flow unit, see Flow Unit.) When the entire rate
field is highlighted, press . e digits can be navigated individually
key. After selecting an optimal flow rate, press again to validate. Press
the key to exit.
Continuous Mode
Screen
using the or arrows; switch between digits by using the
Figure 3-2. Flow Rate Screens.

3-6 MASTERFLEX®Digital Pump Drive Operating Manual Masterflex
Section 3
Operation

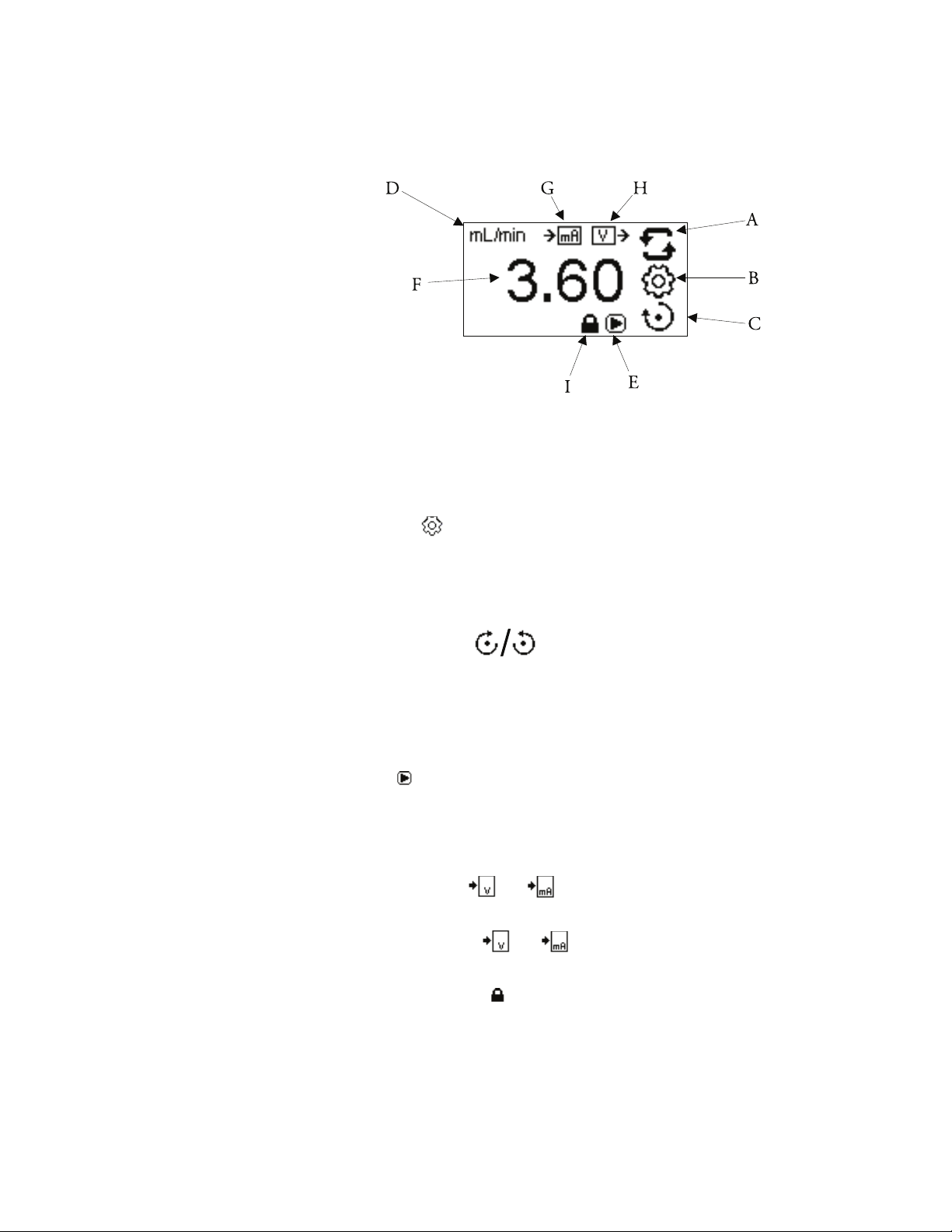

Display Legend: Below is a screenshot of the screen display for the drive in
Continuous Mode. An explanation of the information on the screen follows.
Figure 3-3. Continuous Mode Screen.
A. Mode Display: Current operating mode in which the drive will operate.
Pressing ENTER key when highlighted will cycle through the different
operation modes.
B. Settings : Pressing the ENTER key on this icon goes to the Settings
Menu. e Settings Menu contains all the functions for Continuous
Mode, which includes: Flow Units, Tubing Size, Remote Control, and
Keypad Lockout. e Settings Menu also provides access to tubing
calibration and sounds.
C. Flow Direction : Pressing the ENTER key on this icon toggles
between clockwise and counterclockwise flow direction. This icon will
rotate when the pump is running.
D. Flow Units: Informative only. NOTE: Flow units are available in
Continuous Mode only.
E. Play : Informative only. is icon will display when the pump is
running.
F. Flow Rate: e center digits show the flow rate of the drive in the unit of
measure selected.
G. Remote Input or : Informative only. Voltage input or Current
input will display when turned on in the settings menu.
H. Remote Output or : Informative only. Voltage output or
Current output will display when turned on in the settings menu.
I. Keypad Lockout : Informative only. is icon will display when the
keypad lockout is turned on in the setting menu. Locking the keypad will
prevent someone from changing the settings on the drive.
Continuous Mode
Screen (continued)
