Masterflex QUATTROFLOW 1200S Specification sheet

74000-53
QUATTROFLOW 1200S
MULTIPLE-USE STAINLESS STEEL
QUATERNARY PUMP 4 PISTON
DIAPHRAGM PUMP
Model 74000-53
Operating and Installation Manual:
Model No.
Edition 05
A-1299-7370
®
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-549-7600 • 1-847-381-7050
www.masterflex.com • [email protected]

ORIGINAL INSTRUCTIONS
PUMP FOR LIQUIDS
©2019 Cole-Parmer Instrument Company. All rights reserved.
Masterflex — Reg TM Cole-Parmer Instrument Company.
© 2019 ALMATEC. Quattroflow is a trademark of ALMATEC MASCHINBAU Gmbh.
Trademark bearing the symbol in this publication are registered in the U.S. and in other countries.
Modifications of the design or materials may be made without prior notice.
®
Masterflex
ii A-1299-7370
Preface

Masterflex iiiA-1299-7370
Preface
Explanation of Symbols
Explanation of
Symbols
Please read this manual carefully before start-up of the pump and
take note of the appropriate instruction in the operating manual. See
SECTION 3 for detailed safety instruction. See drive manual for more
safety instructions.
!CAUTION: Risk of danger. Consult operator’s manual for nature of haz-
ard and corrective actions.
CAUTION: Risk of injury. Keep fingers away from the coupling while
shaft is rotating. Do not operate without pump head
installed.
CAUTION: Hot surface. Do not touch.
CAUTION: Risk of electric shock. Consult operator’s manual for nature
of hazard and corrective actions.
CAUTION: Please follow the general guidelines and safety instructions
when handling with chemicals.
CAUTION: During all maintenance work it has to be ensured that no
explosive atmosphere can arise. Appropriate protection equipment is
recommended. The Quattroflow 1200 S must not be operated in explo-
sion-proof areas. Special versions for “ATEX” applications are available.
Please contact manufacturer.
WARNING:
Product Use
Limitation
!This product is not designed for, nor intended for use in
patient connected applications; including, but not limited
to, medical and dental use, and accordingly has not been
submitted for FDA approval.
This product is not designed for, nor intended for use in
hazardous duty areas as defined by ATEX or the NEC (National
Electrical Code); including, but not limited to use with
flammable liquids. Consult the factory for products suitable
for these types of applications.

Masterflex vA-1299-7370
Contents
Table of Contents
Page
Section 1 GENERAL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-1
Storage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Labeling of the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 2 QF1200 S PUMP DESCRIPTION . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-1
Appropriate Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
General Description of the Machine . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Start-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Cleaning (CIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Autoclave . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Steaming in Place (SIP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 3 SAFETY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1
Section 4 MAINTENANCE/SERVICING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-1
TROUBLESHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-1
PERFORMANCE CHARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
TECHNICAL DATA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Section 5
Section 6
Section 7
6-1
7-1
Labels on the Pump . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Qualified Personnel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safety Guidelines . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Failure to Follow Safety Instructions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Safe Maintenance, Inspection, and Mounting Operations . . . . . . . . . . . . . .
Unauthorized Modifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Invalid Modes of Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Additional Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

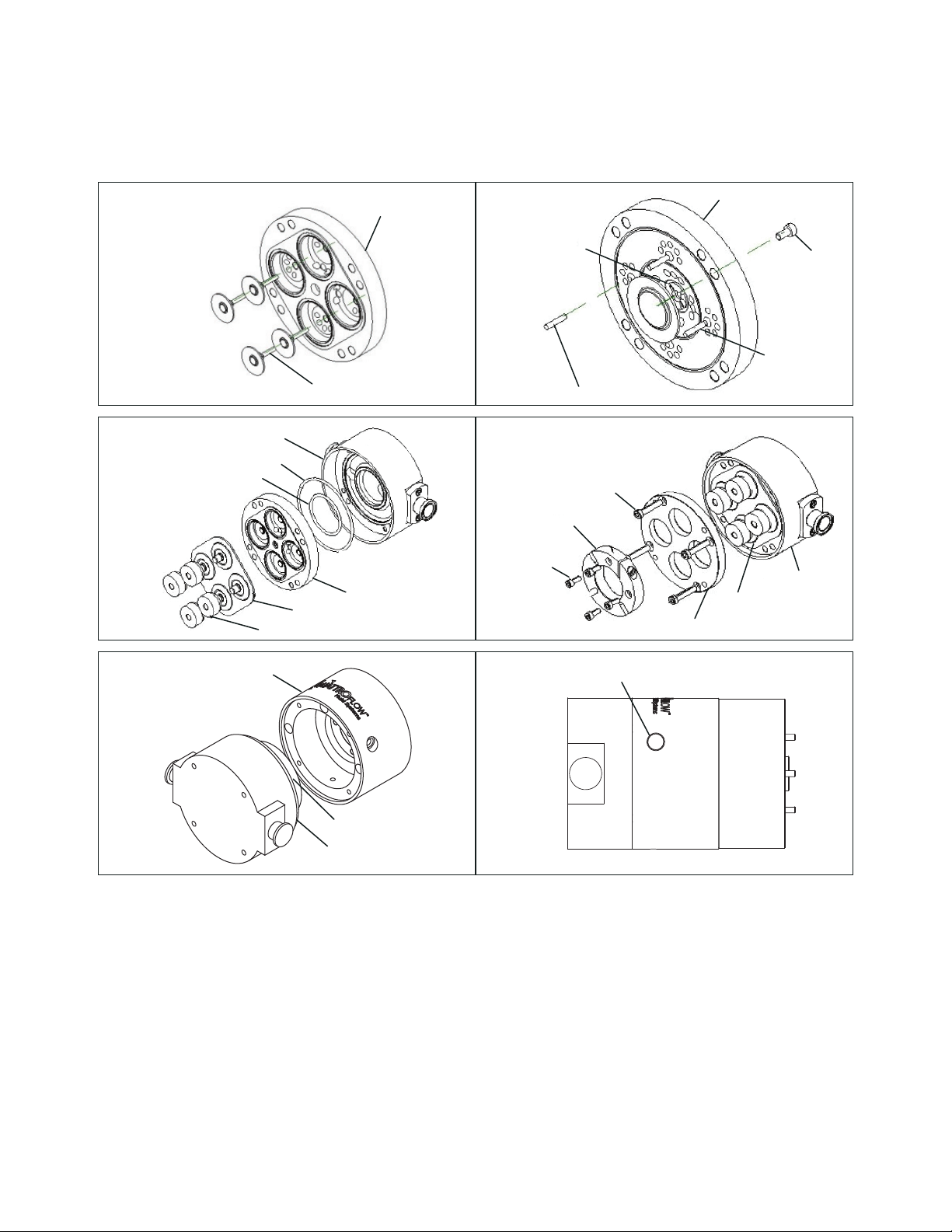

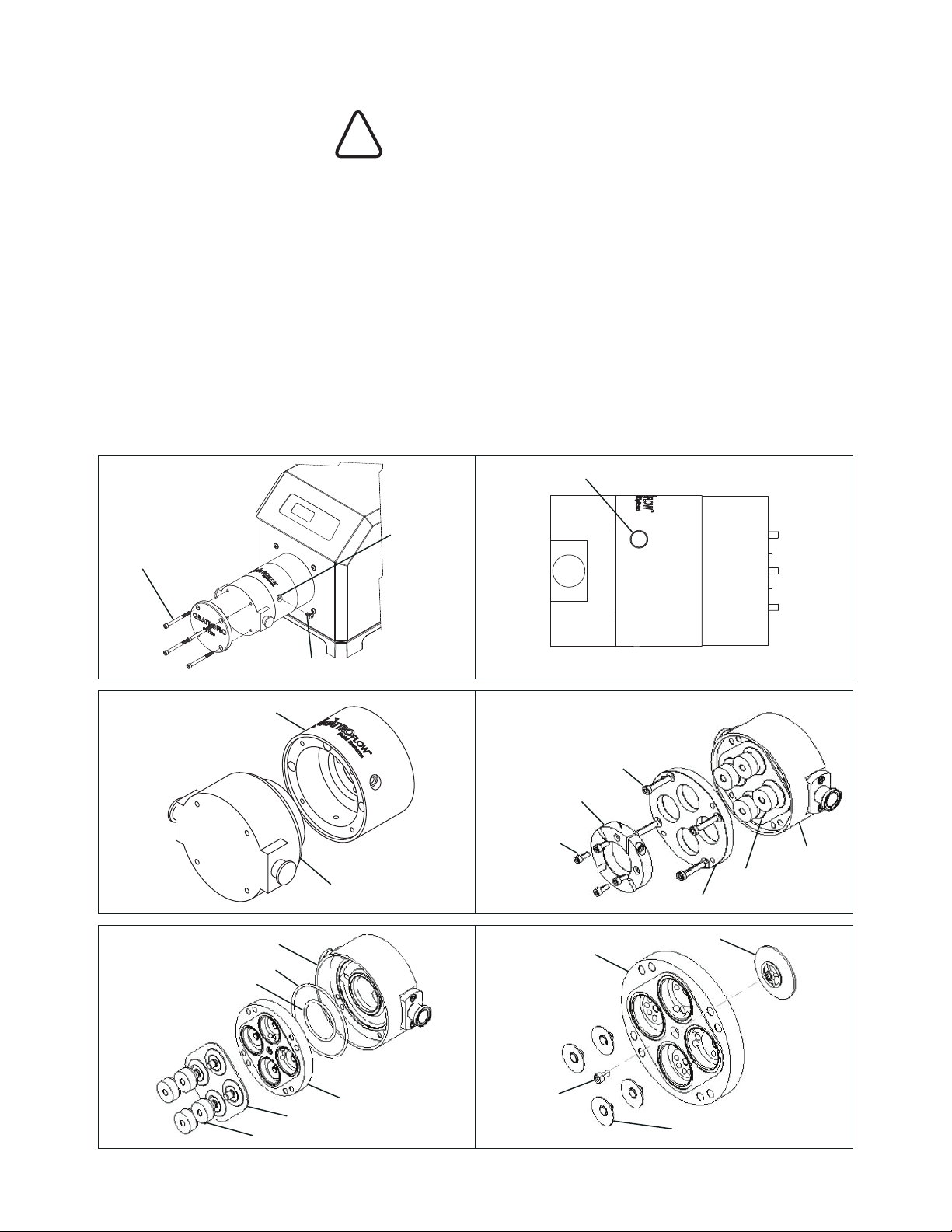

Replacing Diaphragm, Valves, and O-rings . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembling Ring Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Disassembling the Pump Chamber . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Replacing Bearing Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
1-1
1-2
2-1
Safety Hints for the Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
2-1
2-2
2-3
2-3
2-4
3-1
3-2
3-1
3-1
3-1
3-1
3-2
3-2
3-3
4-2
4-2
4-4
4-4
Assembling Pump Chamber to the Ring Drive . . . . . . . . . . . . . . . . . . . . . . 4-3
Assembling Ring Drive . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-5

Section 1 General
Introduction ese operating instructions are valid for the Quattroflow 1200S pump. No
liability will be undertaken for any damages caused be non-compliance with the
operating instructions and service conditions! Original spare parts serve safety
purposes. e use of other parts may cancel the liability for the consequences
and secondary failures resulting there of.
Masterflex 1-1A-1299-7370
Pump Manufacturer: ALMATEC Maschinenbau GmbH
Carl-Friedrich-Gauss-Str. 5
D-47475 Kamp-Lintfort, Germany
Drive Manufacturer: Cole-Parmer
650 East Bunker Ct
Vernon Hills, IL 60061 USA
Phone: [phone]
Email: [e-mail]
Internet: www.coleparmer.com
Quattroflow quaternary diaphragm pumps are constructed according to the
state of the art and they are reliable. Imminent danger by operating error or
misuse can lead to damages of properties and/or persons. e pumps are to
be applied for the intended use in a safety-related proper condition only.
Storage In general the Quattroflow pump is delivered operational and packaged. If
the unit is not installed right away, proper storage conditions are important
for trouble free operation later. e pump has to be protected from wetness,
coldness, dirtying, UV-radiation and mechanical influences. e following
storage conditions are recommended:
-Steady ventilated, dust and vibration free storage room
-Ambient temperature between 15°C (59°F) and 25°C (77°F) with a relative
humidity below 65%.
-Prevention of direct thermal influences (sun, heating).
Section 1
General

For further information on the pump drive system see within this
flash drive or on the web.
Section 1
General
Labeling of the Pump e ALMATEC Machinenbau GmbH is certified as a modern, quality-
orientated enterprise according to DIN EN ISO 9001: 2008 and 1400: 2009.
Before release for sale, any Quattroflow pump has to undergo an extended final
control. e performance data registered during this are archived in our records
and can be read back at any time.
As a general rule in the countries of the EU only such machines are allowed to
be placed into operation, which are determined to meet the regulations of the
EU machinery directive, the harmonized standards, European standards and
the respective national standards. Hence the operator has to verify whether
the Quattroflow pump manufactured and delivered properly according to the
customers order meets the mentioned requirements.
erefore make sure, before putting the pump into operation, that the pump
and the used materials of construction are suitable for the provided applica-
tion and the installation site.
e type label of each Quattroflow pump can be seen on the bottom of the
pump. e serial number of the pump head is fixed the bottom of the pump.
1-2 A-1299-7370 Masterflex
Masterflex Pump Drive

Section 2 QF1200 S Pump Description
Section 2
QF1200 S Pump Description
Appropriate Use e Quattroflow 1200S is a 4 piston-diaphragm pump, which is mainly used
to pump water-like fluids that are typically handled in research, pilot plant or
production facilities of the pharmaceutical, biotech, food or cosmetic research
centers or plants.
Examples:
• Solutions containing protein (albumin, IgG, Clotting factors, monoclonal,
enzymes, vaccines.)
• Solutions of polymers or suspensions (silicon, latex, chromatography media)
• Cell suspensions (bacteria, yeast, algae, fungi, mammalian cells)
• Colloidal solutions
• Suspensions of viruses or phage
• Dairy products
• Gelatin
• Supplements and ingredients for cosmetic and food
Typical applications for the QF1200 S
- Filtration technology:
• To recirculate feed/retentive (e.g. membrane cassettes, hollow fibre, spiral
wound, ceramic elements).
•Feed Pump for filter cartridges or plate and frame depth filters
- Chromatography:
•Packing of chromatography columns
•Feed pump to mix gradients
- Feed pump for centrifuges or separators
- Feed pump for homogenizers
- Feed pump for filling machines
Masterflex 2-1A-1299-7370
General Description of
the Machine
e Quattroflow 1200 S pump is a 4 piston-diaphragm pump. e four
segments of the pump diaphragm oscillate back and forth. is alternate
movement is created by a connector plate that is arranged on a ball
bearing. e ball bearing sits on an eccentric shaft. e connector plate
does not turn!
e stroke of the piston is determined by the angle of the eccentric. ere
are eccentric shafts with 5° available.
Range of flow rate:
5°eccentric shaft: approximate 20-11200 L/hr
In Gallons:
5˚ eccentric shaft: approximate 5.3- 317 gph

Section 2
QF1200 S Pump Description
Masterflex
A-1299-7370
2-2
General Description of
the Machine
(continue)
Please note:
e direction of flow can be adjusted by turning the pump chamber in 90°
steps.
e Quattroflow 1200 S is self-priming and can run dry. Inside the pump
chamber there are no rotating parts that might cause heating up of the product
or shed particles.
e pump-motor unit is mounted on a stainless steel base plate. In case that
the pump will not be operated on the base plate but for example in a frame, a
perpendicular mounting position is possible.
Start-Up Before start-up of the pump one should acquaint oneself with the explanations
of the troubleshooting. Only by doing this can defects be quickly realized and
eliminated in case of trouble. Problems which cannot be solved or with an
unknown reason should be passed on to the manufacturer.
Prior to each use we recommend to flush the pump with a proper fluid (e.g.
water or buffer).
Prior to the very first use it might make sense to clean and sanitize the
pump chamber. A commercial caustic clear and/or 0.1 to 0.5N NaOH can
be applied. e chosen cleaning agent can be recirculated and also stored
inside the pump chamber. For Flushing out of any cleaning agent do not
recirculate! Check with appropriate analytical methods the success of the
flushing procedure.
Recommendation: Test run prior first use!
Before using your pump in your process perform a test run to get
used to the specific properties of the pump.
Pay attention to have sufficiently dimensioned piping. Too small
of for the suction line can cause cavitation as well as a loss of
performance.
If hoses are used in the suction line, make sure that they do not
collapse due to the negative pressure.
When installing the pump please insure that around the pump
enough space is available for the operation and maintenance. Pay
attention to the required space needed for assembly and disas-
sembly of the pump chamber.
During start-up pay attention to the warning and safety instructions
of this manual.
!
!

Masterflex 2-3 A-1299-7370
Section 2
QF1200 S Pump Description
Cleaning (CIP) Depending on the products in contact with the pump and given requirements
the cleaning procedure needs to be adapted accordingly. It is the responsibility
of the user to verify the cleaning efficiency. Safety rules and safety measures like
protective glasses, gloves, and protective clothing have to be followed and used
when working with chemicals like sodium hydroxide (NaOH).
Autoclave For sterilization of the pump chamber we recommend the following steps.
1. CIP of the pump chamber according to 2.4 or any other suitable process.
2. Empty the pump
3. Remove the pump chamber from the pump drive.
4. Close the in and outlet of the pump (e.g. by connecting hoses). Make sure
that there is free interchange available of gas and steam over a sterile barrier
(e.g. sterile filter) at the in and outlet.
5. Autoclave the prepared pump chamber in a vacuum at max 130°C (266°F)
for max 30 min. Follow the instructions from the autoclave manufacturer.
As a general rule we recommend to clean the pump according to the following
procedure.
1. Pre rinse the pump with pure water, until residual amounts of product have
been removed.
2. Cleaning step with 0.5 M NaOH (ca 50°C) at 80% of the maximum RPM
for approximately 30 min. Check before, if surrounding conditions (e.g. pipe
diameter, system pressure rating) allow to operate the pump at this speed.
3. Final rinse with pure water, until neutrality has been achieved (e.g. by
measuring conductivity or pH of the rinse water).
!

Please make sure that the pump chamber is not placed on the
clamp ring during the autoclave process. The clamp ring should
not be loaded during autoclaving.

QF1200 S Pump Description
Section 2
Masterflex
2-4 A-1299-7370
Steaming in Place
(SIP)
For steaming in place the pump chambers need to be installed on the pump
drive. During the steaming process, the temperature in the pump must not
exceed 130°C (266°F) and should not last longer than 30 min. e cooling of the
pump chamber should be against air. Depending on the SIP conditions it may
be necessary to shorten the maintenance intervals for the elastomers significantly.
Tightening torques (10 Nm, 7.4 lb-ft) of the front bolts of the pump chamber
must be checked after each SIP cycle.

Masterflex 3-1A-1299-7370
Section 3 Safety
ese operating instructions contain basic hints to be observed during installation,
operation and maintenance. erefore, prior to mounting and commissioning, these
operating instructions must by all means be read by the fitter as well as the pertinent
expert personnel/customer and must always be available at the place of installation of
the pump. Not only are the general safety hints listed under this item “Safety” to be
observed, but also the special safety hints in other sub sections.
Labels on the Pump Marking labels at the pump e.g.
- P max 6 bar
- Fluid connections
- Direction of flow
Must not be removed and has to be readable.
Qualified Personnel e customer is responsible for ensuring that all maintenance, inspection and
mounting operations are performed by authorized and qualified expert personnel
who have sufficiently informed themselves by thoroughly studying the operating
instructions.
Safety Guidelines Please follow strictly the safety guidelines of this manual, as well as all national and
possible regulations (e.g. the handling of chemicals, like caustic or acid, the handling
of biological materials, the handling of tubing, instrumentation, fittings etc.).
Failure to Follow Safety
Instructions
Any case of non-compliance with the safety instructions may cause danger to
personnel, equipment and environment.
It Can Cause for Example:
- Failure of the proper function of the pump/system
- Failure of required procedures for maintenance
- Danger to personnel by electrical, mechanical, chemical, biological impacts
- Danger to equipment and environment through leakage of dangerous substances
Safety Hints for the
Operator
- In case of hot parts (e.g. while CIP or SIP) protective measures must be
taken.
- Protecting covers of moving parts (e.g. coupling, cover of motor) must not
be removed.
- Leakages of dangerous products have to be handled without any danger for
persons and environment. Statutory regulations must be observed.
- Dangers by electrical energy are to be excluded (for details please refer to the
regulations of the VDE and the local energy supply associations).
Safety
Section 3
!

Safety
Section 3
Masterflex
3-2 A-1299-7370
Safety Maintenance,
Inspection and,
Mounting Operations
• Basically, operations at the pump must be performed during standstill only.
e motor has to disconnect from the power supply, e.g. by pulling out the
power plug or using a repair switch, and has to be secure against unintention-
al switch-on. is can be realized by a lockable emergency switch. To prevent
an accidental re-starting a danger sign should be installed.
• e operator must ensure that all maintenance, inspection and
installation work is performed by authorized and qualified skilled
personnel acquainted themselves with this manual.
• Before starting to disassemble the pump, take care that the pump has
been emptied, rinsed, depressurized and disconnected at all phases of
the power supply. Both ports piping are to be closed and drained if
applicable. If the pump is being removed from the plant, a reference
about the delivered liquid has to be attached.
Unauthorized
Modifications
• Pumps or aggregates handling noxious fluids (e.g. caustic, biohazards) must be
decontaminated. Immediately following completion of the work, all safety
relevant and protective devices must be re-installed and/or re-activated before
being put back into operation, take care of the mentioned instructions of the
chapter “start-up” and check the tightness of the pump.
• Please respect the relevant additional security advises, if the pump has been used
for aggressive, dangerous or toxic liquids (e.g. suitable protective equipment
according to the safety data sheet of the liquid). In case of a diaphragm rupture,
it is possible that residues of the liquid remain behind the diaphragms and in
the area of the ring drive. Hence, appropriate safety equipment according to the
safety data sheet of the liquid is indispensable.
• Especially when delivering critical liquids, wear parts, like diaphragms, should
be replaced within a preventive maintenance.
• Procedure for pump return: According to the requirements of our 14001
certification, every unit which is sent to Masterflex or ALMATEC for
diagnosis or maintenance reasons has to be accompanied by a filled out
decontamination-sheet. Otherwise a processing is not possible. e
decontamination-sheet is enclosed in this manual. Please pay attention to the
further safety regulations.
e use of non-original Quattroflow spare parts or non authorized accessories
and reconstructions lead to the void of the warranty immediately. When operat-
ing such a pump, damages of properties and/or persons cannot be excluded.
Invalid Modes
of Operation
A safe operation of the pump is ensured only by an appropriate use according to
the specific data of the enclosed pump data sheet. e values limitations given in
the data sheet must not be exceeded.
!

Section 3
Safety
A-1299-7370 3-3
Masterflex
Additional Safety
Warnings
These warning hints are to prevent the user from an inadmissible mode of
operation. These warning hints are to be strictly followed to avoid any
damage to the pump and/or any danger to personnel.
e maximum allowed discharge pressure depends on the temperature of the
fluid: P max at room temperature = 6 bar (>40°C = 4 bar) [=87 psi (>104°F =
58 psi)]. Exceeding of the maximum allowed discharge pressure must avoided
in any case (do not remove the warning sign at the pump). As a result even if
only temporarily – exceeding the allowed discharge pressure, the diaphragm can
be damaged. e resulting leakage may lead to a loss of the pumping fluid and
damages of properties and/or persons. Pay attention to a sufficiently
dimensioned piping on the suction and discharge line to prevent too high of
pressure in the pump. e pump chamber may not be set under pressure when
it is not mounted on the drive.
P
MAX: 6bar
• e free cross section of the suction side as well as the length must be
measured in such a way to avoid cavitation.
• e use of a safety device (e.g. pressure switch) can be necessary.
• Please make sure that prior to the start of the pump the discharge line is
checked. Make sure that there is no flow restriction in the discharge line to
avoid any over pressure (e.g. closed valve).
• Flush the pump prior to use with appropriate fluid (e.g. buffer).
• Foundation design: e foundation must be designed so that it can take the
weight of the pump aggregate on the entire surface.
• Please make sure that the pump is operated with the proper mains voltage and
frequency to avoid damages and electrical danger.
• Make sure that the slots for the cooling air are not blocked
• Due to the versatile possibilities to use the Quattroflow pump it is highly
recommended to check case by case if the pump will be the right tool for
the specific application. e user/operator is responsible to perform a proper
method of testing if the pump should be applied for his specific application.
e chemical and thermal compatibility of the elastomeric parts of the pump
with the fluid that will be pumped are to be checked by the operator before
the first process run. E.g. Oily, fatty fluids or solvents might cause a swelling
and/or destruction of the elastomeric components. If in doubt, please
contact the manufacturer!
• Operating the pump in humid or aggressive air can cause damages to the
motor and control box.
• e control box should not be exposed to spray/splash water or to heat
sources.
!
!

3-4 A-1299-7370 Masterflex
Section 3
Safety
Additional Safety
Warnings (Continue)
• Depending on the conditions of operation, the liquid conveyed might escape
from the pump in case of a diaphragm rupture. For further safety requirements
the optional equipment diaphragm monitoring is recommended.
• Pools of liquid which appear in the near outer area of the pump have to be
inspected on danger potential, if necessary safety measures are to be taken.
• Chemical and biological reactions in the product chamber of the pump (mixture
of different substances) and the freezing of the liquid have to be avoided.
• To avoid corrosion the contact of aggressive solutions (e.g. NaCl, HCl) with the
outer stainless steel surfaces of the pump (e.g. hood, base plate) has to be
prevented.
• e Quattroflow pump is a positive displacement pump and can theoretically
generate an infinitely high pressure even at low speed (rpm). Prior to each start
of the pump check and make sure that the discharge line is not closed or
restricted. e design of the discharge line must not build up a pressure of > 6
bar (78 psi).
• If suction and/or discharge line are flexible tubing, then make sure that these
tubing do have the proper pressure rating for the full range of temperatures that
are applied.
• Please follow the general safety guidelines when handling chemical fluids (wear
gloves and/or glasses) before the pump chamber will be opened.
• Never operate the pump without coupling protection and motor housing.
• Quattroflow pumps can lead to bruises when lifting, sinking or assembling them.
Appropriate accessories and safety equipment are to be used. Big and heavy
modules have to fixed and secured to lifting gears when transporting/replacing
them.
• Disconnect mains before doing any maintenance! e housing of the control
box or the motor is to be opened only by skilled personnel. Check the electrical
cables before connecting to mains supply.
• During all maintenance work it has to be ensured that no explosive atmosphere
can arise. Appropriate protection equipment is recommended. e Quattroflow
1200 S must not be operated in explosion-proof areas. Special versions for
“ATEX” applications are available. Please contact the manufacturer.
Attention!- Inadmissible modes of operation, arbitrary reconstruction,
spare parts production and/or any changes of the design (without permission
of the manufacturer) may cancel the liability resulting there from.

Section 4
Maintenance/Servicing
Section 4 Maintenance/ Servicing
Due to the robust construction the Quattroflow pump are widely maintenance free.
e ball bearings do not need any extra lubrication.
e diaphragms, valves, and O-rings should be checked in regular intervals and if
needed they have to be replaced. We recommend the following maintenance intervals
for the different pump parts:
Depending on the operation conditions (pressure, temperature, flow rate, SIP, etc.) it
may be necessary to shorten the maintenance intervals for the elastomers significantly.
In case that the diaphragm is broken the pump chamber should be replaced. At that
time is also recommended to check the ball bearings. For corrosion reasons or a clearly
audible operating noise the parts of the bearing service kit should be also replaced.
Please follow the general guidelines and safety advise when
handling with chemicals.
Disconnect mains supply before opening the pump housing!
Basically, operations at the pump must be performed during stand-
still only. The motor has to be disconnected from the power supply,
e.g. by pulling out the power plug or using a repair switch, and has
to be secure against unintentional switch-on. This can be realized by
a lockable emergency switch. To prevent an accidental re-starting a
danger sign should be installed.
Masterflex 4-1
A-1299-7370
Component Maintenance Interval Action
Elastomer parts
(diaphragm, valves, and
O-rings)
1000 h operating hours,
at least once a year
Replacement of the elastomer parts
(Contact Masterflex for order number).
Shaft-bearing-cap unit 1000 h operating hours,
at least once a year
Replacement of the complete unit (Con-
tact Masterflex for order number).
Motor Refer to the maintenance information of the manual of the Drive
Coupling Refer to the maintenance information of the manual of the Drive
Gear Refer to the maintenance information of the manual of the Drive

Section 4
Maintenance/Servicing
4-2 A-1299-7370 Masterflex
Replacing Diaphragm,
Valves, and O-rings
e replacement of the diaphragm and the valves can be conducted by the op-
erator. e following drawings describe it step-by-step.
In case of bursting diaphragms by overpressure we advise also to change the
bearing unit.
Disassembling the Pump Chamber
After purging the pump with air there might be a small residual
amount of fluid inside the pump chamber. Flush the pump chamber
thoroughly and check the rinse fluid.
The dismounting and mounting of the pump should be done on a rigid
table or work bench. Please note: the pump is heavy.
All further warning and safety instructions of Section 3 must be
respected.
!
Maintenance/Servicing
(Continue)
1. 2.
3. 4.
5. 6.
2. Unscrew the 4
M6 X 60 screws
1. Unscrew the sealing screw
3. Turn the pump
housing until you
see the clamping
ring screw inside
1. Loosen the screw of the clamping ring inside
Pump Chamber Ring Drive Unit
Ring Drive Unit
Pull off the pump chamber
Dismount of the Pump Chamber
M6 x 35
Clamping Ring
M5 x 10 Pump Housing
Diaphragm with Supports
Diaphragm Cover
Pump Housing
O-ring ø85 x 3
O-ring ø45 x 3
Valve Plate
Diaphragm Support
Diaphragm
Valve Plate
Outlet Valve
Unscrew M4 x 6
Push Out inlet Valves
(NOTE: Pressure plate only used in Single Use pumps)

Masterflex
Section 4
Maintenance/Servicing
4-3
A-1299-7370
Assembling Pump Parts
7. 8.
9. 10.
11. 12.
Pull inn the 4 Inlet Valves
Valve Plate
Valve Plate
M4 x 6
Cut
Cut off the End of the Inlet Valve
Press the Outlet Valve
into the Grooves
Assembly of the Pump Chamber
M6 x 35
Clamping Ring
M5 x 10 Pump Housing
Diaphragm with Supports
Diaphragm Cover
Pump Housing
2. Insert O-ring ø85 x 3
3. Insert O-ring ø45 x 3
4. Insert the Valve Plate
1. Fix the Support on the Diaphragm
5. Insert the Diaphragm
Turn the pump chamber until you see the screw of the clamping
ring and fix it with 5 mm hex key with a torque valve 6 Nm.
Pump Chamber Ring Drive Unit
Ring Drive Unit
Pull off the pump chamber
Loosen the Screw of the
Clamping Ring
Pay attention to the following torque values:
Image 10: Bolts pump chamber 10 Nm (7.4 lb-ft)
Image 10: Bolts diaphragm cover housing 5 Nm (3.7 lb-ft)
Image 12: Bolt clamping ring 6 Nm (4.4 lb-ft)

Maintenance/Servicing
Section 4
4-4 A-1299-7370 Masterflex
Replacement
Bearing Unit
Contact Masterflex for the maintenance kit (5° eccentric shaft) for QF1200 S
e replacement of the bearing unit can be conducted by the operator. e
following drawings describe it step-by-step.
1.
Disassembly of the Ring Drive Unit
2.
3. 4.
5.
Pull off the Pump Chamber
Ring Drive Unit
1. Unscrew the sealing screw
3. Turn the pump
housing until you see
the clamping ring
screw inside.
2. Unscrew the 4
M6 x 60 screws
Pump Chamber Ring Drive Unit
1. Loosen the screw of the clamping ring inside
2. Drive Housing
Pull off the ring drive unit
Bearing Housing
Pull off the Shaft Bearing Cap Unit
Bearing Housing
1. Unscrew the M5 x 35 with washer ø 5.3
(NOTE: Pressure plate only used in Single Use pumps)
