Masterflex MASTERSENSE L User manual

OPERATING MANUAL:
MASTERSENSE™ MFLX0 7576-10
MASTERSENSE™ L/S®
WASHDOWN
DIGITAL PUMP DRIVES
WITH ADVANCED
CONNECTIVITY
Model Nos.
MFLX07576-10
MFLX07576-12
MFLX07576-40
A-1299-5219
Edition 02
(US & Canada only) Toll Free 1-800-MASTERFLEX • 1-800-637-3739
(Outside US & Canada) 1-847-381-7050
masterflex.tech @ avantorsciences.com
www.avantorsciences.com/masterflex

ii MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity Masterflex ii
© 2023Masterflex LLC. All rights reserved.
Masterex® is a registered trademark of Masterex LLC.
Trademarks bearing the ®symbol in this publication are registered in the US and in other countries.
MasterSense™
EtherNet/IP™is a trademark of ODVA
Windows is a registered trademark of Microsoft
PUMP FOR LIQUIDS
ORIGINAL INSTRUCTIONS

iii MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity Masterflex iii
Table of Contents
SECTION 1: INTRODUCTION 11
Safe Operation 1-1
About the MasterSense™L/S 1-2
Package Contents 1-2
Features 1-2
SECTION 2: BASIC SETUP & SETTINGS 21
Touchscreen Icons 2-2
Before Starting the Drive 2-3
Switching on the Drive 2-3
Settings 2-4
Language Settings 2-4
Setting the Time 2-4
Setting the Date 2-5
Display Brightness 2-5
Dispense Completion Alerts 2-5
Batch Completion Alerts 2-5
Analog Output 2-5
Device Information 2-6
Screen Saver 2-6
Device Name 2-6
WI-FI Settings 2-7
Ethernet Settings 2-7
User Management 2-8
Pump Head Selection 2-9
Auto Start 2-10
Priming the Pump Drive 2-10
Tube Calibration 2-11
Tube Calibration Screen 2-11
SECTION 3: OPERATION 31
Mode Selection Screen 3-1
Continuous Mode 3-2
Continuous Mode Run Screen 3-2
Continuous Mode Operation 3-3
Saving Continuous Mode Settings as a New Program 3-4
Time Mode 3-5
Time Mode Run Screen 3-5
Time Mode Edit Screen 3-6
Time Mode Operation 3-6
Saving Time Mode Settings as a New Program 3-8
Volume Mode 3-9
Table of Contents

iv MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity Masterflex iv
Table of Contents
Volume Mode Run Screen 3-9
Volume Mode Edit Screen 3-10
Volume Dispense Mode Operation 3-10
Anti-Drip 3-12
Volume Record 3-12
Analog Input Mode 3-13
Analog Input Mode Run Screen 3-13
Analog Input 3-14
Saving Analog Input Mode Settings as a New Program 3-15
MasterexLive™ 3-16
MasterexLive™ Run Screen 3-16
Custom Program Modes 3-18
Adding a New Program: Continuous Mode 3-18
Adding a New Program: Time Mode 3-18
Adding a New Program: Volume Mode 3-19
Adding a New Program: Analog Input Mode 3-21
Using Program Modes 3-22
Editing a Program 3-22
Deleting a Program 3-23
SECTION 4: COMMUNICATION SPECIFICATION 41
Ethernet/IP Mode 4-1
Ethernet/IP Setup 4-1
Masterex Ethernet/IP 4-4
Probus 4-6
Probus Mode 4-6
Probus Setup 4-6
Probus Settings 4-6
Probus Data 4-8
SECTION 5: SERVICE & MAINTENANCE 51
Firmware Updates 5-1
Restore Factory Settings 5-1
Cleaning the Pump Drive 5-2
Accessories 5-2
Replacement Parts 5-2
Troubleshooting 5-3
Error Denitions 5-4
31-Pin Electrical Connections 5-5
Specications 5-6
Technical Assistance 5-8
Product Return 5-8
Warranty 5-8
Disposal 5-8

1-1 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 1: Introduction
Masterflex
SECTION 1: INTRODUCTION
SAFE OPERATION
e MasterSense™L/S Washdown Digital Pump Drive with Advanced Connectivity is designed for pumping
and dispensing applications in laboratory and process environments. Conrm that the pump drive is operated
only in the manner specied in this operating manual and that safe work practices and Good Laboratory
Practice (GLP) are followed. Misuse of the pump drive may compromise built-in safety protections and result
in injury and/or damage to equipment. Do not operate the pump drive with water on the surface of the
touchscreen.
e following Safety Symbols are used in this documentation:
!CAUTION: Risk of Danger. Consult Operating Manual for nature of hazard and corrective actions.
CAUTION: Risk of crushing. Keep ngers away from the rotor while the pump is in operation.
Stop pump before loading or unloading tubing.
CAUTION: Hot Surface. Do not touch.
CAUTION: Risk of electric shock. Consult Operating Manual for nature of hazard and corrective
actions.
Please observe the following cautions and recommendations:
!CAUTION: Do not operate the pump in a way that exceeds the designed operating and environ-
mental conditions outlined in this operating manual.
!
CAUTION: e pump must not be used:
• As a medical device.
• In explosion proof chambers or in the presence of ammable gases or fumes.
CAUTION: e circuit between the mains power supply and the pump must be connected to
earth ground.
CAUTION: Turn the drive o before removing or installing tubing. Fingers or loose clothing
could get caught in the drive mechanism.
!CAUTION: Do not open or remove the housing while the pump is operating.
!CAUTION: Tubing can tear and burst during operation. It is the responsibility of the customer to
take the necessary precautions to avoid injury or damage to equipment.
!
CAUTION: It is recommended that any repairs be performed only by an authorized technician.
If service and repairs are performed by the customer or by any third party company, Masterex
denies all responsibility.

1-2 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 1: Introduction
Masterflex
ABOUT THE MASTERSENSE™L/S
e MasterSense™L/S Washdown Digital Pump drive with advanced connectivity oers precise ow control
and highly accurate uid dispensing ideal for pumping high viscous and shear-sensitive liquids. ese pumps
are also ideally suited for use where sterile conditions and purity are required. Toxic and hazardous uids can
be pumped with the proper selection of tubing since the uid contacts only the tubing and not the pump. All
L/S precision drives include a highly accurate, maintenance-free motor and an easy to navigate touchscreen
that makes setup and operation easier than ever. e L/S range features Ethernet and Wi-Fi connections for
web-based control and monitoring using the MasterexLive website (see www.masterex.com), and remote
analog input control and monitoring through the pump drive’s 31-Pin female connection port.
Package Contents
NOTE: Please check the package and its contents for any visible signs of damage. If any damage is found
please contact Technical Assistance immediately (see "Technical Assistance" on page 5-8).
• Pump Drive
• OHS Cable
• Quick Start Guide
• Flash Drive Containing the Operating Manual
Features
• A 5-inch multi-language touchscreen display providing easy access to user-dened operation parameters
and direct readouts of pump operation data, including pump speed, ow rates, ow direction, and batch
totals.
• Volume, Time, Continuous, and Analog Input modes for quick and easy operation.
• User selectable dispense volumes, tube diameters, ow rates, pump speeds, and run times.
• Easy user management with three levels of access: ADMIN, SUPER USER and USER.
• Wi-Fi and Ethernet connectivity.
• Brushless, maintenance-free motor oering ±0.1% speed control accuracy with a turndown ratio greater
than 6000:1.
• Easy pump priming and tube calibration.
• L/S models have a maximum speed of 250 RPM or 600 RPM and ow rate capacities that range from
.001 mL/min through to 3400 mL/min (depending on the model and tubing size selected).

2-1 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex

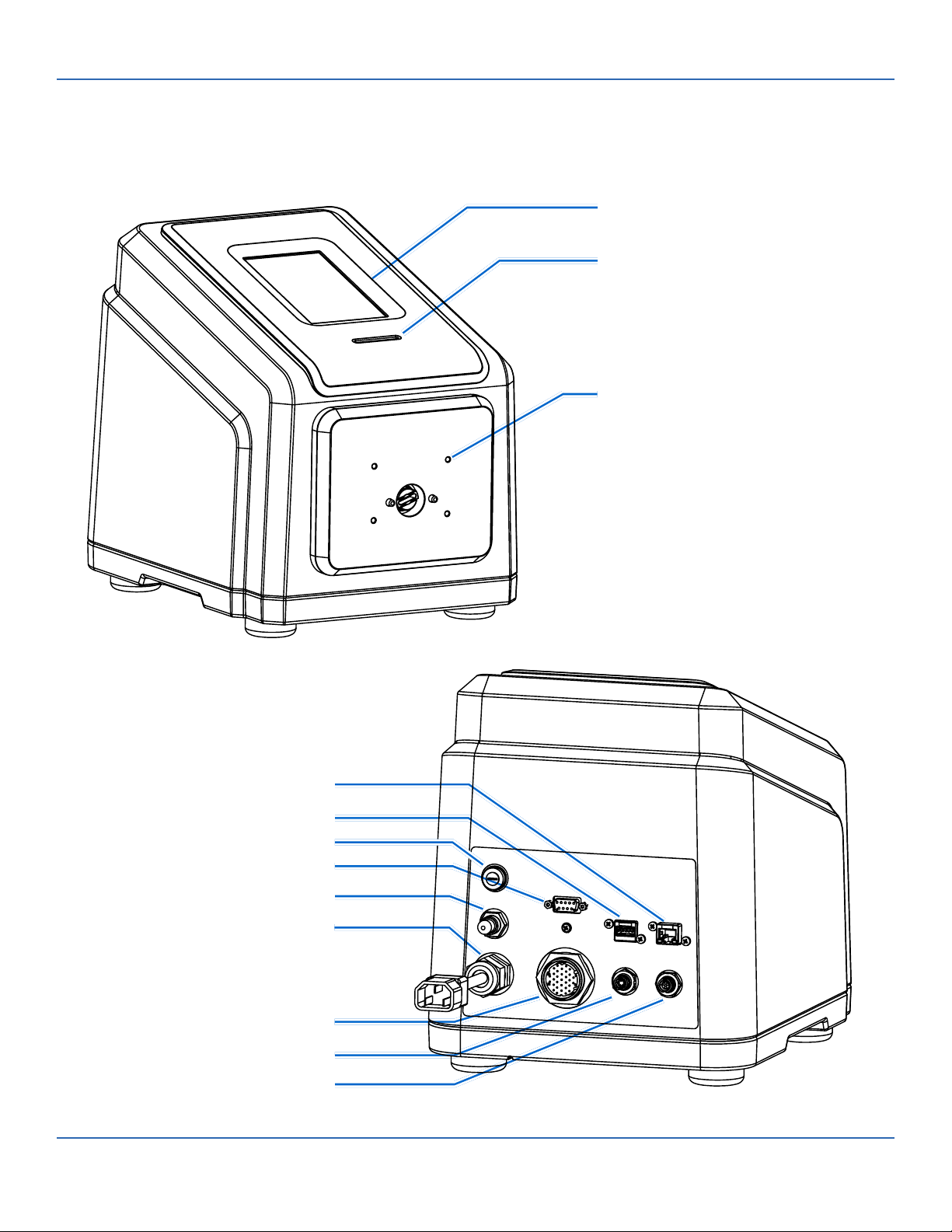

Touchscreen
Active Light
USB Port
Ethernet Port
31-Pin
Power Switch
Power Cord
SECTION 2: BASIC SETUP & SETTINGS
Pump Head Mounting Holes
Open Head Sensor
AUX
Profibus
Fuse

2-2 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex

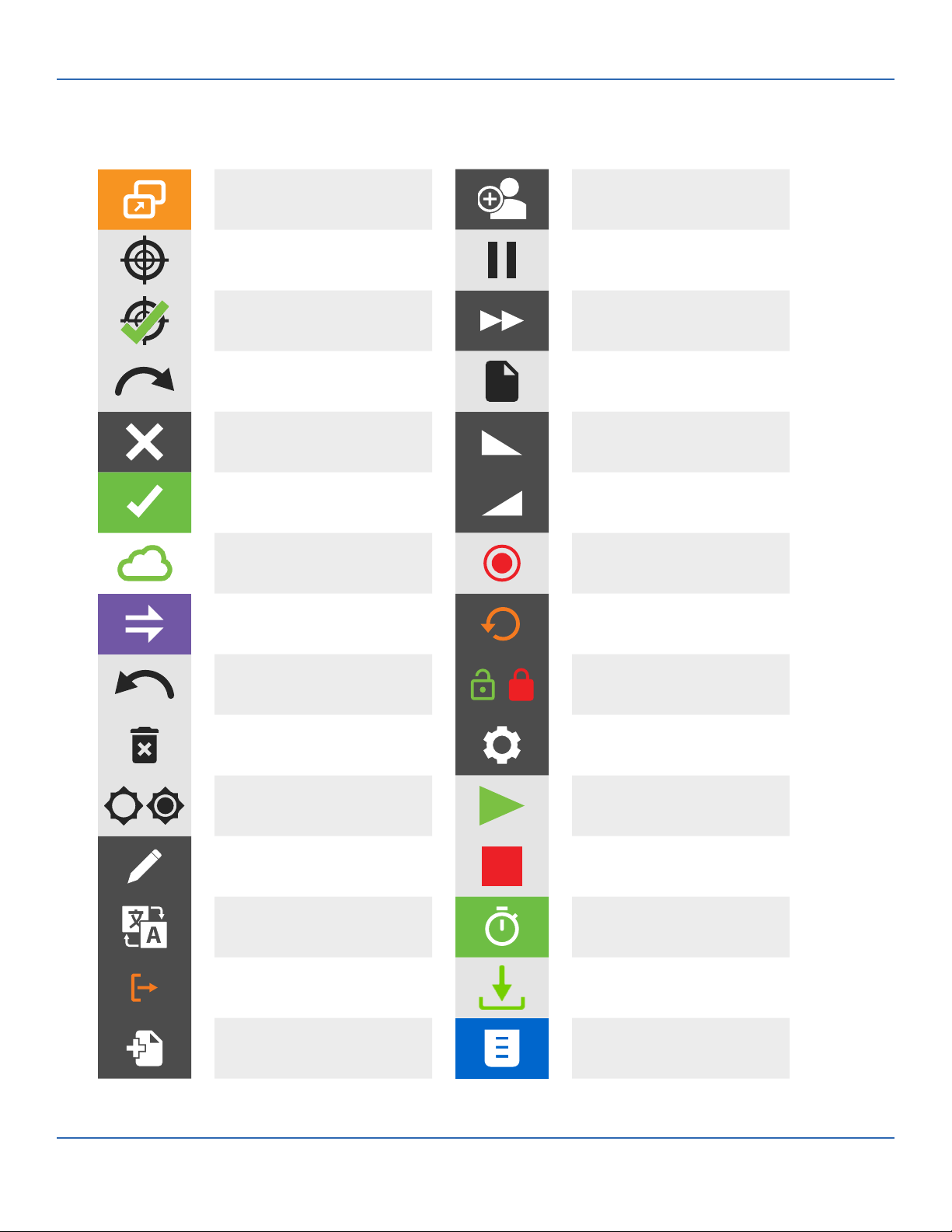

TOUCHSCREEN ICONS
Analog Input Mode New User
Calibrate Pause
Calibration Complete Prime
Clockwise Program
Close/Cancel Ramp Down
Confirm Ramp Up
Connectivity Status Record Volume
Continuous Mode Reset
Counterclockwise Screen Lock
Delete Settings
Display Brightness Start
Edit Stop
Language Time Mode
Logout Update Available
New Program Volume Mode

2-3 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
BEFORE STARTING THE DRIVE
!CAUTION: Do not block the rear panel of the pump drive. e power switch must always
be easy to access and the power cord must always be easy to disconnect.
CAUTION: Turn the drive o before removing or installing tubing. Fingers or loose cloth-
ing could get caught in the drive mechanism.
!
CAUTION: e power cord set supplied with your pump drive meets the requirements
of the country where you purchased the pump drive. If you use the pump drive in another
country, you must use a power cord set that meets the requirements of that country.
CAUTION: To avoid electrical shock, the power cord protective grounding conductor must
be connected to ground. Not for operation in wet locations as dened by EN61010-1.
• Ensure the pump drive is mounted on a at surface.
• Ensure adequate air ow around the pump drive and ensure that the ambient air temperature does not
exceed 104° F (40° C).
• Tubing should be clean and routed so that bend radii are at a minimum of four (4) times the outside tube
diameter and are as short as possible.
• Use the appropriate tube diameter for the required ow rate and viscosity.
• Recalibrate tubing regularly to maintain the best ow rate accuracy (for further information see "Tube
Calibration" on page 2-11).
• For tubing selection and compatibility go to www.masterex.com.
• Unplug the pump drive’s power cable from the mains power outlet when cleaning or performing
maintenance on the drive.
SWITCHING ON THE DRIVE
1. Plug in and securely fasten the supplied power cable to the IEC Connector located at the rear of the drive.
2. Plug the opposite end of the power cable into a mains power outlet.
3. Switch the drive on using the power switch located at the rear of the drive. NOTE: e drive takes
approximately two minutes to complete start-up.
NOTE:
• On the initial start-up the Language Settings Screen will be displayed. A language must be selected before
pump operation (for further information see "Language Settings" on page 2-4).
• If User Management is enabled you may be prompted for a username and password (for further
information see "User Management" on page 2-8).
• Following the initial start-up all subsequent start-ups will revert to the mode of operation screen
previously in use.
• After 30 minutes of inactivity the L/S will enter sleep mode and the display will turn o. Tapping the
touchscreen will reactivate the drive. To enable (default) or disable the screen saver see "Screen Saver" on
page 2-6.

2-4 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
SETTINGS
e Settings Screen allows access to basic conguration settings. e Settings Screen is accessed by tapping
SETTINGS from any of the mode screens. NOTE: If User Management is enabled only users with
authorization can access the Settings Screen (for further information see "User Management" on page 2-8).
Language Settings
e L/S Digital Pump Drive can display Chinese, English, French, German, Italian, Japanese, and Spanish
languages. e default display language is English.
To change the display language:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap LANGUAGE.
3. Select the desired language from the available list.
4. Tap CONFIRM to save the new language selection.
Setting the Time
To change the time:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap TIME.
3. Select either 12-HOUR or 24-HOUR time.
4. Tap HH to select hours and enter the desired time using the onscreen keypad.
5. Tap MM to select minutes and enter the desired time using the onscreen keypad.
6. If using 12-HOUR time, tap AM/PM to select either AM or PM.
7. Tap CONFIRM to save or CANCEL to discard changes.
The icon will change to green
when the pump is connected
to MasterflexLive™
Confirm
Settings Menu
Update Available
Scroll
Connectivity Status
When the L/S is connected to the
internet this icon indicates that an
update is available for installation (see
"Firmware Updates" on page 5-1)

2-5 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
Setting the Date
To change the date:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap DATE.
3. Select the desired date format (either month/day/year or day/month/year).
4. Tap the desired MONTH, DAY or YEAR eld to select and then enter the date using the onscreen keypad.
5. Tap CONFIRM to save or CANCEL to discard changes.
Display Brightness
To adjust the display brightness:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Use the DISPLAY BRIGHTNESS slider to adjust the touchscreen brightness to the desired level.
Dispense Completion Alerts
When Sound Dispense is enabled a short beep will sound at the completion of each pump dispense.
To enable or disable the dispense completion alert:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap the SOUND DISPENSE toggle to select either ON or OFF.
Batch Completion Alerts
When Sound Batch is enabled a single long beep will sound at the completion of each batch cycle.
To enable or disable the batch cycle completion alert:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap the SOUND BATCH toggle to select either ON or OFF.
Analog Output
e L/S supports and controls analog output through the pump drive’s 31-pin connection or (for further
information see ).
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. Tap ANALOG OUTPUT. e Analog Output Screen will be displayed.
3. Tap to select the desired analog output type from the available list.
4. If using either ANALOG: VOLTAGE or ANALOG: CURRENT:
a. Tap EDIT . e Analog: Voltage Edit Screen or Analog: Current Edit Screen will be displayed.
b. Select the desired current or voltage operating range from the available list.
c. Tap CONFIRM to save or CANCEL to discard changes. e Analog Output Screen will be
displayed.
5. Tap CONFIRM .

2-6 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
Device Information
e Device Information Screen provides pump drive details such as MAC address, IP address, software
version, build date, and rmware version. Factory reset and updates are also accessed from the Device
Information Screen.
To access the Device Information Screen:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate DEVICE INFORMATION.
3. Tap DEVICE INFORMATION. e Device Information Screen will be displayed.
See also "Firmware Updates" on page 5-1, and "Restore Factory Settings" on page 5-1.
Screen Saver
e L/S has a screen saver to help extend the display life of the touchscreen. After 30 minutes of inactivity the
L/S will enter sleep mode and the display will turn o. Tapping the touchscreen will reactivate the drive.
To enable or disable the screen saver:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate SCREEN SAVER.
3. Tap the SCREEN SAVER toggle to select either ON or OFF.
Device Name
Individual names can be assigned to each L/S Digital Pump Drive to make identication easier when using
more than one pump.
To assign a pump drive name:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate DEVICE NAME.
3. Tap DEVICE NAME. e Device Name Screen will be displayed.
4. Enter the desired pump name using the onscreen keypad (up to 8 characters).
5. Tap CONFIRM to save or CANCEL to discard changes.

2-7 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
WI-FI Settings
e L/S can connect to a network using Wi-Fi and Ethernet connections.
NOTE:
• e Ethernet connection will take priority if both Wi-Fi and Ethernet are used simultaneously.
• e L/S supports WEP, WPA, WPA2, and None (open) Wi-Fi security protocols.
To select a Wi-Fi network:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate WIFI SETTINGS.
3. Tap WIFI SETTINGS. e Wi-Fi Settings Screen will be displayed.
4. If required, tap the WIFI toggle to select either ON or OFF.
5. Tap the desired Wi-Fi network from the available list.
6. If required, enter the network PASSWORD using the onscreen keypad.
7. Tap CONNECT to join the network or CANCEL to cancel.
8. Tap CONFIRM to return to the Settings Screen.
To remove a Wi-Fi network:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate WIFI SETTINGS.
3. Tap WIFI SETTINGS. e WIFI Settings Screen will be displayed.
4. Locate the desired Wi-Fi network and tap REMOVE WIFI .
5. Tap REMOVE to remove the network or CANCEL to discard changes.
6. Tap CONFIRM to return to the Settings Screen.
Ethernet Settings
e L/S can connect to a network using Wi-Fi and Ethernet connections.
NOTE:
•Conrm that the Ethernet cable is securely attached to the Ethernet port at the rear of the pump drive.
• e Ethernet connection will take priority if both Wi-Fi and Ethernet are used simultaneously.
To congure Ethernet settings:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate ETHERNET SETTINGS.
3. Tap ETHERNET SETTINGS. e Ethernet Settings Screen will be displayed.
4. Tap DHCP to automatically congure IP settings or STATIC to manually edit settings using the onscreen
keypad.
5. Tap CONFIRM to save or CANCEL to discard changes.

2-8 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
User Management
e L/S allows user access to be controlled using congurable permission levels.
Default permissions:
• USER: Able to use basic pump drive functions and run programs.
• SUPER USER: Same level of access as USER but with the ability to create and modify programs.
• ADMIN: Full administrative access to the drive.
User and Super User permission levels can be congured to allow access to dierent Settings Menu items.
Default ADMIN username and password:
When switching on User Management for the rst time, or following a factory reset, you will be prompted
for a username and password. You must log in using the below default ADMIN user account details to access
user management settings.
Default username: admin
Default password: 123456
It is recommended that the default password be changed after logging in (see Editing an existing user below
for information on changing user passwords).
Conguring user level permissions:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate USER MANAGEMENT.
3. If required, tap the USER MANAGEMENT toggle to select ON.
4. Tap MODIFY USER.
5. Tap ACCESS LEVELS.
6. Tap USER or SUPERUSER.
7. Select the desired settings menu items to be included in the user level.
8. Tap CONFIRM to save or CANCEL to discard any changes.
Adding a new user:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate USER MANAGEMENT.
3. If required, tap the USER MANAGEMENT toggle to select ON.
4. Tap MODIFY USER.
5. Tap NEW USER .
6. Tap USERNAME and enter the new username using the onscreen keypad.
7. Tap PASSWORD and enter the desired password using the onscreen keypad. NOTE: e password must
be at least six characters long.
8. Tap the required PERMISSION LEVEL. NOTE: ere must always be at least one ADMIN user.
9. Tap CONFIRM to save or CANCEL to discard any changes.

2-9 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
Deleting a user:
NOTE: ere must always be at least one ADMIN user. ADMIN users cannot delete their own user prole.
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate USER MANAGEMENT.
3. Tap MODIFY USER.
4. Locate the desired username from the available list and then tap the DELETE USER icon located
next to the username.
5. Tap DELETE to delete user or CANCEL to cancel.
Editing an existing user:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate USER MANAGEMENT.
3. Tap MODIFY USER.
4. Select the desired username.
5. Edit as required.
6. Tap CONFIRM to save or CANCEL to discard any changes.
Pump Head Selection
After changing a pump head, the new pump head must be selected from the Pump Head Settings Screen.
To select a new pump head:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate PUMP HEAD.
3. Tap PUMP HEAD. e Pump Head Settings Screen will be displayed.
4. Select the desired pump head from the list of available options.
5. Tap CONFIRM to save or CANCEL to discard any changes and return to the Settings Screen.
6. Tap CONFIRM to exit the Settings Screen and return to the previous mode screen.
NOTE: Once the new pump head has been selected, ensure that the appropriate tubing has been selected.
To select a tube size:
1. Tap SIZE from any of the mode screens. e Tube Size Screen will be displayed.
2. Select the desired tube size from the list of available options. NOTE: Only tube sizes compatible with the
selected pump head will be displayed.
3. Tap CONFIRM to save or CANCEL to discard changes and return to the mode run screen.

2-10 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
Auto Start
e L/S has an auto start that will resume pump operation when power is restored after a power outage.
To enable auto start:
1. Tap SETTINGS from any of the mode screens. e Settings Screen will be displayed.
2. SCROLL through the Settings Screen pages to locate AUTO START.
3. Tap the AUTO START toggle to select either ON or OFF.
PRIMING THE PUMP DRIVE
It is recommended that you prime the pump drive before use. Priming the pump draws uid through the
tubing and eliminates air pockets from the system.
CAUTION: Turn the drive o before removing or installing tubing. Fingers or loose clothing
could get caught in the drive mechanism.

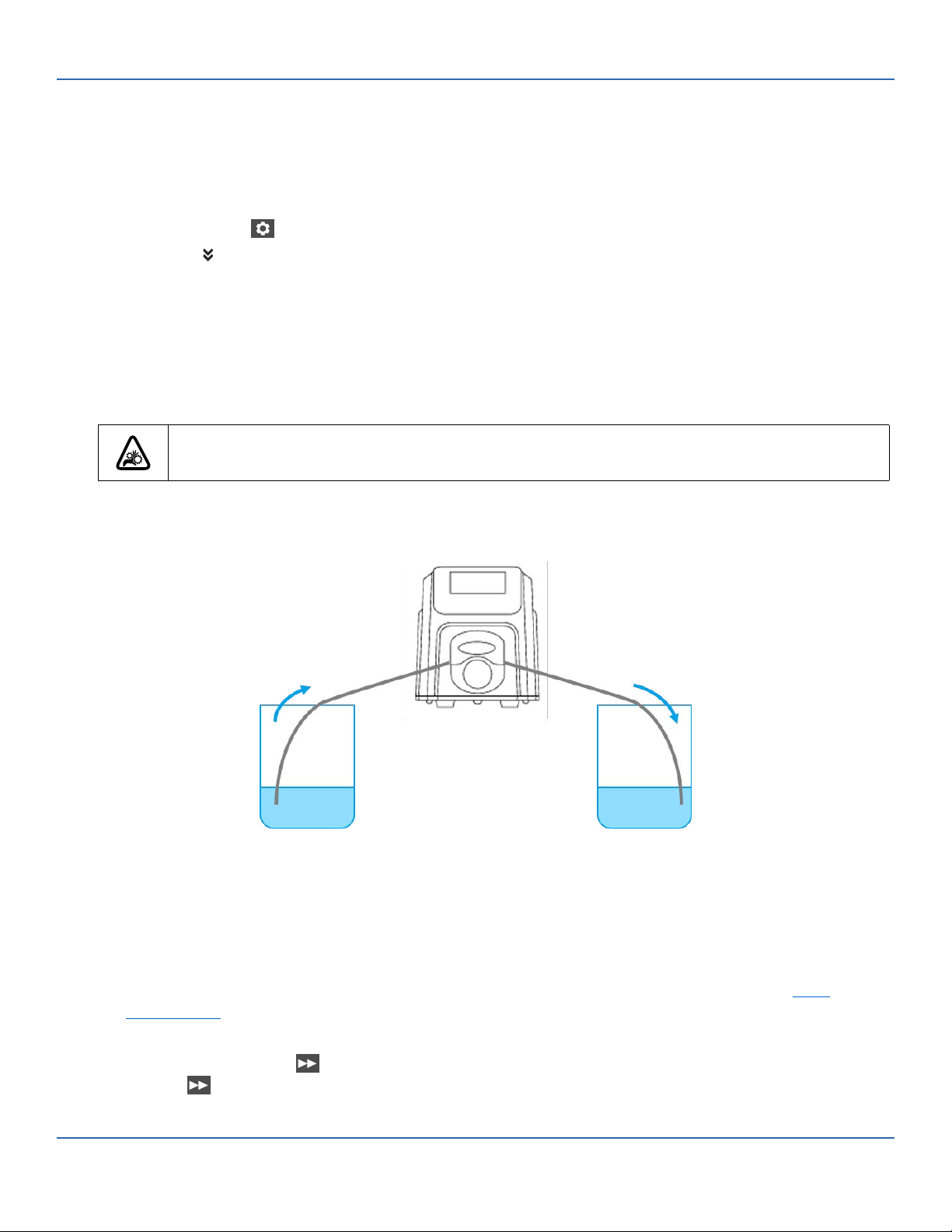

Example Flow System
To prime the pump drive:
1. Insert the tubing into the pump head (refer to the pump head user manual for further information).
2. Insert the tube inlet into the supply uid.
3. Insert the tube outlet into an appropriate container.
4. Switch the drive on using the power switch located at the rear of the drive. NOTE: If Manage User
is enabled you may be prompted for a username and password (For further information see "User
Management" on page 2-8).
5. Navigate to the Continuous, Time or Volume Mode screens.
6. Press and hold PRIME until there are no bubbles visible in the tubing. Priming will stop when
PRIME is released.

2-11 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
TUBE CALIBRATION
To ensure accurate dispensing of uids, tube calibration should be performed whenever uids, ow rate or
tubing is changed. Tube calibration can be accessed from the Continuous Mode Run Screen or from either of
the Volume or Time Mode Edit screens.
Tube Calibration Screen
General Preparation:
• Conrm the correct tubing has been selected and is properly loaded into the pump drive (refer to the
pump head user manual for further information).
• Ensure the correct pump head and tube size have been selected (for further information see "Pump Head
Selection" on page 2-9).
• Conrm all uids and containers are ready.
To calibrate tubing:
1. Insert the tube inlet into the supply uid.
2. Insert the tube outlet into a suitable container. NOTE: e container should be placed on a scale for
increased accuracy. If using a scale, an acceptable weight to volume conversion for water is: 1 g = 1 mL.
3. Switch the drive on using the power switch located at the rear of the drive. NOTE: If User Management
is enabled you may be prompted for a username and password (For further information see "User
Management" on page 2-8).
4. Navigate to the Continuous, Time or Volume Mode screens.
5. Tap DIRECTION to select either clockwise or counterclockwise ow direction.
Selected Tube Size
Approximate Duration
Set Flow Rate
Clear Calibration Settings
Calibration Volume
Default Cycle Options
Calibration Strength Bar
Return to Previous Screen
Start Calibration
Tap to reset the calibration
volume and flow rate to their
default settings

2-12 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 2: Basic Setup & Settings
Masterflex
6. If required, Tap START and allow the pump to run for approximately 20-30 minutes. is step is
recommended to properly condition new tubing and to increase calibration accuracy. NOTE: If required,
the pump can be run dry while conditioning the tube.
7. Press and hold PRIME to prime the pump. Priming will stop when PRIME is released.
8. Tap SIZE from the Continuous Mode Screen or tap EDIT and then SIZE if either the Volume or
Time Mode Screen is displayed. e Tube Size Screen will be displayed.
a. Select the desired tube size from the list of available options.
b. Tap CONFIRM to save or CANCEL to discard changes and return to previous screen.
9. Tap CALIBRATE . e Tube Calibration Screen will be displayed.
10. Tap CALIBRATION VOLUME. e Calibration Volume Screen will be displayed.
a. Enter the desired calibration volume using the onscreen keypad. NOTE: e default volume or great-
er will ensure the best calibration.
b. Tap CONFIRM to save or CANCEL to discard changes and return to the previous screen.
11. Tap FLOW RATE. e Calibration Flow Rate Screen will be displayed.
a. Enter the desired ow rate using the onscreen keypad.
b. Tap CONFIRM to save or CANCEL to discard changes and return to the previous screen.
NOTE: e drive will adjust the displayed ow rate after calibration is complete.
12. Tap START to begin calibration. NOTE: Calibration progress will be displayed on the touchscreen.
13. When calibration is complete use the onscreen keypad to enter the measured volume of uid from the
tube outlet container.
14. Tap CONFIRM to complete calibration and return to the previous mode screen. Calibration
Complete should now be displayed to indicate that calibration has been completed for the current
tube size, tube volume, and ow rate.
NOTE:
• e estimated accuracy for the selected calibration settings is shown in the Calibration Strength Bar on
the Tube Calibration Screen. Calibration accuracy can be improved by using a larger calibration volume
and/or altering the ow rate.
• Calibration settings are retained and transferred to other mode screens when entering or leaving the Tube
Calibration Screen.
• If the drive is stopped during calibration the calibration will be discarded and the previous mode screen
will be displayed. Empty the container before restarting the procedure.
• Calibration time at the maximum allowable ow rate (default max ow rate) is approximately 10 seconds.
Calibration time at the minimum allowable ow rate (approximately 4% of the maximum ow rate) is 4
minutes.
• Minimum and maximum ow rates will change after calibration due to a recalculation of the volume of
uid per pump revolution.
• e best results are obtained after tubing has been run in the pump for approximately 20-30 minutes.
• Steps 9–14 can be repeated as necessary to optimize the accuracy of the tubing calibration.

3-1 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 3: Operation
Masterflex
SECTION 3: OPERATION
!WARNING: Tube breakage may result in uid being sprayed from the pump. Use appropriate
measures to protect operator and equipment.
CAUTION: Keep ngers away from the rotor while the pump is in operation. Stop the pump
before loading or unloading tubing.
CAUTION: Hot Surface. Do not touch.
CAUTION: To avoid electrical shock, the power cord protective grounding conductor must be
connected to ground. Not for operation in wet locations as dened by EN61010-1.
MODE SELECTION SCREEN
e Mode Selection Screen allows access to the drive’s four basic operation modes (CONTINUOUS, TIME,
VOLUME, and ANALOG INPUT) as well as the New Program Screen and user dened programs. e Mode
Selection Screen can be accessed from any of the mode screens by tapping the MODE NAME BANNER.
Tap the desired mode or program to access individual mode or program screens.
Continuous Mode
Return to Previous Screen
Time Mode
Volume Mode
Analog Input Mode
Add New Program
Settings
Page Scroll

3-2 MasterSense™ L/S®Washdown Digital Pump Drive with Advanced Connectivity
Section 3: Operation
Masterflex
CONTINUOUS MODE
In Continuous Mode the pump will operate at a selected rpm and/or ow rate until stopped by the user.
Continuous Mode Run Screen
e Continuous Mode Run Screen is accessed by selecting CONTINUOUS from the Mode Selection Screen.
A. MODE NAME BANNER: Tap the Mode Name Banner to return to the Mode Selection Screen.
B. CUMULATIVE VOLUME: Displays the current cumulative volume of uid that has been pumped. To
reset the cumulative volume: Press and hold CUMULATIVE VOLUME RESET until the display
changes to zero.
C. FLOW RATE: Displays the current ow rate in the unit of measurement selected by the user. Tap to
access the Flow Rate Screen.
D. SIZE: Tap to access the Tube Size Screen.
E. CALIBRATE: Tap to access the Calibration Screen (for further information see "Tube Calibration" on
page 2-11). Once calibration has been completed for the current tube size Calibration Complete will
be displayed.
F. PRIME: Press and hold to prime the pump drive (for further information see "Priming the Pump Drive"
on page 2-10).
G. START/STOP: Tap START to begin operation. Once operation has commenced STOP will be
displayed.
H. FLOW DIRECTION: Tap DIRECTION to select either clockwise or counterclockwise .
I. SCREEN LOCK: Locking the screen disables all touchscreen functions. To lock the screen: Press and
hold UNLOCKED until the icon changes to LOCKED and a red border appears around the
screen. To unlock the screen: Press and hold LOCKED until the icon changes to UNLOCKED .
H. Flow Direction
B. Cumulative Volume
G. Start/Stop
D. Tube Size E. Calibrate
K. Settings
I. Screen Lock
C. Flow Rate
J. Logout
A. Mode Name Banner
F. Prime
