MAVERICK
4 & 6 BURNER BBQ
with hood
Retain manual for future reference
03154 07/14

3
2
GENERAL INFORMATION
Gas Installation Codes
• Barbecues must be used in accordance with
the installation requirements of your gas
supply authority, or the Australian Standard
AS 5601.
• Barbecues for use with bottled gas are
labelled ‘propane gas’ or ‘Universal L.P.G’.
• Barbecues for use with natural gas are
labelled ‘natural gas’ and must be installed by
an authorised person. Check the gas type
sticker attached to the barbecue.
Clearances
Minimum Clearances from combustible
materials must be: Rear - 600mm Sides -
600mm Above - 600mm
Specifications
Barbecue specifications can be found on the
data label attached to the barbecue body.
Hose connection thread is 1/4” B.S.P.
IMPORTANT
Read these instruction carefully prior to use.
Familiarise yourself with the appliance before
connecting it to it’s gas container. Keep these
instructions for future reference.
1. Shut off gas to the barbecue at its source,
if possible.
2. Extinguish any open flame.
3. Open hood.
4. If odour continues immediately call your
gas supplier or fire department.
IF YOU SMELL GAS
Hose & Regulator Safety
The regulator and hose assembly supplied with
the barbecue are suitable for Propane Gas or
Universal L.P.G. only.
A gas regulator adjusted to have an outlet
pressure of 2.75kPa is supplied for connection to
the propane gas cylinder. The pressure regulator
and hose assembly supplied with the barbecue
must me used. Replacement pressure regulators
and hose assemblies must be those specified by
the barbecue manufacturer.
When connecting the hose and regulator
assembly to the gas cylinder, take care to avoid
unnecessary twisting of the flexible hose.
After the assembly has been secured, turn on
the gas and check for leaks by brushing a soap
and water solution over all connections.
If you are unable to correct the leak by
tightening the connections, turn off the gas and
contact the supplier immediately.
Always ensure the barbecue is kept away from
flammable materials and the gas cylinder clear
of any heat source.
When changing over from an empty gas cylinder
to a full one make sure this procedure is carried
out in a well ventilated location, preferably
outside, away from people and away from any
sources of ignition; such as naked flames, pilot
flames, electric heaters/equipment.
Gas Cylinder Use & Safety
This is a low pressure barbecue and must only
be used with the regulator supplied. Your
barbecue is designed for use with 4.5Kg or 9Kg
propane gas cylinders certified to AS 2469.
The gas cylinder should be filled by a reputable
gas supplier and visually inspected and re-
qualified at each filling.
Always keep cylinder in an upright position.
Always close the cylinder valve when the
barbecue is not in use.
Do not subject gas cylinder to excessive heat.
NEVER STORE YOUR GAS CYLINDER
INDOORS.
If you store your barbecue indoors, ALWAYS
disconnect the gas cylinder first and store the
cylinder safely outside.
Cylinders must be stored outdoors in a well
ventilated area out of reach of children, and
must not be stored in a building, garage or any
other enclosed area.

3
2
IF THERE IS A LEAK
• Turn the cylinder off.
• Ventilate the area to disperse gas.
• Check all connections.
• If leak persists, keep the cylinder upright.
Keep skin away from any gas or liquid
escaping from the cylinder.
• Keep the cylinder at least 20 metres
away from any sparks or ignition sources,
including electrical equipment, camera
flashes, engines and motors.
• Disperse gas by encouraging maximum
ventilation and spraying with a fine water
spray.
IF THERE IS A FIRE
• If the fire is at the barbecue, turn the gas
off at the cylinder. Smother the flames
with a wet cloth, fire blanket or extinguish
using a fire extinguisher.
• If the fire is at the cylinder, or you can not
get to the valve to turn the gas off, contact
the fire brigade immediately
• Using a garden hose, direct the water to
the middle of the cylinder to keep it cool.
Try not to extinguish the flame. At least if
the gas is burning, it won’t be able to build
up pressure and explode.
• Failure to comply with these instructions
could result in a fire or explosion which
could cause serious bodily injury, death or
property damage.
CAUTION: Accessible parts may be very
hot.
Keep young children away.
Any modifications of this barbecue may
be dangerous.
DO NOT move this barbecue during use.
Turn off gas supply at the gas cylinder
after use.
Parts sealed by the manufacturer or their
agent must not be manipulated by the
user. This barbecue is only to be used and
stored outdoors.
• Never operate this barbecue without a
regulator.
• Do not test for gas leaks with an open
flame.
• If this information is not followed
exactly a fire causing death or serious
injury may occur. Do not store a
spare gas cylinder under or near this
barbecue. This barbecue is only to be
used and stored outdoors.
• If there is a leak on your appliance (smell
of gas) immediately attempt to turn off
the cylinder valve. Remove the appliance
to a well ventilated location away from
any ignition source. Only check for leaks
outdoors using soapy water. DO NOT try
to detect leaks using a flame.
• Check for leaks by brushing a soap and
water solution over all connections. If you
are unable to correct the leak by tightening
the connections, turn off the gas and
contact customer service immediately
• DO NOT replace the grill with an extra
hotplate. The warranty will be voided
and it violates the gas approval, the grill
provides the ventilation needed for the
BBQ to operate safely. It is not designed to
be a solid hotplate device.
FOR YOUR SAFETY
For any queries or assistance call
Customer Service
Australia Only
1300 174 876
Hours of operation:
Monday to Friday 8.30am - 5.30pm EST
Do not return to place of purchase.

5
4
GENERAL INFORMATION
Location of your Barbecue
DO NOT use your barbecue in garages, porches,
sheds, breezeways, or other enclosed areas.
Your barbecue is to be used OUTDOORS. The
barbecue is not intended to be installed in or on
recreational vehicles and/or boats and should
not be placed under any surface that will burn.
Do not obstruct the flow of combustion and
ventilation air around the barbecue housing.
Protect Children
Keep children away from barbecue during
use and until barbecue has cooled after you
have finished. Do not allow children to operate
barbecue.
Always ensure that no sporting or physical
activities are carried out in close proximity to the
barbecue during use and while still hot.
Tools You Will Need
Adjustable spanner, Philips head screwdriver.
Check Barbecue for any Damage
Inspect barbecue parts as you proceed.
Contact your supplier for assistance regarding
replacement of any damaged or missing parts.
Do not assemble or operate a barbecue that
appears damaged. Barbecues for use with gas
cylinders are labelled ‘Propane Gas’ or ‘Universal
L.P.G’. Check labelling at the gas connection on
your barbecue.
• Do not store or use petrol or other
flammable liquids in the vicinity of this or
any other appliance.
• Do not store empty or full spare gas
cylinders under or near this or any
other appliance.
• Keep the gas hose away from hot surfaces
and protect from dripping grease. Avoid
unnecessary twisting of hose. Visually
inspect the hose prior to each use for
cracks, excessive wear or other
damage. Replace the hose if necessary.
• Never test for gas leaks with a lit match
or open flame. Never light barbecue with
hood closed or before checking to ensure
the burner tubes are fully seated over gas
valve orifices.
• Never lean over cooking surface when
lighting.
• Never alter or modify the regulator or gas
supply assembly.
• This barbecue must not be used indoors.
• Only use in well ventilated areas.
• CARBON MONOXIDE HAZARD -
USING THIS APPLIANCE IN AN
ENCLOSED SPACE MAY CAUSE DEATH.
DO NOT USE IN CARAVANS, TENTS,
MARINE CRAFT, CARS, MOBILE HOMES
OR SIMILAR LOCATIONS.
• This appliance shall only be used in an
above ground open-air situation with
natural ventilation, without stagnant
areas, where gas leakage and products of
combustion are rapidly dispersed by wind
and natural convection.
• Ensure the barbecue is set up on a level
and stable surface.
• Do not move the barbecue while in use or
when hot. Remove the drip tray before
moving.
FOR YOUR SAFETY

5
4
CARE & MAINTENANCE
As with all appliances, proper care and
maintenance will keep them in top operating
condition and prolong their life. Your new
gas barbecue is no exception. By following
these cleaning procedures on a timely basis,
your barbecue will be kept clean and working
properly with minimum effort.
Flash-Back
Spiders and small insects occasionally spin
webs or make nests in the burner tubes during
warehousing and transit. These webs can lead
to a gas flow obstruction which could result in
a fire in and around the burner tubes. Cleaning
with a soft brush before use and at least every
six months is recommended.
This type of fire is known as ‘FLASH-BACK’ and
can cause serious damage to your barbecue
and create an unsafe operating condition for the
user. Although an obstructed burner tube is not
the only cause of ‘FLASH-BACK’ it is the most
common cause and frequent inspection and
cleaning of the burner tubes is necessary.
If fire occurs in and around the burner,
immediately turn off gas at its source and
turn the burner control to ‘OFF’, wait until the
barbecue has cooled, then clean the burner
tubes and burner ports.
Cleaning the Cooking Surface
After cooking, turn burner control to ‘OFF’
and let barbecue cool before attempting to
clean the cooking surface. Before first use and
periodically, it is suggested that you wash the
cooking surface in a mild soap and warm water
solution.
Care of Cooking Surface
Use and care of the cooking surface is
important. Do not use pans on the cooking
surface. Do not overheat the cooking surface
with the hood down or no food on the cooking
surface.
Cleaning the Drip Tray
To avoid fat or grease dripping from the
barbecue remove and empty the drip tray after
each use. Wait until the drip tray is cool to touch
before disposing of contents.
The drip tray should be washed periodically in a
mild detergent and warm water solution.
• Beware of spiders and wasps. Burner
tube should be inspected and cleaned
periodically.
• This appliance must only be serviced by
an authorised person.
• To avoid any flare-ups, it is recommended
that the drip tray be checked and emptied
regularly. Contents of the drip tray may be
very hot during cooking. If emptied
during extended cooking extreme caution
should be taken and direct contact by
hand should be avoided at all times. Allow
to cool completely before disposing of the
contents.
IMPORTANT

7
6

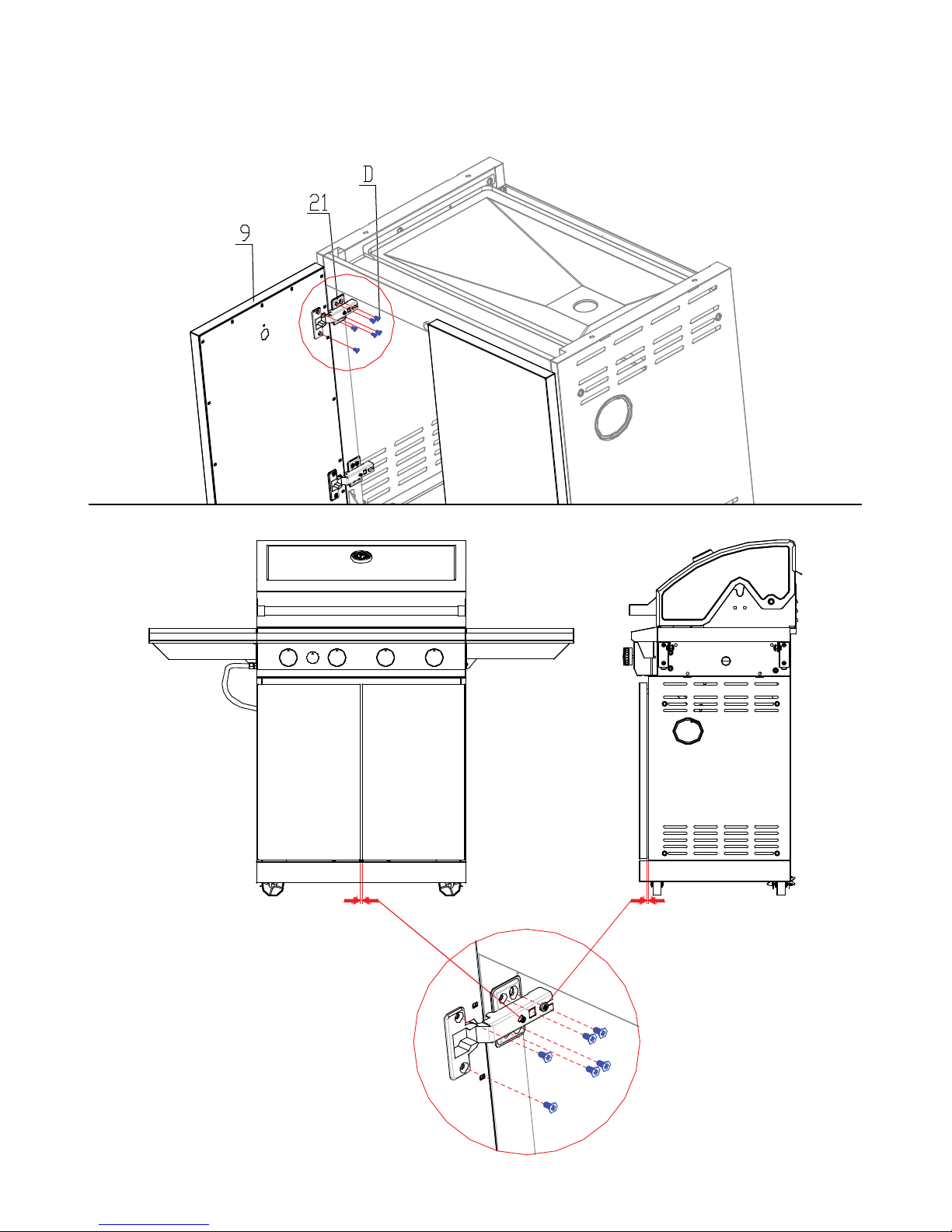

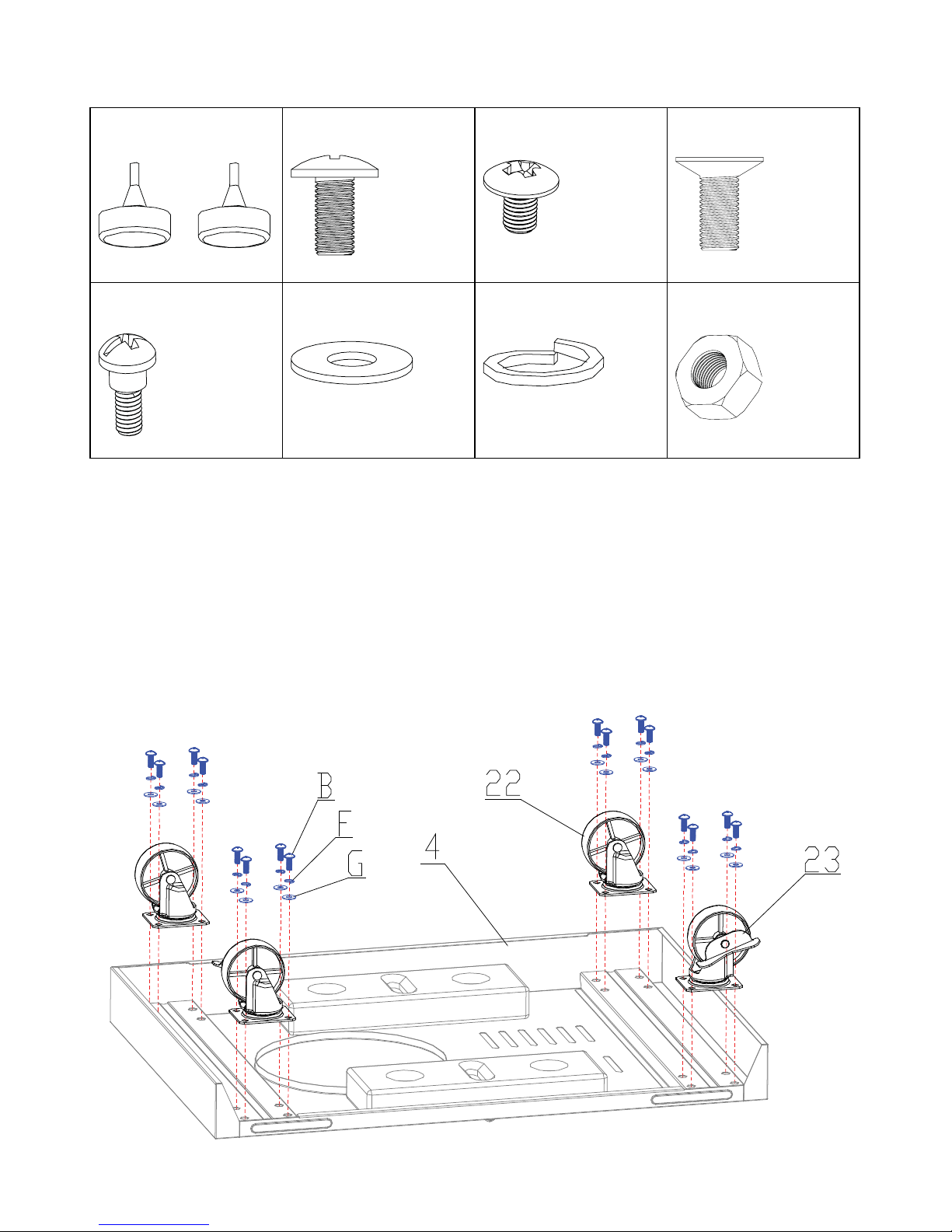

4B EXPLODED DIAGRAM

7
6

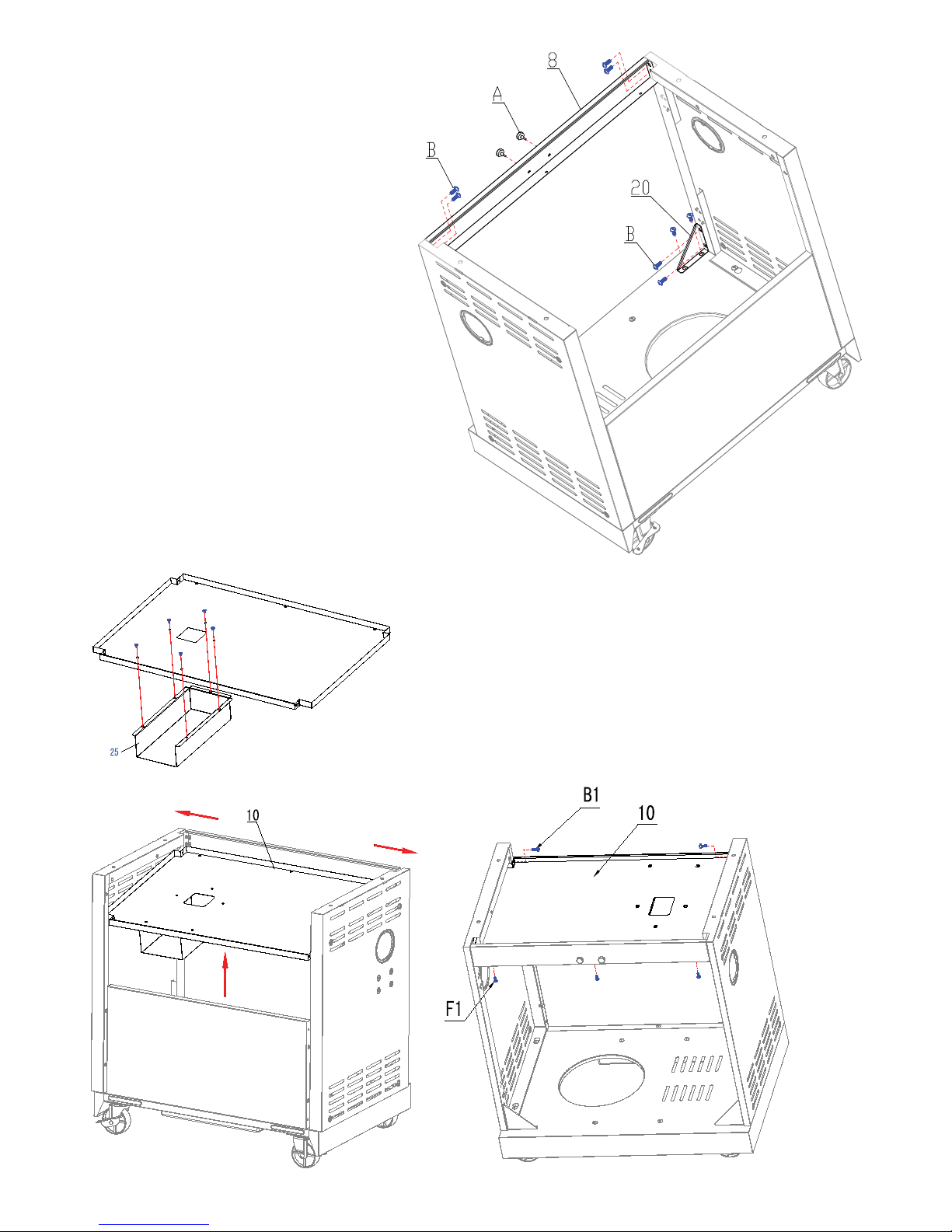

6B EXPLODED DIAGRAM

9
8
4B PARTS LIST
1. Body Assembly
1pc
2. Side Burner
Assembly
1pc
3. Side Shelf
Assembly
1pc
4. Base Panel
1pc
5. Left Side Panel
1pc
6. Right Side Panel
1pc
7. Back Panel
1pc
8. Front Beam
1pc
9. Door Assembly
2pcs
10. Cabinet
Separation Panel
1pc
11. Drip Tray
Assembly
1pc
12. Left Drip Tray
Rail
1pc
13. Right Drip Tray
Rail
1pc
14. Flame Tamer
2pcs
15. Warming Rack
1pc
16. Cooking Grate
1pc
17. Hot Plate
1pc
18. Side Shelf
Bracket Front
1pc
19. Side Shelf
Bracket Rear
1pc
20. Triangle
2pcs
21. Door Hinge
4pcs
22. Swivel Castor
2pcs
23. Swivel Castor
with Lock
2pcs
24. Fat Cup
1pc
25. Fat Cup Box
1pc

9
8
1. Body Assembly
1pc
2. Side Burner
Assembly
1pc
3. Side Shelf
Assembly
1pc
4. Base Panel
1pc
5. Left Side Panel
1pc
6. Right Side Panel
1pc
7. Back Panel
1pc
8. Front Beam
1pc
9. Door Assembly
2pcs
10. Cabinet
Separation Panel
1pc
11. Drip Tray
Assembly
1pc
12. Left Drip Tray
Rail
1pc
13. Right Drip Tray
Rail
1pc
14. Flame Tamer
3pcs
15. Warming Rack
1pc
16. Cooking Grate
1pc
17. Hot Plate
1pc
18. Side Shelf
Bracket Front
1pc
19. Side Shelf
Bracket Rear
1pc
20. Triangle
2pcs
21. Door Hinge
4pcs
22. Swivel Castor
2pcs
23. Swivel Castor
with Lock
2pcs
24. Fat Cup
1pc
25. Fat Cup Box
1pc
6B PARTS LIST

11
10
4B/6B BOLT PACK
A. Cushion Rubber
2pcs
B. M6*15 Screw
55pcs
C. M4*8 Screw
11pcs
D. M4*10 Screw
24pcs
E. M6 Shoulder Screw
4pcs
F. M6 Flat Washer
24pcs
G. M6 Spring Washer
24pcs
H. M6 Nut
4pcs
STEP 1
Use M6 x15mm screw (B) x 16 pcs, M6 flat washer (F) x 16 pcs and spring washer (G) x 16 pcs to
attach swivel castor (22) x 2 pcs and swivel castor with lock (23) x 2 pcs to the base panel (4).
ASSEMBLY INSTRUCTIONS
Remove any transit protection material.
Tools Required: Phillips Head Screwdriver & Adjustable Spanner.

11
10
STEP 2
Use M6 x 15mm screw (B) x 4 pcs
to attach cabinet left side panel (5)
and cabinet right side panel (6) to
the base panel (4).
STEP 3
Use M6 x 15mm screw (B) x 5 pcs
to attach cabinet back panel (7).
Note: DO NOT tighten the screws of
this step now.

13
12
STEP 4
Use M6 x 15mm screw (B) x 4 pcs to
attach cabinet horizontal beam (8).
Use M6 x 15mm screw (B) x 8 pcs to
attach triangle (20) x 2 pcs.
Note: Please DO NOT tighten the
screws of this step now.
STEP 5
Use M4 x 8mm screw (C) x 5 pcs to attach the fat cup box
(25) beneath the separation panel.
Then use M4 x 8mm screw (C) x 3 pcs and M6 x 15mm
screw (B) x 2 pcs to attach cabinet separation panel. And
then tighten all of the screws (including the screws in last
step).
Note: Tilt the separation panel as shown to position it.

13
12
STEP 6
Use M6 x 15mm screw (B) x 4 pcs
to attach grease tray rail (12/13) on
the top of the cabinet separation
panel.
STEP 7
Put the grease tray (1) on the top of
the cabinet separation panel.
Make sure the hole in the grease
tray is in line with the hole in the
separation panel.

15
14
STEP 8
Use M4 x 10mm screw (D) x 24 pcs to attach the door hinge (21) x 4 pcs to the cabinet door (9) x 2 pcs.
Note: There are two adjustable screws on the door hinge, which can help you adjust the gap between
the two doors. Please refer to the picture below.

15
14
STEP 9
Put the firebox assy. (1) on the
top of the cart, open the hood
and then use M6 x 15mm screw
(B) x 4 pcs, M6 flat washer (F) x
4 pcs and M6 spring washer (G)
x 4 pcs to fix the firebox assy. to
the cart.
STEP 10
Use M6 x 15mm screw (B) x
4 pcs to attach the side shelf
bracket (18/19) to the firebox.
Note: DO NOT tighten the
bracket now.

17
16
STEP 11
Attach M6 shoulder screw (E) x 2
pcs, M6 nut (H) x 2 pcs, flat washer
(F) x 2 pcs and spring washer (G)
x 2 pcs to the side shelf brackets’
lower holes and then hang the
foldable side shelf onto them. Then
assemble the M6 shoulder screw
(E) x 2 pcs, M6 nut (H) x 2 pcs,
flat washer (F) x 2 pcs and spring
washer (G) x 2 pcs to the upper
holes through the elongated slots
on the side shelf brackets and
tighten them.
Note: Ensure the front fascia panels
are in line before tightening the
screws.
STEP 12
Remove the trivet from the side
burner assembly and then untighten
the screws as shown below and
remove the side burner.

17
16
STEP 13
Use M6 x 15 screw (B) x 4 pcs to
attach the side burner assy. to the
firebox.
Then adjust the side burner fascia
to align with the main fascia and
tighten the screws.
STEP 14
Use M4 x 8mm screw (C) x 3 pcs to
fix the injector bracket to the side
burner assy.

19
18
STEP 15
Attach the side burner body to the side burner
assembly and then insert the ignition wire into
the end of the ignition pin.
Note: Ensure that the side burner body is
located over the injector.
STEP 17
Put the flame tamer, cooking grid, hot plate and warming rack in place as shown below.
STEP 16
Insert the fat cup into the fat cup box beneath
the separation panel. Slide in fully to the end.

19
18
BBQ SPECIFICATIONS
STEP 18
Open the cabinet door, and let the hose go through the cabinet side panel to connect to the cylinder.
Open the cylinder valve and leak test all connections with a soapy water solution.
Note: 4B Shown
Overall Barbecue Dimensions - Including Side Shelves
Model Barbecue Hood
Length Width Height Length Width Height
4 Burner 1400 mm 590 mm 906 mm 660 mm 610 mm 300 mm
6 Burner 1550 mm 590 mm 906 mm 810 mm 610 mm 300 mm
Nominal Hourly Gas Consumption
Gas Type Number of
BBQ Burners
Injector Size
BBQ Burner
Injector Size
Side Burner
Total Gas
Consumption
Gas
Pressure
ULPG
40.95mm 0.92mm 58.5 MJ/h 2.75 kPa
60.95mm 0.92mm 82.5 MJ/h 2.75 kPa
MJ/h each 12 MJ/h 10.5 MJ/h
Natural Gas
41.57mm 1.59mm 61.1 MJ/h 1.0 kPa
61.57mm 1.59mm 85.1 MJ/h 1.0 kPa
MJ/h each 12 MJ/h 13.1 MJ/h

21
20
GENERAL ASSEMBLY
Connecting & Disconnecting to Gas Source
Familiarise yourself with the general information
and safety guidelines located at the front of this
manual.
Check
1. Gas cylinder is filled. A sloshing sound will be
heard when shaken.
2. The burner control is in the ‘OFF’ position.
Connecting
1. Ensure valve is in OFF position.
2. Check for any damage to the cylinder
connection. NEVER attempt to use damaged
equipment.
3. When connecting the hose to the cylinder
tighten the nut to a positive stop by hand or
spanner.
4. Open cylinder valve fully. If a leak can be
heard at either end of the hose turn cylinder
off and tighten joint. Wait 5 minutes before
re-testing and use a soapy water solution to
check the joint. If bubbles appear the
connection will need to be re-tightened.
Disconnecting
1. Ensure the burner control is in the ‘OFF’
position.
2. Ensure the gas cylinder is in the full OFF
position.
3. Detach the hose from cylinder.
LIGHTING PROCEDURE
Burner Operation & Ignition System Check
1. With cylinder valve in ‘OFF’ position push and
turn the control knob anti-clockwise to HIGH.
Check for sparking to the burners.
2. If spark is not evident at the burner ignition
point, check for any loose leads at either the
electrode or the ignition pack.
3. Push and turn anti-clockwise to HIGH the
control knob.
4. The side burner cover must be open before
pushing and turning the control knob anti-
clockwise to HIGH.
5. If the burner fails to light after several
attempts turn off the gas supply and
inspect for any obstructions to the gas flow.
If re–ignition is necessary while the gas
barbecue is still hot, you must wait for a
minimum of 5 minutes before commencing to
re–ignite (this allows accumulated gas fumes to
clear).
• IMPORTANT: Before connecting and
disconnecting barbecue to gas source,
make sure burner controls are in ‘OFF’
position.
• CAUTION: When the barbecue is not
in use, the gas must be turned off at the
cylinder.
• Check that the seals between the
appliance and the gas cylinder
are in place and in good condition
before connecting the gas cylinder.
• Do not use this appliance if it has
damaged or worn seals.
• NOTE: If for some reason, ignitor fails to
produce a spark at the electrode, BBQ
can be lit by a long BBQ match. With hood
open insert ignited match into burner
lighting hole positioned on the right hand
side of the BBQ body (underneath
side shelf). Push and turn the far right
control knob to HIGH. Burner ignition can
be checked through this hole. Subsequent
burners will cross light.
• Check performance of burner prior to
installing BBQ plates.
• Do not smoke when attempting to ignite
BBQ.
• Never use volcanic rock, heat beads or
other material.
• Always use protective gloves when
handling hot components.
IMPORTANT
IMPORTANT
