USER GUIDE
MAXTPMS 2.0
Version MA2-01
Reference: UM-MDMAX-MA2-01

REVISION OF THE MAXTPMS 2.0 GUIDE
Due to continuing improvements, the information contained in this user manual, the features and design of this
device are subject to be changed without prior notice.
Edition/
Revision
Reference
Date
(week/year)
Chapters updated
First edition
UM-MDMAX-MA2-01
02/2020
Software release MA2-01

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 1/47
TABLE OF CONTENTS
REVISION OF THE MAXTPMS 2.0 GUIDE .................................................................................................3
TABLE OF CONTENTS................................................................................................................................ 1
MAXTPMS 2.0 INTRODUCTION.................................................................................................................. 2
1. SPECIFICATIONS............................................................................................................................... 2
2. IMPORTANT SAFETY INSTRUCTIONS ............................................................................................ 3
3. CAUTION............................................................................................................................................. 4
4. MAX TPMS 2.0 OVERVIEW................................................................................................................ 5
.................................................................................................................................................................. 5
5. CONNECTORS.................................................................................................................................... 5
6. FUNCTION KEYS................................................................................................................................ 6
7. POWER ON ......................................................................................................................................... 6
8. OPERATING INSTRUCTIONS............................................................................................................ 7
MAXTPMS 2.0 USAGE................................................................................................................................. 8
1. CHECK TPM........................................................................................................................................ 8
2. RESET TPMS .................................................................................................................................... 11
3. PROGRAM TPMS SENSORS........................................................................................................... 14
4. KEYFOB TEST .................................................................................................................................. 23
5. TIRE TREAD CHECK........................................................................................................................ 24
6. PLACARD VALUES ADJUSTMENT ................................................................................................ 25
HISTORY..................................................................................................................................................... 27
1. SEARCH ............................................................................................................................................ 27
2. EXPORT............................................................................................................................................. 28
3. DELETE ............................................................................................................................................. 28
WIFI UPDATE ............................................................................................................................................. 29
SETTINGS................................................................................................................................................... 31
1. LANGUAGE....................................................................................................................................... 32
2. UNITS................................................................................................................................................. 32
3. BACKGROUND................................................................................................................................. 33
4. SOUND............................................................................................................................................... 34
5. AUTO OFF......................................................................................................................................... 34
6. REGION ............................................................................................................................................. 35
7. WIFI.................................................................................................................................................... 36
8. ABOUT............................................................................................................................................... 38
MISCELLANEOUS ..................................................................................................................................... 40
1. CHARGE............................................................................................................................................ 40
2. TROUBLESHOOTING....................................................................................................................... 41
3. TOOL UPDATE.................................................................................................................................. 41
4. LIMITED HARDWARE WARRANTY................................................................................................ 43
5. SAFETY BATTERY AND CHARGE INFORMATION....................................................................... 44

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 2/47
6. FCC STATEMENTS........................................................................................................................... 45
7. RECYCLING ...................................................................................................................................... 46
INDEX.......................................................................................................................................................... 47
MAXTPMS 2.0 INTRODUCTION
1. SPECIFICATIONS
Battery Type:
Rechargeable Lithium-Ion.
Battery Life:
Approximately 300 activations per full charge.
Dimensions (Max. L,W,D):
6.45" x 4.17" x 1.30" (164 mm x 106 mm x 33 mm).
Case Material:
High Impact ABS.
Response Frequency:
Main frequencies: 315 MHz and 433.92 MHz (supporting
most specific frequencies).
Low Battery Indication:
LCD bar graph display.
Weight:
Approx. 395 grams (0,87 lbs.)
Temperature:
Operating: -4°F to 131°F (-20°C to +55°C).
Storage: -40°F to 140°F (-40°C to +60°C).
Operating Altitude:
Up to 6560 ft (2000 m).
Product content:
➢MAXTPMS 2.0 Instrument.
➢USB cable.
➢Power supply.
➢Carrying case.
➢Quick start guide.
Optional accessories:
➢OBDII Module.
➢Tire Tread Depth Gauge

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 3/47
2. IMPORTANT SAFETY INSTRUCTIONS
Do not discard. Retain for future reference.
This device complies with:
- Part 15 of the FCC Rules
- CE / CEM standards
- ROHS standards
Operation is subject to the following two conditions:
(1) This device will not cause harmful interference, and
(2) This device will accept any interference received, including interference that may cause
undesired or improper operation.
WARNING: This product emits electromagnetic and electronically generated
waves that may interfere with the safe operation of pacemakers.
Individuals that have pacemakers should never use this product.
WARNING:
Do not use on live electrical circuits.
Please read instructions before use.
Wear safety goggles. (User and bystanders).
Risk of entanglement.
Read the Warranty, Safety and recycling information at the end of this user guide.

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 4/47
3. CAUTION
PLEASE READ THESE INSTRUCTIONS BEFORE USE
Your Tire Pressure Monitoring (TPM) tool has been designed to be durable, safe, and
reliable when properly used.
All TPMS TOOLS are intended for use only by qualified and trained automotive technicians
or in a light industrial repair shop environment. Please read all instructions below before use.
Always follow these safety instructions. If you have any questions pertaining to the safe or
reliable use of this tool, please call your local dealer.
1. Read All Instructions
All warnings on the tool and in this manual should be adhered to. All operating instructions
should be followed.
2. Retain Instructions
The safety and operating instructions should be retained for future reference.
3. Heed Warnings
Users and bystanders must wear safety goggles and must read instructions before use. Do
not use on live electrical circuits, risk of entanglement.
4. Cleaning
Clean with a soft dry cloth, or if necessary, a soft damp cloth. Do not use any harsh chemical
solvents such asacetone, thinner, brake cleaner,alcohol, etc as this may damage the plastic
surface.
5. Water & Moisture
Do not use this tool where contact or immersion in water is a possibility. Never spill liquid of
any kind onto the tool.
6. Storage
Do not use or store the tool in an area where it is exposed to direct sunlight or excessive
moisture.
7. Usage
To reduce the risk of fire, do not operate the tool in the vicinity of open containers or
flammable liquids. Do not use if the potential for explosive gas or vapors exists. Keep the
tool away from heat generating sources. Do not operate the tool with the battery cover
removed.

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 5/47

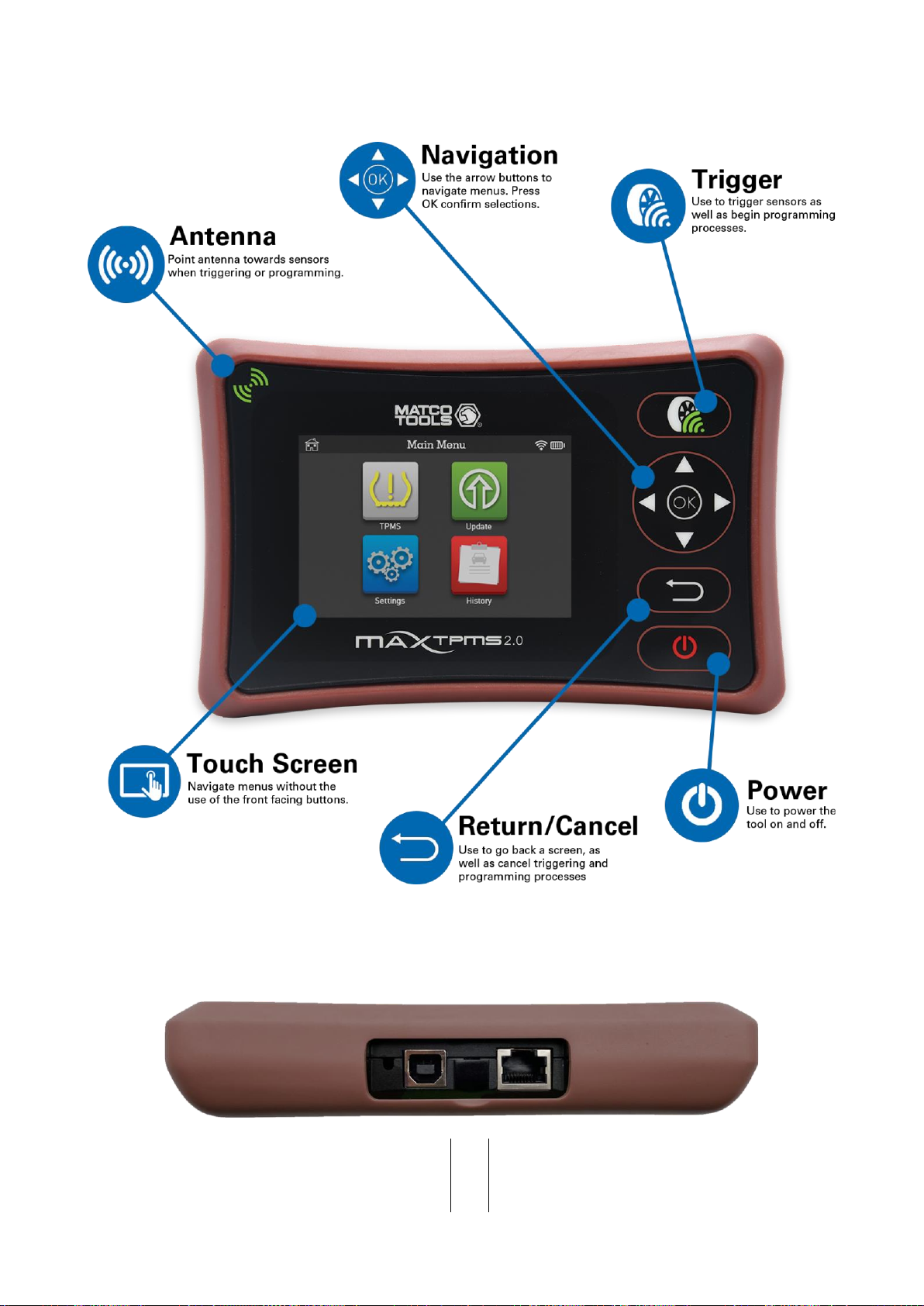

4. MAX TPMS 2.0 OVERVIEW
5. CONNECTORS
USB connector for battery
charge and software update
Extension connector for
optional OBD module and Tire
Tread Depth Gauge

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 6/47
6. FUNCTION KEYS
Power ON/OFF switch
Test or trigger sensor.
Next, continue or confirm.
Cancel, previous step.
Navigate to select "up”.
Navigate to select “down”.
Navigate to select “left”.
Navigate to select “right”.
7. POWER ON
Press and hold Power ON/OFF switch to turn on the
TPMS device,
➢Displays shows the logo as Fig. 1.
Fig. 1
➢The MAIN MENU will then be displayed as
Fig. 2.
Fig. 2

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 7/47
8. OPERATING INSTRUCTIONS
Service Procedure
Section 1.0: Read Sensor Test
Before servicing the tires/wheels, using your TPMS TOOL,
trigger each of the vehicle's sensors to make sure they are
working properly.
This will eliminate the liability associated with replacingpreviously
damaged or defective sensors. This procedure will not change
the vehicle settings because the vehicle has yet to be put into
learn/retraining mode.
This procedure allows you to quickly identify damaged or defective sensors, because some vehicles
do not report a damaged or defective sensor condition on the instrument cluster for up to 20 minutes.
Note: If the sensors do not trigger, please refer to the Troubleshooting section of this Guide.
Perform tire/wheel service.
For vehicles that require retraining, please see to Section 2.0
Section 2.0: Learning TPM System
With the vehicle in learn mode, begin by triggering the driver's front
left (LF) wheel sensor. Many vehicles will provide an audible beep
confirming that the sensor ID has been learned by the vehicle on
board computer.
The communication between the sensor and the on board computer is also
confirmed on LCD displayof the TOOL.
The same procedure should be followed on all wheel sensors, in a clockwise
rotation, until all the vehicle sensors have been retrained.
After triggering the driver's rear wheel sensor,some vehicles will beep twice,
indicating thatthe TPM system has been retrained.
1 Start FL
4 End RL
FR 2
RR 3
For vehicles that do not require retraining, we recommend you trigger each wheel sensor, one final time,
to make sure they are working correctlyprior to releasingthe vehicle to the customer.

MATCO TOOLS MAXTPMS 2.0 - User Guide
UM-MDMAX-MA2-01 User manual MATCO TOOLS MAXTPMS 2.0 Page 8/47
MAXTPMS 2.0 USAGE
IMPORTANT:
Vehicle specific information in this manual is used as an example and may not
represent specific instructions each make and model may require. When performing
various functions with the tool, it is important to refer to the on-screen prompts and/or
repair manual information.

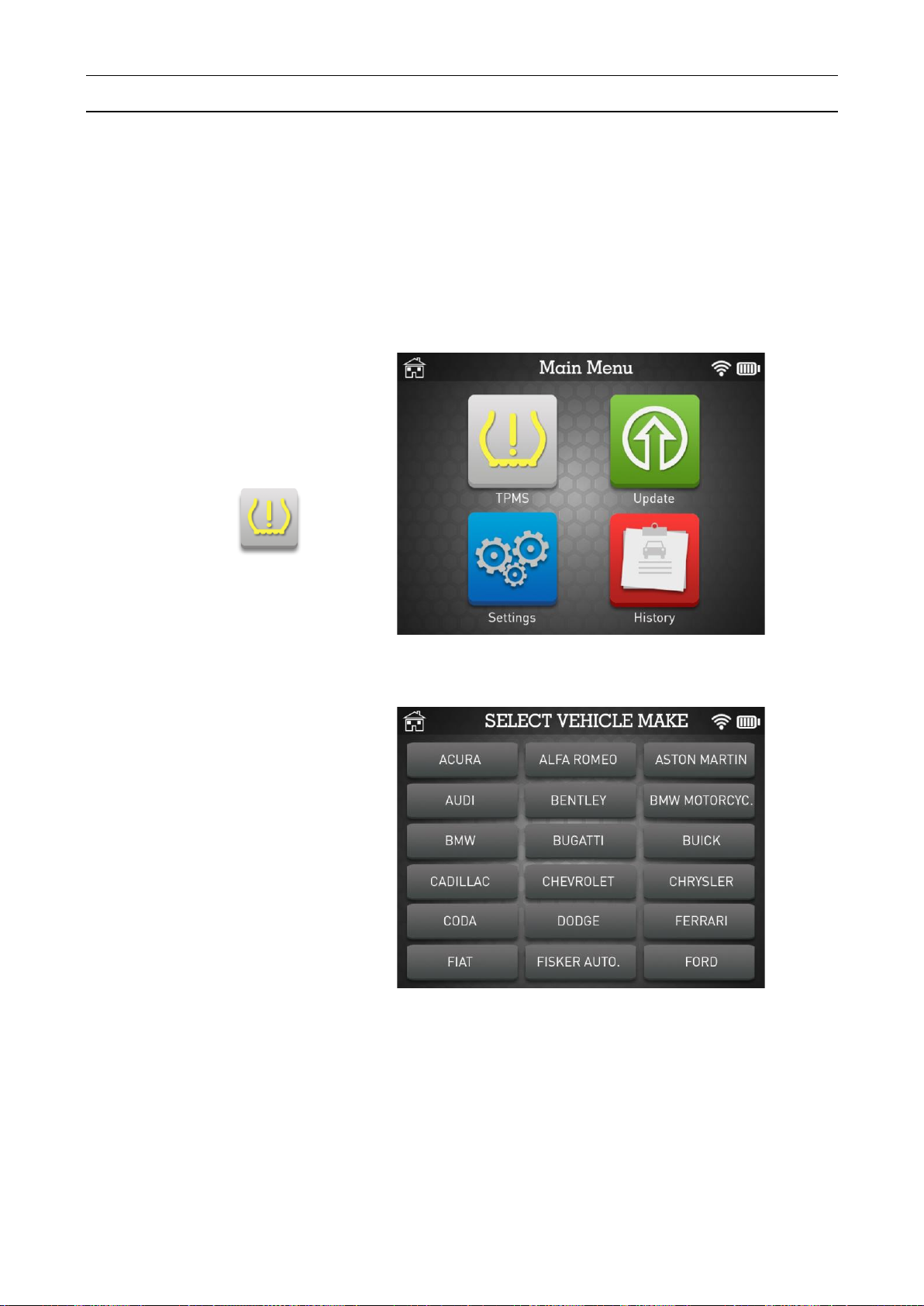

1. CHECK TPM
Click the TPMS icon.
1.1. SELECT CAR MANUFACTURER
Select the car
manufacturer or scroll to
show additional brands.
