Matsusada Precision AMPS Series User manual

Instruction Manual
F-RA-001-3R3
MODEL AMPS series
B/N 190.9.038 *190.9.038* Rev. 1.4

Note
◆All rights reserved.
◆No part of this publication may be reproduced, stored in a retrieval system, or transmitted,
in any form, or by any means, mechanical, electronic, photocopying, recording, or
otherwise, without the prior written permission of Matsusada Precision.
◆
No patent liability is assumed with respect to the use of the information contained herein.
Moreover, because Matsusada Precision is constantly striving to improve its high-quality
products, the information contained in this manual is subject to change without notice.
Every precaution has been taken in the preparation of this manual. Nevertheless,
Matsusada Precision assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from the use of the information
contained in this publication.
Trademarks
◆Company names and product names in this document are the trademarks or registered
trademarks of their respective companies.
Warranty
◆For details, refer to the following website.
https://www.matsusada.com/support/manufacturer_warranty.html

i
AMPS series
For Safe Use of the Product
◆Introduction
The product generates high-voltage and high-energy.
Therefore, wrongly handling or operating the product may result in death or serious injury and maybe
property damage as well. In order to use the product safely, read the instruction manual thoroughly before
use to understand how to use and operate it properly.
Please note that we will not be held responsible for any damage or loss caused by not following the
warnings, cautions, and procedures described in the manual.
Keep the manual with you so that you can read it whenever you want.

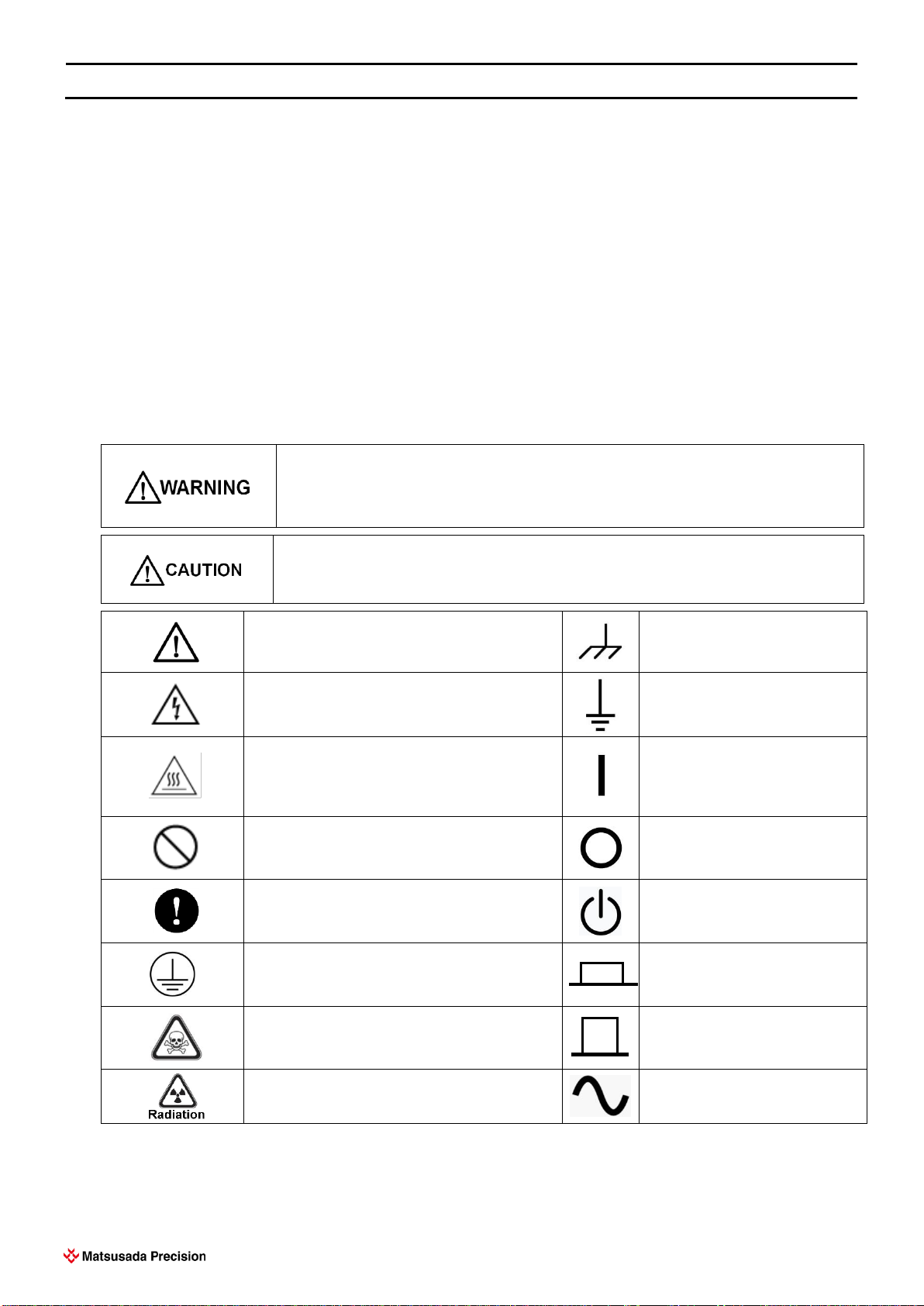

◆Symbols
Symbols are used in the manual and product, which indicate precautions to be observed for safe use.
Understand these symbols first and then read the manual thoroughly.
Some symbols below are not used in products.
Indicates a potentially hazardous situation, which, if not avoided, may
result in serious injury or death.
Indicates a potentially hazardous situation, which, if not avoided, may result
in minor or moderate injury or in property damage.
Indicates danger/warning/caution. Refer to
the instruction manual when this symbol
appears on the unit.
Frame or chassis terminal
Indicates the possible danger of electric
shock under specific conditions, which
may result in serious injury or death.
Ground terminal
High Temperature Caution:
Indicates the possible danger of injury by
high temperature under specific
conditions.
Power ON
Indicates general prohibitions, including
warnings.
Power OFF
Indicates what must be followed.
Standby
Protective earth terminal (ground terminal
for preventing electric shock)
Bistable push button switch
ON
Indicates the possible danger of death if
you drink it and burns or blindness if it
attaches.
Bistable push button switch
OFF
Indicates the possible danger of exposure
to radiation.
Alternative Current

ii
AMPS series
Understand the risks.
The Product generates high-voltage and high-energy.
The product is designed for electrical engineers or the equivalents who install, wire, and operate it.
Read the instruction manual thoroughly before use and familiarize yourself with the proper use and
danger of the product.
Make sure to allow only specific people to handle the product.
Make sure to allow only the following people to handle the product:
1. who are electrical engineers or the equivalents and have already familiarized themselves with the
proper use and danger of the product, or
2. who are electrical engineers or the equivalents and have already been trained by the
above-mentioned people, or
3. who work under the supervision of the above-mentioned people.
If people other than those listed above install, wire, or operate the product, it may cause electric
shock, burnout, or injury.
Do not open or remove the case or panel of the product.
Do not disassemble, repair, or modify the product by yourself. High-voltage is applied to the inside of it.
Otherwise, it may cause electric shock, fire, or malfunction.
Moreover, if you do it, the safety and functions are not covered with the warranty.
The product does not suit to install and use in places where children may be present.
The product is designed to be installed in places such as factories or laboratories. Do not install and use it
where children may be present.
Make sure to ground it.
When the product has a protection ground terminal or GND terminal, make sure to ground it.
When theAC line input of it is an inlet type, connect the attached power cable or a power cable suitable for
your area to an outlet with the ground. Otherwise, it may result in electric shock or fire.
Regarding power cable
When a power cable is enclosed or attached to the product, do not use it for other products.
When no power cable is enclosed with the product, prepare the power cable suitable for the usage
environment and area by yourself.
Regarding the connection of power cable
Electrical engineers or the equivalents who have already been familiarized with the proper use and danger
of the product should connect the power cable to the AC input by referring to the instruction manual.
Regarding products that have acquired the safety standard, check the page describing the over-voltage
categories too.
Do not process or damage power cables
It may result in electric shock or fire.
Regarding the input voltage
Check the page describing the input terminals and input voltage in the instruction manual.
Do not provide any voltage out of the specifications.

iii
AMPS series
Regarding the fuse
The product builds in a protective fuse. In the case where a fuse holder is arranged outside of the product,
you can replace it by yourself. Refer to the instruction manual to replace it.
In the case where a fuse holder is not arranged outside of the product, you cannot replace it by yourself.
In this case, do not open the case or panel of the product and contact us.
The product is designed for indoor use.
Use the product indoors only, not outdoors. Even indoors, do not use it if there is a possibility of water
leakage, flooding, or snow covering.
Regarding operating temperature and humidity
Use the product within the range of the specifications describing in the instruction manual.
Do not use it in a place where the ambient temperature exceeds the specified range or a closed place.
Do not install the product in places where condensation may occur.
Otherwise, insulation deteriorates and it may cause electric shock, fire, or malfunction.
Do not place anything on top of the product.
Otherwise, they may fall or tumble from it.
Do not put anything into the product.
Do not put foreign objects such as metal or liquid into the product through the air inlets, air outlets, or other
openings. Otherwise, it may result in electric shock, fire, or malfunction.
Operate the product with the right hand.
Use only your right hand to operate the product and keep your left hand away from it, which can reduce
the risk of electric current flowing through the left hand to the vital organs of the body in the event of an
electric shock.
Do not touch the wiring/load connected to the output and any terminals/connectors during the
operation or just after turning output off.
Very high-voltage is on the terminals and connectors during the operation and even just after the output is
turned off. Touching them may result in serious injury or death by electric shock.
The terminals here mean all terminals like input and output terminals and terminals for communications
and remote controls.
Turn off the product before touching the wiring/load connected to the product and any
terminals/connectors on the product and cut it off from the AC input.
Before touching the terminals/connectors and wiring/load, turn off the product and unplug the AC input
cable from the outlet or turn off the AC input breaker. Then, check there is no voltage remained using a
tester.
Since the output and sense terminals are connected to condensers in it, there is high-voltage remained on
them even just after it is turned off.
In order to avoid electric shock, ground the terminals to discharge using short-circuit grounding apparatus
and check the voltage again.
The terminals here mean all terminals like input and output terminals and terminals for communications
and remote controls.

iv
AMPS series
Level the product out to use for good heat dissipation.
Do not install the product upside down or sideways. If not, the inner heat dissipation will be insufficient.
It may result in smoke or fire due to components deterioration.
Do not install the product in a place where cold air directly blows to it.
It may result in electric leakage or burnout due to condensation.
Do not install the product in a place where it is exposed to corrosive gases or liquids.
It may result in smoke or burnout due to components deterioration.
Do not install the product in a dusty place.
Accumulating dust in the air inlet will make hard to cool it down it, it may result in malfunction.
In that case, remove dust immediately.
Do not block the air inlet and outlet.
Secure 30 cm space at least around the openings.
If they are blocked, the product cannot show the rated performance due to the internal temperature
increase. Moreover, components deteriorate and it may result in smoke or fire.
Remove wiring to and from the product when work like welding near it is done.
Do not wipe the equipment with a dust cloth wet with chemicals (thinner or the like) or water.
Otherwise, it may result in an electric shock, electric leakage, or burnout due to water getting inside.
Regarding fan replacement
When products equip a fan, it has a lifetime. It will be worn out and deteriorated with the time passed and
its operation may become unstable. Also, its lifetime greatly varies depending on the usage environment
such as temperature, humidity, dust. It requires to be replaced at regular intervals to extend the lifetime.
For the replacement, contact us.
(It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric
shock.)

v
AMPS series
Table of Contents
For Safe Use of the Product············································································································i
1Introduction ··························································································································1
1-1 Introduction ····················································································································1
1-2 Unpacking the Amplifier·····································································································1
1-3 Environmental requirements ······························································································1
1-4 Points to be CarefulAbout in Handling·················································································2
1-5 Additional Precautions for HV Amplifier Operation ··································································3
1-6 Troubleshooting···············································································································6
2 Specifications························································································································7
3 External View························································································································8
3-1 Front View······················································································································8
3-2 Rear View ····················································································································11
4 Instructions for Operation ······································································································13
4-1 Overview······················································································································13
4-2 Operations ···················································································································13
4-3 Using BIAS···················································································································15
4-4 Output Voltmeter············································································································16
4-5 Voltage Monitor Output (VM)····························································································16
4-6 Current Monitor Output (IM)·····························································································16
4-7 Output Peak Current·······································································································16
4-8 Remote ON/OFF Switch (LS)···························································································17
4-9 Other Functions·············································································································18
Power Failure Protection···························································································184-9-1 Over-Voltage Protection (O.V.P.)·················································································184-9-2 Over-Current Protection (O.C.P.)·················································································184-9-3 Over Temperature Protection ·····················································································184-9-4
4-10 Output Range ············································································································19
5 Optional Features ················································································································20
5-1 List of Optional Features ·································································································20
6 Technical Note ····················································································································21

AMPS series

1 Introduction
1
AMPS series
1Introduction
1-1 Introduction
Thank you very much for your purchase of our product, HIGH VOLTAGE AMPRIFIER.
We have done our best for the quality control of our products. Please handle this unit properly according to
this instruction manual so that you can use the full performance of this unit safely for long.
We have carefully prepared this instruction manual, but if you find any doubtful or unclear point or any
omission, contact us shortly.
1-2 Unpacking the Amplifier
After unpacking the box, check that the following accessories are supplied with the unit.
If the accessories are different, missing, or broken, please contact us immediately.
<Accessories>
□
Instruction Manual (this one)
1 pc
□
AC Input cable
1 pc
□
Output cable
1 pc
1-3 Environmental requirements
Place and use the unit horizontally.
Never place any object on top of the unit.
There are air inlet and air outlet for cooling at upper part and sides of the unit. Provide an ample
space to the unit, and use it at the place where the ventilating condition is good.
Avoid using the unit at such places where it is very dusty or there is corrosive gas.
Do not install the unit that it is difficult to operate the disconnecting device.
The front panel handles are used when turning the unit around or pulling it out of the rack.
Do not apply the unit full weight to the handles.
This unit is for indoor use only.
This unit complies with OVERVOLTAGE CATEGORY Ⅱ, and POLLUTION DEGREE 2.

1 Introduction
2
AMPS series
1-4 Points to be Careful About in Handling
WHEN TOUCHING LOAAFTER TURNING OFF HIGH VOLTAGE
1. Set its output voltage to zero “0” or turn off the HV ON/OFF switch.
2. Check that the output voltage is zero at the unit’s output voltmeter.
3. Turn off the POWER ON/OFF switch.
4. Ground the output for more than 10 seconds, and then check that the voltage is zero with another
high voltage meter. If you use a capacitive load or long cables, it makes condition very dangerous.
5. Touch a load with your right hand only.
CONNECTING TO GROUND
The unit uses anAC input cable with a ground terminal.
For the safe operation, be sure to ground the ground terminal of unit at one point.

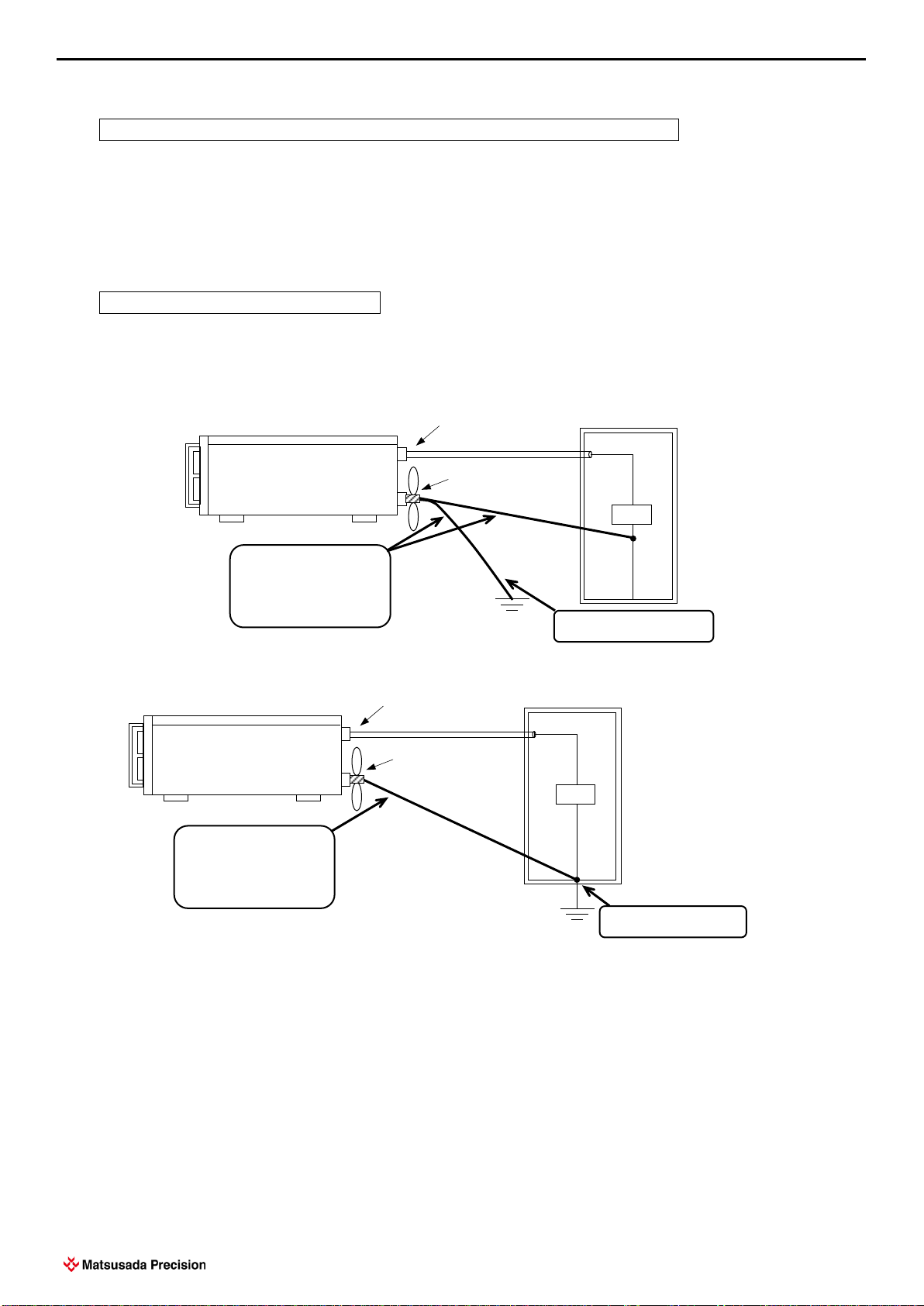

a) In the case where the load housing is grounded:
b) In the case where the load housing is grounded:
Make sure to ground properly as shown above. The poor grounding may cause electrical shock or
serious damage to the unit.
When the output short circuit or arcing is predicted, make the ground wire thicker and shorter.
Output cable
Ground terminal
Ground
Load housing
Wires should be :
・more than 5SQ
・less than about 2m
・Not bare wire
Ground at one point
Rack-mount case
Load
Output cable
Ground terminal
Load frame
Wires should be :
・more than 5SQ
・less than about 2m
・Not bare wire
Ground at one point
Rack–mount case
Load

1 Introduction
3
AMPS series
1-5 Additional Precautions for HV Amplifier Operation
When using this unit as a high speed and high voltage amplifier (except for DC mode operation),
make sure to wire HV output lines with minimizing its stray capacity.
Due to the HV amplifier characteristics, the output cable is not shielded. When the output cable has
some stray capacity against the ground (earth, metal objects, or like), the output will be sinusoidal or
step waveform and extra current will flow. As this current flows in parallel to the load, the following
phenomena may occur.
1) The rated maximum voltage or current cannot be obtained.
2) The waveforms at constant current operation or the current monitor are distorted or
deformed.
ｉo
ｌo
C
When there is output stray capacity “C”, the leak current by “C”will be as below:
io = = C
Q: capacity (C)
View of high voltage amplifier’s
charge and discharge current
Current monitor waveform
Results in Overshooting
High voltage
amplifier
AMPS series
Vcon
Vout
ΔV
Δｔ
Output line
Load
dQ
dt
dV
dt
Minimize the output cable length.
Wire the output cable away from the floor, desks, and metal objects.
Do not shield the output cable.
Solution

1 Introduction
4
AMPS series
Capacitive Load
When operated with a capacitive load of more than 100pF (including floating capacity of output cable),
the output might oscillate. In such a case put a high voltage resister of 100Ω (0.1μF) to 1kΩ (1000pF)
in series to output. Please also note that with capacitive load the bandwidth is limited according to the
formula below.
Frequency Response
In case clear output waveform is required, please select a HV amplifier which has high enough
frequency bandwidth against required frequency.
In general 3 to 5 times more frequency bandwidth for sinusoidal waveform, and about 10 times more
for rectangular waveform, is required. In case of insufficient frequency bandwidth the output swing
shall be reduced, and also the phase difference be large, so some solutions, such as monitoring
output waveform, shall be required.
Rise Time (step responsibility)
Responsibility can be indicated with rise time (fig.2). Usually the rise time of amplifier of responsibility
(= bandwidth) fc (Hz) is given by a formula below.
tr ≒0.35/fc
The rise time “tf”is equals to “tr”.
Vcon-in
90%
100%
tf
tr
10%0%
0%
HVout
(fig.2)
Output swing →
(Vpp)
Frequency ratio against fc
(fig.1) Declination of output swing
by frequency
100%
DC
0dB
-3dB
f(Hz)
70%
92%
0

1 Introduction
5
AMPS series

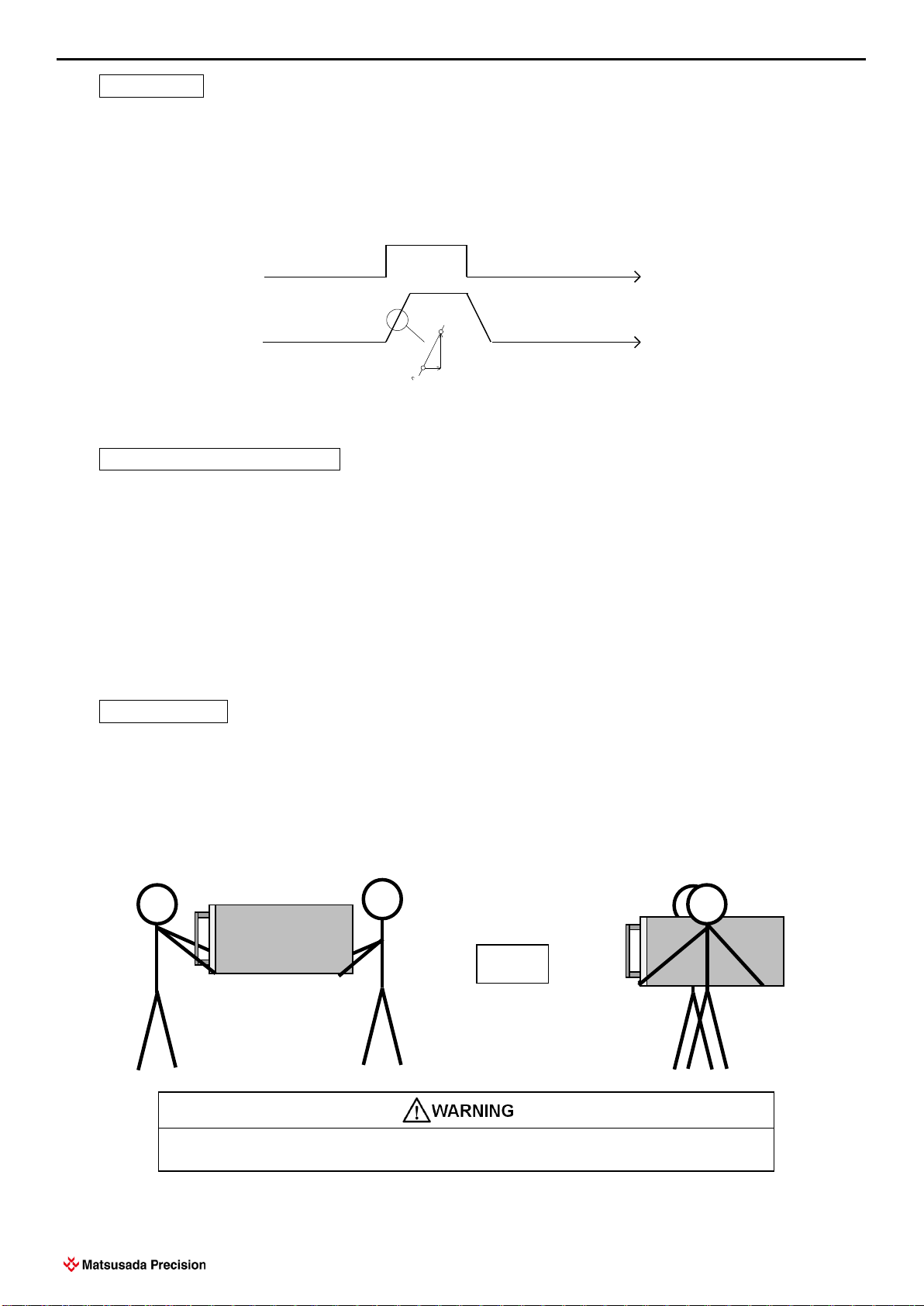

Slew Rate
The responsibility of our high speed amplifier is determined with slew rate (SR). The step
responsibility of our amplifier is as shown in fig.3.
SR = △V/μS
In case of output amplitude is smaller the response time become shorter.
For example, AMPS-20B20 reach to greater than SR = 1200V/μs at maximum.
FOR SAFER OPERATION
Using this unit in a manner other than that specified may result in damage to its protective
functions..
1. For your safety, we recommend that an insulation plate that can withstand the used voltage on
the floor to operate the unit.
2. Operate the unit and load with your right hand, and do not touch anything with your left hand.
3. After turning off the voltage (even long time after turning off), be sure to ground the output more
than 10 seconds before you touch the load.
How to Carry
When carrying this unit, grasp the bottom of the front panel and rear panel.
The following figure shows in the case of AMPS-2B200, AMPS-5B80, AMPS-10B40, and AMPS-20B20.
Other models should be transported by more than one person or using carrying tools according to the
label on the top of the unit. Be careful not to pinch your fingers between the bottom of the unit and a floor
or table when placing it.
Do not hold the front panel handles in a way applying a heavy load on them.
Failure to do so may cause damage to the unit or injury.
or
Vocn-in
HVout
1μs
1200V
(fig.3) (AMPS-20B20)

1 Introduction
6
AMPS series
1-6 Troubleshooting
In case no output voltage:
1. Check input voltage is correct
Input voltage: 230Vac ±10%, 50/60Hz, single phase
External control voltage: –10V to 10V
The output voltage will be limited if voltage out of the above range is input
If the output waveform is abnormal, check whether or not the external control voltage is out of the
specified range.
2. Check whether or not the overcurrent protection is activated.
(For details, refer to [4-9-3. Overcurrent protection] on page 18.)
3. Check whether or not the over temperature protection is activated.
(For details refer to [4-9-4. Over temperature protection] on page 18.)
In case discharging sound hears at the HV output section:
1. Check whether or not the plug section of the HV connector (the pointed section by the arrow
mark in the figure) is dirty. If the plug section of the HV connector is used with dirt on it, discharge
may occur within the connector. Wipe it with liquid such as alcohol, and dry it well before use.
NOTE: At operating frequencies a few kHz or more, the operating sound of the amplifier may hear from
inside of the unit, but this is not abnormal.

2 Specifications
7
AMPS series
2 Specifications
Main specifications for each model:
Model
Output
voltage
[V]
Output
current
DC+AC
max
[mA]
Peak
current
( mA/1ms
max）
Max
output
power
[W]
Slew
Rate
[V/μs]
Frequency Response
（-3dB）
Weight
[kg]
Dimensions
H×W×D
(Except projection)
[mm]
Full scale
[kHz]
Small
bandwidth
(10% of Full scale)
[kHz]
AMPS-0.6B2000
-600 to
+600
±2000
±4000
1200
500
DC to 100
DC to 200
45
266×483×610
AMPS-2B200
-2k to +2k
±200
±400
400
1000
DC to 80
DC to 160
28
266×483×550
AMPS-5B80
-5k to +5k
±80
±160
DC to 50
DC to 100
AMPS-10B40
-10k to
+10k
±40
±120
1200
DC to 20
DC to 40
AMPS-20B20
-20k to
+20k
±20
±60
DC to 10
DC to 20
AMPS-30B20
-20k to
+20k
±20
±60
600
800
DC to 5
DC to 20
70
622×483×550
The voltage, current, and power in the table will be output to the unit output terminal.
Never touch the output terminal during its operation or immediately after turned it off.
<Specifications>
Input voltage 230VAC±10% 50/60Hz single phase 10A typ.( AMPS-0.6B2000)
230VAC±10% 50/60Hz single phase 6A typ.( AMPS-30B20)
230VAC±10% 50/60Hz single phase 5A typ.( AMPS-2B200, AMPS-5B80 )
230VAC±10% 50/60Hz single phase 7A typ.( AMPS-10B40, AMPS-20B20 )
Control voltage -10V to +10V *1 (input impedance greater than 10kΩ)
DC bias front panel 10 tern potentiometer enables setting between -100% to +100%
Regulation Line: ±0.05% (input voltage ±10% change) *2
Load: 0.05% (10% to 100% load change) *2
Ripple less than 0.02%+1Vp-p*2
Stability 0.02%/Hr typ
DC output voltage display 3.5-digit digital meter*3
Output voltage monitor -10V to +10V from front panel BNC terminal (output impedance 1kΩ)
Output current monitor -10V to +10V (10Vpeak) from front panel BNC terminal
(output impedance 1kΩ. Up to 5kHz band width)
Remote switch ON/OFF Output ON/OFF with external contact signal (short: ON, open: OFF)
Protection Over current protection with cut off, over voltage protection,
output short circuit, Arc protection and blackout protection.
Operating temp. 0℃to +40℃
Storage temp. -20℃to 60℃
Humidity 20 to 75%RH (no condensation)
Altitude < 2000m
Accessories Input AC cable (1)
Output HV cable frying lead (1)
Instruction manual (1)
*1 Offset voltage at Vcon-in=0V is less than 0.1% of rated output.
*2 At DC operation with resistive load maximum rated output.
*3 At DC output: DC voltage display. At more than 10Hz output: Average voltage display

3 External View
8
AMPS series
3 External View
3-1 Front View

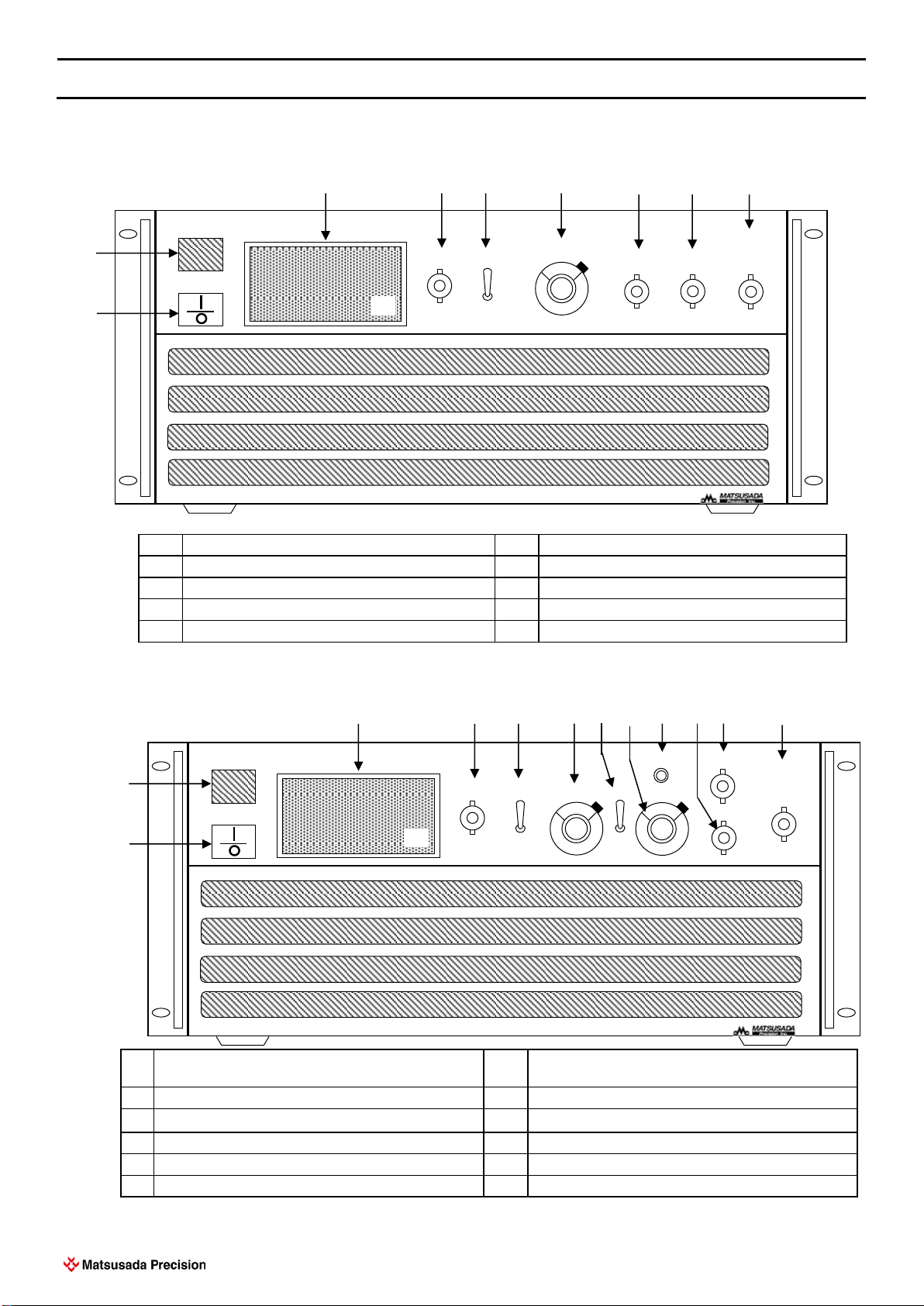

【AMPS-0.6B2000、AMPS-2B200、AMPS-5B80、AMPS-10B40、AMPS-20B20】
1
POWER ON/OFF switch
6
Bias voltage setting dial (10-turn potentiometer)
2
HV ON/OFF switch
7
Output current monitor terminal
3
Output voltmeter 3½ digital meter
8
Output voltage monitor terminal
4
External control voltage input terminal (Vcon-in)
9
Remote ON/OFF switch terminal
5
Bias voltage ON/OFF switch

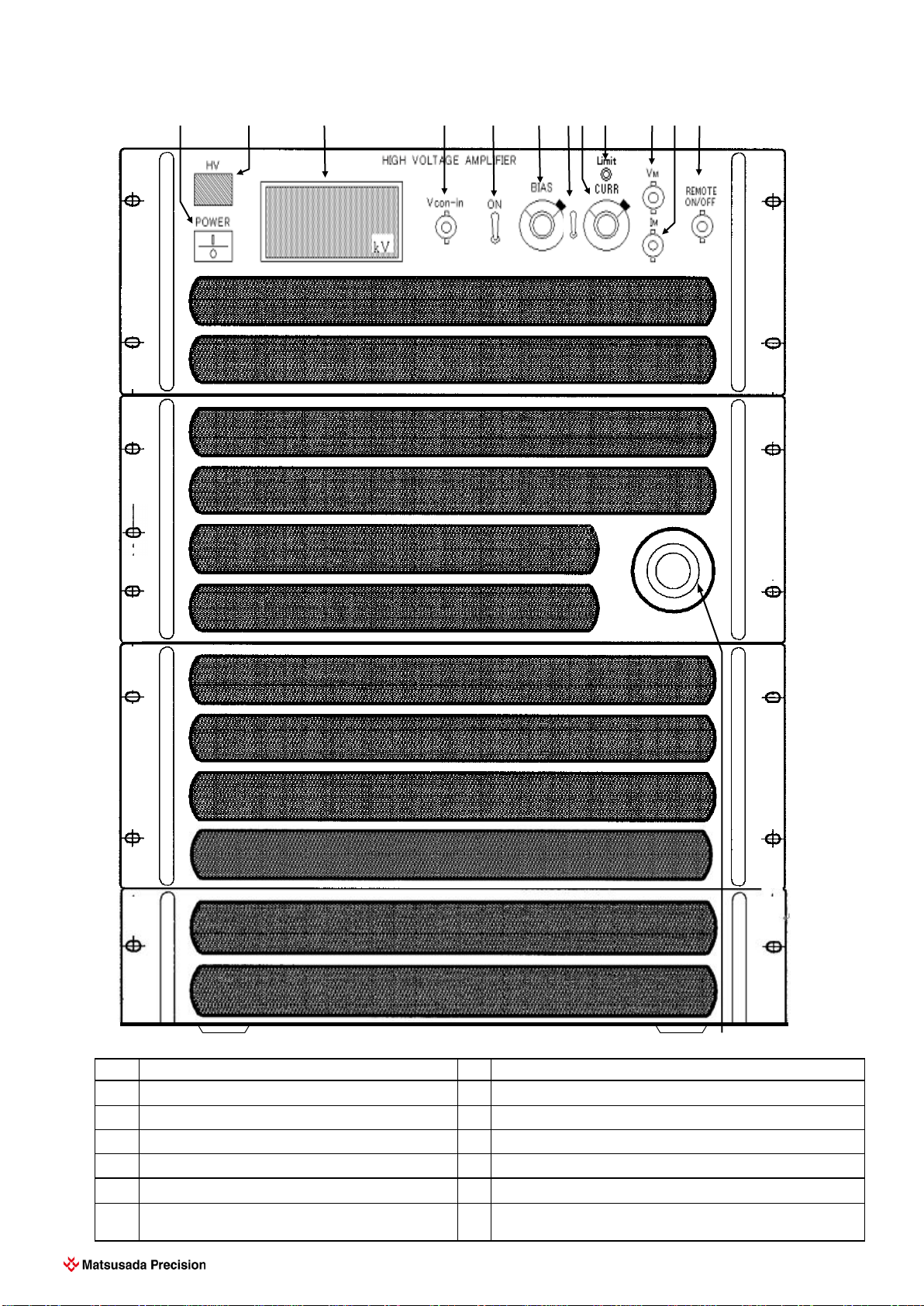

【LOc,LCc and LCx options installed （AMPS-0.6B2000、AMPS-2B200、AMPS-5B80、AMPS-10B40、AMPS-20B20）】
1
POWER ON/OFF switch
7
Cutoff/Limit changeover switch
(Only when LCx option is installed)
2
HV ON/OFF switch
8
Current limit setting dial (10-turn potentiometer)
3
Output voltmeter 3½digital meter
9
Over current LED
4
External control voltage input terminal (Vcon-in)
10
Output current monitor terminal
5
BIAS voltage ON/OFF switch
11
Output voltage monitor terminal
6
BIAS voltage setting dial (10-turn potentiometer)
12
Remote ON/OFF switch terminal
kV
HIGH VOLTAGE AMPLIFIER
Vcon-in
ON
BIAS
VM
REMOTE
ON/OFF
IM
HV
POWER
3
4
5
6
7
8
9
2
1
kV
HIGH VOLTAGE AMPLIFIER
Vcon-in
ON
BIAS
VM
REMOTE
ON/OFF
IM
HV
POWER
CURR
Limit
3
4
5
6
8
9
10
2
1
12
11
Cutoff
Limit
7

3 External View
9
AMPS series
【AMPS-30B20】
1
3
2
4
5
6
7
④
10
8
④
9
④
1
POWER ON/OFF switch
6
Bias voltage setting dial (10-turn potentiometer)
2
HV ON/OFF switch
7
Output current monitor terminal
3
Output voltmeter 3½ digital meter
8
Output voltage monitor terminal
4
External control voltage input terminal (Vcon-in)
9
Remote ON/OFF switch terminal
5
Bias voltage ON/OFF switch
10
Output connector

3 External View
10
AMPS series
【LOc,LCc and LCx options installed （AMPS-30B20）】
9
④
1
3
2
4
5
6
8
13
10
④
11
12
Cutoff
Limit
7
④
1
POWER ON/OFF switch
8
Current limit setting dial (10-turn potentiometer)
2
HV ON/OFF switch
9
Over current LED
3
Output voltmeter 3½digital meter
10
Output current monitor terminal
4
External control voltage input terminal (Vcon-in)
11
Output voltage monitor terminal
5
BIAS voltage ON/OFF switch
12
Remote ON/OFF switch terminal
6
BIAS voltage setting dial (10-turn potentiometer)
13
Output connector
7
Cutoff/Limit changeover switch
(Only when LCx option is installed)

3 External View
11
AMPS series
3-2 Rear View

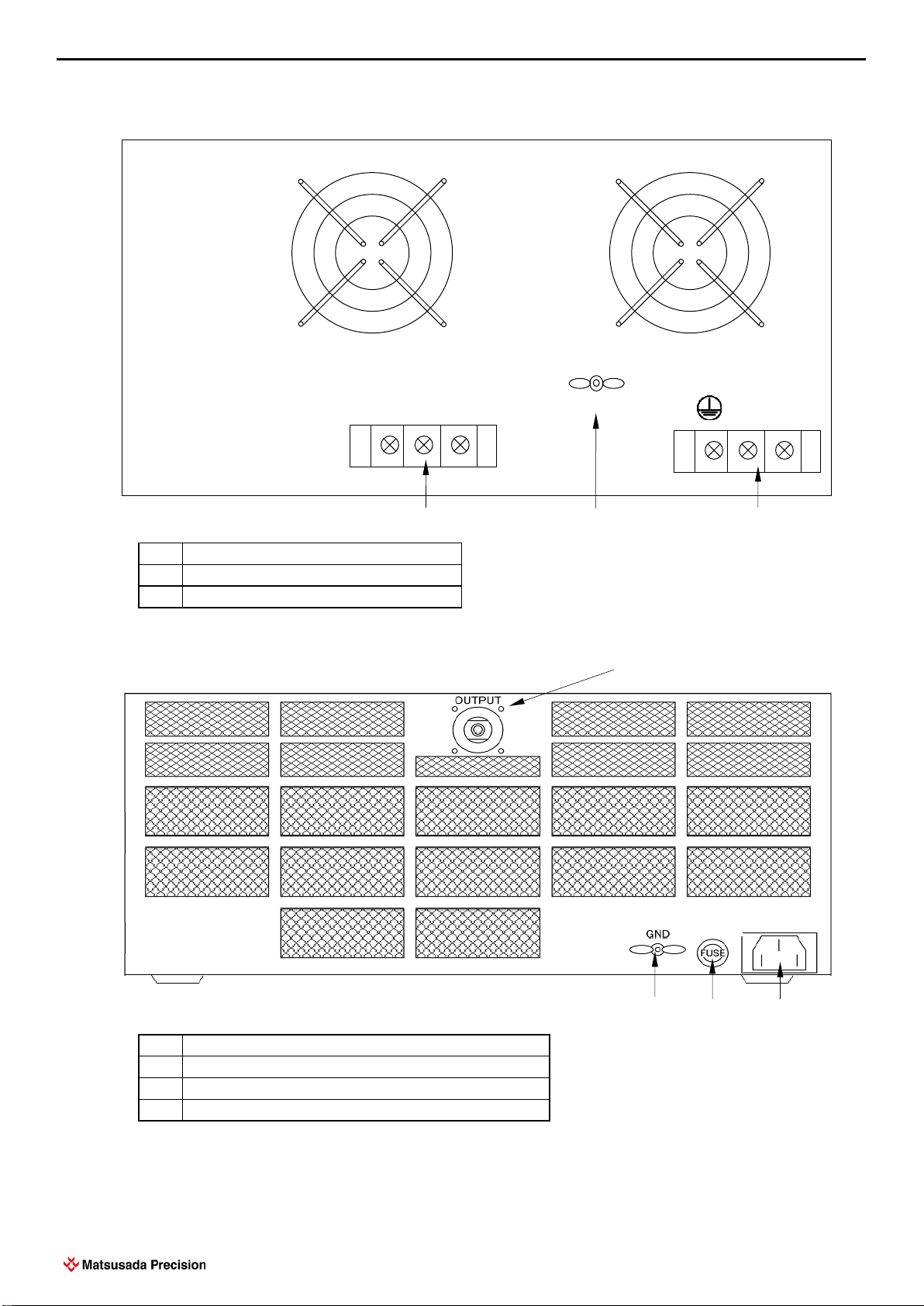

【AMPS-0.6B2000】
1
Output terminal
2
GROUND terminal
3
AC input terminal, 230Vac, 1φ
【AMPS-2B200, AMPS-5B80, AMPS-10B40, AMPS-20B20】
1
Output connector
2
GROUND terminal
3
FUSE: 7A for 2B200/5B80/10A for 10B40/20B20
4
AC input connector: 230Vac, 1φ
1
2
3
N L
OUTPUT
Gnd NC Hi
GND
ＦＵＳＥ
10Ａ
1
2
3
4
AC230V

3 External View
12
AMPS series
【AMPS-30B20】
1
GROUND terminal
2
FUSE: 10A
3
AC input connector: 230Vac, 1φ
①
②
③
AC230V
ＦＵＳＥ
10Ａ
