Matsusada Precision PZJ Series User manual

Instruction Manual
MODEL PZJ series (Single output)
B/N 037.9.077 *037.9.077*Rev. 2.2

Note
All rights reserved.
No part of this publication may be reproduced, stored in a retrieval system, or
transmitted, in any form, or by any means, mechanical, electronic, photocopying,
recording, or otherwise, without the prior written permission of Matsusada Precision.
No patent liability is assumed with respect to the use of the information contained
herein. Moreover, because Matsusada Precision is constantly striving to improve its
high-quality products, the information contained in this manual is subject to change
without notice. Every precaution has been taken in the preparation of this manual.
Nevertheless, Matsusada Precision assumes no responsibility for errors or omissions.
Neither is any liability assumed for damages resulting from the use of the information
contained in this publication.
Trademarks
Company names and product names in this document are the trademarks or registered
trademarks of their respective companies.
Warranty
We will repair this product free of charge if it has malfunctioned under normal usage
conditions within one year of delivery. However, repairs will be charged in the following
cases, even if during the warranty period.
1. Failures and damages that occurred due to inappropriate handling
2. Inappropriate repairs, adjustments, or modifications were made
3. Failures and damages due to fire, natural disaster, abnormal voltage, etc.
This warranty is valid only in Japan.

iPZJ series
Matsusada Precision
For Safe Use of the Product
◆Introduction
The product generates high-voltage and high-energy.
Therefore, wrongly handling or operating the product may result in death or serious injury and maybe
property damage as well. In order to use the product safely, read the instruction manual thoroughly
before use to understand how to use and operate it properly.
Please note that we will not be held responsible for any damage or loss caused by not following the
warnings, cautions, and procedures described in the manual.
Keep the manual with you so that you can read it whenever you want.

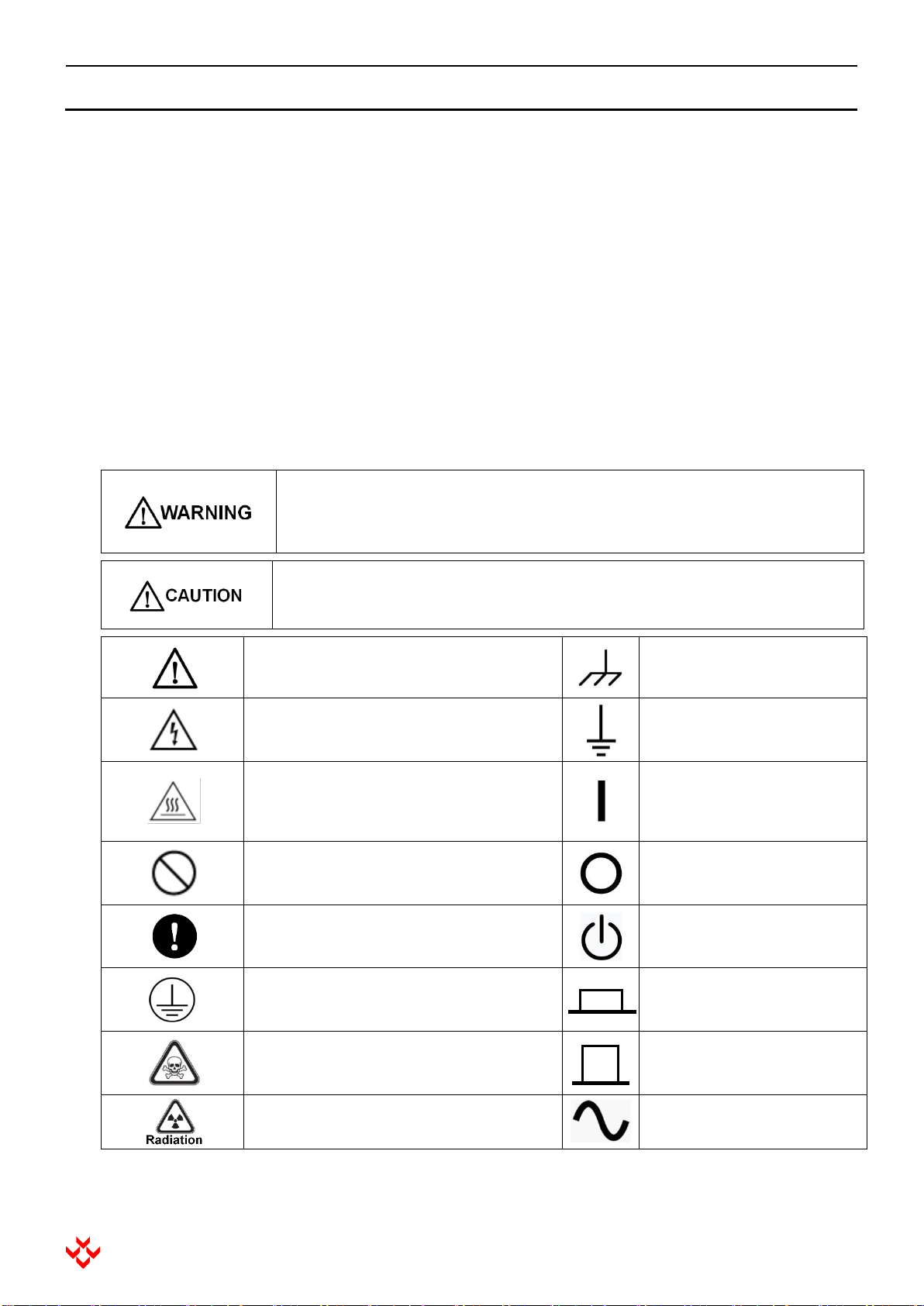

◆Symbols
Symbols are used in the manual and product, which indicate precautions to be observed for safe use.
Understand these symbols first and then read the manual thoroughly.
Some symbols below are not used in products.
Indicates a potentially hazardous situation, which, if not avoided, may
result in serious injury or death.
Indicates a potentially hazardous situation, which, if not avoided, may
result in minor or moderate injury or in property damage.
Indicates danger/warning/caution. Refer
to the instruction manual when this
symbol appears on the unit.
Frame or chassis terminal
Indicates the possible danger of electric
shock under specific conditions, which
may result in serious injury or death.
Ground terminal
High Temperature Caution:
Indicates the possible danger of injury by
high temperature under specific
conditions.
Power ON
Indicates general prohibitions, including
warnings.
Power OFF
Indicates what must be followed.
Standby
Protective earth terminal (ground terminal
for preventing electric shock)
Bistable push button switch
ON
Indicates the possible danger of death if
you drink it and burns or blindness if it
attaches.
Bistable push button switch
OFF
Indicates the possible danger of exposure
to radiation.
Alternative Current

ii PZJ series
Matsusada Precision
Understand the risks.
The Product generates high-voltage and high-energy.
The product is designed for electrical engineers or the equivalents who install, wire, and operate it.
Read the instruction manual thoroughly before use and familiarize yourself with the proper use and
danger of the product.
Make sure to allow only specific people to handle the product.
Make sure to allow only the following people to handle the product:
1. who are electrical engineers or the equivalents and have already familiarized themselves with the
proper use and danger of the product, or
2. who are electrical engineers or the equivalents and have already been trained by the above-
mentioned people, or
3. who work under the supervision of the above-mentioned people.
If people other than those listed above install, wire, or operate the product, it may cause electric
shock, burnout, or injury.
Do not open or remove the case or panel of the product.
Do not disassemble, repair, or modify the product by yourself. High-voltage is applied to the inside of
it.
Otherwise, it may cause electric shock, fire, or malfunction.
Moreover, if you do it, the safety and functions are not covered with the warranty.
The product does not suit to install and use in places where children may be present.
The product is designed to be installed in places such as factories or laboratories. Do not install and
use it where children may be present.
Make sure to ground it.
When the product has a protection ground terminal or GND terminal, make sure to ground it.
When the AC line input of it is an inlet type, connect the attached power cable or a power cable
suitable for your area to an outlet with the ground. Otherwise, it may result in electric shock or fire.
Regarding power cable
When a power cable is enclosed or attached to the product, do not use it for other products.
When no power cable is enclosed with the product, prepare the power cable suitable for the usage
environment and area by yourself.
Regarding the connection of power cable
Electrical engineers or the equivalents who have already been familiarized with the proper use and
danger of the product should connect the power cable to the AC input by referring to the instruction
manual.
Regarding products that have acquired the safety standard, check the page describing the over-
voltage categories too.
Do not process or damage power cables
It may result in electric shock or fire.
Regarding the input voltage
Check the page describing the input terminals and input voltage in the instruction manual.
Do not provide any voltage out of the specifications.

iii PZJ series
Matsusada Precision
Regarding the fuse
The product builds in a protective fuse. In the case where a fuse holder is arranged outside of the
product, you can replace it by yourself. Refer to the instruction manual to replace it.
In the case where a fuse holder is not arranged outside of the product, you cannot replace it by
yourself.
In this case, do not open the case or panel of the product and contact us.
The product is designed for indoor use.
Use the product indoors only, not outdoors. Even indoors, do not use it if there is a possibility of
water leakage, flooding, or snow covering.
Regarding operating temperature and humidity
Use the product within the range of the specifications describing in the instruction manual.
Do not use it in a place where the ambient temperature exceeds the specified range or a closed
place.
Do not install the product in places where condensation may occur.
Otherwise, insulation deteriorates and it may cause electric shock, fire, or malfunciton.
Do not place anything on top of the product.
Otherwise, they may fall or tumble from it.
Do not put anything into the product.
Do not put foreign objects such as metal or liquid into the product through the air inlets, air outlets,
or other openings. Otherwise, it may result in electric shock, fire, or malfunction.
Operate the product with the right hand.
Use only your right hand to operate the product and keep your left hand away from it, which can
reduce the risk of electric current flowing through the left hand to the vital organs of the body in the
event of an electric shock.
Do not touch the wiring/load connected to the output and any terminals/connectors during
the operation or just after turning output off.
Very high-voltage is on the terminals and connectors during the operation and even just after the
output is turned off. Touching them may result in serious injury or death by electric shock.
The terminals here mean all terminals like input and output terminals and terminals for
communications and remote controls.
Turn off the product before touching the wiring/load connected to the product and any
terminals/connectors on the product and cut it off from the AC input.
Before touching the terminals/connectors and wiring/load, turn off the product and unpug the AC
input cable from the outlet or turn off the AC input breaker. Then, check there is no voltage remained
using a tester.
Since the output and sense terminals are connected to condensers in it, there is high-voltage
remained on them even just after it is turned off.
In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding
apparatus and check the voltage again.
The terminals here mean all terminals like input and output terminals and terminals for
communications and remote controls.

iv PZJ series
Matsusada Precision
Level the product out to use for good heat dissipation.
Do not install the product upside down or sideways. If not, the inner heat sissipation will be
insufficient.
It may result in smoke or fire due to components deterioration.
Do not install the product in a place where cold air directly blows to it.
It may result in electric leakage or burnout due to condensation.
Do not install the product in a place where it is exposed to corrosive gases or liquids.
It may result in smoke or burnout due to components deterioration.
Do not install the product in a dusty place.
Accumulating dust in the air inlet will make hard to cool it down it, it may result in malfunction.
In that case, remove dust immediately.
Do not block the air inlet and outlet.
Secure 30 cm space at least around the openings.
If they are blocked, the product cannot show the rated performance due to the internal temperature
increase. Moreover, components deteriorate and it may result in smoke or fire.
Remove wirings to and from the product when work like welding near it are done.
Do not wipe the equipment with a dust cloth wet with chemicals (thinner or the like) or water.
Otherwise, it may result in an electric shock, electric leakage, or burnout due to water getting inside.
Regarding fan replacement
When products equip a fan, it has a lifetime. It will be worn out and deteriorated with the time
passed and its operation may become unstable. Also, its lifetime greatly varies depending on the
usage environment such as temperature, humidity, dust. It requires to be replaced at regular
intervals to extend the lifetime. For the replacement, contact us.
(It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of
electric shock.)

v
Table of Contents
1Introduction .......................................................................................................................................1
1-1 Greetings....................................................................................................................................1
1-2 Unpacking...................................................................................................................................1
1-3 Initial inspection ..........................................................................................................................1
1-4 Installation conditions..................................................................................................................2
1-5 Precautions for handling .............................................................................................................3
1-6 Torubleshooting..........................................................................................................................3
1-7 Input specifications and operating conditions..............................................................................4
2External Appearance.........................................................................................................................5
2-1 Front panel..................................................................................................................................5
2-2 Rear panel..................................................................................................................................5
3Instruction for Handling......................................................................................................................6
3-1 Overview.....................................................................................................................................6
3-2 Features .....................................................................................................................................6
3-3 Operation....................................................................................................................................7
3-4 Protections..................................................................................................................................7
4Optional Features..............................................................................................................................8
4-1 Output voltage monitor (-L2) .......................................................................................................8
4-2 Remote ON/OFF switch (-LS).....................................................................................................8
4-3 External sensor input (-LVs)........................................................................................................9
4-4 Overload protection by drooping (-LC)........................................................................................9
4-5 Cancel the power failure protection (-LN)....................................................................................9

1 Introduction
1PZJ series
Matsusada Precision
1-1 Greetings
Thank you very much for your purchase of Matsusada Precision piezo driver. This Instruction Manual
was written to provide the user with instructions on the safe operation of our piezo driver. Matsusada
Precision takes every precaution to ensure the quality of our products. Please refer carefully to this
manual in order to use this product correctly and safely, and to achieve the best possible performance.
We have made every effort to provide all of the necessary information in this manual. However, please
do not hesitate to contact us if you find any errors or omissions.
1-2 Unpacking
After unpacking the product and checking the power supply, make sure all of the following accessories
are included.
<Accessories>
・Instruction manual (This)
・Output cable (1)
・Sensor cable (1)
1-3 Initial inspection
After unpacking the box, check whether or not any abnormalities exist on the unit before wiring.
1. Check the front and rear panels, top surface, and chassis for scratches, dents, or other damage on
the unit caused by handling or transportation.
2. Check whether the dial turns smoothly on the front panel.
3. If you find any abnormalities, please contact the carrier and us.
1 Introduction

1 Introduction
2PZJ series
Matsusada Precision
1-4 Installation conditions
Set and use the unit horizontally.
The product has cooling air intake and exhaust ports on the top and back of the unit.
Keep enough space to ensure good ventilation for use.
When installing the unit in a closed cabinet, mount forced exhaust to prevent exhaust
heat from returning to the air inlet.
If dust collects in the air inlet, remove it immediately. it prevents the unit from cooling.
Do not use equipment layout that makes it difficult to operate disconnects like breakers.
Do not place anything on top of the unit.
Avoid using the unit in locations that are subject to dust and corrosive gas.
Do not install the power supply in locations that are prone to condensation.
Do not use substitute parts in the internal circuit or modify there.
For repair For modification, please contact us.
Do not allow liquids or metals to get inside the power supply via ventilation holes or
other openings. Doing so could lead to breakdown, electric shock, or fire.
Do not store or use the product in a place where conductive dust, such as iron
powder, can enter through the air inlet/outlet.
Doing so may cause a short circuit, resulting in electric leakage, burnout, fire, or
malfunction.
When moving this product, be careful not to apply shock to the protrusions on the front
panel or rear panel.
The power supply unit uses high voltage. Failure to observe safety precautions and use
the product properly may result in electric shock or death.
When using or inspecting the product, observe the following precautions to use it
properly.

1 Introduction
3PZJ series
Matsusada Precision
1-5 Precautions for handling
Using this product in any way not described in this instruction manual may impair the protection
functions equipped with the product.
For safety reasons, the AC input cable earth and the GROUND terminal on the case must be
grounded.
Use a short and thick (5SQ or more) wire to connect the case earth and the load earth so that it
becomes a single earth ground.
The shielding wire of the output cable must be connected to the load frame (in order to prevent
electric shock against load discharge, etc.)
Do not use the output cable equipped with this product for other products, as it is dedicated for the
applicable model.
Never touch the load immediately even after the output is turned OFF. Before touching the load, make
sure that the POWER ON/OFF switch is OFF, and also you must ground the output or confirm that
the voltage is zero by using the voltmeter of the product or other high-voltage voltmeter.
Connection to GROUND
1-6 Torubleshooting
In case of no output voltage,
1. Check whether the specified voltage is input.
Power supply voltage: 115 Vac ±10% 50/60 Hz single phase
230 Vac ± 10% 50/60 Hz single phase (with –L(230V) option)
2. Check whether or not the overcurrent protection (OCP) is effective.
(See [3-4 Protections] in the instruction manual.)
*OCP; Overcurrent protection
3. Make sure that the option functions are connected properly.
To replace the fuse on the rear panel
Use a 250V5A fuse.
To replace the fuse, turn the cap of the fuse holder counterclockwise with a flat-bladed screwdriver.
After the replacement, push the cap until it is locked in place, and turn it clockwise.
If nothing meets the above case, or if the problem is not solved after checking, please contact our sales
office where you purchased the product.
The AC input voltage is applied to the fuse terminal!
Be sure to disconnect the AC input cord before replacing the
fuse.
Power supply chassis
Load frame
Ground
Output cable
Ground terminal
Load
FUSE

1 Introduction
4PZJ series
Matsusada Precision
1-7 Input specifications and operating conditions
Item
Rated input voltage
115Vac*1
Voltage Tolerance
±10%
Frequency
50/60Hz
Input current
1.5A
Operating environment
Indoor use, OVC II *2
Pollution degree
Pollution degree 2 *3
Operating temperature
0°C to +40°C
Operating humidity
20% to 80% RH (no condensation)
Storage temperature
-20°C to +60°C
Storage humidity
20% to 80% RH (no condensation)
Installation altitude
2000m or lower
*1 230Vac with –L(230V) option
*2 OVC II:Energy-consuming devices that are supplied with power from fixed equipment
*3 Pollution degree 2: Only non-conductive pollution, except for temporary conductivity due to
condensation.

2 External Appearance
5PZJ series
Matsusada Precision

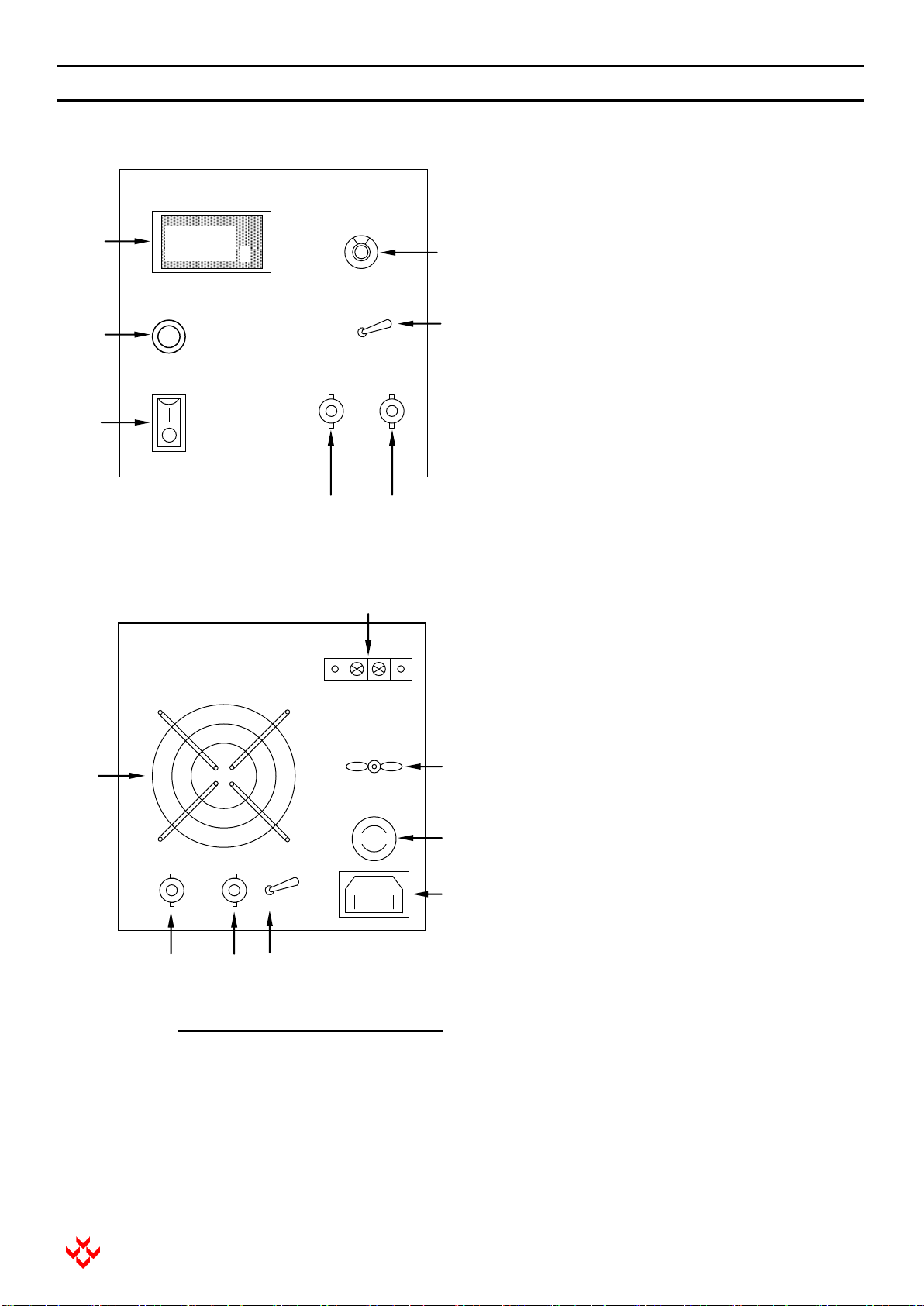

2-1 Front panel
2-2 Rear panel
Dimension: 140W×140H×330D [mm]
2 External Appearance
GND
FUSE
ON
ON
V
POWER
OFF
IN
OUT
BIAS
OUTPUT
(1) POWER ON/OFF switch
(2) OUTPUT ON/OFF switch
(3) Output voltage meter 3½ digits
(4) Vcon-in connector
(5) Output connector
(6) Bias voltage ON/OFF switch
(7) Bias voltage setting dial
(1) Fan
(2) GROUND terminal
(3) FUSE (5A)
(4) AC input connector
(5) Sensor input terminal (-LVs option)
(6) Output voltage monitor (-L2 option)
(7)Terminal block for options (-LS option)
(8) External sensor select switch (-LVs option)
(3)
(2)
(1)
(4) (5)
(7)
(6)
(2)
(3)
(4)
(1)
(6) (5) (8)
(7)

3 Instruction for Handling
6PZJ series
Matsusada Precision
3-1 Overview
This product is a piezo driver power supply that is designed optimally for driving piezo elements. At
startup, the output current is increased up to three times the rated value so as to respond at high speed.
It is also equipped with full protection functions to prevent damages to the elements.
3-2 Features
This unit is a large peak power piezo driver. The peak current is three times more than average current
can be drawn during the step operation.
Model
Output voltage
[Vdc]
Output power
[W]
Output current
Rated*
Imean
[mAmean]
Peak
Ip≦10msec
[mA]
PZJ-0.1P
0 to +100
15
300
900
PZJ-0.15P
0 to +150
15
200
600
PZJ-0.3P
0 to +300
15
100
300
*The Output current for DC is 50% of rated current.
The piezo element is capacitive so that as shown
in Fig. 1, the output power (current) is required
only on driving (when the voltage changes). While
the piezo element is in static state (when the
voltage is constant), no output power is required.
This power supply is so designed to incorporate
such characteristics.
The output waveform of this product is as shown
in Fig. 2. The ability to extract a peak current
three times the rated output current can increase
the response of the piezo device, enabling faster
operation.
If the average current IAVE is used beyond the
rated output current Imean, the output is stopped.
(See “Overcurrent protection in instruction manual.)
3 Instruction for Handling
Output waveform by general-purpose
amplifiers
Fig. 1
Output waveform from PZJ
Fig. 2
Vdc max
Imean
0V
0A
0V
0A
Vdc max
≦10ms
IAVE≦Imean
Ip
-Ip

3 Instruction for Handling
7PZJ series
Matsusada Precision
3-3 Operation
1. Make sure that the connection to the product is correct before starting the operation.
See [1-5 Precautions for handling, Connection to GROUND].
2. Connect the AC input cord to an outlet.
3. By turning the POWER ON/OFF switch ON, the unit is ready for operation.
4. By turning the OUTPUT ON/OFF switch ON, the yellow indicator will light up to indicate that the power
supply is ready for operation.
5. By inputting control voltage of 0 to 10V into Vcon-in connector, the output voltage(0 to rated current)
can be controlled.(The input impedance of Vcon-in is 10kΩor more.)
6. When bias ON/OFF switch is turned ON, the bias voltage (0 to rated output voltage) can be controlled
with the bias voltage setting dial.
7. Output voltage meter displays its average output voltage.
AC input connections should be performed by a trained electrician, or personnel with a similar
level of knowledge who understands how to use this product correctly and who is familiar with
the risks involved.
For safety reasons, the GROUND terminal must be grounded.
Connect to the power outlet with the ground using the supplied AC input cord or a power cable
suitable for areas to be used.
The outlet for which the supplied AC input cord or a power cable suitable for areas to be used
should be placed near the product so that can be easily disconnected from it.
Before connecting wires, be sure to cut off the AC input cord. After the work is complete, confirm
that all wiring is correct and that there are no loose connections before turning on the AC input
power.
Hazardous voltage is generated at the output terminals and the load. In order to prevent electric
shock, do not allow to touch the load and connections.
3-4 Protections
a.Power failure protection
There is a circuit installed that makes power supply not to output after recovery from power failure.
The high voltage is not yet output after recovery from power failure.
To rest, the OUTPUT ON/OFF switch needs to be turned OFF and ON.
b.Overvoltage protection (OVP)
With the overvoltage protection, the unit limits the output voltage not to exceed the set value in case
the output voltage exceeds the maximum rated voltage, protecting the unit and load.
c. Overcurrent protection (OCP)
With the overcurrent protection, the unit cuts off the output of all channels when the averaged output
current of a channel exceeds the maximum rated current. At the same time, the yellow indicator of
the OUTPUT ON/OFF switch turns off.
To rest, turn OFF the POWER ON/OFF switch once and then, turn it ON again.

4 Optional Features
8PZJ series
Matsusada Precision
4-1 Output voltage monitor (-L2)
The monitor voltage is output from the output voltage monitor terminal on the rear panel.
(Output voltage: 0V to rated voltage → Monitor voltage: 0 to 10V) The output impedance is 1 kΩ.
The output will not turn ON when OCP or power failure protection is activated.
To reset, turn the POWER ON/OFF switch OFF, and then, ON again.
4-2 Remote ON/OFF switch (-LS)
The output can be turned ON/OFF with the remote switch.
〈CONNECTION DIAGRAM〉
Remote switch
Operation by
open collector *1
Not using
remote switch operation
Note1: S.G.: Signal Ground
*1 Cautions for use of open collector.
When an open collector is used with -LS function of options, use it according to the following
conditions. Definition of Open Collector
Output
Switch
Open collector
ON
Short
VCE
0.4V or less
(10mA)
OFF
Open
VCE
2V or more
(Open 5V)
4 Optional Features
Terminal for remote switch
S.G.Note1
(1) (2)
Remote switch
operation by
switching
Switch
Short: Output ON
Open: Output OFF
REMOTE SWITCH ACTION
Short
Open collector can be used
instead of switching.
E
C
Terminal block for
rear panel option
If (1) and (2) are connected with an
attached short hardware, -LS function
will not work.
5V
E C

4 Optional Features
9PZJ series
Matsusada Precision
4-3 External sensor input (-LVs)
Turn ON the External sensor select switch.
Inputting the external displacement sensor signal enables the closed loop operation.
The input signal should be set to 0 to 10 V (10Vmax at maximum displacement) in advance.
Displacement in accordance with Vcon input voltage can be obtained by inputting 0 to 10V from Vcon-in
terminal.
* Check the maximum input voltage and maximum displacement of the piezoelectric element to be used.
4-4 Overload protection by drooping (-LC)
While the standard model is designed to cut off the output whenever the output voltage reaches 105% of
its rated maximum voltage, this option limits the current and decreases voltage automatically when
reaches 105% of its rated maximum.
As the overcurrent state is canceled, the output voltage will be resumed from the drooping state.
4-5 Cancel the power failure protection (-LN)
This function cancels the power failure protection. This will enable the output ON/OFF by AC input
ON/OFF.
(If the output is ON at the time of power failure, the output will be turned ON by restoring the power. On
the other hand, if the output is OFF at the time of power failure, the output will be turned OFF by
restoring the power.)

PZJ series
Matsusada Precision
Revision History
Rev. No.
Rev. Date
Rev. Description
2.0
2019/06
Integrated PZJ series
2.1
2021/04
Changed the format, reviewed the contents.
2.2
2021/04
Corrected words.
