Ultra compact/Bench-top power supply
R4K-80 Series
www.matsusada.com
www.matsusada-us.com
R4K-80 series
16V to 320V / 0.5A to 10A

02
Ultra Slim DC Power Supplies

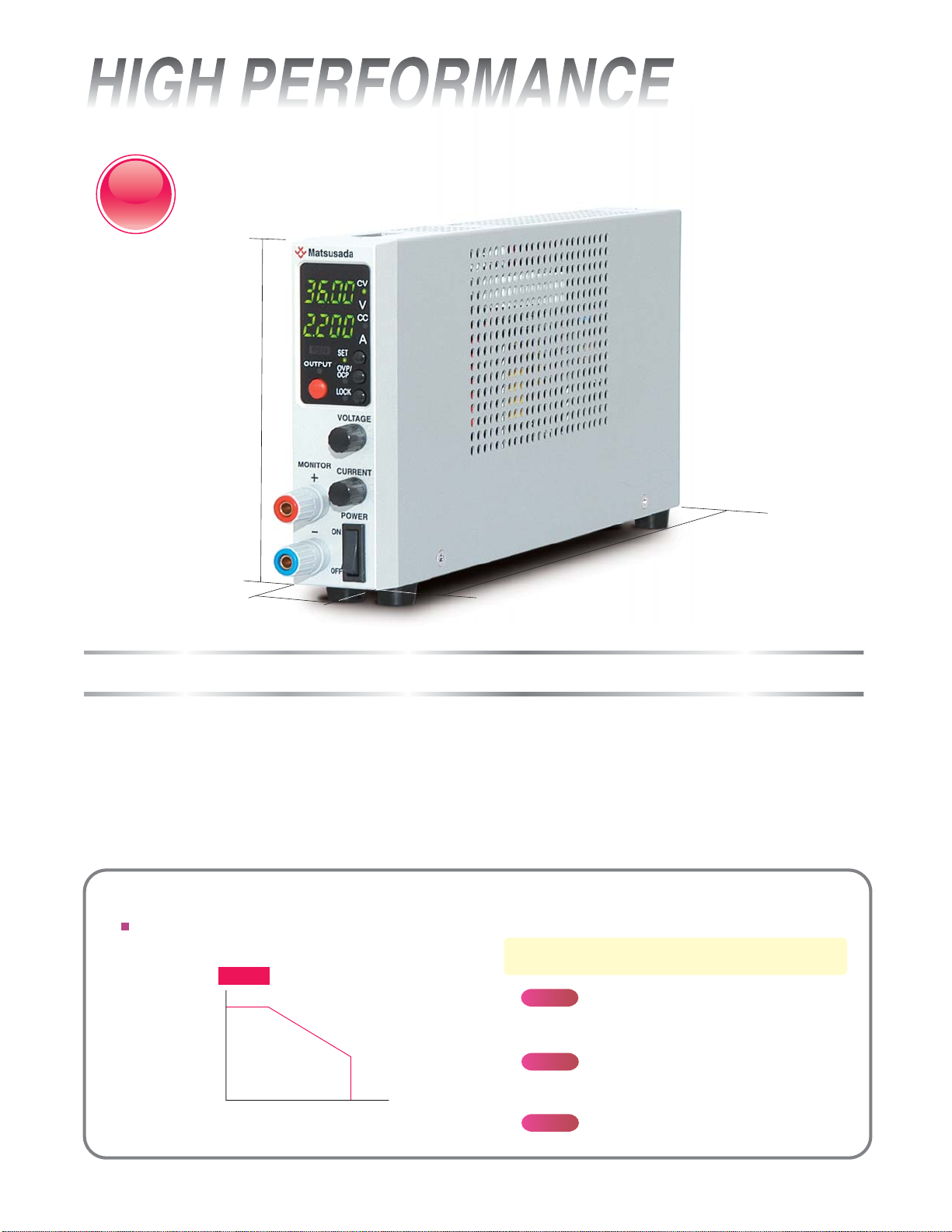

Ultra Slim Sophisticated Bench-top Power Supply
More useful functions are added to existing RK-80 series.
1.38"
1.38"
(35mm)
(35mm)
1.38"
(35mm)
10.63"
10.63"
(270mm)
(270mm)
10.63"
(270mm)
4.88"
(124mm)
NEW
R4k-80 series is higher performance and next generation model of existing RK-80 series DC variable power supply,
which has been receiving good reputation for its innovative compact size and variable range feature. 4-digit meter and
high resolution D/A, A/D converters are added newly for more precise setting and reading. Needless to say, the
innovative compact size, variable range feature and high operability are remaining same as conventional RK-80. R4K-80
series is the best suitable DC power supply for a variety of applications from laboratory experiment to line productions.
R4K-80 series
New user-friendly functions
R4K-80
36V/2.2A
16V/5A
No. 1
No. 2
No. 3
Quick access to functions needed
New and useful functions and stylish front panel design!
Useful new feature of variable setting range
Set voltage/current value within 80W, then turn on output
*Not automatic range change which can output 80W all the time. Resetting is required.
Preset setting is automatically displayed
when output is off.
OCP is added for more safety operation.
Quick lock with one touch action.
Two selectable lock options.

03
80 Ｌ
80 Ｍ
80 Ｈ
80
1
3
4
2
＋
MetelRS-232C Module
OUT
Useful New 4 Additional Functions
As 1 click of rotary encoder is 1 count, fine setting is possible
Digital interface shall make the data logging and automatic
measurement easier.
*Conversion adapters suitable for RS-232C, RS-485 or GPIB is separately required.
With pulse/ramp sequence function(optional) various test pattern
can be set without personal computer.
High resolution
D/A, A/D converter integrated
4-digit meter
Digital interface as standard function
Various waveform with pulse and ramp
sequence function at will
Lineup
MetelRS-232C Module
OUT
1.38"
(35mm)
10.63"
(270mm)
Power factor correction and
universal input
Compact and light weight space
saving design
Unique low noise power
conversion technology
for research application
For wider output range
R4K-80L:16V/10A
R4K-80:36V/5A
R4K-80M:110V/1.3A
R4K-80H:320V/0.5A
4 different models with various
output voltages
Multiple units operation with
master/slave and digital
interface
*When 115VAC Maximum Output
MODEL
Output voltage
(V)
Output current
(A)
Output
Power
(W)
Ripple
(mVrms) (mArms)
Temperature coef.(ppm/°C)
CV CC
±200
0 to 10
R4K-80L
5100 to 16
0 to 5
R4K-80
550 to 36
0 to 1.3
R4K-80M
80
10 20 to 110
0 to 0.5
R4K-80H
20 10 to 320
±100
85 to 264VAC
47 to 63Hz
Single phase
0.9 kg 1A 0.5A 99%
*
Input Voltage
Input Current (typ) Power factor (typ)
Weight
(typ)
AC Input
AC in
115V AC in 230V

04
…
t1t5
t2t6
t3t7
t4t8
9
LOCK
LOCK LOCK
Function to memorize 3 different voltage and
current settings in addition to standard preset
function.
No need to adjust the output when different
setting, and convenient function for production
inspection process or testing which require
frequent data taking.
①
Press down SET
② Select a memory
with 3 buttons
③ Set voltage and
current
For more convenient operation
Multi Setting Function
Function to output ON/OFF of total 32 units from one master unit.
(when master/slave*)
It is possible to delay the ON/OFF time, and simultaneous ON/OFF
setting is possible as well.
Ideal function for application which require time delay for ON/OFF setting.
Delay Trigger Function
OUTPUT ON
(From Master)
OUTPUT OFF
(From Master)
Up to 32 units
Master
Slave1
Slave2
Slave3
*setting range of t1 to t8 is 0.0s to 99.9s
Memory a
*Master/Slave function is available on the model without -LUs1 option.
Memory b
Memory c
Lock all the function other than
reset lock mode, and effective
for purpose to avoid
mis-operation when controlled.
Full LOCK Normal LOCK
Lock voltage and current
setting dial, and effective for
purpose to avoid changing
output setting by mistake or
when easy emergency stop is
required.
Function to select two different lock functions for two different purpose."Full Lock" locks all the function on front panel, and "Normal
Lock" locks all the function except for ON/OFF. "Full Lock" mode shall be good in case mis-operation have to be completely avoided,
and "Normal Lock" mode shall be good in case to avoid mis-operation but secure the way for emergency stop of power supply. You
can select the best mode according to your level of "Security", (in both modes, emergency stop is possible with Power Switch.)
Two Mode Lock Function

05
Dual tracking control, which enables
both positive and negative outputs
simultaneously in master slave
operation, is possible. Multi outputs
and various versatile operations are
also possible by combining above
dual tracking control and slave local
mode. Positive and negative output
(+V,-V) of dual tracking control and
set output voltage of slave local
mode can be output simultaneously
by turning on the master unit.
*Please refer to P.10 for detail connection.
A
A
A
Dual Tracking, Multiple Outputs
A
A
Dual Tracking Multiple Outputs
Master
Master
Slave
remote
Slave remote
(Output following Master)
Master
Slave
remote
Dual
tracking
Slave
local
+
+
+
−
+V
0
−V
−
OUTPUT ON
(at Master)
OUTPUT ON
(at Master)
Master
+V1
+V2
0
−V
RS- 232 C
RS- 485
GPIB
CO-G 32 m
CO-MET 2 - 25
CO-MET 2 - 9
CO-MET 4 - 25
USB
CO-U 32 m
hub
Slave remote
(Output following Master)
Slave local
(The value set by front panel)
Master/Slave Control
32 units can be connected to
one CO-G32m.
32 units can be connected to
one CO-U32m.
Dsub⇔Modular jack
Digital controller
or converter
Enable digital control via GPIB/ RS-232C/ RS-485/ USB as well as one control with
Master/Slave function.
Master
Slave
Up to 32
GPIB enables
control of up to 14
CO-G32m modules.
CO-M cable
One 2 meter cable is
provided per unit.
Please notify your sales
representative if you
need a longer cable or
additional cables.
CO-M cable
One 2 meter cable is
provided per unit. Please
notify your sales
representative if you need
a longer cable or additional
cables.
Master/Slave control is only possible
with units with the same model number.
Master/Slave function is available on the model without -LUs1 option.
The Master/Slave control function allows you to control up to 32 units connected in parallel
from a single unit.
Delay trigger function at Master/Slave control can be set for each unit. Furthermore delay trigger function
at Master/Slave control can cancel one control functions except for Output by switching Remote/Local, and
can set voltage and current preset.
Digital Interface
A
Control
function
Write
function
Reading
function
Output ON/OFF setting
Status output
(fault/output/OVP/OCP/OTP/ACF/reversible sense connection)
Maximum 32 units digital control
One control function for multiple units
*
Minimum value of each model is same as minimum display of front panel meter.
Output voltage setting
/Output current setting
OVP setting
/OCP setting
Output voltage reading
/Output current reading
Output voltage setting
/Output current setting
OVP setting
/OCP setting
Percent mode(100.00%),
*voltage current value mode
(maximum rated voltage and
current value)
Percent mode(100.0%),
voltage current value mode
(maximum over voltage
/over current protection value)
Percent mode(100.00%),
*voltage current value mode
(maximum rated voltage and
current value)
Percent mode(100.00%),
*voltage current value mode
(maximum rated voltage and
current value)
Percent mode(100.0%),
voltage current value mode
(maximum over voltage
/over current protection value)
Various Digital Control Functions
USB can be
extended via
USB hub.

06
1
15
16
17
2
3
4
5
6
7
8
9
10
11
12
13
14
1 12
13
14
15
16
17
18
19
20
21
22
2
3
4
5
6
7
8
9
10
11
Real size

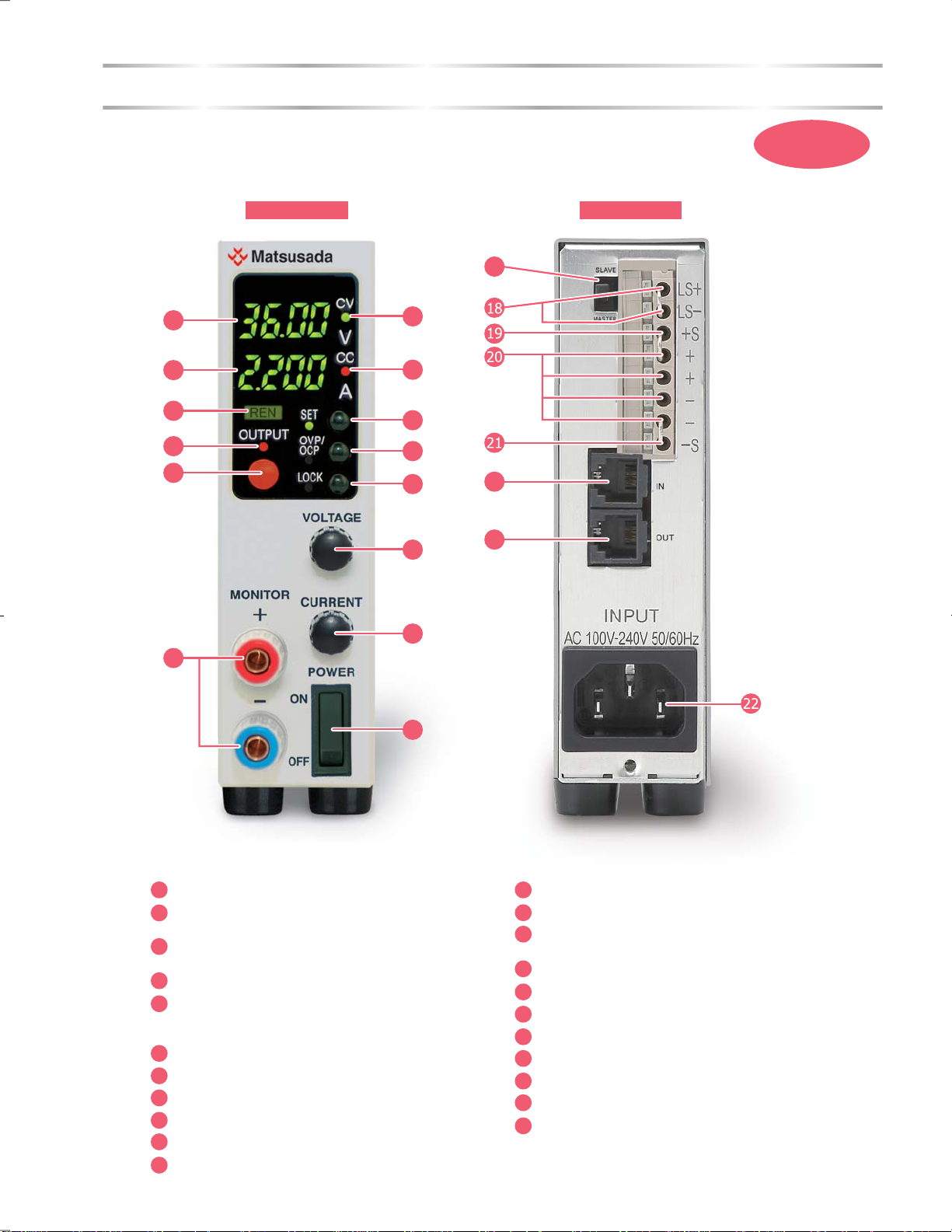

Rear panelFront panel
Functions
Output voltage and OVP setting display
Output current and OCP setting display
(mA for R4K-80H)
Remote programming display
Light up when output voltage/current control in remote mode.
Output display Light up when output is on.
OUTPUT ON/OFF switch
To be used to turn output on/off when local mode
as well resetting protection functions.
Monitor terminal
Constant voltage operation mode display
Constant current operation mode display
PRESET switch
OVP/OCP switch
LOCK switch
OUTPUT voltage·OVP setting dial
OUTPUT current·OCP setting dial
Power ON/OFF switch
This has priority over all operations for safety reason.
Master/Slave change switch
Digital interface IN For Master/Slave function too
Digital interface OUT For Master/Slave function too
Remote output ON/OFF switch
+Sense
OUTPUT terminal
- Sense
AC inlet

07
+S
- S
R
VOIO
- +
VL
5V
or VCE
*
Remote Functions
Load
Compensate the
voltage drop (V0-VL)
due to resistance of
output lead or drop
of stability by contact
resistance.
(maximum 0.5V)
*+S is common. So
external control voltage
shall be input with +S as
reference. Otherwise it
can cause failure.
Remote sensingRemote switch ON/OFF
Sink current 1mA
Output
ON
OFF
Open collector
VCE 0.4V
VCE 2V
Relay
SHORT
OPEN
+S(common)

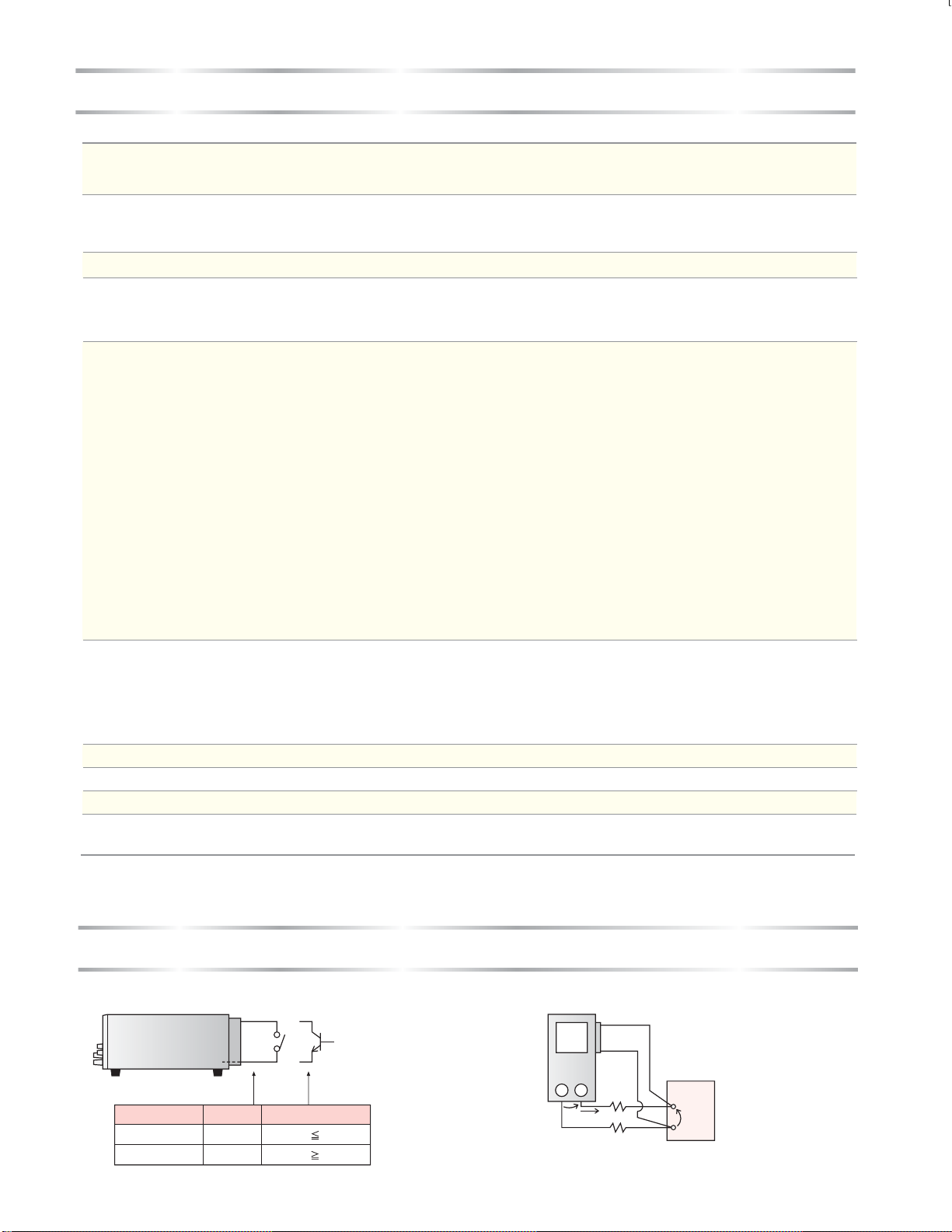

Specifications
CV Mode : By rotary encoder on front panel
CC Mode : By rotary encoder on front panel
Wide output range, automatic limit setting at 80W for voltage and current
In CV mode output current drop down when output power is more than 84.05W
In CC mode output voltage drop down when output power is more than 84.05W
Lock function locks the output voltage and current setting
Voltage : 4-digit digital meter. *Accuracy is ±0.5% FS ±2 digits
Current : 4-digit digital meter. *Accuracy is ±0.5% FS ±2 digits
(*Accuracy of preset setting is ±1% FS ±2 digits)
Over voltage protection (OVP) : Cut off the output at set value
Setting range : appx. 5% to110% of rated maximum voltage
Setting : By front panel rotary encoder
Reset : By output ON/OFF switch or remote switch (manual control)
Over current protection (OCP) : Cut off the output at set value
Setting range : appx. 5% to110% of rated maximum current
Setting : By front panel rotary encoder
Reset : By output ON/OFF switch or remote switch (manual control)
Over temperature protection. (OTP) : Cut off output at abnormal inside temperature.
Reset(after temperature get down to normal temperature) : Output ON/OFF switch or Remote switch (manual control)
Input brownout(ACF).Blackout protection
Output is cut off when input voltage decreased.
Reset (when normal voltage value or recovery from blackout)
Manual recovery by OUTPUT switch or remote switch for blackout protection(re-output protection function).
Automatic recovery when blackout protection is canceled.
Sense reverse connection
Remote switch ON/OFF(TTL or external relay),Remotesensing
Delay trigger: Individual setting of ON delay and OFF delay
(0.0 to 99.9sec)
Multi setting function: Voltage and current memory "a", "b" and "c" setting in addition to standard voltage and
current preset
0°C to 40°C
-40°C to +85°C
20% to 80% RH (no condensation)
±250V-DC
(Positive or Negative terminal grounding)
Output Control
Output Function
Lock Function
Output Display
Protections
Other Functions
Operation Temp.
Storage Temp.
Storage humidity
Isolation voltage

グラウンドプレート
side
back
OUTPUT
OCP
LOCK
SET
OVP/
V
CC
A
CV
front
CABLE TYPE 4
CABLE TYPE 1 CABLE TYPE 3
+S
-
-S
-
+
+
LS-
LS+
INPUT
AC 100V-240V 50 60Hz
4.88"(124)
0.31"(8)
10.63"(270)0.89"(22.7) 0.16"(4)
1.38"(35)
Accessories
·Input AC cable 2.5m single phase 3pin type(1)
·Instruction manual(1)
·Ground plate(1)
Ground plate *For safer operation connect ground plate and output terminal.
125V / 10A 250V / 10A
(standard)
250V / 10A
AC Input Cable
Dimensions inch(mm)
08

t2
OUTPUT
ON
t1
OUTPUT
OFF
tb tc toff
a
b
c
USB
t1
a
c
b
ta t2 tb t3 tc t4 toff
ta
Options
*
1) When choose -LUs1 option, standard digital interface shall not be added.
*
2) See CO series catalog for details and function of digital interface and USB interface.
When ordering, suffix the above option number to the model number. <e.g.>R4K-80-LUs1,R4K-80L-LDe,R4K-80M-LDeUs1
When controlling several R4K-80 power supplies via USB, a USB hub will
be required between the PC and R4K-80 power supplies.
Enable digital control via USB
-LUs1 : USB Interface Board *1*2
-LDe: Pulse Ramp Sequence
ta, tb, tc and toff can be set with range 1.0s to 99.9h respectively.
PULSE SEQUENCE
Using the stored voltage and current
setting in each memory of a, b and c
and multi set function, sequence
operation is possible. The setting of
repetition to say nothing of a
continuous driving can be set.
Various different operations, such as
repetition of memory a and b or b ,c
and off, are possible by setting the set
time of memory a, b, c, and/or off to
be 0.0. Thus, it makes this model
suitable for evaluation test or other
applications.
RAMP SEQUENCE
This function controls the ramping up
and down the voltage and current to
the set value (or from set voltage and
current value to 0V/0A). It is
convenient to increase( decrease) the
voltage and current value slowly.
*The Ramp sequence can be selected from [both
set voltage and current], [only set voltage], and
[only set current].
COMBINATION OF
PULSE and RAMP
SEQUENCE
Features of pulse sequence operation
and ramp sequence operation can be
combined for more convenient
operation. In addition, by adding multi
set function, sequence operation can
be operated using stored voltage and
current settings in each memory. The
setting of repetition to say nothing of a
continuous driving can be set. For
example it is possible to slowly ramp
up and down the voltage and current
to the three different settings, and so,
it is useful on various scenes.
Note: The operation accuracy of the timer when sequensing is ±0.5%. Be careful when you use it by the long-term running operation.
t1 and t2 can be set with range 0 to 999s respectively.
0V(Output OFF)
(Output OFF)
t1, t2, t3 and t4 can be set with range 0 to 999s respectively.
ta, tb, tc and toff can be set with range 0.0s to 99.9h respectively.
Setting Voltage
/ Current
09

10
Vout
+
-
+
-
V1+V2
PS1
V1
PS2
V2
0V
■■ ■
++
-
+
--
PS1
PS2
+
-
+
-
PS1
PS2
+Vout
- Vout
0V
Series Operation · Parallel Operation
Split operation
[caution]
Total output voltage is to be up to 250V.
Therefore for models with output voltage
of over 250V, series operation cannot be
conducted. Output current is to be the
smallest current of those.
Remote switch terminal is connected to
+output internally, therefore do not con-
nect other remote switch at the same
time.
Please keep all the settings of voltage the same.
Output current will be the summation of each
current.
[caution]
Please keep OVP level of power supply
maximum to prevent any damage.
[caution]
Remote switch terminal is connected to
+output internally, therefore do not
connect other remote switch at the same
time.
Series operation
Load
Parallel operation
R4K-80 power supply of same model number can be connected in
series or parallel to increase output voltage or current.
Stand Binder Rack mount holder
[RMO series]
For one unit operation...
For the applications which require 2 to 6
units combination. Dual, triple and quad
multiple operation is possible.
*Cooling fan is needed
for more than 3 units
combination.
Various accessories are available
for convenient use of the unit.
R4K-80 series Accessory Kit
*Power supply is not included in the accessories.
10 Units/1 rack holder, and can
be placed in a cabinet. Easy
to take one unit out.
Best suitable for a system operation .
With fan unit.

11
AWG mm2
18
16
14
12
10
8
6
1.1
1.3
2.1
3.3
5.3
8.4
13
2
7
11
18
23
39
67
Io
Vo
100％
0
10％
10％ 100％
F.S
F.S
Definition of specifications
Connection · Operation
TECHNICAL NOTE
Max current(A)
Connection of load
P.S
Parallel connection of load
P.S Di
Connection of load
· Please use a short lead wire that is sufficiently thick for the
connection.
· Please use PVC electric cable (105°C) that can fully tolerate the
voltage used. It is necessary to consider current capacity, length
limit of output wire by sensing (0.5V/lead) and so on for wiring
with load. Please refer to the following diagram to determine the
thickness of cable.
Please insert a diode of which rating is bigger than output
voltageandcurrentofpowersupply toprotectthepowersupply
from kick back of load.
Load 1 Load 2 Load 3
P.S
Load 1 Load 2 Load 3
Bad exampleGood example
Inductive load
(Transformer or motor)
New world standard!
RK-80 series
·Variable output range
·Low noise switching method
·Universal input
Palm top size ULTRA
compact DC supply!
R4K-36 series
· Palm top size even for 18/2A, 36V/1A output
·4-digit meters
·Digital interface as standard function
Ripple
Preset
When selecting
DC power supply
Products on this catalog have been manufactured with consideration of safety as DC
power supply, however please follow instruction manual for operation and make sure
to ground the ground terminal for your safety.
Products on this catalog have been manufactured on the precondition that they are
used in ground electric potential or within the range of the above series operation.
Please contact our sales staff when using the product for floating of high electric
potential, etc.
Products on this catalog are manufactured with consideration for protection against
load discharge. However for specific experiment or continuous discharge such as
sputtering, product may need discharge resistance between power supply and load
or could not be used at all. Please consult with our sales staff in advance.
We recommend that you contact our sales staff with your requirement before choosing
aproductso thatyoucan getthebest product and the safety as high-voltageequipment
is assured.
Important Notice
"F.S × catalog value(*)" is applied
for ripple, stability, regulations and
temperature coefficient, and "value
if F.S × ±0.5%(*)" is applied for
high-voltage output linearity,
monitor linearity and display
linearity, both in the range of 10%
to 100% of maximum rating output.
Applicable scope of specifications
Specifications in this catalog, except otherwise specified, refer to values when maximum rating output (full scale*) after 2-hour warm up.
Indication is in rms that includes high-frequency noise.
Preset value does not show the actual output status accurately. If
you need an accurate setting, conduct actual output without load
and set a voltage. Also for setting current, conduct output after
shorting the output terminal and gradually raise current before
setting at a desired value.
*

NEW
Customer Inquiry Sheet (R4K-80 series)
Please copy this page and above fax number after filling out form below.
A quotation
Other ( )
An explanation of product A demonststration To purchase
Address:
Company:
Dept.: Title:
Fax:
Name:
Tel:
E-mail:
Give us your requirement / comment
I would like
Please fill in below.
USA/canada
USA/canada
:
:
1-888-652-8651
1-888-652-8651
other countries
other countries
:
:
1-81-6-6150-5089
1-81-6-6150-5089
FAX
FAX
01.137.02 01
www.matsusada.com/contactwww.matsusada.com/product
For products For contact
San Jose Office : 2570 N.First Street Suite 200 San Jose, CA 95131
Tel: [phone] Fax: [phone]
New York Office : 80 Orville Drive Suite 100 Bohemia, NY 11716
Tel: [phone] Fax: [phone]
Dallas Office : 5430 LBJ Freeway, Suite 1200 Dallas, TX 75240
Tel: [phone] Fax: [phone]
International Office : Osaka-City, Osaka Japan
Tel: [phone] Fax: [phone]
Headquarters : 745 Aoji-cho Kusatsu Shiga 525-0041 Japan
Tel: [phone] Fax: [phone]
Warranty
We warrant that products contained in this catalog (hereinafter, the “Products”) are free from defects in material and workmanship under normal use for a period of one (1) year from the date of
shipment thereof. However, the warranty period for X-ray detectors and X-ray source shall be either one (1) year from the date of shipment or 1,000 hours, whichever shorter.The above warranty
shall not apply to any Product which, at our sole judgment, has been:i)Repaired or altered by persons unauthorized by us; or ii)Connected, installed, adjusted or used otherwise than in accordance
with the instructions furnished by us (including being used in an inappropriate installation environment, such as in corrosive gas, high temperature and humidity). We are not liable for any loss,
damage or failure of the Products after the shipment thereof caused by external factors such as disasters.If any Product is showed to be defective as satisfactory to us, we, at our sole discretion,
repair or replace such defective Products at no cost to the purchaser.We assume no liability to the purchaser or any third party for special, incidental, consequential, or other damages resulting
from a breach of the foregoing warranty. This warranty excludes any and all other warranties not set forth herein, express or implied, including without limitation the implied warranties of merchant-
ability or fitness for a particular purpose. The Products are not designed and produced for such applications as requiring extremely high reliability and safety, or involving human lives (such as
nuclear power, aerospace, social infrastructure facility, medical equipment, etc.). The use under such environment is not covered by this warranty and may require additional design and manufac-
turing processes.
