Maverick BB-44 User manual

INSTRUCTION MANUAL
MODEL BD'44
REMOTE COOKTNG THERMOMETER
Introduction
Congratulations on your purchase of the Professional Remote Cooking Thermometer, a programmable radio
frequency food thermometer. You will now be able to remotely monitor the time and temperature of food cooking on
your grill from anywhere, even in your home.
Components
1. l -receiverunit
2. 1-transmitterunit
3. 1 - detachable stainless steel probe sensor
Receiver Features
LCD (Liquid Crystal Display) - Displays all icons, temperature and timer. The backlight will flash Blue once the
temperature increases l0F, will change to Green when the temperature is within l5F of the set temperature and will
turn Red when it reaches the set temperature. See LCD diagram for detailed information.
CLIP - Belt clip allows you to be mobile. Clip the receiver unit to belt.
BATTERY COMPARTMENT - Holds 2 AAA batteries (included)
Buttons
1. MODE - Press to select thermometer or timer mode. Press & hold for 2 seconds to register with the transmitter.
2' HR - In timer mode, press to set hour. Press & hold for 2 seconds, the hours will increase 10 hours per second. In thermometer
mode, press to increase the temperature value. Press & hold for 2 seconds, the temperature value will increase 10 degrees per second.
3. ON-OFF/'F-"C - Press and hold for 2 seconds turns receiver functions on and off. In thermometer mode press to ielectiemperature
readings in Celsius or Fahrenheit.
4. MIN * In timer mode, press to set minutes. Press & hold for 2 seconds, the minutes will increase 10 minutes per second. In
thermometer mode, press to
decrease the temperature value. Press & hold for 2 seconds, the temperafure value will decrease l0 degrees per second,
5. MEAT - In thermometer mode, press to select meat type, PROG (program), GBEEF (ground beef), GPOUL (ground poultry) ,
BEEF, VEAL, CHCKE (chicken), PORK, POULT (poultry) , LAMB & FISH. In Timer mode switches between hour/minute timer to
a minute/second timer and back.
6. START STOP- In timer mode, press to start or stop the timer.
7. TASTE - In thermometer mode, select the meat taste level, RARE, MED RARE, MEDIUM, MED WELL and WELL DONE.
Soft rubber sleeve

TI J'57
ERV
TPROG
r HH,itb
PROBETEMP TEMPSET
LCD
Timer mode
Timer mode Hour
tl
Thermomenter mode
Minute
I
aste level
Set temperature reading
Transmitter Features
Stand - Fold up stand for easy storage.
BATTERY COMPARTMENT-holds 2 AAA
batteries (included).
Buttons
l' ON-OFF/'F-.C - Press and hold for 2 seconds turns transmitter on and off. Press to select temperature readings in Celsius or
Fahrenheit.
Registration Procedures
Open the battery compartment of receiver and insert the two ('AAA' bafieries. Open the battery compartment of transmitter and insert
the two
from the transmitter.
Transmitter & Receiver are off.
I . Plug the stainless steel probe sensor into the plug in of the transmitter.
2. Turn transmitter on by pressing and holding ttre bN-OpffF-"C button on the side for 2 seconds.
3. Tum the receiver on by pressing and holding the oN-oFF/"F-oc button for 2 seconds.
4. Registration is complete when the receiver shows the probe temperature where the '1--" was.
Auto Off feature:
The receiver will turn off automatically if it hasn't received the temperature signal from the transmitter for more than 30 minutes. A
beep will sound for one minute before it shuts down. However, the Auto Off feature will be automatically disabled if the timer is
running. The transmitter will tum off automatically if the temperature measured is always lower than 50 .C (122.F) in 120 minutes.
-||f- f- r-
_O::(- :(- :-O
AIL '.-'
r i55'*F-&-
'ffi@
o
i
- |

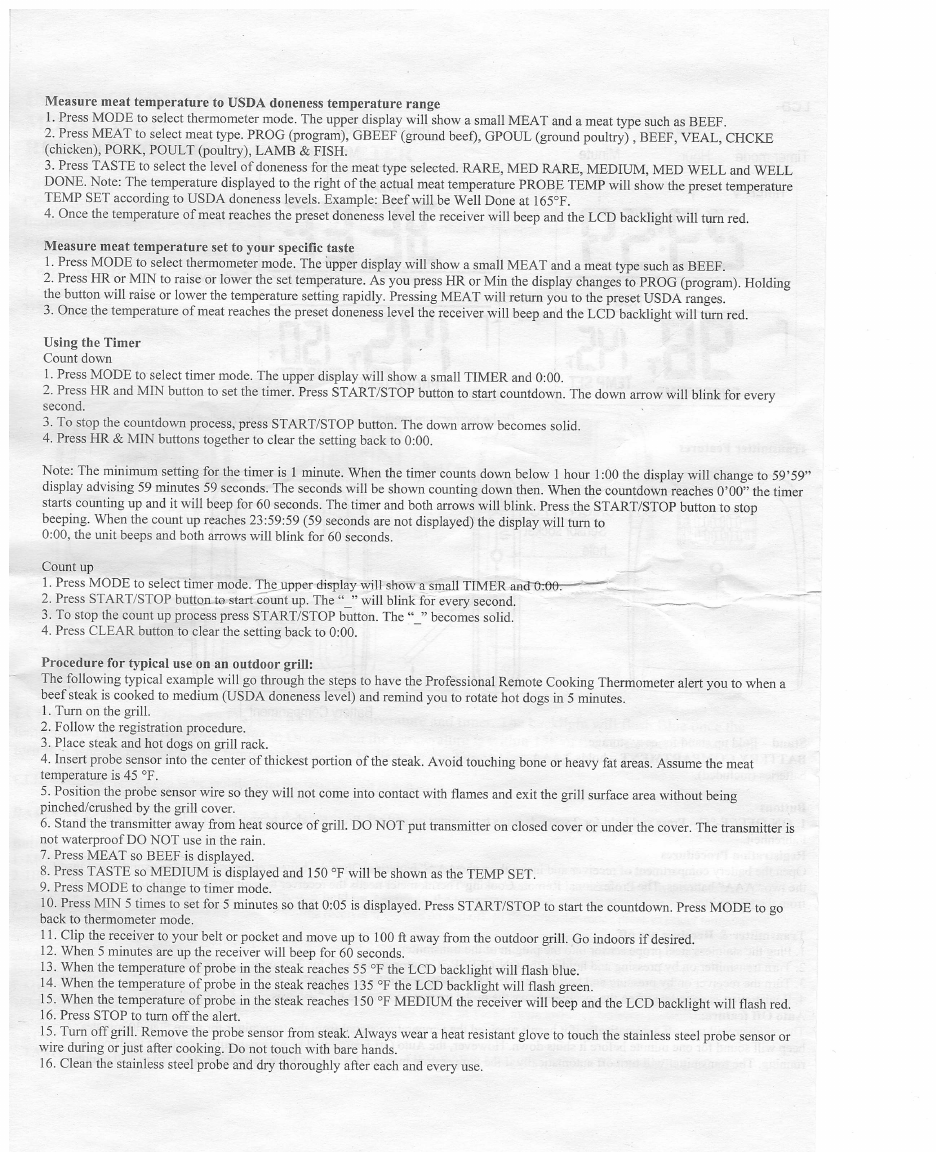

Measure meat temperature to USDA doneness temperature range
1. Press MODE to select thermometer mode. The upper display will show a small MEAT and a meat type such as BEEF.
2. Press MEAT to select meat type. PROG (program), GBEEF (ground beef), GPOUL (ground poultry) , BEEF, VEAL, CHCKE
(chicken), PORK, POULT (poultry), LAMB & FISH.
3. Press TASTE to select the level of doneness for the meat type selected. RARE, MED RARE, MEDIUM, MED WELL and WELL
DONE. Note: The temperature displayed to the right of the actual meat temperature PROBE TEMP will show the preset temperature
TEMP SET according to USDA doneness levels. Example: Beef will be Well Done at 165oF.
4. Once the temperature of meat reaches the preset doneness level the receiver will beep and the LCD backlight will furn red.
Measure meat temperature set to your specific taste
1. Press MODE to select thermometer mode. The irpper display will show a small MEAT and a meat type such as BEEF.
2. Press HR or MIN to raise or lower the set temperature. As you press HR or Min the display changes to pnOC furogram). Holding
the button will raise or lower the temperature setting rapidly. Pressing MEAT will return you to the preset USDAianges.
3. Once the temperature of meat reaches the preset doneness level the receiver will beep and the LCb backlight will turn red.
Using the Timer
Count down
l. Press MODE to select timer mode. The upper display will show a small TIMER and 0:00.
2' Press HR and MIN button to set the timer. Press START/STOP button to start countdown. The down arrow will blink for everv
second.
3. To stop the countdown process, press START/STOP button. The down arrow becomes solid.
4. Press HR & MIN buttons together to clear the setting back to 0:00.
Note: The minimum setting for the timer is I minute. When the timer counts down below I hour 1:00 the display will change to 59,59,'
display advising 59 minutes 59 seconds. The seconds will be shown counting down then. When the countdown reaches 0,001, the timer
starts counting up and it will beep for 60 seconds. The timer and both arrows will blink. Press the START/STOp button to stoo
beeping. V/hen the count up reaches 23:59:59 (59 seconds are not displayed) the display will turn to
0:00, the unit beeps and both arrows will blink for 60 seconds.
Count up
[. Press MODE to select timer mode. !hq-upp*. display will show a smallrIMER antrffiffi -
2. Press srART/sroP butto,nto start 6unt up. The "_" will blink for every second.
3. To stop the count up process press START/STOP button. The .6 ,, becomes solid.
4. Press CLEAR button to clear the settine back to 0:00.
Procedure for typical use on an outdoor grill:
The following typical example will go through the steps to have the Professional Remote Cooking Thermometer alert you to when a
beef steak is cooked to medium (USDA doneness level) and remind you to rotate hot dogs in 5 minutes.
1. Turn on the grill.
2. Follow the registration procedure.
3. Place steak and hot dogs on grill rack.
4. Insert probe sensor into the center of thickest portion of the steak. Avoid touching bone or healy fat areas. Assume the meat
temperature is 45 oF.
5. Position the probe sensor wire so they will not come into contact with flames and exit the grill sgrface area without being
pinched/crushed by the grill cover.
6. Stand the transmifter away from heat source of grilt. DO NOT put transmitter on closed cover or under the cover. The transmitter is
not waterproof DO NOT use in the rain.
7. Press MEAT so BEEF is displayed.
8. Press TASTE so MEDIUM is displayed and 150 "F will be shown as the TEMP sET.
9. Press MODE to change to timer mode.
10. Press MIN 5 times to set for 5 minutes so that 0:05 is displayed. Press START/STOP to start the countdown. Press MODE to eo
back to thermometer mode.
11. Clip the receiver to yow belt or pocket and move up to 100 ft away from the outdoor grill. Go indoors if desired.
12. When 5 minutes are up the receiver will beep for 60 seconds.
13. When the temperature of probe in the steak reaches 55 oF the LCD backlight will flash blue.
14. When the temperature of probe in the steak reaches 135 "F the LCD backlight will flash green.
15. When the temperature of probe in the steak reaches 150 "F MEDIUM the receiver will beep and the LCD backlight will flash red.
16. Press STOP to turn off the alert.
15. Tum off grill. Remove the probe sensor from steak Always wear a heat resistant glove to touch the stainless steel probe sensor or
wire during or just after cooking. Do not touch with bare hands.
16. Clean the stainless steel probe and dry thoroughly after each and every use.

17. Turn off the transmitter.
HELPFUL HINTS
If the receiver and/or the transmitter display LLL or HHH instead of the probe temperature, wait for probe to reach room temperature.
If LLL or HHH is still displayed it is likely the internal probe wire has shorted out either through moisture or heat damage.
Do not immerse the probe in water while cleaning.
Do not allow the probe or probe wire to come into contact with flames. If cooking with grill cover closed, only use medium or low
heat.
Ifthe probe becomes defective within 90 day warranty period please return defective probe to address below along with return
address and we will send you new probe no charge.
If the temperature displayed seems to read too high or the temperature seems to increase too quickly check to make sure the probe tip
is not poking through the food to outside. Reposition the probe tip in the center of the thickest part of food. Avoid touching bone or
heavy fat areas.
Cautions: Always wear a heat resistant glove to touch the stainless steel probe sensor or wire during or just after cooking. Do
not touch with bare hands.
Keep the stainless steel probe sensor and wire away from children.
Not Intended for Use by Persons ages 12 and Under.
Clean the stainless steel probe and dry thoroughly after each and every use.
Do not immerse the probe or wire in water. Clean using a damp, soapy cloth.
Do not use the receiver or transmitter in the rain. They are not waterproof.
-Do not expose the ptug o.tj-hesfaintess-steel probe or the plug in hole of the tratrsmitter to water or any liquid. This will result
Tne'TtrcTfr'frtion an{fpulfy readings. +.r=:--=
€
Do not expose the receiver or transmitter to direct heat or surface. Do not use stainless steel probe in microwave oven.
The Professional Remote Cooking Thermometer registers temperatures as low as 16 'F (-9 "C) and as high 482 oF (250 'C).
LLL will be displayed
below 16 oF and HHH will be displayed above 482 oF. Do not use the stainless steel probe sensor above 482 "F. Doing so will
deteriorate the wire.
LIMITED NINETY DAY WARRANTY
Maverick Industries In c. warrants the Professional Remote Cooking Thermometer to be free of defects in parts, materials
and workmanship for a period of 90 days, from date of purchase. Should any repairs or servicing under this warranty be
required, contact Maverick Customer Service by mail or phone for instructions on how to pack and ship the Professional
Remote Cooking Thermometer to Maverick's National Service Center located as follows:
Maverick Customer Service
94 Mayfield Ave.
Edison, N J 08837
www. mave rickthermom eters. co m
Telephone: [phone]
Hours:Weekdays8 :3OA M- 4:30P M
Do not send any parts or product to Maverick without calling an obtaining a Return Authorization Number and instructions.
This warranty is VOID if instructions for use are not followed; for accidental damage; for commercial use; for damage
incurred while in transit; or if the Professional Remote Cooking Thermometer has been tampered with. This warranty gives
you specific legal rights and you may have rights which vary from state to state
.To purchase, out of warranty, replacement probes please mail us a check to the address below and specify probe type:
PR_008 6,, Food Probe 5L2.oo I ea
Afl prices include shipping & handling. NJ residents addT% sales tax.
